SERVICE MANUAL
Link
Link
SERVICE NOTE
DISASSEMBLY PRINTED WIRING BOARDS
MODEL INFORMATION TABLE
SPECIFICATIONS
SCHEMATIC DIAGRAMS
FRAME SCHEMATIC DIAGRAMS
BLOCK DIAGRAMS
ADJUSTMENTS
INSTRUCTION MANUAL
REPAIR PARTS LIST
HVR-HD1000U/HD1000N/HD1000E/HD1000P/HD1000C
Ver. 1.1 2007.12
2007L0500-1
© 2007.12
Published by Kohda TEC9-852-240-12
US Model
Canadian Model
AEP Model
E Model
Chinese Model
The components identified by
mark 0or dotted line with
mark 0are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
DIGITAL HD VIDEO CAMERA RECORDER
N MECHANISM (MDX-N220)
HVR-HD1000U/HD1000N/HD1000E/
HD1000P/HD1000C
Revised-1
Replace the previously issued
SERVICE MANUAL 9-852-240-11
with this manual.
NOTE
TO (2/2)
TO (2/2)
HVR-HD1000U/HD1000N/HD1000E/HD1000P/HD1000C
Link
Link
5. REPAIR PARTS LIST (1/2)
OVERALL SECTION-1
GRIP SECTION
CABINET (R) SECTION
OVERALL SECTION-2
LENS SECTION
HANDLE (TALLY)
SECTION
VIEW FINDER SECTION
LCD PANEL SECTION
EXPLODED VIEWS
EXPLODED VIEWS
NOTE: Characters Ato Zof the electrical parts list indicate location of exploded views in which the desired part is shown.
ABCD
EF HG
HANDLE (COVER)
SECTION
I
OVERRALL SECTION-3
J
BATTERY PANEL SECTION
K
G BLOCK SECTION
L
CABINET (L) SECTION
M
MECHANISM DECK
SECTION
N
LS/MECHANICHAL CHASSIS
BLOCK ASSEMBLY-1
O
LS/MECHANICHAL CHASSIS
BLOCK ASSEMBLY-1
P
NOTE
TO (1/2)
TO (1/2)
HVR-HD1000U/HD1000N/HD1000E/HD1000P/HD1000C
NOTE: Characters Ato Zof the electrical parts list indicate location of exploded views in which the desired part is shown.
Link
Link ELECTRICAL PARTS LIST
ELECTRICAL PARTS LIST
ACCESSORIES
BL-015 BOARD
BH-001 BOARD
BA-008 BOARD
DC-110 BOARD
CM-077 BOARD
FP-031 FLEXIBLE BOARD
FP-032 FLEXIBLE BOARD
EC-001 BOARD
FP-228 FLEXIBLE BOARD
FP-785 FLEXIBLE BOARD
FP-784 FLEXIBLE BOARD
FP-867 FLEXIBLE BOARD
JK-355 BOARD
HI-078 BOARD
MC-188 BOARD
LD-229 BOARD
JS-003 BOARD
HP-150 BOARD
IF-155 BOARD
SP-048 BOARD
MS-379 BOARD
NS-022 BOARD
PD-342 BOARD
RE-038 BOARD
MO-027 BOARD
VC-500 BOARD
US-014 BOARD
G
G
K
K
E
P
P
E
P
L
G
L
M
G
I
E
M
K
L
C
J
B
H
H
C
L
J
5. REPAIR PARTS LIST (2/2)
5. REPAIR PARTS LIST
5-1
HVR-HD1000U/HD1000N/HD1000E/HD1000P/HD1000C
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
NOTE:
•-XX, -X mean standardized parts, so they may have some differences from
the original one.
•Items marked “*” are not stocked since they are seldom required for routine
service. Some delay should be anticipated when ordering these items.
•The mechanical parts with no reference number in the exploded views are not
supplied.
•Due to standardization, replacements in the parts list may be different from
the parts specified in the diagrams or the components used on the set.
•CAPACITORS:
uF: µF
•COILS
uH: µH
•RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
•SEMICONDUCTORS
In each case, u: µ, for example:
uA...: µA... , uPA... , µPA... ,
uPB... , µPB... , uPC... , µPC... ,
uPD..., µPD...
When indicating parts by reference number,
please include the board name.
•Abbreviation
AR : Argentine model
AUS:Australian model
BR : Brazilian model
CH : Chinese model
CND : Canadian model
EE : East European model
HK : Hong Kong model
J:Japanese model
JE : Tourist model
KR : Korea model
NE : North European model
The components identified by mark 0or
dotted line with mark 0are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
•Color Indication of Appearance Parts
Example:
(SILVER) : Cabinet’s Color
(Silver) : Parts Color
5-2
HVR-HD1000U/HD1000N/HD1000E/HD1000P/HD1000C
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DISASSEMBLY
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
13-284-044-01 BASE, GRIP
*2 3-284-047-01 BRACKET (F), GRIP BELT
33-284-046-01 FRAME, GRIP
41-834-808-11 CABLE, FLEXIBLE FLAT (FFC-337)
5X-2187-984-1 PAD ASSY, SHOULDER
63-284-050-01 SHEET (JAPAN) (HD1000U)
63-284-050-11 SHEET (JAPAN) (HD1000N)
63-284-050-21 SHEET (JAPAN) (HD1000P)
63-284-050-31 SHEET (JAPAN) (HD1000E)
63-284-050-41 SHEET (JAPAN) (HD1000C)
#37 3-080-206-31 SCREW, TAPPING, P2 (Black)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (Black)
#100 3-080-203-51 SREW (M2), LOCK ACE, P2 (Black)
#103 7-685-794-09 SCREW +PTT 2.6X10 (S) (Silver)
#104 7-682-548-09 SCREW +B 3X8 (Black)

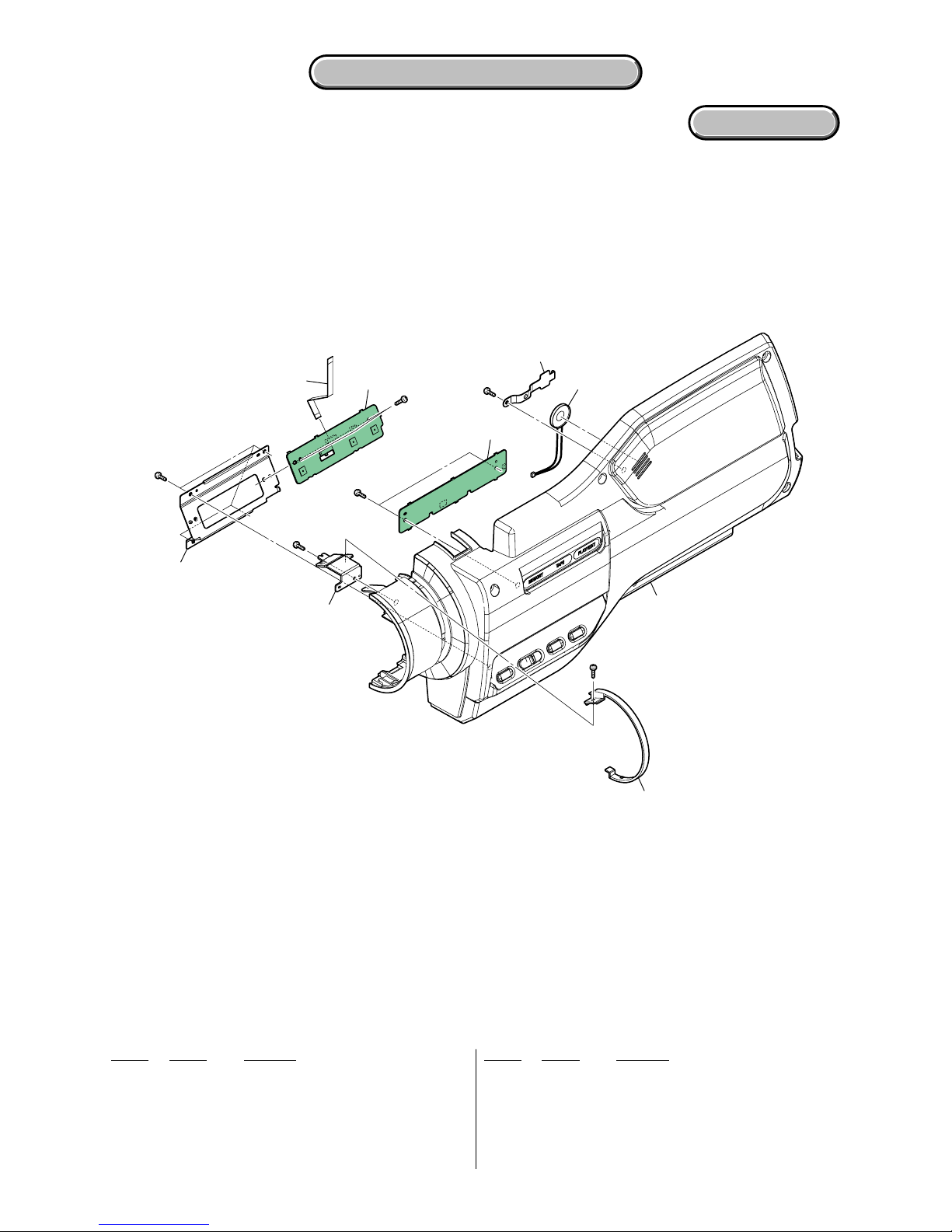

5-1-1. OVERALL SECTION-1
5-1. EXPLODED VIEWS
#37
#100
#100
#100
#10
4
#100
#103
#49
#49
#37
Grip Section
(See Page 5-3)
Cabinet (R) Section
(See Page 5-4)
Overall Section-2
(See Page 5-5)
1
56
2
3
4
Ver. 1.1 2007.12
The changed portions from
Ver. 1.0 are shown in blue.
5-3
HVR-HD1000U/HD1000N/HD1000E/HD1000P/HD1000C
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
51 X-2187-973-1 CABINET ASSY, GRIP
52 3-289-560-01 BELT, GRIP
53 1-480-479-11 SWITCH BLOCK, CONTROL (ZM90500)
54 3-283-958-01 BRACKET (B), GRIP BELT
55 1-480-480-11 SWITCH BLOCK, CONTROL (PS90500)
*56 3-283-959-01 PLATE, SS RETAINER
57 A-1438-618-A NS-022 BOARD, COMPLETE
#37 3-080-206-31 SCREW, TAPPING, P2 (Black)

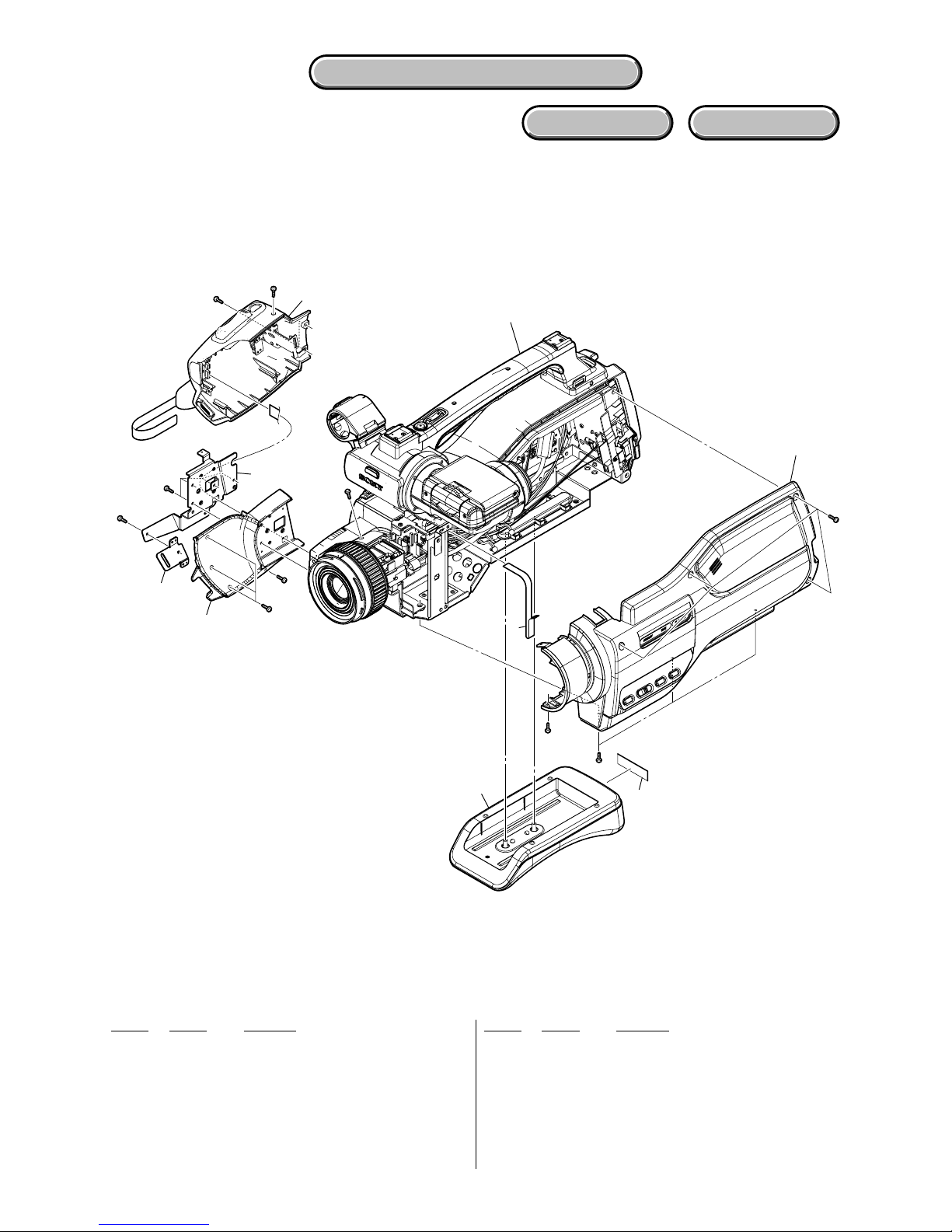

5-1-2. GRIP SECTION
51
52
#37
#37
#37
#37
53
54
55
56
57
5-4
HVR-HD1000U/HD1000N/HD1000E/HD1000P/HD1000C
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
101 3-283-972-01 RING, ORNAMENTAL
102 X-2187-974-1 CABINET (R) ASSY
*103 3-283-971-01 BRACKET (UPPER), LR
*104 3-283-969-01 BRACKET, CHASSIS
105 1-834-807-11 CABLE, FLEXIBLE FLAT (FFC-336)
106 A-1438-625-A SP-048 BOARD, COMPLETE
107 A-1438-628-A MO-027 BOARD, COMPLETE
SP901 1-825-262-62 LOUD SPEAKER (1.6CM)
#37 3-080-206-31 SCREW, TAPPING, P2 (Black)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (Black)
#105 2-891-494-31 SCREW (M2), NEW TRUSTER, P2 (Red)
5-1-3. CABINET (R) SECTION
ns: not supplied
#49
#37
#37
#37
ns
SP901
#105
MO-027
#37
101
102
103
104
105 106
107
5-5
HVR-HD1000U/HD1000N/HD1000E/HD1000P/HD1000C
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DISASSEMBLY
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
151 1-834-811-11 CABLE, FLEXIBLE FLAT (FFC-340)
152 1-965-558-11 HARNESS (LI-062)
*153 3-284-037-01 FRAME (R)
154 CAUTION TAPE AS
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (Black)

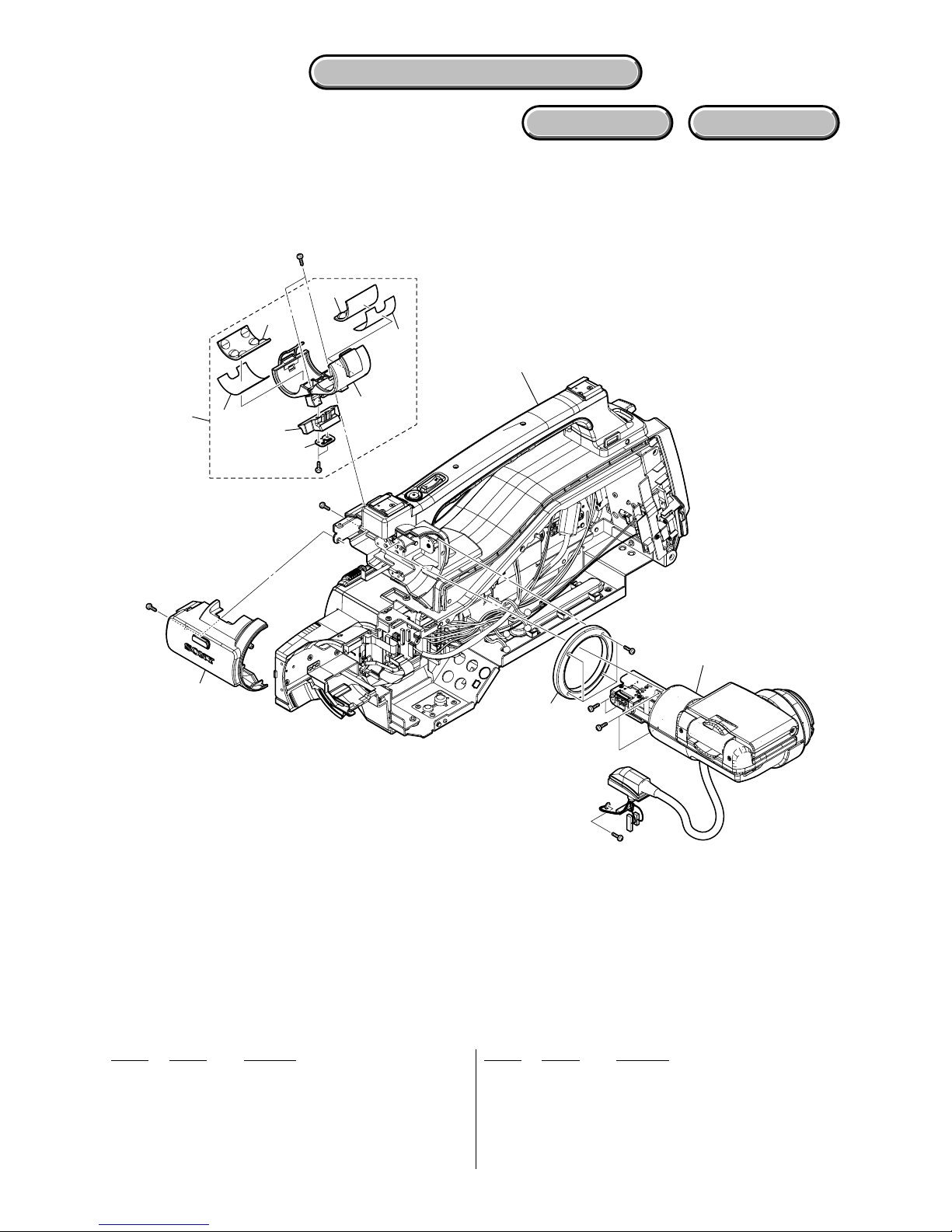

5-1-4. OVERALL SECTION-2
#49
#49
#49
Handle (Tally) Section
(See Page 5-7)
Lens Section
(See Page 5-6)
154
(9mm x 28mm)
151
152
153
CAUTION :
For the part of 154, cut SHEET, LENS FLEXIBLE (3-052-
196-01) into the desired length and use it.
5-6
HVR-HD1000U/HD1000N/HD1000E/HD1000P/HD1000C
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
201 X-2187-983-1 PANEL ASSY, F
202 A-1438-558-A EC-001 BOARD, COMPLETE
203 1-834-810-11 CABLE, FLEXIBLE FLAT (FFC-339)
*204 3-284-035-01 FRAME (L) (905) LENS
205 A-1227-735-A LSV-1190A (SERVICE)
206 1-788-558-11 FILTER BLOCK, OPTICAL
207 2-698-010-01 RUBBER (1190), SEAL
208 A-1209-688-A CMOS BLOCK ASSY (CMOS IMAGER) (Note)
209 A-1237-309-A CM-077 BOARD, COMPLETE (SERVICE)
210 3-284-036-01 CLAMP, FLEXIBLE
*211 3-284-034-01 FRAME (R (905)), LENS
212 A-1438-557-A LD-229 BOARD, COMPLETE
213 CAUTION TAPE AS
#1 2-635-562-11 SCREW (M1.7) (Black)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#23 3-080-204-11 SCREW, TAPPING, P2 (Black)
#37 3-080-206-31 SCREW, TAPPING, P2 (Black)
5-1-5. LENS SECTION
ns: not supplied
201
ns (IC6701)
ns
ns
#23
#23
#23
#1
#1
#37
#37
#37
#37
LD-229
CM-077
#3
202
203
204
205
206
207
208
(Note)
209
210
211
212
213
(9mm x 28mm)
Note: Be sure to read “Precautions for Replacement of
Imager” on page 4-3 when changing the imager.
CAUTION :
For the part of 213, cut SHEET, LENS FLEXIBLE (3-052-
196-01) into the desired length and use it.
5-7
HVR-HD1000U/HD1000N/HD1000E/HD1000P/HD1000C
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DISASSEMBLY
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
251 X-2187-977-1 CABINET ASSY, TALLY (FRONT)
252 X-2187-986-1 HOLDER ASSY, MICROPHONE
253 3-284-074-01 RUBBER, MICROPHONE HOLDER
254 3-284-081-01 SHEET, RUBBER ADHESIVE
255 3-284-080-01 RUBBER, MICROPHONE
256 3-283-989-01 BASE, RING
#23 3-080-204-11 SCREW, TAPPING, P2 (Black)
#37 3-080-206-31 SCREW, TAPPING, P2 (Black)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (Black)
#53 3-080-206-21 SCREW, TAPPING, P2 (Black)
#102 7-621-284-30 SCREW +P 2.6X8 (Black)
5-1-6. HANDLE (TALLY) SECTION
ns: not supplied
251
256
252 254
254
255
255
253
View Finder Section
(See Page 5-8)
Handle (Cover) Section
(See Page 5-10)
#37
#102
#53
#23
#49
#49
#49
#49
ns
ns
