Sony CDX-S2010C Bedienungsanleitung

Operating Instructions

Manual de in s t r uccion e s

CDX-S2010X CDX-S2010T

CDX-S2010C

For installation and connections, see the supplied installation/connections manual.

Para obtener información sobre la instalación y las conexiones, consulte el manual

de instalación/conexiones suministrado.

2-348-403-61 (1)

AM Compact Disc

Player

Autoestéreo para

disco compacto

Welcome !

Thank you for purchasing this Sony Compact

Disc Player. You can enjoy your drive with the

following functions.

• CD playback:

You can play CD-DA and CD-R/CD-RW for

audio use.

• Radio reception:

–You can store up to 6 stations per band (FM1,

FM2, FM3, AM1 and AM2).

–BTM (Best Tuning Memory) function: the

unit selects strong signal stations and stores

them.

Warning if your car’s ignition has no

ACC position

After turning the ignition off, be sure to press

and hold (OFF) on the unit until the display

disappears.

Otherwise, the display does not turn off and

this causes battery drain.

This label is located on the bottom of the

chassis.

The use of optical instruments with this produc

will increase e

e hazard.

CAUTION

Table of Contents

Getting Started

Resetting the unit. . . . . . . . . . . . . . . . . . . . . . . . 4

Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . 4

DEMO mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Detaching the front panel . . . . . . . . . . . . . . . . . 4

Attaching the front panel . . . . . . . . . . . . . . . 4

Location of controls and basic

operations

Main unit . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Radio

Storing and receiving stations . . . . . . . . . . . . . . 6

Storing automatically — BTM . . . . . . . . . . 6

Storing manually . . . . . . . . . . . . . . . . . . . . . 6

Receiving the stored stations . . . . . . . . . . . . 6

Tuning automatically . . . . . . . . . . . . . . . . . . 6

Other functions

Changing the sound settings . . . . . . . . . . . . . . . 6

Adjusting the sound characteristics

— BAL/FAD/SUB . . . . . . . . . . . . . . . . . . . 6

Adjusting the equalizer curve — EQ3 . . . . 6

Adjusting setup items — SET . . . . . . . . . . . . . 7

Using optional remote commanders . . . . . . . . . 7

Card remote commander RM-X114 . . . . . . 7

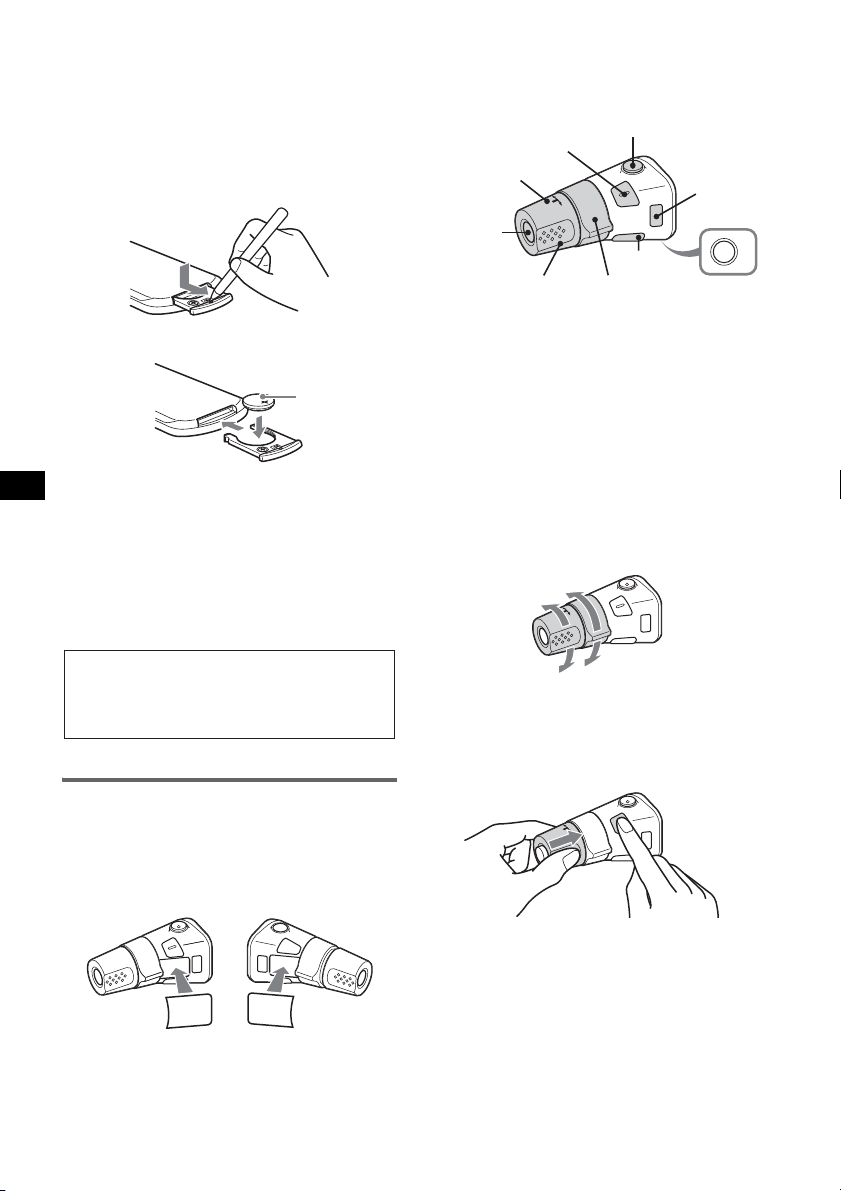

Rotary commander RM-X4S . . . . . . . . . . . 8

Additional Information

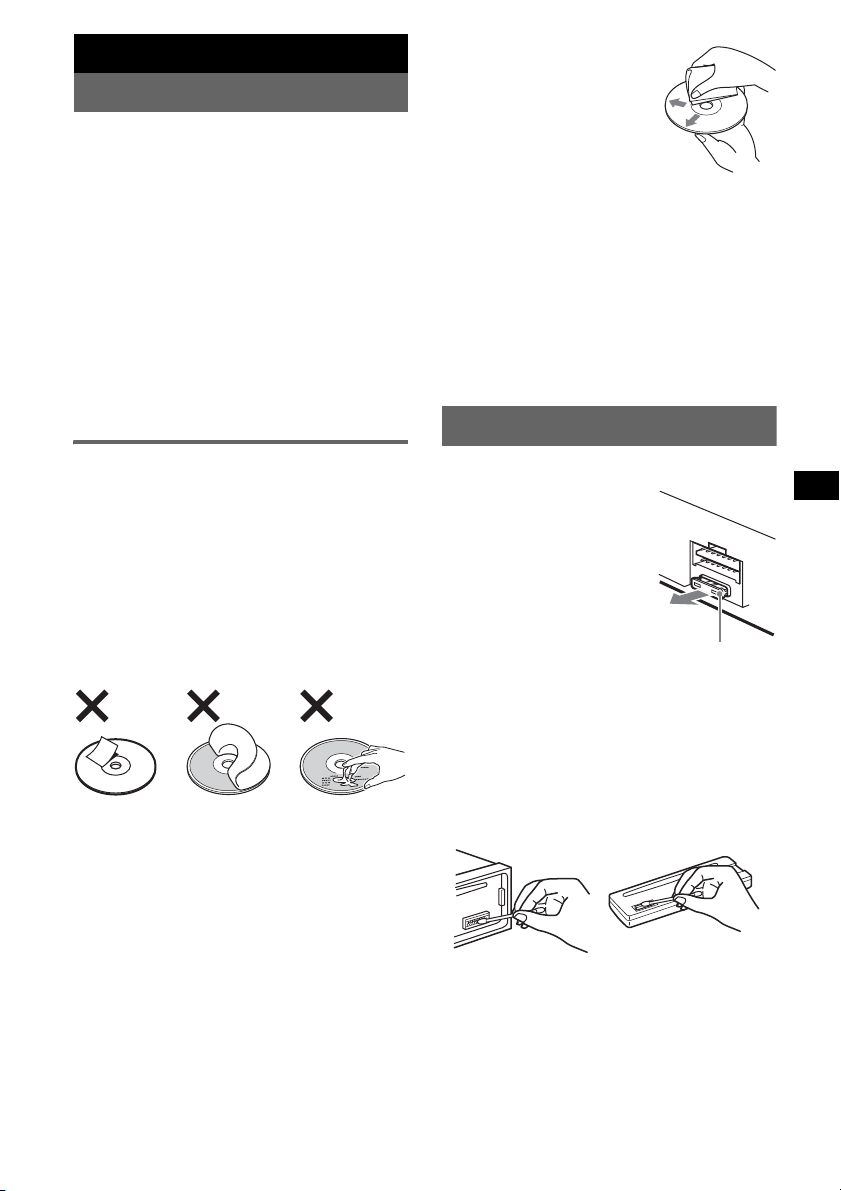

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Notes on discs . . . . . . . . . . . . . . . . . . . . . . . 9

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

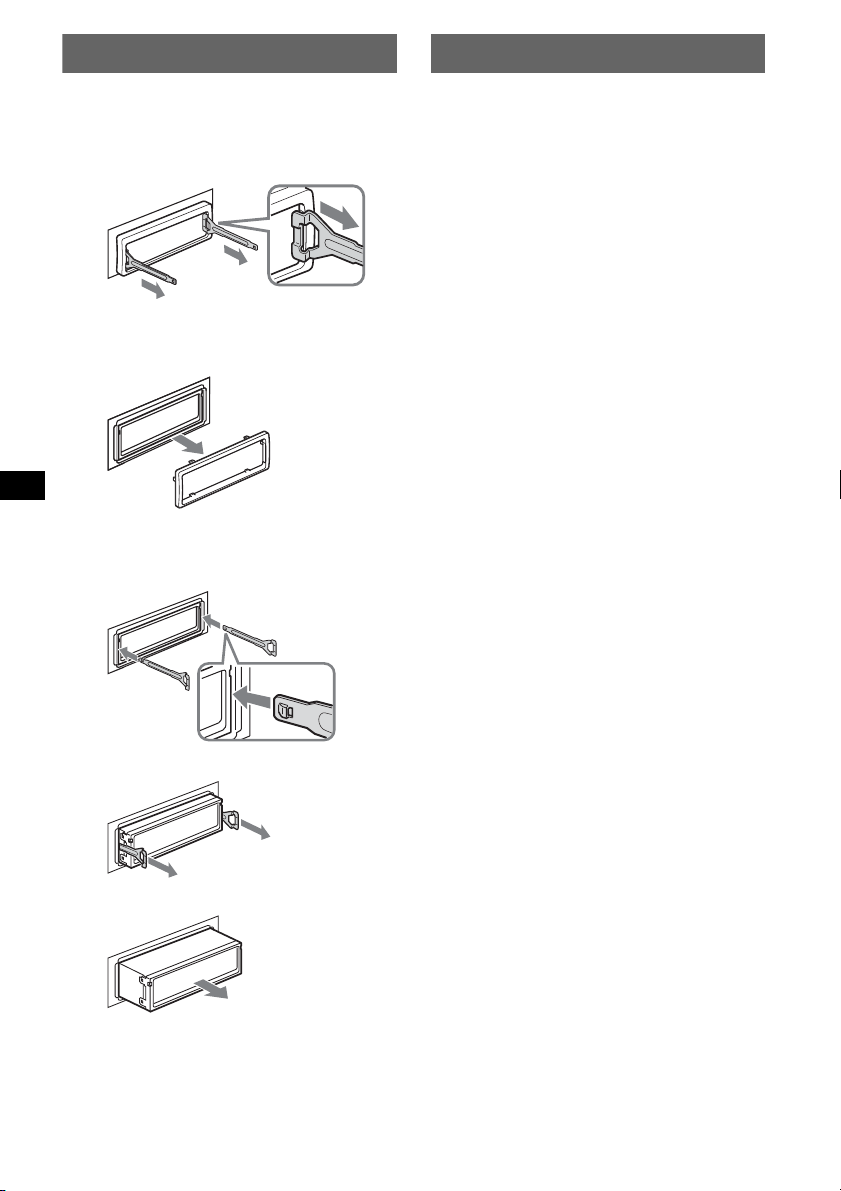

Removing the unit. . . . . . . . . . . . . . . . . . . . . . 10

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 10

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 11

Error displays/Messages . . . . . . . . . . . . . . 12

Getting Started

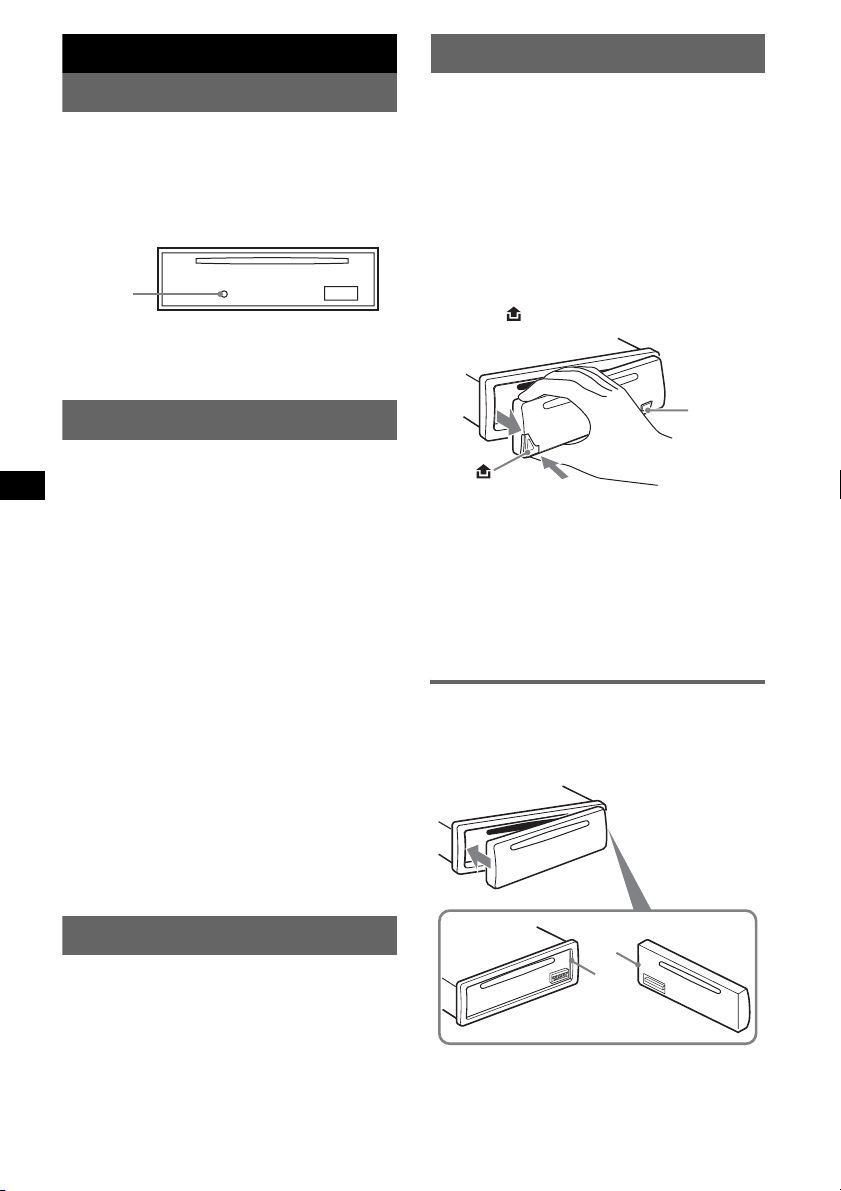

Resetting the unit

Before operating the unit for the first time, or

after replacing the car battery or changing the

connections, you must reset the unit.

Detach the front panel and press the RESET

button with a pointed object, such as a ballpoint

pen.

Note

Pressing the RESET button will erase the clock setting

and some stored contents.

Setting the clock

The clock uses a 12-hour digital indication.

1Press and hold (SEL).

The setup display appears.

2Press (SEL) repeatedly until “CLOCK-

ADJ” appears.

3Press (DSPL).

The hour indication flashes.

4Press the volume +/– button to set the

hour and minute.

To move the digital indication, press (DSPL).

5Press (SEL).

The clock starts and the next setup display

appears.

6Press and hold (SEL).

The setup is complete.

To display the clock, press (DSPL). Press

(DSPL) again to return to the previous display.

With the card remote commander

In step 2 and 4, to select the item or setting, press M

or m. In step 4, to move the digital indication, press <

or ,.

DEMO mode

When the unit is turned off, the clock is

displayed first, then demonstration (DEMO)

mode starts the demonstration display.

To cancel the DEMO mode, set “DEMO-OFF”

in setup (page 7) while unit is turned off.

Detaching the front panel

You can detach the front panel of this unit to

prevent theft.

Caution alarm

If you turn the ignition switch to the OFF

position without detaching the front panel, the

caution alarm will sound for a few seconds.

The alarm will only sound if the built-in

amplifier is used.

1Press (OFF).

The unit is turned off.

2Press , then pull it off towards you.

Notes

•Do not drop or put excessive pressure on the front

panel and display window.

•Do not subject the front panel to heat/high

temperature or moisture. Avoid leaving it in a parked

car or on a dashboard/rear tray.

Tip

When carrying the front panel, use the supplied front

panel case.

Attaching the front panel

Engage part Aof the front panel with part Bof

the unit, as illustrated, and push the left side into

position until it clicks.

Note

Do not put anything on the inner surface of the front

panel.

RESET

button

(OFF)

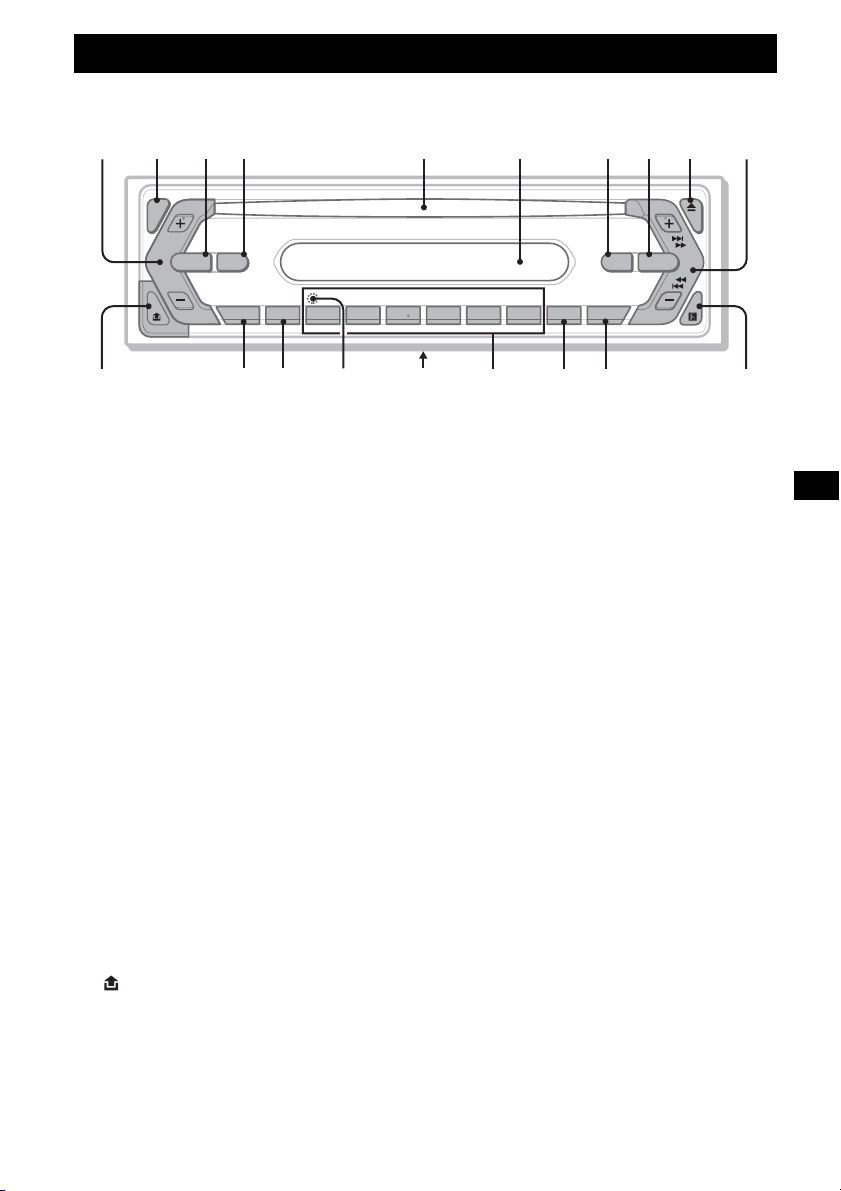

Location of controls and basic operations

Main unit

Refer to the pages listed for details.

aVolume +/– button

To adjust volume.

bSEL (select) button 4, 6, 7

To select items.

cSOURCE button

To power on/change the source (Radio/CD).

dMODE button 6

To select the radio band (FM/AM).

eDisc slot

Insert the disc (label side up), playback

starts.

fDisplay window

gATT (attenuate) button

To attenuate the sound. To cancel, press

again.

hEQ3 (equalizer) button 6

To select an equalizer type (XPLOD,

VOCAL, CLUB, JAZZ, NEW AGE, ROCK,

CUSTOM or OFF).

iZ(eject) button

To eject the disc.

jSEEK +/– button

Radio:

To tune in stations automatically (press); find

a station manually (press and hold).

CD:

To skip tracks (press); fast-forward/reverse a

track (press and hold).

k(front panel release) button 4

lDSPL (display)/DIM (dimmer) button

To change display items (press); change the

display brightness (press and hold).

mSENS button

To improve weak reception: LOCAL/

MONO.

nRESET button (located behind the front

panel) 4

oFrequency select switch (located on the

bottom of the unit)

See “Frequency select switch” in the

supplied installation/connections manual.

pNumber buttons

Radio:

To receive stored stations (press); store

stations (press and hold).

CD:

(3): REP

To play the current track/disc repeatedly.

(4): SHUF

To play the tracks in random order.

qBTM button 6

To start the BTM function (press and hold).

rOFF button

To power off/stop the source.

sReceptor for the card remote

commander 7

SENS BTM OFFDSPL 1 2 3 4 5 6

SEL

DIM

SHUFREP

EQ3ATT

SOURCE MODE SEEK

CDX-S2010X

CDX-S2010T

CDX-S2010C

1234 5 6 7890

qs qd qf qjqg qlqh qk

Radio

Storing and receiving

stations

Caution

When tuning in stations while driving, use Best

Tuning Memory (BTM) to prevent an accident.

Storing automatically — BTM

1Press (SOURCE) repeatedly until

“TUNER” appears.

To change the band, press (MODE)

repeatedly. You can select from FM1, FM2,

FM3, AM1 or AM2.

2Press and hold (BTM) until “BTM”

flashes.

The unit stores stations in order of frequency

on the number buttons.

A beep sounds when the setting is stored.

Storing manually

1While receiving the station that you

want to store, press and hold a

number button ((1) to (6)) until

“MEM” appears.

The number button indication appears in the

display.

Note

If you try to store another station on the same number

button, the previous stored station will be replaced.

Receiving the stored stations

1Select the band, then press a number

button ((1) to (6)).

With the card remote commander

To select preset stations, press Mor m.

Tuning automatically

1Select the band, then press (SEEK) +/–

to search for the station.

Scanning stops when the unit receives a

station. Repeat this procedure until the

desired station is received.

Tip

If you know the frequency of the station you want to

listen to, press and hold (SEEK) +/–to locate the

approximate frequency, then press (SEEK) +/–

repeatedly to fine adjust to the desired frequency

(manual tuning).

Other functions

Changing the sound

settings

Adjusting the sound

characteristics — BAL/FAD/SUB

You can adjust the balance, fader and subwoofer

volume.

1Press (SEL) repeatedly until “BAL,”

“FAD” or “SUB” appears.

The item changes as follows:

LOW*1tMID*1tHI*1t

BAL (left-right) t FAD (front-rear) t

SUB (subwoofer volume)*2

*1 When EQ3 is activated (page 6).

*2 When the audio output is set to “SUB” (page 7).

“ATT” is displayed at the lowest setting, and can

be adjusted up to 20 steps.

2Press the volume +/– button

repeatedly to adjust the selected item.

After 3 seconds, the setting is complete and

the display returns to normal play/reception

mode.

Note

Adjust within 3 seconds of selecting the item.

With the card remote commander

In step 2, to adjust the selected item, press

<, M, ,or m.

Adjusting the equalizer curve

— EQ3

You can adjust and store the equalizer settings

for different tone ranges.

1Select a source, then press (EQ3)

repeatedly to select the EQ3 type.

2Press (SEL) repeatedly until “LOW,”

“MID” or “HI” appears.

3Press the volume +/– button

repeatedly to adjust the selected item.

The volume level is adjustable in 1 dB steps,

from –10 dB to +10 dB.

Repeat steps 2 and 3 to adjust the equalizer

curve.

To restore the factory-set equalizer curve,

press and hold (SEL) before the setting is

complete.

After 3 seconds, the setting is complete and

the display returns to normal play/reception

mode.

With the card remote commander

In step 3, to adjust the selected item, press <, M, ,

or m.

Adjusting setup items

— SET

1Press and hold (SEL).

The setup display appears.

2Press (SEL) repeatedly until the

desired item appears.

3Press the volume +/– button to select

the setting (example “ON” or “OFF”).

4Press and hold (SEL).

The setup is complete and the display returns

to normal play/reception mode.

Note

Displayed items will differ, depending on the source

and setting.

With the card remote commander

In step 2, to select the setup item, press Mor m. In

step 3, to select the setting, press <or ,.

The following items can be set (follow the page

reference for details):

“z” indicates the default settings.

*1 When the unit is turned off.

*2 When the audio output is set to “SUB.”

Using optional remote

commanders

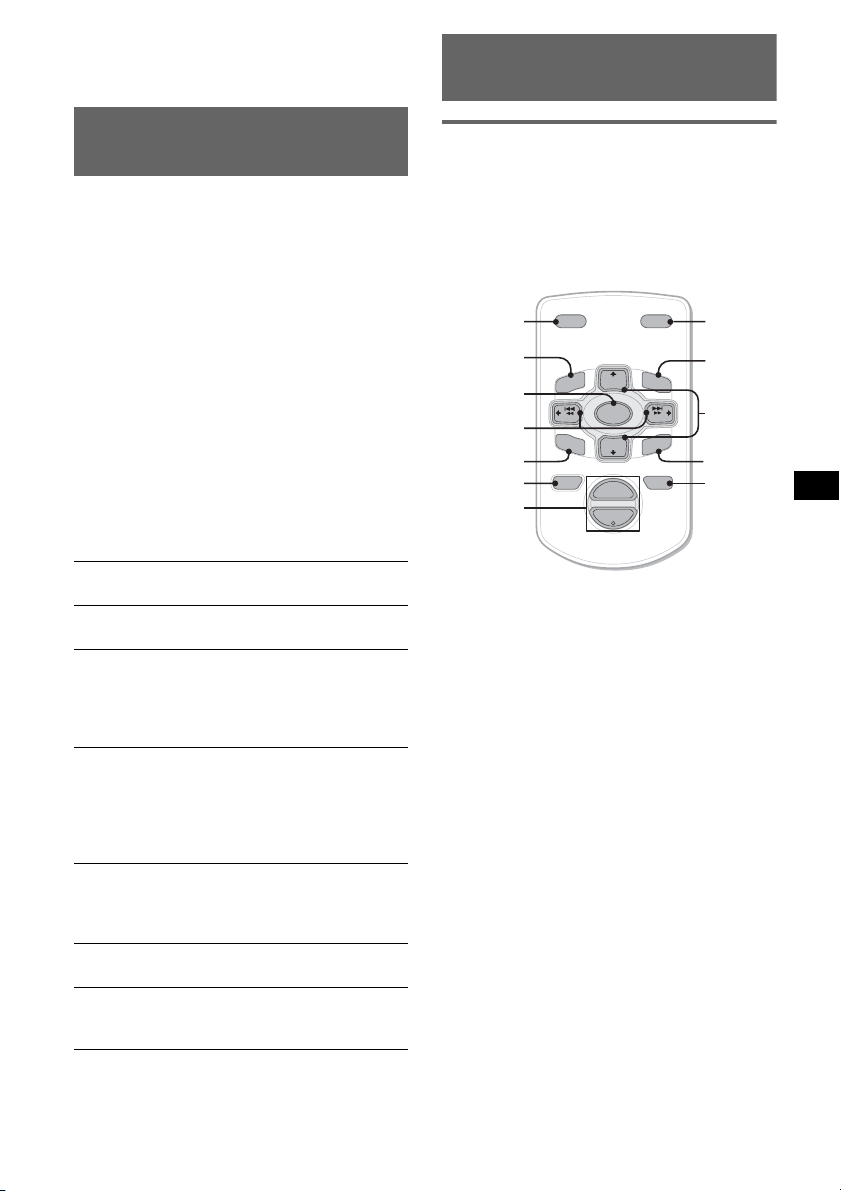

Card remote commander

RM-X114

Location of controls

The corresponding buttons on the card remote

commander control the same functions as those

on this unit.

The following buttons on the card remote

commander have also different buttons/functions

from the unit.

•SOUND button

The same as (SEL) on the unit.

•</,(SEEK –/+) buttons

To control radio/CD, the same as (SEEK)

+/– on the unit. (For details of other operations,

see “With the card remote commander” on each

pages.)

•M/m(DISC*/PRESET +/–) buttons

For details, see “With the card remote

commander” on each pages.

*Not available for this unit.

Note

If the unit is turned off and the display disappears, it

cannot be operated with the card remote commander

unless (SOURCE) on the unit is pressed, or a disc is

inserted to activate the unit first.

CLOCK-ADJ

(Clock Adjust)

(page 4)

BEEP To set “BEEP-ON” (z) or

“BEEP-OFF.”

SUB/REAR*1To switch the audio output.

–“SUB” (

z): to output to a

subwoofer.

– “REAR”: to output to a

power amplifier.

DIM (Dimmer) To change the brightness of the

display.

– “DIM-ON”: to dim the

display.

– “DIM-OFF” (z): to

deactivate the dimmer.

ILM-1/ILM-2

(Illumination)

(CDX-S2010C

only)

To change the illumination

colour.

– “ILM-1” (z): Amber

– “ILM-2”: Green

DEMO*1

(Demonstration)

To set “DEMO-ON” (z) or

“DEMO-OFF” (page 4).

LPF*2(Low

Pass Filter)

To select the cut-off frequency

“78HZ,” “125HZ” or “OFF”

(z).

continue to next page t

DISC

–

ATTOFF

DSPL MODE

SOURCE

DISC

VOL

–

PRESET

SEEK

–

PRESET –

SOUND

ENTER

LIST

MODE

LIST*

ENTER*

ATT

DSPL

MENU*

SOURCE

</,

(SEEK –/+)

SOUND

OFF

VOL (+/–)

m/M

(DISC*/

PRESET

+/–)

Replacing the lithium battery

Under normal conditions, the battery will last

approximately 1 year. (The service life may be

shorter, depending on the conditions of use.)

When the battery becomes weak, the range of the

card remote commander becomes shorter.

Replace the battery with a new CR2025 lithium

battery. Use of any other battery may present a

risk of fire or explosion.

Notes on the lithium battery

•Keep the lithium battery out of the reach of children.

Should the battery be swallowed, immediately

consult a doctor.

•Wipe the battery with a dry cloth to assure a good

contact.

•Be sure to observe the correct polarity when

installing the battery.

•Do not hold the battery with metallic tweezers,

otherwise a short-circuit may occur.

Rotary commander RM-X4S

(CDX-S2010C only)

Attaching the label

Attach the indication label depending on how

you mount the rotary commander.

Location of controls

The corresponding buttons on the rotary

commander control the same functions as those

on this unit.

The following controls on the rotary commander

require a different operation from the unit.

•PRESET control

To select preset stations (push in and rotate).

•VOL control

The same as the volume +/– button on the unit

(rotate).

•SEEK/AMS control

The same as (SEEK) on the unit (rotate, or

rotate and hold).

Changing the operative direction

The operative direction of the controls is factory-

set as shown below.

If you need to mount the rotary commander on

the right hand side of the steering column, you

can reverse the operative direction.

1While pushing the VOL control, press and

hold (SEL).

+ side up

WARNING

Battery may explode if mistreated.

Do not recharge, disassemble, or dispose of

in fire.

SEL

DSPL

MODE

SEL

DSPL

MODE

OFF

ATT

SEL

SOURCE

DSPL

MODE

OFF

VOL SEEK/AMS

PRESET

To increase

To decrease

Additional Information

Precautions

• If your car has been parked in direct sunlight,

allow the unit to cool off before operating it.

• Power aerial will extend automatically while

the unit is operating.

Moisture condensation

On a rainy day or in a very damp area, moisture

condensation may occur inside the lenses and

display of the unit. Should this occur, the unit

will not operate properly. In such a case, remove

the disc and wait for about an hour until the

moisture has evaporated.

To maintain high sound quality

Be careful not to splash juice or other soft drinks

onto the unit or discs.

Notes on discs

• To keep a disc clean, do not touch its surface.

Handle the disc by its edge.

• Keep your discs in their cases or disc

magazines when not in use.

• Do not subject discs to heat/high temperature.

Avoid leaving them in a parked car or on a

dashboard/rear tray.

• Do not attach labels, or use discs with sticky

ink/residue. Such discs may stop spinning

when used, causing a malfunction, or may ruin

the disc.

• Do not use any discs with labels or stickers

attached.

The following malfunctions may result from

using such discs:

– Inability to eject a disc (due to a label or

sticker peeling off and jamming the eject

mechanism).

– Inability to read audio data correctly (e.g.,

playback skipping, or no playback) due to

heat shrinking of a sticker or label causing a

disc to warp.

• Discs with non-standard shapes (e.g., heart,

square, star) cannot be played on this unit.

Attempting to do so may damage the unit. Do

not use such discs.

• You cannot play 8 cm CDs.

• Before playing, clean the

discs with a commercially

available cleaning cloth. Wipe

each disc from the centre out.

Do not use solvents such as

benzine, thinner,

commercially available

cleaners, or antistatic spray

intended for analogue discs.

Notes on CD-R/CD-RW discs

• Some CD-Rs/CD-RWs (depending on the

equipment used for its recording or the

condition of the disc) may not play on this unit.

• You cannot play a CD-R/a CD-RW that is not

finalized.

If you have any questions or problems

concerning your unit that are not covered in this

manual, consult your nearest Sony dealer.

Maintenance

Fuse replacement

When replacing the fuse, be

sure to use one matching the

amperage rating stated on the

original fuse. If the fuse

blows, check the power

connection and replace the

fuse. If the fuse blows again

after replacement, there may

be an internal malfunction. In

such a case, consult your

nearest Sony dealer.

Cleaning the connectors

The unit may not function properly if the

connectors between the unit and the front panel

are not clean. In order to prevent this, detach the

front panel (page 4) and clean the connectors

with a cotton swab dipped in alcohol. Do not

apply too much force. Otherwise, the connectors

may be damaged.

Notes

•For safety, turn off the ignition before cleaning the

connectors, and remove the key from the ignition

switch.

•Never touch the connectors directly with your fingers

or with any metal device.

Fuse (10A)

Main unit Back of the front panel

Removing the unit

1Remove the protection collar.

1Detach the front panel (page 4).

2Engage the release keys together with the

protection collar.

3Pull out the release keys to remove the

protection collar.

2Remove the unit.

1Insert both release keys simultaneously

until they click.

2Pull the release keys to unseat the unit.

3Slide the unit out of the mounting.

Specifications

CD Player section

Signal-to-noise ratio: 120 dB

Frequency response: 10 – 20,000 Hz

Wow and flutter: Below measurable limit

Tuner section

Tuning range:

87.5 – 108.0 MHz (at 50 kHz step)

87.5 – 107.9 MHz (at 200 kHz step)

FM tuning interval: 50 kHz/200 kHz switchable

Aerial terminal: External aerial connector

Intermediate frequency: 10.7 MHz/450 kHz

Usable sensitivity: 9 dBf

Selectivity: 75 dB at 400 kHz

Signal-to-noise ratio: 67 dB (stereo), 69 dB (mono)

Harmonic distortion at 1 kHz: 0.5 % (stereo),

0.3 % (mono)

Separation: 35 dB at 1 kHz

Frequency response: 30 – 15,000 Hz

Tuning range:

531 – 1,602 kHz (at 9 kHz step)

530 – 1,710 kHz (at 10 kHz step)

AM tuning interval: 9 kHz/10 kHz switchable

Aerial terminal: External aerial connector

Intermediate frequency: 10.7 MHz/450 kHz

Sensitivity: 30 µV

Power amplifier section

Outputs: Speaker outputs (sure seal connectors)

Speaker impedance: 4 – 8 ohms

Maximum power output: 52 W ×4 (at 4 ohms)

General

Outputs:

Audio outputs terminal (sub/rear switchable)

Power aerial relay control terminal

Power amplifier control terminal

Inputs:

Remote controller input terminal (CDX-S2010C

only)

Aerial input terminal

Tone controls:

Low: ±10 dB at 60 Hz (XPLOD)

Mid: ±10 dB at 1 kHz (XPLOD)

High: ±10 dB at 10 kHz (XPLOD)

Power requirements: 12 V DC car battery

(negative earth)

Dimensions: Approx. 178 ×50 ×178 mm (w/h/d)

Mounting dimensions: Approx. 182 ×53 ×161 mm

(w/h/d)

Mass: Approx. 1.2 kg

Supplied accessories:

Parts for installation and connections (1 set)

Front panel case (1)

Optional accessories:

Card remote commander: RM-X114

Rotary commander: RM-X4S (CDX-S2010C only)

Design and specifications are subject to change

without notice.

Orient the release

keys as shown.

Hook facing

inwards.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Sony Autoradiosystem Handbücher

Sony

Sony GT620U - CDX Radio / CD Bedienungsanleitung

Sony

Sony CDX-M3DI (XT-XM1) Bedienungsanleitung

Sony

Sony CDX-565MXRF Operating Instruction correction: multi-session... Bedienungsanleitung

Sony

Sony BluetoothH MEX-BT5100 Bedienungsanleitung

Sony

Sony MEX-BT2500 Bedienungsanleitung

Sony

Sony EXR-400 Produkthandbuch

Sony

Sony DVX-100 - 10 Disc Dvd Changer Bedienungsanleitung

Sony

Sony GMD-616 Marketing Bedienungsanleitung

Sony

Sony CDXGT820IP - Xplod GT Series Head Unit Bedienungsanleitung

Sony

Sony CDXGT640UI - MP3/WMA/AAC Player CD Receiver Bedienungsanleitung

Sony

Sony XNV-770BT MyTomTom Bedienungsanleitung

Sony

Sony CDX-GT62IPW - Fm/am Compact Disc Player Bedienungsanleitung

Sony

Sony MEX-BT3700U Bedienungsanleitung

Sony

Sony CDX-GT920U Bedienungsanleitung

Sony

Sony CDX-G1302U Bedienungsanleitung

Sony

Sony XR-A33 Bedienungsanleitung

Sony

Sony CDX-S2200 Bedienungsanleitung

Sony

Sony CDXGT640UI - MP3/WMA/AAC Player CD Receiver Bedienungsanleitung

Sony

Sony CDXGT530UI - CD Receiver MP3/WMA/AAC Player Bedienungsanleitung

Sony

Sony CDX-GT450U Bedienungsanleitung

Sony

Sony XR-1100 Bedienungsanleitung

Sony

Sony CDX-MP40 Installation/Connection Bedienungsanleitung

Sony

Sony XR-CA800 Bedienungsanleitung

Sony

Sony CDX-GT660UP Produkthandbuch

Beliebte Autoradiosystem Handbücher anderer Marken

JL Audio

JL Audio Stealthbox SB-CAN-G2MVX3D/10TW3 Bedienungsanleitung

Clarion

Clarion PU-9836A Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric AR0M Bedienungsanleitung

Insignia

Insignia NS-HD5113 Bedienungsanleitung

Clarion

Clarion BTD3341 Bedienungsanleitung

USA SPECS

USA SPECS PA11-VW6 Bedienungsanleitung

Kenwood

Kenwood KCD-BT6544U/UY Bedienungsanleitung

JVC

JVC KD-DB912BT Bedienungsanleitung

Philips

Philips CSQ405/98 Bedienungsanleitung

Alpine

Alpine TDM-7544 Bedienungsanleitung

Autotek

Autotek TransAm TA 1400 Bedienungsanleitung

Clarion

Clarion PN-3124N-A Bedienungsanleitung

Denso TEN

Denso TEN FT0108A Bedienungsanleitung

Pyle

Pyle PLD57MU Bedienungsanleitung

Harman

Harman Chrysler Radio Navigation System RB4 Bedienungsanleitung

Clarion

Clarion VS735 Bedienungsanleitung

JVC

JVC KW-R910BT Bedienungsanleitung

Eclipse

Eclipse CD2000 Bedienungsanleitung
