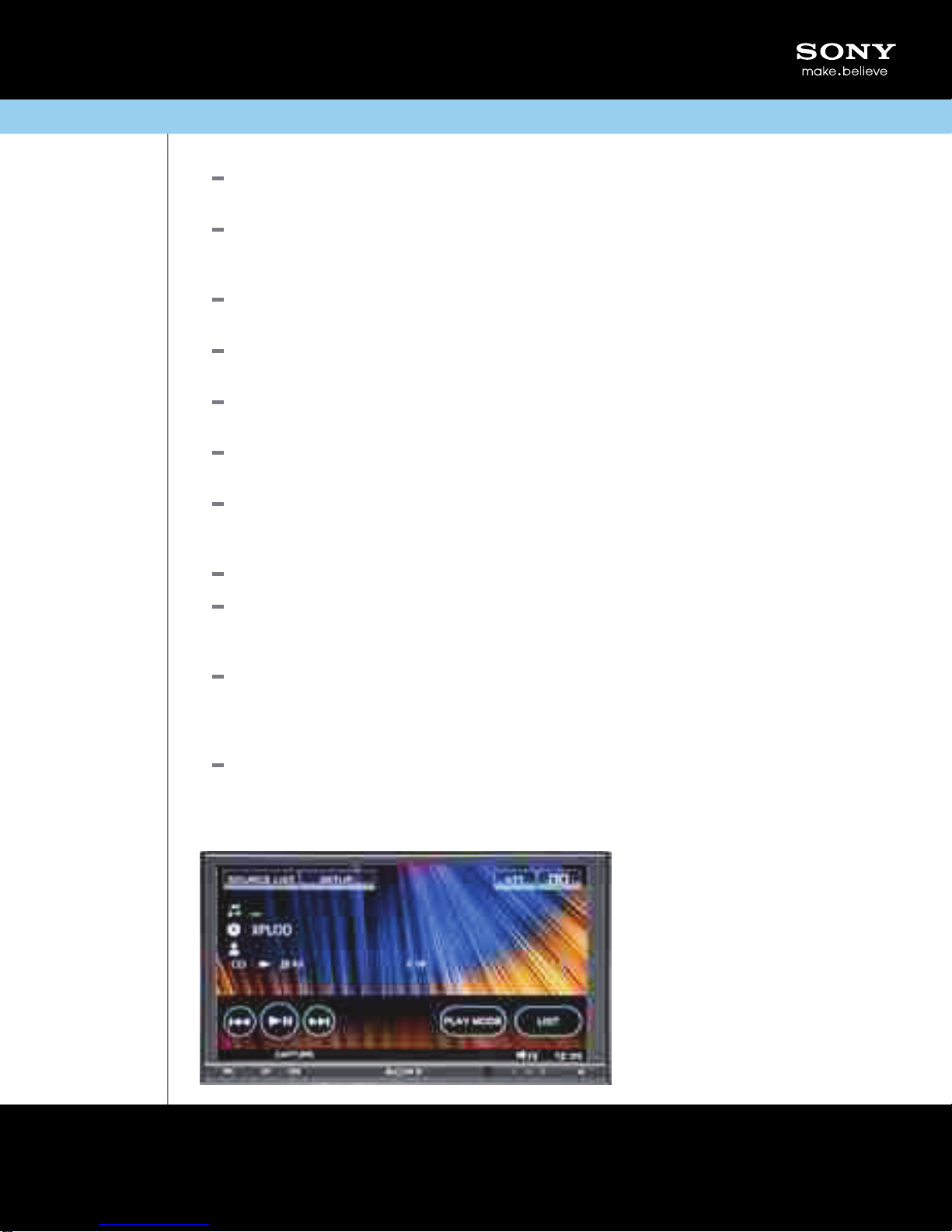

XAV-W1

Double DIN A/V Center CD/DVD/SACD Receiver

7" widescreen 16:9 format touchscreen display with dimmer and

adjustable contrast for optimal viewing

Multi

-format playback lets you play dual-

layer DVD +/

R/ +/

VR/RW/SA

CD/VCD/CD/CD

-R/RW compatible discs loaded with

hundreds of MP3, WMA, or AAC songs .

iPod®

ready so you can connect your compatible device with the

optional XA

-120IP interface.

Integrates seamlessly with either Sony® Bus satellite radio adaptors

so you can receive digital satellite radio broadcasts .

HD Radio®ready so you can receive digital audio broadcasts when

used with an optional XT

-HD100 HD Radio tuner.

Center Stage Organizer allows users to create a virtual center

channel speaker even if it is not connected.

Digital sound processing allows for Dolby Digital/Dolby Pro Logic

II/dts Digital Surround Sound playback with user selectable listening

position for optimized sound.

Simultaneously enjoy different sources in the front and rear of the car.

Delivers 52 watts x 4 of peak power to all four speakers for bass-

pumping sound and allows user to adjust the built in 7-band

equalizer.

Turn up the juice with 4

volt front, rear, center, and subwoofer preouts

for louder, clearer sound. The 4

volt preamp outputs improve the

system's dynamic range, reduce system noise, and provide powerful

volume.

The included Wireless Card Remote allows users to control the basic

functions of your Sony Xplod

system while keeping your eyes on the

road.

Sony Electronics Inc.

•

16530 Via Esprillo

•

San Diego, CA 92127

•

1.800.222.7669

•

www.sony.com

Last Updated: 10/18/2010

XAV-W1

Double DIN A/V Center CD/DVD/SACD Receiver

Please visit the Dealer Source for current information at

www.sony.com/dealersource

Features

Motorized, Double DIN, Touch

screen, 16:9 7" WVGA TFT

Display 7" widescreen 16:9 format touchscreen display with

dimmer and adjustable contrast for optimal viewing

Multi CODEC Playback

Multi

format playback lets you play

dual

layer DVD +/

R/ +/

VR/RW/SA

CD/VCD/CD/CD

R/RW

compatible discs loaded with hundreds of MP3, WMA, or AAC

songs

iPod

Control Ready , SAT Radio Ready , HD Radio ready

iPod

ready so you can connect your compatible device

with the optional XA

120IP interface

Integrates seamlessly with satellite radio Sony

Bus adaptors

so you can receive satellite radio broadcasts

HD Radio

ready so you can receive digital audio broadcasts

when used with an optional XT

HD100 HD Radio tuner

CSO, X

DSP, Multi

CH Decoder, Intelligent Time

Alignment Center Stage Organizer allows users to create a

virtual center channel speaker even if it is not connected.

Digital sound processing allows for user selectable listening

position for optimized sound.

Dolby Digital Pro Logic II, and Karaoke capability Dolby

Digital/Dolby Pro Logic II/dts Digital Surround Sound playback

and Karaoke capability

Zone x Zone

Simultaneously enjoy different sources in the front

and rear of the car.

EQ7 with 52Watts x 4 High Power Delivers 52 watts x 4 of peak

power to all four speakers for bass

pumping sound and allows

user to adjust the built in 7

band equalizer.

Volt L/C/R/RL/RR/Sub Preouts with HPF/LPF Turn up the juice

with 4

volt front, rear, center, and subwoofer preouts for louder,

clearer sound. The 4

volt preamp outputs improve the

system's dynamic range, reduce system noise, and provide

powerful volume.

Wireless card remote The included Wireless Card Remote

allows users to control the basic functions of your Sony Xplod

system while keeping your eyes on the road.

Specifications

Audio Features

Level Control: -8dB

∼

18dB

Convenience Features

CD Text Display:

Yes

Illumination: 1-Color, Bluish-White Key Illumination

Screen Clock:

12H

Video Features

Color System: PAL/NTSC/SECAM

Display Technology: 7" TFT Active Matrix LCD Color Monitor

General

Color: Black

Audio

Preout Voltage: 4 volt

S/N Ratio: Audio Power: CEA2006 S/N 82 dBA

Frequency Response:

10-20,000Hz

Wow and Flutter: Below measurable limit

Station Preset(s):

FM18/AM12

Digital-to-Analog Converter: 24bit

Audio Format:

BTM

Tuner Frequency Range:

FM:Tuner Frequency Range(MHz): 87.5

-107.9,

MW:Tuner Frequency Range(kHz): 530

-1710

Tone Control(s): EQ7

Tuner Type:

SSIR-EXA

Harmonic Distortion: DVD/CD Player: 0.01%

Output Impedance:

4-8 Ohms

Volume Control: Tel/Nav Attenuation

CD Playback: CD, CD-R / CD-

RW (MP3/WMAfiles)

Band:

AM / FM

Sensitivity (db): FM:Usable sensitivity (75)(dBf): 9

Signal-to-Noise Ratio (dB): DVD/CD Player: 120dB

Convenience

Tilt Range:

45°

Menu Options:

Auto Title Scroll

Display

Aspect Ratio:

16 : 9

Amplifier Section

Speaker Impedance: 4-8 Ohms

Tuner

FM Usable Sensitivity: 9 dBf

Selectivity: 75 dB at 400 kHz

S/N Ratio: 69 dB

Frequency Response:

30 -15,000 Hz

Stereo Separation: 35 dB at 1 kHz

Power

Power Consumption (in Operation):

45W

Output Power:

52W x4 High Power -17 watts per channel minimum

continuous average power into 4 Ohms, 4 channels driven from 20 Hz to

20 kHz with no more than 5% total harmonic distortion.

Current Drain:

3 -8 amps

Input Power:

12 V DC car battery (negative ground (earth))

Inputs and Outputs

RCA Audio Output(s):

Front, Rear, and Subwoofer RCA pre-amp outputs

Input(s):

BUS audio input terminal,

AUX video inputs,

AUX audio inputs

Antenna Terminal(s):

Aerial Input Terminal

Audio Out (Variable/Fixed):

Speaker outputs (sure seal connectors)

12V Trigger Output(s):

Power antenna

Amplifier turn on

Monitor Output:

rear x 1

Remote Jack: Optional Wired Remote input

Audio/Video Input(s): 3 AV RCA Inputs

Back up camera

Infrared Port:

Remote Controller Input Terminal

Dimensions

Weight: 2.4Kg

Measurements:

178 x 100 x 189mm

Supplied Accessories

Supplied Wireless Card Remote (RM-

X160)

Parts for Installation and Connections (1 set)

Extension Cord for AUX audio/video input terminals

Optional Accessories

CD changer (10 discs): CDX-

M757MX

CD changer (6 discs): CDX-

T69

Source selector: XA

-C40

Aux

in selector: XA

-300

iPod® interface adaptor: XA-120IP

HD Radio®

tuner: XT

-100HD

Color: Black

UPC Code: 027242706484

1.NotallMP3,WMA,AACfilesmayplaybackduetofilevariations.CopyrightprotectedACC

LCfilescannot

be played back.

2. Requires iPod

controller,sold separately.

3. Requires satellite radio subscription and antenna, sold separately.

4. HD Radio

capability requires an optional HD Radio tuner (XT

100HD).

prohibited.Sony,MemoryStick,nav

u, Quick

BrowZer,Walkman, Xplod, ZAPPIN, and the Sony,nav

uand

Xplodlogos are trademarks of Sony. iPhone andiPod are trademarks ofApple Inc., registered inthe U.S. and

othercountries.Bluetoothisa trademark of Bluetooth SIG, Inc. NAVTEQ Maps & Traffic is a trademark of

NAVTEQ.Allothertrademarksaretrademarksoftheirrespectiveowners.Featuresandspecificationsare

subjectto change without notice. Non

metricweights and measures are approximate.
