Cassette Deck

Receiver

3-862-621-11 (1)

HST-SE581

2EN

WARNING

To prevent fire or shock hazard, do not

expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet.

Refer servicing to qualified personnel only.

Do not install the appliance in a confined space,

such as a bookcase or built-in cabinet.

Do not, under any circumstances, place the CD

player or any other component on top of the cassette

deck receiver HST-SE581.

– For CD player CDP-C661/CDP-CX571 –

The mains lead plug of CDP-C661/CDP-CX571 is a

2-pin type designed to be connected only to

HST-SE581. Do not connect this plug to any other

system or mains supply.

IMPORTANT: Never connect two mains leads into a

single mains plug.

This system is equipped with Dolby Noise

Reduction and Dolby Pro Logic Surround* decoder.

* Manufactured under license from Dolby

Laboratories Licensing Corporation.

DOLBY, the double-D symbol aand “PRO

LOGIC” are trademarks of Dolby Laboratories

Licensing Corporation.

3EN

Table of Contents

Getting Started

Step 1: Hooking up the system............ 4

Step 2: Setting up the speakers ............ 8

Connecting optional AV

components .................................... 12

Connecting optional outdoor

antennas .......................................... 13

The Radio

Presetting radio stations ...................... 14

Listening to the radio........................... 16

The Tape Deck

Playing a tape........................................ 17

Recording on a tape ............................. 18

Recording from the radio .................... 19

Recording from a tape ......................... 20

Inserting a blank space during

recording ......................................... 21

Sound Adjustment

Adjusting the sound ............................ 22

Selecting the preset sound fields........ 22

Selecting the surround mode.............. 23

Emphasizing the bass sound .............. 24

Additional Information

Precautions ............................................ 25

Troubleshooting ................................... 27

Specifications ........................................ 29

Remote button descriptions ................ 30

Index....................................................... 31

4EN

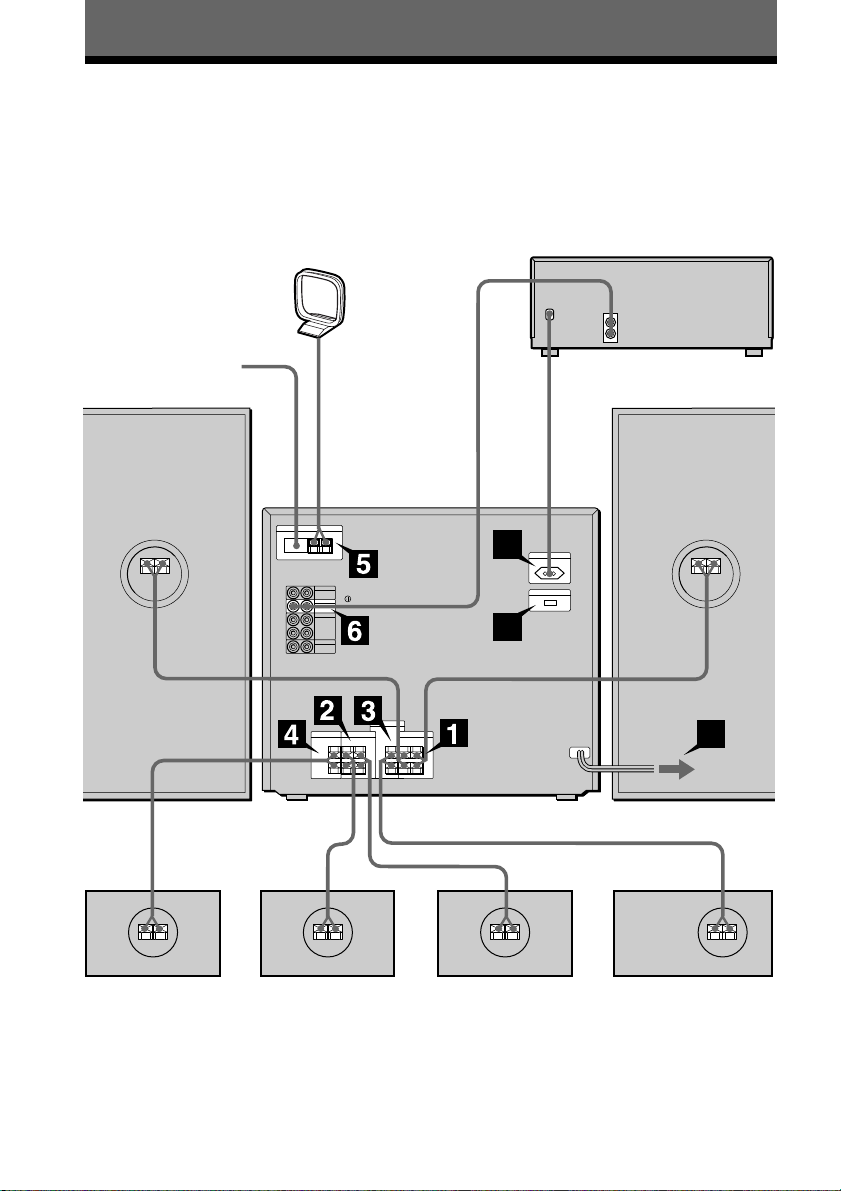

Step 1: Hooking up the system

Getting Started

Perform the following procedure 1to 9(skip 7for models not supplied with a voltage

selector) to hook up your system using the supplied cords and accessories. To complete the

setup, do step 2 also.

Left front speaker

Right front speaker

AM loop antenna CD player (CDP-CX571*)

FM lead antenna

HST-SE581

rear panel

Superwoofer Left rear speaker Center speaker

* CDP-CX571 is used for illustration purpose. You can connect CDP-C661 in the same manner.

Right rear speaker

5EN

5Connect the FM/AM antennas.

Set up the AM loop antenna, then

connect it.

For European model

For other models

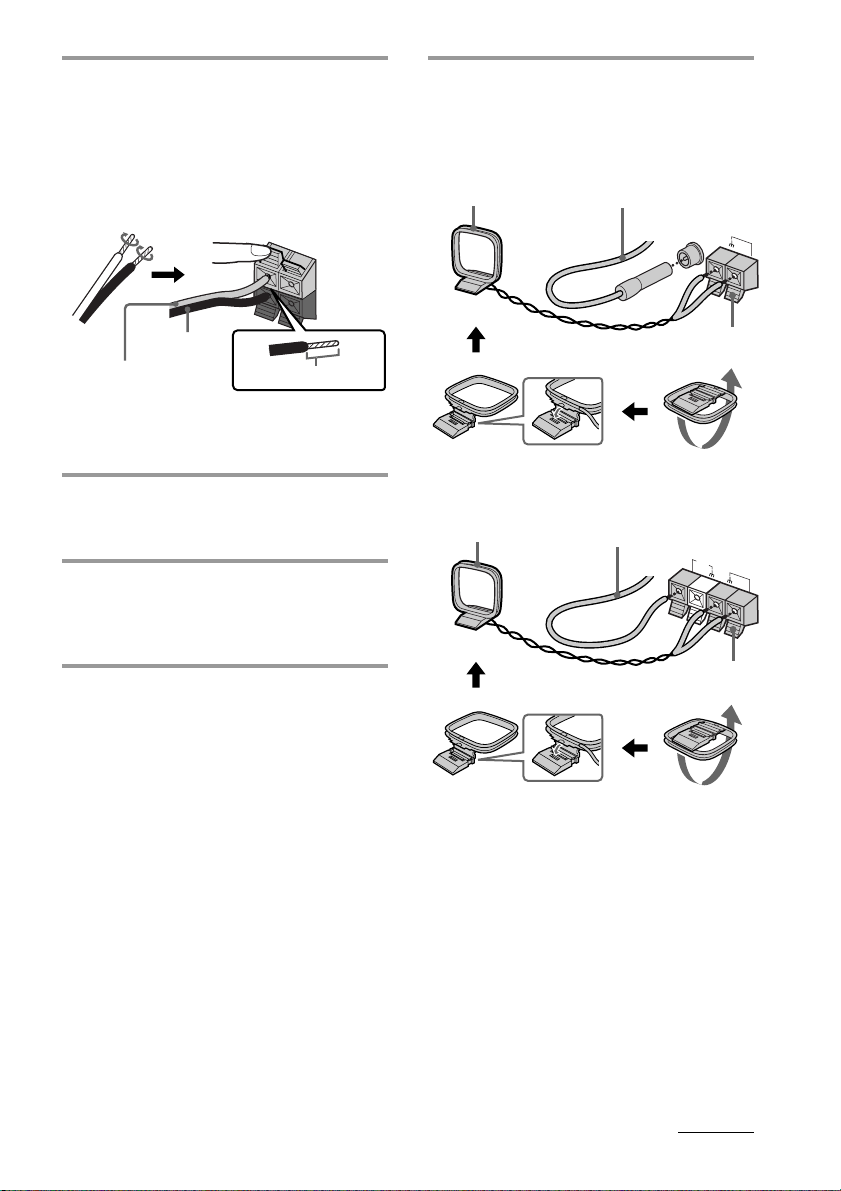

1Connect the front speakers.

Connect the speaker cords to the FRONT

SPEAKER terminals of the same color.

Keep the speaker cords away from the

antennas to prevent noise.

* The color of your speaker cords might be

different. See the manual provided with your

speaker system for details.

2Connect the rear speakers.

Connect the speaker cords to the REAR

SPEAKER terminals of the same color.

3Connect the center speaker.

Connect the speaker cords to the

CENTER SPEAKER terminals of the

same color.

4Connect the superwoofer.

Connect the speaker cords to the SUPER

WOOFER terminals of the same color.

continued

R L

–

Black* (’)

Red* (‘)Insert this portion.

Pull the lever toward you after

connecting the speaker cords.

COAXIAL AM

Pull the lever toward you after

connecting the antenna.

Extend the FM lead

antenna horizontally.

AM loop antenna

75Ω

Extend the FM lead

antenna horizontally.

AM loop antenna

Pull the lever toward you after

connecting the antenna.

6EN

9Connect the power cord from the

system to a wall outlet.

Inserting two R6 (size AA)

batteries into the remote

Tip

With normal use, the batteries should last for about

six months. When the remote no longer operates

the system, replace both batteries with new ones.

Note

If you do not use the remote for a long period of

time, remove the batteries to avoid possible damage

from battery leakage.

6Connect the CD player.

Use the audio cord, matching the color

of the plugs and the jacks.

Insert the plugs firmly, pushing them in

all the way.

7Set VOLTAGE SELECTOR to the

position of your local power line

voltage (only on models supplied

with a voltage selector).

8Connect the AC power cord from

the CD player to the AC OUTLET

on the system.

By connecting the AC power cord from

the CD player to the AC OUTLET, you

can turn on/off the CD player

automatically when you turn on/off the

system.

Step 1: Hooking up the system

(continued)

220–240V 110–120V

European, Australian, Singaporean and

Malaysian models

Other models

OK N.G.

]

}}

7EN

Changing the factory

setting of a function

button

If the factory settings of the SYSTEM

CONTROL/FUNCTION buttons don’t match

your system components, you can change

them. For example, if you have two CD

players and you don’t have an MD deck, you

can assign the TAPE button to your second

CD player.

Note that the settings of the TUNER and

PHONO buttons cannot be changed.

1Hold down the SYSTEM

CONTROL/FUNCTION button

whose function you want to change

(TAPE, for example).

2Press the corresponding number

button of the component you want

to assign to the SYSTEM

CONTROL/FUNCTION button

(1 – CD player, for example).

Now you can use the TAPE button to

control a second CD player.

To select other functions, refer to the

table on next page.

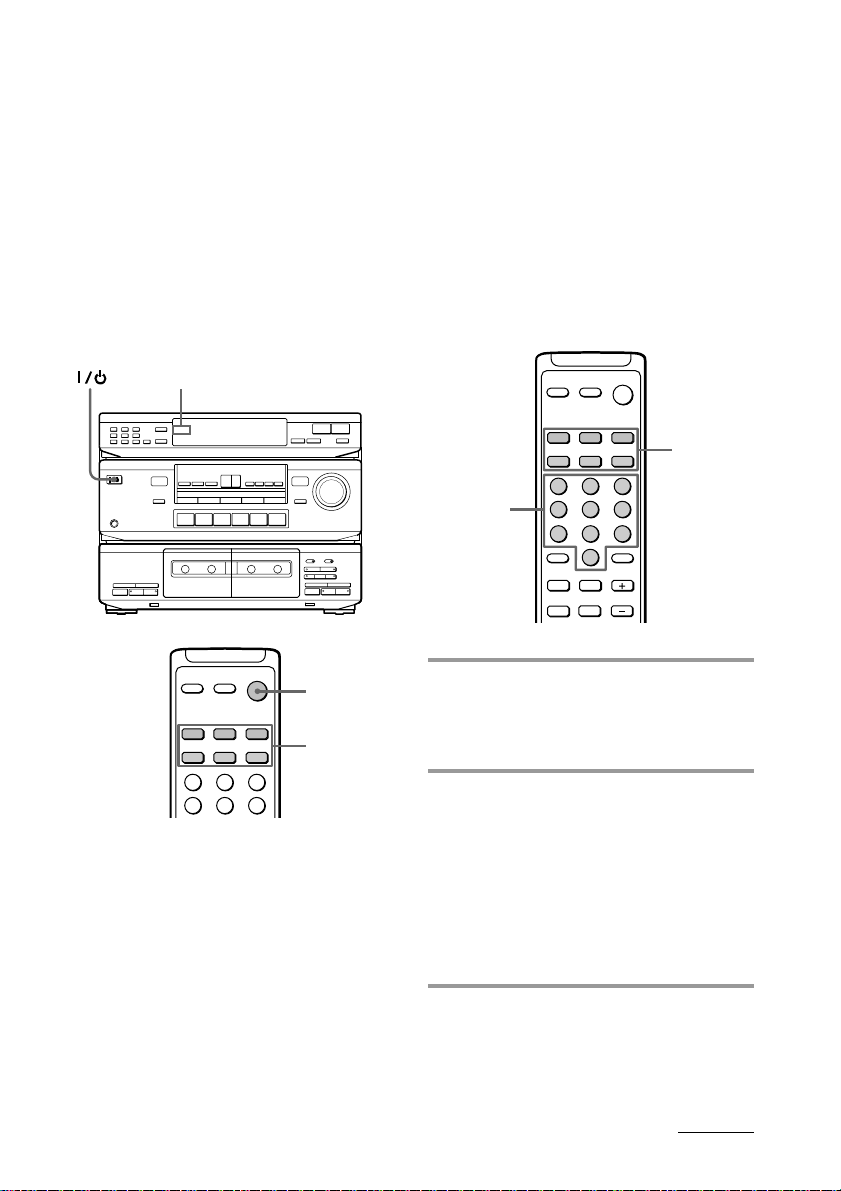

Before you begin

Press the 1/u switch on the system to turn it

on.

When the STANDBY lamp on the system is lit

in red, you can turn on the system by

pressing one of the SYSTEM CONTROL/

FUNCTION buttons on the remote.

Turning the power off by pressing

SYSTEM STANDBY on the remote sets the

system to STANDBY mode (the STANDBY

lamp is lit).

If you are not going to use the system for a

long time, be sure to turn it off by pressing

the 1/u switch on the system.

continued

pª·

STANDBY

465

SYSTEM

STANDBY

SYSTEM

CONTROL/

FUNCTION

Using other components

with the remote

You can operate Sony TVs, VCRs and CD

players CDP-C661/CDP-CX571 using the

supplied remote. Press one of the SYSTEM

CONTROL/FUNCTION buttons to select the

component you want to use.

Refer to “Remote button descriptions” on

page 30 for details.

Number

buttons

465

SYSTEM

CONTROL/

FUNCTION

8EN

Front

speaker

(L)

Front

speaker

(R)

Center speaker

Rear

speaker

(R)

Rear

speaker

(L)

By connecting the speakers, you can enjoy

Dolby Pro Logic Surround sound. Dolby Pro

Logic Surround is a decoding system

standardized in TV programs and movies.

Dolby Pro Logic Surround improves sound

imaging by using four separate channels.

These channels manipulate the sound and

enhance the action as it happens on the

screen.

Selecting the Dolby Pro

Logic Surround mode

To take advantage of Dolby Pro Logic

Surround, you should connect at least one

pair of rear speakers and/or one center

speaker, plus a TV and a VCR. Also, to enjoy

a full effect, you need to select the

appropriate Dolby Pro Logic mode

(NORMAL, WIDE, 3CH or PHANTOM

modes) according to your speaker system.

NORMAL mode

Select NORMAL mode if you have front and

rear speakers and a small center speaker such

as those provided with this system. Since a

small speaker cannot produce enough bass,

the bass sound of the center channel is output

from the front speakers.

The number buttons are assigned to select the

functions as follows:

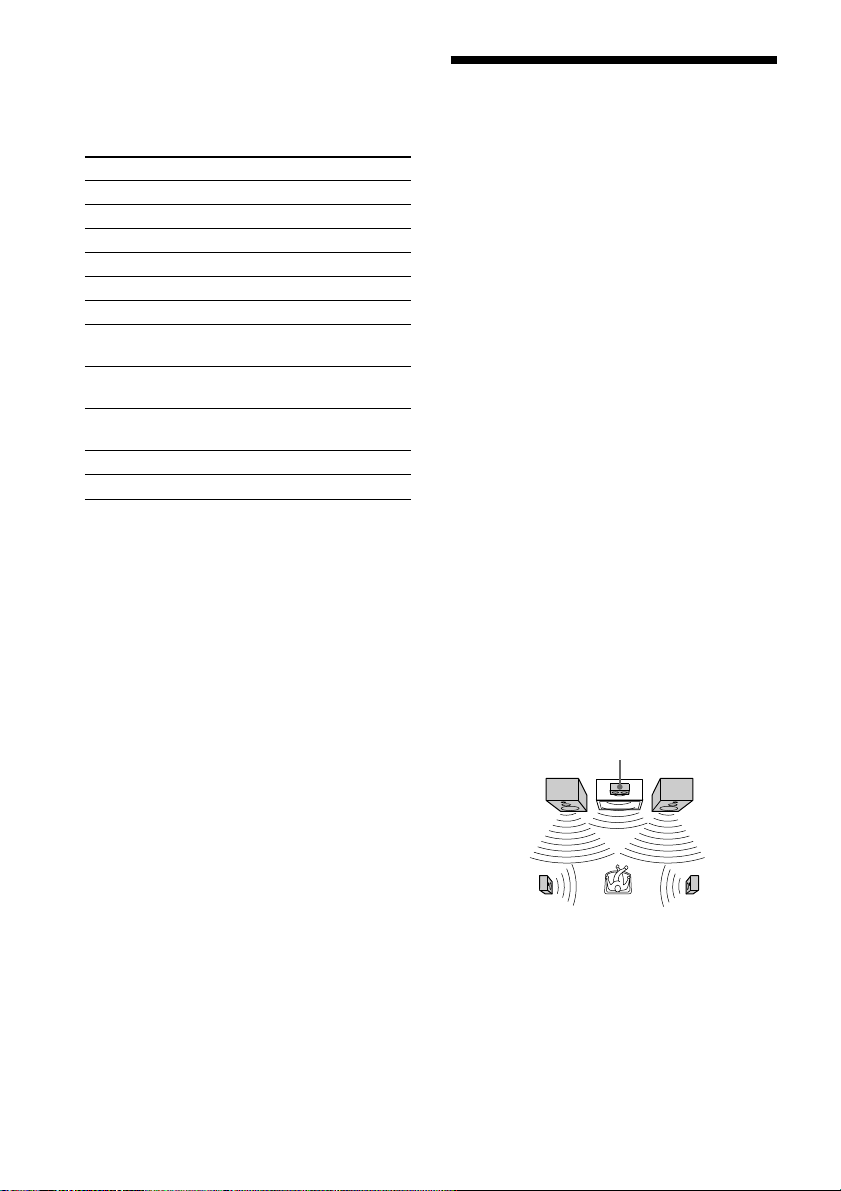

Number button Operates

1 CD player

2 DAT deck

3 MD deck

4 Tape deck A

5 Tape deck B

6 LD player

7VCR (remote control mode

VTR 1*)

8VCR (remote control mode

VTR 2*)

9VCR (remote control mode

VTR 3*)

10 TV

>10 DBS

* Sony VCRs are operated with a VTR 1, 2 or 3

setting. These correspond to Beta, 8mm and VHS

respectively.

To reset the setting to the factory

setting

Repeat the above procedure.

Step 1: Hooking up the system

(continued) Step 2: Setting up

the speakers

9EN

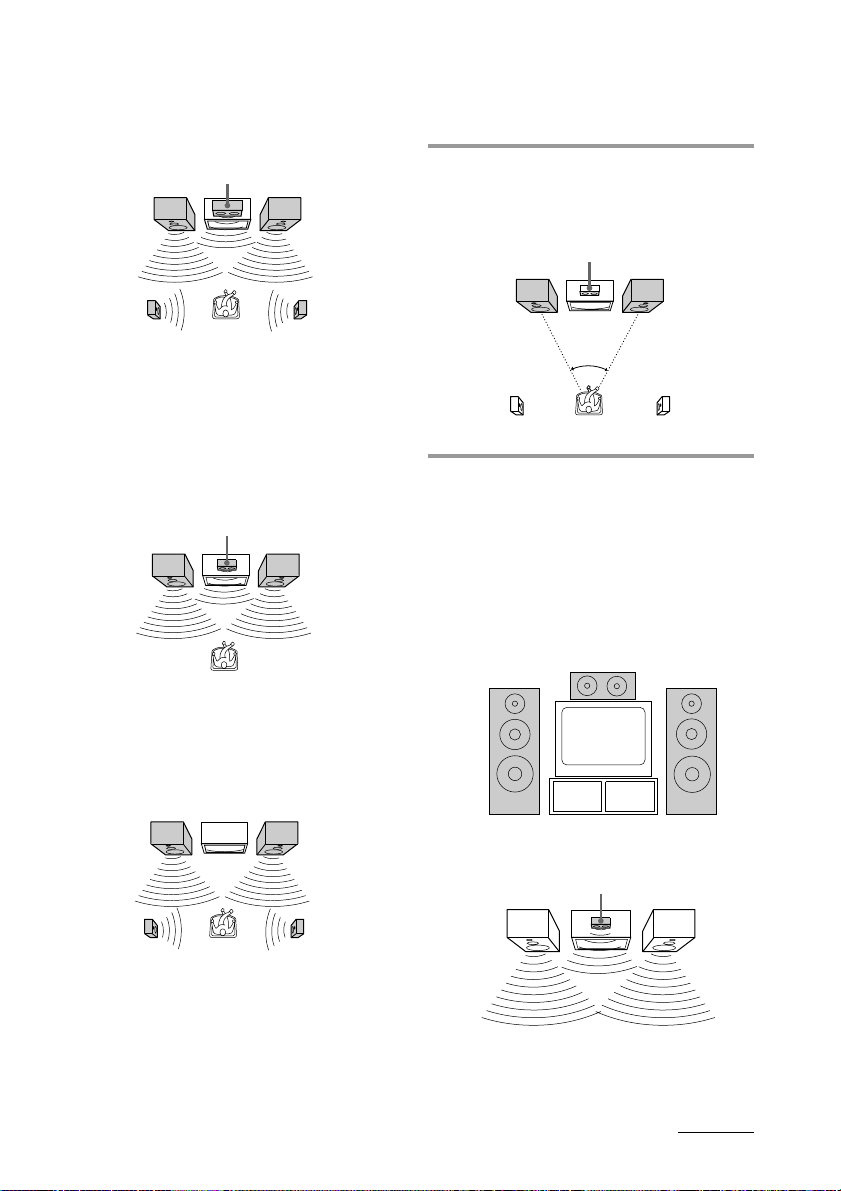

Positioning the speakers

Before you connect them, determine the best

location for your speakers.

1Place the front speakers at the angle

of 45 degrees from your listening

position.

2Place the center speaker so it is

placed at about the same height as

the front speakers (A). Align the

center speaker with the front

speakers or place it a little backward

from the front speakers’ position

(B).

Front

speaker

(L)

Front

speaker

(R)

Center speaker

45°

Rear

speaker

(L)

Rear

speaker

(R)

BCenter speaker

continued

WIDE mode

Select WIDE mode if you have front and rear

speakers and a large center speaker. With

this mode, you can take full advantage of

Dolby Surround sound.

3CH mode

Select 3CH (3 channel logic) mode if you have

front and center speakers but no rear

speakers. The sound of the rear channel is

output from the front speakers to let you

experience some of the surround sound

without using rear speakers.

PHANTOM mode

Select PHANTOM mode if you have front

and rear speakers but no center speaker. The

sound of the center channel is output from

the front speakers.

Rear

speaker

(R)

Rear

speaker

(L)

Front

speaker

(L)

Front

speaker

(R)

Front

speaker

(L)

Front

speaker

(R)

Center speaker

Front

speaker

(L)

Front

speaker

(R)

Center speaker

Rear

speaker

(R)

Rear

speaker

(L)

10EN

POWER

pª·

Adjusting the speaker

volume

To enjoy Dolby Pro Logic Surround sound,

select the appropriate Dolby Pro Logic mode,

then adjust the volume of each speaker using

the test tone that the system provides.

Step 2: Setting up the speakers

(continued)

3Place the rear speakers facing each

other at about 60 to 90 cm above

your listening position.

Rear speaker

60 to 90 cm

)

465

3,5

+/–

Andere Handbücher für HST-SE581

Inhaltsverzeichnis

Sprachen:

Andere Sony Kassettenspieler Handbücher

Sony

Sony Pressman TCM-16 Bedienungsanleitung

Sony

Sony Walkman WM-FX481 Bedienungsanleitung

Sony

Sony CFS-B15 - Am/fm Stereo Cassette Recorder Bedienungsanleitung

Sony

Sony CFS-W318 Bedienungsanleitung

Sony

Sony TC-WE425 - Dual Auto Reverse Cassette Bedienungsanleitung

Sony

Sony CFS-B15 - Am/fm Stereo Cassette Recorder Bedienungsanleitung

Sony

Sony Walkman WM-D6C Bedienungsanleitung

Sony

Sony WM-EX50 Bedienungsanleitung

Sony

Sony Walkman WM-FX401 Bedienungsanleitung

Sony

Sony TC-204SD Bedienungsanleitung

Sony

Sony CFS-515S Bedienungsanleitung

Sony

Sony CFS-1035 Bedienungsanleitung

Sony

Sony TC-SD1 Bedienungsanleitung

Sony

Sony TC-WR720A - Dual Cassette Deck Bedienungsanleitung

Sony

Sony DD Quartz Walkman WM-DD9 Bedienungsanleitung

Sony

Sony CFS-E2 Operating Instructions (primary... Bedienungsanleitung

Sony

Sony WM-GX90 Bedienungsanleitung

Sony

Sony TC-RX77ES Bedienungsanleitung

Sony

Sony Walkman WM-FX375 Bedienungsanleitung

Sony

Sony Walkman WM-GX400 Bedienungsanleitung

Sony

Sony CFD-S28 - Cd Radio Cassette-corder Bedienungsanleitung

Sony

Sony TC-WE675 - Dual A/r Cassette Deck Leitfaden

Sony

Sony XR-CA370X Bedienungsanleitung

Sony

Sony Walkman WM-GX221 Bedienungsanleitung

Beliebte Kassettenspieler Handbücher anderer Marken

Aiwa

Aiwa TP-VS535 Bedienungsanleitung

Philips

Philips AW 7300 Bedienungsanleitung

Philips

Philips Video Cassette Recorder Bedienungsanleitung

Yamaha

Yamaha MT8X Bedienungsanleitung

Manta

Manta MA408 Bedienungsanleitung

Sherwood

Sherwood Newcastle D-480 Bedienungsanleitung

Tascam

Tascam 122MKIII Leitfaden

GPO

GPO W0162B Bedienungsanleitung

Sharp

Sharp JC-AV1 Bedienungsanleitung

Pioneer

Pioneer CT-W103 Bedienungsanleitung

Aiwa

Aiwa HS-JX899 Bedienungsanleitung

Aiwa

Aiwa HS-TA21 Bedienungsanleitung

Sanyo

Sanyo MCD-ZX700F Bedienungsanleitung

Aiwa

Aiwa CS-P77 Bedienungsanleitung

THOMSON

THOMSON RK101CD Bedienungsanleitung

Pioneer

Pioneer CT-S920S Bedienungsanleitung

Pioneer

Pioneer KEH-P7035 Bedienungsanleitung

Sanyo

Sanyo MCD-Z7F Bedienungsanleitung
