Sony DAV-DZ340 Bedienungsanleitung

SUBWOOFER

SUR L

SUR R

FRONT R

CENTER

FRONT L Main unit

4-262-756-11(1)

(1)

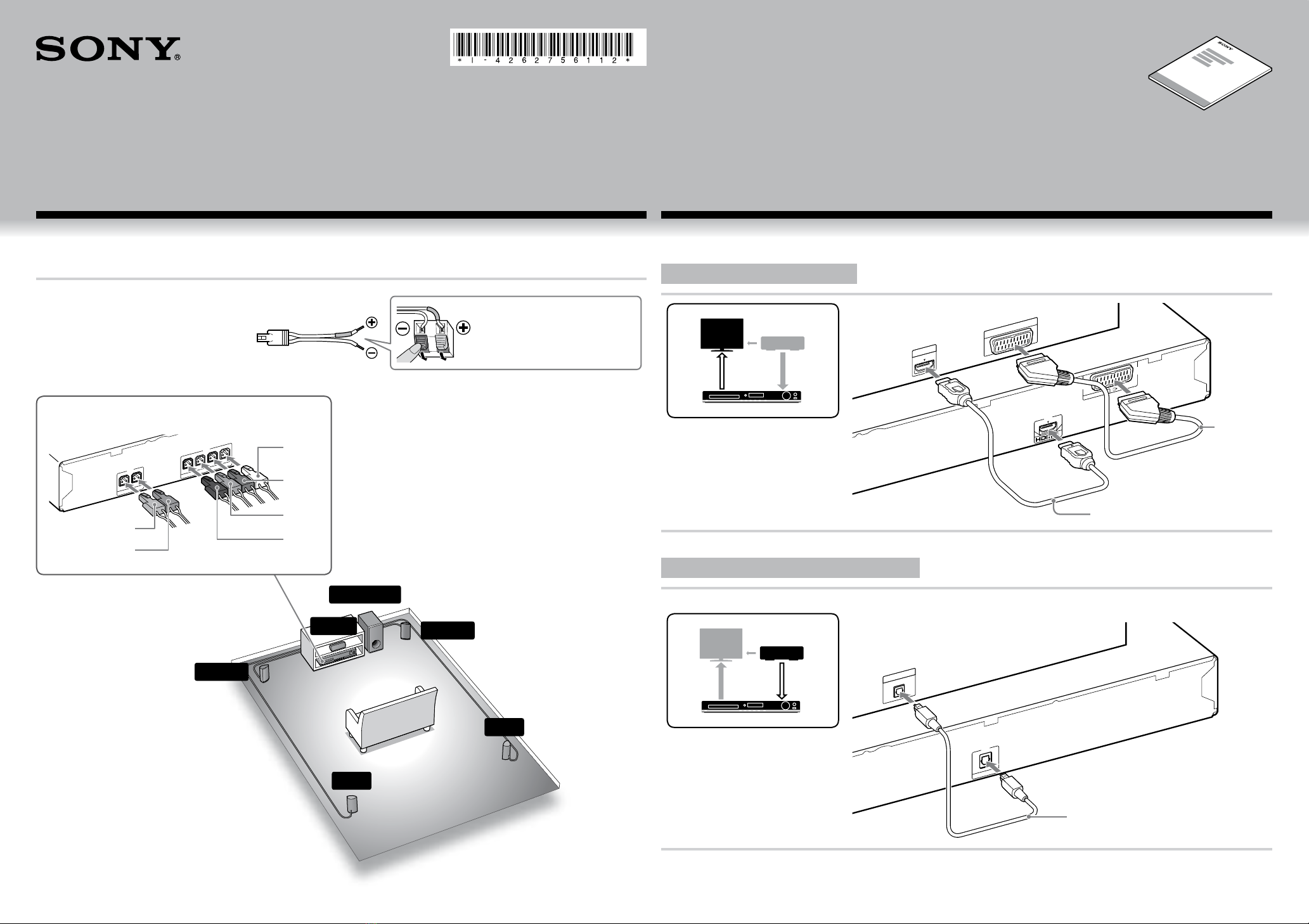

Quick Setup Guide

1Connecting the speakers

Rear panel of the main unit

SPEAKERS

SUR R SUR L

OPTICAL

DIGITAL

SPEAKERS

SUBWOOFER CENTER FRONT R FRONT L

Green

Purple

Red

White

Blue

Gray

2Connecting your TV/set-top box

DAV-DZ340/DZ740

Depending on the jacks on your TV or set-top box, select the video and audio connection method.

Connecting the video to your TV

VIDEO

HDMI IN

OUT

ARC

EURO AV

OUTPUT(TO TV)

EURO AV

Method 1*

Method 2*

*Not supplied.

Connecting the audio from your set-top box

If you do not use a set-top box, refer to“Connecting your TV/set-top box” in the Operating Instructions.

AUDIO

OPTICAL

DIGITAL

COAXIAL

DIGITAL OUT

COAXIAL

OPTICAL

AUDIO OUT L

TV/VIDEO

OPTICAL

DIGITAL OUT

Not supplied

For details, refer to the Operating Instructions.

DAV-DZ340 is the model used for illustration purposes.

For DAV-DZ740, speaker assembly is necessary. Refer to the supplied “Speaker Installation Guide.”

For all models, connect the speaker cords to match the color of the SPEAKERS jacks of the unit.

To connect speaker cords to the speaker

Connect the cord so that the cord’s color tube

matches the color of the label on the rear of the

speaker.

Rear of the front, surround, and center

speakers

3 Switch the input selector on your TV to

display“SONY Home Theatre System.”

4 Set each following item, using ///and

///,

(ENTER)

Note

Do not insert a disc before performing the Quick Setup.

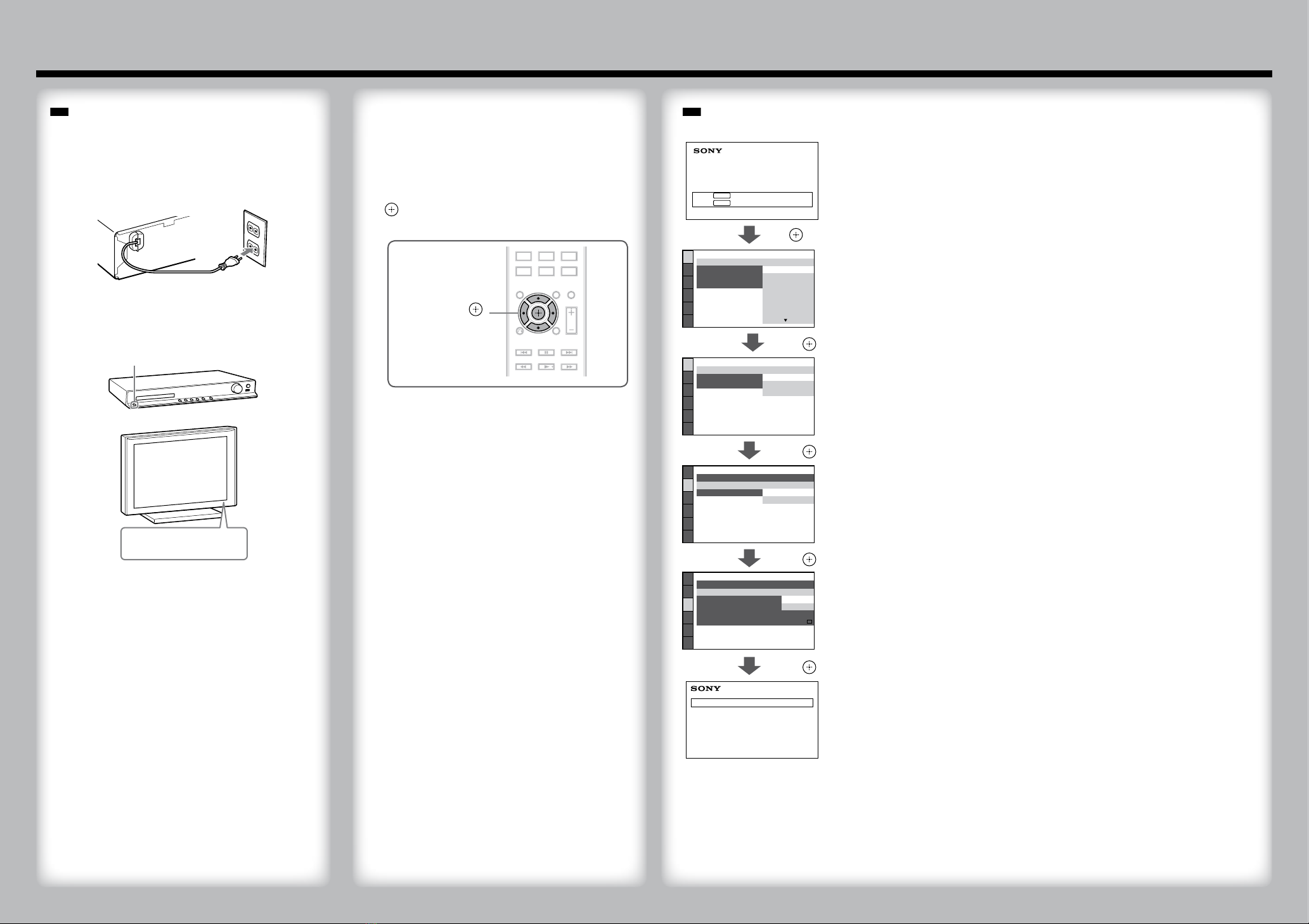

1 Connect the AC power cord.

The shape of the wall outlet differs depending on the

area.

2 Turn on the power of the main unit and TV.

/

(power)

3Performing the Quick Setup

Note

Displayed items vary depending on the area.

Home Theatre System

Press to run QUICK SETUP.

Press to erase this message.

ENTER

CLEAR

LANGUAGE SETUP

MENU:

OSD:

AUDIO:

SUBTITLE:

ENGLISH

FRANÇAIS

DEUTSCH

ITALIANO

ESPAÑOL

NEDERLANDS

DANSK

Select an on-screen language.

/,

VIDEO SETUP

LINE:

TV TYPE:

PAUSE MODE:

16:9

4:3 LETTER BOX

4:3 PAN SCAN

Select the aspect ratio of the connected TV.

/,

VIDEO SETUP

LINE:

TV TYPE:

PAUSE MODE:

16:9

VIDEO

RGB

Select the output method for video signals.

/,

HDMI SETUP

HDMI RESOLUTION:

AUDIO RETURN CHANNEL:

AUTO

(1920x1080p)

OFF

/RGB(HDMI): YC

JPEG RESOLUTION:

AUDIO(HDMI):

CONTROL FOR HDMI: OFF

OFF

Select [ON] when you connect the main unit and the TV with an HDMI cable.

/,

QUICK SETUP is complete.

Home Theatre System

Basic setup is complete. Refer to the supplied Operating Instructions for details on how to enjoy

disc playback and many other features.
