Sony KP-EF61 Bedienungsanleitung
2
3
TV SYS: B/G
AUTO PROGRAM
VHF LOW
PR: 01
123
456
789
1
MENU
ENTER
4
5-GB
Getting Started
WARNING
To prevent fire or shock hazard, do not expose the
projection TV to rain or moisture.
Dangerously high voltages are present inside the
projection TV. Do not open the cabinet. Refer
servicing to qualified personnel only.
For general safety:
•Do not expose the projection TV to rain or moisture.
•Do not open the rear cover.
For safe installation:
•Do not block the ventilation openings.
•Do not install the projection TV in hot, humid or
excessively dusty places.
•Do not install the projection TV where it may be
exposed to mechanical vibrations.
•Avoid operating the projection TV at temperatures
below 5°C (41°F).
•If the projection TV is transported directly from a
cold to a warm location, or if the room temperature
has changed suddenly, the picture may be blurred or
show poor color. This is because moisture has
condensed on the mirror or lenses inside. If this
happens, let the moisture evaporate before using the
projection TV.
•To obtain the best picture, do not expose the screen to
direct illumination or direct sunlight. It is
recommended to use spot lighting directed down
from the ceiling or to cover the windows that face the
screen with opaque drapery. It is desirable to install
the projection TV in a room where the floor and walls
are not of reflecting material. If necessary, cover
them with dark carpeting or wall paper.
•Do not install the appliance in a confined space, such
as a bookcase or built-in cabinet.
For safe operations:
•Do not operate the projection TV on anything but
110–120/220-240 V AC, 50/60 Hz.
•Do not operate the projection TV if any liquid or solid
object falls in it—have it checked immediately.
•Do not keep the projection TV plugged in if you are
not going to use it for several days.
•Do not pull the power cord to disconnect the
projection TV. Pull it out by the plug.
Caution
•When using TV games, computers, and similar
products with your projection TV, keep the
brightness and contrast functions at low settings. If a
fixed (non-moving) pattern is left on the screen for
long periods of time at a high brightness or contrast
setting, the image can be permanently imprinted onto
the screen. These types of imprints are not covered
by your warranty because they are the result of
misuse.
•Avoid touching the screen surface and do not scratch
it with hard objects.
Table of contents
GB
Getting Started
6Connections
10 Installing the projection TV
11 Getting to know the remote commander
12 Introducing the menu system
13 Changing the menu language
14 Presetting channels
17 Adjusting the convergence (CONVERGENCE)
Operations
18 Watching the TV
20 Adjusting the picture and sound
22 Listening with dynamic sound (POWER BASSO)
23 Listening to the surround sound (HYPER SUR-
ROUND)
24 Selecting a stereo or bilingual program
25 Viewing multiple programs at the same time
(PROGRAM INDEX)
26 Displaying frame-by-frame pictures (STROBE)
26 Using the Picture-in-Picture (PIP) features
28 Viewing Teletext
30 Displaying Teletext on the PIP screen (PIP TEXT)
31 Viewing a video game screen (GAME MODE)
32 Customizing the TV
Additional Information
33 Troubleshooting
34 Cleaning the screen
34 Specifications
6-GB Getting Started
1
L
(MONO)
R
2
3

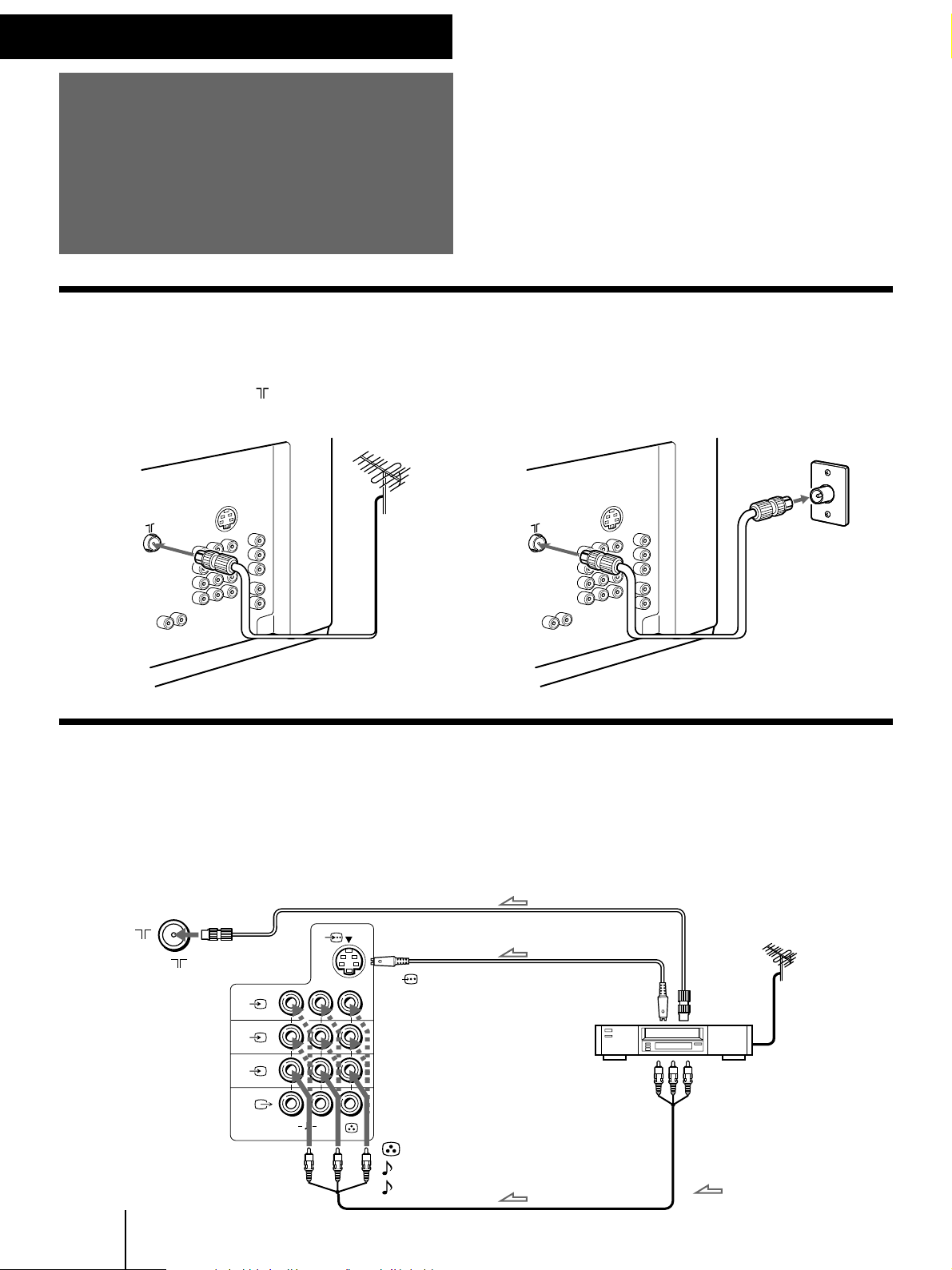

Connecting a VHF antenna or a combination VHF/UHF antenna
— 75-ohm coaxial cable (round)
Attach an optional IEC antenna connector to the 75-ohm coaxial cable.
Plug the connector into the (antenna) socket at the rear of the TV.
Connecting optional equipment
You can connect optional audio/video equipment to your TV such as a VCR, multi disc player, camcorder, video
game or stereo system.
Connecting video equipment using video input jacks
Connections
On a wall
Rear of TV
Rear of TV
or
Rear of TV
VCR
to
S video
output
to
antenna
output
to video and
audio outputs
: Signal flow
Getting Started
to (antenna) socket
to …1, 2, or 3 (video input)
(yellow)
-L (MONO)(white)
-R (red)
to (S video input)
7-GB
Getting Started
1
L
(MONO)
R
2
3
(VARIABLE)
RL
Camcorder
to S video output
to video and
audio outputs
: Signal flow
Rear of TV
VCR
to
antenna
output
to video and
audio inputs
Audio system
to audio
inputs
: Signal flow
or
L
R
3
(MONO)
to
(S video input)
to …3 (video input)
(yellow)
-L (MONO)(white)
-R (red)
to (antenna) socket
to Ú(monitor/TV output)
(yellow)
-L (MONO)(white)
-R (red)
When connecting a monaural VCR
Connect the yellow plug to (video input) and the black plug to -L (MONO) (audio input).
When connecting video game equipment
Connect video game equipment to the …3 (video input) jacks at the front or the rear of your TV.
When connecting a VCR to the (antenna) terminal
Preset the signal output from the VCR to the program position 0.
When connecting video equipment to the …3 (video input) jacks at the front and the rear
Do not connect video equipment to the …3 (video input) jacks at the front and the rear of your TV simultaneously; otherwise the picture
will not be displayed properly on the screen.
If both S Video and video signals are input simultaneously
The S video input signal is selected. To view a video input signal, disconnect the (S video) connection.
Note on the video input
When no signal is input, the screen becomes blue.
Connecting audio/video equipment using Ú(monitor/TV output) jacks
When the audio cable is connected to the (VARIABLE) jacks, you can adjust the volume with Á+/–.
Front of TV
8-GB Getting Started
COMPOMENT VIDEO OUT
S VIDEO OUT
LINE OUT
C
B
/B-YYC
R
/R-Y R-AUDIO-L VIDEO
C
R
/
R-Y
C
B
/
B-Y
Y
L
R
1
L
(MONO)
R
2
3
LINE OUT
R-AUDIO-L VIDEO

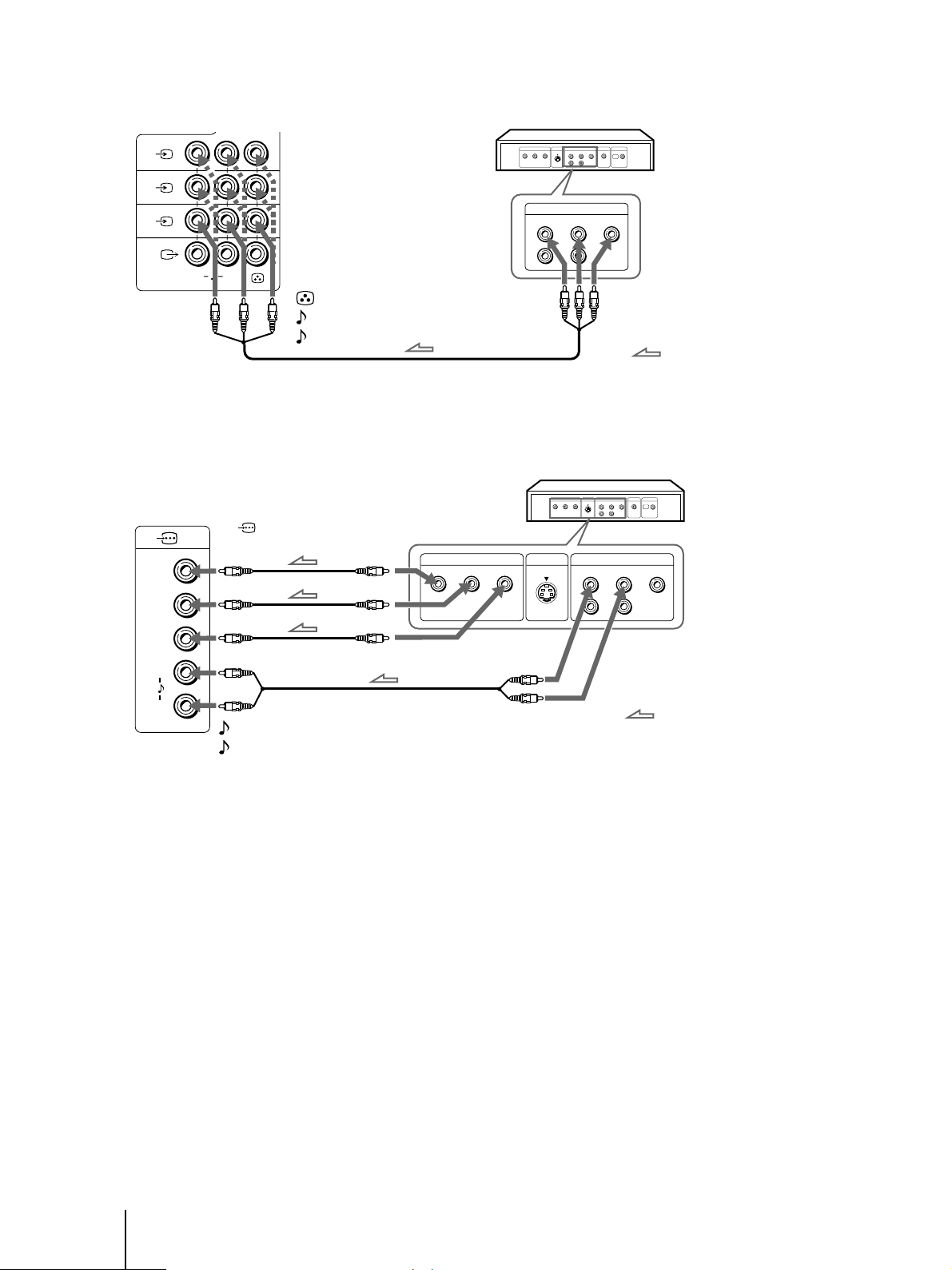

Connecting a DVD player
Connecting a DVD player with component video output connectors
Notes
• Since the high quality pictures on a DVD disc contain a lot of
information, picture noise may appear. In this case, adjust the
sharpness (SHARP) in the VIDEO ADJUST menu. (See page 20.)
• Connect your DVD player directly to your TV. Connecting the
DVD player through other video equipment will cause unwanted
picture noise.
Rear of TV
: Signal flow
to audio/
video
outputs
DVD player
to …1, 2, or 3 (video input)
(yellow)
-L (MONO)(white)
-R (red)
Rear of TV
: Signal flow
-L (white)
-R (red)
to (component video
input) Y/CB/B-Y/CR/R-Y
to component video
output
to audio output
DVD player
9-GB
Getting Started
C
Connecting an amplifier with Dolby*Pro Logic decoder
Even though you use an amplifier with Dolby Pro Logic
decoder instead of the projection TV’s audio system, you
can still use the projection TV’s center speaker.
*Manufactured under license from Dolby Laboratories
Licensing Corporation.
DOLBY, the double-D symbol aand “PRO LOGIC” are
trademarks of Dolby Laboratories Licensing Corporation.
Amplifier with Dolby Pro
Logic decoder
Rear
speaker
(L)
Rear
speaker
(R)
Front
speaker
(L)
Front
speaker
(R)
to (center speaker
inputs)
Rear of TV
10-GB Getting Started
Optimum viewing area (Vertical)
min 2.4m (8 ft.)
20°
20°
For the best picture quality, install the projection TV
within the areas shown below.
Optimum viewing area (Horizontal)
Installing the
projection TV
min 2.4m (8 ft.)
60°
60°
