Sony CPJ-A300E Bedienungsanleitung

CPJ-A300E

Operating Instructions

Mode d’emploi

3-861-467-23 (1)

Color LCD Projector

2-GB

WARNING

To prevent fire or shock hazard, do not

expose the unit to rain or moisture.

To avoid electrical shock, do not open

the cabinet. Refer servicing to qualified

personnel only.

Do not install the appliance in a

confined space, such as a book case or

build-in cabinet.

NOTICE FOR CUSTOMERS IN THE

UNITED KINGDOM

A moulded plug complying with BS

1363 is fitted to this equipment for your

safety and convenience.

Should the fuse in the plug supplied

need to be replaced, a 5 AMP fuse

approved by ASTA or BSI to BS 1362,

(i.e., marked with 2or @mark) must

be used.

If the plug supplied with this

equipment has a detachable fuse

cover, be sure to attach the fuse cover

after you change the fuse. Never use

the plug without the fuse cover. If you

should lose the fuse cover, please

contact your nearest Sony service

station.

3-GB

Table of contents

4 Welcome

5 Precautions

6 Selecting the projecting location

7 Preparations

7 Using the AV Cordless IR system – LASER

LINK

8 Connecting directly to video equipment

10 Connecting to external speaker(s)

10 Connecting the mains lead

11 Projecting

11 Turning on the projector

13 Using the AV Cordless IR system – LASER

LINK

15 Adjusting the focus

15 Adjusting the volume

16 Using the headphones

16 Turning off the projector

17 Adjusting the picture

20 Maintenance

20 Changing the filter

21 Changing the bulb

22 Specifications

23 Identifying the parts

25 Troubleshooting

4-GB

Welcome

Congratulations on your purchase of the Sony CPJ-

A300E Color LCD projector. Here are just some of

the features your Sony projector offers.

High resolution picture

You can enjoy AV entertainment with a high

resolution picture of 307,200 pixels.

LASER LINK – Picture and sound

transmission by infrared rays

You can project a picture without connecting the

projector to video equipment.

LASER LINK is a system which transmits and

receives a picture and sound by using infrared rays.

Compact design

Easy to install on a bookshelf.

LASER LINK is a trademark of Sony Corporation.

Sony recommends that you use this projector with video

equipment having the mark.

Welcome

5-GB

Precautions

Installation

• Place the projector so that the lens is

perpendicular to the projected

plane. Otherwise the picture will

become distorted and may be out of

focus.

• You will be able to see the picture

more clearly in a darker place.

• The picture brightness depends on

the quality of the surface of the

projected plane. Select a flat and

white surface.

• The picture gets darker as the

distance to the projected plane

increases.

• Allow adequate air circulation to

prevent internal heat buildup. Do

not place the projector on surfaces

near materials (curtains, draperies)

that may block the ventilation holes.

Leave space of more than 30 cm (12

inches) between the wall and the

projector.

• Do not place the projector near heat

sources such as radiators or air

ducts, or in a place subject to direct

sunlight, excessive dust or

humidity, mechanical vibration or

shock.

• To avoid moisture condensation, do

not place the projector in a location

where the temperature may rise

rapidly.

Operation

• Do not point the lens toward the

sun.

• Do not look into the lens during

projection.

• Should any liquid or solid object fall

into the cabinet, unplug the

projector and have it checked by

qualified personnel before operating

it further.

• Unplug the projector from the mains

when you are not using the

projector.

• To disconnect the mains lead, pull it

out by the plug. Never pull the

mains lead itself.

• Do not use the unit near an AM

radio or tuner.

Cleaning the projector

• Be sure to turn off the power and

disconnect the mains lead from

mains before cleaning.

• Clean the projector with a soft, dry

cloth. If the projector is very dirty,

wipe it off with a soft cloth lightly

moistened with a mild detergent

solution, and then wipe with a soft

dry cloth. Do not apply any type of

solvent as it may damage the finish.

• Wipe the mirror for the IR receiver

carefully.

Cleaning the lens

• Clean the surface of the lens with a

blower brush. Do not rub with a

cloth. Lens cleaning tissue papers

are recommended.

Precautions

6-GB

Selecting the

projecting location

The size of the projected plane depends on the

distance from the projector to the projected plane.

Locate the projector with the lens pointed toward

the projected plane referring to the figure and table

below.

We recommend using the projector at a distance of 1

to 3.5 m (3 - 11 feet) from the projected plane.

Diameter of the projected plane (in inches) and

the distance from the projector for each size

A size between 20” and 80” of the projected plane is

recommended.

Table of the projected plane size by the distance

from the projector to the projected plane

Selecting the projecting location

Distance from the projector to

the projected plane in meters

(feet)

Distance to the

projected plane

1 m (3 feet)

2 m (6 feet)

2.5 m (8 feet)

3 m (9 feet)

3.5 m (11 feet)

Size of the projected plane

Approx. 480 x 360 mm

(19 x 14 1/4inches)

Approx. 960 x 720 mm

(37 7/8x 28 3/8inches)

Approx. 1200 x 900 mm

(47 1/4x 35 1/2inches )

Approx. 1460 x 1100 mm

(57 1/2x 43 3/8inches )

Approx. 1670 x 1260 mm

(66 1/4x 49 5/8inches )

100” 80” 60” 40” 20” 10”

4.3 3.4 2.5 1.8 0.8 0.45

(14.1)

(11.2)

(8.2) (6.0) (2.6) (1.5)

7-GB

VIDEOL

AUDIO

Preparations

There are two ways to receive picture and sound to

be projected from video equipment: by AV Cordless

IR (infrared rays) system or by directly connecting

video equipment.

Using the AV Cordless IR system –

LASER LINK

Connect the supplied IR transmitter to video

equipment such as a VCR or video camera recorder

using the supplied A/V connecting cable.

Connect the supplied AC power adapter to DC IN

9V of the IR transmitter and to the mains.

You do not need to connect the projector itself to

video equipment.

Tip

This projector accepts

the video signals of

both NTSC and PAL

color systems.

Notes

• Turn off the video

equipment and the

projector before

connecting.

• Refer to the video

equipment’s manual

as well.

• To connect the IR

transmitter to mains

use only supplied AC

power adapter,

because the polarity

of the supplied

adapter is opposite of

conventional

adapters. Do not use

the supplied AC

power adapter for

other electric

appliances with a DC

IN 9 V jack.

Polarity of the plug

Preparations

IR transmitter

to VIDEO OUT

to AUDIO OUT

: Signal flow

DC IN 9V

VIDEO IN

AUDIO IN

A/V connecting cable (supplied)

AC power adapter

(supplied to the

customers in European

Continent)

to mains

AC power adapter

(supplied to the

customers in U.K.)

to mains

8-GB Preparations

to VIDEO OUT

to VIDEO IN

to AUDIO OUT to

AUDIO

A/V connecting cable

(supplied)

: Signal flow

Front

Preparations (continued)

Connecting directly to video

equipment

Connect video equipment such as a VCR or video

camera recorder using the supplied A/V

connecting cable.

Make sure that the LASER LINK indicator of the

control panel is off.

Tip

This projector accepts

the video signals of

both NTSC and PAL

color systems.

Notes

• Turn off the video

equipment and the

projector before

connecting.

• Refer to the video

equipment’s manual

as well.

If you switch from the

LASER LINK system

“VIDEO” appears

when you project the

picture. The display

will go off after 5

seconds.

VIDEO

VIDEOL

AUDIO

9-GB

If your video equipment has an S video jack

Connect the projector to the video equipment using

an S video cable (not supplied). You can enjoy high

quality pictures.

In this case, you do not need to connect the video

(yellow) plug.

Tip

If S video and video

plugs are both

connected, the S video

signal is automatically

selected.

If you switch from the

LASER LINK system

“S-VIDEO” appears

when you project the

picture. The display

will go off after 5

seconds.

Front

Audio cable

(not supplied)

S video cable

(not supplied)

to AUDIO OUT

: Signal flow

AUDIO

to S VIDEO OUT to S VIDEO

S-VIDEO

Preparations

VIDEOL

AUDIO

S VIDEO

10-GB

Preparations (continued)

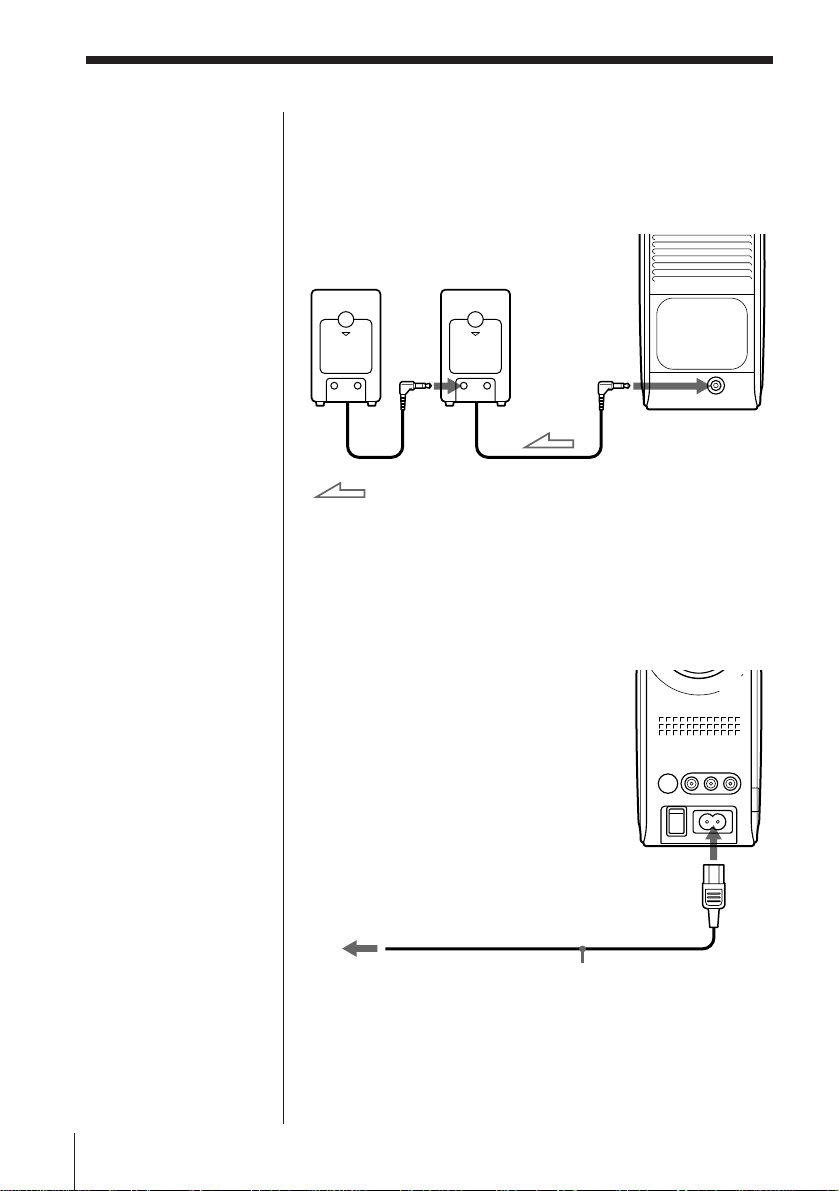

Connecting to external speaker(s)

When you want to connect external speaker(s) (not

supplied) to the projector, connect to the 2jack of

the projector.

Connecting the mains lead

Connect the mains lead (supplied) to the projector

and to the mains.

Active speakers

to 2(headphones)

: Signal flow

to mains

to AC IN

Mains lead (supplied)

Notes

• Turn off the speaker

and the projector

before connecting.

• Refer to the speaker’s

manual as well.

Rear

Front

Note

When the external

speaker is connected,

the projector’s built-in

speaker is turned off.

CAUTION

Never use a DC/AC

converter.

Preparations

Inhaltsverzeichnis

Sprachen:

Andere Sony Projektor Handbücher

Sony

Sony VPL-ES1 Bedienungsanleitung

Sony

Sony VPL-CS21 Bedienungsanleitung

Sony

Sony Supersmart VPL-PX15 Bedienungsanleitung

Sony

Sony SXRD SRX-R105 Bedienungsanleitung

Sony

Sony VPL-AW10 (VPLAW10 and VPLAW15) Bedienungsanleitung

Sony

Sony BRAVIA VPL-VW90ES Bedienungsanleitung

Sony

Sony VPLHW10 - BRAVIA - SXRD Projector Bedienungsanleitung

Sony

Sony VPL-VW385ES Bedienungsanleitung

Sony

Sony VPL-FX30 Bedienungsanleitung

Sony

Sony VPL-SW536M Leitfaden

Sony

Sony VPL-FH500L Bedienungsanleitung

Sony

Sony VPL-VW295ES Bedienungsanleitung

Sony

Sony VPL-VW1000ES Benutzerhandbuch

Sony

Sony VPL-FX51 Bedienungsanleitung

Sony

Sony VPL-EW246 Bedienungsanleitung

Sony

Sony VPL-CS4 - Compact Lcd Projector Bedienungsanleitung

Sony

Sony VPL-HW50ES Bedienungsanleitung

Sony

Sony VPL-HW40ES Bedienungsanleitung

Sony

Sony VPL-AW10 (VPLAW10 and VPLAW15) Bedienungsanleitung

Sony

Sony KP-57WV600 - 57"hi-scan 1080i 16:9 Projection... Bedienungsanleitung

Sony

Sony VPL-DX140 Installations- und Betriebshandbuch

Sony

Sony VPL-HW30ESB Bedienungsanleitung

Sony

Sony VPL-CX4 Bedienungsanleitung

Sony

Sony VPH-G70Q Bedienungsanleitung

Beliebte Projektor Handbücher anderer Marken

iEmmet

iEmmet MP-312 Bedienungsanleitung

Epson

Epson VS400 Bedienungsanleitung

Toshiba

Toshiba TLP-791U Bedienungsanleitung

Philips

Philips LC1341 Referenzhandbuch

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Bedienungsanleitung

NEC

NEC NP600S EDU Bedienungsanleitung

BenQ

BenQ SH753P Bedienungsanleitung

Eiki

Eiki EK-623U series Bedienungsanleitung

Epson

Epson PowerLite Pro Cinema 6020UB Bedienungsanleitung

Epson

Epson PowerLite Home Cinema 705HD Bedienungsanleitung

Christie

Christie LHD700 Bedienungsanleitung

Navitar

Navitar FX Bedienungsanleitung

InFocus

InFocus LitePro 560 Bedienungsanleitung

Vivitar

Vivitar DP1500 X Bedienungsanleitung

Acer

Acer C20 Series Bedienungsanleitung

Asus

Asus ZenBeam Latte Bedienungsanleitung

Epson

Epson PowerLite 810p Bedienungsanleitung

BOXLIGHT

BOXLIGHT CP-322i/CP-634i Bedienungsanleitung
