Sony VPH-V20U Bedienungsanleitung

ColorVideo

Projector

3-865-080-11(1)

VPH-V20M/V20U

VPH-V22M

Installation Manual for Dealers GB

1998 by Sony Corporation

CAUTION

THIS INSTALLATION MANUAL IS FOR USE BY QUALIFIED PERSONNEL

ONLY.

2Installation

Before Installing

Installation

Before Installing ................................................................ 3

Projector Dimensions..............................................................3

Installation Procedures............................................................6

Installation Diagrams ........................................................ 8

Floor Installation Using Front Projection Flat Screen ............8

Ceiling Installation Using Front Projection Flat Screen .........9

When the Screen Size is Not Described in the Diagrams .....10

Floor Installation Using Rear Projection Screen...................11

Ceiling Installation Using Rear Projection Screen ...............12

Level Projection, Floor Installation ......................................13

Level Projection, Ceiling Installation ...................................14

Modifications of Parts ..................................................... 15

Opening the Top Panel ..........................................................15

Removing the Cabinet...........................................................16

Detaching the Lens Block .....................................................18

Changing the CRT Spacer.....................................................19

Adjusting the Lens Spacer for 150- to 250-inch

Projection ..............................................................................23

Changing the Polarity............................................................24

Adjustment

Lens Focus Adjustment.................................................. 25

Preparation ............................................................................25

Adjusting the Lens Focus......................................................26

Registration Adjustment................................................. 27

Preparations...........................................................................28

Adjusting the Red Registration .............................................28

Adjusting Blue Registration..................................................29

When the Registration Adjustment is Complete...................29

English Table of Contents

Table of contents

Installation 3

Before Installing

Projector Dimensions

Side

Front

Rear

Unit: mm (inches)

Center of the green lens

Unit: mm (inches)

28.5 (1 1/8)

60 (2 3/8) 60 (2 3/8)

578 (22 7/8)

597.5 (23 5/8)

19.5 (25/32)

186.5 (7 3/8)

87.5 (3 1/2)

239 (9 1/2)

288.5 (11 3/8)

302 (12)

86 (3 1/2)

16 (21/32)

59 (2 3/8)

150 (6)

154.5

(5 3/4)

25 (1) 340 (13 1/2) 25 (1)

16 (21/32)

533 (21)

English

4Installation

Before Installing

Top

Illumination

To obtain a clear picture, the screen should not be exposed to illumination

or sunlight directly from the front.

•Ceiling mounted spot lighting is recommended. Use a construction over

light scattering illumination such as fluorescent lamps.

•Cover the windows that face the screen with opaque draperies.

•It is desirable to install the projector in a room whose floor and walls are

of reflecting material, it would be desirable to change to a dark carpet and

wall paper.

Caution

Take care not to touch portions of the projector other than those indicated

in this manual because dangerous high voltages are present. To change the

polarity, first turn the MAIN POWER switch off.

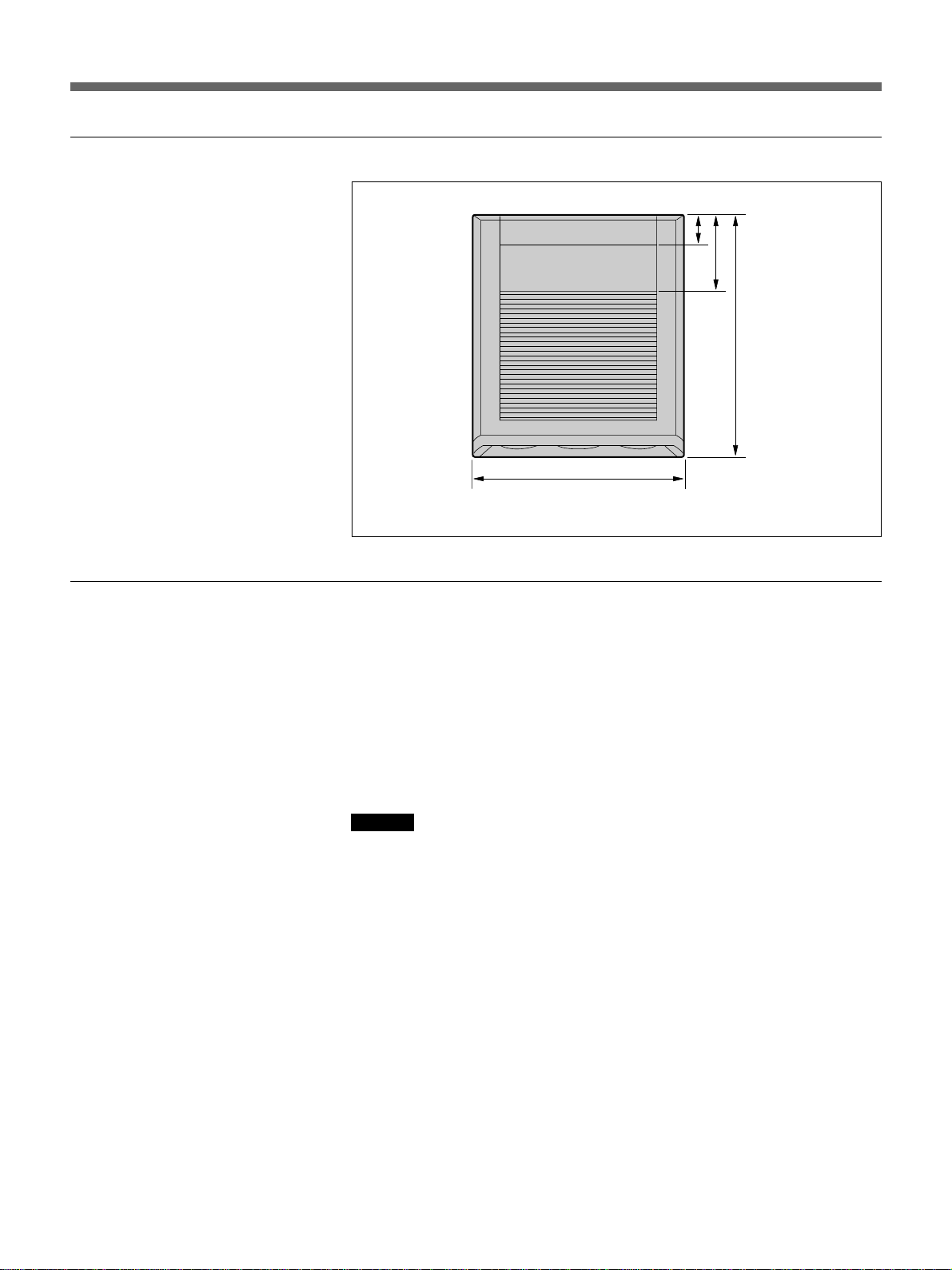

Unit: mm (inches)

72(2 7/8)

189 (7 1/2)

598 (23 5/8)

533 (21)

Installation 5

Necessary Clearance for Maintenance

When you install the projector, be sure to provide the clearance around it

as shown for maintenance service.

Necessary Dimensions for Ceiling Installation

Raise the brackets at the bottom.

*R:Radius

Unit: mm (inches)

You may reattach the

nameplate upside down.

Bracket

Hole used for installation

on the ceiling

630 (24 7/8)

150 (6)

730 (28 3/4)

R569 (22 1/2)*

63.5 (2 1/2)

320 (12 5/8)

37.6 (1 1/2)

251 (10)

11 (7/16)

3 (1/8)362 (14 3/8)3 (1/8)

93.5 (5 3/4)

6Installation

Before Installing

Ceiling Installation Using Front Projection

Flat Screen

Installation Procedures

This projector is adjusted at the factory for projection

on a 100-inch front projection type screen when the

projector is installed on the floor/desk. If you install

the projector under other conditions, modifications of

some parts in the projector are required. Therefore,

installation procedures vary depending on the screen

size, installation method and type of screen.

Floor Installation Using Front Projection

Flat Screen

70-149 inches 150-250 inches

Select the screen size.

Change the CRT spacers.

(Page 19)

Adjust the lens spacers.

(Page 23)

Install the screen and the projector in accordance with the

standard measurements. (Page 8)

Adjust the lens focus. (Page 26)

Adjust the registration. (Page 27)

70-149 inches 150-250 inches

Select the screen size.

Change the CRT spacers.

(Page 19)

Adjust the lens spacers.

(Page 23)

Install the screen and the projector in accordance with the

standard measurements. (Page 9)

Adjust the lens focus. (Page 26)

Adjust the registration. (Page 27)

Change the polarity. (Page 24)

Installation 7

Operable range of the Remote

Commander

Floor or Ceiling Installation Using Rear

Projection Flat Screen

Approx. 7 m (23 feet) (max.)

12° 0° or 2°

Determine the angle of optical axis.

Change the CRT spacers.

(Page 19)

Install the screen and the projector in accordance with the

standard measurements.

• Floor installation (pages 11, 13)

• Ceiling installation (pages 12, 14)

Adjust the lens focus. (Page 26)

Adjust the registration. (Page 27)

Change the polarity. (Page 24)

30°

MUTING

INPUT SELECT

PIC

VIDEO

S VIDEO INPUT A

TEST

R CENT B CENT

PAGE

M SEL

ASPECT

RESET

8Installation

Installation Diagrams

Floor Installation Using Front Projection Flat Screen

Be sure that the projector is parallel to the floor.

12°

Tolerance in length:±1%

Screen size Length: mm (inches)

(inches) A B C D E

70 1,067 (421 /8) 674 (265 /8) 2,406 (943 /4) 2,363 (931 /8) 2,934 (1155 /8)

72 1,097 (431 /4) 685 (27) 2,480 (97 3 /4) 2,441 (961 /8) 3,012 (1185 /8)

80* 1,219 (48) 740 (291 /4) 2,734 (1073 /4) 2,681 (1055 /8) 3,252 (1281 /8)

100* 1,524 (601/8) 873 (343 /8) 3,368 (1325 /8) 3,301 (130) 3,872 (1521 /2)

120** 1,829 (721 /8) 1,006 (395 /8) 4,004 (15711 /16) 3,923 (1541 /2) 4,494 (177)

150 2,286 (901 /8) 1,214 (477 /8) 4,961 (1953 /8) 4,857 (1911 /4) 5,428 (2133 /4)

180 2,743 (1081 /8) 1,414 (553 /4) 5,918 (2311 /8) 5,793 (2281 /8) 6,364 (2505/8)

200 3,048 (1201 /16) 1,544 (607 /8) 6,555 (2581 /8) 6,417 (2523 /4) 6,988 (2751 /4)

250 3,810 (1501 /8) 1,884 (741 /4) 8,142 (3205 /8) 7,967 (3133 /4) 8,538 (3361 /4)

*Sony screen VPS-80FH

**Sony screen VPH-100FH

***Sony screen VPS-120FH

Necessary modifications of parts(only for use of the 150- to 250-inch screens)

•CRT spacer change (page 19)

•Lens spacer adjustment (Page 23)

Center of the screen

Center of the green lens

Floor

Wall

“B” and “D” correspond to

those in the illustration below.

16 mm

Installation 9

Ceiling Installation Using Front Projection Flat Screen

Be sure that the projector is parallel to the ceiling. Use the Sony PSS-722

projector suspension support.

Screen size Length: mm (inches)

(inches) A B C D E F

70 1,067 (421 /8) 813 (321 /8) 2,406 (943 /4) 2,614 (103) 2,934 (1155 /8) 139 (51 /2)

72 1,097 (431 /4) 824 (321 /2) 2,480 (97 3 /4) 2,692 (106) 3,012 (1185 /8) 139 (51 /2)

80* 1,219 (48) 879 (345 /8) 2,734 (1073 /4) 2,932 (1143 /4) 3,252 (1281 /8) 139 (51 /2)

100* 1,524 (601/8) 1,012 (397 /8) 3,368 (1325 /8) 3,552 (1397 /8) 3,872 (1521 /2) 139 (51 /2)

120** 1,829 (721 /8) 1,145 (451 /8) 4,004 (15711 /16) 4,174 (1643 /8) 4,494 (177) 139 (51 /2)

150 2,286 (901 /8) 1,350 (531 /4) 4,961 (1953 /8) 5,108 (2011 /8) 5,428 (2133 /4) 136 (53 /8)

180 2,743 (1081 /8) 1,550 (611 /8) 5,918 (2311 /8) 6,044 (238) 6,364 (2505/8) 136 (53 /8)

200 3,048 (1201 /16) 1,680 (661 /4) 6,555 (2581 /8) 6,668 (2625/8) 6,988 (2751 /4) 136 (53 /8)

250 3,810 (1501 /8) 2,020 (799 /16) 8,142 (3205 /8) 8,218 (3235 /8) 8,538 (3361 /4) 136 (53 /8)

*Sony screen VPS-80FH

**Sony screen VPS-100FH

***Sony screen VPS-120FH

Necessary modification of parts

•CRT spacer change (only for use of 150- to 250-inch screens) (page 19)

•Lens spacer adjustment (only for use of 150- to 250-inch screens) (page

23)

•Horizontal and vertical deflection changes (page 24)

Ceiling

Rotation axis of the

PSS-722

Center of the green lens

Center of the screen

Tolerance in length:±1%

10 Installation

Installation Diagrams

When the Screen Size is Not Described in the Diagrams

When using the front projection flat screen for floor and ceiling

installations, use the following graph to decide the distance between the

screen and the projector (L).

L m L inches

72 100 150 200 250

234567

2345

50 100 150 200

300

250

200

150

100

factory-preset

A inches

A m

B inches

B m

Viewable area of the screen

Screen

Center of the green lens

3/4B
