Getting Started

WARNING

To prevent fire or shock

hazard, do not expose

the unit to rain or

moisture.

To avoid electrical shock, do not open

the cabinet. Refer servicing to qualified

personnel only.

Do not install the appliance in a

confined space, such as a bookcase or

built-in cabinet.

For the customers in Canada

CAUTION

TO PREVENT ELECTRIC SHOCK, DO

NOT USE THIS POLARIZED AC PLUG

WITH AN EXTENSION CORD,

RECEPTACLE OR OTHER OUTLET

UNLESS THE BLADES CAN BE FULLY

INSERTED TO PREVENT BLADE

EXPOSURE.

Precautions

On safety

• Should any solid object or liquid fall

into the cabinet, unplug the receiver

and have it checked by qualified

personnel before operating it any

further.

On power sources

• Before operating the receiver, check

that the operating voltage is identical

with your local power supply. The

operating voltage is indicated on the

nameplate at the rear of the receiver.

• The receiver is not disconnected from

the AC power source (MAINS) as

long as it is connected to the wall

outlet, even if the receiver itself has

been turned off.

• If you are not going to use the

receiver for a long time, be sure to

disconnect the receiver from the wall

outlet. To disconnect the AC power

cord, grasp the plug itself; never pull

the cord.

• Should the AC power cord need to be

changed, have it done at a qualified

service shop only.

On placement

• Place the receiver in a location with

adequate ventilation to prevent heat

build-up and prolong the life of the

receiver.

• Do not place the receiver near heat

sources, or in a place subject to direct

sunlight, excessive dust or

mechanical shock.

• Do not place anything on top of the

cabinet that might block the

ventilation holes and cause

malfunctions.

On operation

• Before connecting other components,

be sure to turn off and unplug the

receiver.

On cleaning

• Clean the cabinet, panel and controls

with a soft cloth slightly moistened

with a mild detergent solution. Do

not use any type of abrasive pad,

scouring powder or solvent such as

alcohol or benzine.

If you have any question or problem

concerning your receiver, please

consult your nearest Sony dealer.

3US

Getting Started

About This Manual

The instructions in this manual are for

models STR-DE535 and STR-DE435.

Check your model number by looking

at the upper right corner of the front

panel or lower right corner of the

remote. In this manual, the STR-DE535

is the model used for illustration

purposes, any difference in operation is

clearly indicated in the text, for

example, “STR-DE535 only”.

Type of differences

Conventions

The instructions in this manual describe

the controls on the receiver. You can

also use the controls on the remote if

they have the same or similar names as

those on the receiver. For details on the

use of your remote, refer to the separate

operating instructions supplied with the

remote.

• A “Quick Reference Guide” is

supplied on page 29.

• The following icons are used in this

manual:

Indicates that you can use only

the remote to do the task.

Indicates hints and tips for

making the task easier.

This receiver contains a Dolby Pro Logic

Surround decoder.

Manufactured under license from Dolby

Laboratories Licensing Corporation.

“Dolby , “Pro Logic” and the double-D

asymbol are trademarks of Dolby

Laboratories Licensing Corporation.

Model

Feature

PHONO

CONTROL A1 II

DE435DE535

•

TABLE OF CONTENTS

Getting Started

Unpacking 4

Hookup Overview 4

Antenna Hookups 5

Audio Component Hookups 5

Video Component Hookups 6

Speaker System Hookups 7

AC Hookups 9

Before You Use Your Receiver 9

Dolby Surround Setup 10

Location of Parts and Basic Amplifier Operations

Front Panel Parts Description 12

Receiver Operations

Receiving Broadcasts 15

Presetting Radio Stations 16

Using Surround Sound

Enjoying Surround Sound 17

Selecting a Sound Field 18

Customizing Sound Fields 19

Other Operations

Indexing Preset Stations and Program Sources 21

Recording 21

Using the Sleep Timer 22

Adjustments Using the SET UP Button 23

Additional Information

Troubleshooting 24

Specifications 25

Glossary 26

Index 27

Rear Panel Descriptions 28

Quick Reference Guide 29

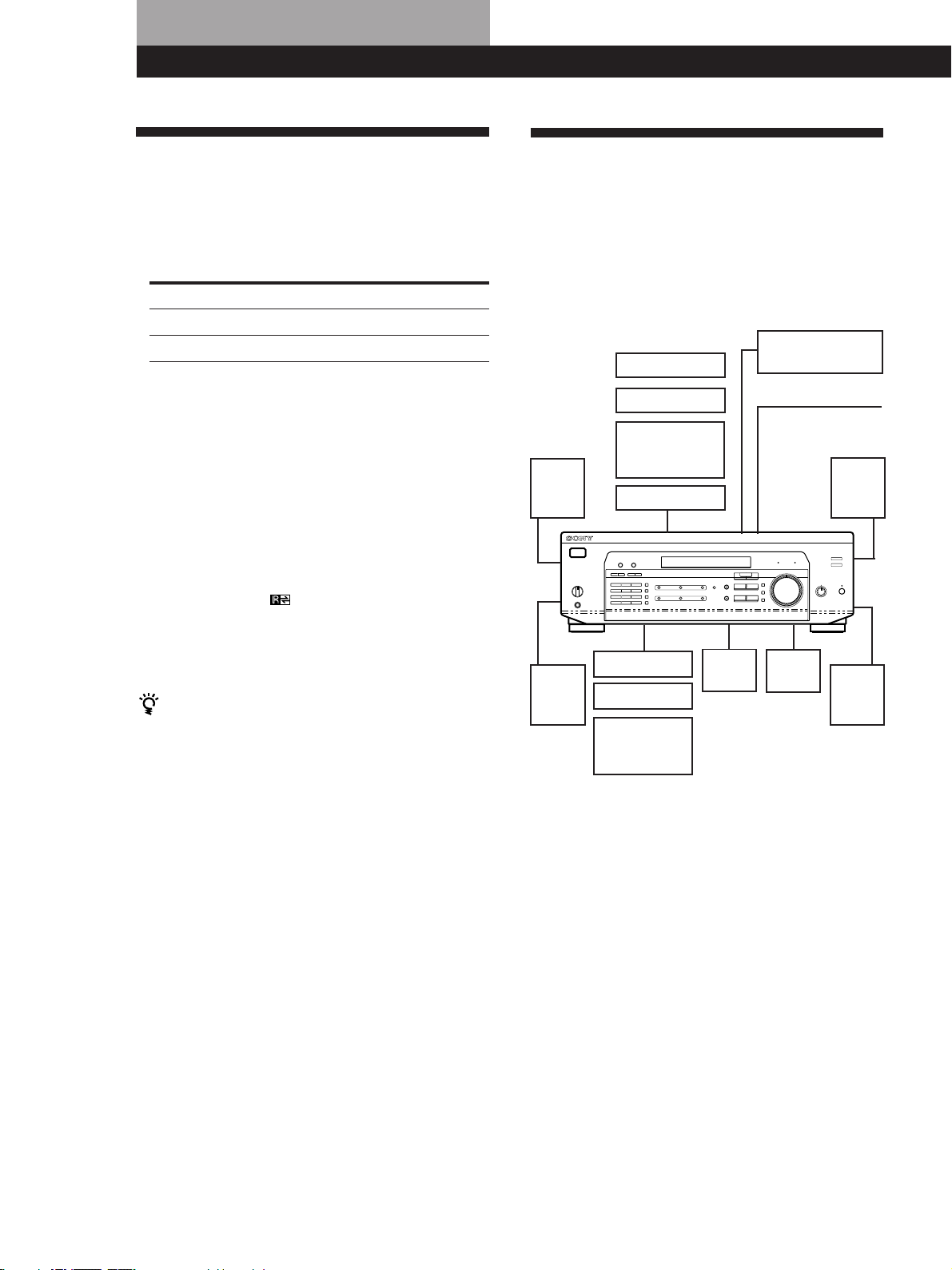

4US

Getting Started

Unpacking

Check that you received the following items with the

receiver:

• FM wire antenna (1)

• AM loop antenna (1)

• Remote commander (remote) (1)

Model Remote

STR-DE535 RM-LJ302

STR-DE435 RM-PP402

• LR6 (size-AA) batteries (3) (STR-DE535 only)

• R6 (size-AA) batteries (2) (STR-DE435 only)

• Operating Instructions of the remote (1)

• Operating Instructions of CONTROL A1 II (1)

(STR-DE535 only)

Inserting batteries into the remote

Insert the LR6 (STR-DE535) or R6 (STR-DE435) (Size

AA) batteries with the + and – properly oriented in the

battery compartment. When using the remote, point it

at the remote sensor (STR-DE535) or g(STR-

DE435) on the receiver.

For details, refer to the operating instructions supplied

with your remote.

You cannot operate the following buttons on the

RM-PP402 remote (STR-DE435 only)

• VIDEO2

• VIDEO3

• DVD

• PHONO

• SOUND FIELD A. F. D.

Notes

• Do not leave the remote in an extremely hot or humid

place.

• Do not use a new battery with an old one.

• Do not expose the remote sensor to direct sunlight or

lighting apparatuses. Doing so may cause a malfunction.

• If you don’t use the remote for an extended period of time,

remove the batteries to avoid possible damage from

battery leakage and corrosion.

Hookup Overview

The receiver allows you to connect and control the

following audio/video components. Follow the

hookup procedures for the components that you want

to connect to the receiver on the pages specified. To

learn the locations and names of each jack, see “Rear

Panel Descriptions” on page 28.

AM/FM antenna

DVD player/AC-3

decoder

Front

speaker

(L)

Speaker

System

Hookups (7)

Antenna Hookups (5)

Front

speaker

(R)

Rear

speaker

(L)

Rear

speaker

(R)

CD player

MD/Tape deck

Turntable

(STR-DE535

only)

Center

speaker Active

woofer

Video Component

Hookups (6)

TV monitor

TV tuner

SAT (Satellite

receiver)/LD

player

VCR

Audio Component

Hookups (5)

Before you get started

• Turn off the power to all components before making

any connections.

• Do not connect the AC power cords until all of the

connections are completed.

• Be sure to make connections firmly to avoid hum

and noise.

• When connecting an audio/video cable, be sure to

match the color-coded pins to the appropriate jacks

on the components: Yellow (video) to Yellow; White

(left, audio) to White; and Red (right, audio) to Red.

5US

Getting Started

Antenna Hookups

Overview

This section describes how to connect AM and FM

antennas to the receiver. If you want to receive radio

broadcasts with the receiver, complete these

connections first, then go to the following pages.

For specific locations of the terminals, see the

illustration below.

What antennas will I need?

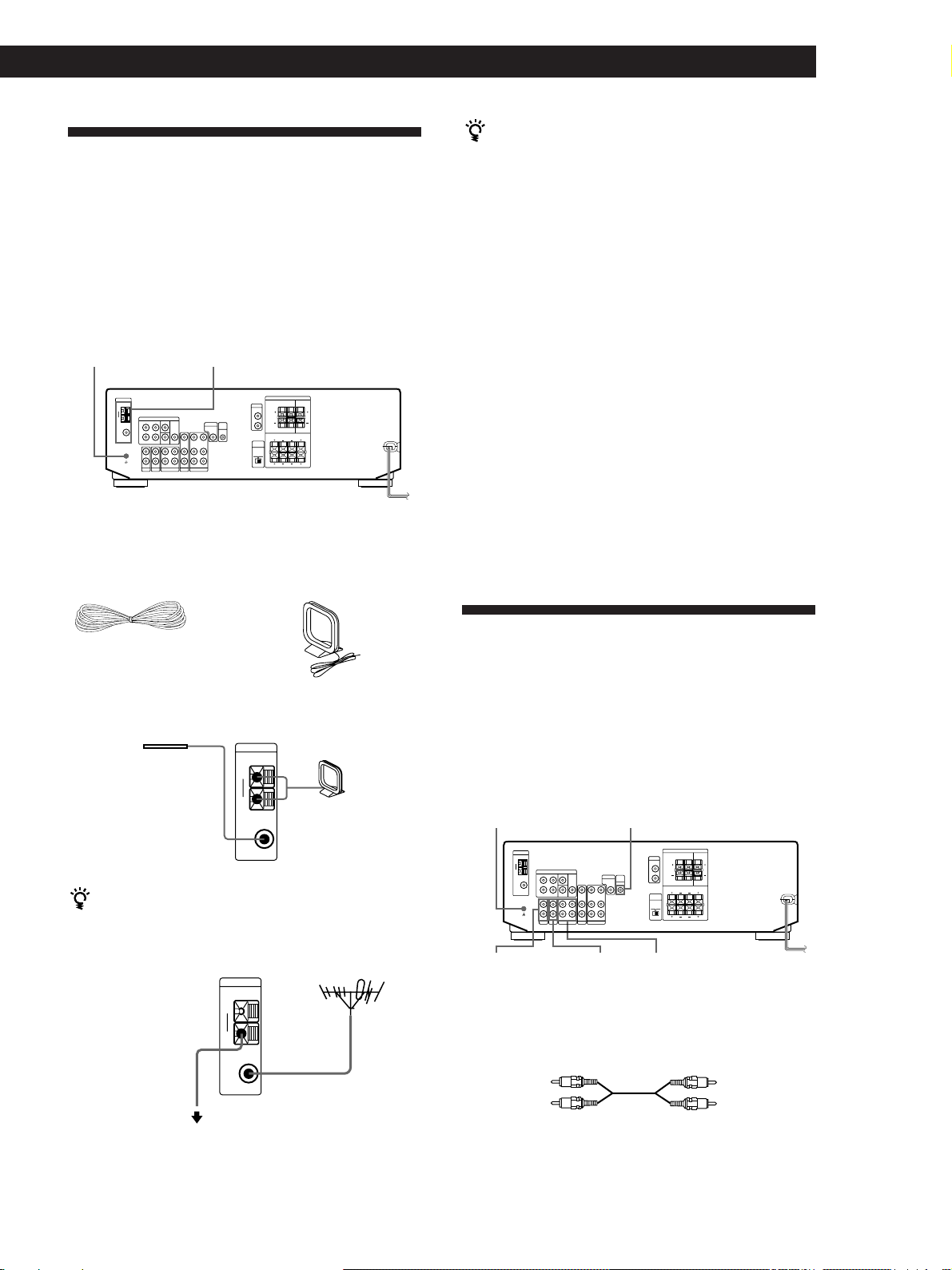

Hookups

FM wire antenna

If you have poor AM reception

Connect a 20 to 50 ft. (6 to 15-meter) insulated wire (not

supplied) to the AM antenna terminal in addition to the

AM loop antenna. Try to extend the wire outdoors and

keep it horizontal.

Connecting a ground wire

If you connect the receiver to an outdoor antenna,

ground it against lightning as shown in the illustration

in the left column. To prevent a gas explosion, do not

connect the ground wire to a gas pipe.

Note (except STR-DE435)

Do not use the SIGNAL GND yterminal for grounding the

receiver.

Where do I go next?

If you want to connect other components, go on to the next

section. If you’re only planning to use the receiver to listen

to the radio, go to “Speaker System Hookups” on pages 7

and 8.

Audio Component Hookups

Overview

This section describes how to connect your audio

components to the receiver. If you want to use the

receiver as an amplifier, complete these connections.

For specific locations of the jacks, see the illustration

below.

What cables will I need?

Audio cords (not supplied) (1 for each CD player or

turntable; 2 for each MD recorder or tape deck)

ANTENNA

• AM loop antenna

(supplied) (1)

• FM wire antenna

(supplied) (1)

After connecting

the wire antenna,

keep it as

horizontal as

possible.

If you have poor FM reception

Use a 75-ohm coaxial cable (not supplied) to connect the

receiver to an outdoor FM antenna as shown below.

Receiver

AM loop antenna

Receiver

(continued)

Red (R)Red (R)

White (L)White (L)

y(STR-DE535 only)

COAXIAL

75Ω

ANTENNA

COAXIAL

75Ω

ANTENNA

Ground wire

(not supplied)

To ground

FM outdoor antenna CD MD/TAPE

y(STR-DE535 only)

PHONO

(STR-DE535 only)

CTRL A1 II (STR-DE535 only)

6US

Getting Started

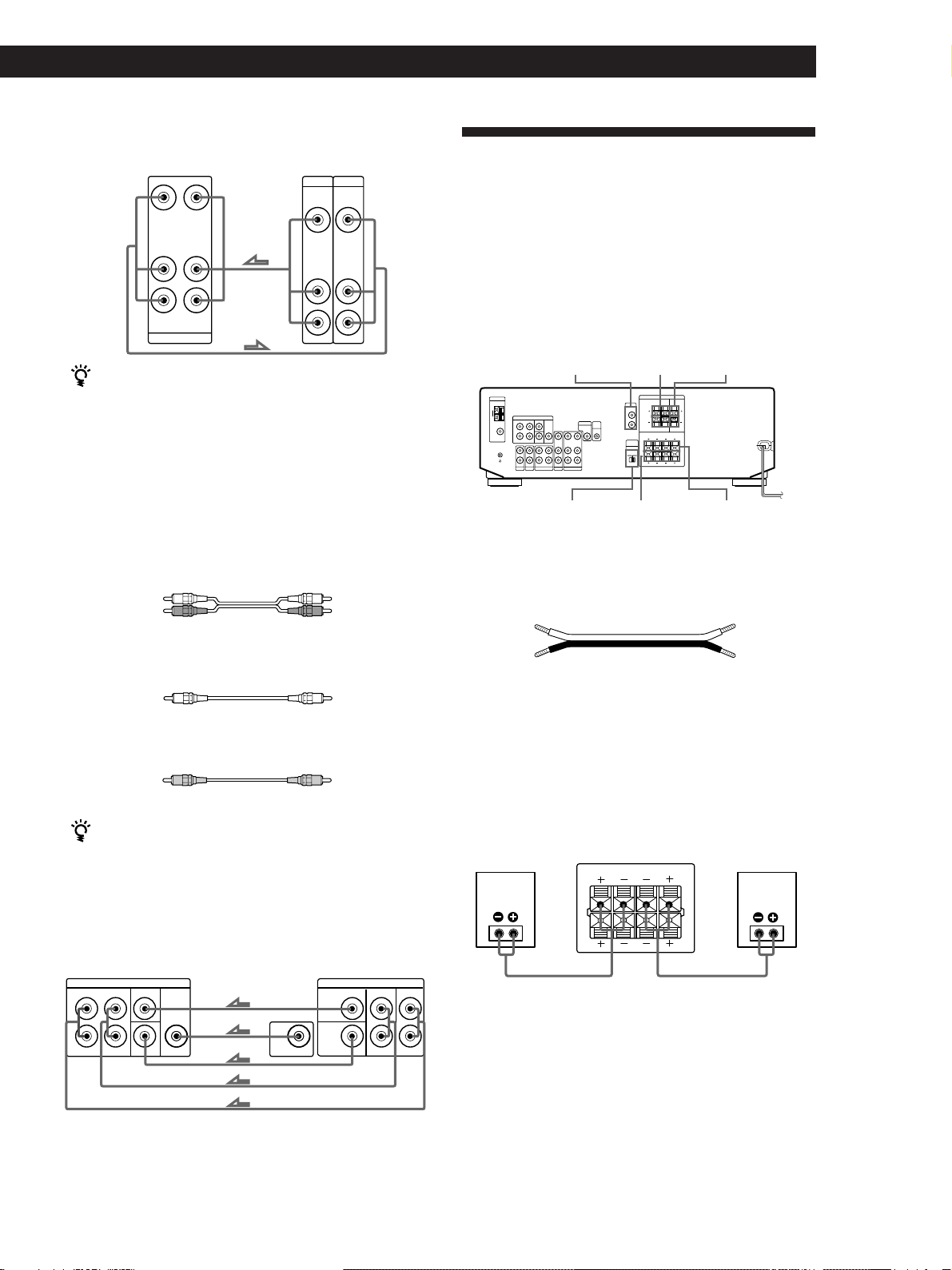

Hookups

The arrow çindicates signal flow.

CD player

Turntable (STR-DE535 only)

• If your turntable has an earth lead

To prevent hum, connect the earth lead to the yground

terminal on the receiver.

MD recorder or Tape deck

CONTROL A1 II (STR-DE535 only)

If you have a CONTROL A1 II-compatible Sony CD player,

MD recorder or tape deck

Use a CONTROL A1 II cord (not supplied) to connect the

CTRL A1 II jack on the CD player, MD recorder or tape deck

to the CTRL A1 II jack on the receiver. Refer to the separate

manual “CONTROL-A1 II Control System” and the

operating instructions supplied with your CD player, MD

recorder or tape deck for details.

Where do I go next?

Go on to the next section to connect video components to

enjoy surround sound when watching/listening to TV

programs or video tapes.

Receiver CD player

AUDIO IN

OUTPUT

LINE

Receiver Turntable

PHONO

AUDIO IN

OUTPUT

LINE

MD recorder or Tape deck

Receiver

OUTPUT

LINE INPUT

LINE

MD/TAPE

REC OUT

Receiver CD player, MD recorder

or Tape deck

CTRL

A1 II

CTRL

A1 II

Video Component Hookups

Overview

This section describes how to connect video

components to the receiver. For specific locations of the

jacks, see the illustration below.

What cables will I need?

• Audio/video cable (not supplied) (1 for each TV tuner,

Satelllite receiver or LD player; 2 for the VCR)

• Video cable (not supplied) (1 for a TV monitor)

Hookups

The arrow çindicates signal flow.

TV/SAT (TV/LD)

MONITOR

VIDEOTV/SAT

(TV/LD)

5.1 CH/DVD

Yellow Yellow

Yellow

White (L)

Red (R)

Yellow

White (L)

Red (R)

Receiver TV tuner or Satellite

receiver or LD player

TV monitorReceiver

AUDIO IN

TV/LD

VIDEO IN

AUDIO

OUTPUT

VIDEO

MONITOR

VIDEO

OUT

INPUT

VIDEO

7US

Getting Started

(continued)

VCR

Use the function buttons (TV/SAT (TV/LD), CD, MD/

TAPE etc.) to select the VIDEO AUDIO OUT signal.

You can record this audio signal by connecting a

recording component such as a cassette deck (to the

VIDEO AUDIO OUT jack).

DVD player/AC-3 decoder

What cables will I need?

• Audio cable (not supplied) (1 for each 5.1 CH/DVD

FRONT and REAR jacks)

• Monaural audio cable (not supplied) (1 for each 5.1 CH/

DVD CENTER and WOOFER jacks)

• Video cable (not supplied) (1 for the 5.1 CH/DVD VIDEO

IN jack)

You can play decoded Dolby Digital AC-3

soundtracks through the speakers connected to the

amplifier.

If you have a Dolby Digital AC-3 decoder you can

amplify a decoded Dolby Digital AC-3 soundtrack with

the following connections.

Where do I go next?

Go on to the next section to connect the speakers.

Receiver VCR

AUDIO IN

VIDEO

VIDEO IN

AUDIO

OUTPUT

VIDEO

AUDIO

INPUT

VIDEO

AUDIO OUT

VIDEO OUT

Yellow Yellow

White (L)

Red (R) White (L)

Red (R)

Black Black

Receiver Dolby Digital AC-3

decoder, etc.

5.1 CH / DVD

FRONT FRONTREAR REARCENTER

CENTER

WOOFER

VIDEO IN

VIDEO

PRE OUT

Speaker System Hookups

Overview

This section describes how to connect your speakers to

the receiver. To enjoy surround effects, center and rear

speakers and an active woofer are required. For

specific locations of the terminals, see the illustration

below:

What cords will I need?

Speaker cord (not supplied) (1 for each speaker)

Twist the stripped ends of the cord about 2/3 inch (15 mm).

Be sure to match the speaker cord to the appropriate

terminal on the components: + to + and – to –. If the cords

are reversed, the sound will be distorted and will lack bass.

Hookups

Front speakers

WOOFER SPEAKERS

REAR

SPEAKERS

FRONT B

SPEAKERS CENTER

SPEAKERS

FRONT A

(+)(+)

(–)

Front speaker

(R) Front speaker

(L)

Receiver

FRONT

IMPEDANCE

SELECTOR

8US

Getting Started

After connecting all the components, speakers, and AC

power cord, output a test tone to check that all the

speakers are connected correctly. For details on

outputting a test tone, refer to “Adjusting the speaker

volume” on page 10.

If you have connected rear speakers, be sure to press

the 5.1 CH/DVD button and turn off sound field on

the receiver before outputting a test tone so that the

tone is output individually from the left and right rear

speakers.

If no sound is heard from a speaker while outputting a

test tone or a test tone is output from a speaker other

than the one whose name is currently displayed on the

receiver, the speakers may be short-circuited. If this

happens, check the speaker connection again.

Active woofer

* STR-DE535 only STR-DE435 only

* You can connect the active woofer to either of the two

jacks. The remaining jack can be used to connect a second

active woofer.

Note

Do not connect any other component.

If you have an additional front speaker system

Connect them to the SPEAKERS FRONT B terminals.

If your TV monitor uses separate speakers

You can connect one of them to the SPEAKERS

CENTER terminals for use with Dolby Pro Logic

Surround sound (see page 10).

Where do I go next?

To complete your system, go to “AC Hookups” on page 9.

Selecting the impedance

Set the IMPEDANCE SELECTOR for the front speakers

as indicated in the table below. Check the instruction

manual of your speakers if you’re not sure of the

impedance. (This information is usually printed on a

label on the back of the speaker.)

Note

Be sure to connect the front speakers with nominal

impedance of 8 ohms or higher if you want to select both

sets of front speakers (see page 12).

Rear and center speakers

To avoid short-circuiting the speakers

Short-circuiting of the speakers may damage the

receiver. To prevent this, make sure to take the

following precautions when connecting the speakers.

Make sure the stripped ends of each speaker cord does

not touch another speaker terminal or the stripped end

of another speaker cord.

Examples of poor conditions of the speaker cord:

Stripped speaker cord is touching another speaker

terminal

Stripped cords are touching each other due to excessive

removal of insulation.

If the nominal impedance of

your speaker is

Between 4 and 8 ohms

8 ohms or higher

Set IMPEDANCE SELECTOR

4Ω

8Ω

Receiver

Rear speaker

(R) Rear speaker

(L)

Center speaker

SPEAKERS

REARLR

CENTER

REAR

–

REAR

Receiver

Receiver Active woofer

Active woofer

WOOFER

AUDIO

OUT INPUT

WOOFER

AUDIO

OUT

INPUT

9US

Getting Started

AC Hookups

Setting the voltage selector (except for

Canada, Australia, Singapore and Malaysia

models)

Check that the voltage selector on the rear panel of the

player is set to the local power line voltage. If not, set

the selector to the correct position using a screwdriver

before connecting the AC power cord to a wall outlet.

Connecting the AC power cord

Connect the AC power cord from this receiver and

from your audio/video components to a wall outlet.

If you connect other audio components to the

SWITCHED AC OUTLET on the receiver, the receiver

can supply power to the connected components so you

can turn on/off the whole system when you turn on/

off the receiver.

Caution

Make sure that the power consumption of the component

connected to the receiver’s AC outlet does not exceed 100

watts. Do not connect high-wattage electrical home

appliances such as electric irons, fans, or TVs to this outlet.

Where do I go next?

Before you use the receiver, go to the next section to make

sure that all the controls are set to the appropriate positions.

120 V 240 V 220 V

to a wall outlet

SWITCHED AC OUTLET

VOLTAGE SELECTOR

(except Canada, Australia,

Singapore and Malaysia

models) (STR-DE535 only)

Before You Use Your Receiver

Before turning on the receiver

Make sure that you have:

• Turned MASTER VOLUME to the leftmost

position (0).

• Selected the appropriate front speakers (see “Front

Panel Parts Description” on page 12).

• Set BALANCE to the centre position.

Clearing the receiver's memory

Before you use your receiver for the first time or when

you want to clear the receiver's memory, do the

procedure below:

1Turn off the receiver.

2Press 1/u(power) for more than 4 seconds.

“ALL CLEAR” appears in the display and the

items including the following are reset or cleared:

• All preset stations are reset to their factory

settings.

• All sound field parameters are reset to their

factory settings.

• All index names (of preset stations and program

sources) are cleared.

• All adjustments made with the SET UP button

are reset to their factory settings.

• The sound field memorized for each program

source and preset station is cleared.

After turning on the receiver

Check the following indicator:

• Press MUTING or MUTING on the remote if the

MUTING indicator turns on.

• Press DIMMER to set the display at any of four levels

of brightness.

DIMMER

MUTING

1/u(power)

10US

Getting Started

3Use + or – to select the center mode you want.

A description of each center mode is as follows:

Adjusting the speaker volume

The test tone feature lets you set the volume of your

rear speakers and/or center speaker to the same level

as that of the front speakers to maximize the Dolby Pro

Logic Surround effect. (If all of your speakers are equal

in performance, you don't have to adjust the speaker

volume.)

Using the controls on the remote, you can adjust the

volume level from wherever you're listening.

1Make sure that the centre mode is correctly set

(see the table on this page).

2Press SOUND FIELD ON/OFF to turn on the

sound field.

3Press SOUND FIELD MODE +/– repeatedly to

select “PRO LOGIC.”

4Press TEST TONE on the supplied remote.

You will hear a test tone (see next page) from each

speaker sequentially.

If you have

Front and rear

speakers, but no

center speaker

Front and center

speakers, but no

rear speaker

Front and rear

speakers, and a

small center

speaker

Front and rear

speakers, and a

center speaker

that is equivalent

to your front

speakers

Select

PHANTOM

3 STEREO

(3-CH LOGIC)

NORMAL

WIDE

So that

The sound of the center

channel is output from

the front speakers

The sound of the rear

channel is output from

the front speakers

The bass sound of the

center channel is

output from the front

speakers (because a

small speaker cannot

produce enough bass)

The center channel

fully reproduces the

entire audio spectrum

Dolby Surround Setup

Dolby Pro Logic Surround is a system for decoding

Dolby Surround sound that is standardized for TV

programs and movies. By selecting the proper centre

mode and adjusting the speaker volume, you can

reproduce highly precise localization and dynamic

panning of sounds of Dolby Surround encoded

software.

To obtain the best possible surround effect, you will

require at least one additional pair of speakers and/or

a centre speaker.

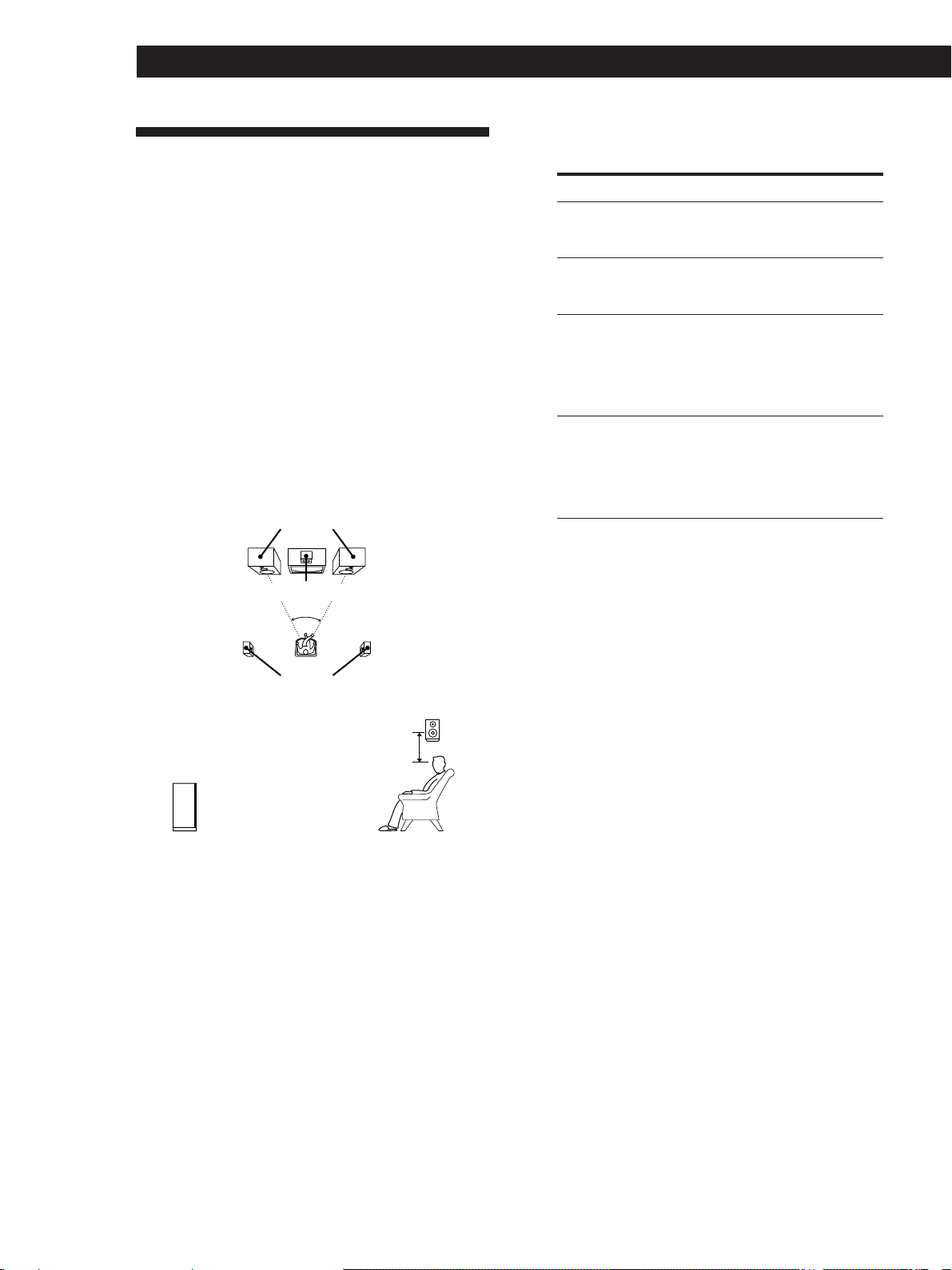

Locating the speakers

For optimum Dolby Pro Logic Surround sound, locate

your speakers as shown below.

Selecting the center mode

The receiver offers you four center modes:

PHANTOM, 3 STEREO, NORMAL, and WIDE. Each

mode is designed for a different speaker configuration.

Select the mode that best suits the speakers you use.

1Press SET UP.

2Press MENU < or > repeatedly until “CTR

MODE” (center mode) appears in the display.

Front speakers

Rear speakers

Rear speaker

2to 3ft.

(60 - 90 cm)

Front speaker

45°

Center speaker

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Sony Stereo-Receiver Handbücher

Sony

Sony STR-DA1000ES Bedienungsanleitung

Sony

Sony STR-K675P (For HT-DDW675) Bedienungsanleitung

Sony

Sony STR-DE697 Kurzanleitung

Sony

Sony STR-DA9000ES - Fm Stereo/fm-am Receiver Bedienungsanleitung

Sony

Sony ICF-SW07 Bedienungsanleitung

Sony

Sony STR-GX80ES Bedienungsanleitung

Sony

Sony STR-DE375 Bedienungsanleitung

Sony

Sony STR-DE535 - Fm Stereo/fm-am Receiver Bedienungsanleitung

Sony

Sony STR-DA1500ES Bedienungsanleitung

Sony

Sony STR-DA2800ES Bedienungsanleitung

Sony

Sony STR-SL500 Kurzanleitung

Sony

Sony STR-K740P - Fm Stereo/fm-am Receiver Bedienungsanleitung

Sony

Sony XAV-AX5110 Bedienungsanleitung

Sony

Sony CFS-W500S Bedienungsanleitung

Sony

Sony ST-RDE597 Bedienungsanleitung

Sony

Sony STR-V333ES - Fm Stereo/fm-am Receiver Bedienungsanleitung

Sony

Sony STR-DE695 - Fm Stereo/fm-am Receiver Bedienungsanleitung

Sony

Sony STR-D565 Bedienungsanleitung

Sony

Sony STR-DE885 Bedienungsanleitung

Sony

Sony STP-DA2KXJES Bedienungsanleitung

Sony

Sony ST-RDE945 Bedienungsanleitung

Sony

Sony STR-ZA1100ES Benutzerhandbuch

Sony

Sony ICF-SW07 Bedienungsanleitung

Sony

Sony STR-ZA5000ES Bedienungsanleitung

Beliebte Stereo-Receiver Handbücher anderer Marken

Marantz

Marantz CINEMA 70S Bedienungsanleitung

Kenwood

Kenwood KMDX92 Bedienungsanleitung

Yamaha

Yamaha RX-830 Bedienungsanleitung

Pioneer

Pioneer AVH-Z7250BT Bedienungsanleitung

Yamaha

Yamaha RX-750 Bedienungsanleitung

Denon

Denon AVR-1311 Bedienungsanleitung

Denon

Denon AVR-S760H Bedienungsanleitung

Denon

Denon AVR-X7200W Bedienungsanleitung

Pioneer

Pioneer SC-LX904 Handbuch

Radio Shack

Radio Shack DX-399 Bedienungsanleitung

Pioneer

Pioneer SX-1000TA Bedienungsanleitung

Yamaha

Yamaha MusicCast TSR-5B3D Bedienungsanleitung

Panasonic

Panasonic AJSD955B - DVCPRO50 STUDIO DECK Bedienungsanleitung

Pioneer

Pioneer SX-838 Bedienungsanleitung

Sherwood

Sherwood S-2660CP Technisches Handbuch

Pioneer

Pioneer XR-VS77 Bedienungsanleitung

Pioneer

Pioneer AVH-2300NEX Bedienungsanleitung

Denon

Denon DRA-697CI Bedienungsanleitung
