SONY.

3-860-516-14(2)

FM

Stereo

FM-AM

Receiver

Operating

Instructions

STR-DE915

STR-DE715

STR-DE615

STR-D660Z

STR-D560Z

©

1997

by

Sony

Corporation

WARNING

To

prevent

fire

or

shock

hazard,

do

not

expose

the

unit

to

rain

or

moisture.

CAUTION

TO

REDUCE

THE

RISK

OF

ELECTING

SHOCK,

оо

MOT

REMOVE

COVER

[OR

HACK)

MO

USER

SERVICEABLE

PARTS

SDE

REFER

SERVICING

TO

OUAUPED

SERVICE

PERSONNEL.

This

symbol

is

intended

to

alert

the

user

to

the

presence

of

uninsulated

“dangerous

voltage”

within

the

product’s

enclosure

that

may

be

of

sufficient

magnitude

to

constitute

a

risk

of

electric

shock

to

persons.

A

This

symbol

is

intended

to

alert

the

user

to

the

presence

of

important

operating

and

maintenance

(servicing)

instructions

in

the

literature

accompanying

the

appliance.

INFORMATION

This

equipment

has

been

tested

and

found

to

comply

with

the

limits

for

a

Class

B

digital

device,

pursuant

to

Part

15

of

the

FCC

Rules.

These

limits

are

designed

to

provide

reasonable

protection

against

harmful

interference

in

a

residential

installation.

This

equipment

generates,

uses,

and

can

radiate

radio

frequency

energy

and,

if

not

installed

and

used

in

accordance

with

the

instructions,

may

cause

harmful

interference

to

radio

communications.

However,

there

is

no

guarantee

that

interference

will

not

occur

in

a

particular

installation.

If

this

equipment

does

cause

harmful

interference

to

radio

or

television

^

reception,

which

can

be

determined

by

turning

the

equipment

off

and

on,

the

user

is

encouraged

to

try

to

correct

the

interference

by

one

or

more

of

the

following

measures:

~

Reorient

or

relocate

the

receiving

antenna.

-

Increase

the

separation

between

the

equipment

and

receiver.

-

Connect

the

equipment

into

an

outlet

On

a

circuit

different

from

that

to

which

the

receiver

is

connected.

-

Consult

the

dealer

or

an

experienced

radio/TV

technician

for

help.

CAUTION

You

are

cautioned

that

any

changes

or

modification

not

expressly

approved

іп’

this

manual

could

void

your

authority

to

operate

this

equipment.

Note

to

CATV

system

installer:

This

reminder

is

provided

to

call

CATV

system

installer's

attention

to

Article

820-40

of

the

NEC

that

provides

guidelines

for

proper

grounding

and,

in

particular,

specifies

that

the

cable

ground

shall

be

connected

to

the

grounding

system

of

the

building,

as

close

to

the

point

of

cable

entry

as

practical.

Owner's

Record

The

model

and

serial

numbers

are

located

on

the

rear

of

the

unit.

Record

the

serial

number

in

the

space

provided

below.

Refer

to

them

whenever

you

call

upon

your

Sony

dealer

regarding

this

product.

Model

No.

STR-DE915/STR-DE715/

STR-DE615/STR-D660Z

/

STR-D560Z

Serial

No.

—

For

the

customers

in

Canada

CAUTION

TO

PREVENT

ELECTRIC

SHOCK,

DO

NOT

USE

THIS

POLARIZED

AC

PLUG

WITH

AN

EXTENSION

CORD,

RECEPTACLE

OR

OTHER

OUTLET

UNLESS

THE

BLADES

CAN

BE

FULLY

INSERTED

TO

PREVENT

BLADE

EXPOSURE.

|

Precautions

On

safety

*

Should

any

solid

object

or

liquid

fall

into

the

cabinet,

unplug

the

receiver

and

have

it

checked

by

qualified

personnel

before

operating

it

any

further.

Berner...

On

power

sources

*

Before

operating

the

receiver,

check

that

the

operating

voltage

is

identical

with

your

local

power

supply.

The

operating

voltage

is

indicated

on

the

nameplate

at

the

rear

of

the

receiver.

The

receiver

is

not

disconnected

from

the

AC

power

source

as

long

as

it

is

connected

to

the

wali

outlet,

even

if

the

receiver

itself

has

been

turned

off.

If

you

are

not

going

to

use

the

receiver

for

a

long

time,

be

sure

to

disconnect

the

receiver

from

the

wall

outlet.

To

disconnect

the

AC

power

cord,

grasp

the

plug

itself;

never

pull

the

cord.

One

blade

of

the

plug

is

wider

than

the

other

for

the

purpose

of

safety

and

will

fit

into

the

wall

outlet

only

one

way.

If

you

are

unable

to

insert

the

plug

fully

into

the

outlet,

contact

your

dealer.

Should

the

AC

power

cord

need

to

be

changed,

have

it

done

at

a

qualified

service

shop

only.

On

placement

*

Place

the

receiver

in

a

location

with

adequate

ventilation

to

prevent

heat

buildup

and

prolong

the

life

of

the

receiver.

Do

not

place

the

receiver

near

heat

sources,

or

in

a

place

subject

to

direct

-

sunlight,

excessive

dust

or

mechanical

shock.

Do

not

place

anything

on

top

of

the

cabinet

that

might

block

the

ventilation

holes

and

cause

Ф

malfunctions.

On

operation

*

Before

connecting

other

components,

be

sure

to

turn

off

and

unplug

the

receiver.

On

cleaning

'*

Clean

the

cabinet,

panel

and

controls

with

a

soft

cloth

slightly

moistened

with

a

mild

detergent

solution.

Do

not

use'any

type

of

abrasive

pad,

scouring

powder

or

solvent

such

as

alcohol

or

benzine.

If

you

have

any

question

or

problem

concerning

your

receiver,

please

consult

your

nearest

Sony

dealer.

bout

This

Manual

ТАВІЕ

OF

CONTENTS

?

instructions

in

this

manual

are

for

Getting

Started

dels

STR-DE915,

DE715,

DE615,

s

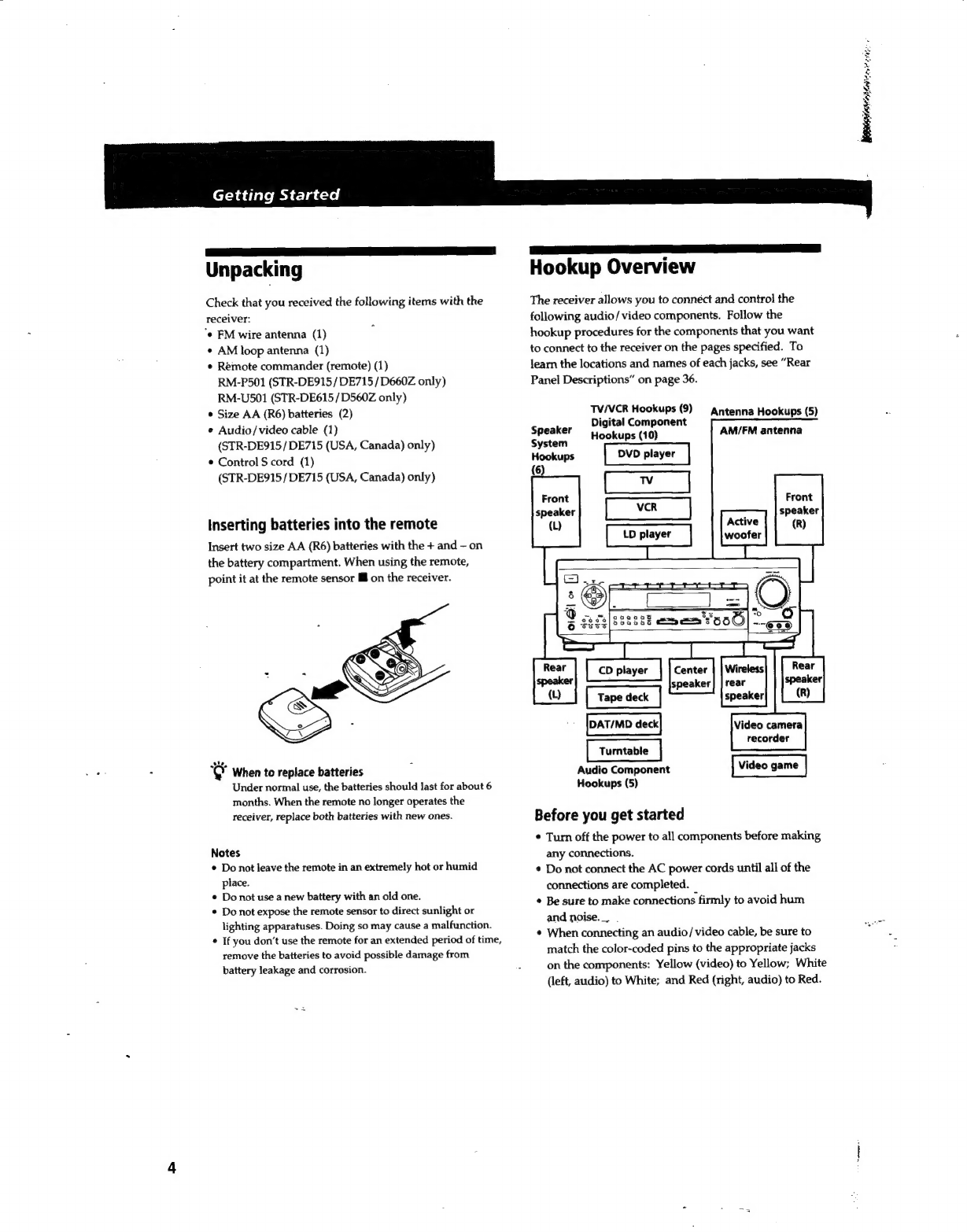

Unpacking

4

50Z,

and

D560Z.

Check

your

model

Hookup

Overview

4

nber

by

looking

at

the

upper

right

Antenna

Hookups

5

ner

of

the

front

panel.

In

this

Audio

Component

Hookups

5

hes

ста

and

DEER

STR-

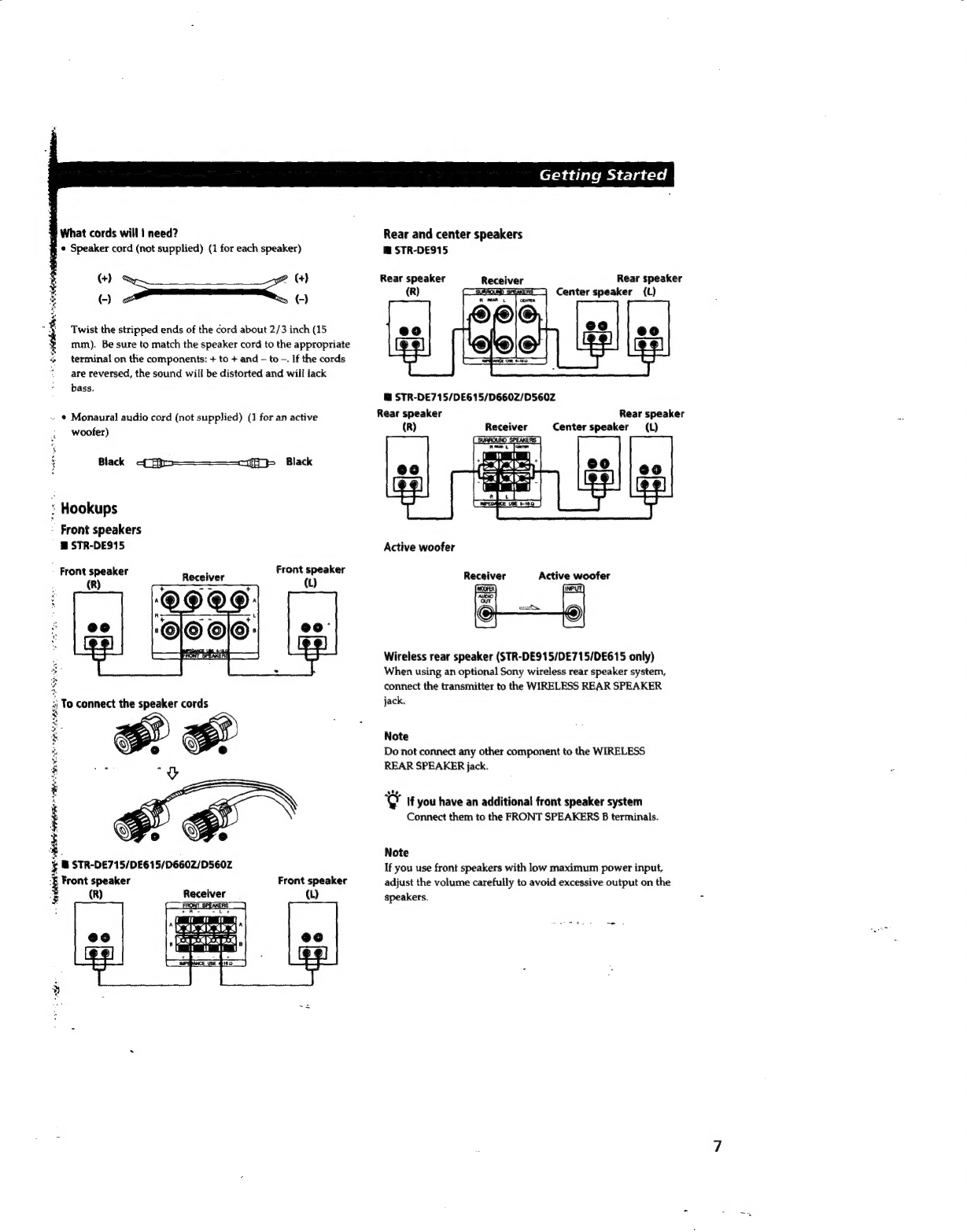

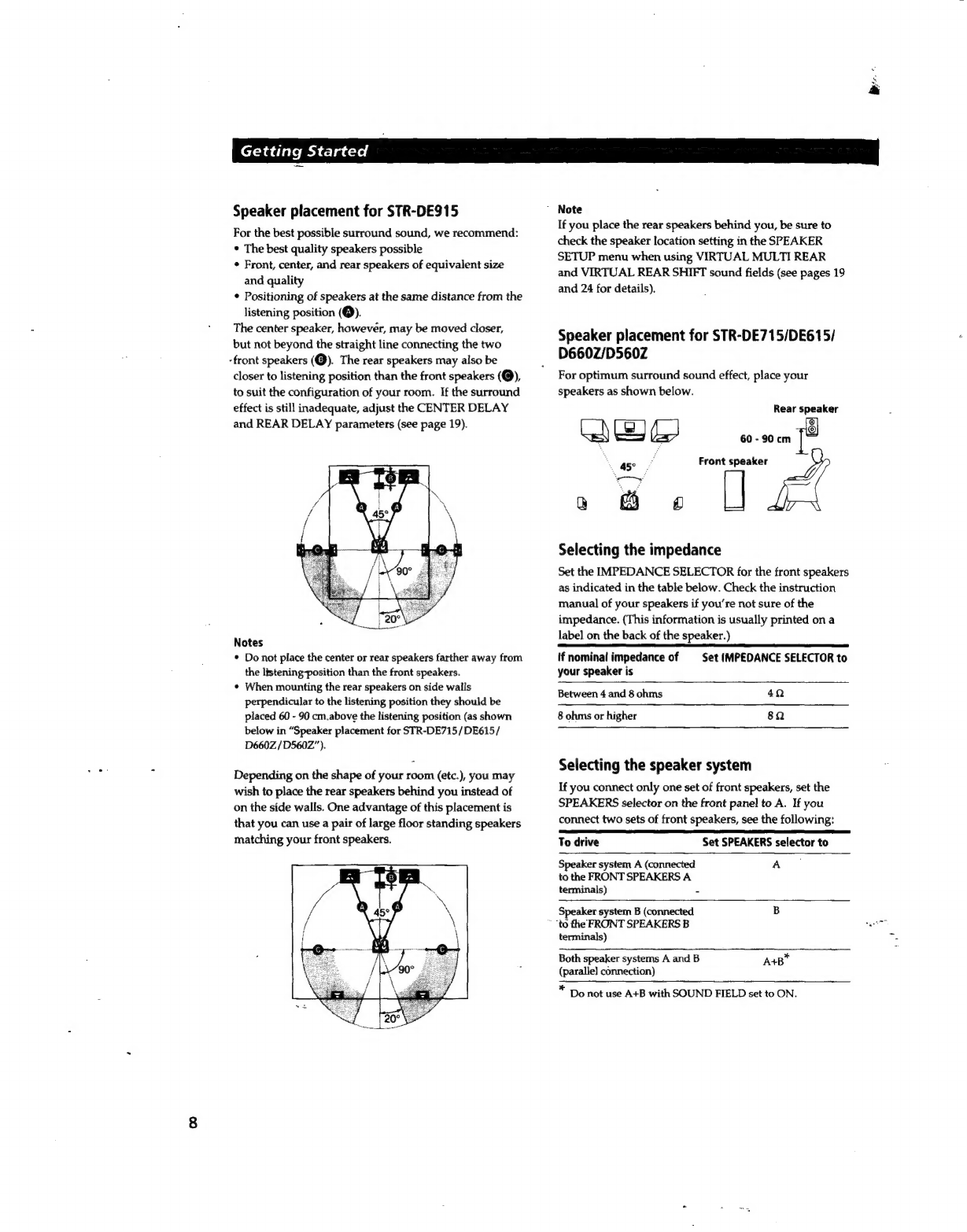

Speaker

System

Hookups

6

and

the

programmable

remote

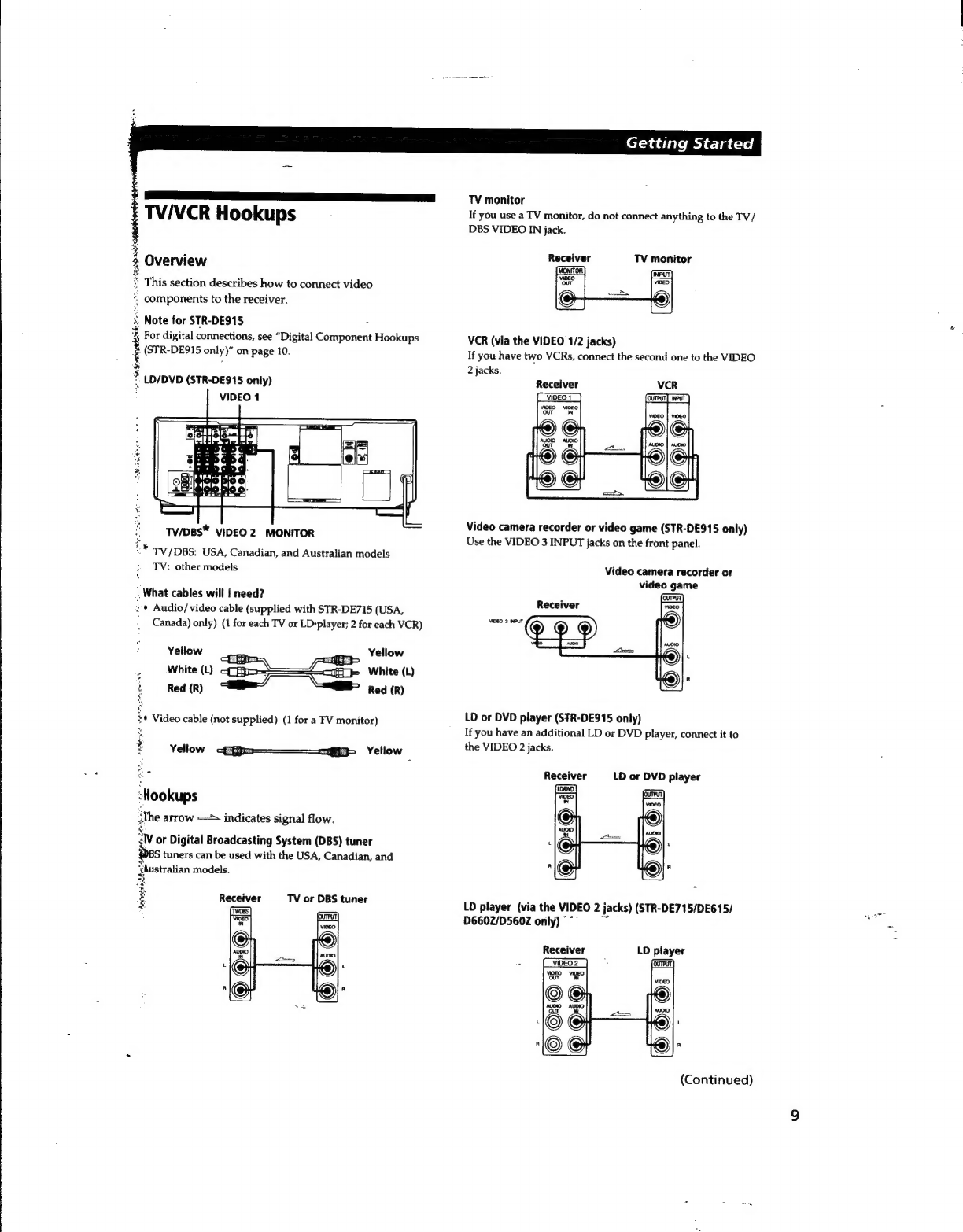

TV/VCR

Hookups

9

nmander

RM-P501

(supplied'with

e

+

STR-DE915,

DE715,

and

06607)

are

Digital

Component

Hookups

(STR-DE915

only)

10

AC

Hookups

11

«d

for

illustration

purposes

unless

ted

othewise.

Any

difference

in

Before

You

Use

Your

Receiver

11

?ration

is

clearly

indicated

in

the

text,

example,

“STR-DE915

/

DE715

3A,

Canada)

only.”

Receiver

Operations

Selecting

a

Component

12

Receiving

Broadcasts

15

Model

DE915

DE715

06602

presetting

Radio

Stations

16

»e

of

differences

ише

DE615

-D5602

Indexing

Preset

Stations

and

Program

Sources

16

ideo

inputs

—

6

Recording

17

It-in

Dolby

;

:

tal

e

Using

the

Sleep

Timer

18

cessor

ptaljaks

@

Dolby

Surround

Setup

INPUT

ks

e. e.

Dolby

Digital

(STR-DE915

only)

19

mA

ө

paw

Dolby

Pro

Logic

(STR-DE715

/DE615

/

D660Z/D560Z

only)

20

ntrol

$

DE/IS

raul

Sound

Adjustment

BAKER

е ы

*

Using

Pre-programmed

Sound

Fields

22

an

aE

Customizing

the

Sound

Fields

25

noté

€

DE715

D660Z

"X

USA

and

Canadian

models

only

Advanced

Remote

Operations

nventions

Operating

One

Component

While

Using

Another

(background

operation)

.

The

instructions

in

this

manual

29

Aescribe

the

сото:

On

fne

receiver-

Changing

the

Factory

Setting

of

a

FUNCTION

Button

29

You

can

also

use

the

controls

on

the

.

Programming

the

Remote

(STR-DE915/DE715/D660Z

only)

30

remote

if

they

have

the

same

or

similar

names

as

those

on

the

receiver,

Additional

Information

A

“Quick

Reference

Guide”

is

supplied

on

the

back

cover.

Troubleshooting

31

The

“Remote

Button

Descriptions”

Specifications

32

section

on

page

37

provides

an

Glossary

33

overview

of

the

remote

buttons.

Table

of

Functions

of

the

SET

UP

Button

35

The

following

icons

are

used

in

this

Rear

Panel

Descriptions

36

5

manual:

Remote

Button

Descriptions

37

.

Indicates

that

you

can

use

only

the

remote

to

do

the

task.

MF.

Indicates

hints

and

tips

for

Index

39

making

the

task

easier.

tis

receiver

incorporates

the

Dolby*

Quick

Reference

Guide

Back

cover

o

Logic

Surround

system.

Manufactured

under

license

from

Dolby

Laboratories

Licensing

Corporation.

DOLBY,

the

double-D

symbol

(XI,

"AC-3,"

and

"PRO

LOGIC”

are

trademarks

of

Dolby

Laboratories

Licensing

Corporation.

Getting

Started

Unpacking

Check

that

you

received

the

following

items

with

the

receiver:

'*

FM

wire

antenna

(1)

*

AM

loop

antenna

(1)

*

Remote

commander

(remote)

(1)

RM-P501

(STR-DE915

/

DE715

/

D660Z

only)

RM-U501

(STR-DE615/D560Z

only)

*

Size

AA

(R6)

batteries

(2)

e

Audio/video

cable

(1)

(STR-DE915/DE715

(USA,

Canada)

only)

*

Control

5

cord

(1)

(STR-DE915/DE715

(USA,

Canada)

only)

Inserting

batteries

into

the

remote

Insert

two

size

AA

(R6)

batteries

with

the

+

and

—

on

the

battery

compartment.

When

using

the

remote,

point

it

at

the

remote

sensor

Il

on

the

receiver.

Dr

(F

When

to

replace

batteries

Under

normal

use,

the

batteries

should

last

for

about

6

months.

When

the

remote

no

longer

operates

the

receiver,

replace

both

batteries

with

new

ones.

Notes

*

Do

not

leave

the

remote

in

an

extremely

hot

or

humid

place.

*

Do

not

use

a

new

battery

with

an

old

one.

*

Do

not

expose

the

remote

sensor

to

direct

sunlight

or

lighting

apparatuses.

Doing

so

may

cause

a

malfunction.

*

If

you

don't

use

the

remote

for

an

extended

period

of

time,

remove

the

batteries

to

avoid

possible

damage

from

battery

leakage

and

corrosion.

NAE

AU

M

а

аксу

MERECE

Hookup

Overview

The

receiver

allows

you

to

connéct

and

control

the

following

audio/video

components.

Follow

the

hookup

procedures

for

the

components

that

you

want

to

connect

to

the

receiver

on

the

pages

specified.

To

learn

the

locations

and

names

of

each

jacks,

see

"Rear

Panel

Descriptions"

on

page

36.

TV/VCR

Hookups

(9)

Antenna

Hookups

(5)

Speaker

Digital

Component

AM/FM

ant

antenna

System

Hookups

(10)

Hookups

Video

camera

recorder

Audio

Component

Hookups

(5)

Before

you

get

started

*

Turn

off

the

power

to

all

components

before

making

any

connections.

*

Do

not

connect

the

AC

power

cords

until

all

of

the

connections

are

completed.

*

Be

sure

to

make

connections

firmly

to

avoid

hum

and

noise.

.

*

When

connecting

an

audio/video

cable,

be

sure

to

match

the

color-coded

pins

to

the

appropriate

jacks

on

the

components:

Yellow

(video)

to

Yellow;

White

(left,

audio)

to

White;

and

Red

(right,

audio)

to

Red.

This

section

describes

how

to

connect

AM

and

FM

antennas

to

the

receiver.

If

you

want

to

receive

radio

broadcasts

with

the

receiver,

complete

these

onnections

first,

then

go

to

the

following

pages.

ANTENNA

hat

antennas

will

!

need?

FM

wire

antenna

(supplied)

(1)

*

AM

loop

antenna

(supplied)

(1)

M

wire

antenna

Receiver

AM

loop

antenna

ANTENNA

M

e

If

you

have

poor

FM

reception

Connect

a

75-ohm

coaxial

cable

(not

supplied)

to

an

FM

outdoor

antenna.

ЕМ

outdoor

antenna

f)

i

Receiver

\

|

ANTENNA

—

)

Ground

wire

(not

supplied)

To

ground

Getting

Started

Important

If

you

connect

an

outdoor

antenna,

ground

it

against

lightning.

To

prevent

a

gas

explosion,

do

not

connect

the

ground

wire

to

a

gas

pipe.

Notes

*

Do

not

use

h

SIGNAL

GND

for

this

connection.

*

To

prevent

noise

pickup,

keep

the

AM

loop

antenna

away

from

the

receiver

and

TV.

ро

с0а

анаи

RES

END

puma

tiat

СА

Audio

Component

Hookups

Overview

This

section

describes

how

to

connect

your

audio

components

to

the

receiver.

If

you

want

to

use

the

receiver

as

an

amplifier,

complete

these

connections.

Note

for

STR-DE915

For

digital

connections,

see

"Digital

Component

Hookups

(STR-DE915

only)"

on

page

10.

S-LINK

CTRL

A1

(STR-DE915/DE715

(USA,

Canada)

only)

PHONO

CD

DAT/MD

TAPE

What

cords

will

|

need?

Audio

cords

(not

supplied)

(1

for

each

CD

player

and

turntable;

2

for

each

tape

deck,

DAT

deck,

or

MD

deck)

White

(L)

——

en.

White

(L)

Red

(R)

Red

(R)

Hookups

І

The

arrow

=>

indicates

signal

flow.

CD

player

Receiver

CD

player

Tape

deck

Receiver

ГНН

Getting

Started

DAT

deck

or

MD

deck

Receiver

DAT

deck

or

MD

deck

Turntable

Receiver

Turntable

If

your

turntable

has

an

earth

lead

To

prevent

hum,

connect

the

earth

lead

to

the

h

SIGNAL

GND

terminal

on

the

receiver.

CONTROL

A1

Hookups

(STR-DE915/DE715

(USA,

Canada)

only)

If

you

have

a

CONTROL

A1

compatible

Sony

CD

player,

tape

deck,

or

MD

deck

Use

a

CONTROL

A1

cord

(not

supplied)

to

connect

the

S-LINK

CTRL

A1

jack

on

the

CD

player,

tape

deck,

or

MD

deck

to

the

S-LINK

CTRL

A1

jack

on

the

receiver.

Refer

the

separate

manual

"CONTROL-A1

Control

System"

and

the

Operating

Instructions

supplied

with

your

CD

player,

tape

deck,

or

MD

deck

for

details.

If

you

have

a

Sony

CD

changer

with

a

COMMAND

MODE

selector

If

the

CD

changer’s

COMMAND

MODE

selector

can

be

switched

between

CD

1,

CD

2,

and

CD

3,

be

sure

to

set

the

command

mode

to

“CD

1”

and

connect

the

changer

to

the

CD

jacks

on

the

receiver.

However,

if

you

have

a

Sony

CD

changer

with

VIDEO

OUT

jacks,

set

the

command

mode

to

“CD

2”

and

connect

the

changer

to

the

VIDEO

2

jacks

on

the

receiver.

Гел

You

can

display

the

operating

status

of

the

component

connected

to

the

S-LINK

CTRL

A1

jack

(STR-DE915/DE715

(USA,

Canada)

only)

1

Press

SET

UP

repeatedly

to

select

OTHER

SETUP

(STR-DE915

only)

or

DISPLAY

SETUP

(STR-DE715

only).

2

Use

the

digital

processing

control

buttons

(

/\

/

М

)

to

select

CONTROL-A1.

3

Use

the

digital

processing

control

buttons

(

<

/

>)

to

select

the

setting

you

want

by

referring

to

the

following

table.

To

Select

Display

“PLAY,”

“STOP,”

“PAUSE,”

AUTO

or

“REC”

for

about

8

seconds

when

the

operation

switches

Display

"PLAY,"

“STOP,”

“PAUSE,”

FIX

“REC,”

or

the

contents

of

a

disc

or

track

memo

of

a

CD

or

MD

whenever

you

press

the

DISPLAY

button

Turn

off

the

operation

status

display

OFF

Notes

*

This

setting

is

effective

only

when

the

receiver

is

set

to

TAPE,

DAT/MD,

VIDEO

2,

or

CD

(see

page

12).

For

VIDEO

2,

the

CD

changer

command

mode

must

be

“CD

2”

and

the

CD

changer

must

be

connected

to

the

VIDEO

2

jacks

on

the

receiver.

For

CD,

the

CD

changer

command

mode

must

be

“CD

1”

and

the

CD

changer

must

be

connected

to

the

CD

jacks

on

the

receiver.

If

the

disc

or

track

memo

contains

a

character

that

the

receiver

cannot

display,

"."

appears

for

that

character.

*

When

the

Mega

Control

function

of

the

CD

player

is

active,-the

operating

status

of

the

main

player

is

displayed.

Speaker

System

Hookups

Overview

This

section

describes

how

to

connect

your

speakers

to

the

receiver.

Although

front

(left

and

right)

speakers

are

required,

center

and

rear

speakers

are

optional.

Adding

center

and

rear

speakers

will

enhance

the

surround

effects.

Connecting

an

active

woofer

will

increase

bass

response.

SURROUND SURROUND

WOOFER

SPEAKERS

REAR

SPEAKERS

CENTER

|

Bae

alls

Е

FRONT

SPEAKERS

А

IMPEDANCE

SELECTOR

E

What

cords

will

|

need?

Б

*

Speaker

cord

(not

supplied)

(1

for

each

speaker)

(+)

p=

ај

(+)

(©)

©)

Twist

the

stripped

ends

of

the

cord

about

2/3

inch

(15

mm).

Be

sure

to

match

the

speaker

cord

to

the

appropriate

%

terminal

on

the

components:

+

to

+

and

—

to

–.

If

the

cords

are

reversed,

the

sound

will

be

distorted

and

will

iack

bass.

PRG

eS

SES

-

*

Monaural

audio

cord

(not

supplied)

(1

for

an

active

woofer)

Е

Black

m

Black

:

Hookups

>

Front

speakers

E

STR-DE915

`

Front

speaker

Front

speaker

Receiver

(R)

(О

Ao

j

To

connect

the

speaker

cords

=

$

py

ZA

D

o

e

š

i

VS

1

f

E

STR-DE715/DE615/D6602/D560Z

i

Front

speaker

Front

speaker

:

(R)

Receiver

(L)

E

Getting

Started

Rear

and

center

speakers

NI

STR-DE915

Rear

speaker

Receiver

Rear

speaker

(R)

(sans

SPORE

Center

speaker

(L)

@

5ТК-0Е715/0Е615/06602/05602

Rear

speaker

Rear

speaker

Center

speaker

(L)

Receiver

Active

woofer

Receiver

Active

woofer

Wireless

rear

speaker

(STR-DE915/DE715/DE615

only)

When

using

an

optional

Sony

wireless

rear

speaker

system,

connect

the

transmitter

to

the

WIRELESS

REAR

SPEAKER

jack.

Note

Do

not

connect

any

other

component

to

the

WIRELESS

REAR

SPEAKER

jack.

ces

If

you

have

an

additional

front

speaker

system

Connect

them

to

the

FRONT

SPEAKERS

B

terminals.

Note

If

you

use

front

speakers

with

low

maximum

power

input,

adjust

the

volume

carefully

to

avoid

excessive

output

on

the

speakers.

Getting

Started

Speaker

placement

for

STR-DE915

For

the

best

possible

surround

sound,

we

recommend:

*

The

best

quality

speakers

possible

*

Front,

center,

and

rear

speakers

of

equivalent

size

and

quality

*

Positioning

of

speakers

at

the

same

distance

from

the

listening

position

(Ө).

The

center

speaker,

however,

may

be

moved

closer,

but

not

beyond

the

straight

line

connecting

the

two

-front

speakers

(@).

The

rear

speakers

may

also

be

closer

to

listening

position

than

the

front

speakers

(@),

to

suit

the

configuration

of

your

room.

If

the

surround

effect

is

still

inadequate,

adjust

the

CENTER

DELAY

and

REAR

DELAY

parameters

(see

page

19).

Notes

*

Do

not

place

the

center

or

rear

speakers

farther

away

from

the

Itstening-position

than

the

front

speakers.

*

When

mounting

the

rear

speakers

on

side

walls

perpendicular

to

the

listening

position

they

should

be

placed

60

-

90

cm.above

the

listening

position

(as

shown

below

in

"Speaker

placement

for

STR-DE715/DE615/

D660Z

/

D560Z").

Depending

on

the

shape

of

your

room

(etc.),

you

may

wish

to

place

the

rear

speakers

behind

you

instead

of

on

the

side

walls.

One

advantage

of

this

placement

is

that

you

can

use

a

pair

of

large

floor

standing

speakers

matching

your

front

speakers.

`

Note

If

you

place

the

rear

speakers

behind

you,

be

sure

to

check

the

speaker

location

setting

in

the

SPEAKER

SETUP

menu

when

using

VIRTUAL

MULTI

REAR

and

VIRTUAL

REAR

SHIFT

sound

fields

(see

pages

19

and

24

for

details).

Speaker

placement

for

STR-DE715/DE615/

D6602/D560Z

For

optimum

surround

sound

effect,

place

your

speakers

as

shown

below.

Le

ю-к

TË

^

45°

^7

Front

speaker

o

£

ø

|

Selecting

the

impedance

Set

the

IMPEDANCE

SELECTOR

for

the

front

speakers

as

indicated

in

the

table

below.

Check

the

instruction

manual

of

your

speakers

if

you're

not

sure

of

the

impedance.

(This

information

is

usually

printed

on

a

label

on

the

back

of

the

speaker.)

Set

IMPEDANCE

SELECTOR

to

Rear

speaker

If

nominal

impedance

of

your

speaker

is

Between

4

and

8

ohms

40

8

ohms

or

higher

8Q

Selecting

the

speaker

system

If

you

connect

only

one

set

of

front

speakers,

set

the

SPEAKERS

selector

on

the

front

panel

to

A.

If

you

connect

two

sets

of

front

speakers,

see

the

following:

To

drive

Set

SPEAKERS

selector

to

Speaker

system

A

(connected

A

to

the

FRONT

SPEAKERS

A

terminals)

=

Speaker

system

В

(connected

B

‘to

fhe

FRONT

SPEAKERS

B

terminals)

Both

speaker

systems

A

and

B

A+B"

(parallel

connection)

*

Do

not

use

A+B

with

SOUND

FIELD

set

to

ON.

i

TVIVCR

Hookups

Overview

рау

x

*

This

section

describes

how

to

connect

video

5

components

to

the

receiver.

5

Note

for

STR-DE915

-

X

For

digital

connections,

see

“Digital

Component

Hookups

1

(STR-DE915

only)"

on

page

10.

Н

А

Ž

LD/DVD

(STR-DE915

only)

VIDEO

1

TV/DBS*

VIDEO

2

MONITOR

'*

TV/DBS:

USA,

Canadian,

and

Australian

models

TV:

other

models

`

What

cables

will

|

need?

+e

Audio/video

cable

(supplied

with

STR-DE715

(USA,

Canada)

only)

(1

for

each

TV

or

LD-player;

2

for

each

VCR)

Yellow

2

Yellow

i

White

(L)

<H

White

(L)

ї

—

Red(R)

Red

(R)

i.

Video

cable

(not

supplied)

(1for

a

TV

monitor)

t

Yellow

Yellow

:Wookups

¿The

arrow

==>

indicates

signal

flow.

S

m

:

¿W

or

Digital

Broadcasting

System

(DBS)

tuner

ides

tuners

can

be

used

with

the

USA,

Canadian,

and

*

:

Australian

models.

Más,

Receiver

TV

or

DBS

tuner

OA

Getting

Started

TV

monitor

If

you

use

a

TV

monitor,

do

not

connect

anything

to

the

TV

/

DBS

VIDEO

IN

jack.

Receiver

(MONTOR)

VCR

(via

the

VIDEO

1/2

jacks)

If

you

have

two

VCRs,

connect

the

second

one

to

the

VIDEO

2

jacks.

TV

monitor

Receiver

VCR

Video

camera

recorder

or

video

game

(STR-DE915

only)

Use

the

VIDEO

3

INPUT

jacks

on

the

front

panel.

Video

camera

recorder

or

video

game

Receiver

LD

or

DVD

player

(STR-DE915

only)

If

you

have

an

additional

LD

or

DVD

player,

connect

it

to

the

VIDEO

2

jacks.

Receiver

LD

or

DVD

player

LD

player

(via

the

VIDEO

2

jacks)

(STR-DE715/DE615/

06602/05602

only)

"

^"

Receiver

LD

player

(Continued)

10

Getting

Started

T

You

can

play

decoded

Dolby

Digital

AC-3

soundtracks

through

the

speakers

connected

to

the

receiver

(STR-DE715/DE615/D660Z/D5602

only)

If

you

have

a

Dolby

Digital

(AC-3)

decoder,

you

can

use

the

receiver

to

amplify

a

decoded

Dolby

Digital

AC-3

soundtrack

with

the

following

connections.

Refer

to

the

instruction

manual

supplied

with

your

Dolby

Digital

(AC-3)

decoder.

Dolby

Digital

(AC-3)

i

DVD

player

or

decoder

etc.

7

Receiver

LD

player

etc.

If

you

have

a

CONTROL

S

compatible

Sony

TV,

DBS

tuner,

monitor,

VCR

or

LD

player

(STR-DE915/DE715

(USA,

Canada)

only)

Use

a

CONTROL

S

cord

(supplied)

to

connect

the

CTRL

S

(STATUS)

IN

(for

TV,

DBS

tuner,

or

monitor)

or

OUT

(for

VCR

or

LD

player

(STR-DE715

(USA,

Canada)

only))

jack

on

the

receiver

to

the

appropriate

S-LINK

jack

on

the

respective

component.

Refer

to

the

Operating

Instructions

supplied

with

your

TV,

DBS

tuner,

monitor,

VCR,

or

LD

player

for

details.

а

ee

eT

Digital

Component

Hookups

(STR-DE915

only)

Overview

This

section

describes

how

to

connect

a

LD/DVD

player,

DAT/MD

decks,

and

CD

player

equipped

with

digital

jack(s)

to

the

STR-DE915.

If

you

use

a

digital

component,

select

the

appropriate

input

mode

for

the

component

(see

page

12).

LD/DVD

IN

AC-3

RF/OPTICAL

DAT/MD

IN/OUT

CD

IN

OPTICAL

OPTICAL

What

cords

will

|

need?

*

Optical

digital

connecting

cord

(not

supplied)

(1

for

a

DVD,

LD

or

CD

player;

2

for

a

DAT

or

MD

deck)

*

Coaxial

digital

connecting

cord

(not

supplied)

(1

for

a

DVD

or

LD

player)

Lh

TI

3»

Hookups

The

arrow

==>

indicates

signal

flow.

LD

or

DVD

player

Receiver

LD

or

DVD

player

If

your

LD

or

DVD

player

has

an

optical

output

jack,

connect

it

to

the

LD/DVD

IN

OPTICAL

jack.

If

your

LD

player

has

an

RF

output

jack,

connect

it

to

the

LD/DVD

IN

AC-3

RF

jack

of

the

receiver

as

shown

below.

Receiver

LD

player

CD

player

Receiver

_

CD

player
