FM Stereo

FM/AM Receiver

Operating Instructions ________________________

Mode d’emploi ______________________________

Manual de instrucciones ______________________

Bedienungsanleitung _________________________

STR-SL500

01GB01COV_STR-SL500-CEL.book Page 1 Thursday, March 4, 2004 4:46 PM

masterpage:Left

lename[C:\Documents and

ettings\pc13\Desktop\J9031717_4254758111SL500CEL\4254758111\01GB02REG_STR-

L500-CEL.fm]

model name1[STR-SL500]

[4-254-758-11(1)]

2GB

To prevent fire or shock hazard, do not

expose the unit to rain or moisture.

To prevent fire, do not cover the ventilation of the

apparatus with newspapers, table-cloths, curtains, etc.

And don’t place lighted candles on the apparatus.

To prevent fire or shock hazard, do not place objects

filled with liquids, such as vases, on the apparatus.

Don’t throw away batteries with

general house waste; dispose of

them correctly as chemical waste.

About This Manual

• The instructions in this manual are for model

STR-SL500. Check your model number by looking

at the lower right corner of the front panel.

• The instructions in this manual describe the controls

on the supplied remote. You can also use the controls

on the receiver if they have the same or similar names

as those on the remote. For details on the use of your

remote, see pages 30–33.

This receiver incorporates Dolby* Digital and Pro

Logic Surround and the DTS** Digital Surround

System.

* Manufactured under license from Dolby

Laboratories.

“Dolby”, “Pro Logic” and the double-D symbol are

trademarks of Dolby Laboratories.

**“DTS” and “DTS Digital Surround” are registered

trademarks of Digital Theater Systems, Inc.

Note for the supplied remote

For RM-U700

The AUX button on the remote is not available

for receiver operation.

WARNING

Do not install the appliance in a confined space,

such as a bookcase or built-in cabinet.

01GB01COV_STR-SL500-CEL.book Page 2 Thursday, March 4, 2004 4:46 PM

masterpage:Right

lename[C:\Documents and

ettings\pc13\Desktop\J9031717_4254758111SL500CEL\4254758111\01GB01COV_STR-

L500-CELTOC.fm]

model name1[STR-SL500]

[4-254-758-11(1)]

3GB

Getting Started

1: Check how to hookup your

components .......................................4

1a: Connecting components with

digital audio output jacks ...........6

1b: Connecting components with

only analog audio jacks ..............8

2: Connecting the antennas .....................9

3: Connecting speakers .........................10

4: Connecting the AC power cord ........12

5: Setting up the speakers .....................13

6: Adjusting the speaker levels and

balance ............................................ 15

— TEST TONE

Amplifier Operation

Selecting the component .......................16

Listening to FM/AM radio.................... 16

Storing FM stations automatically ........17

— AUTOBETICAL

Presetting radio stations ........................18

Using the Radio Data System (RDS).... 19

About the indications in the display......21

Enjoying Surround Sound

Using only the front speakers ...............22

Enjoying higher fidelity sound..............22

Selecting a sound field .......................... 23

Advanced Adjustments and

Settings

Customizing sound fields......................26

Adjusting the tone ................................. 27

Advanced settings ................................. 28

Other Operations

Using the Sleep Timer ..........................29

Operations Using the Remote

RM-U700

Before you use your remote.................. 30

Remote button description.................... 30

Changing the factory setting of an

input button .................................... 33

Additional Information

Precautions............................................ 34

Troubleshooting.................................... 35

Specifications........................................ 37

List of button locations and reference

pages............................................... 39

Index ..................................................... 40

Table of Contents

01GB01COV_STR-SL500-CEL.book Page 3 Thursday, March 4, 2004 4:46 PM

masterpage:Left

lename[C:\Documents and

ettings\pc13\Desktop\J9031717_4254758111SL500CEL\4254758111\01GB03CON_STR-

L500-CEL.fm]

model name1[STR-SL500]

[4-254-758-11(1)]

4GB

Steps 1a through 1b beginning on page 6 describe how to hook up your components to this receiver.

Before you begin, refer to “Connectable components” below for the pages which describe how to

connect each component.

After hooking up all your components, proceed to “2: Connecting the antennas” (page 9).

Connectable components

a) Model with a DIGITAL OPTICAL OUTPUT or DIGITAL COAXIAL OUTPUT jack, etc.

b) Model equipped only with AUDIO OUT L/R jacks, etc.

Getting Started

1: Check how to hookup your components

Component to be connected Page

DVD player

With digital audio outputa) 6–7

With analog audio output onlyb) 6–7

TV monitor

With composite video input only 7 or 8

Satellite tuner

With digital audio outputa) 6–7

With analog audio output onlyb) 6–7

VCR 8

01GB01COV_STR-SL500-CEL.book Page 4 Thursday, March 4, 2004 4:46 PM

Getting Started

masterpage:Right

lename[C:\Documents and

ettings\pc13\Desktop\J9031717_4254758111SL500CEL\4254758111\01GB03CON_STR-

L500-CEL.fm]

model name1[STR-SL500]

[4-254-758-11(1)]

5GB

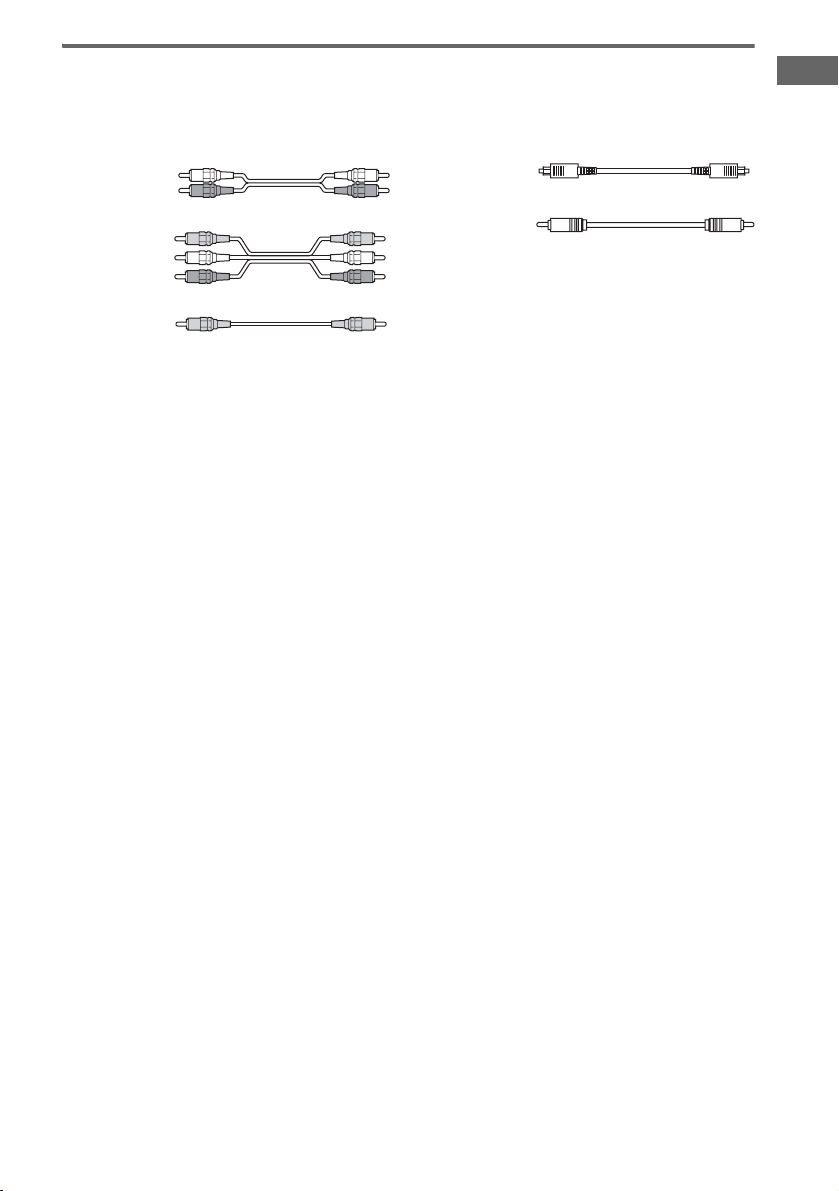

Required cords

The hookup diagrams on the subsequent pages assume the use of the following optional connection

cords (Ato E) (not supplied).

AAudio cord

White (L)

Red (R)

BAudio/video cord

Yellow (video)

White (L/audio)

Red (R/audio)

CVideo cord

Yellow

DOptical digital cord

ECoaxial digital cord

Notes

• Turn off the power to all components before making any connections.

• Be sure to make connections firmly to avoid hum and noise.

• When connecting an audio/video cord, be sure to match the color-coded pins to the appropriate jacks on the

components: yellow (video) to yellow; white (left, audio) to white; and red (right, audio) to red.

• When connecting optical digital cords, insert the cord plugs straight in until they click into place.

• Do not bend or tie optical digital cords.

01GB01COV_STR-SL500-CEL.book Page 5 Thursday, March 4, 2004 4:46 PM

masterpage:Left

lename[C:\Documents and

ettings\pc13\Desktop\J9031717_4254758111SL500CEL\4254758111\01GB03CON_STR-

L500-CEL.fm]

model name1[STR-SL500]

[4-254-758-11(1)]

6GB

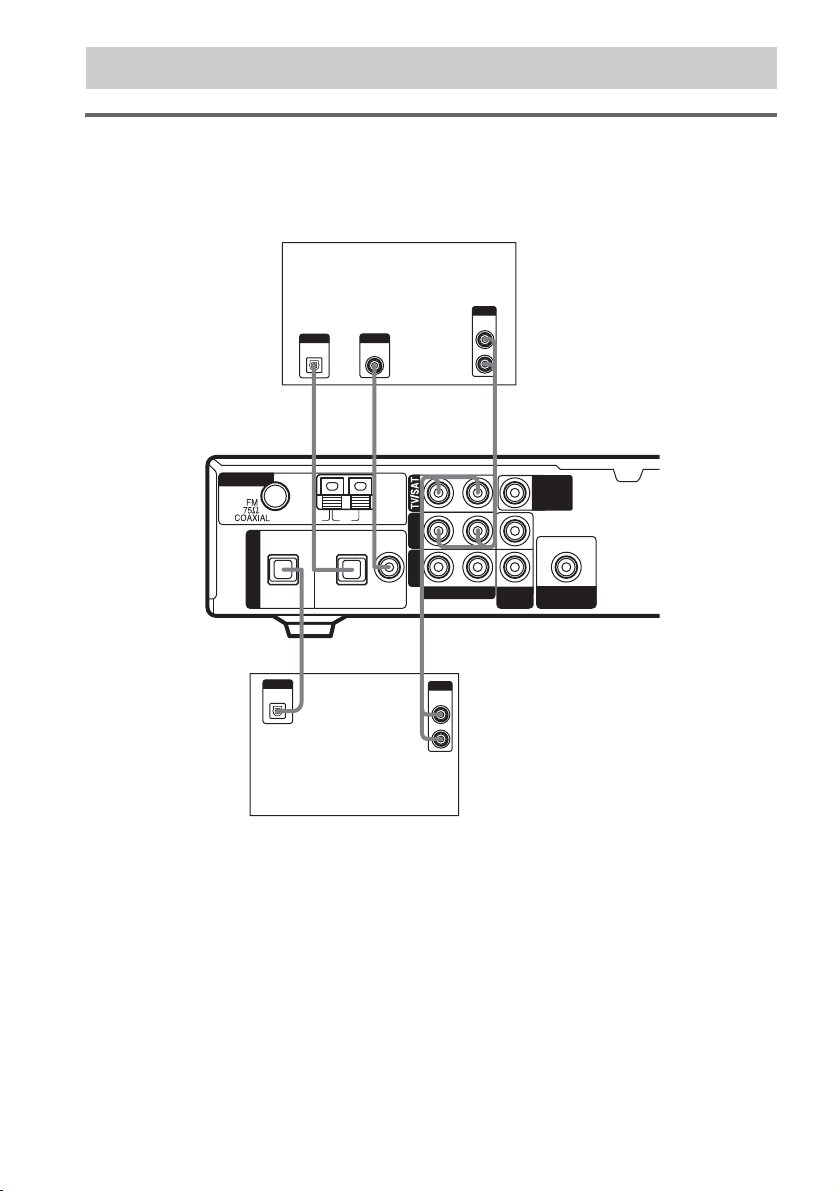

Hooking up a DVD player or satellite tuner

For details on the required cords (A–E), see page 5.

1 Connect the audio jacks.

* Connect to either the COAX IN or OPT IN jack. We recommend making connections to the COAX IN jack.

Tip

All the digital audio jacks are compatible with 32 kHz, 44.1 kHz, 48 kHz and 96 kHz sampling frequencies.

1a: Connecting components with digital audio output jacks

OPT IN

TV/SAT

DVDVIDEO

AUDIO IN

DIGITAL

ANTENNA

OPT IN

DVD

COAX IN

VIDEO

SUB

WOOFER

OUT

MONITOR

OUT

DIGITAL

OPTICAL

OUTPUT

AE*

AUDIO

OUT

OUTPUT

DIGITAL

COAXIAL

OUTPUT

AUDIO

OUT

OUTPUT

DIGITAL

OPTICAL

OUTPUT

DVD player

Satellite tuner

01GB01COV_STR-SL500-CEL.book Page 6 Thursday, March 4, 2004 4:46 PM

Getting Started

masterpage:Right

lename[C:\Documents and

ettings\pc13\Desktop\J9031717_4254758111SL500CEL\4254758111\01GB03CON_STR-

L500-CEL.fm]

model name1[STR-SL500]

[4-254-758-11(1)]

7GB

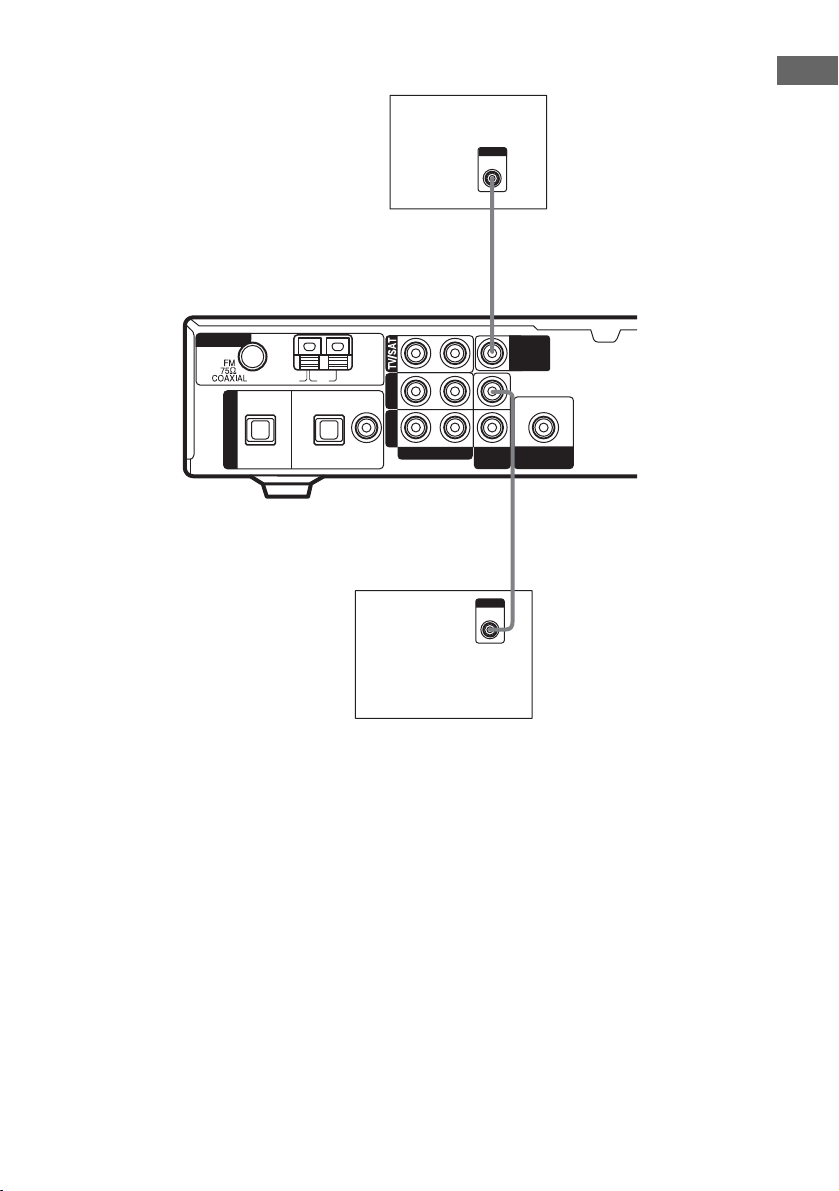

2 Connect the video jacks.

OPT IN

TV/SAT

DVDVIDEO

AUDIO IN

DIGITAL

ANTENNA

OPT IN

DVD

COAX IN

VIDEO

SUB

WOOFER

OUT

MONITOR

OUT

VIDEO

OUTPUT

VIDEO

INPUT

TV monitor

DVD player

01GB01COV_STR-SL500-CEL.book Page 7 Thursday, March 4, 2004 4:46 PM

masterpage:Left

lename[C:\Documents and

ettings\pc13\Desktop\J9031717_4254758111SL500CEL\4254758111\01GB03CON_STR-

L500-CEL.fm]

model name1[STR-SL500]

[4-254-758-11(1)]

8GB

If you connect your TV to the MONITOR OUT jack, you can watch the video from the selected input

(page 16). For details on the required cords (A–E), see page 5.

1b: Connecting components with only analog audio jacks

OPT IN

TV/SAT

DVDVIDEO

AUDIO IN

DIGITAL

ANTENNA

OPT IN

DVD

COAX IN

VIDEO

SUB

WOOFER

OUT

MONITOR

OUT

VIDEO

OUT

AUDIO

OUT

OUTPUT

VIDEO

INPUT

TV monitor

VCR

01GB01COV_STR-SL500-CEL.book Page 8 Thursday, March 4, 2004 4:46 PM

Getting Started

masterpage:Right

lename[C:\Documents and

ettings\pc13\Desktop\J9031717_4254758111SL500CEL\4254758111\01GB03CON_STR-

L500-CEL.fm]

model name1[STR-SL500]

[4-254-758-11(1)]

9GB

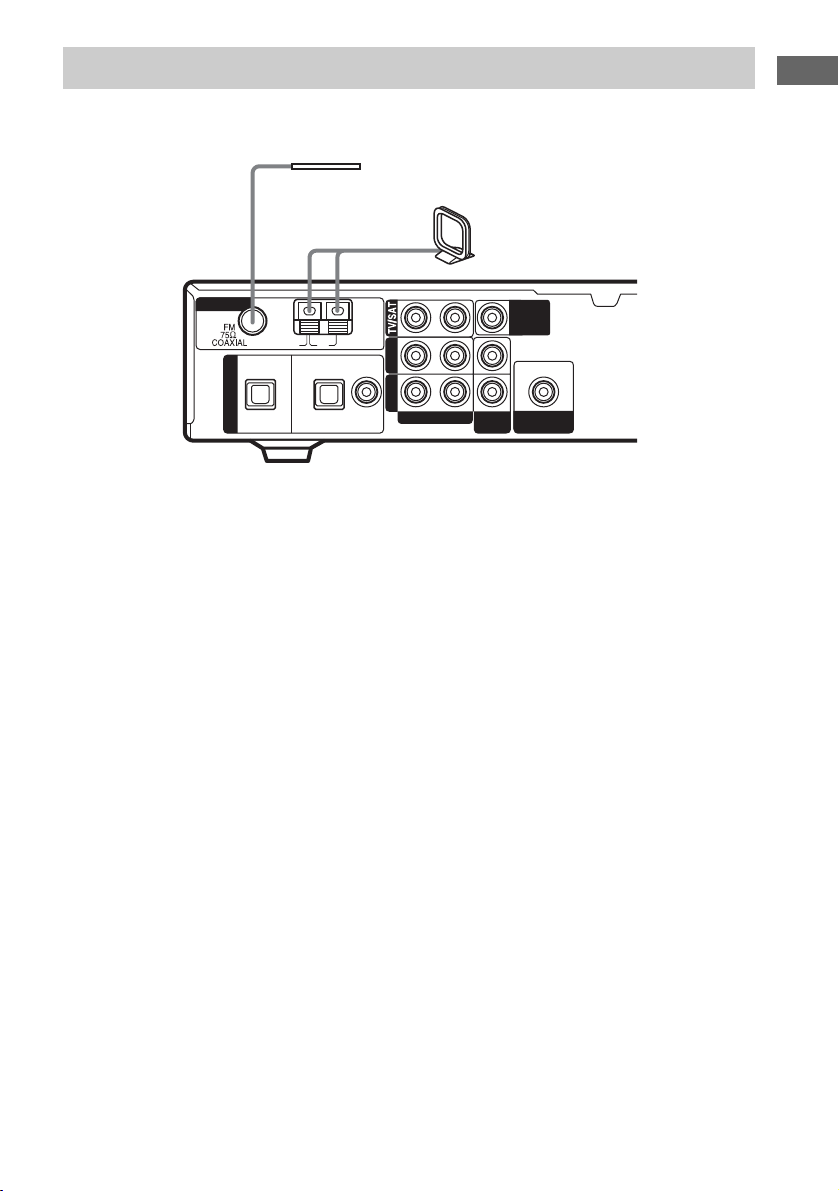

Connect the supplied AM loop antenna and FM wire antenna.

Notes

• To prevent noise pickup, keep the AM loop antenna away from the receiver and other components.

• Be sure to fully extend the FM wire antenna.

• After connecting the FM wire antenna, keep it as horizontal as possible.

2: Connecting the antennas

OPT IN

TV/SAT

DVDVIDEO

AUDIO IN

DIGITAL

ANTENNA

OPT IN

DVD

COAX IN

VIDEO

SUB

WOOFER

OUT

MONITOR

OUT

AM loop antenna

(supplied)

FM wire antenna

(supplied)

01GB01COV_STR-SL500-CEL.book Page 9 Thursday, March 4, 2004 4:46 PM

masterpage:Left

lename[C:\Documents and

ettings\pc13\Desktop\J9031717_4254758111SL500CEL\4254758111\01GB03CON_STR-

L500-CEL.fm]

model name1[STR-SL500]

[4-254-758-11(1)]

10GB

Connect your speakers to the receiver. This receiver allows you to use a 5.1 channel speaker system.

To fully enjoy theater-like multi channel surround sound requires five speakers (two front speakers, a

center speaker, and two surround speakers) and a sub woofer (5.1 channel).

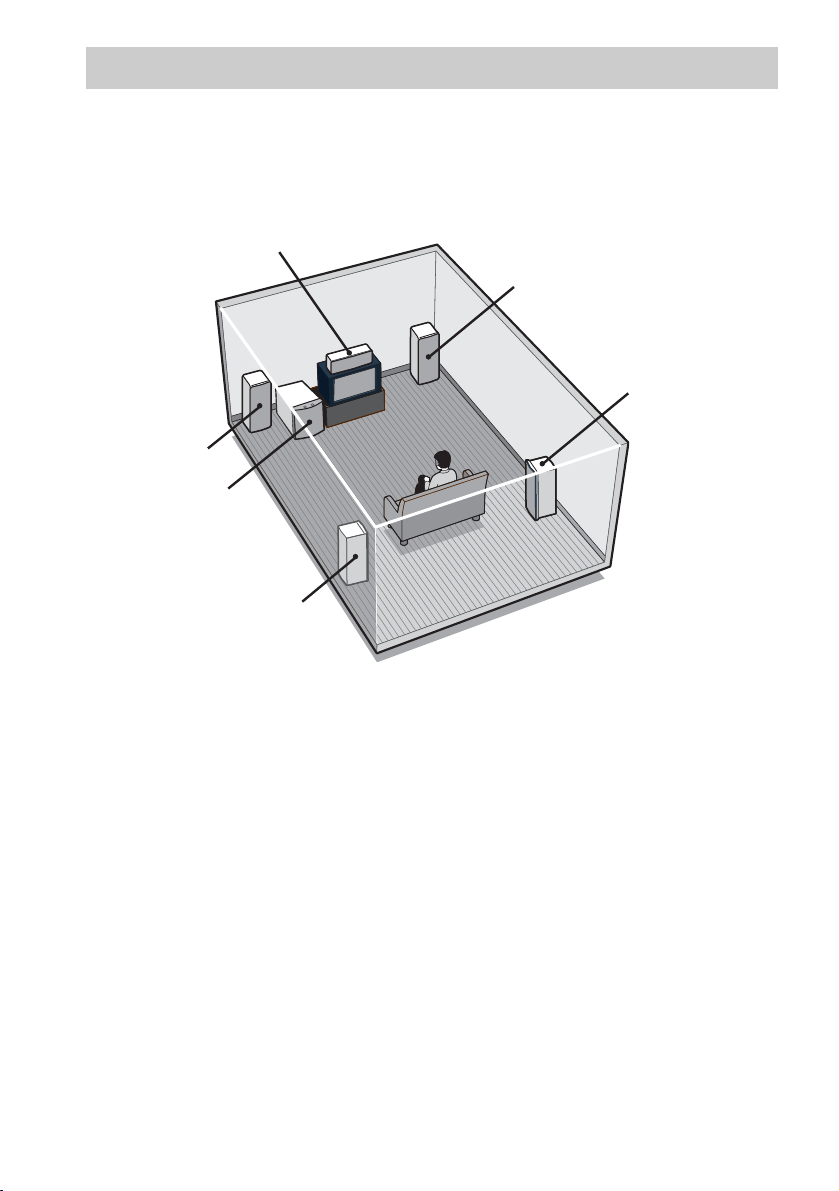

Example of 5.1 channel speaker system configuration

Tip

Since the sub woofer does not emit highly directional signals, you can place it wherever you want.

3: Connecting speakers

Front speaker (Right)

Surround speaker (Right)

Center speaker

Front speaker (Left)

Sub woofer

Surround speaker (Left)

01GB01COV_STR-SL500-CEL.book Page 10 Thursday, March 4, 2004 4:46 PM

Andere Handbücher für STR-SL500

Inhaltsverzeichnis

Sprachen:

Andere Sony Stereo-Receiver Handbücher

Sony

Sony STR-DE475 - Fm Stereo/fm-am Receiver Bedienungsanleitung

Sony

Sony STR-DN1060 Montageanleitung

Sony

Sony STR-DH500 Bedienungsanleitung

Sony

Sony ST-RDB940 Bedienungsanleitung

Sony

Sony STR-DE635 - Fm Stereo/fm-am Receiver Bedienungsanleitung

Sony

Sony STR-DN1080 Bedienungsanleitung

Sony

Sony STR-DA6400ES - Multi Channel Av Receiver Bedienungsanleitung

Sony

Sony STR-DE898 - Fm Stereo / Fm-am Receiver Bedienungsanleitung

Sony

Sony STR-DA5000ES - Fm Stereo/fm-am Receiver Bedienungsanleitung

Sony

Sony STR-DE845 Installationsanleitung

Sony

Sony STR-DA9000ES - Fm Stereo/fm-am Receiver Bedienungsanleitung

Sony

Sony STR-AZ3000ES Benutzerhandbuch

Sony

Sony XAV-AX3000 Bedienungsanleitung

Sony

Sony ICF-SW7600GR - Portable Radio Bedienungsanleitung

Sony

Sony STR-DA777ES - Fm Stereo/fm-am Receiver Bedienungsanleitung

Sony

Sony STR-DE575 - Fm Stereo/fm-am Receiver Bedienungsanleitung

Sony

Sony STR-V200 - Fm Stereo/fm-am Receiver Bedienungsanleitung

Sony

Sony STR-VX500 Bedienungsanleitung

Sony

Sony STR-471 Bedienungsanleitung

Sony

Sony ST-S3000ES Bedienungsanleitung

Sony

Sony XAV-AX8100 Bedienungsanleitung

Sony

Sony ST-RDE945 Bedienungsanleitung

Sony

Sony STR-SE381 Bedienungsanleitung

Sony

Sony STR-DE975 Bedienungsanleitung

Beliebte Stereo-Receiver Handbücher anderer Marken

Marantz

Marantz CINEMA 70S Bedienungsanleitung

Kenwood

Kenwood KMDX92 Bedienungsanleitung

Yamaha

Yamaha RX-830 Bedienungsanleitung

Pioneer

Pioneer AVH-Z7250BT Bedienungsanleitung

Yamaha

Yamaha RX-750 Bedienungsanleitung

Denon

Denon AVR-1311 Bedienungsanleitung

Denon

Denon AVR-S760H Bedienungsanleitung

Denon

Denon AVR-X7200W Bedienungsanleitung

Pioneer

Pioneer SC-LX904 Handbuch

Radio Shack

Radio Shack DX-399 Bedienungsanleitung

Pioneer

Pioneer SX-1000TA Bedienungsanleitung

Yamaha

Yamaha MusicCast TSR-5B3D Bedienungsanleitung

Panasonic

Panasonic AJSD955B - DVCPRO50 STUDIO DECK Bedienungsanleitung

Pioneer

Pioneer SX-838 Bedienungsanleitung

Sherwood

Sherwood S-2660CP Technisches Handbuch

Pioneer

Pioneer XR-VS77 Bedienungsanleitung

Pioneer

Pioneer AVH-2300NEX Bedienungsanleitung

Denon

Denon DRA-697CI Bedienungsanleitung
