Operating Instructions

3-862-867-11(1)

Compact Hi-Fi

Stereo System

LBT-XB88KS

WARNING

To prevent fire or shock hazard, do not

expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet.

Refer servicing to qualified personnel only.

Do not install the appliance in a confined space,

such as a bookcase or built-in cabinet.

Laser component in this product is capable of

emitting radiation exceeding the limit for Class 1.

This caution label is located inside the unit.

This appliance is classified as

a CLASS 1 LASER product.

The CLASS 1 LASER

PRODUCT MARKING is

located on the rear exterior.

This stereo system is equipped with the Dolby Pro

Logic Surround system* and the Dolby B-type noise

reduction system.

* Manufactured under license from Dolby

Laboratories Licensing Corporation.

DOLBY, the double-D symbol aand “PRO

LOGIC” are trademarks of Dolby Laboratories

Licensing Corporation.

Table of Contents

Getting Started

Step 1: Hooking up the system ............ 4

Step 2: Setting up the speakers ............ 7

Step 3: Setting the time ......................... 9

Step 4: Presetting radio stations ........ 10

Connecting optional AV

components .................................... 11

Basic Operations

Playing a CD ......................................... 14

Recording a CD .................................... 15

Listening to the radio ........................... 16

Recording from the radio .................... 18

Playing a tape........................................ 19

Recording from a tape ......................... 21

The CD Player

Using the CD display........................... 22

Playing CD tracks repeatedly ............. 22

Playing CD tracks in random

order ................................................ 23

Programming CD tracks ..................... 24

Playing CDs without interruption ..... 25

The Tape Deck

Recording on a tape manually ........... 26

Recording CDs by specifying the track

order ................................................ 27

DJ Effect

Looping part of a CD ........................... 29

Flashing part of a CD ........................... 29

Waving the equalizer ........................... 30

Sound Adjustment

Adjusting the sound ............................ 31

Selecting the audio emphasis ............. 32

Adjusting the audio emphasis............ 33

Making a personal audio emphasis file ....

Enjoying Dolby Pro Logic Surround

sound ............................................... 36

Other Features

Singing along: Karaoke ...................... 37

Falling asleep to music ........................ 39

Waking up to music ............................. 40

Timer-recording radio programs ....... 41

Additional Information

Precautions ............................................ 43

Troubleshooting ................................... 44

Specifications ........................................ 46

Index........................................ Back cover

Step 1: Hooking up the system

Getting Started

Follow steps 1through 4to hook up your system using the supplied cords and accessories.

Left front

speaker

Right front

speaker

AM loop antenna

FM antenna

Left rear speaker

Right rear speaker

Center speaker

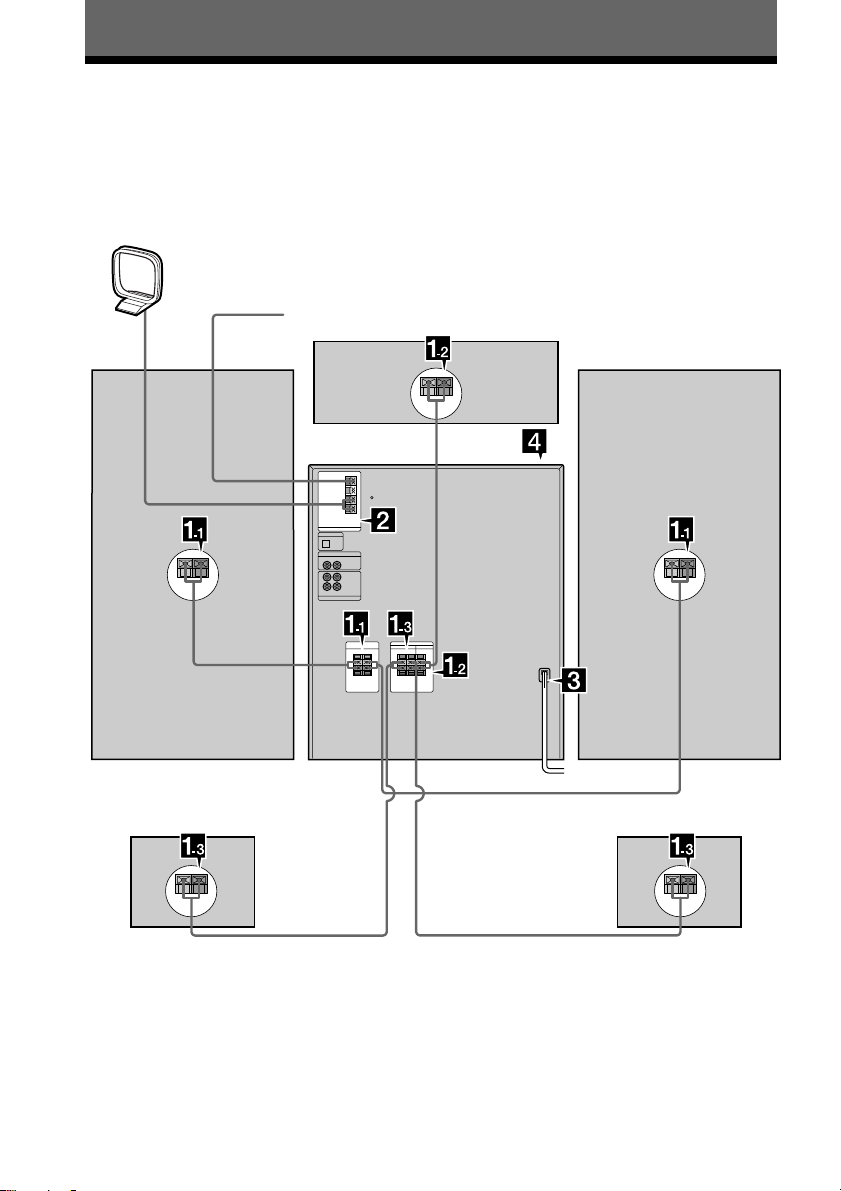

1Connect the speakers.

1 Connecting the front speakers

Connect the speaker cords to FRONT

SPEAKER jacks of the same color.

2 Connecting the center speaker

Connect the speaker cords to the

SURROUND SPEAKER CENTER

jacks.

3 Connecting the rear speakers

Connect the speaker cords to the

SURROUND SPEAKER REAR jacks.

Notes

• Keep the speaker cords away from the antennas to

prevent noise.

• Insert only the stripped portion of the cord.

Inserting the vinyl portion will interfere with the

speaker connection and no sound will come from

the speaker.

2Connect the FM/AM antennas.

Set up the AM loop antenna, then

connect it.

3Connect the power cord to a wall

outlet.

The demonstration appears in the

display.

If the plug on this unit does not fit your

wall outlet, detach the supplied adapter

from the plug (except for North and

South American countries, Europe and

Australia).

4Deactivate the demonstration mode

by pressing DISPLAY/DEMO while

the system is off.

To attach the center speaker feet

Attach the four center speaker feet (supplied)

to the bottom corners of the center speaker.

Gray with black stripe (’)

Gray (‘)

Black (’)Red (‘)

Gray with black stripe (’)

Gray (‘)

CENTER

REAR

CENTER

REAR

AM loop antenna

Extend the FM wire

antenna horizontally.

FM75

Inserting two size AA (R6)

batteries into the remote

Tips

• With normal use, the batteries should last for

about six months. When the remote no longer

operates the system, replace both batteries with

new ones.

• When you set the time, the demonstration is

deactivated.

To activate the demonstration again, press

DISPLAY/DEMO while the system is off.

Note

If you do not use the remote for a long period of

time, remove the batteries to avoid possible damage

from battery leakage.

When carrying this system

Do the following to protect the CD

mechanism.

1Press FUNCTION repeatedly until “CD”

appears in the display.

2Hold down PLAY MODE and press 1/u

(power) to turn off the system.

By connecting the supplied speakers, you can

enjoy Dolby Pro Logic Surround sound.

Dolby Pro Logic Surround is a decoding

system standardized in TV programs and

movies. Dolby Pro Logic Surround improves

the sound image by using four separate

channels. These channels manipulate the

sound to enhance the action as it happens on

the screen.

Since the center speaker cannot produce

enough bass, the bass sound of the center

channel is output from the front speakers.

Positioning the center

and rear speakers

Before you connect them, determine the best

location for your speakers.

1Place the front speakers at an angle

of 45 degrees from your listening

position.

continued

Step 2: Setting up

the speakers

2Place the center speaker so it is

placed at about the same height as

the front speakers (A). Align the

center speaker with the front

speakers or place it a little behind

the front speakers’ position (B).

3Place the rear speakers facing each

other at about 60 to 90 cm above

your listening position.

Front

speaker (L) Front

speaker (R)

Rear

speaker

(R)

Rear

speaker

(L)

Front

speaker

(L)

Front

speaker

(R)

Rear

speaker

(L)

Rear

speaker

(R)

Center speaker

Rear speaker

60 to 90 cm

Center speaker

1Press PRO LOGIC (or PRO LOGIC

ON/OFF on the remote).

The indicator on this button lights up.

2Press T. TONE ON/OFF on the

remote.

The test tone is heard from the speakers

in the following order. Adjust the

volume of the test tone.

nFront (left) nCenter

Rear NFront (right) N

3From your listening position, press

CENTER LEVEL +/– and REAR

LEVEL +/– on the remote to adjust

the volume levels.

The volume levels from each speaker

should be the same.

4Press T. TONE ON/OFF when you

are done adjusting.

The test tone is turned off.

Note

The test tone feature works only for Dolby Pro Logic

Surround sound.

Tip

If you turn VOLUME (or press VOLUME +/– on the

remote), all the speaker volumes change.

Step 2: Setting up the speakers

(continued)

Adjusting the speaker

volume

To enjoy Dolby Pro Logic Surround sound,

adjust the volume of each speaker using the

test tone that the system provides.

2,4

1VOLUME

VOLUME +/–

1/u

(Power)

Step 3: Setting the

time

1Press t/CLOCK SET.

The hour indication flashes.

2Press TUNING +/– to set the hour.

3Press ENTER/NEXT.

The minutes indication flashes.

4Press TUNING +/– to set the

minutes.

5Press ENTER/NEXT.

The clock starts.

Tip

If you make a mistake, start over from step 1.

You must set the time before using the timer

functions. The clock is on a 12-hour system.

3,51 2,4

Step 4: Presetting

radio stations

You can preset 20 stations for FM and 10

stations for AM.

The bands you can select depend on the kind

of tuner built into your system. Confirm the

bands by pressing TUNER/BAND

repeatedly.

DISCALL

DOLBY NR

OFF

AUTO

TUNED

STEREO

MHz

DISCALL

DOLBY NR

OFF

AUTO

TUNED

STEREO

DISCALL

DOLBY NR

OFF

AUTO

TUNED

STEREO

3Press TUNING +/–.

The frequency indication changes and

scanning stops when the system tunes in

a station. “TUNED” and “STEREO” (for

a stereo program) appear.

4Press TUNER MEMORY.

A preset number flashes in the display.

5Press TUNING +/– to select the

preset number you want.

6Press ENTER/NEXT.

The station is stored.

7Repeat steps 1 through 6 to store

other stations.

3,5 1246

1/u

(Power)

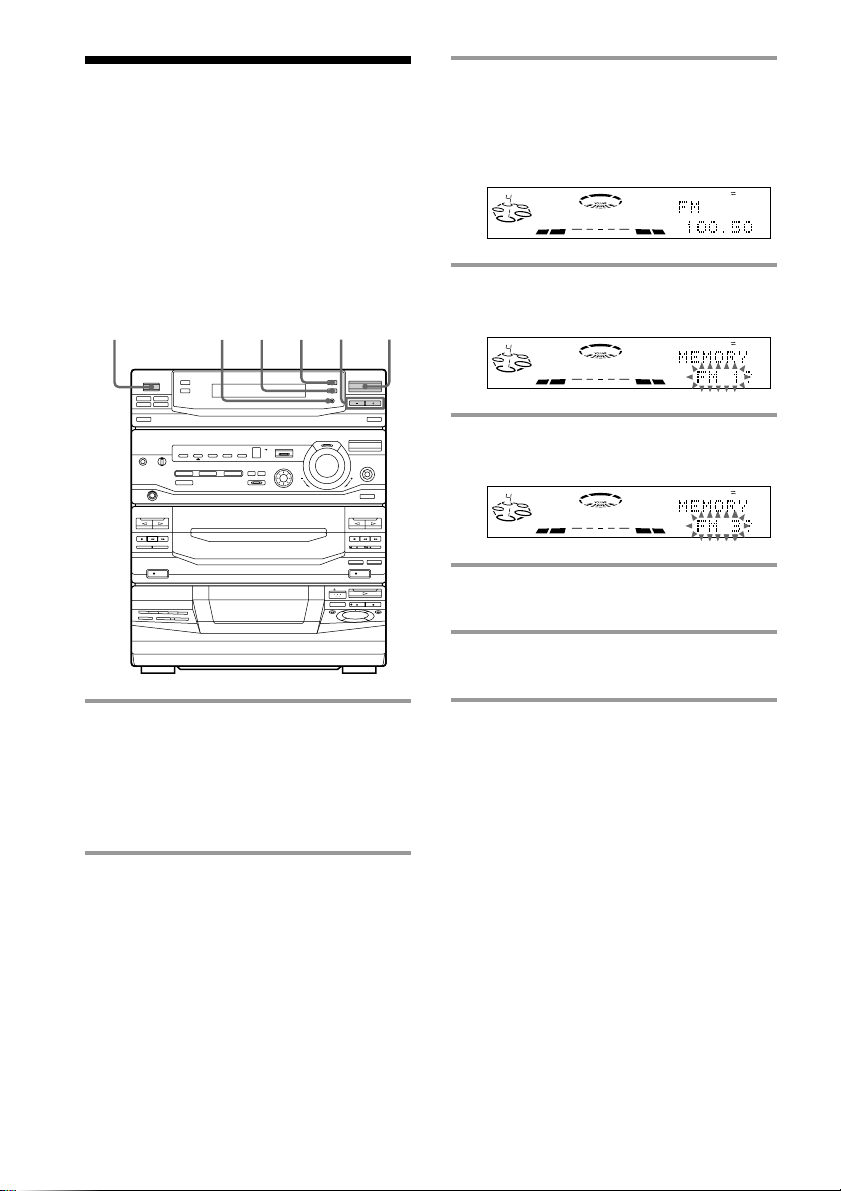

1Press TUNER/BAND repeatedly

until the band you want appears in

the display.

Each time you press this button, the

band changes as follows:

FM ˜AM

2Press TUNING MODE repeatedly

until “AUTO” appears in the

display.
