Sony FD Trinitron KV-28FQ75 U Bedienungsanleitung

Instruction Manual

KV-28FQ75 U

KV-32FQ75 U

4-205-563-64

Trinitron Colour

Television

420556364

KV-28FQ75Ucover.fm Page 0 Tuesday, May 22, 2001 10:01 AM

NOTICE FOR CUSTOMERS IN THE UNITED KINGDOM

A moulded plug complying with BS1363 is fitted to this equipment for your safety and

convenience.

Should the fuse in the plug supplied need to be replaced, a 13 AMP fuse approved by

ASTA or BSI to BS 1362 (i.e. marked with or ) must be used.

When an alternative type of plug is used it should be fitted with a 13 AMP FUSE, other-

wise the circuit should be protected by a 13 AMP FUSE at the distribution board.

If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the

fuse cover after you change the fuse. Never use the plug without the fuse cover. If you

should lose the fuse cover, please contact your nearest Sony service station.

How to replace the Fuse

Open the fuse compartment with a blade screwdriver, and replace the fuse.

•IMPORTANT

If the plug supplied is not suitable for the socket outlet in your home, it should be cut off

and an appropriate plug fitted in accordance with the following instructions:

The wires in this mains lead are coloured in accordance with the following code:

Blue Neutral

Brown Live

As the colours of the wires in the mains lead of this apparatus may not correspond with

the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with

the letter N or coloured black. The wire which is coloured brown must be connected to

the terminal which is marked with the letter L or coloured red. Do not connect either wire

to the earth terminal in the plug which is marked by the letter E or by the safety earth

symbol or coloured green or green and yellow.

WARNING

• To prevent shock hazard, do not insert the plug cut off from the mains lead into a socket

outlet. This plug cannot be used and should be destroyed.

• To prevent fire or shock hazard, do not expose the unit to rain or moisture.

• Dangerously high voltages are present inside the set. Do not open the cabinet. Refer

servicing to qualified personnel only.

ASA

FUSE

KV-28FQ75Ucover.fm Page 1 Tuesday, May 22, 2001 10:01 AM

420556364(GB) Pages 1-15.fm Page -1 Tuesday, May 22, 2001 10:02 AM

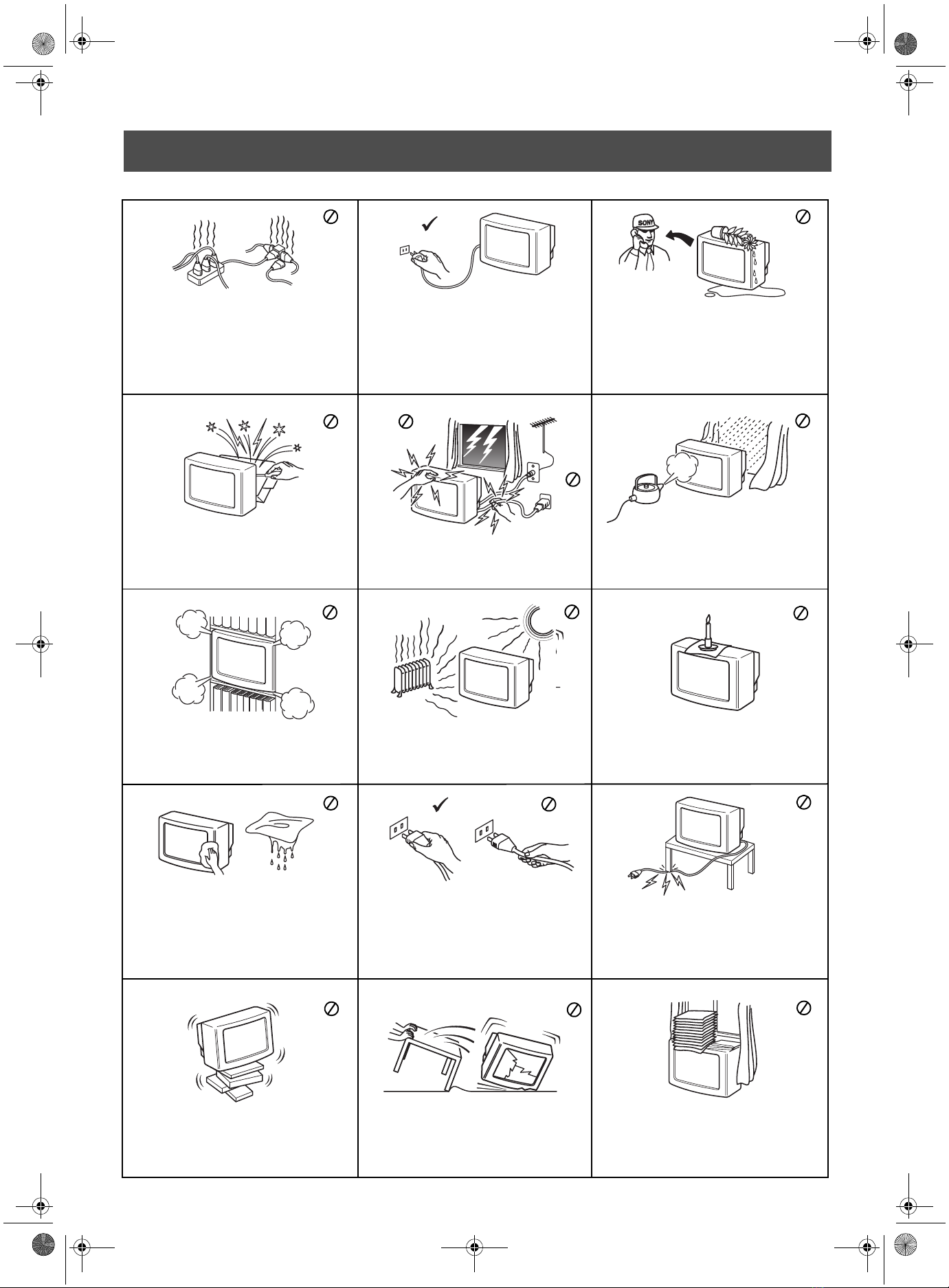

Safety Information

For your safety

This set is to operate on a 220-240V AC supply

only. Take care not to connect too many

appliances to the same power socket as this could

result in fire or electric shock.

For environmental and safety reasons, it is

recommended that the TV set is not left in

standby mode when not in use. Disconnect

from the mains.

Never push objects of any kind into the set as

this could result in a fire or electric shock. Never

spill liquid of any kind on the set. If any liquid or

solid object does fall through, do not operate the

TV. Have it checked immediately by qualified

personnel.

Do not open the cabinet and the rear cover of the

TV. Refer to qualified service personnel only.

To prevent fire or shock hazard, do not expose

the TV to rain or moisture.

For your own safety, do not touch any part of the

TV, power lead or aerial lead during lightning

storms.

Do not cover the ventilation openings of the TV

For ventilation, leave a space of at least 10cm all

around the set.

Never place the TV in hot, humid or excessively

dusty places. Do not install the TV where it may

be exposed to mechanical vibrations.

To prevent fire, keep inflammable objects or

naked lights (eg candles) away from the TV.

Clean the TV with a soft, lightly dampened cloth.

Do not use benzine, thinner or any other

chemicals to clean the TV. Do not scratch the TV

screen. As a safety precaution, unplug the TV

before cleaning it.

Pull out the power lead by the plug. Do not pull

on the power lead itself.

Take care not to place heavy objects on the power

lead as this could result in damage.

We recommend you wind any excess lead around

the holders provided on the rear of the TV.

Place the TV on a secure stable stand. Do not

allow children to climb on to it. Do not place the

TV on its side or face up.

Unplug the power lead before moving the TV.

Avoid uneven surfaces, quick steps or excessive

force. If the set has been dropped or damaged,

have it checked immediately by qualified

service personnel.

Do not cover the ventilation openings of the TV

with items such as curtains or newspapers etc.

420556364(GB) Pages 1-15.fm Page 0 Tuesday, May 22, 2001 10:02 AM

Safety Information

Always use TV stands that are strong and stable enough to support the weight and size of this TV. Due to the unique floating

design of this TV, Sony highly recommend you use their designated stands, SU-28FQ1 for KV-28FQ75 model and SU-32FQ1

for KV-32FQ75 model. If this recommended option is not taken, it is vitally important to ensure that any cabinet or table has a

large enough surface area to accommodate all three legs of the TV without any overlap.

Do not block or cover the ventilation openings. For ventilation, leave a space of at least 10 cm all around the set.

Safety Information

Table of Contents

Installation

1. Checking the accessories supplied

2. Inserting batteries into the remote control

3. Connecting the TV

4. Switching on the TV

5. Using the joystick

6. Tuning your TV

7. Finding your video channel

Operation

Overview of the TV set buttons

Overview of the remote control buttons

NexTView

Teletext

Using Multi PIP

Operating PAP (Picture and Picture)

Using the TV menu system

Adjusting the picture and sound

Using the Features menu

Changing the screen size

Re-arranging the TV channels

Manually tuning the TV

Naming a channel

Skipping programme positions

Using the ‘Further Programme Preset’ feature

Selecting the ‘Demo’ feature

Adjusting the picture rotation

Adjusting the picture geometry for an RGB source

Inputting your personal ID

Presetting and naming input signals

Additional Equipment

Connecting additional equipment to the TV

Additional information when connecting equipment

Smartlink

Remote control of other Sony equipment

Additional Information

Specifications

Channel Display Table

Troubleshooting

420556364(GB) Pages 1-15.fm Page 1 Tuesday, May 22, 2001 10:02 AM

Installation

1. Checking the accessories supplied

2. Inserting batteries into the remote control

Remote control

Batteries

Always observe the correct polarity when inserting batteries.

Always remember to dispose of used batteries in an environmentally friendly way.

Follow steps 1-7 to install the

TV and view TV programmes.

420556364(GB) Pages 1-15.fm Page 2 Tuesday, May 22, 2001 10:02 AM

Installation

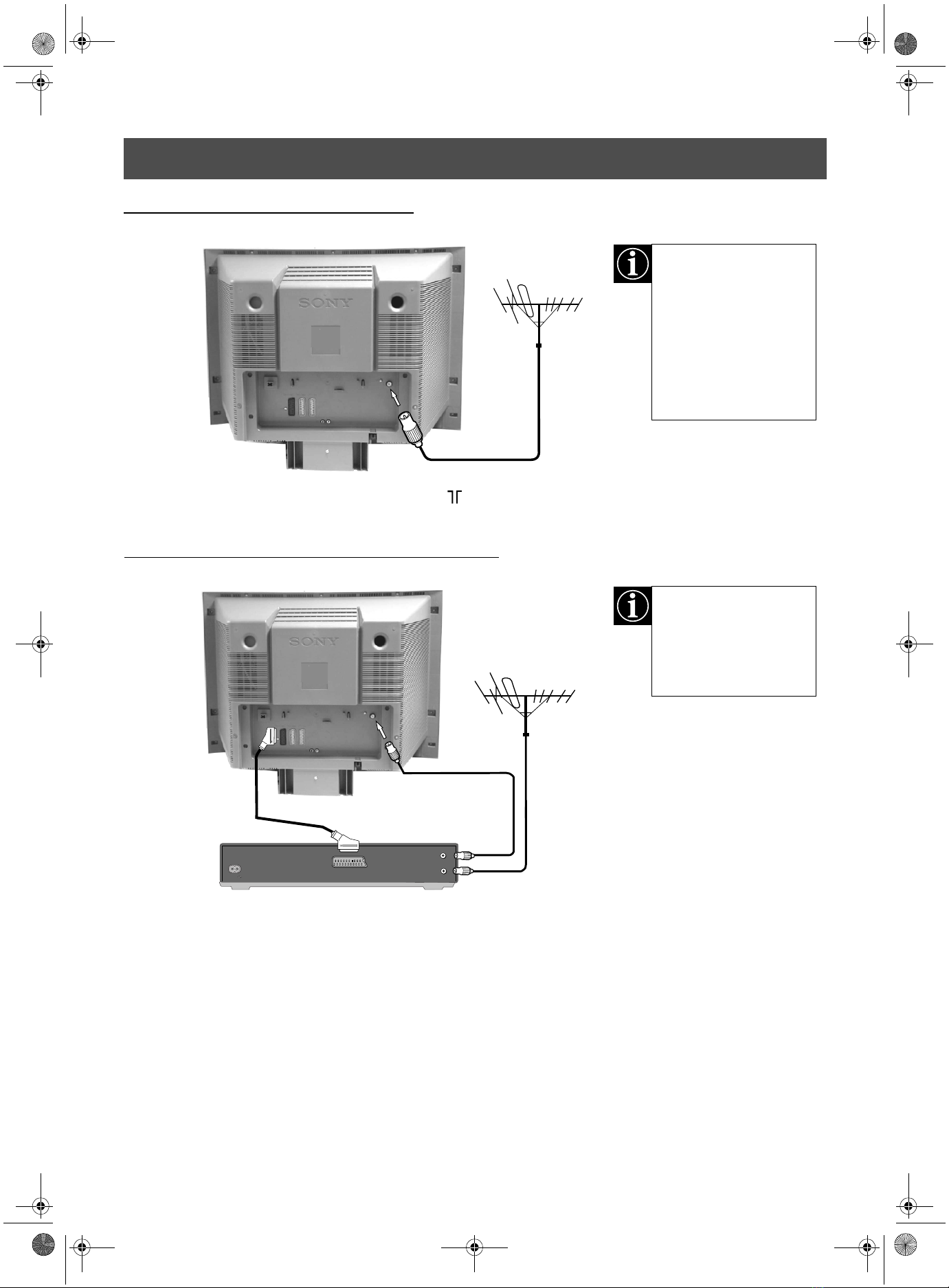

3. Connecting the TV

1. Connect your existing aerial lead to the socket marked on the rear of the TV set.

Connecting an aerial to your TV

Connecting an aerial and VCR to your TV

1. Connect your existing aerial lead to your VCR as shown.

2. Connect the VCR aerial lead from the RF OUT socket on the back of the VCR to the aerial socket on the back of the TV as

shown.

3. Connect the scart lead (if used) to the AV2 socket on the rear of the TV set.

4. Connect the VCR set to the mains and switch on.

5. Insert a pre-recorded tape into the VCR and press the ‘PLAY’ button. This enables the TV set to locate and store the video

channel during the ‘Tuning your TV’ procedure on page 5.

If you are not connecting

your TV to a VCR, please

connect the aerial lead (as

shown left) and proceed

to section ‘4.Switching on

the TV’.

If you are connecting

your TV to a VCR please

refer to the section below.

OUT

AERIAL

ANTENNA

AC IN

scart lead

(not supplied) existing aerial lead

The scart lead is optional.

If it can be used however,

this additional connection

can improve picture and

sound quality when in

play mode.

420556364(GB) Pages 1-15.fm Page 3 Tuesday, May 22, 2001 10:02 AM

Installation

1. Connect the TV plug to the mains socket (220-240V AC, 50Hz) and switch on.

2. Push in the on/off button on the front of the TV.

4. Switching on the TV

5. Using the joystick

To select an item in a menu press

the OK button down in the middle.

To move around the menus press

the relevant arrow button.

Moving the joystick Pressing the joystick

If the standby mode indicator on the front of the TV is lit, press the TV

button on the remote control to switch on the TV set. Please be patient as the

picture may take a few moments to appear on the TV screen.

420556364(GB) Pages 1-15.fm Page 4 Tuesday, May 22, 2001 10:02 AM

Installation

Before you tune your TV, you will be asked to set your language and country.

6. Tuning your TV

Language/Country

Language

Country

Select Country:

Confirm: OK

Greece

Great Britain

Germany

France

Finland

Denmark

Czech Rep.

Language/Country

Language

Country

Select Language:

Confirm: OK

Italiano

Français

Español

English

Deutsch

Dansk

Čeština

1. The Language/Country menu appears on the TV screen with the

word ‘English’highlighted.

2. Press the v or V buttons on the remote control to select your

chosen language then press the OK button to confirm. The

country menu appears on screen with the word ‘OFF’highlighted.

Select ‘OFF’if you do not want your channels stored in a given

channel sequence starting from programme position 1.

3. Press v or V to select the country in which you wish to operate

the TV then press the OK button to confirm your choice.

4. The ‘autotune’menu appears on the TV screen in your selected

language. Press the OK button to confirm.

5. Ensure the aerial is connected as instructed, then press the OK

button to confirm. The TV starts to automatically search and store

all available channels for you. This may take a few minutes -

please be patient and do not press any buttons.

6. Once the TV has tuned all available channels the ‘Programme

Sorting’menu appears on the TV screen enabling you to change

the order of the channels on your TV. If you wish to change the

channel order, press the v or V buttons to select the channel you

want to move, then press B. Press the v or V buttons to select the

new programme number position for your selected channel then

press the OK button to confirm. The selected channel now moves

to its new programme position and the other channels move

accordingly. Repeat this procedure if you wish to sort the order of

other channels on your TV.

7. Press the MENU button to remove the menu from the TV screen.

8. Press the PROGR+/- or the numbered buttons to view the TV

channels.

Note: If you would like to stop the autotune process at any stage,

press the OK button.

If you have connected a VCR to your TV, you now need to find your video channel.

1. Press the PROGR+/- buttons on the TV remote control until your video picture appears on the TV screen.

Note: If you wish to move your video channel to a different programme position, refer to the ‘Re-arranging TV channels’section

of this instruction manual.

7. Finding your video channel

Programme Sorting

Select Prog: Confirm:

PROG CH LABEL

Programme Sorting

Select Position: Move: OK

C03 TV 5

PROG CH LABEL

C03

C05

C07

C08

C09

C11

C12

C13

C14

C15

C16

TV 5

PRO 7

EU-SP

SWF

RTL

SAT

MDR

DDI

DSF

RTL 2

KAB 1

C03

C05

C07

C08

C09

C11

C12

C13

C14

C15

C16

TV 5

PRO 7

EU-SP

SWF

RTL

SAT

MDR

DDI

DSF

RTL 2

KAB 1

123

456

789

420556364(GB) Pages 1-15.fm Page 5 Tuesday, May 22, 2001 10:02 AM

Operation

Overview of the TV set buttons

Volume control buttons

Press to increase (+) /decrease

(-) volume.

Video input button

Press to select the input

signals from VCR etc.

Programme Up (+)

or Down (-) buttons

Press to select TV

channels.

Master Reset button

Press to return the picture and sound

levels to factory settings. The Sony logo

will appear on the screen followed by the

‘Autotune’screen. If you do not wish to

retune your TV, then press the b button

on your remote control.

Push up on the control panel (as shown)

to access the front input sockets and TV

buttons.

The control panel drops down.

420556364(GB) Pages 1-15.fm Page 6 Tuesday, May 22, 2001 10:02 AM

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Sony Fernseher Handbücher

Sony

Sony FD Trinitron WEGA KV-36FS100 Bedienungsanleitung

Sony

Sony BRAVIA XBR-85X850F Bedienungsanleitung

Sony

Sony BRAVIA KD-75X8500F Bedienungsanleitung

Sony

Sony GRAND WEGA KF 42WE610 Bedienungsanleitung

Sony

Sony BRAVIA RMF-TX600C Bedienungsanleitung

Sony

Sony KZ-32TS1E Bedienungsanleitung

Sony

Sony FD Trinitron KV-29FX30B Bedienungsanleitung

Sony

Sony FD Trinitron WEGA KV-XJ29 Bedienungsanleitung

Sony

Sony KV-29AL40 Bedienungsanleitung

Sony

Sony BRAVIA KDL-55W800C Bedienungsanleitung

Sony

Sony Bravia KD-55X7077F Bedienungsanleitung

Sony

Sony KD-34XBR960 Instructions: TV stand Bedienungsanleitung

Sony

Sony KV-25K1A Bedienungsanleitung

Sony

Sony BRAVIA KD-65X850 C Series Bedienungsanleitung

Sony

Sony FD TRINITON VEGA KV-20FS120 Bedienungsanleitung

Sony

Sony KV-AR252M61 Trinitron Bedienungsanleitung

Sony

Sony BRAVIA XBR-55A9F Bedienungsanleitung

Sony

Sony KLV-40W300A Bedienungsanleitung

Sony

Sony BRAVIA KD-65A1 Bedienungsanleitung

Sony

Sony BRAVIA KD-75S9005B Bedienungsanleitung

Sony

Sony KV-27FV310 - 27" Fd Trinitron Wega Bedienungsanleitung

Sony

Sony FD Trinitron WEGA KV-20FV300 Bedienungsanleitung

Sony

Sony KDS-50A2020 - 50" Rear Projection TV Bedienungsanleitung

Sony

Sony FD Trinitron Wega KV-AR29 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
