Safety Information

For your safety

This set is to operate on a 220-240V AC supply

only. Take care not to connect too many

appliances to the same power socket as this could

result in fire or electric shock.

For environmental and safety reasons, it is

recommended that the TV set is not left in

standby mode when not in use. Disconnect

from the mains.

Never push objects of any kind into the set as

this could result in a fire or electric shock. Never

spill liquid of any kind on the set. If any liquid or

solid object does fall through, do not operate the

TV. Have it checked immediately by qualified

personnel.

Do not open the cabinet and the rear cover of the

TV. Refer to qualified service personnel only.

To prevent fire or shock hazard, do not expose

the TV to rain or moisture.

For your own safety, do not touch any part of the

TV, power lead or aerial lead during lightning

storms.

Do not cover the ventilation openings of the TV

For ventilation, leave a space of at least 10cm all

around the set.

Never place the TV in hot, humid or excessively

dusty places. Do not install the TV where it may

be exposed to mechanical vibrations.

To prevent fire, keep inflammable objects or

naked lights (eg candles) away from the TV.

Clean the TV with a soft, lightly dampened cloth.

Do not use benzine, thinner or any other

chemicals to clean the TV. Do not scratch the TV

screen. As a safety precaution, unplug the TV

before cleaning it.

Pull out the power lead by the plug. Do not pull

on the power lead itself.

Take care not to place heavy objects on the power

lead as this could result in damage.

We recommend you wind any excess lead around

the holders provided on the rear of the TV.

Place the TV on a secure stable stand. Do not

allow children to climb on to it. Do not place the

TV on its side or face up.

Unplug the power lead before moving the TV.

Avoid uneven surfaces, quick steps or excessive

force. If the set has been dropped or damaged,

have it checked immediately by qualified

service personnel.

Do not cover the ventilation openings of the TV

with items such as curtains or newspapers etc.

Safety Information

Always use TV stands that are strong and stable enough to support the weight and size of this TV. Due to the unique floating

design of this TV, Sony highly recommend you use their designated stand, SU-34FQ1. If this recommended option is not taken,

it is vitally important to ensure that any cabinet or table has a large enough surface area to accommodate all three legs of the TV

without any overlap.

Safety Information

Table of Contents

Installation

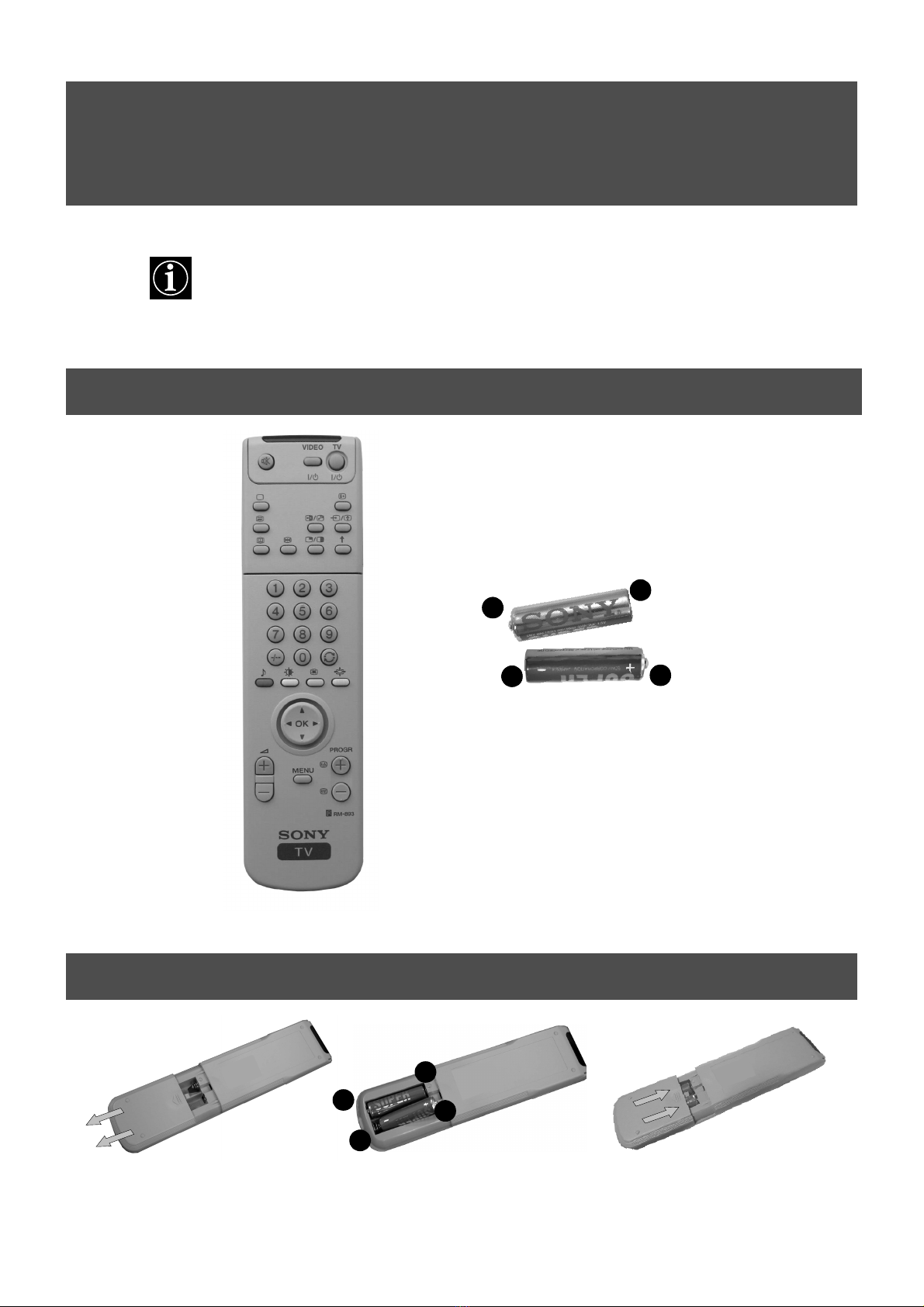

1. Checking the accessories supplied

2. Inserting batteries into the remote control

3. Connecting the TV

4. Switching on the TV

5. Using the joystick

6. Tuning your TV

7. Finding your video channel

Operation

Overview of the TV set buttons

Overview of the remote control buttons

NexTView

Teletext

Using Multi PIP

Operating PAP (Picture and Picture)

Using the TV menu system

Adjusting the picture and sound

Using the Features menu

Changing the screen size

Re-arranging the TV channels

Manually tuning the TV

Naming a channel

Skipping programme positions

Using the ‘Further Programme Preset’ feature

Selecting the ‘Demo’ feature

Adjusting the picture rotation

Adjusting the picture geometry for an RGB source

Inputting your personal ID

Presetting and naming input signals

Additional Equipment

Connecting additional equipment to the TV

Additional information when connecting equipment

Smartlink

Remote control of other Sony equipment

Additional Information

Specifications

Channel Display Table

Troubleshooting

Follow steps 1-7 to install the TV and

view TV programmes.

Installation

1. Checking the accessories supplied

2. Inserting batteries into the remote control

Batteries

Always observe the correct polarity when inserting batteries.

Always remember to dispose of used batteries in an environmentally friendly way.

Remote control

Installation

3. Connecting the TV

OUT

AERIAL

ANTENNA

AC IN

The scart lead is

optional. If it can be

used however, this

additional

connection can

improve picture and

sound quality when

in play mode.

1. Connect your existing aerial lead to the socket marked on the rear of the TV set.

Connecting an aerial to your TV

Connecting an aerial and VCR to your TV

1. Connect your existing aerial lead to the RF IN socket on your VCR as shown.

2. Connect the VCR aerial lead from the RF OUT socket on the back of the VCR to the aerial

socket on the back of the TV as shown.

3. Connect the scart lead (if used) to the AV2 socket on the rear of the TV set.

4. Connect the VCR set to the mains and switch on.

5. Insert a pre-recorded tape into the VCR and press the ‘PLAY’ button. This enables the TV

set to locate and store the video channel during the ‘Tuning your TV’ procedure on page 5.

If you are not connecting

your TV to a VCR,

please connect the aerial

lead (as shown left) and

proceed to section

‘4.Switching on the TV’.

If you are connecting

your TV to a VCR please

refer to the section

below.

existing aerial lead

scart lead

(not supplied)

Installation

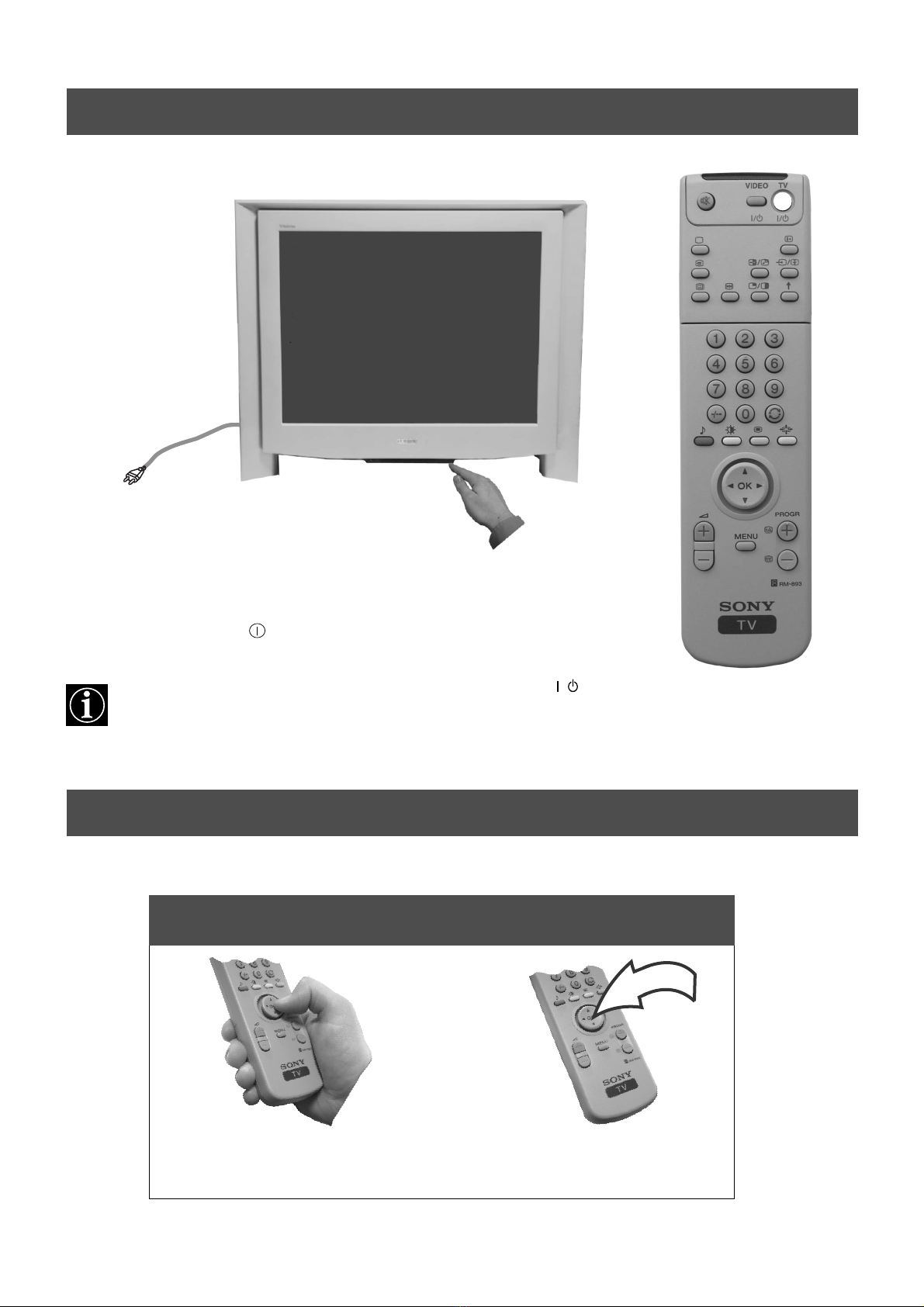

1. Connect the TV plug to the mains socket (220-240V AC, 50Hz).

2. Push in the on/off button on the front of the TV.

If the standby mode indicator on the front of the TV is lit, press the TV button on

the remote control to switch on the TV set. Please be patient as the picture may take a

few moments to appear on the TV screen.

4. Switching on the TV

5. Using the joystick

To select an item in a menu press

the OK button down in the middle.

To move around the menus press

the relevant arrow button.

Moving the joystick Pressing the joystick

Installation

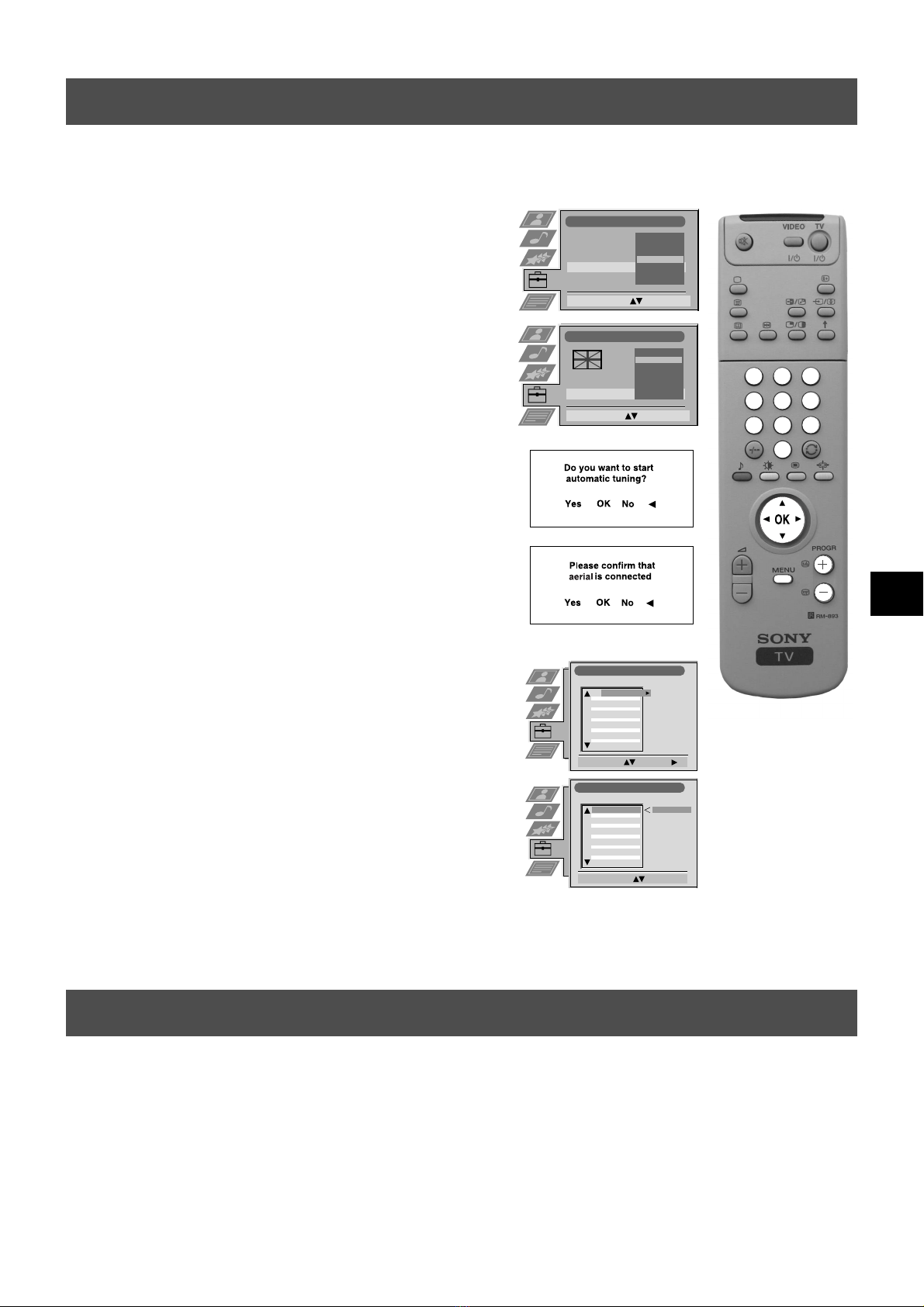

Before you tune your TV, you will be asked to set your language and country.

6. Tuning your TV

Language/Country

Language

Country

Select Country:

Confirm: OK

Greece

Great Britain

Germany

France

Finland

Denmark

Czech Rep.

Language/Country

Language

Country

Select Language:

Confirm: OK

Italiano

Français

Español

English

Deutsch

Dansk

Čeština

1. The Language/Country menu appears on the TV screen with the

word ‘English’highlighted.

2. Press the v or V buttons on the remote control to select your

chosen language then press the OK button to confirm.

3. Press v or V to select the country in which you wish to operate

the TV then press the OK button to confirm your choice. Select

‘OFF’if you do not want your channels stored in a given channel

sequence starting from programme position 1.

4. The ‘autotune’menu appears on the TV screen in your selected

language. Press the OK button to confirm.

5. Ensure the aerial is connected as instructed, then press the OK

button to confirm. The TV starts to automatically search and store

all available channels for you. This may take a few minutes -

please be patient and do not press any buttons.

6. Once the TV has tuned all available channels the ‘Programme

Sorting’menu appears on the TV screen enabling you to change

the order of the channels on your TV. If you wish to change the

channel order, press the v or V buttons to select the channel you

want to move, then press B. Press the v or V buttons to select the

new programme number position for your selected channel then

press the OK button to confirm. The selected channel now moves

to its new programme position and the other channels move

accordingly. Repeat this procedure if you wish to sort the order of

other channels on your TV.

7. Press the MENU button to remove the menu from the TV screen.

8. Press the PROGR+/- or the numbered buttons to view the TV

channels.

Note: If you would like to stop the autotune process at any stage,

press the OK button.

If you have connected a VCR to your TV, you now need to find your video channel.

1. Press the PROGR+/- buttons on the TV remote control until your video picture appears on the TV screen.

Note: If you wish to move your video channel to a different programme position, refer to the ‘Re-arranging the TV channels’

section of this instruction manual.

7. Finding your video channel

Programme Sorting

Select Prog: Confirm:

PROG CH LABEL

Programme Sorting

Select Position: Move: OK

C03 TV 5

PROG CH LABEL

C03

C05

C07

C08

C09

C11

C12

C13

C14

C15

C16

TV 5

PRO 7

EU-SP

SWF

RTL

SAT

MDR

DDI

DSF

RTL 2

KAB 1

C03

C05

C07

C08

C09

C11

C12

C13

C14

C15

C16

TV 5

PRO 7

EU-SP

SWF

RTL

SAT

MDR

DDI

DSF

RTL 2

KAB 1

123

7 8 9

Operation

Overview of the TV set buttons

Volume control buttons.

Press to increase (+) /decrease

(-) volume.

Video input button.

Press to select the input

signals from VCR etc.

Programme Up (+) or

Down (-) buttons.

Press to select TV

channels.

Master Reset button.

Press to return the picture and sound

levels to factory settings. The Sony logo

will appear on the screen followed by the

‘Autotune’screen. If you do not wish to

retune your TV, press the b button on

your remote control.

Push up on the control panel (as shown)

to access the front input sockets and TV

buttons.

The control panel drops down.

Andere Handbücher für FD Trinitron KV-34FQ75 D

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Sony Fernseher Handbücher

Sony

Sony Bravia XBR-65X750D Bedienungsanleitung

Sony

Sony Trinitron KV-20M42 Bedienungsanleitung

Sony

Sony TRINITRON KV-XA25M60 Bedienungsanleitung

Sony

Sony TRINITRON KV-ES38N90 Bedienungsanleitung

Sony

Sony TRINITRON KV-29C3A Bedienungsanleitung

Sony

Sony Bravia KDL-22L4000 Bedienungsanleitung

Sony

Sony Bravia KDL-37V4500 Bedienungsanleitung

Sony

Sony TRINITRON KV-SZ252M50 Bedienungsanleitung

Sony

Sony KD-32DX40U Bedienungsanleitung

Sony

Sony Trinitron KV-27S35 Bedienungsanleitung

Sony

Sony BRAVIA KLV-40U100M Bedienungsanleitung

Sony

Sony WEGA KE-42M1 Kurzanleitung

Sony

Sony BRAVIA KLV-48R562C Benutzerhandbuch

Sony

Sony XR65A95K Bedienungsanleitung

Sony

Sony Bravia XBR-75X850C Bedienungsanleitung

Sony

Sony TRINITRON KV-XS29N90 Bedienungsanleitung

Sony

Sony BRAVIA 65X8 L Series Bedienungsanleitung

Sony

Sony KV-24FV12 - 24" Trinitron Color Flat Tv Bedienungsanleitung

Sony

Sony KV-ES29M80 Bedienungsanleitung

Sony

Sony Trinitron KV-XG29M21 Bedienungsanleitung

Sony

Sony TRINITRON KV-AR29M61 Bedienungsanleitung

Sony

Sony Trinitron KV-27V20 Bedienungsanleitung

Sony

Sony BRAVIA XR XR-98X9 L Series Bedienungsanleitung

Sony

Sony BRAVIA KDL-48WD65 Series Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
