NOTICE

A moulded plug complying with BS1363 is fitted to this equipment for your safety and convenience.

Should the fuse in the plug supplied need to be replaced, a 5 AMP fuse approved by ASTA or BSI to BS

1362 (i.e. marked with or ) must be used. When an alternative type of plug is used it should be fitted

with a 5 AMP fuse, otherwise the circuit should be protected by a 5 AMP fuse at the distribution board. If

the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you

change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact

your nearest Sony service centre.

How to replace the Fuse

Open the fuse compartment with a flat blade screwdriver, and replace the fuse.

IMPORTANT

If the plug supplied is not suitable for the socket outlet in your home, it should be cut off and

an appropriate plug fitted in accordance with the following instructions:

The wires in this mains lead are coloured in accordance with the following code:

Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the

coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the

letter N or coloured black. The wire which is coloured brown must be connected to the terminal

which is marked with the letter L or coloured red. Do not connect either wire to the earth

terminal in the plug which is marked by the letter E or by the safety earth symbol Ior coloured

green or green and yellow.

WARNING

• To prevent shock hazard, do not insert the plug cut off from the mains lead into a socket

outlet. This plug cannot be used and should be destroyed.

• To prevent fire or shock hazard, do not expose the unit to rain or moisture.

• Dangerously high voltages are present inside the set. Do not open the cabinet. Refer

servicing to qualified personnel only.

ASA

FUSE

FX68B(03) IRL Cover.fm Page 2 Monday, March 31, 2003 11:08 AM

Introduction

Thank you for choosing this Sony FD Trinitron Colour Television.

Before operating the TV, please read this manual thoroughly and retain it for future reference.

Symbols used in the manual:

Table of Contents

Notice for Customers in the United Kingdom............................................................................................ 2

Introduction ................................................................................................................................................ 3

Safety Information...................................................................................................................................... 4

Overview

Overview of Remote Control Buttons........................................................................................................ 5

Overview of TV Buttons ........................................................................................................................... 6

Installation

Inserting Batteries into the Remote Control............................................................................................... 6

Connecting the Aerial and VCR ................................................................................................................ 6

First Time Operation

Switching On the TV and Automatically Tuning ..................................................................................... 7

Menu system

Introducing and Using the Menu System................................................................................................... 9

Menu Guide:

Picture Adjustment................................................................................................................................. 9

Sound Adjustment................................................................................................................................ 10

Sleep Timer .......................................................................................................................................... 11

Language .............................................................................................................................................. 11

Auto Tuning ......................................................................................................................................... 11

Programme Sorting .............................................................................................................................. 12

Programme Labels ............................................................................................................................... 12

AV Preset ............................................................................................................................................. 12

Manual Programme Preset ................................................................................................................... 13

Auto Format ......................................................................................................................................... 14

Noise Reduction ................................................................................................................................... 15

AV3 Output.......................................................................................................................................... 15

TV Speakers ......................................................................................................................................... 15

RGB Centring....................................................................................................................................... 16

Picture Rotation.................................................................................................................................... 16

Teletext ............................................................................................................................................... 17

Additional Information

Connecting Optional Equipment .............................................................................................................. 18

Using Optional Equipment....................................................................................................................... 18

Remote Control Configuration for VCR/DVD ........................................................................................20

Specifications ........................................................................................................................................... 21

Troubleshooting........................................................................................................................................ 22

Table of Contents

• Shaded buttons on the remote control show you

the buttons you have to press to follow the

sequence of the instructions.

• Informs you of the result of instructions.

• Important information

• Information on a feature.

•1,2...Sequence of instructions.

FX68B(03) IRL Pages 3-22.fm Page 3 Monday, March 31, 2003 11:09 AM

Safety Information

Do not open the cabinet and the rear

cover of the TV. Refer to qualified

service personnel only.

To prevent fire or shock hazard,

do not expose the TV to rain or

moisture.

For your own safety, do not touch

any part of the TV, power lead or

aerial lead during lightning storms.

Do not cover the ventilation

openings of the TV For ventilation,

leave a space of at least 10cm all

around the set.

Never place the TV in hot, humid

or excessively dusty places. Do not

install the TV where it may be

exposed to mechanical vibrations.

To prevent fire, keep inflammable

objects or naked lights (eg candles)

away from the TV.

Pull out the power lead by the

plug. Do not pull on the power

lead itself.

Take care not to place heavy

objects on the power lead as this

could result in damage.

We recommend you wind any

excess lead around the holders

provided on the rear of the TV.

Place the TV on a secure stable

stand. Do not allow children to

climb on to it. Do not place the TV

on its side or face up.

Do not cover the ventilation

openings of the TV with items

such as curtains or newspapers

etc.

Never push objects of any kind into

the set as this could result in a fire or

electric shock. Never spill liquid of

any kind on the set. If any liquid or

solid object does fall through, do not

operate the TV. Have it checked

immediately by qualified personnel.

For environmental and safety

reasons, it is recommended that the

TV set is not left in standby mode

when not in use. Disconnect from

the mains.

This set is to operate on a 220-

240V AC supply only. Take care

not to connect too many appliances

to the same power socket as this

could result in fire or electric

shock.

Unplug the power lead before

moving the TV. Avoid uneven

surfaces, quick steps or excessive

force. If the set has been dropped

or damaged, have it checked

immediately by qualified service

personnel.

Clean the screen and cabinet with a

soft, lightly dampened cloth. Do not

use any type of abrasive pad,

alkaline cleaner, scouring powder or

solvent, such as alcohol or benzine,

or antistatic spray. As a safety

precaution, unplug the TV before

cleaning it.

FX68B(03) IRL Pages 3-22.fm Page 4 Monday, March 31, 2003 11:09 AM

Overview of Remote Control Buttons

1To Temporarily Switch Off TV: Press this button to temporarily switch off TV (the

standby indicator on the TV lights up). Press again to switch on TV from standby mode.

To save energy we recommend switching off completely when TV is not in use. After 15

minutes without a signal and without any button being pressed, the TV switches

automatically into standby mode.

2Selecting input source: Press this button repeatedly until the desired input symbol of

the source appears on the TV screen.

3Selecting channels: If Media Selector is switched to TV or VCR, press this button to

select channels. For double-digit programme numbers, enter the second digit within 2.5

seconds.

4a) If Media Selector is switched to TV:

Press this button to watch the last channel selected (the last channel watched for at least

5 seconds).

b) If Media Selector is switched to VCR:

For Sony’s VCR double-digit programme numbers, e.g. 23, press -/- - first and then the

buttons 2 and 3.

5This button only works in Teletext mode.

6Selecting screen format: Press this button repeatedly to change the format of the

screen. For more details refer to chapter “Auto Format”on page 14.

7Selecting Teletext: Press this button to switch on teletext.

8a) If Media Selector is switched to TV:

•When MENU is switched on, use these buttons to operate the menu system. For

details refer to “Introducing and Using the Menu System”on page 9.

•When MENU is switched off, press OK to show a channel overview. Then

press or to select the channel and then press the OK button again to watch the

selected channel.

b) If Media Selector is switched to VCR or DVD:

Using these buttons you can control the main functions of your VCR or DVD.

9Recording button: If Media Selector is switched to VCR, press this button to record

programmes.

q; Media Selector: With this remote control you can operate not only this TV but also the

main functions of your VCR or DVD. For more details, refer to chapter “Remote Control

Configuration for VCR or DVD”on page 20.

qa Selecting channels: Press this button to select the next or previous broadcast channel.

qs Muting the Sound: Press this button to mute TV sound. Press again to restore the sound.

qd Adjusting TV volume: Press this button to adjust the volume of the TV.

qf Displaying the menu system: Press this button to display the menu on the TV screen.

Press again to remove the menu display from the TV screen.

qg Selecting TV mode: Press this button to switch off teletext or video input.

qh Selecting Sound effect: Press this button repeatedly to change the sound effect.

qj Selecting Picture mode: Press this button repeatedly to change the picture mode.

qk Displaying on Screen information: Press this button to display all on-screen

indications. Press again to cancel.

ql VCR or DVD on/off: Press this button to switch your VCR or DVD on or off.

Besides TV functions, all coloured buttons as well as green symbols are also used for Teletext

operation. For more details, please refer to the “Teletext”section of this instruction manual.

Overview

FX68B(03) IRL Pages 3-22.fm Page 5 Monday, March 31, 2003 11:09 AM

Overview of TV Buttons

Inserting Batteries into the Remote Control

Make sure you insert the supplied batteries using the correct polarities.

Always remember to dispose of used batteries in an environmental friendly way.

Inserting batteries into the Remote Control

Connecting the Aerial and VCR

Overview-Installation

Connecting cables are not supplied.

Standby indicator

Audio

Input jacks

Video

Input jack

On/Off

switch

Programme Up or

Down Buttons (Selects

TV channels)

Volume control

buttons

Auto Start Up Button

S video Input jack

Headphones

jack

Press on the mark

on the door

flap to reveal the

control panel.

Selecting

Input

source

OUT IN

Scart lead is optional.

For more details of VCR connection, please refer to the section

“Connecting Optional Equipment”of this instruction manual.

VCR

Make sure you insert the supplied batteries using the correct polarities.

Always remember to dispose of used batteries in an environmentally friendly way.

FX68B(03) IRL Pages 3-22.fm Page 6 Monday, March 31, 2003 11:09 AM

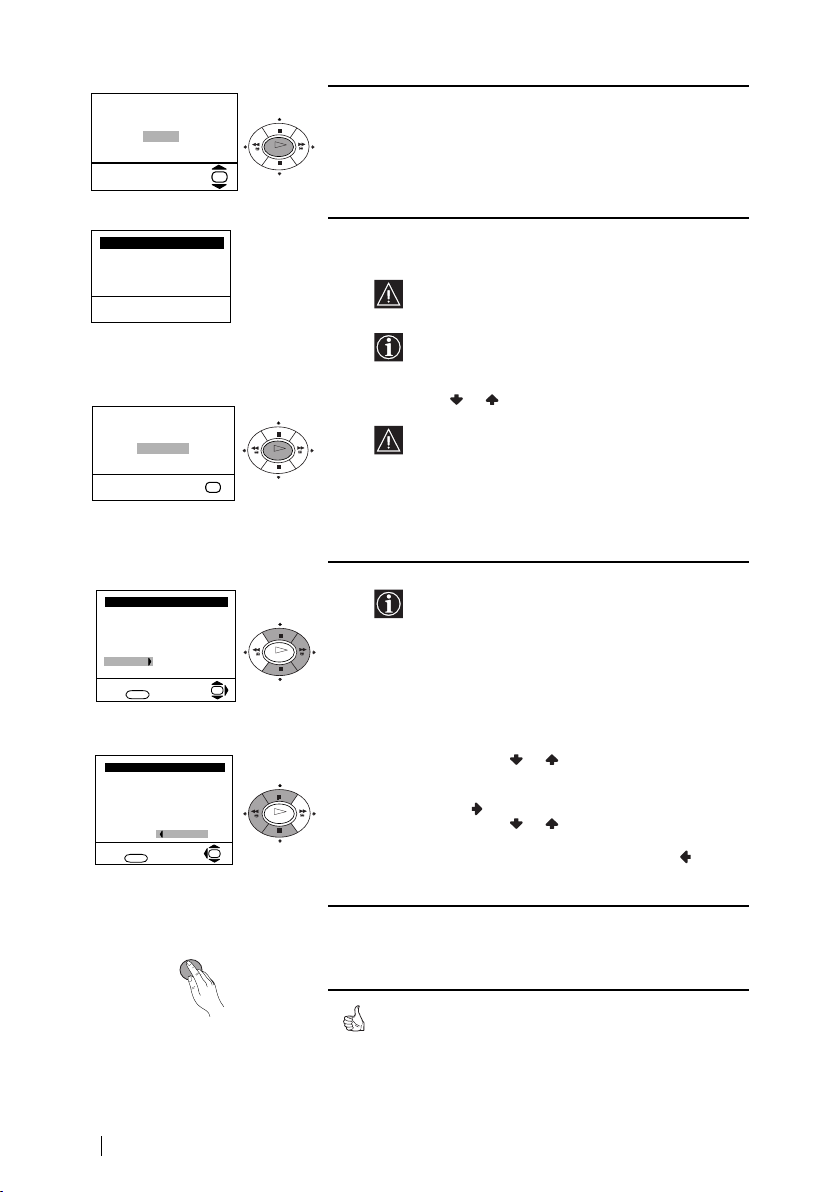

Switching On the TV and Automatically Tuning

The first time you switch on your TV, a sequence of menu screens appear on the TV enabling you to:

1) choose the language of the menu screen, 2) adjust the picture slant, 3) search and store all available

channels (TV Broadcast) and 4) change the order in which the channels (TV Broadcast) appear on the

screen. However, if you need to change any of these settings at a later date, you can do that by selecting

the appropriate option in the (Set Up menu) or by pressing the Auto Start Up Button on the TV set.

1Connect the TV plug to the mains socket (220-240V AC,

50Hz).

The first time that the TV set is connected, it is usually

turned on. If the TV is off, press the on/off button on

the TV set to turn on the TV.

The first time you switch on the TV, a Language menu

displays automatically on the TV screen.

2Press the or button on the remote control to select

the language, then press the OK button to confirm your

selection. From now on all the menus appear in the

selected language.

3The Country menu appears automatically on the TV

screen. Press the or button to select the country in

which you will operate the TV set, then press the OK

button to confirm your selection.

•If the country in which you want to use the

TV set does not appear in the list, select ‘-’

instead of a country.

•In order to avoid wrong teletext characters

for Cyrillic languages we recommend

selecting Russia if your own country does

not appear in the list.

4Because of the earth’s magnetism, the picture might

slant. The Picture Rotation menu allows you to correct

the picture slant if necessary.

If it is not necessary, press or to select Not

necessary and press OK.

If it is necessary, press or to select Adjust

now, then press OK and correct any slant of the

picture between –5 and +5 by pressing or .

Finally press OK to store.

Language

Select Language:

Svenska

Norsk

English

Nederlands

Français

Italiano

If picture slants, please

adjust picture rotation

Not necessary

Adjust now

Country

Select country:

Sverige

Norge

Italia

Deutschland

Österreich

First Time Operation

FX68B(03) IRL Pages 3-22.fm Page 7 Monday, March 31, 2003 11:09 AM

8First Time Operation

5The Auto Tuning menu appears on the screen. Press the

OK button to select Yes.

6The TV starts to automatically search and store all

available broadcast channels for you.

This procedure could take some minutes. Please

be patient and do not press any buttons.

In some countries the TV Broadcaster installs the

channels automatically (ACI system). In this

case, the TV Broadcaster sends a menu in which

you can select your city by pressing

the or button and OK to store the channels.

If no channels were found during the auto tuning

process then a new menu appears automatically

on the screen asking you to connect the aerial.

Please connect the aerial (see page 6) and press

OK. The auto tuning process will start again.

7After all available channels are captured and

stored, the Programme Sorting menu appears

automatically on the screen enabling you to

change the order of the TV channels..

If you wish to keep the broadcast channels in the

tuned order, go to step 8

If you wish to store the channels in a different

order:

1Press the or button to select the

programme number with the channel (TV

Broadcast) you wish to rearrange, then press

the button.

2Press the or button to select the new

programme number position for your selected

channel (TV Broadcast), then press .

3Repeat steps b)1 and b)2 if you wish to

change the order of the other channels.

8Press the MENU button to remove the menu from the

screen.

Your TV is now ready for use

No channel found

Please connect aerial

Confirm

Programme: 01

Channel: C21

Auto Tuning

Searching...

Programme Sorting

Select channel:

Exit: MENU

Programme:

01 TVE

02 TVE2

03 TV3

04 C33

05 C27

06 C58

Programme Sorting

Select new position:

Exit: MENU

Programme:

01 TVE

02 TVE2

03 TV3

04 C33

05 C27

06 C58 05 C27

Do you want to start

automatic tuning?

Yes

FX68B(03) IRL Pages 3-22.fm Page 8 Monday, March 31, 2003 11:09 AM

Introducing and Using the Menu System

1Press the MENU button to switch on the first level menu.

2•To highlight the desired menu or option, press or .

•To enter to the selected menu or option, press .

•To return to the last menu or option, press .

•To alter the settings of your selected option, press / /

or .

•To confirm and store your selection, press OK.

3Press the MENU button to remove the menu from the screen.

Menu System

Menu Guide

PICTURE ADJUSTMENT

The “Picture Adjustment”menu allows you to alter

the picture settings.

To do this: after selecting the item you want to alter

press , then press repeatedly / / or to

adjust it and finally press OK to store the new

adjustment.

This menu also allows you to customise the

picture mode based on the programme you are

watching:

Live (for live broadcast programmes, DVD and

Digital Set Top Box receivers).

Personal (for individual settings).

Movie (for films).

•Brightness, Colour and Sharpness can only be

altered if “Personal” mode is selected.

•Hue is only available for NTSC colour signal (e.g:

USA video tapes).

•Select Reset and press OK to reset the picture to the

factory preset levels.

Level 1 Level 2 Level 3 / Function

Picture Adjustment

Mode: Personal

Contrast

Brightness

Colour

Sharpness

Hue

Reset

Picture Adjustment

Mode: Personal

Contrast

Brightness

Colour

Sharpness

Hue

Reset

Your TV uses an on-screen menu system to guide you through the operations. Use the following

buttons on the remote control to operate the menu system:

FX68B(03) IRL Pages 3-22.fm Page 9 Monday, March 31, 2003 11:09 AM

Picture Adjustment

Mode: Personal

Contrast

Brightness

Colour

Sharpness

Hue

Reset

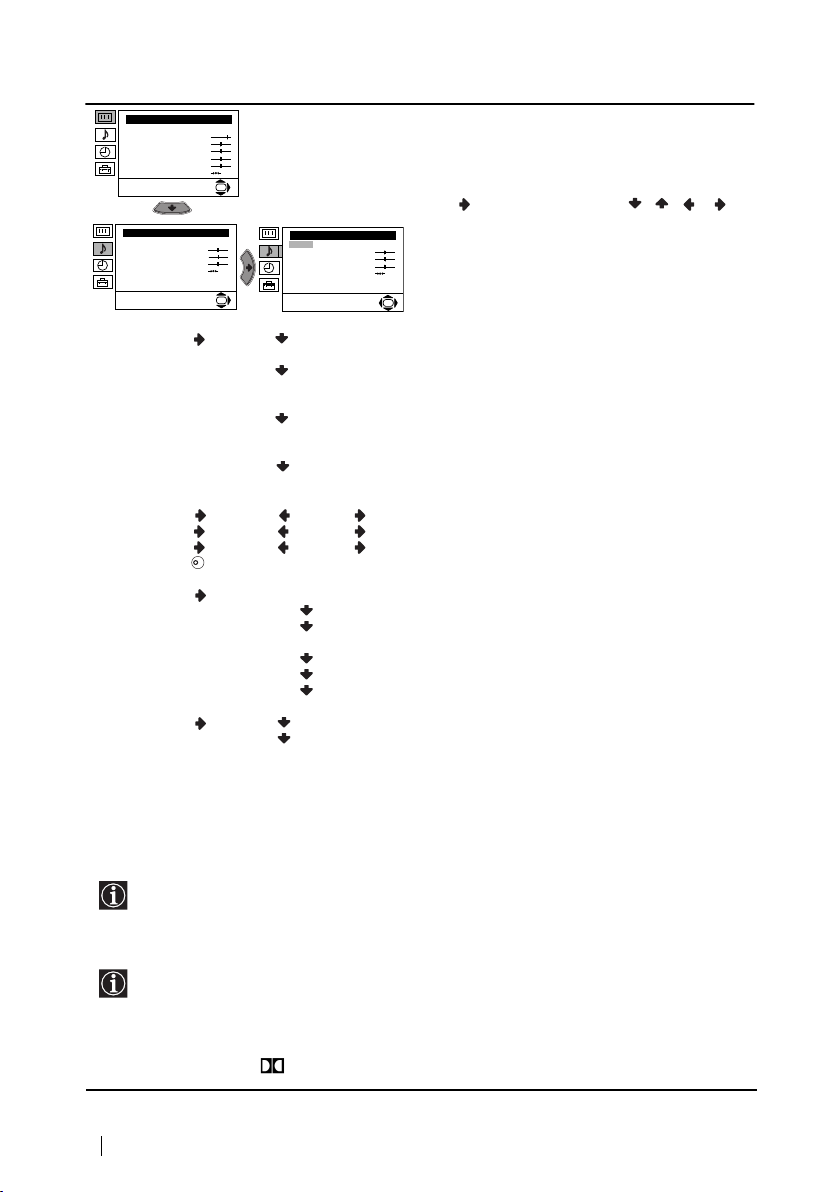

Sound Adjustment

Effect: Natural

Treble

Bass

Balance

Reset

Dual Sound: Mono

Auto volume: On

Sound Adjustment

Effect: Natural

Tre bl e

Bass

Balance

Reset

Dual Sound: Mono

Auto volume: On

Menu System

Level 1 Level 2 Level 3 / Function

Effect Natural: Enhances clarity, detail and presence of sound by

using “BBE High Definition Sound system”*.

Dynamic: “BBE High Definition Sound system”*intensifies

clarity and presence of sound for better intelligibility

and musical realism.

Dolby**Virtual: Simulates the sound effect of “Dolby Surround Pro

Logic”.

Off: Flat response.

Treble Less More

Bass Less More

Balance Left Right

Reset Resets the sound to the factory preset levels.

Dual Sound •For a stereo broadcast:

Mono.

Stereo.

•For a bilingual broadcast:

Mono (for mono channel if available).

A(for channel 1).

B(for channel 2).

Auto Volume Off: Volume level changes according to the broadcast signal.

On: Volume level of the channels will stay the same, independent of

the broadcast signal (e.g. in the case of advertisements).

•If you are listening to the TV through headphones, the “Effect”option will automatically be

switched to “Off”.

•If you select “Dolby Virtual”on the “Effect”option, the “Auto Volume”option will automatically

be switched to “Off”and vice versa.

*The “BBE High Definition Sound system”is manufactured by Sony Corporation under

license from BBE Sound, Inc. It is covered by U.S. Patent No. 4,638,258 and No. 4,482,866. The

word “BBE”and BBE Symbol are trademarks of BBE Sound, Inc.

** This TV has been designed to create the “Dolby Surround”sound effect by simulating the

sound of four speakers with two speakers, when the broadcast audio signal is Dolby Surround

encoded. The sound effect can also be improved by connecting a suitable external amplifier (for

details refer to “Connecting to external audio equipment”on page 19).

** Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”and the

double-D symbol are trademarks of Dolby Laboratories.

SOUND ADJUSTMENT

The “Sound Adjustment”menu allows you to alter

the sound settings.

To do this: after selecting the item you want to alter,

press . Then press repeatedly / / or to

adjust it and finally press OK to store the new

adjustment.

FX68B(03) IRL Pages 3-22.fm Page 10 Monday, March 31, 2003 11:09 AM

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Sony Fernseher Handbücher

Sony

Sony TRINITRON KV-XS29M80 Bedienungsanleitung

Sony

Sony FD Trinitron KV-25FX30B Bedienungsanleitung

Sony

Sony wega KV-AZ212 Bedienungsanleitung

Sony

Sony Trinitron KV-SW212M50 Bedienungsanleitung

Sony

Sony BRAVIA KDL-40XBR4 Bedienungsanleitung

Sony

Sony KV-34XBR800 Bedienungsanleitung

Sony

Sony KV-13M10 Bedienungsanleitung

Sony

Sony KV- 13EXR90 Bedienungsanleitung

Sony

Sony KP-48PS2 Bedienungsanleitung

Sony

Sony BRAVIA KD-55X9350D Bedienungsanleitung

Sony

Sony KV-1415AS Bedienungsanleitung

Sony

Sony TRINITRON KV-32WS4A Bedienungsanleitung

Sony

Sony KV-14CT1B Bedienungsanleitung

Sony

Sony FD Trinitron WEGA KV-27FV16 Bedienungsanleitung

Sony

Sony Trinitron KV-25K5A Bedienungsanleitung

Sony

Sony BRAVIA KDL-48W700C Bedienungsanleitung

Sony

Sony Bravia XR-77A80J Bedienungsanleitung

Sony

Sony KV-36XBR800 - 36" Trinitron Color Flat Tv Wega... Bedienungsanleitung

Sony

Sony Trinitron KV-27TS29 Bedienungsanleitung

Sony

Sony FD Trinitron WEGA KV-20FV300 Bedienungsanleitung

Sony

Sony Trinitron KV-13M20 Bedienungsanleitung

Sony

Sony KV-EX29M61 Bedienungsanleitung

Sony

Sony Trinitron KV-XG29M21 Bedienungsanleitung

Sony

Sony TRINITRON KV-DR29M37 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
