Tr initron Color TV

KV-BZ212

2-688-569-13 (1)

Operating Instructions

•Before operating the unit, please read this manual thoroughly and retain

it for future reference.

M10

01GB01COV-SOEMoce.p65 11/28/06, 4:40 PM1

Black

Sony KV-BZ212M10 Group B15 (GB)_2-688-569-13 (1)

220-240 V AC, 50/60 Hz

Indicated on the rear of the TV

B/G, I, D/K

PAL, PAL 60, SECAM, NTSC3.58 (AV IN), NTSC4.43

VHF : E2 to E12 /UHF : E21 to E69 /

CATV : S01 to S03, S1 to S41

VHF : 1 to 11 /UHF : 21 to 69 / New Zealand only

CATV : S01 to S03, S1 to S41

UHF : B21 to B68 /CATV : S01 to S03, S1 to S41

VHF : C1 to C12, R1 to R12 /

UHF : C13 to C57, R21 to R60 /

CATV : S01 to S03, S1 to S41, Z1 to Z39

75-ohm external terminal

3 W

Input: 2 Phono jacks; 1 Vp-p, 75 ohms

Input: 2 Phono jacks; 500 mVrms

21 in.

54 Measured diagonally

51 Measured diagonally

497 ×468 ×494

ASpecifications

Note

Design and specifications are subject to change without notice.

KV-BZ212M10

Power requirements

Power consumption (W)

Television system

Color system

Channel coverage

B/G

D/K

8 (Antenna)

Audio output (Speaker)

Number of terminal

(Video)

(Audio)

Picture tube

Tube size (cm)

Screen size (cm)

Dimensions (w/h/d, mm)

Mass (kg)

01GB02WAR-SOEMOce.p65 11/28/06, 5:20 PM2

Black

Sony KV-BZ212M10 Group B15 (GB)_2-688-569-13 (1)

Clean the TV with a dry and soft

cloth. Do not use benzine, thinner,

or any other chemicals to clean the

TV. Do not attach anything (e.g.,

adhesive tape, cellophane tape,

glue) on the painted cabinet of the

TV. Do not scratch the picture

tube.

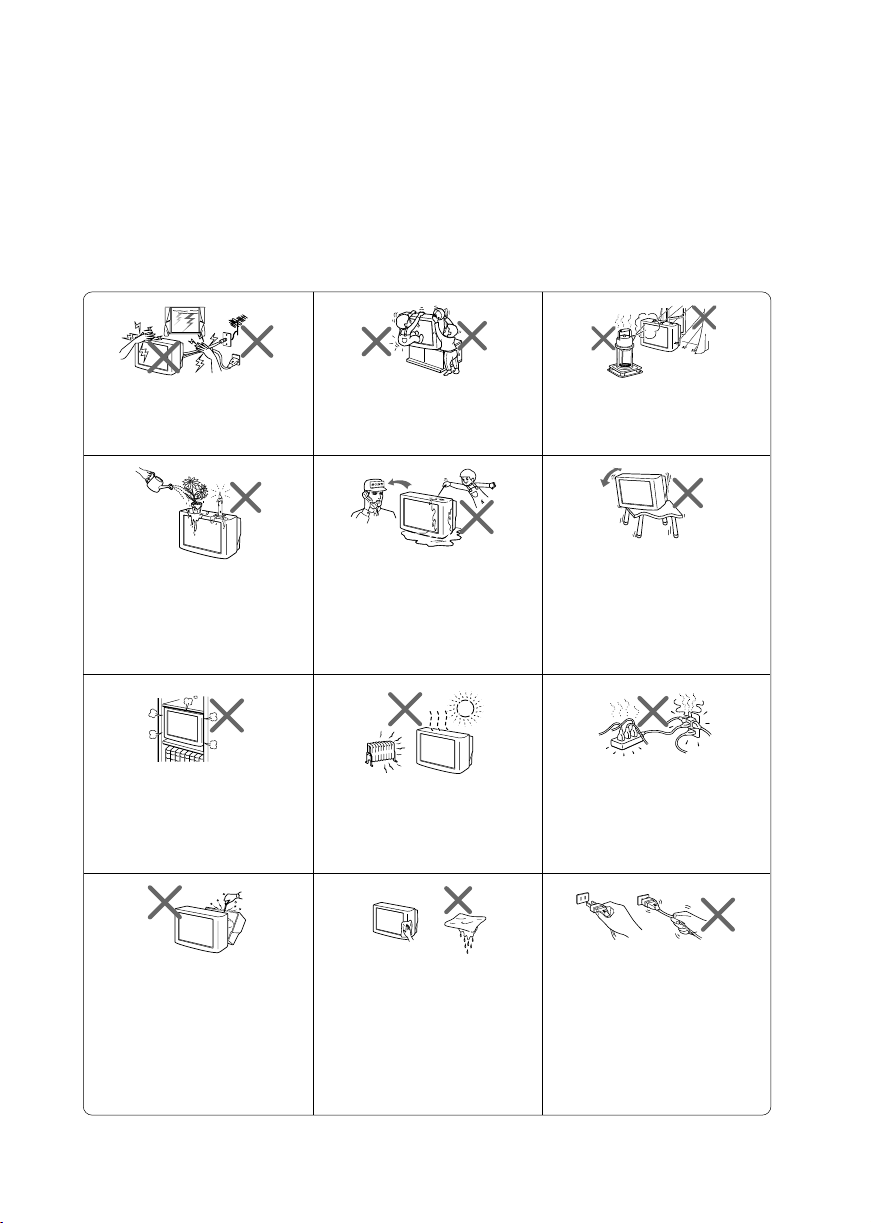

BWARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 220 – 240 V AC.

•Do not plug in the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

•To avoid battery leakage and damage to the remote, remove the batteries from the

remote if you are not going to use it for several days. If any liquid leaks from the

batteries and touches your skin, immediately wash it away with water.

Install the TV on a stable TV stand

and floor which can support the

TV set weight. Ensure that the TV

stand surface is flat and its area is

larger than the bottom area of the

TV.

Do not plug in too many

appliances to the same power

socket. Do not damage the power

cord.

For children’s safety, do not leave

children alone with the TV. Do not

allow children to climb onto it.

For your own safety, do not touch

any part of the TV, the power cord

and the antenna cable during

lightning storms.

Do not place any objects on the TV.

The apparatus shall not be

exposed to dripping or splashing

and that no objects filled with

liquids, such as vases, shall be

placed on the apparatus.

Do not operate the TV if any liquid

or solid object falls into it. Have it

checked immediately by qualified

personnel only.

Do not block the ventilation

openings of the TV. Do not install

the TV in a confined space, such

as a bookcase or built-in cabinet.

Do not open the cabinet and the

rear cover of the TV as high

voltages and other hazards are

present inside the TV. Refer

servicing and disposal of the TV

to qualified personnel.

Pull the power cord out by the

plug. Do not pull the power cord

itself. Even if your TV is turned

off, it is still connected to the AC

power source (mains) as long as

the power cord is plugged in.

Unplug the TV before moving it

or if you are not going to use it for

several days.

To prevent fire or shock hazard, do

not expose the TV to rain or

moisture.

Your TV is recommended for

home use only. Do not use the TV

in any vehicle or where it may be

subject to excessive dust, heat,

moisture or vibrations.

01GB02WAR-SOEMOce.p65 11/28/06, 5:20 PM3

Black

Sony KV-BZ212M10 Group B15 (GB)_2-688-569-13 (1)

End

Select Confirm

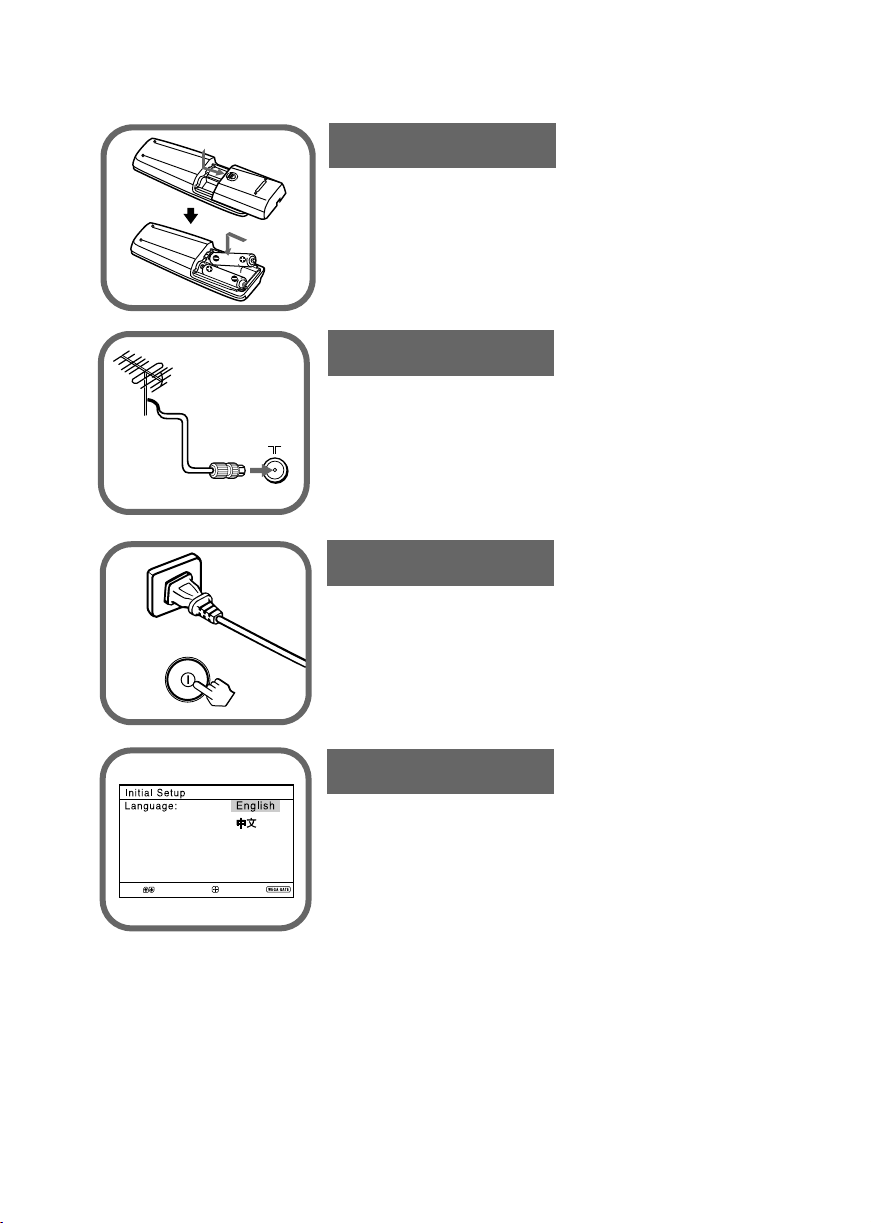

Insert the batteries (supplied) into the remote.

Note

•Do not use old or different types of batteries together.

Connect the antenna cable (not supplied) to 8

(antenna input) at the rear of the TV.

Tip

•You can also connect your TV to other optional components

(see F).

Plug in the power cord, then press !on the TV to

turn it on.

Note

•The 1(standby) indicator flashes green for a few seconds

when turning on the TV. This does not indicate a malfunction.

Set up the TV by following the instructions of the

“Initial Setup” menu (see D).

CGetting Started

Step 1

Step 2

Step 3

Step 4

01GB02WAR-SOEMOce.p65 11/28/06, 5:20 PM4

Black

Sony KV-BZ212M10 Group B15 (GB)_2-688-569-13 (1)

Program Sorting/Edit

Off

Sorting mode

PROG

SkipLabel

Off01

Exit

Select Confirm

Program Sorting/Edit

Off

Sorting: Edit:

PROG

SkipLabel

Exit

Select Confirm

End

Select Confirm

End

Select Confirm

Program:

TV System: Auto

VHF Low

End

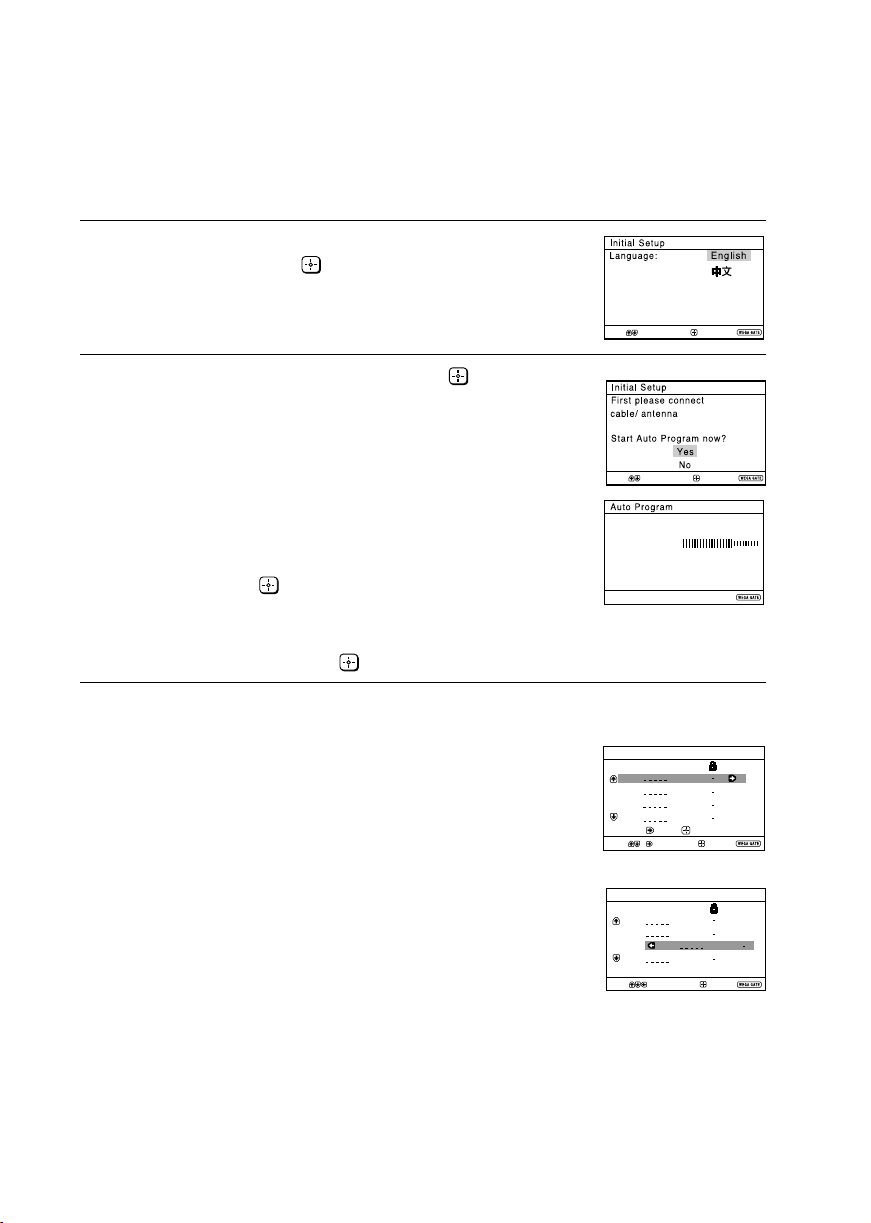

Setting up your TV (“Initial Setup”)

When you turn on your TV for the first time, the “Initial Setup” menu will

appear. You may change the menu language, preset the TV channels

automatically, sort or edit the channels and adjust the picture position using

the buttons on the remote control or TV top control panel.

1Press V or vto select the desired menu

language, then press .

The selected menu language appears.

2Press V or vto select “Yes”, then press to

preset the channels automatically.

The screen will indicate automatic

presetting is in progress.

After all available channels have been tuned

and stored, the “Program Sorting/Edit”

menu appears automatically on the screen.

To skip automatic channel presetting, select

“No”, then press .

If the message “No channel found. Please

connect cable/antenna” appears, check your

TV connections, then press .

3The “Program Sorting/Edit” menu enables

you to sort and edit the channels.

a) If you wish to keep the channels in the current

condition, press WEGA GATE to exit.

b) Press Vor vto select the program

number with the channel you wish to

change. The selected channel will appear

on the screen.

c) If you wish to store the channels in a

different order:

1) Press bto enter sorting mode.

2) Press Vor vto select the new program

number position for your selected

channel, then press B.

01GB02WAR-SOEMOce.p65 11/28/06, 5:20 PM5

Black

Sony KV-BZ212M10 Group B15 (GB)_2-688-569-13 (1)

d) If you wish to edit the channels, press

to change to edit mode.

Press buntil the mode that you wish to edit

is highlighted: Label, Skip, (block symbol).

Then press .

1) To label, press Vor vto select the

alphanumeric characters for the label.

Then press .

2) To skip the program number, press Vor vto

select “On”. Then press .

You can skip this program number when

using PROG +/–.

3) To block unwanted program number,

press Vor vto select . Then press .

e) Repeat step b) to d) if you wish to change other

channels.

Press WEGA GATE to go to the next menu.

4Press B or bto adjust the bars on the top

and bottom of the menu if they are

slanted, then press .

If no adjustment is necessary, then press .

5To prevent this “Initial Setup” menu from

appearing again when you turn on the TV

by pressing !, press V or vto select “No”,

then press .

To allow this menu to appear again, select

“Yes”, then press .

Tip

•You can immediately go to the end of the ”Initial Setup” menu by pressing WEGA GATE.

Select Confirm

Exit

Select Confirm

Exit

Select Confirm

Exit

Select Confirm

Setting up your TV (“Initial Setup”) (continued)

End

Select Confirm

01GB02WAR-SOEMOce.p65 11/28/06, 5:20 PM6

Black

Sony KV-BZ212M10 Group B15 (GB)_2-688-569-13 (1)

(MONO)

(MONO) (MONO)

13 2

WEGA GATE

PROG

8765

(MONO)

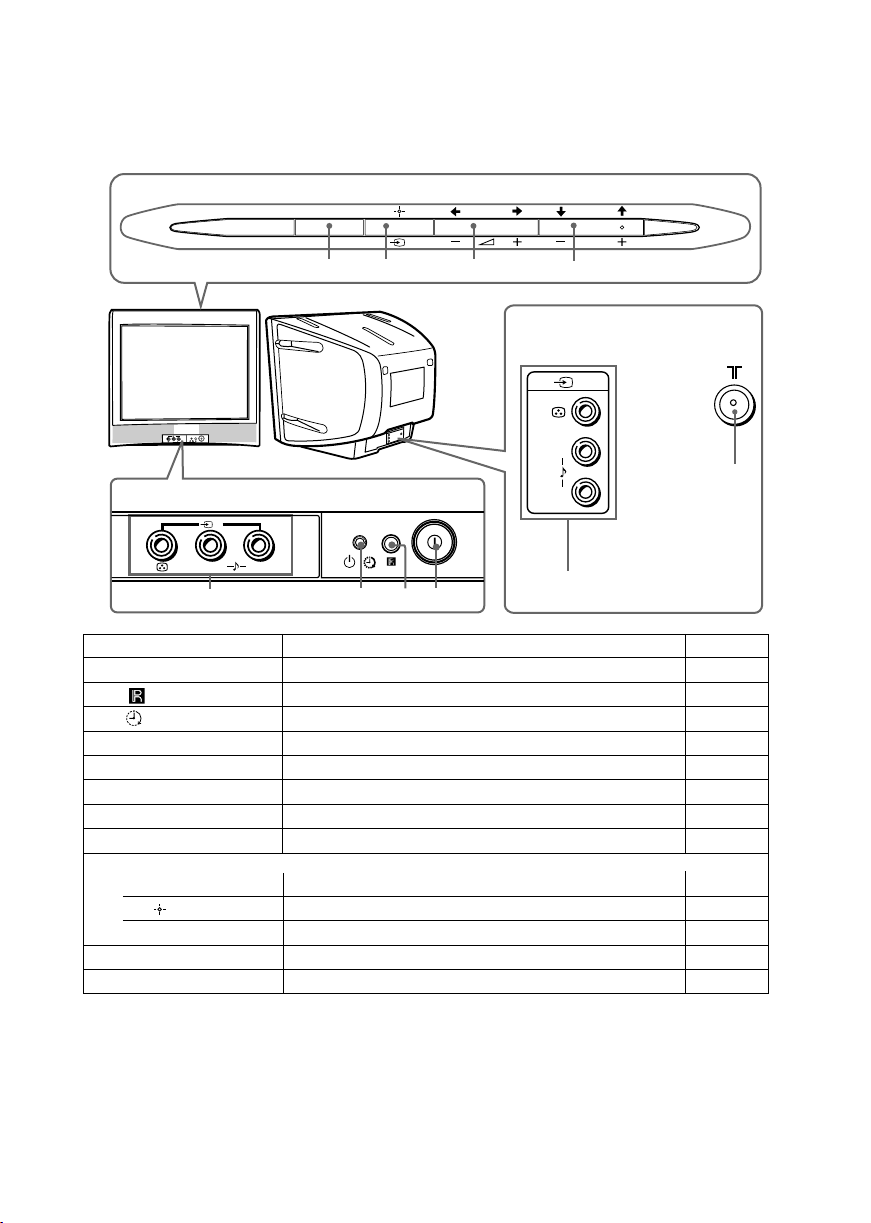

TV rear panel

ETV top control, front and rear

panels

TV top control panel

Button/Terminal Function See

1!Turn off or turn on the TV. C

2Remote control sensor. -

3Wake Up indicator. H

31Standby indicator. C

4t2Video input terminal 2. F

5PROG +/– Select program number. -

62+/– Adjust volume. -

7tSelect TV or video input. F

WEGA GATE menu operations

5,6V,v,B,bSelect and adjust items. I

7Confirm selected items. I

8WEGA GATE Display or cancel WEGA GATE menu. I

98Antenna input terminal. F

0t1Video input terminal 1. F

TV front panel

01GB03INS-SOEMOce.p65 11/28/06, 4:43 PM7

Black

Sony KV-BZ212M10 Group B15 (GB)_2-688-569-13 (1)

FConnecting optional components

Connecting to the video input terminal ( t)

Sound Mix Terminal

You can connect the audio L and R jacks from your AV equipment to both (MONO)

jacks on the TV to enjoy mixed left and right sound. If you do not prefer the mixed

sound, disconnect either one of the (MONO) jacks.

Note

• If you connect a VCR to 8(antenna input), preset the signal output from the VCR to the

program number 0 on the TV (see M).

TV front panel

Antenna cable

(not supplied)

VCR

TV rear panel

Audio/Video cable

(not supplied)

Audio/Video cable

(not supplied)

Camcorder

DVD Player

(MONO)

(MONO)— —(MONO)

01GB03INS-SOEMOce.p65 11/28/06, 4:43 PM8

Black

Sony KV-BZ212M10 Group B15 (GB)_2-688-569-13 (1)

GTroubleshooting

If you find any problem while viewing your TV, you can either use the “Factory

Settings” function or check the Troubleshooting guide below. If the problem

persists, contact your Sony dealer.

“Factory Settings” function

Press the WEGA GATE button. Choose “Settings” and go to “Setup” ( ) menu.

From “Setup” menu, select “Factory Settings”. Then select “Yes” and press .

Your TV will go blank for a few seconds, then the “Initial Setup” menu will

appear. Your TV will be set to factory settings, but certain problems may be

solved.

Snowy picture,

noisy sound

Distorted picture,

noisy sound

Good picture,

noisy sound

No picture,

no sound

Good picture,

no sound

Dotted lines or

stripes

Double images

or “ghosts”

No color

Symptom Solutions

•Check the antenna cable and connection on the TV, VCR and at the wall

(see F).

•Check the antenna setup. Contact a Sony dealer for advice.

•Display the “Channel Setup” menu and select “Manual Program” to preset

the channel again (see M).

•Display the “Channel Setup” menu and set the “Signal Booster” to “Auto”

from “Manual Program” (see M).

•Try using an external booster.

•Turn off or disconnect the external booster if it is in use.

•Display the “Channel Setup” menu and set the “Signal Booster” to “Off”

from “Manual Program” (see M).

•Display the “Channel Setup” menu and select the appropriate

“TV System” from “Manual Program” (see M).

•Check the power cord, antenna and VCR connections (see F).

•Press ?/1 (power) to turn on the TV (see H).

•Press !(main power) on the TV to turn off the TV for about five seconds,

then turn it on again (see E).

•Press 2+ to increase the volume level (see H).

•Press to cancel the muting (see H).

• Do not use a hair dryer or other equipment near the TV.

•Check the antenna setup. Contact a Sony dealer for advice.

•Use a highly directional antenna.

•Use the fine tuning (“Fine”) function (see M).

•Check the antenna setup. Contact a Sony dealer for advice.

•Turn off or disconnect the external booster if it is in use.

•

Display the “Picture” menu and select “Custom” from “Picture Mode”, then

adjust the “Color” level from “Picture Adjustment” (see

•Display the “Setup” menu and check the “Color System” setting

(usually set this to “Auto”) (see N).

•Check the antenna setup. Contact a Sony dealer for advice.

01GB03INS-SOEMOce.p65 11/28/06, 4:43 PM9

Black

Sony KV-BZ212M10 Group B15 (GB)_2-688-569-13 (1)

Picture slant

Abnormal color

patches

The 1(standby)

indicator on your

TV flashes red

several times after

every three

seconds.

The TV screen

sometimes goes

blank for

slightly longer

than usual

during channel

change.

TV cabinet creaks.

A small “boom”

sound is heard

when the TV is

turned on.

•Keep external speakers or other electrical equipment away from the TV.

•Display the “Setup” menu and adjust “Picture Rotation” so that the

picture position is optimal (see N).

• Keep external speakers or other equipment away from the TV. Do not

move the TV while the TV is turned on. Press !(main power) on the TV

to turn off the TV for about 15 minutes, then turn it on again to

demagnetize the TV.

•Count the number of times the 1(standby) indicator flashes.

Press !(main power) to turn off your TV. Contact your nearest Sony

service center.

•The “Signal Booster” is functioning to detect a weak signal. This does not

indicate a malfunction.

•Changes in room temperature sometimes make the TV cabinet expand or

contract, causing a noise. This does not indicate a malfunction.

•The TV’s demagnetizing function is working. This does not indicate a

malfunction.

Symptom Solutions

Troubleshooting (continued)

01GB03INS-SOEMOce.p65 11/28/06, 4:43 PM10

Black

Andere Handbücher für KV-BZ212

Inhaltsverzeichnis

Andere Sony Fernseher Handbücher

Sony

Sony KV-BT21 Bedienungsanleitung

Sony

Sony TRINITRON KV-DA29M81 Bedienungsanleitung

Sony

Sony TRINITRON KV-21M5D Bedienungsanleitung

Sony

Sony BRAVIA KDL-52XBR9 Bedienungsanleitung

Sony

Sony Bravia KDL-65W859C Benutzerhandbuch

Sony

Sony BRAVIA KD-65Z9D Bedienungsanleitung

Sony

Sony KE-42XBR900 - 42" Xbr Plasma Wega™ Integrated... Handbuch

Sony

Sony KV-27XBR55 - 27" Ctv Xbr Bedienungsanleitung

Sony

Sony BRAVIA XR-75Z9K Bedienungsanleitung

Sony

Sony Trinitron KV-EF34M80 Bedienungsanleitung

Sony

Sony Bravia XBR-65A1E Bedienungsanleitung

Sony

Sony Trinitron KV-32XBR48 Bedienungsanleitung

Sony

Sony KV-EH36M31 Bedienungsanleitung

Sony

Sony KDL-32XBR950 - 32" Flat Panel Lcd Wega™ Xbr... Bedienungsanleitung

Sony

Sony Trinitron KV-27EXR20 Bedienungsanleitung

Sony

Sony KLV-40W300A Bedienungsanleitung

Sony

Sony KD-85X8 TK Series Bedienungsanleitung

Sony

Sony WEGA KLV-L23M1 Bedienungsanleitung

Sony

Sony KV-9PT50 - 9" Trinitron Color Tv Bedienungsanleitung

Sony

Sony BRAVIA KDL-40W650D Bedienungsanleitung

Sony

Sony Trinitron WEGA KV-SZ29 Bedienungsanleitung

Sony

Sony TRINITRON KV-PF21M70 Bedienungsanleitung

Sony

Sony Trinitron KV-27EXR90 Bedienungsanleitung

Sony

Sony BRAVIA 55X9000F Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
