Operating Instructions

• Before operating the unit, please read this manual thoroughly and retain

it for future reference.

01GB01COV-MIX.p65ME 9/19/05, 8:50 PM1

Black

Sony KV-SW21M85 Group O1 (GB, FR, PR, AR)_2-598-607-12 (3)

Clean the TV with a dry and soft

cloth. Do not use benzine, thinner,

or any other chemicals to clean the

TV. Do not attach anything (e.g.,

adhesive tape, cellophane tape,

glue) on the painted cabinet of the

TV. Do not scratch the picture

tube.

WARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 110 – 240 V AC.

• Do not plug in the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

• To avoid battery leakage and damage to the remote, remove the batteries from the

remote if you are not going to use it for several days. If any liquid leaks from the

batteries and touches your skin, immediately wash it away with water.

Install the TV on a stable TV stand

and floor which can support the

TV set weight. Ensure that the TV

stand surface is flat and its area is

larger than the bottom area of the

TV.

Do not plug in too many

appliances to the same power

socket. Do not damage the power

cord.

For children’s safety, do not leave

children alone with the TV. Do not

allow children to climb onto it.

For your own safety, do not touch

any part of the TV, the power cord

and the antenna cable during

lightning storms.

Do not place any objects on the TV.

The apparatus shall not be

exposed to dripping or splashing

and that no objects filled with

liquids, such as vases, shall be

placed on the apparatus.

Do not operate the TV if any liquid

or solid object falls into it. Have it

checked immediately by qualified

personnel only.

Do not block the ventilation

openings of the TV. Do not install

the TV in a confined space, such

as a bookcase or built-in cabinet.

Do not open the cabinet and the

rear cover of the TV as high

voltages and other hazards are

present inside the TV. Refer

servicing and disposal of the TV

to qualified personnel.

Pull the power cord out by the

plug. Do not pull the power cord

itself. Even if your TV is turned

off, it is still connected to the AC

power source (mains) as long as

the power cord is plugged in.

Unplug the TV before moving it

or if you are not going to use it for

several days.

To prevent fire or shock hazard, do

not expose the TV to rain or

moisture.

Your TV is recommended for

home use only. Do not use the TV

in any vehicle or where it may be

subject to excessive dust, heat,

moisture or vibrations.

01GB02WAR-MIX.p65 9/19/05, 8:51 PM2

Black

Sony KV-SW21M85 Group O1 (GB, FR, PR, AR)_2-598-607-12 (3)

Securing the TV ............................................................................................................... 4

Getting Started ................................................................................................................ 4

Setting up your TV (“Initial Setup”) ............................................................................ 5

TV top control, front and rear panels .......................................................................... 7

Connecting the 3D WOOFER ....................................................................................... 8

Connecting optional components ................................................................................ 9

Using the remote control and basic functions .......................................................... 11

Introducing the WEGA GATE navigator .................................................................. 13

“Settings” Adjustment ................................................................................................. 14

Changing the “Picture” setting ................................................................................... 15

Changing the “Sound” setting .................................................................................... 16

Changing the “Channel Setup” setting ..................................................................... 17

Changing the “Setup” setting ..................................................................................... 19

Viewing Teletext ............................................................................................................ 20

Troubleshooting ............................................................................................................ 21

Specifications .................................................................................................. Back cover

Table of Contents

01GB03TOC-MIX .p65 9/19/05, 8:52 PM3

Black

Sony KV-SW21M85 Group O1 (GB, FR, PR, AR)_2-598-607-12 (3)

Insert the batteries (supplied) into the remote.

Note

•Do not use old or different types of batteries together.

Connect the antenna cable (not supplied) to 8

(antenna input) at the rear of the TV.

Tip

•You can also connect your TV to other optional components (see page 9).

Plug in the power cord, then press !on the TV to turn it on.

Note

•The 1(standby) indicator flashes green for a few seconds when

turning on the TV. This does not indicate a malfunction.

Set up the TV by following the instructions of the “Initial

Setup” menu (see page 5).

Screw the band to the TV stand and

to the provided hole at the rear of

your TV.

(1) Put a cord or chain through the

clamps.

(2)

Screw one clamp to a wall or pillar

and the other clamp to the provided

hole at the rear of your TV.

End

Select Confirm

Step 1

Step 2

Step 3

Step 4

xSecuring the TV

BKV-SW21M85/SW21M83/SW21M81/SW21M80 only

To prevent the TV from falling, use the supplied screws, clamps and band to

secure the TV. Use only the supplied screws. Use of other screws may damage

the TV.

20 mm

3.8 mm

screws clamps band

xGetting Started

01GB04INS-MIX.p65 9/19/05, 8:52 PM4

Black

Sony KV-SW21M85 Group O1 (GB, FR, PR, AR)_2-598-607-12 (3)

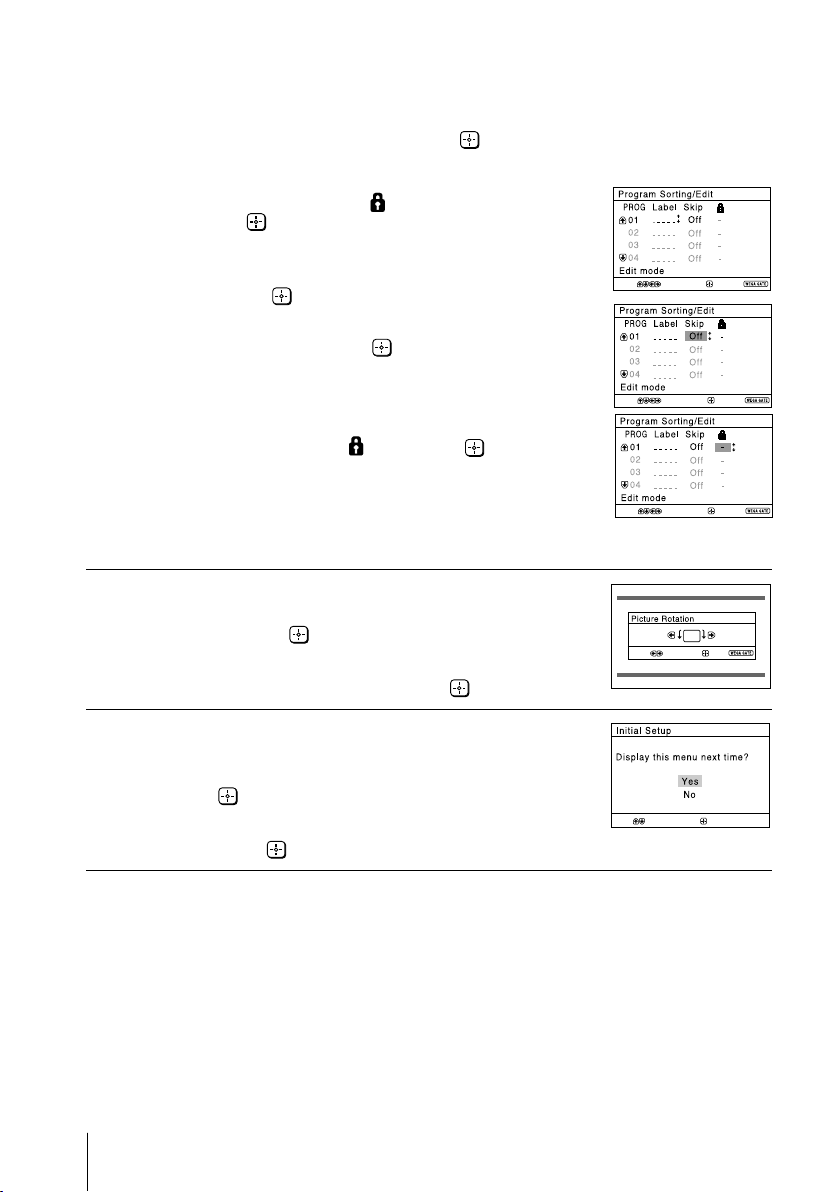

Program Sorting/Edit

Off

Sorting mode

PROG

SkipLabel

Off01

Exit

Select Confirm

Program Sorting/Edit

Off

Sorting: Edit:

PROG

SkipLabel

Exit

Select Confirm

End

Select Confirm

End

Select Confirm

Program:

TV System: Auto

VHF Low

End

Setting up your TV (“Initial Setup”)

When you turn on your TV for the first time, the “Initial Setup” menu will

appear. You may change the menu language, preset the TV channels

automatically, sort or edit the channels and adjust the picture position using the

buttons on the remote control or TV top control panel.

1Press V or vto select the desired menu

language, then press .

The selected menu language appears.

2Press V or vto select “Yes”, then press to

preset the channels automatically.

The screen will indicate automatic

presetting is in progress.

After all available channels have been tuned

and stored, the “Program Sorting/Edit”

menu appears automatically on the screen.

To skip automatic channel presetting, select

“No”, then press .

If the message “No channel found. Please

connect cable/antenna” appears, check your

TV connections, then press .

3The “Program Sorting/Edit” menu enables

you to sort and edit the channels.

a) If you wish to keep the channels in the current

condition, press WEGA GATE to exit.

b) Press Vor vto select the program

number with the channel you wish to

change. The selected channel will appear

on the screen.

c) If you wish to store the channels in a

different order:

1) Press bto enter sorting mode.

2) Press Vor vto select the new program

number position for your selected

channel, then press B.

continue

01GB04INS-MIX.p65 9/19/05, 8:53 PM5

Black

Sony KV-SW21M85 Group O1 (GB, FR, PR, AR)_2-598-607-12 (3)

d) If you wish to edit the channels, press

to change to edit mode.

Press buntil the mode that you wish to edit

is highlighted: Label, Skip, (block symbol).

Then press .

1) To label, press Vor vto select the

alphanumeric characters for the label.

Then press .

2) To skip the program number, press Vor vto

select “On”. Then press .

You can skip this program number when

using PROG +/-.

3) To block unwanted program number,

press Vor vto select . Then press .

e) Repeat step b) to d) if you wish to change other

channels.

Press WEGA GATE to go to the next menu.

4Press B or bto adjust the bars on the top

and bottom of the menu if they are

slanted, then press (KV-SW21M85/

SW21M81 only).

If no adjustment is necessary, then press .

5To prevent this “Initial Setup” menu from

appearing again when you turn on the TV

by pressing !, press V or vto select “No”,

then press .

To allow this menu to appear again, select

“Yes”, then press .

Tip

• You can immediately go to the end of the ”Initial Setup” menu by pressing WEGA GATE.

Setting up your TV (“Initial Setup”) (continued)

End

Select Confirm

Exit

Select Confirm

Exit

Select Confirm

Exit

Select Confirm

01GB04INS-MIX.p65 9/19/05, 8:53 PM6

Black

Sony KV-SW21M85 Group O1 (GB, FR, PR, AR)_2-598-607-12 (3)

(MONO)

WEGA GATE

PROG

SOUND MODE

09876

123

(MONO) (MONO)

qsqd

TV front panel

TV rear panel

TV top control panel

Button/Terminal Function Page

1!Turn off or turn on the TV. 4

2Remote control sensor. -

3Wake Up indicator. 12

31Standby indicator. 4

4iHeadphone jack. -

5t2 Video input terminal 2. 9

6PROG +/– Select program number. -

72+/– Adjust volume. -

8tSelect TV or video input. 9

WEGA GATE menu operations

6,7 V,v,B,bSelect and adjust items. 13

8 Confirm selected items. 13

9WEGA GATE Display or cancel WEGA GATE menu. 13

0SOUND MODE Select sound mode options with a 5-Band Graphic 11

Equalizer display.

qa 8Antenna input terminal. 9

qs TMonitor output terminal. 9

qd Component video input terminal. 10

qf t1 Video input terminal 1. 9

qg WOOFER 3D WOOFER terminal. 8

(KV-SW21M85/

SW21M83 only)

xTV top control, front and rear

panels

01GB05INS-MIX.p65 9/19/05, 8:53 PM7

Black

Sony KV-SW21M85 Group O1 (GB, FR, PR, AR)_2-598-607-12 (3)

Notes

• Connect only the supplied 3D WOOFER; otherwise your TV may malfunction.

• Unplug your TV from the wall outlet when connecting the 3D WOOFER.

• To prevent a malfunction caused by a short circuit of the terminals, make sure that none of the 3D

WOOFER wire strands stick out, making contact with the neighbouring 3D WOOFER terminal.

Black

wire

Red wire

Step 2

3D WOOFER

Step 1

xConnecting the 3D WOOFER

BKV-SW21M85/SW21M83 only

You can enjoy high quality sound by connecting the 3D WOOFER as follows:

01GB05INS-MIX.p65 9/19/05, 8:53 PM8

Black

Sony KV-SW21M85 Group O1 (GB, FR, PR, AR)_2-598-607-12 (3)

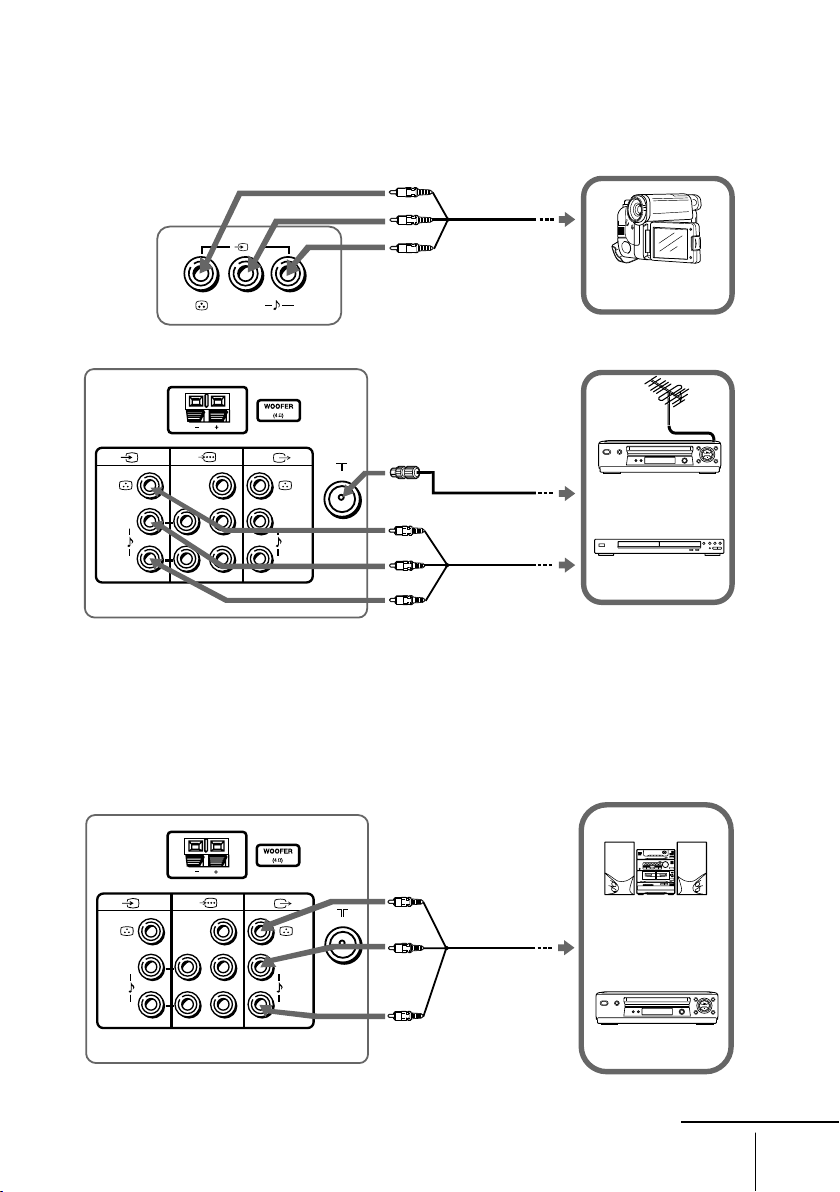

xConnecting optional components

Connecting to the video input terminal ( t)

Note

• If you connect a VCR to 8(antenna input), preset the signal output from the VCR to the

program number 0 on the TV (see page 18).

TV rear panel

Audio system

(MONO) (MONO)

VCR

Audio/Video

cable

(not supplied)

Connecting to the monitor output terminal ( T )

TV front panel

(MONO)

(MONO) (MONO)

Antenna cable

(not supplied) VCR

TV rear panel

Audio/Video cable

(not supplied)

Audio/Video cable

(not supplied)

Camcorder

DVD Player

continue

01GB05INS-MIX.p65 9/19/05, 8:53 PM9

Black

Sony KV-SW21M85 Group O1 (GB, FR, PR, AR)_2-598-607-12 (3)

DVD player

TV rear panel

Component video

cable

(not supplied)

Audio cable

(not supplied)

(MONO) (MONO)

Connecting to the component video input terminal ( )

Notes

• If your DVD player can output interlace and progressive mode signals, select the interlace

output when connecting to (component video input) on your TV. Your TV can receive

either 525i/60Hz or 625i/50Hz interlace signals.

• The component video terminals on your DVD player are sometimes labeled Y/CB/CR, Y/PB/

PR, Y/Cb/Cror Y/B-Y/R-Y.

• If you select “DVD” on your TV screen, the signal from the T(monitor output) jacks will not

be output properly. This does not indicate a malfunction.

Connecting optional components (continued)

01GB05INS-MIX.p65 9/19/05, 8:53 PM10

Black

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Sony Fernseher Handbücher

Sony

Sony BRAVIA KD-75X850 C Series Bedienungsanleitung

Sony

Sony KV-27FS120 - FD Trinitron WEGA Flat Screen... Bedienungsanleitung

Sony

Sony WEGA KV-BZ21 Bedienungsanleitung

Sony

Sony M91 Bedienungsanleitung

Sony

Sony Trinitron KV-L34CF-1 Bedienungsanleitung

Sony

Sony BRAVIA KD-55X70 Series Bedienungsanleitung

Sony

Sony TRINITRON KV-ES29M90 Bedienungsanleitung

Sony

Sony wega trinitron kv-bz215 Bedienungsanleitung

Sony

Sony Bravia i-XBR-79X900B Bedienungsanleitung

Sony

Sony KD-34XBR960 Instructions: TV stand Bedienungsanleitung

Sony

Sony FD TRINITRON WEGA KV-13FM12 Bedienungsanleitung

Sony

Sony BRAVIA KDL-32EX720 Bedienungsanleitung

Sony

Sony KDL-46BX427 Bedienungsanleitung

Sony

Sony XR-55A83L Bedienungsanleitung

Sony

Sony BRAVIA KDL-32L4000 Bedienungsanleitung

Sony

Sony KV-J29MN1 Bedienungsanleitung

Sony

Sony Trinitron KV-XA29 Bedienungsanleitung

Sony

Sony BRAVIA KDL-55W800C Benutzerhandbuch

Sony

Sony BRAVIA KDL-48R560C Bedienungsanleitung

Sony

Sony KV-27S26 - 27" Trinitron Color Television Bedienungsanleitung

Sony

Sony XBR-52LX905 Bedienungsanleitung

Sony

Sony Bravia KDL-22PX300 Bedienungsanleitung

Sony

Sony TRINITRON KV-9400 Bedienungsanleitung

Sony

Sony KV-ES29M31 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung

Sony kv-sw21 Trinitron Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken
