Sony NSX-32GT1 Bedienungsanleitung

SONY Preparation

!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!!!!!!!!!!!!!!!_!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Internet TV

Quick S up Guide

In the Box

[] Internet TV (1)

Keypad (1)

Size AA batteries (2)

[] IR Blaster cable (1)

[] AC power cord (1)

(except NSX-24GT1)

[] Table-Top Stand (1)

[] Cable cover (1)

[] Screws (M4 x 10) (3)

(for NSX-24GT1 )

[] Screws (M5 x 16) (3)

(for NSX-32/40/46GT1 )

[] Quick Setup Guide (1)

E3Reference Guide (1)

[] Warranty card (1)

C] End User License

Agreement (1)

Inserting batteries

Not the actual ratio

NSX-24GT1/NSX-32GT1/NSX-40GT1/NSX'46GT1

PLEASE READ END USER LICENSE

AGREEMENT BEFORE USING

THISPRODUCT

Printed in U.S.A.

4-197-994-13 (1)

IIIIIIIIIIIIIII111111111II

4197994131

AA-size (R6)

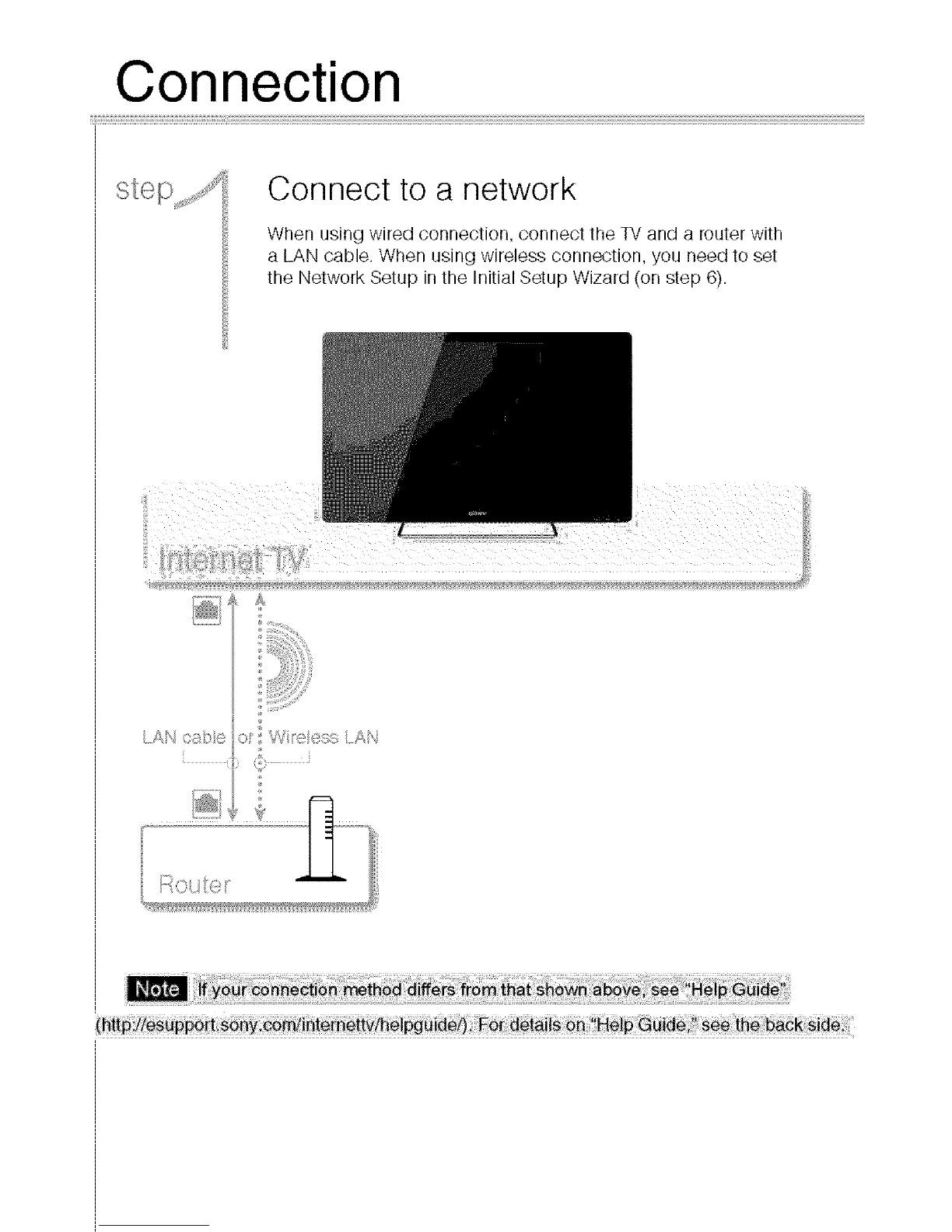

Connection

Connect to a network

When using wired connection, connect the TV and a router with

a LAN cable. When using wireless connection, you need to set

the Network Setup in the Initial Setup Wizard (on step 6).

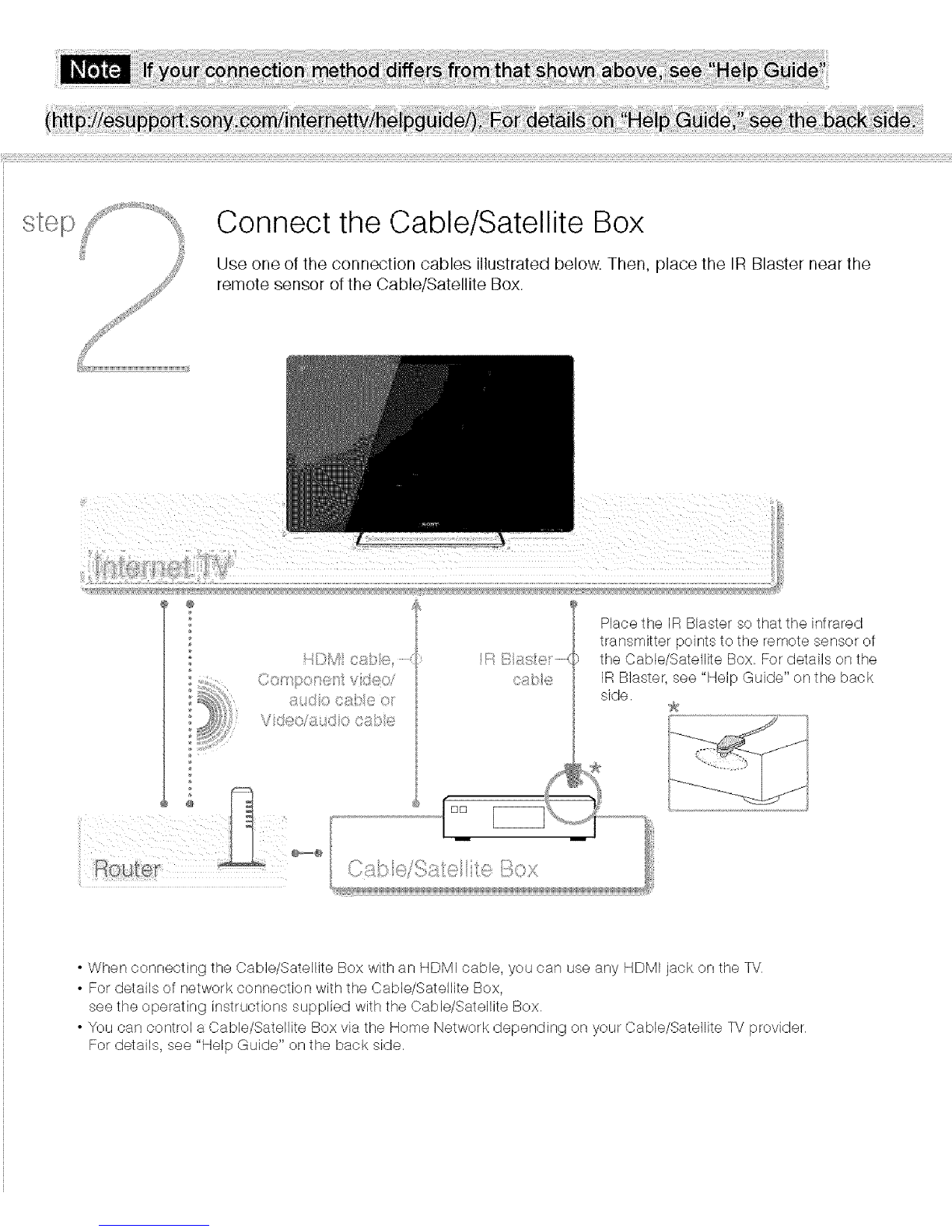

Connect the Cable/Satellite Box

Use one of the connection cables illustrated below. Then, place the IR Blaster near the

remote sensor of the Cable/Satellite Box.

43M cabe ....

vd®,:t,J

audo cabe ot

V dec, o_.,_do c_be

iilli i /_ i_ ii_

Place the IR Blaster so that the infrared

transmitter points to the remote sensor of

the Cable/Satellite Box For details on the

IR Blaster, see "Help Guide" on the back

side. :£,

• When connecting the Cable!Satellite Box with an HDMI cable, you can use any HDMI jack on the TV,

• For details of network connection with the Cabb/Satellite Box,

see the operating instructions supplied with the Cable/Satellite Box.

• 'fou can control a Cable/Satellite Box via the Home Network depending on your Cable/Satellite TV provider.

For details, see "Help Guide" on the back side,

iiiii

_: _: _: _: _: _: _: _: _: _: _: _: _:::__ : :__ ::__ _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _: _:

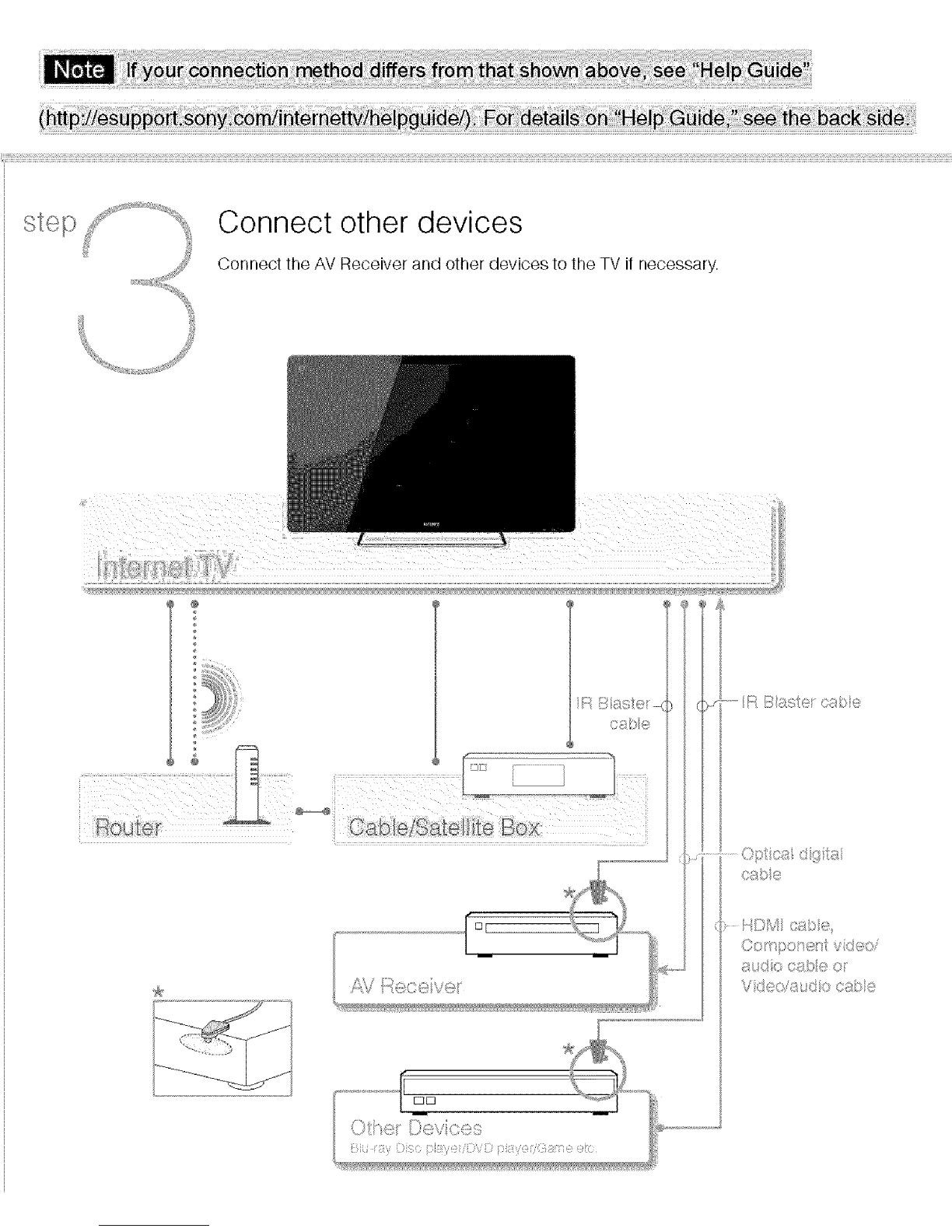

Connect other devices

Connect the AV Receiver and other devices to the TV if necessary.

c_bie

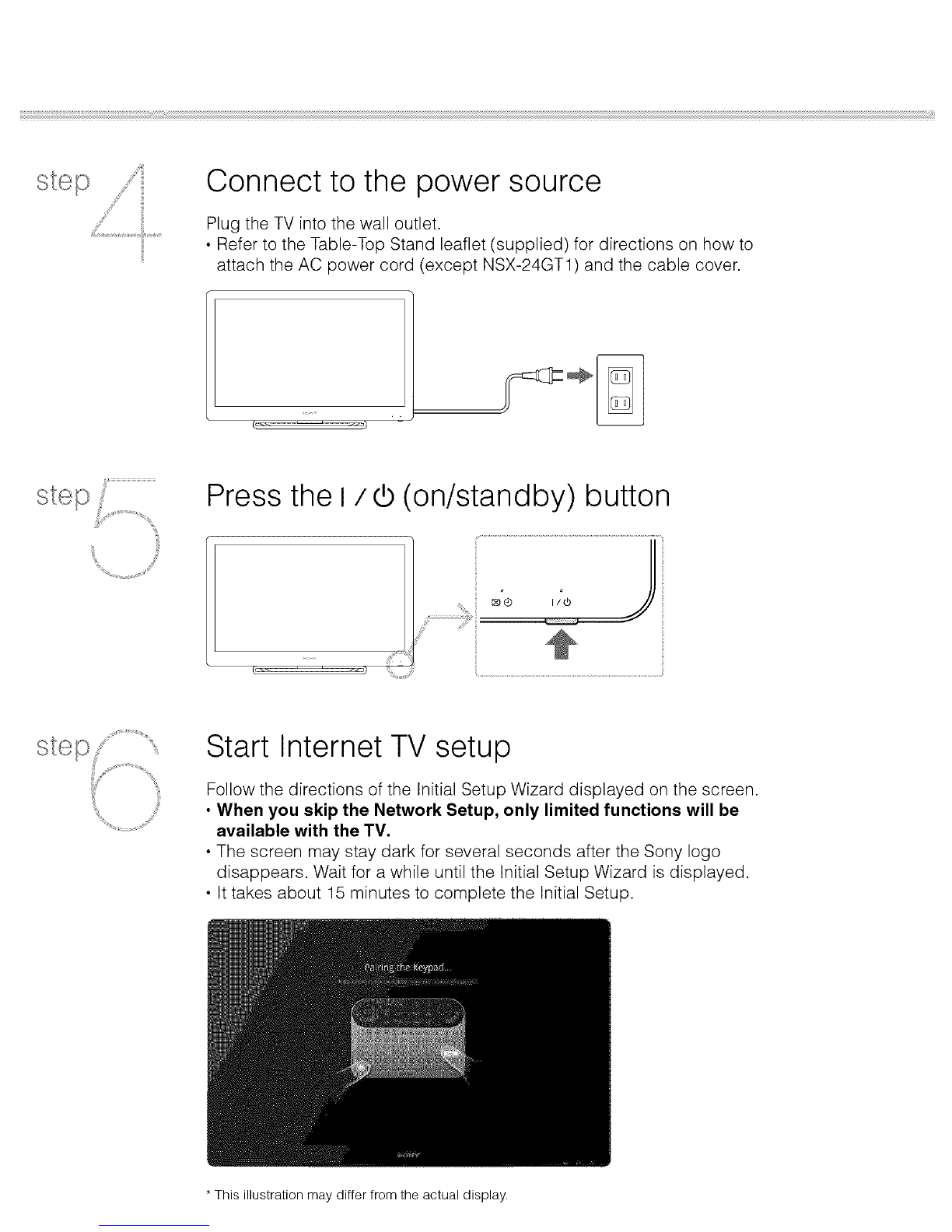

Connect to the power source

Plug the TV into the wall outlet.

• Refer to the Table-Top Stand leaflet (supplied) for directions on how to

attach the AC power cord (except NSX-24GT1) and the cable cover.

step /Press the I /(b (on/standby) button

Start Internet TV setup

Follow the directions of the Initial Setup Wizard displayed on the screen.

•When you skip the Network Setup, only limited functions will be

available with the TV.

• The screen may stay dark for several seconds after the Sony logo

disappears. Wait for a while until the Initial Setup Wizard is displayed.

• It takes about 15 minutes to complete the Initial Setup.

* This illustration may differ from the actual display.

Keypad

*You cad use thescroll, zoom, and drag and drop operationsonly when you are launching compatibleapplicationsorbrowsing web sites.

Ji}_;VC_; CO/it/O F,qe8

Vdeo cont_o a_ea

Keyboa_ _:Sa_ea

EEII I [] @1 1[]

[]

*You can control theAV Receiverwith thefollowing keys when you have finished theAV

Receiver Setup inthe Initial Setup Wizard:I/_ (BD/EXT),INPUT,VOL, MUTING

[]

[][][]

[] A!_:_PAMP*

Allows you to control the connected

AV Receiver.

Keys beside orange markers are

active when the AMP indicator is on.

[] I/{:. ON/STANDBY (BD/EXT)

Turns on the connected device.

[] I/<bON/STANDBY (TV)

Turns on the TV.

[] ®' BOOKMARK

Bookmarks your favorite content.

[] '!::_BACK

Returns to the previous display.

[] _:: HOME

Displays the HOME menu,

The HOME menu is a gateway to

various contents.

[] i<WINDOW

Switches the window style.

[] _i MENU

Displays menu items according to

applications.

[] _:/_ GUIDE

Displays the TV Guide.

[] [VTV

Displays live TV.

[] I}V!:iDVR

Displays the DVR (Digital Video

Recorder) menu.

[] o SEARCH

Displays the Quick Search Box.

Type your interest in the Quick

Search Box, and the TV will suggest

contents from various media.

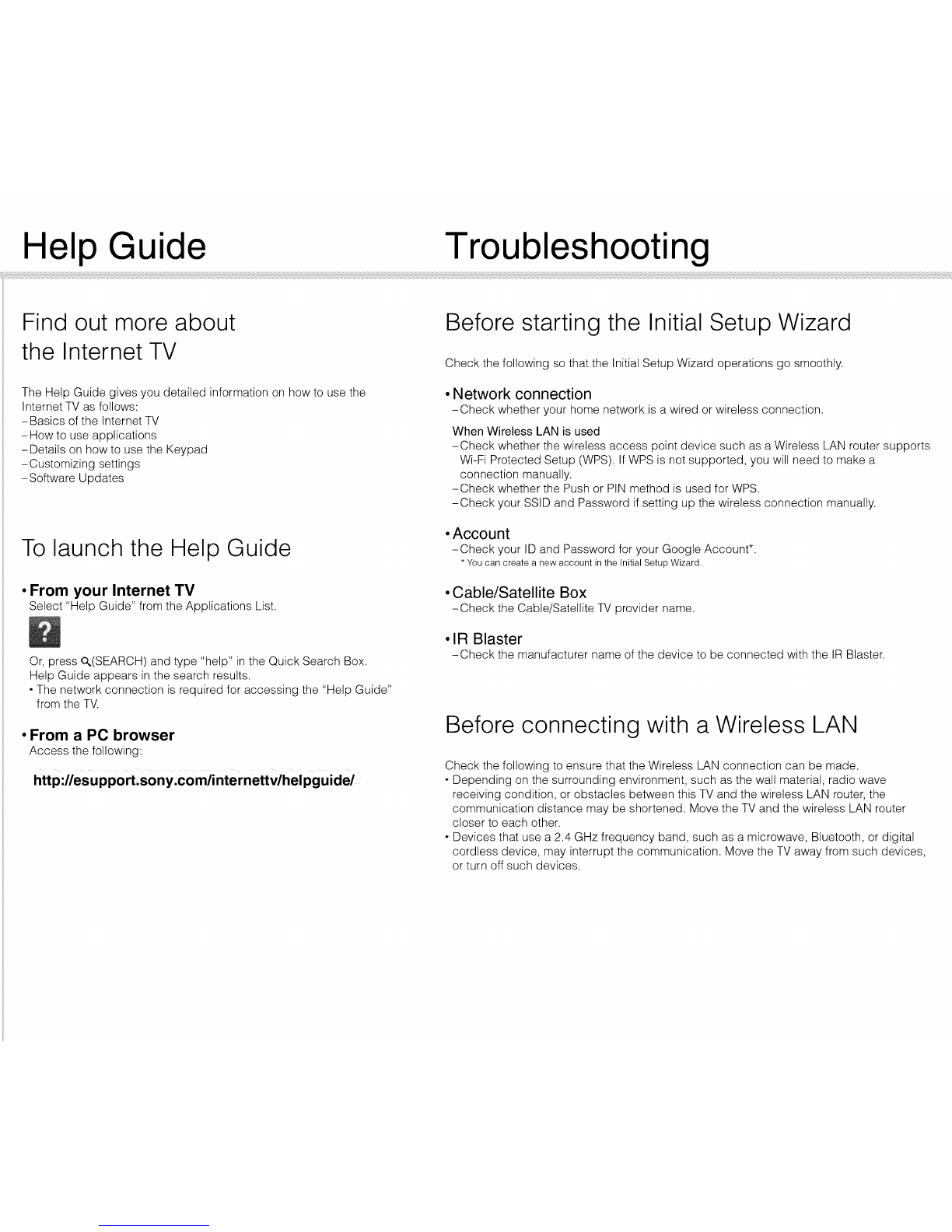

Help Guide Troubleshooting

Find out more about

the Internet TV

The Help Guide gives you detailed information on how to use the

Internet TV as follows:

-Basics of the Internet TV

-How to use applications

-Details on how to use the Keypad

-Customizing settings

-Software Updates

To launch the Help Guide

• From your Internet TV

Select "Help Guide" from the Applications List.

Or, press o,(SEARCH) and type "help" in the Quick Search Box.

Help Guide appears in the search results.

• The network connection is required for accessing the "Help Guide"

from the TV.

•From a PC browser

Access the following:

http:llesupport.sony ,comlinternettvlhelpguidel

Before starting the Initial Setup Wizard

Check the following so that the Initial Setup Wizard operations go smoothly.

• Network connection

-Check whether your home network is a wired or wireless connection.

When Wireless LAN is used

-Check whether the wireless access point device such as a Wireless LAN router supports

Wi-Fi Protected Setup (WPS). If WPS is not supported, you will need to make a

connection manually.

-Check whether the Push or PIN method is used for WPS.

-Check your SSID and Password if setting up the wireless connection manually.

•Account

-Check your ID and Password for your Google Account*.

* You can create a new account in the Initial Setup Wizard.

•Cable/Satellite Box

-Check the Cable!Satellite TV provider name.

• IR Blaster

-Check the manufacturer name of the device to be connected with the IR Blaster.

Before connecting with a Wireless LAN

Check the following to ensure that the Wireless LAN connection can be made.

• Depending on the surrounding environment, such as the wall material, radio wave

receiving condition, or obstacles between this TV and the wireless LAN router, the

communication distance may be shortened. Move the TV and the wireless LAN router

closer to each other.

• Devices that use a 2.4 GHz frequency band, such as a microwave, Bluetooth, or digital

cordless device, may interrupt the communication. Move the TV away from such devices,

or turn off such devices.

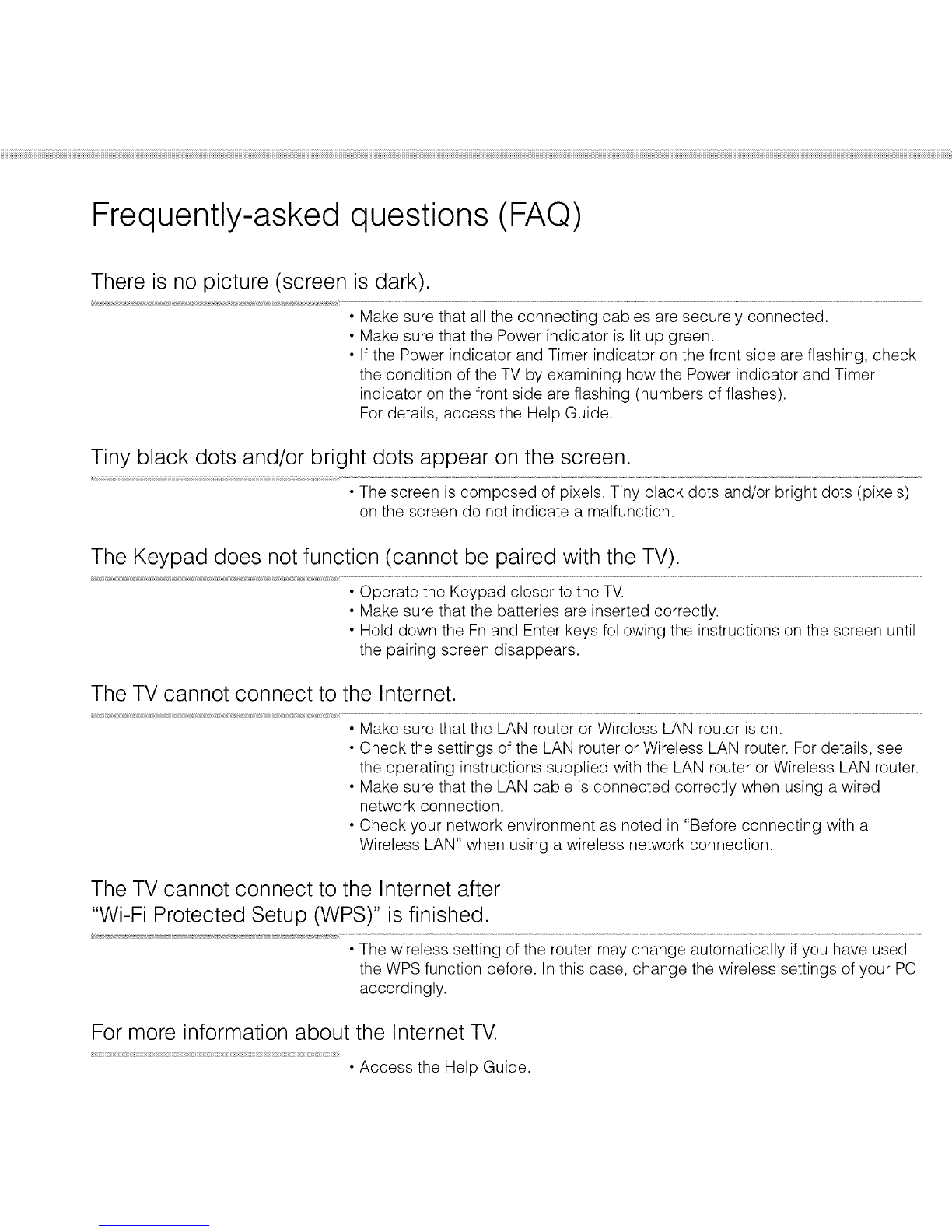

Frequently-asked questions (FAQ)

There is no picture (screen is dark).

• Make sure that the Power indicator is lit up green.

• Ifthe Power indicator and Timer indicator on the front side are flashing, check

the condition of the TV by examining how the Power indicator and Timer

indicator on the front side are flashing (numbers of flashes).

For details, access the Help Guide.

Tiny black dots and/or bright dots appear on the screen.

on the screen do not indicate a malfunction.

The Keypad does not function (cannot be paired with the TV).

• Make sure that the batteries are inserted correctly.

• Hold down the Fn and Enter keys following the instructions on the screen until

the pairing screen disappears.

The TV cannot connect to the Internet.

• Check the settings of the LAN router or Wireless LAN router. For details, see

the operating instructions supplied with the LAN router or Wireless LAN router.

• Make sure that the LAN cable is connected correctly when using a wired

network connection.

• Check your network environment as noted in "Before connecting with a

Wireless LAN" when using a wireless network connection.

The TV cannot connect to the Internet after

"Wi-Fi Protected Setup (WPS)" is finished.

the WPS function before. In this case, change the wireless settings of your PC

accordingly.

For more information about the Internet TV.

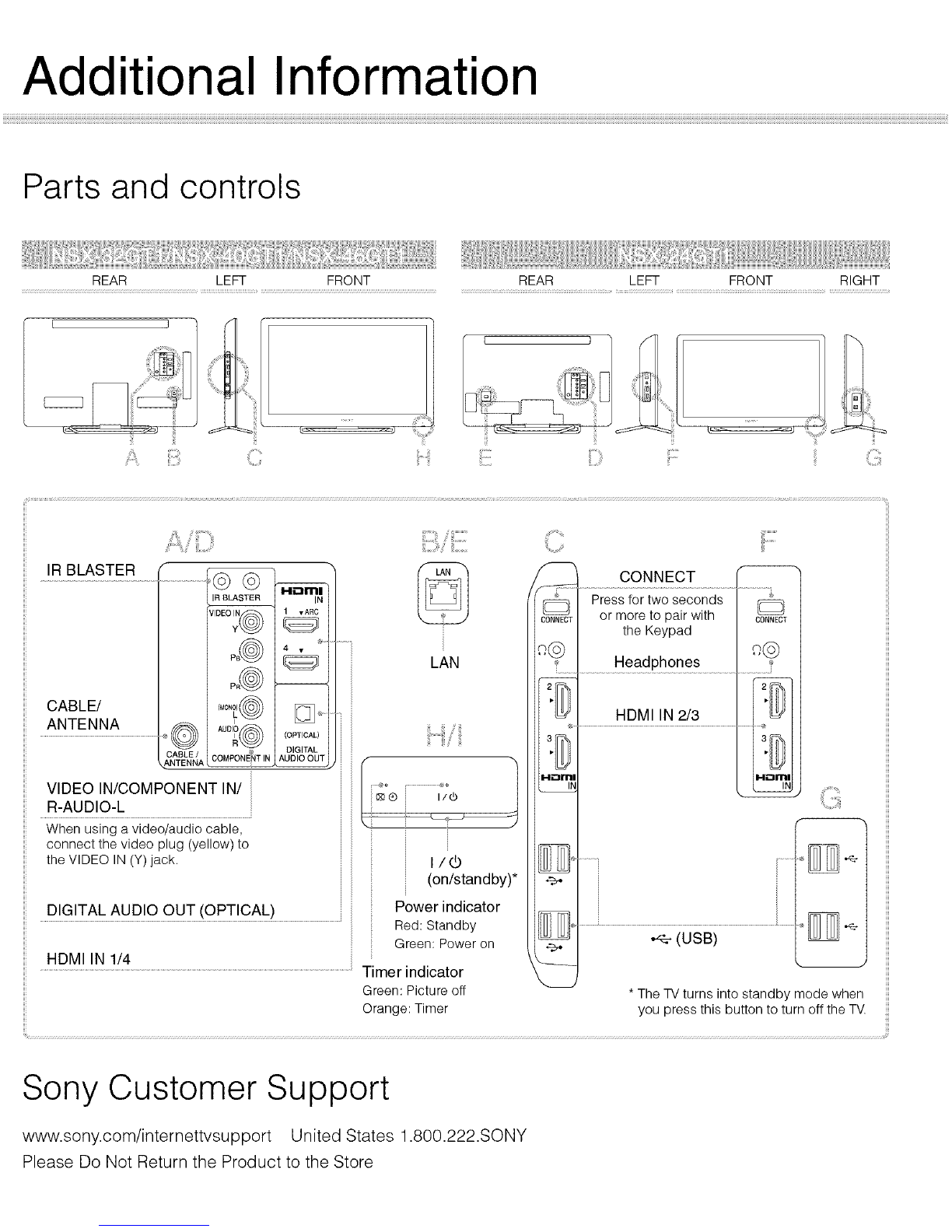

Additional Information

Parts and controls

REAR LEFT FRONT REAR LEFT FRONT RIGHT

( }

M R

_ _ LAW

CABLE/ I i_o_

....ANTENNA.................... 3ABLE/0 I AUDO_cOMPON (0PT_CALI_DIGITAL

_NTENNA _ IN AUDIO OUT

VIDEO IN/COMPONENT IN/ ...... ...................

R-AUDIO-L __

When using a video/audio cable,

connect the video plug (yellow) to

the VIDEO IN (Y)jack. I /(_

DIGITAL AUDIO OUT (OPTICAL) Powerii (on/standby)*indicator

Red: Standby

Green: Power on

HDMI IN 1/4

.................................................................................................................................................................................................................................Timer indicator

Green: Picture off

Orange: Timer

_'l I Press for two seconds

NN_ECTI or more to pair with _T

| the Keypad

91 ,, o©

_ ! Heaapnones 2t

* The TV turns into standby mode when

you press this button to turn off the TV.

Sony Customer Support

www.sony.com!internettvsupport United States 1.800.222.SONY

Please Do Not Return the Product to the Store
