Sony Trinitron KD-32DX100U Bedienungsanleitung

4-206-496-62

Trinitron Digital TV

Operating Instructions GB

KD-32DX100 U

420649662

DX100 Cover.fm Page 1 Tuesday, September 18, 2001 11:11 AM

NOTICE FOR CUSTOMERS IN THE UNITED KINGDOM

A moulded plug complying with BS1363 is fitted to this equipment for your

safety and convenience. Should the fuse in the plug supplied need to be

replaced, a 5 AMP fuse approved by ASTA or BSI to BS 1362 (i.e. marked

with or ) must be used. When an alternative type of plug is used it

should be fitted with a 5 AMP FUSE, otherwise the circuit should be protected

by a 5 AMP FUSE at the distribution board. If the plug supplied with this

equipment has a detachable fuse cover, be sure to attach the fuse cover after

you change the fuse. Never use the plug without the fuse cover. If you should

lose the fuse cover, please contact your nearest Sony service centre.

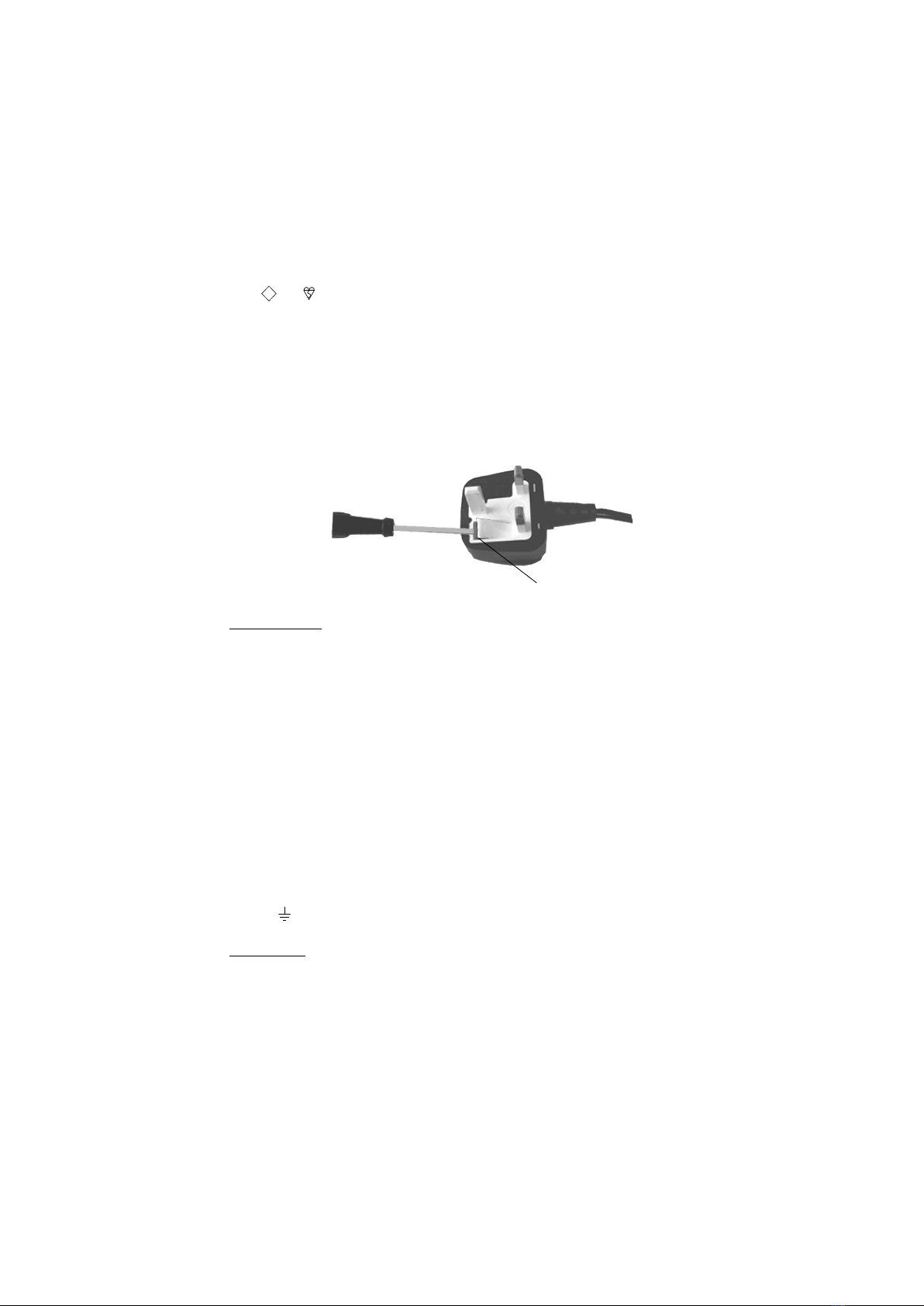

How to replace the Fuse

Open the fuse compartment with a flat blade screwdriver, and replace the

fuse.

IMPORTANT

If the plug supplied is not suitable for the socket outlet in your home, it should

be cut off and an appropriate plug fitted in accordance with the following

instructions:

The wires in this mains lead are coloured in accordance with the following

code:

Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead of this apparatus may not

correspond with the coloured markings identifying the terminals in your plug,

proceed as follows:

The wire which is coloured blue must be connected to the terminal which is

marked with the letter N or coloured black. The wire which is coloured brown

must be connected to the terminal which is marked with the letter L or

coloured red. Do not connect either wire to the earth terminal in the plug

which is marked by the letter E or by the safety earth

symbol or coloured green or green and yellow.

WARNING

• To prevent shock hazard, do not insert the plug cut off from the mains

lead into a socket outlet. This plug cannot be used and should be

destroyed.

• To prevent fire or shock hazard, do not expose the unit to rain or

moisture.

• Dangerously high voltages are present inside the set. Do not open the

cabinet. Refer servicing to qualified personnel only.

ASA

FUSE

DX100 Cover.fm Page 2 Tuesday, September 18, 2001 11:11 AM

DX100 Pages 1-10.fm Page 1 Tuesday, September 18, 2001 11:12 AM

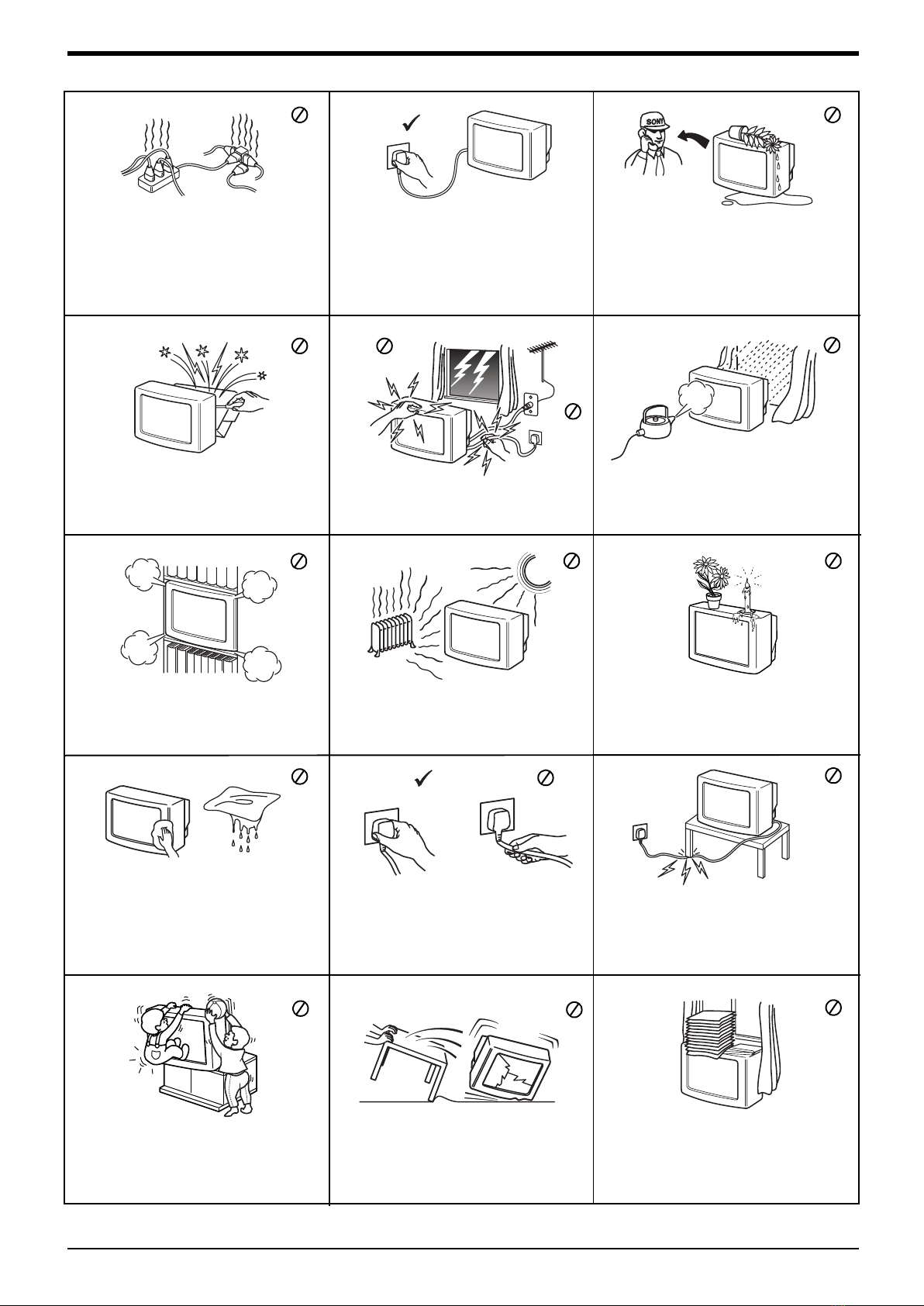

Safety Information

2Safety Information

This set is to operate on a 220-240V AC

supply only. Take care not to connect too

many appliances to the same power socket

as this could result in fire or electric shock.

For environmental and safety reasons, it is

recommended that the TV set is not left in

standby mode when not in use. Disconnect

from the mains.

Never push objects of any kind into the set

as this could result in a fire or electric shock.

Never spill liquid of any kind on the set. If

any liquid or solid object does fall through,

do not operate the TV. Have it checked

immediately by qualified personnel.

Do not open the cabinet and the rear cover

of the TV. Refer to qualified service

personnel only.

To prevent fire or shock hazard, do not

expose the TV to rain or moisture.

For your own safety, do not touch any part

of the TV, power lead or aerial lead during

lightning storms.

Do not cover the ventilation openings of the

TV. For ventilation, leave a space of at least

10cm all around the set.

Never place the TV in hot, humid or

excessively dusty places. Do not install the

TV where it may be exposed to mechanical

vibrations.

Clean the TV with a soft, lightly dampened

cloth. Do not use benzine, thinner or any

other chemicals to clean the TV. Do not

scratch the TV screen. As a safety

precaution, unplug the TV before cleaning it.

Pull out the power lead by the plug. Do not

pull on the power lead itself.

Take care not to place heavy objects on the

power lead as this could result in damage.

We recommend you wind any excess lead

around the holders provided on the rear of

the TV.

Unplug the power lead before moving the

TV. Avoid uneven surfaces, quick steps or

excessive force. If the set has been dropped

or damaged, have it checked immediately

by qualified service personnel.

Do not cover the ventilation openings of the

TV with items such as curtains or

newspapers etc.

Do not allow children to climb on the TV.

Place the TV on a secure stable stand. Do

not place the TV on its side or face up.

Do not place any objects on the TV. To

prevent fire, keep inflammable objects or

naked lights (e.g. candles) away from the TV.

DX100 Pages 1-10.fm Page 2 Tuesday, September 18, 2001 11:12 AM

Table of Contents

Table of Contents 3

Thank you for choosing this Sony Trinitron Digital Television.

Before operating this TV, please read this instruction manual thoroughly and retain it for future reference.

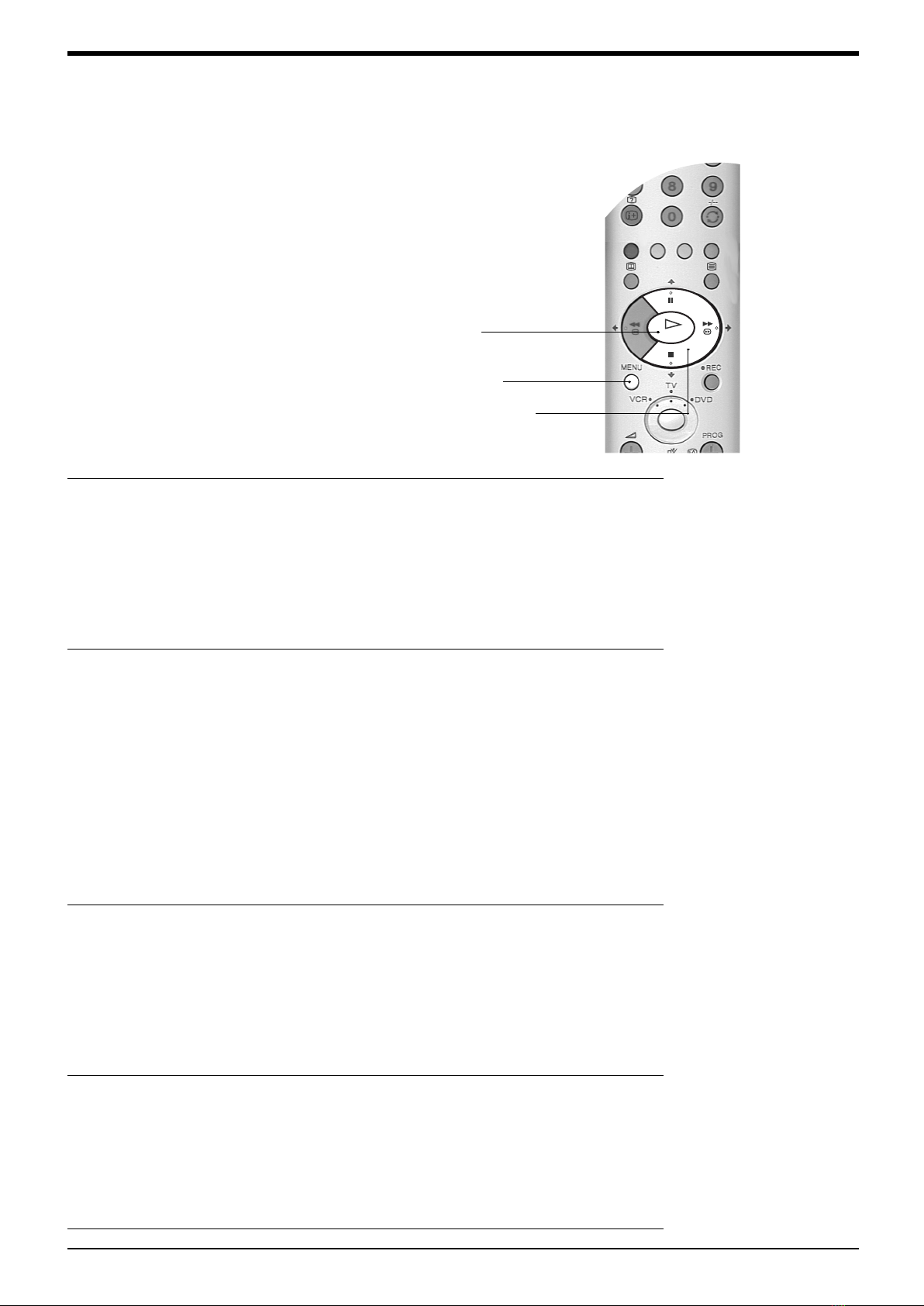

Throughout this instruction manual you will notice

illustrations of the remote control with certain buttons

shaded white.

This shading indicates the buttons you will need to

press when following the instructions.

For example, the illustration on the right shows that the

MENU, V, v, band OK buttons will need to be pressed.

MENU button

V, vand bbuttons

OK button

Getting Started

Checking the accessories supplied . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Inserting batteries into the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Connecting an aerial and a VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Switching on the TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Automatically tuning the TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Watching a pre-recorded video tape . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Basic Operation

Overview of the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Overview of the TV buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Selecting Digital or analogue mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

The Programme Index table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

The Channel Index menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Watching Widescreen programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Viewing Digital Teletext . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Teletext (Analogue) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

The Teletext menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

The Digital EPG menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

The Digital INFO display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Advanced Operation

The Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

The TV menu system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

The Picture Adjustment menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

The Audio Adjustment menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

The Features menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

The Set Up menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Additional Information

Connecting additional equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Remote control of connected equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Table of contents

DX100 Pages 1-10.fm Page 3 Tuesday, September 18, 2001 11:12 AM

Getting Started

4Getting Started

Follow steps 1 - 6 to install the

TV and view TV programmes.

1. Checking the accessories supplied

Batteries

Remote control

RF Loopthrough cable

2. Inserting batteries into the remote control

Always remember to:

• observe the correct polarity when inserting batteries,

• dispose of batteries in an environmentally friendly way.

VIDEO

DIGITAL

DX100 Pages 1-10.fm Page 4 Tuesday, September 18, 2001 11:12 AM

Getting Started

Getting Started 5

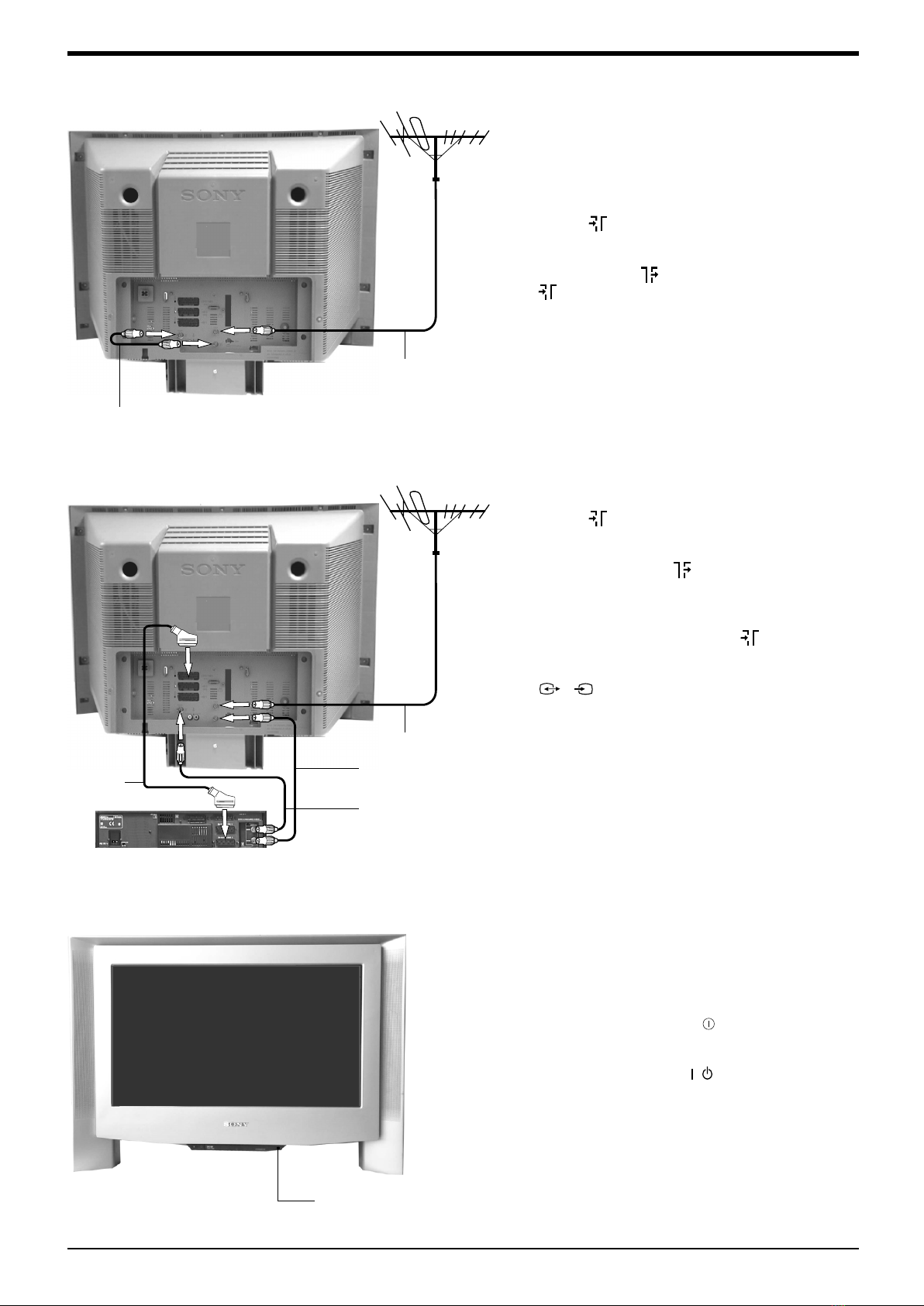

3. Connecting an aerial and a VCR

1Connect your existing aerial lead to the Digital socket

marked on the rear of the TV as shown.

2Connect the supplied RF loopthrough cable from the

sockets marked to the Analogue socket marked

1 Connect your existing aerial lead to the Digital socket

marked on the rear of the TV as shown.

2Connect the supplied RF loopthrough cable from the

aerial socket marked on the TV to the RF input

socket of your VCR.

3Connect a lead from the RF output of your VCR to

the Analogue TV socket marked .

4Connect a scart lead from the scart socket marked

on the rear of the TV to a scart socket on

your VCR (Refer to the VCR instructions).

5Connect the VCR to the mains socket and switch on.

6Insert a pre-recorded tape into the VCR and press

the ‘PLAY’button. This enables the TV set to locate

and store the video channel during the ‘Automatically

tuning the TV’procedure.

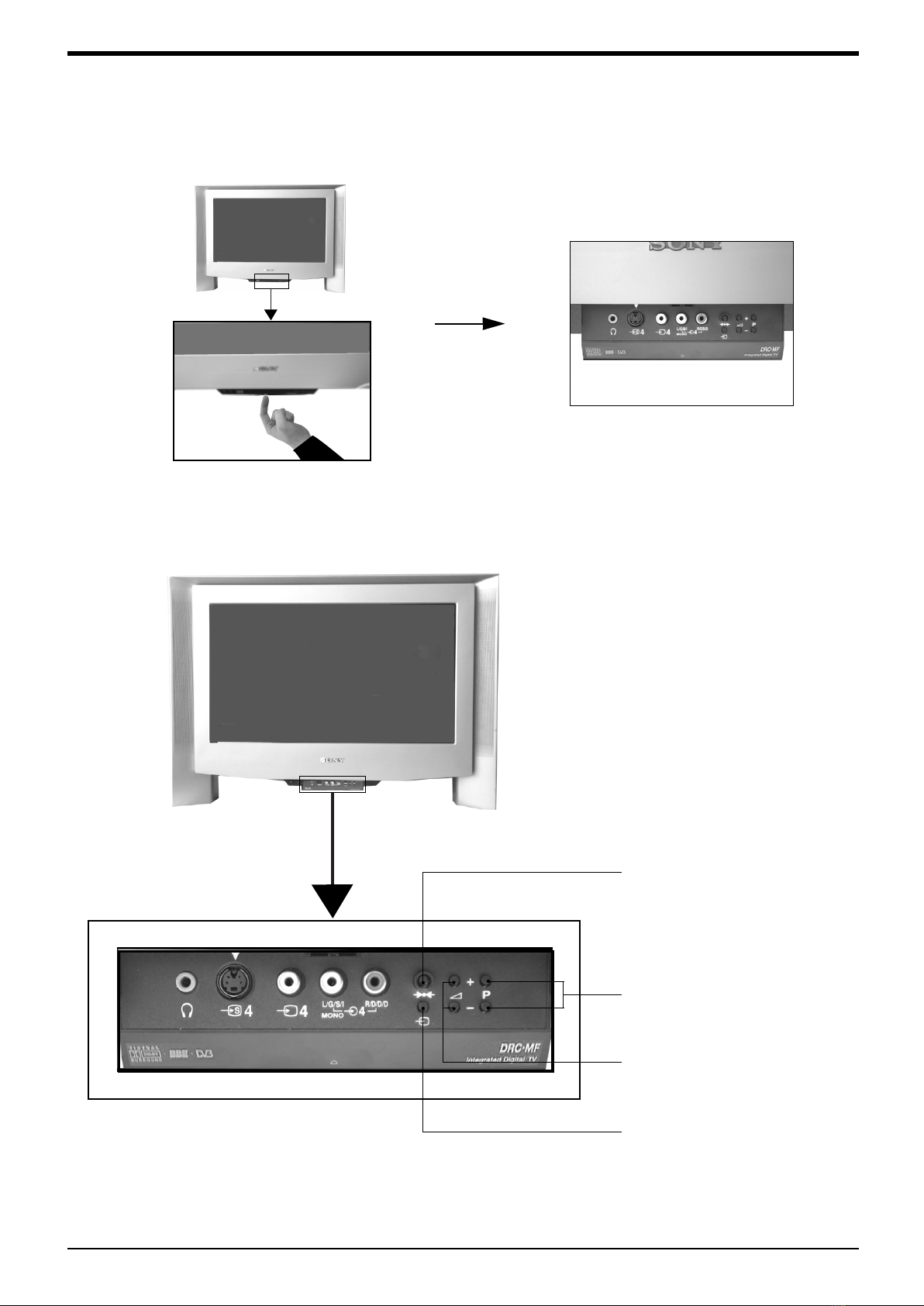

4. Switching on the TV

1Connect the TV plug to your mains socket (220 -

240V AC, 50 Hz) and switch on.

2Push in the On/Off button ( ) on the front of the TV.

If the red standby mode indicator on the front of the

TV is lit, press the TV button on the remote

control to switch on the TV set. Please be patient as

the picture may take a few moments to appear on the

TV screen.

Existing aerial lead

RF Loopthrough

cable (supplied)

Connecting an aerial only

Scart lead

(not supplied)

Rear of VCR

RF Loopthrough

cable (supplied)

Existing aerial lead

Connecting an aerial and a VCR

RF Lead

(not supplied)

On/Off button

DX100 Pages 1-10.fm Page 5 Tuesday, September 18, 2001 11:12 AM

Getting Started

6Getting Started

5. Automatically tuning the TV

Choosing the language.

Tuning the Digital channels.

VIDEO

DIGITAL

123

789

Choosing the country.

The autotune prompt screen.

6. Watching a pre-recorded video tape

1. With a pre-recorded video tape inserted into your VCR, press the

‘PLAY’button on the VCR. The TV automatically displays the video

picture (providing that you have used a fully wired 21 pin scart lead

to connect your VCR to the TV).

If the video picture does not automatically appear, press the /

button on the remote control repeatedly until the video picture is

displayed on the TV screen.

2. Press the DIGITAL/ button on the remote control to return to

normal TV mode.

Note: Alternatively, with the TV in analogue mode, press the PROG +/- buttons

on the remote control until the picture from the pre-recorded video tape

appears on the TV screen.

If you wish to move your video channel to a different channel number,

refer to the ‘Programme Sorting’feature in ‘The Set Up menu’section of

this instruction manual.

VIDEO

DIGITAL

1. When you switch on the TV for the first time the Language/Country

menu appears on the TV screen with the word ‘English’highlighted.

Press the V or v buttons on the remote control to choose your

required language. Press the OK button to confirm.

2. The word ‘Country’is now highlighted. Press the V or v buttons on

the remote control to choose the country in which you are using this

TV. Press the OK button to confirm.

Note: The Digital features of this TV are designed for use in Great Britain only.

3. The autotune prompt screen appears. Press the OK button to select

‘Ye s ’. The autotune procedure begins, first tuning in all available

Digital channels.

As this may take some time, a display appears on the TV screen to

inform you of the tuning progress.

When all the available Digital channels are found, the analogue

tuning display appears and all the analogue channels are captured

and stored.

If no Digital and no analogue channels are found, a display appears

on the TV screen asking you to confirm your aerial is connected.

Check the aerial has been connected correctly then press the OK

button to repeat the tuning process.

Once all Digital and analogue channels have been captured and

stored, the TV returns to normal operation and displays the Digital

channel stored on channel number 1.

Note: If no Digital channels are captured, the analogue channel that is stored

on channel number 1 is displayed.

The TV has now tuned in all the

available channels and is ready for use

4. To view programmes, press the PROG+/- buttons or the numbered

buttons.

DX100 Pages 1-10.fm Page 6 Tuesday, September 18, 2001 11:12 AM

Basic Operation

Basic Operation 7

Overview of the remote control

VIDEO

DIGITAL

VIDEO button

Press to switch off your VCR or DVD

temporarily.

DIGITAL/ button

Press to switch between Digital or

analogue mode, or to return to normal TV

operation from Teletext.

Screen format button

Press repeatedly to change the screen

format.

0 - 9 buttons

When Media Selector is set to VCR or TV,

press to input the required channel

number. For double digit numbers, e.g. for

programme 14, press 1 followed by 4.

Information /Reveal button

In TV Mode: In Digital mode, press to

display the INFO screen. In analogue

mode, press to reveal on screen

information such as channel number etc.

In Teletext Mode: Press to reveal

concealed information (e.g. answers to a

quiz). Press again to cancel.

Coloured buttons

These buttons are used for Teletext and for

Digital menus. Please refer to the relevant

sections in this manual.

EPG button

In Digital mode, press this button to display

the Electronic Programme Guide.

Control pad

When in the TV menu system, use these

buttons to navigate through the options in

each display.

Note: You can only enter the TV menu

system if the Media Select button is set to

TV. When set to VCR or DVD the control

pad buttons operate the main functions of

your VCR or DVD.

MENU button

Press to enter the menu system of this TV.

Volume + and - buttons

Press to increase (+) or decrease (-) the

volume.

TV button

Press to switch off your TV temporarily. The

standby indicator on the front of the TV is lit.

Press again to return to normal operation.

Video Input /Hold button

In TV Mode: Press to select signals from

equipment connected to the TV sockets

(refer to ‘Connecting additional

equipment’).

In Teletext Mode: Press to hold the current

page. Press again to cancel.

Previous channel/Exit button

In TV Mode: Press to return to the previous

channel you were watching (provided you

watched it for at least 5 seconds).

Note: If the Media Select button is set to

VCR, you can use this button to select

double digit programme numbers on your

VCR, e.g. press the button then press 2

and 3 for 23.

In Digital Teletext Mode: When instructed

on-screen, press to cancel a selection.

Analogue Teletext button

In analogue mode, press to switch

analogue Teletext on or off.

REC button

When Media Select switch is set to VCR,

press this button to begin recording.

Media Select button VCR/TV/DVD

This remote can also operate Sony DVDs

and most Sony VCRs. Press this button to

select which type of equipment you want to

use. A green light is lit momentarily to show

which one you have selected.

Note: Before operating your VCR or DVD

you will need to enter the correct

configuration code. Please refer to the

‘Remote control configuration’section of

this instruction manual.

PROG + and - buttons

In TV Mode: Press to display the next or

previous channel.

In Teletext Mode: Press to select the next

or previous Teletext page.

Mute button

Press to mute the TV sound. Press again to

restore the sound.

DX100 Pages 1-10.fm Page 7 Tuesday, September 18, 2001 11:12 AM

Basic Operation

8Basic Operation

Overview of the TV buttons

Accessing the control panel

The TV buttons can be found on the front control panel.

Programme Up or Down buttons

Press to display the next or previous

channel.

Volume control buttons

Press to increase (+) or decrease (-)

the volume.

Video input button

Press to select signals from equipment

connected to the TV sockets (refer to

‘Connecting additional equipment’).

Reset button

Press to return the picture and sound

levels to the factory default setting.

Push up on the control panel (as shown).

The control panel drops down.

Note: For information on the front panel connectors, please refer to the

‘Connecting additional equipment’section of this instruction manual.

DX100 Pages 1-10.fm Page 8 Tuesday, September 18, 2001 11:12 AM

Andere Handbücher für Trinitron KD-32DX100U

Inhaltsverzeichnis

Andere Sony Fernseher Handbücher

Sony

Sony Trinitron KV-27S42 Bedienungsanleitung

Sony

Sony KLV-70X300A Bedienungsanleitung

Sony

Sony Bravia XR-85X95J Bedienungsanleitung

Sony

Sony FD Trinitron WEGA KV-32FV16 Bedienungsanleitung

Sony

Sony TRINITRON KV-B2531A Bedienungsanleitung

Sony

Sony BRAVIA KD-55X9350D Bedienungsanleitung

Sony

Sony Bravia KD-55XG7005 Bedienungsanleitung

Sony

Sony Bravia XR-85Z9J Bedienungsanleitung

Sony

Sony KV-19TS20 Bedienungsanleitung

Sony

Sony FD Trinitron WEGA KV-27FV300 Bedienungsanleitung

Sony

Sony KDL-32EX710 - 32" Class Bravia Ex710 Led... Bedienungsanleitung

Sony

Sony KDL-32EX710 - 32" Class Bravia Ex710 Led... Bedienungsanleitung

Sony

Sony BRAVIA KD-55X70 Series Bedienungsanleitung

Sony

Sony TRINITRON KV-BT21M50 Bedienungsanleitung

Sony

Sony BRAVIA KD-85XH95 Series Bedienungsanleitung

Sony

Sony TRINITRON KV-AR34M3 Bedienungsanleitung

Sony

Sony BRAVIA KD-75Z9D Bedienungsanleitung

Sony

Sony Bravia XBR-75X900F Bedienungsanleitung

Sony

Sony BRAVIA KE-85XH80 Series Bedienungsanleitung

Sony

Sony TRINITRON KV-AR29M61 Bedienungsanleitung

Sony

Sony Trinitron KV-XA29 Bedienungsanleitung

Sony

Sony Bravia KDL-32BX350 Bedienungsanleitung

Sony

Sony XTL-W70 Bedienungsanleitung

Sony

Sony TRINITRON KV-21C5B Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
