SONY 3-866-871-22

Trinitron'

Color TV

Operating Instructions

KV-20FV10

KV-24FV10

WARNING

To reduce the risk of fire or shock hazard, do not expose the TV to rain or moisture.

/7\ RISK OF ELECTRIC SHOCK /'\

L*|DO NOT OPEN |*

—

'-—

ATTENTION

RISQUE DE CHOC El FCTRIQUE.

NE PAS OUVRIR

PRECAUCION

RIESGO DE CHOQUE ELECTRICO

NO ABRlR

CAUTION: 10 REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE.

REf Eft SERVICING TO QUALIFIED SERVICE PERSONNEL

AThis symbol is intended to alert the user to the presence of uninsulated "dangerout

voltage" within the product's enclosure that may be of sufficient magnitude to

constitute arisk of electric shock to persons.

AThis symbol is intended to alert the user to the presence of important operating anc

/I\maintenance (servicing) instructions in the literature accompanying the appliance

Note to the CATV Installer

This reminder is provided to call the CATV system installer's attention to Article 820-40 of

the NEC that provides guidelines for proper grounding and, in particular, specifies that the

cable ground shall be connected to the grounding system of the building as close to the poin

of cable entry as practical.

SAFETY PRECAUTIONS

Operate the TV only on 120 VAC.

One blade of the power plug is wider than the other for safety purposes and will fit inu

the power outlet only one way. If you are unable to insert the plug fully into the outlet,

contact your dealer.

If any liquid or solid object falls into the TV, unplug it and have it checked by qualifiec

personnel before operating it further.

For more safety information, see the "IMPORTANT SAFEGUARDS" leaflet packed with

your TV.

CAUTION

When using TV games, computers, and similar products with your TV, keep the brightness

and contrast functions at low settings. If afixed (non-moving) pattern is left on the screen fo

long periods of time at ahigh brightness or contrast setting, the image can be permanently

imprinted onto the screen. Continuously watching the same channel can cause the imprint o

station logos onto the TV screen. These types of imprints are not covered by your warranty

because they are the results of misuse.

aTo reduce the risk of electric shock, do not use this polarized plug with an

/'! \extension cord, receptacle, or other outlet unless the blades can be fully

inserted to prevent blade exposure.

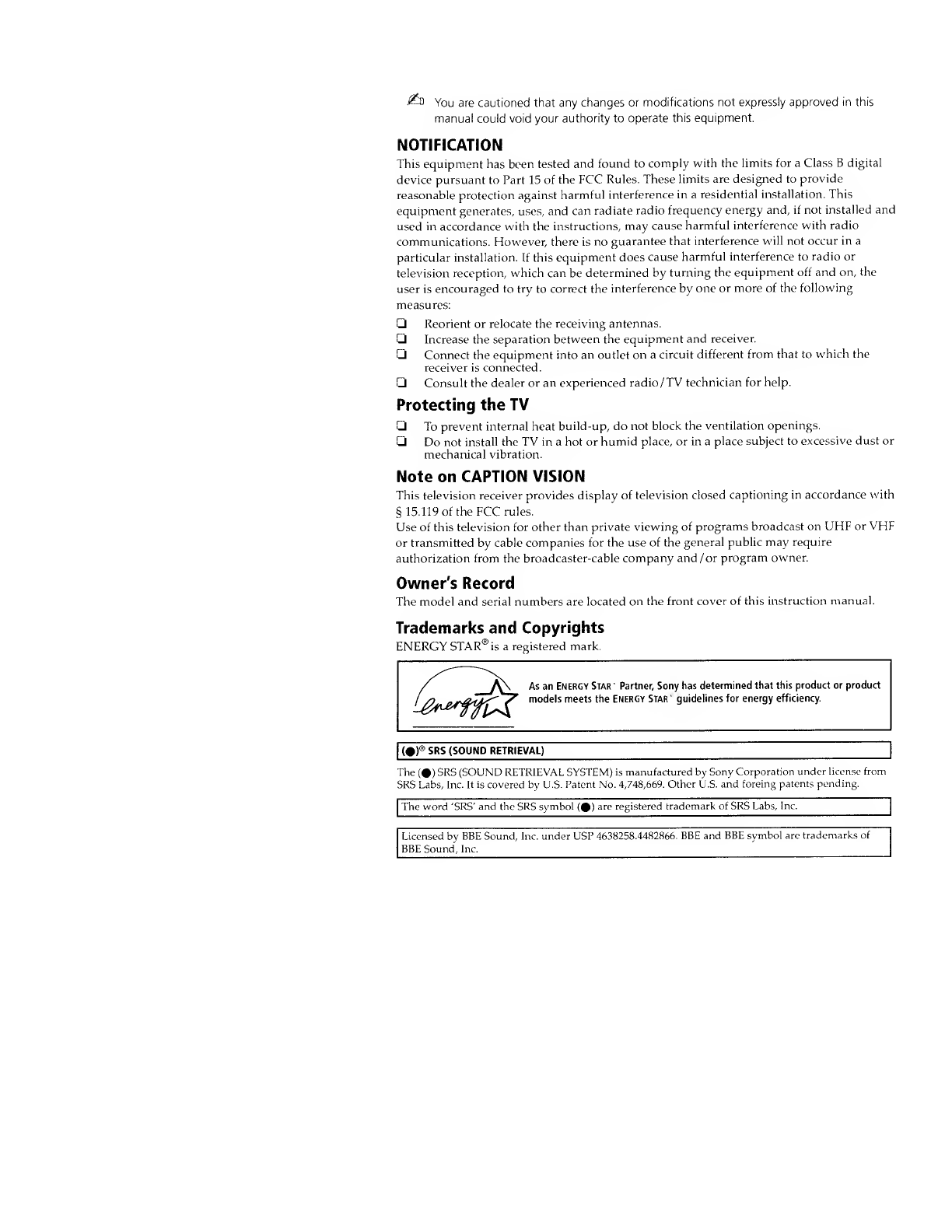

^-D You are cautioned that any changes or modifications not expressly approved in this

manual could void your authority to operate this equipment.

NOTIFICATION

This equipment has been tested and found to comply with the limits for aClass Bdigital

device pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference with radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antennas.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on acircuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio /TV technician for help.

Protecting the TV

To prevent internal heat build-up, do not block the ventilation openings.

Do not install the TV in ahot or humid place, or in a place subject to excessive dust or

mechanical vibration.

Note on CAPTION VISION

This television receiver provides display of television closed captioning in accordance with

§15.119 of the FCC rules.

Use of this television for other than private viewing of programs broadcast on UHF or VHF

or transmitted by cable companies for the use of the general public may require

authorization from the broadcaster-cable company and /or program owner.

Owner's Record

The model and serial numbers are located on the front cover of this instruction manual.

Trademarks and Copyrights

ENERGY STAR® is aregistered mark.

As an Energy Star "Partner, Sony has determined that this product or product

models meets the Energy Star 'guidelines for energy efficiency.

|Q® SRS (SOUND RETRIEVAL)

The (#) SRS (SOUND RETRIEVAL SYSTEM) is manufactured by Sony Corporation under license from

SRS Labs, Inc. It is covered by U.S. Patent No. 4,748,669. Other U.S. and foreing patents pending.

The word 'SRS' and the SRS symbol (0) are registered trademark of SRS Labs, Inc.

Licensed by BBE Sound, Inc. under USP 4638258.4482866. BBE and BBE symbol are trademarks of

BBE Sound, Inc.

Contents

Introduction

Trinitron® Color TV Features 1

Batteries for the Remote Control 2

About this Manual 2

Connecting Your TV

Basic Connections 3

Connecting Additional Equipment 4

Using the Remote Control

and Basic Functions

Setting up the TV Automatically 13

Quick Start to the Menus 14

Using the Menus

Using the VIDEO menu 15

Using the AUDIO J> menu 16

Using the TIMER menu 18

Using the SET UP menu 19

Using PARENTAL CONTROL 22

Other Information

Programming the Remote Control 29

Troubleshooting 32

Specifications 34

Index 35

Introduction

Congratulations on your purchase of the Sony Trinitron® Color TV.

Before you begin using this manual, please check the model number

located on the front cover of this instruction manual.

The menu and illustrations used in these instructions are for KV-24FV10

to show the maximum number of features available. Differences in

operation or features will be indicated in the text, for example,

"KV-24FV10 only."

Trinitron® Color TV Features

Depending on your TV, some of the features you will enjoy include:

Flat CRT —For optimal picture quality.

PARENTAL CONTROL —Atool for parents to help monitor what their

children watch on TV by establishing rating limits.

FAVORITE CHANNEL —Instant access to your favorite channels with

the touch of abutton.

Universal Remote Control —Program your remote control to operate

your connected cable box, VCR, digital satellite receiver or DVD

player.

Trilingual Menus —Choose English, French or Spanish menus.

Energy Star —Arecognized symbol of energy efficiency.

SVIDEO —Avideo input that offers enhanced picture quality.

Direct MTS —Allows direct access to changing your Multi-Channel

TV Sound: STEREO, SAP (Second Audio Program), or MONO, with

the touch of abutton.

Front Panel Controls —Allows for access to the on-screen menus

without the use of aremote control.

Front A/V inputs —Aquick connection for video games, camcorders

or stereo equipment.

User Guide

Batteries for the Remote Control

Insert two AA (R6) batteries (supplied) into the remote control using the

following illustration as a guide.

(£d Under normal conditions, batteries will last up to six months. If the remote

control does not operate properly, the batteries might be worn out.

A> Remove the batteries to avoid possible damage from battery leakage if you

will not be using the remote control for an extended period of time.

A> Your remote control can be programmed to operate most video equipment,

(see page 29).

satellite receiver, stereo system or camcorder. Once you're connected,

follow the instructions to learn how to use the remote control to access

the on-screen menus.

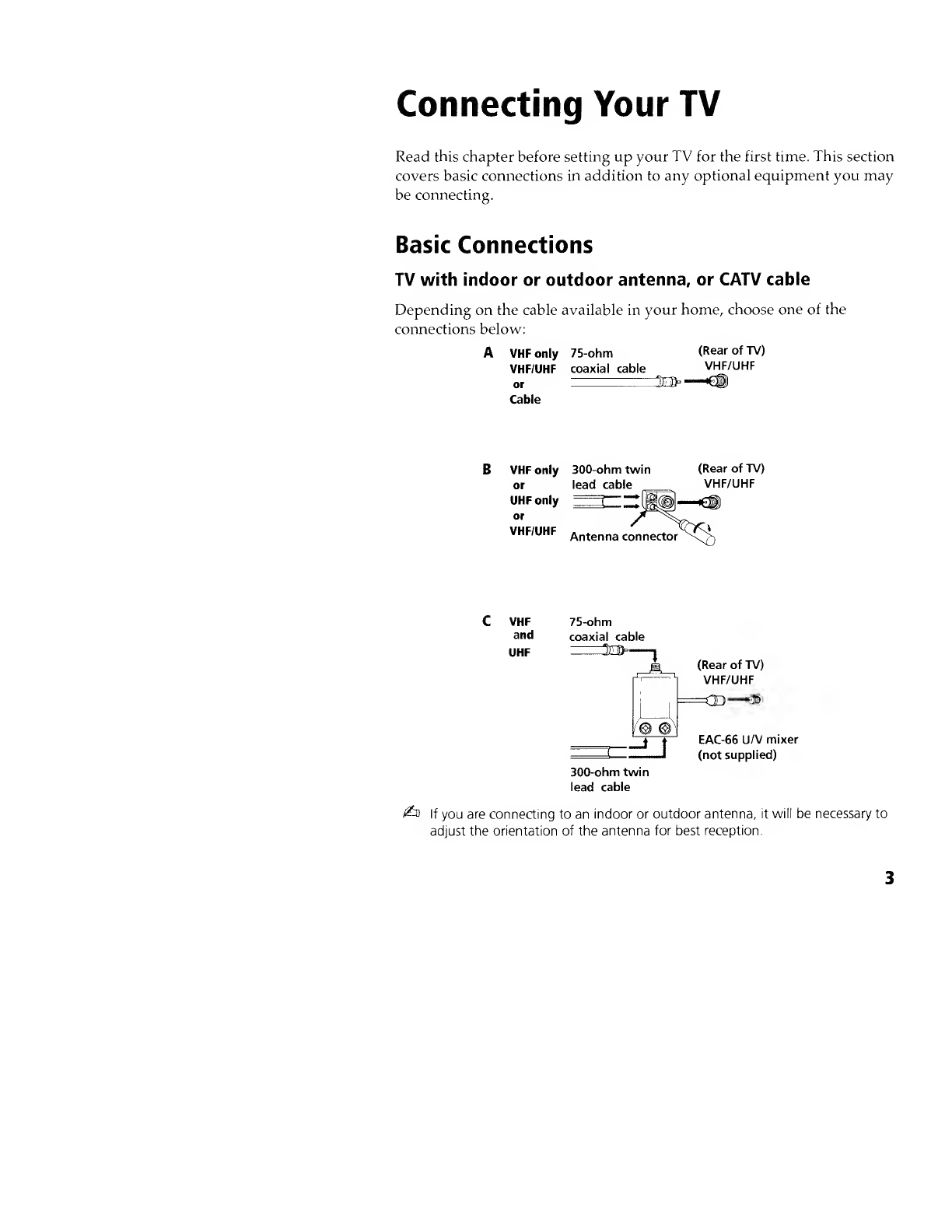

Connecting Your TV

Read this chapter before setting up your TV for the first time. This section

covers basic connections in addition to any optional equipment you may

be connecting.

Basic Connections

TV with indoor or outdoor antenna, or CATV cable

Depending on the cable available in your home, choose one of the

connections below:

AVHF only

VHF/UHF

75-ohm

coaxial cable

(Rear of TV)

VHF/UHF

Cable

33>. —teg)

BVHF only

UHF only

300-ohm twin

lead cable

(Rear of TV)

VHF/UHF

CVHF 75-ohm

and coaxial cable

_j EAC-66 U/V mixer

(I(not supplied)

300-ohm twin

lead cable

(Rear of TV)

VHF/UHF

=CD—€®

If you are connecting to an indoor or outdoor antenna, it will be necessary to

adjust the orientation of the antenna for best reception.

User Guide

Connecting Additional Equipment

TV and VCR TV

VIDEO IN

3(Optional connection)

1Connect the coaxial cable from your TV antenna or cable TV to the IN

jack on your VCR.

2Connect acoaxial cable (not supplied) from the OUT jack on your

VCR to the VHF/UHF IN jack on the TV.

£d To watch video programs from your VCR, tune your TV to channel 3or 4(as

set on the rear of your VCR).

(Optional connection)

3If your VCR is equipped with video inputs, for better picture quality

you should connect A/Vcables from AUDIO and VIDEO OUT on

your VCR to AUDIO/VIDEO IN on your TV. You can use the Td0

button to switch between the TV and VCR inputs.

For optimum picture quality, use SVIDEO instead of the yellow A/V cable.

SVIDEO does not provide sound, the audio cables must still be connected.

TV and Cable Box

VIDEO IN

1-n

From 11

Cable

1Connect the coaxial cable from the wall to the IN jack on your cable

box.

2Connect acoaxial cable (not supplied) from the OUT jack on your

cable box to the VHF/UHF IN jack on the TV.

£n To view channels from your cable box, tune your TV to channel 3or 4(as set

on the rear panel of your cable box).

£d If you will be controlling all channel selection through your cable box, you

should consider using the CHANNEL FIX feature on page 20.

User Guide

1Connect the coaxial cable from the wall to the IN jack on your cable

box.

2Connect acoaxial cable (not supplied) from the OUT jack on your

cable box to the IN jack on your VCR.

3Connect acoaxial cable (not supplied) from the OUT jack on your

VCR to the VHF/UHF IN jack on the TV.

i& If you will be controlling all channel selection through your cable box, you

should consider using the CHANNEL FIX feature on page 20.

(Optional connection)

4If your VCR is equipped with video inputs, for better picture quality

you should connect A/Vcables from AUDIO and VIDEO OUT on

your VCR to AUDIO/VIDEO IN on your TV. You can use the TT

button to switch between the TV and VCR inputs.

£d For optimum picture quality, use SVIDEO instead of the yellow A/V cable.

SVIDEO does not provide sound, the audio cables must still be connected.

Andere Handbücher für Trinitron KV-20FV10

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Sony Fernseher Handbücher

Sony

Sony BRAVIA KDL-50W800C Bedienungsanleitung

Sony

Sony KV-27FV310 - 27" Fd Trinitron Wega Bedienungsanleitung

Sony

Sony TRINITRON KV-SZ252M50 Bedienungsanleitung

Sony

Sony TRINITRON KV-J25MF8J Bedienungsanleitung

Sony

Sony Trinitron KV-20S43 Bedienungsanleitung

Sony

Sony GrandWega KDF-46E2000 Bedienungsanleitung

Sony

Sony KDL-40V3000 Bedienungsanleitung

Sony

Sony TRINITRON KV-20WS1A Bedienungsanleitung

Sony

Sony BRAVIA KD-32W800 Bedienungsanleitung

Sony

Sony Bravia KD-50X8 J Series Bedienungsanleitung

Sony

Sony WEGA KV-BZ21 Bedienungsanleitung

Sony

Sony KD-65X9500B Bedienungsanleitung

Sony

Sony QUALIA KDS-R50XBR1 Installationsanleitung

Sony

Sony FD Trinitron KV-29LS60B Bedienungsanleitung

Sony

Sony Bravia KDL-40W590B Bedienungsanleitung

Sony

Sony TRINITRON KV-PG14L70 Bedienungsanleitung

Sony

Sony Trinitron KV-27EXR90 Bedienungsanleitung

Sony

Sony FD Trinitron Wega KV-AR29 Bedienungsanleitung

Sony

Sony BRAVIA XBR-75X940E Bedienungsanleitung

Sony

Sony KV-32LS65AUS Bedienungsanleitung

Sony

Sony BRAVIA KD-75X9400D Bedienungsanleitung

Sony

Sony Bravia KDL-19M4000 Bedienungsanleitung

Sony

Sony BRAVIA XR X93L Bedienungsanleitung

Sony

Sony Trinitron KV-HA21M50 Series Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
