Sony Trinitron KV-27S42 Bedienungsanleitung

Trinitron °

Color TV

Operating Instructions

KV-27S42

KV-27S46

KV-27S66

KV-2 7V42

KV-27V66

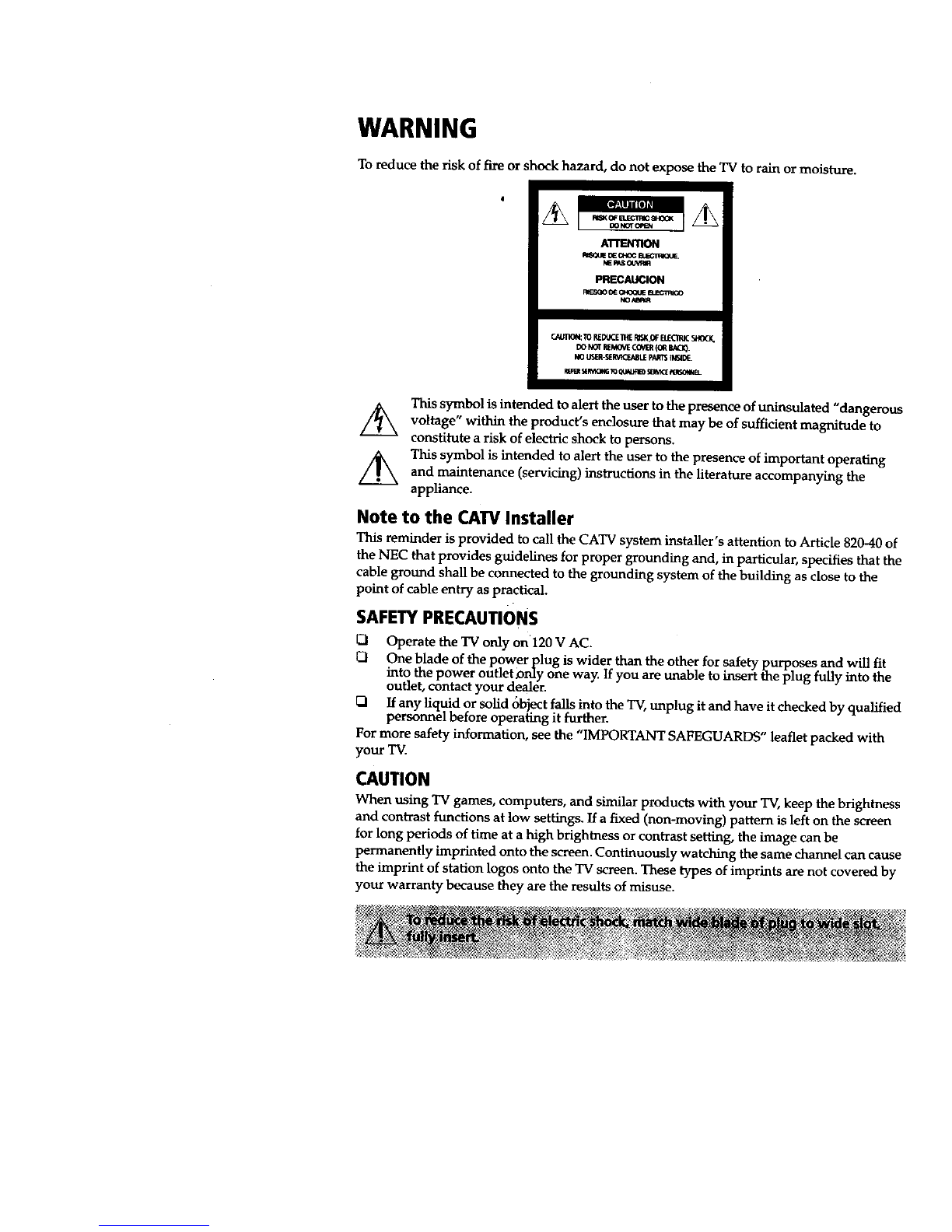

WARNING

To reduce the risk of fire or shock hazard, do not expose the TV to rain or moisture.

ATT_I1ON

A_6_L_ DE OtOC I_E_I_,(_

hE_

PRECAUOON

I_E_30 OE C_ JE _EC71_iCO

_/4RR

CAUTION:TOREDUCETHEI_ISK_FELECIRIC5_iOCK.

IX) NOTREMOVECOVER(ORMOQ.

NOU5ER-_RV_EABLEPARTS_51DE.

_F_ SIRVIO_G_ e_AUel__'_1_ ff41SO_EL

This symbol is intended to alert the user to the p_sence of uninsulated "dangerc

voltage" within the product's enclosure that may be of sufficient magnitude to

constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating

and maintenance (servicing) instructions in the literature accompanying the

appliance.

Note to the CATVInstaller

This reminder is provided to call the CATV system installer's attention to Article 820-40

the NEC that provides guidelines for proper grounding and, in particular, specifies that I

cable ground shall be connected to the grounding system of the building as close to the

point of cable entry as practical.

SAFETY PRECAUTIONS

[2] Operate the TV only on120 V AC.

QOne blade of the power plug is wider than the other for safety purposes and will fll

into the power outleLouly one way. If you are unable to insert the plug fully into th

outlet, contact your dealer.

QIf any liquid or solid 6bject falls into the TV, unplug it and have it checked by qualifY,

personnel before operating it further.

For more safety information, see the "IMPORTANT SAFEGUARDS" leaflet packed with

your TV.

CAUTION

When using TV games, computers, and similar products with your TV, keep the brightn_

and contrast functions at low settings. If a fixed (non-moving) pattern is left on the scree]

for long periods of time at a high brightness or contrast setting, the image can be

permanently imprinted onto the screen. Continuously watching the same channel can cat

the imprint of station logos onto the TV screen. These types of imprints are not covered

your warranty because they are the results of misuse.

NOTIFICATION

This equipment has been tested and found to comply with the limits for aClass B digital

device pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential instaUation. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference with radio

communications. However, there is no guarantee that interference wiU not occur in a

particular installation. If,this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

QReorient or relocate the receiving antennas.

Increase the separation between the equipment and receiver.

QConnect the equipment into an outlet on a circuit different from that to which the

receiver is connected

QConsult the dealer or an experienced radio/TV technician for help.

Protecting the

QTo prevent internal heat build-up, do not block the ventilation openings.

QDo not install the TV in a hot or humid place, or in a place subject to excessive dust or

mechanical vibration.

Note on CAPTION VISION

This television receiver provides display of television closed captioning in accordance with

§15.119 of the FCC rules.

Use of this television for other than private viewing of programs broadcast on UHF or VHF

or transmitted by cable companies for the use of the general public may require

authorization from the broadcaster-cable company and/or program owner.

Owner's Record

The model and serial numbers are located on the front cover of this instruction manual.

Trademarks and Copyrights

ENERGY STAR ®is aregistered mark.

Asan ENERGYSTAR®Partner, Sony has determined that this product orproduct models meets the ENERGYSTAR®guidelinesfor energy efficiency.

(0) ®SRS(SOUNDRETRIEVAL)

The (0) SRS(SOUND RETRIEVALSYSTEM)is manufactured by Sony Corporation under license

from SRSLabs, Inc. Itis covered by U.S. Patent No. 4,748,669. Other U.S. and foreing patents pending.

[The word 'SRS'and the SRSsymbol (O) are registered trademark of SRSLabs, Inc. J

Licensed by BBESound, Inc. under USP 4638258.4482866. BBEand BBEsymbol are trademarks of ]

BBESound, Inc. ]

Contents

Introduction

Trinitron ®Color TV Features ............................. 1

Batteries for the Remote Control ....................... 2

About this Manual .............................................. 2

Connecting Your TV

Basic Connections ................................................ 3

Connecting Additional Equipment .................. 4

Using the Remote Control

and Basic Functions

Setting up the TV AutomaticaUy .................... 15

Using Picture in Picture .................................... 16

Quick Start to the Menus .................................. 18

Using the Menus

Using the VIDEO _menu .............................. 19

Using the AUDIO ._ menu .............................. 20

Using the TIMER Qmenu ............................... 22

Using the SET UP _menu .............................. 23

Using PARENTAL CONTROL ....................... 25

Other Information

Programming the Remote Control ................. 31

Troubleshooting ................................................ 34

Specifications ...................................................... 36

Index .......................................................................... 37

Introduction

Congratulations on your purchase of the Sony Trinitron ®Color TV.

Before you begin using this manual, please check the model number

located on the front cover of this instruction manual.

The menu and illustrations used in these instructions are for KV-27S46.

Differences in operation or features will be indicated in the text, for

example, "KV-27S46 only."

Trinitron®Color TV Features

Depending on your TV, some of the features you will enjoy include:

PARENTALCONTROL-- A tool for parents to help monitor what their

children watch on TV by establishing rat-ing limits.

FAVORITECHANNEL -- Instant access to your favorite channels with

the touch of a button.

Picture in Picture (PIP) -- Allows you to view two channels

simultaneously, (KV-27S46, 27S66, 27V66 only).

Universal Remote Control -- Program your remote control to operate

your connected cable box, VCR, digital satellite receiver or DVD

player.

Energy Star -- A recognized symbol of energy efficiency.

S VIDEO -- Avideo input that offers enhanced picture quality.

Direct MTS -- Allows direct access to changing your Multi-Channel

TV Sound: STEREO, SAP (Second Audio Program) or MONO, with

the touch of a button.

Front A/V inputs -- A quick connection for video games, camcorders

or stereo equipment, (KV-27V42, 27V66 only).

Batteries for the Remote Control

Insert two AA (R6) batteries (supplied) into the remote control using the

following illustrafioh as a guide.

About this Manual

This manual provides instructions to help you enjoy your new TV. It

shows you how to connect to an antenna or cable, cable box, VCR, DVD,

satellite receiver, stereo system or camcorder. Once you're connected,

follow the instructions to learn how to use the remote control to access

the on-screen menus.

Connecting Your TV

•.4 . •. o

This section covers basic connections maddition to any optional

equipment you may be connecting.

BasicConnections

TV with indoor or outdoor antenna, or CATVcable

Depending on the cable available in your home, choose one of the

connections below:

VltFMIF coaxJalcable,_(Reorofl_

or -"'- _VHF/UHF

CaMe

B VHFenly 300-ohmt_n

lead(able

or ...._ __ (RearofW)

UIIFonlyor__ VHF/UHF

VWFM_ Antenna€onneCtor"_

C_7._ohm

aml €oaxial

UHF _(Rear°fHFW)

300-ohmtwin

lead cable

Cable and antenna

KVo27S66,27V66 only

If your cable provider does not feature local channels, you may find this

set up convenient.

G_W cable (I)_ (Rear of TV)

AUX

(No €onnection "TO _ TO CONVERTER

CONVERTER" in this case)

Antenna cable _ll _,F'--"-_ VHF/UHF

Connecting Additional Equipment

TV and VCR

From

Cable/

antenna

•TV

VHFAJI_ _S_t(Y_)

VCR _. ,'_

3 (Optional connection)

Connect the coaxial cable from your TV antenna or cable TV to the IN

jack on your VCR.

Connect a coaxial cable (not supplied) from the OUT jack on your

VCR to the VHF/UHF IN jack on the TV.

(Optional connection)

3If your VCR is equipped with video inputs, for better picture quality

you should connect A/V cables to AUDIO and VIDEO OUT on your

VCR to AUDIO/VIDEO IN on your TV. You can use the _-o button

to switch between the TV and VCR inputs.

"IVand Cable Box

Cable Box _r

1_ IN

From

Cable

VID_31N

VHFAJHF NJO_ (JUT

_e @@ "'_"

Connect the coaxial cable from the wall to the IN jack on your cable

box.

Connect a coaxial cable (not supplied) from the OUT jack on your

cable box to the VHF/UHF IN jack on the TV.

TV, Cable box and Cable

I(V-27S66, 27V66 only

For this set up, you'can switch between scrambled channels (through

your cable box), and normal (CATV) channels by pressing _on your

remote control.

(Rear panel KV-27V66 only)

From

Cable

IN ....

@@@t@1

@K@@f@l

$v1_o

_u[o
