Sony TRINITRON KV-27V40 Bedienungsanleitung

SONY. 3-861-907-22

Trinitron °Color TV

Operating Instructions

KV-2OV80 KV-27S40 KV-27V40

KV-27S45 KV-27V45

KV-27S65 KV-27V65

Him Table of Contents

Welcome! ........................................ 3

Precautions ...................................... 3

Using This Manual .......................... 3

Connecting and Installing the TV

Mnki. HCin._lt hnln .......... ,l

Cable or Antenna Connections ...................... 5

Connecting direrlly to cable

I)l' inl ii1111,111111 ...................................

{ "rlhht iIlill _lliillllilri

Cable Box Connections ................................... 6

Cable box .......................................................... 6

Cable box and cable ........................................ 6

VCR Connections ............... _............................. 7

Connecting an antenna/cable "IV

system with a VCR .......................... 7

Connecting a VCR and "IV with a

cable box ........................................... 7

DBS Connections ............................................. 8

Connecting a DBS receiver ............................ 8

Connecting a DBS receiver and a

VCR .................................................... 9

Additional Connections ................................ 10

Connecting a DVD Player ........................... 10

Connecting an audio system ....................... 10

Connecting two VCRs for tape

*.,illl.g ti_lll g MI bNI'III 11(( H rl' .., I I

Connecting a camcorder .............................. 11

Basic Set Up

Using the remote control Move &

Select buttons ................................. 12

Adjustments bars ........................................... 12

Oil _'rtt, il I lell_/lnsirtit'lions ....................... ]2

Using your New TV

Settingup theTV automatically ..................13

Watching the TV ............................................14

Watching two programs at one

time--- PIP ....................................... 16

Using your Menus

Learning menu selection .............................. 18

Using the VIDEO menu ................................ 19

Using the AUDIO menu ............................... 20

Using the TIMER menu ................................ 22

I Illill_ Ihl_ HI_+I"I I1' lllltllii .............................. 2_1

Operating video equipment

I_rngrannnllll4 Ihe rt_lmltP ............................. _(I

Operating a cable box or DBS

receiver

Programming the remote ............................. 28

Troubleshooting ........................... 29

Specifications ................................ 30

Index .............................................. 32

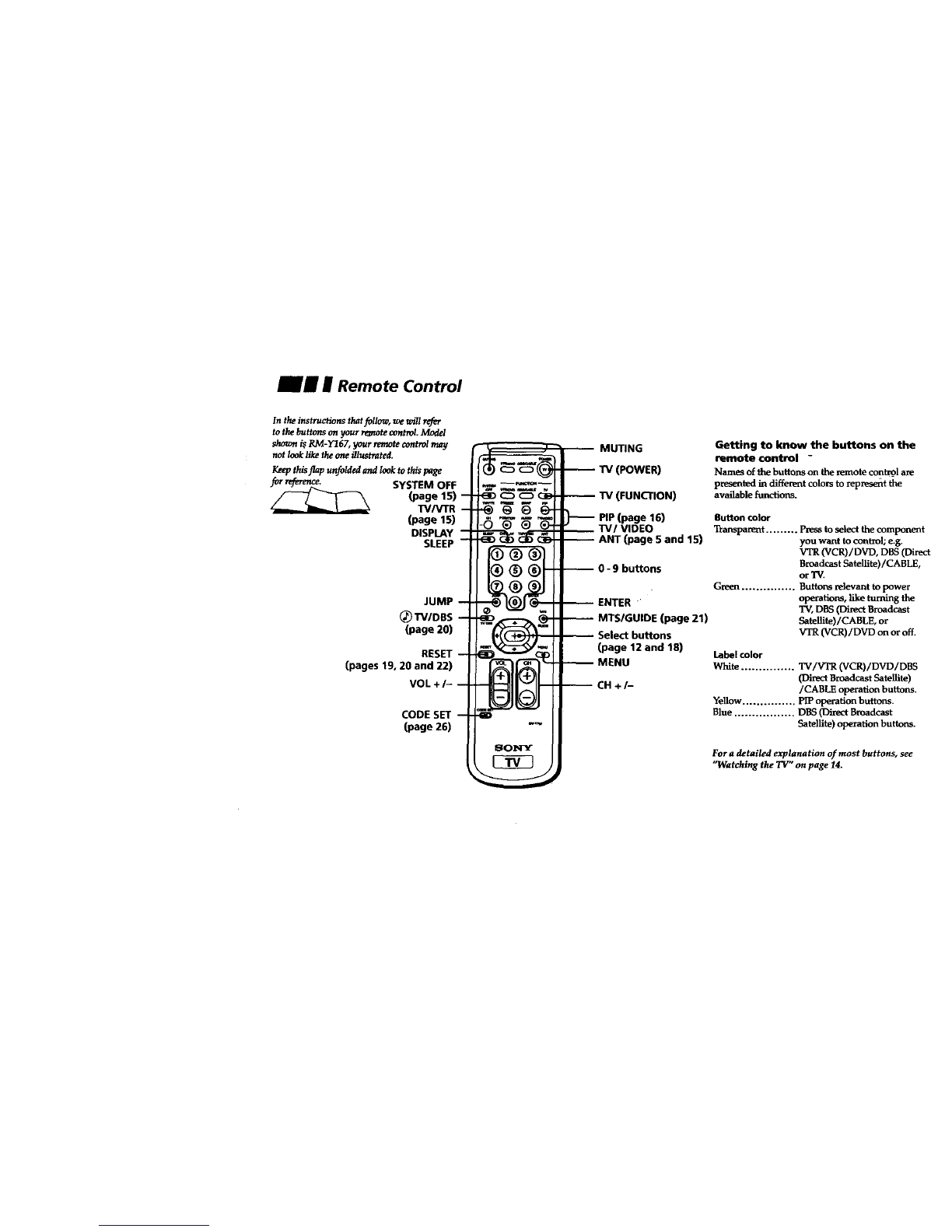

JrRemote Control

In the instructions that follow, we will refer

te the buttons on your remote controI. Model

shown i_ RM-Y167, your remote control may

not look like the one illustrated.

Keepthisflap unfolded and lookto this page

SYSTEM OFF

(page 15)

TWVTR

(page 15)

DISPLAY

SLEEP

JUMP

_TV/DBS

(page 20)

RESET

(pages19,20 and 22)

VOL+/-

CODE SET

(page 26)

-:®;

MUTING

TV(POWER)

TV (FUNCTION)

PIP(page 16)

"IV/VIDEO

ANT (page 5 and 15)

-- MTS/GUIDE (page 21)

Select buttons

(page 12 and 18)

-- CH +/-

Getting to know the buttons on the

remote control -

Names of the buttons on the remote contrgl are

presented in different colors to _prese_t the

available functions.

Button color

Transparent ......... Press to select the component

you want to control; e.g.

VTR (VCR)/DVD, D_S (Direct

Broadcast Satellite)/CABLE,

or 'IV.

Green ............... Buttons relevant to power

operations, like turning the

TV, DBS (Direct Broadcast

Satelllte)/CABLE, or

VTR (VCR)/DVD on or off.

Label color

White ............... TV/VTR (VCR)/DVD/DBS

(Direct Broadcast Satellite)

/CABIE operation buttons.

Yellow ............... PIP operation buttons.

Blue ................. DBS (Direct Broadcast

Satellite) operation buttons.

For a detailed explanation of most buttons, see

"Watching the TV" on page 14.

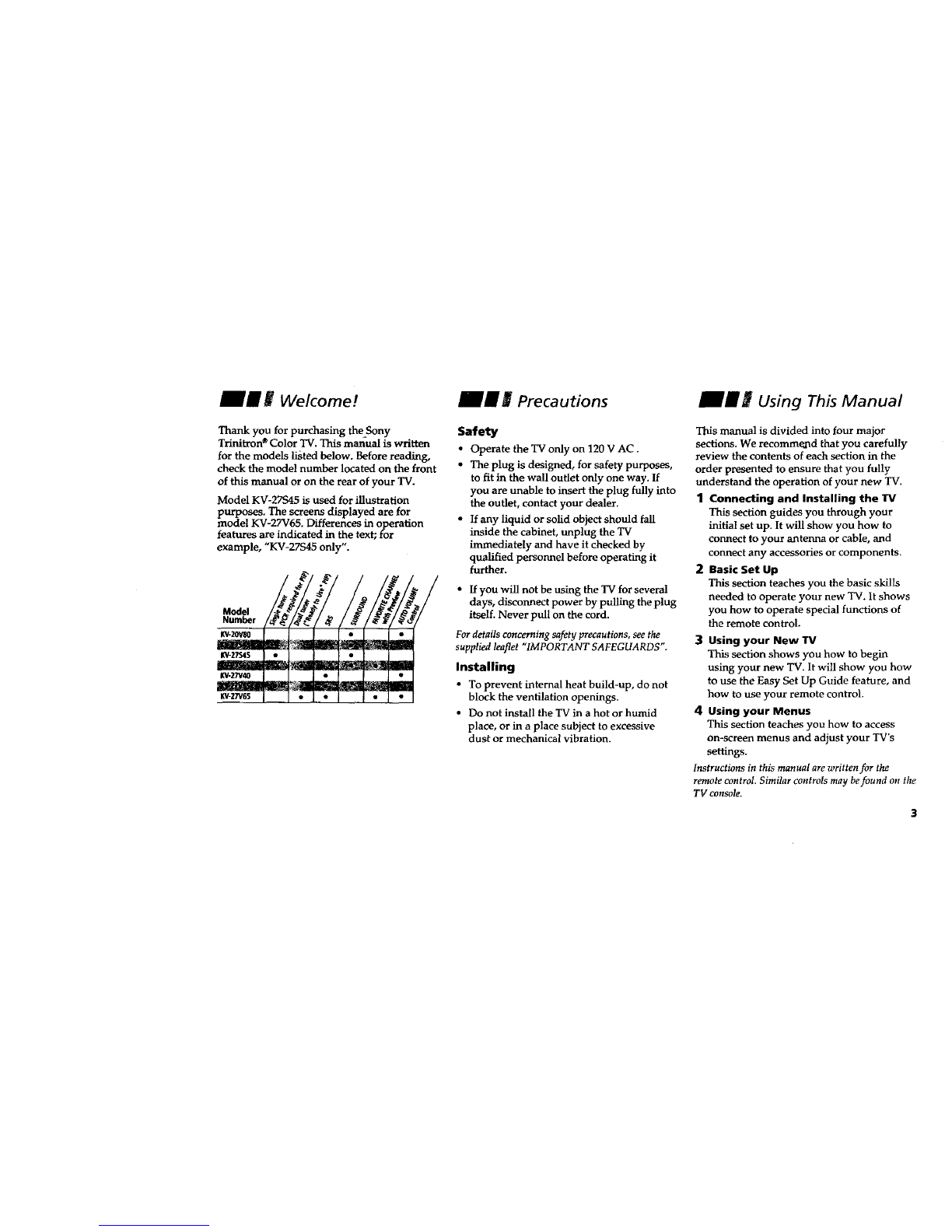

Welcome! Precautions Using This Manual

Thank you for purchasing the Sony

Trinitron ®Color TV. This manual is written

for the models listed below. Before reading,

check the model number located on the front

of this manual or on the rear of your TV.

Model KV-27S45 is used for illustration

purposes. The screens displayed are for

model KV-27V65. Differences in operation

features are indicated in the text; tor

example, "KV-27S45 only".

Model

Number

KV-2OVSO

KV-27S45

KV-27V40

I(V-27V65

Safety

•Operate the TV only on 120 V AC.

• The plug is designed, for safety purposes,

to fit in the wall outlet only one way. If

you are unable to insert the plug fully into

the outlet, contact your dealer.

•If any liquid or solid object should fall

inside the cabinet, unplug the TV

immediately and have it checked by

qualified personnel before operating it

further.

•If you will not be using the TV for several

days, disconnect power by pulling the plug

itselL Never pull on the cord.

For details concerning safety precautions, see the

supplied leaflet "IMPORTANT SAFEGUARDS".

Installing

•To prevent internal heat build-up, do not

block the ventilation openings.

•Do not install the TV in a hot or humid

place, or in a place subject to excessive

dust or mechanical vibration.

This manual is divided into four major

sections. We recomme2ad that you carefully

review the contents of each section in the

order presented to ensure that you fully

understand the operation of your new TV.

1 Connecting and Installing the TV

This section guides you through your

initial set up. It will show you how to

connect to your antenna or cable, and

connect any accessories or components.

2 Basic Set Up

This section teaches you the basic skills

needed to operate your new TV. It shows

you how to operate special functions of

the remote control.

3 Using your New TV

This section shows you how to begin

using your new TV. It will show you how

to use the Easy Set Up Guide feature, and

how to use your remote control.

4 Using your Menus

This section teaches you how to access

on-screen menus and adjust your TV's

settings.

Instructions in this manual are written for the

remote control. Similar controls may befound on the

TV console.

_" ! Connecting and Installing the TV

Making Connections

Refertothetablebelow,itwilldirectyou tothediagramsuitabletothecomponents you willbe

connecting.

Cable or antenna only 5

Cable and antenna (KV-27S65, 27V65 only) 5

Cable box 6

Cable box and cable to view scrambled channels (KV-27S65, 27V65 only) 6

VCR and cable or antenna 7

VCR and cable box 7

Direct Broadcast Satellite Receiver (DBS) 8

VCR and Direct Broadcast Satellite Receiver (DBS) 9

Digital Versatile Disc receiver (DVD) 10

Audio system 10

Two VCRs for tape editing (KV-27V40, 27V45, 27V65 only) 11

Camcorder to view tapes 11

Cable or Antenna Connections c

Connecting directly to cable or an

antenna

The connection you choose will depend on the

cable found in your home. Newer homes will

be equipped with standard coaxial cable

(see A); older homes will probably have

300-ohm twin lead cable (see B); still other

homes may contain both (see C).

• VHF only

•VHF/UHF

•Cable

75-ohm (Rearof TV)

coaxialcable VHF/UHF

300-ohm twin (Rear of TV)

•VHF only lead cable VHF/UHF

•UHF only

•VHF/UHF Antennaconnector

75-ohm coaxial cable

• VHF _l='_ (RearofTV)

EAC-66 U/V mixer

• UHF =====(_'J| # (not supplied)

300-ohmtwin leadcable

Cable and antenna

• KV.27S65,27V65only

If your cable provider does not feature local

channels, you may find this set up convenient.

Select Cable or ANT mode by pressing ANT

on the remote control. You will be able to

alternate between the two input sources.

(Rear of TV)

CATV cable AUX

aD'-- l

(No connection "TO TO CONVERTER

CONVERTER" in this case)

Antenna cable

VHF/UHF

Note

• In order to receive channels with an

antenna, you will need to turn your CABLE

to OFF (see page 23) and perform the

AUTO PROGRAM function.

Connecting and Installing the TV (continued)

Cable Box Connections

Some pay cable TV systems use scrambled or

encoded signals that require a cable box* to

view all channels.

Cable box

1 Connect the coaxial connector from your

cable to the IN on your cable box.

2Using a coaxial cable, connect OUT on

your cable box to VHF/UHF on your TV.

Cable box and cable

• KV-27S65,27V65only

For this set up, you can switch between

scrambled channels (through your cable box),

and normal (CATV) channels by pressing

ANT on your remote control.

Notes

• Your Sony remote control can be

programmed to operate your cable box.

(see page 28)

• When using PIP, you cannot view the

window picture with the AUX input.

Ifyouwillbecontrollingaflchannelselection I

throughyour cablebox, youshouldconsiderusing

the CHANNELFIXfeature discussedon page23.

(Rear of TV)

(;able VHF/UHF

iN I--_ OUT

*Cablebox

If you are connecting a cable box through the AUX input and would I

like to switch between the AUX and normal (CATV) input you should

consider using the CHANNEL FIX feature discussed on page 23.

*Cable box (Rear of TV)

scrambleo VERTE

7S-ohm coaxial v(signal)

cable (not supplied) VHF/UHF°

CATV cable

(unscrambled channels)

VCR Connections

Connecting an antenna/cable TV

system with a VCR

1Attach the coaxial connector from your cable

or antenna to IN on your VCR+

2 Using A/V connectors, connect AUDIO and

VIDEO OUT on your VCR to AUDIO and

VIDEO IN on your TV (Yellow-VIDEO,

White-AUDIO Left, Red-AUDIO Right).*

3Using a coaxial connector, connect OUT on

your VCR to VHF/UHF on your TV.

• If you a_e connecting a monaural VCR, connect only the

single white audio output to the left input on your "IV.

Disconnect aft power sources before making any connections.

VCRmust be connected and

turned on to operate PIP

(KV-27S45, 271/45 only).

Coaxial cable

VCR

m_ _ AmOR_L _0_ SW_

1 " _ _1

(Rear of TV)

VMC-810S/820S (not supplied)

Ired)

[white)

(yellow)

Connecting a VCR and lrv with a

cable box

You will need a splitter (not supplied) for the

following connection.

1Connect the single (input) jack of the splitter

to your incoming cable connection. Connect

the other two (output) jacks (using coaxial

cable) to IN on your cable box and VHF/UHF

on your TV.

2Using acoaxial connector, connect OUT on

your cable box to IN on your VCR.

3 Using A/V connectors, connect AUDIO and

VIDEO OUT on your VCR to AUDIO and

VIDEO IN on your TV (Yellow-VIDEO,

White-AUDIO Left, Red-AUDIO Right).

For optimum picture quality, use S VIDEOinstead of I

the yellow AN cable. S Video does not provide sound,

your audio connectors must still be connected.

1Cable

Splitter Cable box

(not supplied)

Coaxial cable

VCR

[+:

(Rear of TV)

VMC-810S/820S (not supplied)

(redl

(white)

[yellow)

_ _ Connecting and Installing the TV (continued)

Disconnect all power sources before making any connections.

DBS Connections

Connecting a DBS (Direct

Broadcast Satellite) receiver

1 Connect the cable from your satellite

antenna to your DBS receiver.

2 Attach the coaxial connector from your

cable or antenna to VHF/UHF on your

TV.

3 Using A/V connectors, connect AUDIO

and VIDEO OUT on your DBS receiver to

AUDIO and VIDEO IN on your TV.

For optimum picture quality, use S VIDEO (Rear of TV)

instead of the yellow A/V cable. S Video does L

not provide sound, your audio connectors _©

muststill be connected. 2

wFu_

Satellite I _c_ _)_)_ _1 _L_l

cable _AUDIO-R (red)

V _ AUDIO-L(white)

3_VIDEO (yellow)

VMC-810S/820S (not supplied)

DBS Connections (continued)

Connecting a DB$ (Direct Broadcast

Satellite) receiver and a VCR

1 Connect the cable from your satellite

antenna to your DBS receiver•

2 Attach the coaxial connector from your

cable or antenna to VHF/UHF IN on your

VCR.

3Using acoaxial connector, connect

VHF/UHF OUT on your VCR to

VHF/UHF on your TV.

4 Using A/V connectors, connect AUDIO

and VIDEO OUT on your DBS receiver to

AUDIO and VIDEO IN on your VCR.

5 Using A/V connectors, connect AUDIO

and VIDEO OUT on your VCR to AUDIO

and VIDEO IN on your TV.

Disconnect all power sources before making any connections.

For optimum picture quality, use S VIDEO instead of

the yellow AN cable. S Video does not provide sounc

your audio connectors must still be connected.

DBS receiver

VMC-810S/820S (not supplied)

IVCR _ I

(Rear of TV)

VMC-810S/820S (not supplied)

iv_o

EAUDIO-R (red)

AUDIO-L (white)

VIDEO (yellow)

Note

•To view from the DBS or VCR, select the

video input to which your DBS receiver or

VCR is connected by pressing TV/VIDEO

on the remote control.

Andere Handbücher für TRINITRON KV-27V40

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Sony Fernseher Handbücher

Sony

Sony Bravia KD-75XH92 Series Bedienungsanleitung

Sony

Sony Bravia XBR-98Z9G Bedienungsanleitung

Sony

Sony TRINITRON KV-32FV27 Bedienungsanleitung

Sony

Sony KV-36FV300 - 36" Trinitron Wega Bedienungsanleitung

Sony

Sony KV-32XBR400 Bedienungsanleitung

Sony

Sony TRINITRON KV-M19D Bedienungsanleitung

Sony

Sony KDL26E4000U Bedienungsanleitung

Sony

Sony BRAVIA XBR-85X950G Bedienungsanleitung

Sony

Sony Trinitron KV-38DRC2 Bedienungsanleitung

Sony

Sony KDL-22P5500 Bedienungsanleitung

Sony

Sony Trinitron KV-27XBR96S Bedienungsanleitung

Sony

Sony FD Trinitron KV-29LS60B Bedienungsanleitung

Sony

Sony XR65A95K Bedienungsanleitung

Sony

Sony Trinitron KV-SA32 Bedienungsanleitung

Sony

Sony M91 Bedienungsanleitung

Sony

Sony Trinitron KV-27S20 Bedienungsanleitung

Sony

Sony KDF-37H1000 - 37" Bravia 3lcd Microdisplay Projection... Bedienungsanleitung

Sony

Sony BRAVIA XR-75 9 K Series Bedienungsanleitung

Sony

Sony Bravia KD-49XF9005 Referenzhandbuch

Sony

Sony Bravia KDS-60A3000, KDS-50A3000, KDS-55A3000 Bedienungsanleitung

Sony

Sony FD Trinitron WEGA KV-36HS510 Bedienungsanleitung

Sony

Sony FD Trinitron WEGA KV-XJ29 Bedienungsanleitung

Sony

Sony KV-X2561A Bedienungsanleitung

Sony

Sony Trinitron KV-2199M5J Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
