Sony Trinitron KV-ES34 Bedienungsanleitung

Sony KV-ES34 Group A2 (GB)_3-867-756-22 (1)

TrinitronColor TV

KV-ES34

KV-ES29

3-867-756-22 (1)

Operating Instructions

• Before operating the unit, please read this manual thoroughly and retain

it for future reference.

M91

M81

M80

M31

01/00-01_ES34M91.11GB 31/07/02, 10:47 AM1

Sony KV-ES34 Group A2 (GB)_3-867-756-21 (1)

WARNING

• Dangerously high voltages are present inside the TV.

• Operate the TV only between 110 – 240 V AC.

To prevent fire or shock hazard, do not expose

the TV to rain or moisture.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not open the cabinet and the rear cover of the

TV. Refer servicing to qualified personnel. Do not install the TV in hot, humid or excessively

dusty places.

Do not install the TV in a confined space, such

as a bookcase or built-in cabinet.

Do not block the ventilation openings of the TV.

Install the TV in a stable position. Do not allow

children to climb onto it.

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals

to clean the TV. Do not scratch the picture tube.

For your own safety, do not touch any part of the

TV, the power cord and the antenna cable during

lightning storms.

Pull the power cord out by the plug. Do not pull

the power cord itself. Disconnect the TV if you

are not going to use it for several days.

02/02-02_ES34M91.11GB 31/07/02, 9:50 AM2

Sony KV-ES34 Group A2 (GB)_3-867-756-21 (1)

Using Your New TV

Table of Contents

WARNING

Using Your New TV

Getting Started ............................................................................................. 4

Step 1: Connect the antenna .................................................................. 4

Step 2: Insert the batteries into the remote .......................................... 5

Step 3: Preset the channels automatically ........................................... 5

Connecting optional components ............................................................. 6

Securing the TV ............................................................................................ 9

Watching the TV ........................................................................................ 10

Advanced Operations

Selecting the picture and sound

modes .................................................. 14

Viewing higher quality pictures ...... 15

Viewing your favorite channels ....... 16

Watching two programs at the same

time ...................................................... 17

Displaying multiple programs ........ 19

Listening with surround sound ....... 22

Enjoying stereo or bilingual

programs (KV-ES34M91/ES34M31/

ES29M31 only) .................................... 23

Viewing Teletext (KV-ES34M91/

ES34M81/ES34M31/ES29M81/

ES29M31 only) .................................... 25

Operating optional components ...... 27

Adjusting Your Setup (MENU)

Introducing the menu system .......... 29

Changing the “A/V CONTROL”

setting ............................................ 32

Changing the “MULTI PICTURE”

setting ............................................ 35

Changing the “FEATURE”setting

.. 37

Changing the “SET UP” setting ..

Changing the “CH PRESET”

setting ........................................... 42

Additional Information

Self-diagnosis function ...................... 45

Troubleshooting ................................. 46

Identifying parts and controls ......... 50

Specifications ...................... Back cover

The features you will enjoy include:

• “DRC-MF” for viewing higher quality

pictures (page 15)

• “FAVORITE CH” for quick and easy

program selection (page 16)

• “PIP” & “TWIN” for viewing two

programs (page 17)

• “PROGRAM INDEX“ for displaying

multiple programs (page 19)

• “PICTURE MODE”/“SOUND MODE”/

“SURROUND” for customizing your TV

(pages 14 and 22)

•

“WIDE MODE” to view 16:9 pictures (page 38)

Your TV also offers the following features:

• Menu language options

— English/Chinese/Arabic (page 12)

• “CHILD LOCK” for locking out specific

channels (page 40)

• “INTELLIGENT VOL” for automatic

volume adjustment (page 39)

• “FINE” tuning feature (page 44)

• Button Joystick on the remote control

for easier operation (page 12)

•

“ECO MODE” to save energy (page 38)

•

“GAME MODE” for video games (page 38)

03/03-03_ES34M91.11GB 31/07/02, 9:52 AM3

4Using Your New TV

Sony KV-ES34 Group A2 (GB)_3-867-756-22 (1)

Getting Started

Step 1

Connect the antenna

If you wish to connect a VCR, see the “Connecting a VCR” diagram below.

CAUTION

Do not connect the power cord until all other connections are complete;

otherwise, a minimal current leakage through the antenna and/or other

terminals to the ground could occur.

Connecting a VCR

To play a video tape, press t(see page 11).

Using Your New TV

: Signal flow

IEC connector

(not supplied)

Antenna cable (not supplied)

Rear of TV

To video and

audio outputs

To S video

output

Audio/Video cable

(not supplied)

S video cable

(not supplied)

: Signal flow

(S video input)

VCR

Antenna cable (not supplied)

To antenna

output

To (antenna)

VIDEO

VIDEO IN

VIDEO OUT

AUDIO

R L

(MONO)

DIGITAL IN

(DOLBY DIGITAL/PCM)

Rear of TV

To t1, 2 or 3 (video input)

(yellow)

-L (MONO) (white)

-R (red)

04/04-09_ES34M91.11GB 31/07/02, 9:52 AM4

Using Your New TV

Sony KV-ES34 Group A2 (GB)_3-867-756-22 (1)

Using Your New TV

Notes

• If you connect a monaural VCR, connect the yellow plug to (the yellow

jack) and the black plug to -L (MONO) (the white jack).

• If you connect a VCR to the 8(antenna) terminal, preset the signal

output from the VCR to the program number 0 on the TV.

• When both the (S video input) and t1 (video input) are connected,

the (S video input) is automatically selected. To view the video input

to t1 (video input), disconnect the S video cable.

Step 2

Insert the batteries into

the remote

Notes

• Do not use old batteries or different types of batteries together.

• To operate some of the functions of your TV, you may have to open the

remote control cover.

Step 3

Preset the channels automatically

Notes

• To stop the automatic channel presetting, press MENU twice.

• If your TV has preset an unwanted channel or cannot preset a particular

channel, then preset your TV manually (see page 43).

• To open the side panel of your TV, push on it until you hear a click, then it

will open.

AUTO

PROGR

≥

…4

AUTO

PROGR

AUTO PROGRAM

TV SYS : AUTO

VHF LOW

PR:

(MONO)

AUTO

PROGR

≥

…4

(MONO)

PUSH

Side panel

04/04-09_ES34M91.11GB 31/07/02, 9:52 AM5

6Using Your New TV

Sony KV-ES34 Group A2 (GB)_3-867-756-22 (1)

Connecting optional components

You can connect optional audio/video components, such as a VCR, multi disc player,

camcorder, video game, or stereo system. To watch and operate the connected

equipment, see pages 11 and 27.

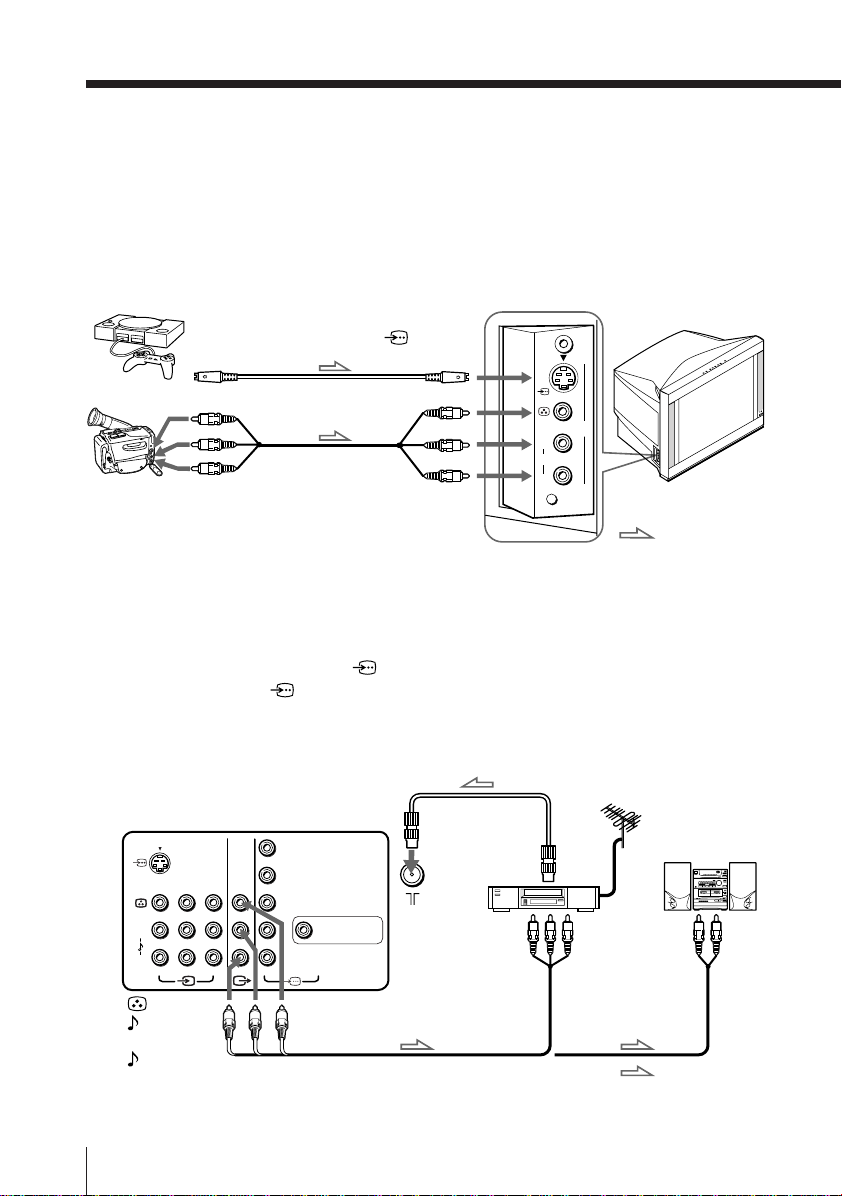

Connecting a camcorder/video game equipment

using the t(video input) jacks

Notes

• When connecting video game equipment, display the “FEATURE” menu

and select “ON” for “GAME MODE” to adjust the picture setting that is

suitable for video games (see page 38).

• You can also connect video equipment to the t1, 2, or 3 (video input)

jacks at the rear of your TV.

• When both the (S video input) and t4 (video input) are connected,

the (S video input) is automatically selected. To view the video input

to t4 (video input), disconnect the S video cable.

Connecting audio/video equipment using the T

(monitor output) jacks

Note

• If you select “DVD” on your TV screen, no signal will be output at the

T (monitor output) jacks (see page 11).

: Signal flow

To S video output

Side panel

Camcorder

Video game equipment

To video and

audio outputs

(S video input)

To …4

(video input)

Audio/Video cable

(not supplied)

S video cable

(not supplied)

(yellow)

-L (MONO)

(white)

-R (red)

Rear of TV

antenna

output

To video and

audio inputs

Audio system

audio

inputs

VCR

: Signal flow

To T

(monitor

output)

Antenna cable (not supplied)

Audio cable

(not supplied)

Audio/Video cable (not supplied)

AUTO

PROGR

≥

…4

(MONO)

123

DIGITAL IN

(DOLBY DIGITAL/PCM)

04/04-09_ES34M91.11GB 31/07/02, 9:53 AM6

Using Your New TV

Sony KV-ES34 Group A2 (GB)_3-867-756-22 (1)

Using Your New TV

Connect To (on the DVD player)

Y (green) Y

CB(blue) Cb, B-Y or PB

CR(red) Cr, R-Y or PR

Connecting a DVD player to (component video input)

1 Using an audio cable, connect R and L under (component video input) on your

TV to the LINE OUT, AUDIO R and L output connectors on your DVD player.

2 Using a coaxial digital connecting cord, connect DIGITAL IN under (component

video input) on your TV to the DIGITAL OUT, COAXIAL output connector on your

DVD player.

3 Using a component video cable, connect Y, CB, and CRunder (component video

input) on your TV to the COMPONENT VIDEO OUT Y, CB, and CRoutput

connectors on your DVD player.

4 Press ton the remote or the TV until “DVD” appears on the screen.

To component

video output

Component video cable

(not supplied)

DVD

player

To L (white)

R (red)

To audio

output

Audio cable (not supplied)

: Signal flow

(component video input)

To coaxial

digital

output

Coaxial digital

connecting

cord (not

supplied)

To DIGITAL IN

(digital input)

VIDEO

COAXIAL

OPTICAL

R-AUDIO-L

LINE OUT

COMPONENT VIDEO OUT

S VIDEO OUT

DIGITAL OUT R

DIGITAL IN

(DOLBY DIGITAL/PCM)

continued

Notes

• Some DVD player terminals may be labeled differently:

• When connecting to (component video input) on your TV, you must

connect Y, CB, and CR to receive the video signals, and at least connect

DIGITAL IN to receive digital audio signals or connect L and R to receive

analog audio signals (see page 34).

• When making connections to DIGITAL IN under (component video

input) on your TV, always set “DIGITAL IN: OFF” in the “A/V

CONTROL” menu. After completing all connections, then set “DIGITAL

IN: ON”. If you set “DIGITAL IN: ON” while still making connections to

DIGITAL IN (component video input), a loud noise may suddenly

come out from the speakers, affecting your hearing and causing damage

to the speakers (see page 34).

04/04-09_ES34M91.11GB 31/07/02, 9:53 AM7

8Using Your New TV

Sony KV-ES34 Group A2 (GB)_3-867-756-22 (1)

VIDEO

R-AUDIO-L

LINE OUT

(MONO)

123

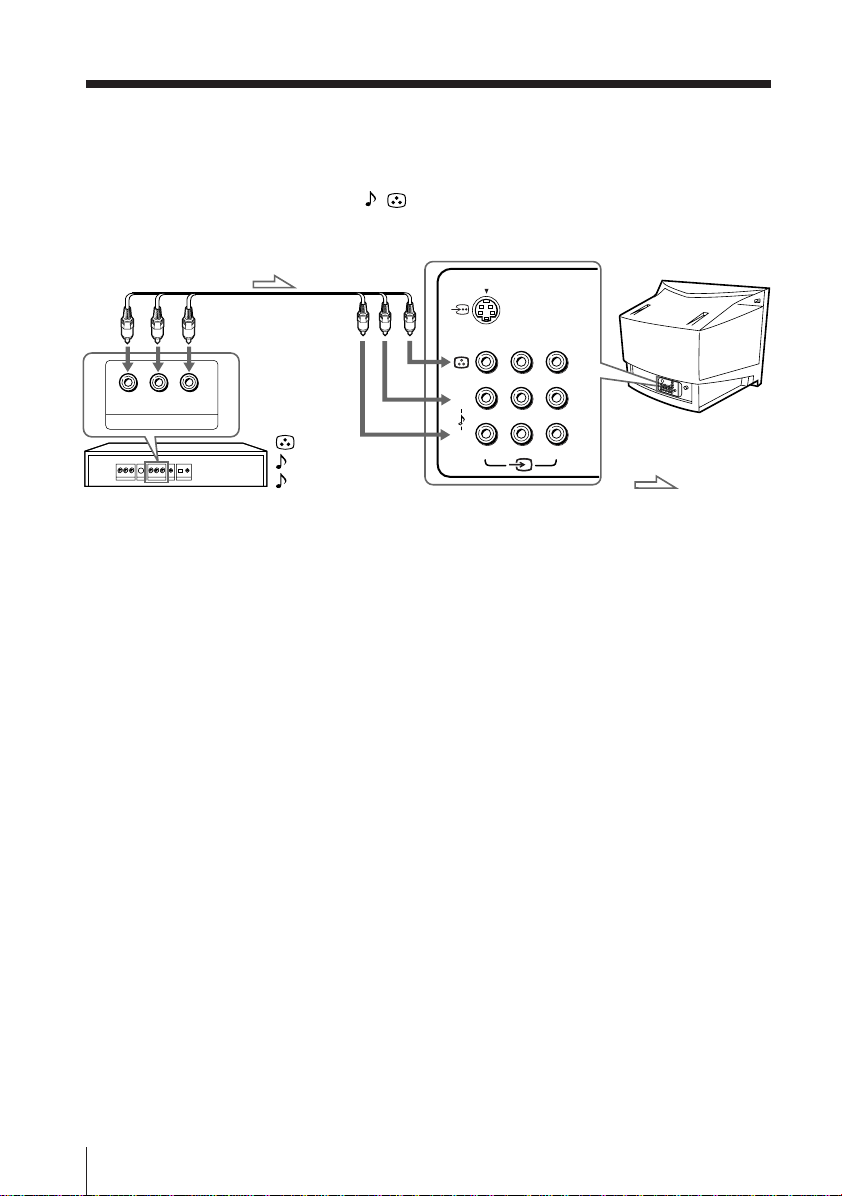

Connecting a DVD player to t(video input)

Connect t1, 2, or 3 (video input) /(audio/video) connectors on your TV to

LINE OUT on your DVD player.

To audio/video

output

(yellow)

-L (MONO) (white)

-R (red)

To t1, 2, or 3

(video input)

: Signal flow

Audio/Video cable

(not supplied)

Connecting optional components (continued)

Notes

• Since the high quality pictures on a DVD disc contain a lot of information,

picture noise may appear. In this case, adjust the sharpness (“SHARP”)

under “PERSONAL ADJUST” in the “PICTURE MODE” menu (see

page 33).

• Connect your DVD player directly to your TV. Connecting the DVD

player through other video equipment will cause unwanted picture noise.

04/04-09_ES34M91.11GB 31/07/02, 9:53 AM8

Using Your New TV

Sony KV-ES34 Group A2 (GB)_3-867-756-22 (1)

Using Your New TV

20 mm

Securing the TV

To prevent the TV from falling, secure the TV using one of the following methods:

AWith the supplied screws, attach the stabilizer band to the TV stand and to

the rear of the TV using the provided hole.

BPass a cord or chain through the clamps and secure them to the rear of the

TV and a wall or pillar.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

3.8 mm

04/04-09_ES34M91.11GB 31/07/02, 9:53 AM9

10 Using Your New TV

Sony KV-ES34 Group A2 (GB)_3-867-756-22 (1)

Number buttons

PROGR +/–

Watching the TV

This section explains various functions

and operations used while watching the

TV. Most operations can be done using

the remote.

123

456

MENU PROGR

ENTER

JUMP

A/B

DRC-MF

FAVORITE PROGR

INDEX

PIC

MODE SOUND

MODE SURROUND

–

PROGR

ENTERMENU –

…

123

456

JUMP

PROGR

1Press !to turn on the TV.

When the TV is in standby

mode (the 1indicator on

the TV is lit red), press 1/1

on the remote or on the TV.

2Press PROGR +/– or the

number buttons to select

the TV channel.

For double digit numbers,

press ÷, then the number

(e.g., for 25, press ÷, then

2 and 5).

Note

• When you turn on the TV, either the program number or video mode is

displayed for approximately 40 seconds. The ECO MODE ( ) icon will

also appear if “ECO MODE” in the “FEATURE” menu is set “ON” (see

page 38).

To select a TV program quickly

(1) Press and hold PROGR +/–.

(2) Release PROGR +/– when the desired program number appears.

Note

• When you select a TV program quickly, the picture may be disrupted.

This does not indicate a malfunction.

1indicator

05/10-13_ES34M91.11GB 31/07/02, 9:54 AM10

Andere Handbücher für Trinitron KV-ES34

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Sony Fernseher Handbücher

Sony

Sony TRINITRON KV-XF25N90 Bedienungsanleitung

Sony

Sony BRAVIA KDL-32XBR9 Bedienungsanleitung

Sony

Sony KDL-32S20L1 - 32" Bravia Lcd Digital Color... Bedienungsanleitung

Sony

Sony BRAVIA X89J Bedienungsanleitung

Sony

Sony BRAVIA KD43XG7077SAEP Bedienungsanleitung

Sony

Sony Trinitron KV-20M20 Bedienungsanleitung

Sony

Sony BRAVIA KDL-32R300C Bedienungsanleitung

Sony

Sony TRINITRON KV-36FS13H Bedienungsanleitung

Sony

Sony KDL-32EX305 Bedienungsanleitung

Sony

Sony GrandWega KDF-46E2000 Bedienungsanleitung

Sony

Sony TRINITRON KV-27V40 Bedienungsanleitung

Sony

Sony TRINITRON KV-HR29M91 Bedienungsanleitung

Sony

Sony KV-28FQ75 B Bedienungsanleitung

Sony

Sony KV-25F3A Bedienungsanleitung

Sony

Sony KD-49 E70 Series Bedienungsanleitung

Sony

Sony TRINITRON KV-HA14M80 Bedienungsanleitung

Sony

Sony BRAVIA Bedienungsanleitung

Sony

Sony Trinitron KV-EX29M93 Bedienungsanleitung

Sony

Sony BRAVIA KD-55X9077H Bedienungsanleitung

Sony

Sony KDL-40V2500 - Bravia V-series Lcd Hdtv Bedienungsanleitung

Sony

Sony Trinitron KV-27S20 Bedienungsanleitung

Sony

Sony KDL-32EX421 Bedienungsanleitung

Sony

Sony Trinitron KV-14FV1U Bedienungsanleitung

Sony

Sony Trinitron WEGA KV-SZ29M91K Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
