•Before operating the unit, please read this manual thoroughly and retain

it for future reference.

Advanced Operations

Customizing the picture and sound.......................................................14

Blocking the channels (CHILD LOCK)..................................................16

Additional Information

Self-diagnosis function..............................................................................17

Troubleshooting.........................................................................................18

Identifying parts and controls.................................................................21

Specifications..............................................................................Back cover

Using Your New TV

The features you will enjoy include:

•PICTURE MODE/SOUND MODE for customizing your TV (page 14)

Your TV also offers the following setup features:

•On-screen display language options – English/Chinese (page 12)

•CHILD LOCK for preventing children from watching certain channels (page 16)

•INTELLIGENT VOL for automatic volume adjustment (page 12)

Table of Contents

WARNING

Using Your New TV

Getting Started.............................................................................................4

Step 1: Connect the antenna..................................................................4

Step 2: Insert the batteries into the remote..........................................5

Step 3: Preset the channels automatically...........................................5

Connecting optional components.............................................................6

Securing the TV (KV-PF21M70/PF21M40/PF21P70/PF21Q70/

PF21Q40 only)..............................................................................................7

Presetting channels......................................................................................8

Watching the TV........................................................................................11

4Using Your New TV

Getting Started

Step 1

Connect the antenna

If you wish to connect a VCR, see the “Connecting a VCR” diagram below.

Using Your New TV

IEC connector

(not supplied)

To video and

audio outputs

VCR

(yellow)

(black)

Antenna cable (not supplied)

To t1

(video input)

Audio/Video cable

(not supplied) : Signal flow

To antenna

output

Antenna cable

(not supplied)

Rear of TV

Connecting a VCR

To watch the video, press t(see page 12).

: Signal flow

VIDEO

VIDEO IN

VIDEO OUT

AUDIO

Rear of TV

To ˘

(antenna)

Using Your New TV

Preset the channels automatically

Tips

•If you want to stop automatic channel presetting, press SELECT twice.

•If your TV has preset an unwanted channel or cannot preset a particular

channel, then preset your TV manually (see page 9).

Note (KV-PF21M70/PF21M40/PF14M70/PF14M40)

•During automatic channel presetting, your TV screen will indicate “B/G”,

“I”, “D/K” or “M” for the TV system.

Now You Are Ready. . .

To watch your TV, see page 11.

Notes

•If you connect a stereo VCR, connect the yellow plug to (the yellow

jack) and the white plug to (the black jack).

•If you connect a VCR to the 8(antenna) terminal, preset the signal

output from the VCR to the program number 0 on the TV.

•When no signal is input to the connected video equipment, the TV screen

becomes blue.

Step 2

Note

•Do not use old batteries nor use different types of batteries together.

Step 3

CAUTION

Do not connect the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

Insert the batteries

into the remote

Front of TV

VHF LOW B/G

6Using Your New TV

Connecting optional components

You can connect optional video components, such as a VCR, multi disc player,

camcorder or video game.

To watch the picture of the connected equipment, press t(see page 12).

Connecting a camcorder/video game equipment

using the t(video input) jacks

Note

•You can also connect video equipment to the t1 (video input) jacks at

the rear of your TV.

Connecting video equipment using the T

(monitor output) jacks

Note

•When connecting a stereo VCR, connect the yellow plug to (the yellow

jack) and the white plug to (the black jack).

Front of TV

Camcorder

Video game

equipment

To video and

audio outputs

(yellow)

(black)

Rear of TV

antenna

outputVCR

: Signal flow

To t2

(video input)

To T

(monitor

output)

Audio/Video cable (not supplied)

Antenna cable (not supplied)

Audio/Video cable (not supplied) : Signal flow

To video

and audio

inputs

Using Your New TV

Securing the TV

To prevent the TV from falling, secure the TV using one of the following methods:

AWith the supplied screws, attach the band to the TV stand and to the rear of

the TV using the provided hole.

BPut the cord or chain through the clamps to secure the TV against a wall or

pillar.

Note

•Use only the supplied screws. Use of other screws may damage the TV.

3.8mm

(KV-PF21M70/PF21M40/PF21P70/PF21Q70/PF21Q40 only)

8Using Your New TV

123

789

÷0

JUMP

SOUND

MODE

FAVORITE

PROGRÁ

Presetting

channels

You can preset up to 100 TV channels in

numerical sequence from program

number 1 using the remote and the

buttons on your TV as well.

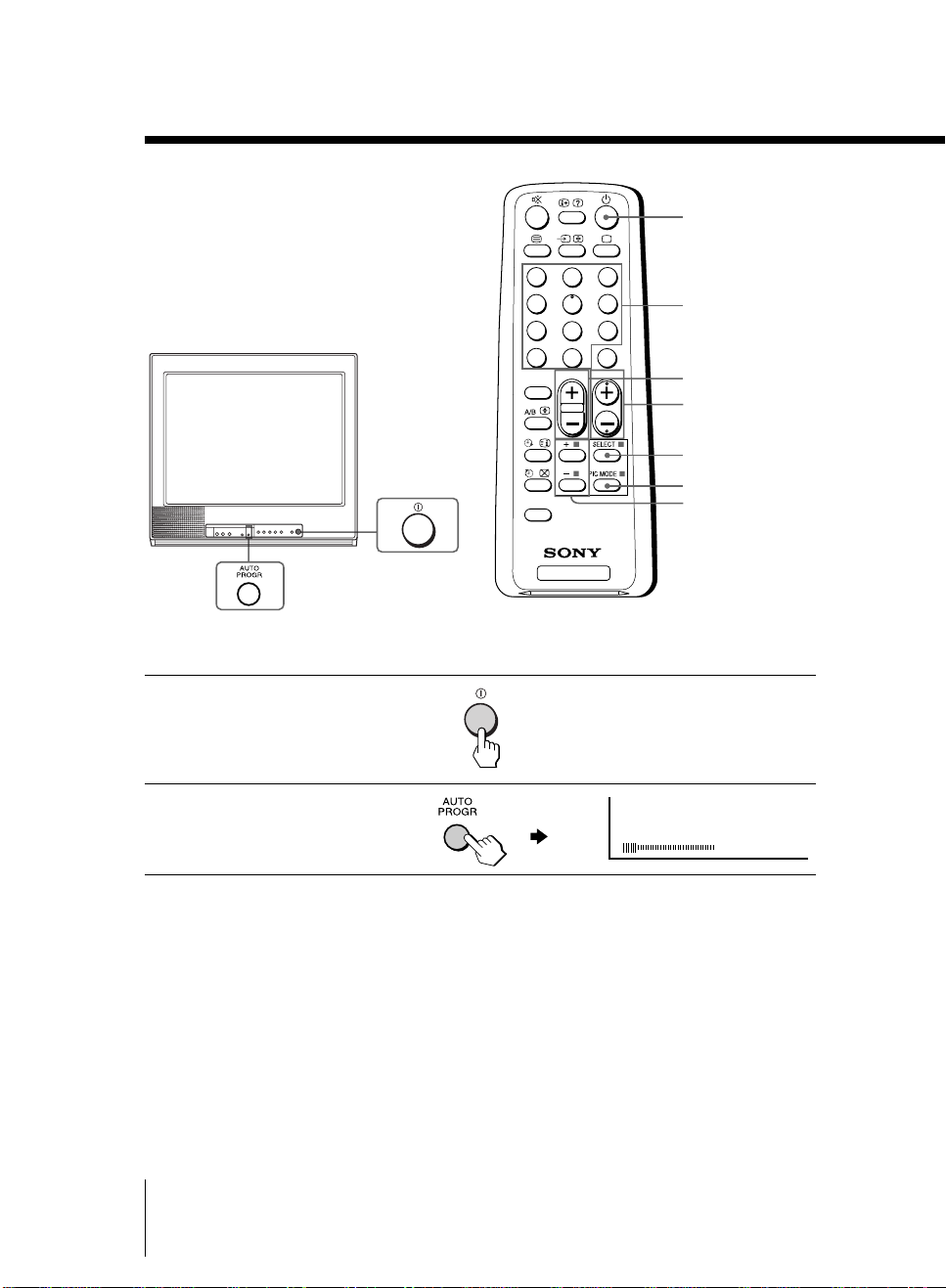

Presetting channels automatically

1Press !to turn on the TV.

2Press AUTO PROGR.

Note (KV-PF21M70/PF21M40/PF14M70/PF14M40)

•During automatic channel presetting, your TV screen will indicate “B/G”,

“I”, “D/K” or “M” for the TV system.

To preset channels automatically from a specified program number

(1)Press SELECT until “AUTO PROGRAM” appears.

(2)Press + or –.

The on-screen display will start flashing.

(3)Press PROGR +/– or the number buttons until the desired program number

appears.

(4)Press + or –.

Number buttons

SELECT

2+/–

PROGR +/–

+ or –

PIC MODE

VHFLOWB/G

Using Your New TV

Presetting channels manually

1Press SELECT until

“MANUAL PROGRAM”

appears.

2Press + or –.

3Press PROGR +/– or the

number buttons until the

desired program number

appears.

4Press + or – until the

desired channel picture

appears.

5Press SELECT.

To change the color system setting

If the color is abnormal when receiving programs through the

(antenna) terminal

or the

(video input) jack

(1)Press SELECT until “COLSYS” appears.

(2)Press + or – to select the appropriate color

system until the color is optimal.

Tip

•Normally set “COLSYS” to “AUTO”.

Note

•The color system “SECAM” is not available for KV-PF21P70/PF14P70.

The color system “NTSC3.58” is not available for KV-PF21Q70/PF21Q40/

PF14Q70/PF14Q40. continued

MANUAL PROGRAM

SELECT

VHFLOWB/G

123

456

-/--

PROGR

SELECT

COL SYS: AUTO

AUTO PAL SECAM

NTSC 3.58NTSC 4.43

10 Using Your New TV

To change the TV system setting

(KV-PF21M70/PF21M40/PF14M70/PF14M40 only)

If the picture or sound is abnormal when receiving programs through the

(antenna)

terminal

(1)Press SELECT until “TV SYS” appears.

(2)Press + or – to select the appropriate

TV system until the picture or sound

quality is optimal.

Skipping program numbers

1Press PROGR +/– or the number buttons until the unused or unwanted

program number appears.

2Press SELECT until “MANUAL PROGRAM” appears.

3Press + or –.

4Press PIC MODE.

5Press SELECT.

To preset the skipped program number again

Preset the channel automatically or manually.

Tip

•You can also use SELECT and 2+/– on the TV to preset channels and

skip program numbers.

To use the fine tuning (FINE) function

The fine tuning (FINE) function may help to reduce the following problems: double

images and lines moving across the TV screen.

You can use the fine tuning function as below:

(1) Select the program number you want to adjust.

(2) Press SELECT until “MANUALPROGRAM” appears on the screen.

(3) Press + or – on the remote control once.

(4)Press to display “FINE” on the screen.

(5)Press + or – continuously until the above problems are minimized.

The + or – icon on the screen flashes while tuning.

(6)Press SELECT to return to normal screen.

Presetting channels (continued)

TV SYS: B/G

B/G ID/K M
