Sony Trinitron KV-T21TF2 Bedienungsanleitung

3-861-104-11 (1)

Trinitron Color TV



Operating Instructions

KV-T21TF2

– PROGR +

SELECT

PROGR

VHF LOW D/K

SELECT

Getting Started -EN

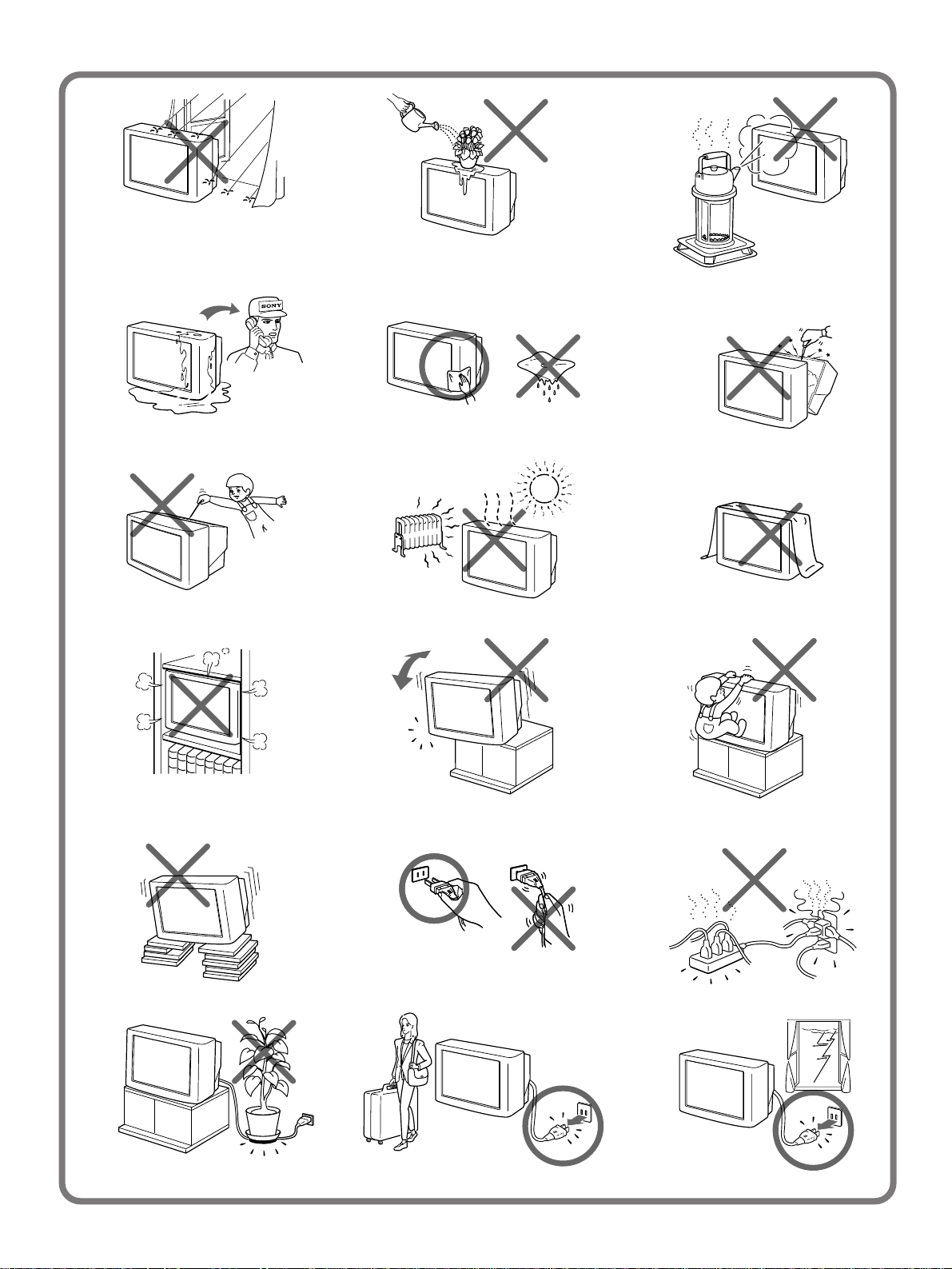

WARNING Table of contents

• Dangerously high voltages are present inside the TV.

• Operate the TV only at 110-240 V AC.

• Do not open the cabinet and the rear cover of the TV.

Refer servicing to qualified personnel.

• To prevent fire or shock hazard, do not expose the TV

to rain or moisture.

• Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by qualified

personnel only.

• Do not block the ventilation openings.

• Do not install the appliance in a confined space, such

as a bookcase or built-in cabinet.

• Do not install the TV in hot, humid or excessively

dusty places.

• Do not install the TV where it may be exposed to

mechanical vibrations.

• Do not keep the TV plugged in if you are not going to

use it for several days.

• Do not pull the power cord to disconnect the TV. Pull

it out by the plug.

• Use only the supplied screws (as shown on page 2) to

fasten the TV to the TV stand or to stabilize the TV

against a wall or a pillar. Use of other screws may

damage the TV.

Note on the remote commander

• The supplied remote commander is used on several models of

the TV. If you do not find instructions for some controls that

are on the remote commander, that means your TV does not

employ the features of those controls, e.g. .

Notes

• When you turn on the TV, you may hear the “boon” sound

that is caused by the demagnetization of the TV. This does not

indicate a malfunction.

• The picture color may become abnormal if you change the

direction of your TV. To obtain the normal picture color, press

Uon the TV to turn off the TV for five minutes and then turn it

on again.

• Design and specificafions are subject to change without notice.

Getting Started

6Connections

8Presetting channels

Operations

10 Watching the TV

12 Adjusting the picture and the sound

Additional Information

13 Troubleshooting

Back cover

Specifications

All contents are subject to change without notice.

Getting Started

6-EN

Connections

Getting Started

Connecting a VHF antenna or a combination VHF/UHF antenna

— 75-ohm coaxial cable (round)

Attach an optional IEC antenna connector to the 75-ohm coaxial cable.

Plug the connector into the (antenna) socket at the rear of the TV.

Rear of TV Rear of TV

On a wall

Getting Started -EN

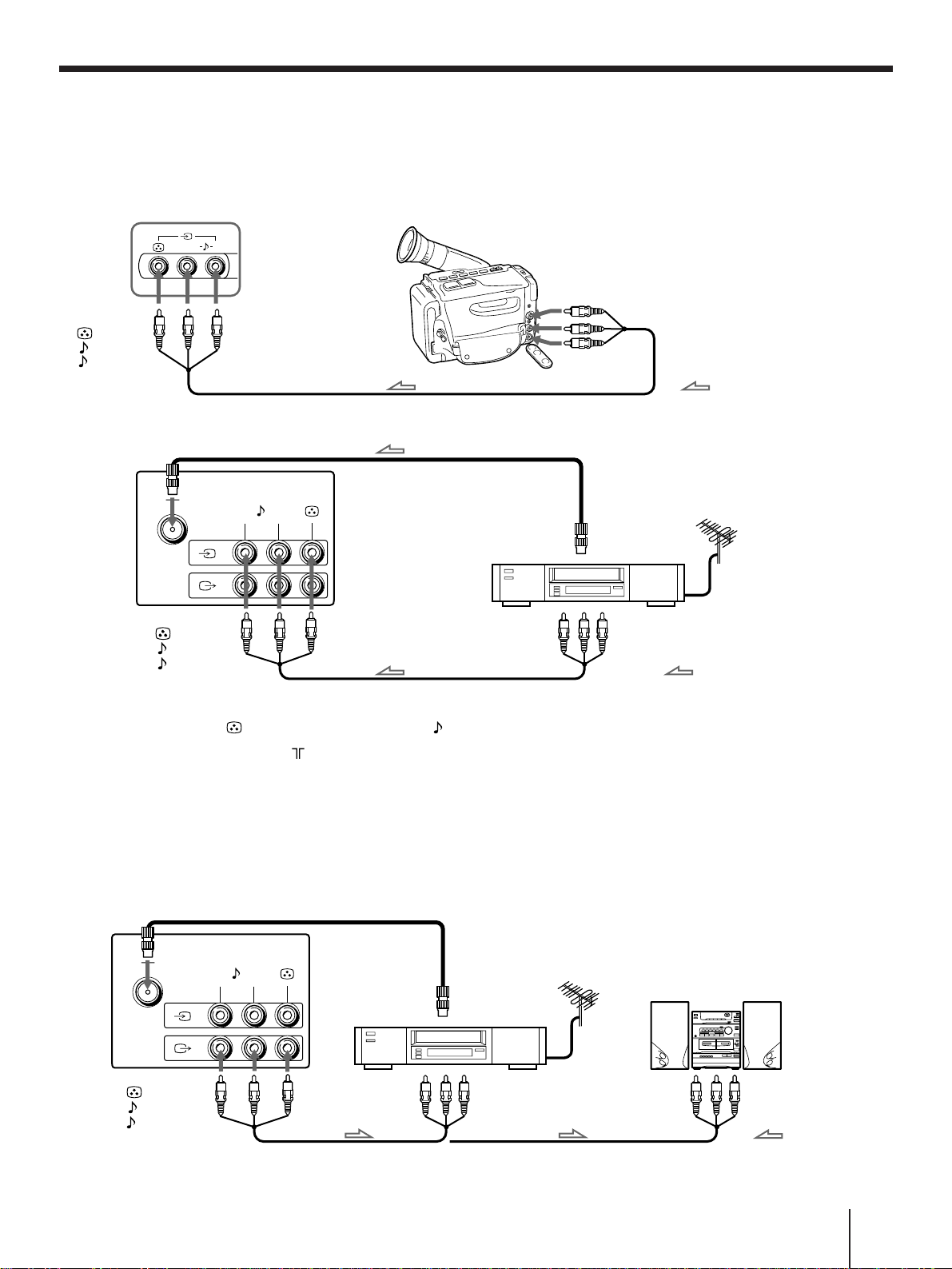

Connecting optional equipment

You can connect optional audio/video equipment to your TV such as a VCR, multi disc player, camcorder, video

game, or stereo system.

Connecting video equipment using video input jacks

…

(yellow)

-L (white)

-R (red)

to video and

audio outputs

: Signal flow

Camcorder

VCR

to video

and audio

outputs

: Signal flow

…

(yellow)

-L (white)

-R (red)

Rear of TV

to antenna

output

Audio system

…

(yellow)

-L (white)

-R (red)

to video and

audio inputs to audio

inputs

VCR

to antenna socket

to antenna

output

to antenna socket

Rear of TV

Front of TV

When connecting a monaural VCR

Connect the yellow plug to (VIDEO) and the black plug to -L (AUDIO-L MONO).

When connecting a VCR to the (antenna) terminal

Preset the signal output from the VCR to the program position 0.

When connecting video equipment to the …(VIDEO INPUT) jacks or the …(VIDEO IN) jacks

Do not connect video equipment to the …(VIDEO INPUT) jacks at the front and the …(VIDEO IN) jacks at the rear of your TV

simultaneously; otherwise the picture will not be displayed properly on the screen.

Connecting audio/video equipment using Ú(MONITOR/TV OUT) jacks

When recording through the Ú(MONITOR/TV OUT) jacks

If you change the channel or video input while recording with a VCR, the channel or video input you are recording will also be changed.

: Signal flow

RL(MONO)

(MONO)

Getting Started

8-EN

You can preset up to 100 TV channels in numerical

sequence from program position 1 using the buttons on

the remote commander or the TV.

You can preset TV channels quickly, automatically or

manually.

Quick channel presetting

1Press Uon the TV.

When the TV is turned on in standby mode, press

uon the remote commander.

2Press SELECT and PROGR + on the TV

simultaneously for one to two seconds.

Presetting channels

Front of TV

Remote commander

If the picture color is poor and/or the

sound is noisy

Select the appropriate TV system as follows:

1Press SELECT on the remote commander or the TV

until TV SYSTEM appears.

2Press +/– on the remote commander or .+/– on

the TV until the picture and sound become normal.

Notes

•If you do not know your local TV system, consult your nearest

authorized service center or dealer.

•The setting of the TV SYSTEM is memorized for each program

position.

Presetting channels manually

1Press SELECT on the remote commander or

the TV until TV SYSTEM appears on the

screen.

2Press +/– on the remote commander or .

+/– on the TV to select the TV system.

3Press SELECT on the remote commander or

the TV until AUTO PROGRAM appears on the

screen.

4Press +/– on the remote commander or .

+/– on the TV.

5Press +/– on the remote commander or .

+/– on the TV again.

Number

+/–

SELECT

PROGR +/–

PROGR

SELECT

– PROGR +

SELECT

1 2 3 1

TV SYSTEM

SELECT SELECT

ID/K B/G M

AUTO PROGRAM

SELECT SELECT

VHF LOW D/K

1 2 3 1

Getting Started -EN

6Press +/– on the remote commander or Á+/

– on the TV until the required channel

picture appears on the screen.

7Press SELECT on the remote commander or

the TV.

Disabling program positions

1Press PROGR +/– or number buttons on the

remote commander or PROGR +/– on the TV

until the unused or unwanted program

position appears on the screen.

2Press SELECT on the remote commander or

the TV until "MANUAL PROGRAM" appears

on the screen.

3Press +/– on the remote commander or Á+/

– on the TV.

4Press PIC MODE on the remote commander.

5Press SELECT on the remote commander or

the TV.

To preset the disabled program position again

Preset the channel quickly, automatically or manually.

To start presetting channels automatically

from the specified program position

Press PROGR +/– or number buttons on the remote

commander or PROGR +/– on the TV until the

required program position appears on the screen after

step 4.

Presetting channels manually

1Press SELECT on the remote commander or

the TV until "TV SYSTEM" appears on the

screen.

2Press +/– on the remote commander or Á

+/–

on the TV to select the TV system.

3Press SELECT on the remote commander or

the TV until MANUAL PROGRAM appears on

the screen.

4Press +/– on the remote commander or Á+/

– on the TV.

5Press PROGR +/– or number buttons on the

remote commander or PROGR +/– on the TV

until the required program position

appears on the screen.

123

789

PROGR – PROGR +

TV SYSTEM

SELECT SELECT

ID/K B/G M

MANUAL PROGRAM

SELECT SELECT

123

789

PROGR

– PROGR +

VHF LOW D/K

SELECT SELECT

Operations

10-EN

1Press Uto turn on the TV.

When the TV is turned on in standby mode, press

uon the remote commander.

2Select the TV program you want to watch.

To select a program position directly

Press the number button.

To select a two-digit program position, press

“-/--” before the number buttons.

For example: to select program position 25, press

“-/--,” and then “2” and “5.”

To scan through program positions

Press PROGR +/– until the program position you

want appears.

3Press Á+/– to adjust the volume.

Watching the TV

VIDEO 1

MUTING

÷2 5

Operations

Turning off the TV

To turn off the TV temporarily

Press uon the remote commander. The uindicator

lights up.

To turn off the TV completely

Press Uon the TV.

If the power on the TV is turned off in standby mode,

the uindicator may remain alight for a while.

Watching the video input

Press ….

To watch TV

Press ;.

Muting the sound

Press ¤.

123

789

÷0

PROGR
