Sony Trinitron KV-XA21 Bedienungsanleitung

Trinitron Color TV

Operating Instructions

• Before operating the unit, please read this manual thoroughly and retain

it for future reference.

KV-XA21

M83

M80

4-083-177-12 (1)

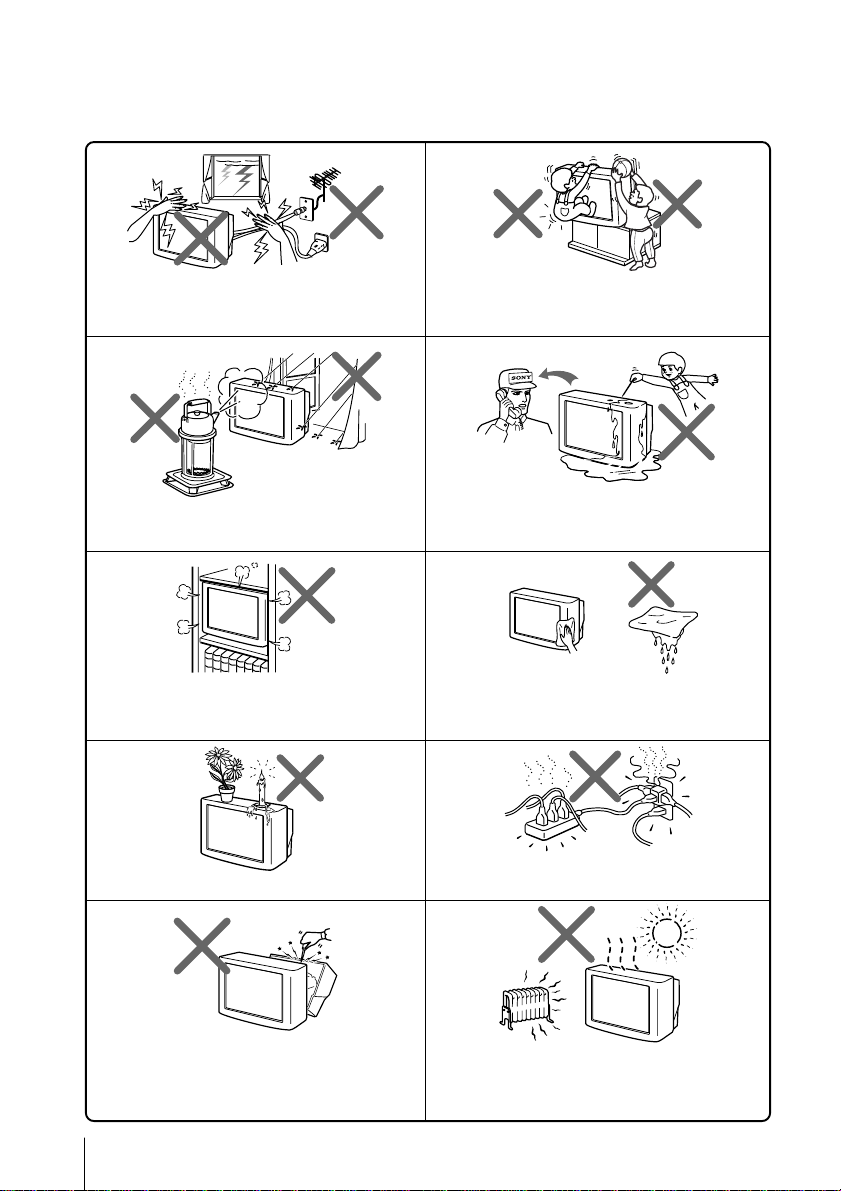

WARNING

•Dangerously high voltages are present inside the TV.

•Operate the TV only between 110 –240 V AC.

To prevent fire or shock hazard, do not expose

the TV to rain or moisture.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not open the cabinet and the rear cover of the

TV as high voltages and other hazards are

present inside the TV. Refer servicing and

disposal of the TV to qualified personnel.

Your TV is recommended for home use only.

Do not use the TV in any vehicle or where it may

be subject to excessive dust, heat, moisture or

vibrations.

Do not block the ventilation openings of the TV.

Do not install the TV in a confined space, such

as a bookcase or built-in cabinet.

For children’s safety, do not leave children alone

with the TV. Do not allow children to climb onto

it.

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals

to clean the TV. Do not scratch the picture tube.

For your own safety, do not touch any part of the

TV, the power cord and the antenna cable during

lightning storms.

Do not place any objects on the TV.

Using Your New TV

Table of Contents

Using Your New TV

Getting Started ............................................................................................. 4

Step 1: Connect the antenna ................................................................... 4

Step 2: Insert the batteries into the remote ........................................... 5

Step 3: Preset the channels automatically............................................. 5

Connecting the 3D WOOFER (KV-XA21M83 only) ............................... 6

Connecting optional components ............................................................. 7

Securing the TV ............................................................................................ 8

Presetting channels ...................................................................................... 9

Watching the TV ........................................................................................ 12

Advanced Operations

Customizing the picture and sound ....................................................... 15

Viewing your favorite channels............................................................... 17

Blocking the channels (CHILD LOCK) .................................................. 18

Additional Information

Self-diagnosis function.............................................................................. 19

Troubleshooting ......................................................................................... 20

Overview of controls ................................................................................. 23

Specifications .............................................................................. Back cover

Pull the power cord out by the plug. Do not pull

the power cord itself. Even if your TV is turned

off, it is still connected to the AC power source

(mains) as long as the power cord is plugged in.

Unplug the TV before moving it or if you are not

going to use it for several days.

Install the TV on a stable TV stand and floor

which can support the TV set weight. Ensure that

the TV stand surface is flat and its area is larger

than the bottom area of the TV.

WARNING (continued)

Using Your New TV

Getting Started

Step 1

Connect the antenna

If you wish to connect a VCR, see the Connecting a VCR diagram below.

Using Your New TV

IEC connector

(not supplied)

To video and

audio outputs (yellow)

-L (MONO) (white)

-R (red)

Audio/Video cable (not supplied)

Rear of TV

Connecting a VCR

To watch the video input, press t(see page 13).

: Signal flow

or Antenna cable

(not supplied)

To t1 (video input)

Antenna cable (not supplied)

To antenna output

VCR

Rear of TV

VIDEO

VIDEO IN

VIDEO OUT

AUDIO

L(MONO)

To 8(antenna)

Using Your New TV 5

Using Your New TV

Step 2

Note

•Do not use old batteries nor use different types of batteries together.

Front of TV

Notes

•If you connect a monaural VCR, connect the yellow plug to (the

yellow jack) and the black plug to -L (MONO) (the white jack).

•If you connect a VCR to the 8(antenna) terminal, preset the signal

output from the VCR to the program number 0 on the TV.

•When no signal is input from the connected video equipment, the TV

screen becomes blue.

CAUTION

•Do not connect the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through

the antenna and other terminals to ground.

•To avoid battery leakage and damage to the remote, remove the batteries

from the remote if you are not going to use it for several days. If any

liquid that leaks from the batteries touches you, immediately wash it

away with water.

Insert the batteries

into the remote

Step 3

Preset the channels automatically

Tips

•If you want to stop automatic channel presetting, press SELECT twice.

•If your TV has preset an unwanted channel or cannot preset a particular

channel, then preset your TV manually (see page 10).

Note

•During automatic channel presetting, your TV screen will indicate

“B/G”, “I”, “D/K”or “M”for the TV system.

AUTO

PROGR

VHF LOW B/G

L(MONO) R

PROGR

SELECT AUTO

PROGR

Using Your New TV

Connecting the 3D WOOFER

(KV-XA21M83 only)

You can enjoy high quality sound by connecting the 3D WOOFER.

1Align the front of the 3D WOOFER to corners A and B of your TV. Place the

3D WOOFER into the footholds and adjust it until it is stable.

2Connect the wires to the 3D WOOFER (8Ω) terminals at the rear of your TV.

The red wire should be connected to the 3red terminal and the black wire

to the #black terminal.

Notes

•Connect only the supplied 3D WOOFER; otherwise your TV may

malfunction.

•Unplug your TV from the wall outlet when connecting the 3D WOOFER.

•To prevent a malfunction caused by a short circuit of the terminals, make

sure that none of the 3D WOOFER wire strands stick out, making contact

with the neighbouring 3D WOOFER terminal.

Black

wire

Red

wire

WOOFER (8 )

– +

WOOFER(8 )

– +

3D WOOFER

Corner A Corner B

Using Your New TV 7

Using Your New TV

Connecting optional components

You can connect optional audio/video components, such as a VCR, multi disc player,

camcorder, video game or stereo system.

To watch the video input of the connected equipment, press t(see page 13).

Connecting a camcorder/video game equipment

using the t(video input) jacks

Note

•You can also connect video equipment to the t1 (video input) jack at

the rear of your TV.

Connecting audio/video equipment using the T

(monitor output) jacks

Note

•If you connect a monaural VCR, connect the yellow plug to (the yellow

jack) and the black plug to -L (MONO) (the white jack).

(yellow)

-L (MONO)

(white)

-R (red)

Rear of TV

antenna

output

To video and

audio inputs

Audio system

audio

inputs

VCR

: Signal flow

To T

(monitor output)

Antenna cable (not supplied)

Audio/Video cable (not supplied)

L(MONO)R

Front of TV

Camcorder

Video game

equipment

To video and

audio outputs

: Signal flow

To t2

(video input)

Audio/Video cable (not supplied)

L(MONO)R

L(MONO) R

PROGR

SELECT AUTO

PROGR

Using Your New TV

Securing the TV

To prevent the TV from falling, secure the TV using one of the following methods:

AWith the supplied screws, attach the band to the TV stand and to the rear of

the TV using the provided hole.

BPut the cord or chain through the clamps to secure the TV against a wall or

pillar.

Note

•Use only the supplied screws. Use of other screws may damage the TV.

3.8 mm

Using Your New TV 9

Using Your New TV

Presetting

channels

You can preset up to 100 TV channels in

numerical sequence from program

number 1 using the remote and the

buttons on your TV as well.

Presetting channels automatically

1Press !to turn on the TV.

2Press AUTO PROGR.

Note

•During automatic channel presetting, your TV screen will indicate “B/G”,

“I”, “D/K”or “M”for the TV system.

To preset channels automatically from a specified program number

(1) Press SELECT until “AUTO PROGRAM”appears.

(2) Press + or –.

The on-screen display will start flashing.

(3) Press PROGR +/–or the number buttons until the desired program number

appears.

(4) Press + or –.

Number buttons

~/1

SELECT

2+/–

PROGR +/–

+ or –

PIC MODE

123

789

-0

JUMP

SOUND

MODE

FAVORITE

PROGR

VHF LOW B/G

AUTO

PROGR

L(MONO) R

PROGR

SELECT AUTO

PROGR

AUTO

PROGR

continued

Using Your New TV

Presetting channels (continued)

Presetting channels manually

1Press SELECT until

“MANUAL PROGRAM”

appears.

2Press + or –.

3Press PROGR +/– or the

number buttons until the

desired program number

appears.

4Press + or – until the

desired channel picture

appears.

5Press SELECT.

Note

•If you preset a locked program number, that particular program number

will be unlock automatically (see page 18).

To change the TV system setting

If the picture or sound is abnormal when receiving programs through the

(antenna)

terminal

(1) Press SELECT until “TV SYS”appears.

(2) Press + or –to select the appropriate

TV system until the picture or sound

quality is optimal.

MANUAL PROGRAM

SELECT

VHF LOW B/G

123

456

-/--

PROGR

SELECT

TV SYS: B/G

B/G I D/K M

Andere Handbücher für Trinitron KV-XA21

Inhaltsverzeichnis

Andere Sony Fernseher Handbücher

Sony

Sony BRAVIA KD43XG7077SAEP Bedienungsanleitung

Sony

Sony BRAVIA KD-85X85J Bedienungsanleitung

Sony

Sony TRINITRON KV-VF21M77 Bedienungsanleitung

Sony

Sony Trinitron KV-27XBR95S Bedienungsanleitung

Sony

Sony KD-75X8xJ Bedienungsanleitung

Sony

Sony FD Trinitron KV-21LT1B Bedienungsanleitung

Sony

Sony FD Trinitron WEGA KV-32CS71K Bedienungsanleitung

Sony

Sony Bravia NX70x Bedienungsanleitung

Sony

Sony TRINITRON KV-XF29N90 Bedienungsanleitung

Sony

Sony KD-75X77L Bedienungsanleitung

Sony

Sony Trinitron KV-27S35 Bedienungsanleitung

Sony

Sony KE-32TS2U - 32" Flat Panel Color Tv Bedienungsanleitung

Sony

Sony KDL-46EX400 - Bravia Ex Series Lcd... Bedienungsanleitung

Sony

Sony KE-42TS2U - 42" Flat Panel Color Tv Bedienungsanleitung

Sony

Sony WEGA KLV-30XBR900 Bedienungsanleitung

Sony

Sony Bravia XR-77A8 J Series Bedienungsanleitung

Sony

Sony XBR-49X850B Betriebsanleitung

Sony

Sony Bravia KDL-48R470B Bedienungsanleitung

Sony

Sony Trinitron KV-EX29M69 Bedienungsanleitung

Sony

Sony Bravia FW-50BZ35J Bedienungsanleitung

Sony

Sony KV43TR27 Bedienungsanleitung

Sony

Sony PlayStation VTE-1001 Bedienungsanleitung

Sony

Sony XTL-750W Bedienungsanleitung

Sony

Sony KV-32HQ100B Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
