MODEL COMMANDER DEST. CHASSIS NO.

KV-XF21M83

RM-952 India SCC-U22E-A

KV-XF21M93

RM-952 India SCC-U22F-A

MODEL COMMANDER DEST. CHASSIS NO.

CHASSIS

TRINITRON

COLOR TV

SERVICE MANUAL BG-3S

Self Diagnosis

Supported model

– 2 –

KV-XF21M83/XF21M93

RM-952

SPECIFICATIONS

Note

Power requirements 110-240 V AC, 50/60 Hz

Power consumption (W) Indicated on the rear of the TV

Television system B/G, I, D/K, M

Color system PAL, PAL 60, SECAM, NTSC4.43, NTSC3.58

Stereo/Bilingual system NICAM Stereo/Bilingual B/G; I: A2 Stereo/Bilingual (German) B/G KV-XF21M93 only

Channel coverage

B/G VHF: E2 to E12 / UHF: E21 to E69 / CATV: S01 to S03, S1 to S41

IUHF: B21 to B68 / CATV: S01 to S03, S1 to S41

D/K VHF: C1 to C12, R1 to R12 / UHF: C13 to C57, R21 to R60

CATV: Z1 to Z39, S01 to S03, S1 to S41

MVHF: A2 to A13 / UHF:A14 toA79 /

CATV: A-8 toA-2, A to W+4, W+6 to W+84

˘(Antenna) 75-ohm external terminal

Audio output 3W + 3W

3D WOOFER 9W

Number of terminal

D(Video) Input: 2 Output: 1 Phono jacks; 1 VP-P, 75 ohms

≥(Audio) Input: 2 Output: 1 Phono jacks; 500 mVrms

2(Headphone) Output: 1 Minijack

Picture tube 21 inch

Tube size (cm) 54 Measured diagonally

Screen size (cm) 51 Measured diagonally

Dimension (w/h/d, mm) 640 ×470 ×498

Mass (kg) 29

Design and specifications are subject to change without notice.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY SHADING AND MARK !ON

THE SCHEMATIC DIAGRAMS, EXPLODED VIEWS AND IN THE

PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE

THESE COMPONENTS WITH SONY PARTS WHOSE PART

NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN

SUPPLEMENTS PUBLISHED BY SONY.

CAUTION

SHORT CIRCUIT THE ANODE OF THE PICTURE TUBE AND

THE ANODE CAP TO THE METAL CHASSIS, CRT SHIELD, OR

CARBON PAINTED ON THE CRT, AFTER REMOVING THE

ANODE.

– 3 –

KV-XF21M83/XF21M93

RM-952

TABLE OF CONTENTS

Section Title Page

SELF DIAGNOSIS FUNCTION................................ 4

1. GENERAL........................................................................ 8

2. DISASSEMBLY

2-1. 3D Speaker Box Removal ....................................... 22

2-2. Rear Cover Removal................................................ 22

2-3. Chassis Assy Removal ............................................. 22

2-4. F Bracket Removal .................................................. 22

2-5. Service Position ....................................................... 23

2-6. Replacement of Parts ............................................... 23

2-6-1. Replacement of Control Button ....................... 23

2-6-2. Replacement of Light Guide ............................ 23

2-7. H4 and K1 Boards Removal .................................... 24

2-8. Terminal Bracket Removal ...................................... 24

2-9. Degauss Coil Removal............................................. 24

2-10. Picture Tube Removal.............................................. 25

3. SET-UP ADJUSTMENTS

3-1. Beam Landing .......................................................... 26

3-2. Convergence............................................................. 27

3-3. Focus Adjustment .................................................... 29

3-4. G2 (Screen) and White Balance Adjustments......... 29

4. CIRCUIT ADJUSTMENT

4-1. Adjustments with Commander ................................ 30

4-2. Adjustment Method ................................................. 31

4-3. Picture Quality Adjustments.................................... 36

4-4. A Board Adjustment After IC003 (Memory)

Replacement............................................................. 36

4-5. Picture Distortion Adjustment ................................. 37

Section Title Page

5. DIAGRAMS

5-1. Block Diagram ......................................................... 39

5-2. Frame Schematic Diagram ...................................... 42

5-3 Circuit Boards Location .......................................... 45

5-4. Schematic Diagrams and Printed Wiring Boards ... 46

(1) Schematic Diagram of A (1/2) Board...................... 49

(2) Schematic Diagrams of A (2/2) and H4 Boards ..... 53

(3) Schematic Diagrams of F, J3 and VM1 Boards ...... 57

(4) Schematic Diagrams of C5 and K1 Boards ............ 60

5-5. Semiconductors........................................................ 65

6. EXPLODED VIEWS

6-1. Chassis ..................................................................... 68

6-2. 3D Speaker............................................................... 70

7. ELECTRICAL PARTS LIST....................................... 71

– 4 –

KV-XF21M83/XF21M93

RM-952

The units in this manual contain a self-diagnostic function. If an error occurs, the STANDBY/TIMER lamp will automatically

begin to flash.

The number of times the lamp flashes translates to a probable source of the problem. A definition of the STANDBY/TIMER

lamp flash indicators is listed in the instruction manual for the user’s knowledge and reference. If an error symptom cannot

be reproduced, the remote commander can be used to review the failure occurrence data stored in memory to reveal past

problems and how often these problems occur.

1. DIAGNOSTIC TEST INDICATORS

When an errors occurs, the STANDBY/TIMER lamp will flash a set number of times to indicate the possible cause of the

problem. If there is more than one error, the lamp will identify the first of the problem areas.

Result for all of the following diagnostic items are displayed on screen. No error has occured if the screen displays a “0”.

Diagnostic

Item

Description

• Power does not

turn on

• +B overcurrent

(OCP) or

overvoltage

(OVP)

• Vertical deflection

stopped

• Horizontal

deflection

overdrive

• White balance

failure (no

PICTURE)

• Micro reset

No. of times

STANDBY/TIMER

lamp flashes

Does not light

2 times

5 times

—

Self-diagnostic

display/Diagnostic

result

—

002:000 or

002:001~255

003:001~255

004:001~255

at the same time

005:000 or

005:001~225

101:00 or

101:001~225

Probable

Cause

Location

• Power cord is not plugged

in.

• Fuse is burned out F4601

(F)

• H.OUT Q511 is shorted. (A

board)

• IC1800 is shorted. (C5

board)

• -13V is not supplied. (A

board)

• IC 503 faulty (A board)

• IC 301 faulty (A board)

• G2 is improperly adjusted.

(Note 2)

• CRT problem.

• Video OUT IC1800 is faulty.

(C5 board)

• IC301 is faulty. (A board)

• No connection A board tox

C5 board.

• Discharge CRT (C5 Board)

• Static discharge

• External noise

Detected

Symptoms

• Power does not come on.

• No power is supplied to the

TV.

• AC power supply is faulty.

• Power does not come on.

• Load on power line is

shorted.

• Has entered standby state

after horizontal raster.

• Vertical deflection pulse is

stopped.

• Power line is shorted or

power supply is stopped.

• No raster is generated.

• CRT cathode current

detection reference pulse

output is small.

• Power is shut down shortly,

after this return back to

normal.

• Detect Micro latch up.

Note 1: If a + B overcurrent is detected, stoppage of the vertical deflection is detected simultaneously.

The symptom that is diagnosed first by the microcontroller is displayed on the screen.

Note 2: Refer to screen (G2) Adjustment in section 3-4 of this manual.

SELF DIAGNOSTIC FUNCTION

– 5 –

KV-XF21M83/XF21M93

RM-952

2. DISPLAY OF STANDBY/TIMER LIGHT FLASH COUNT

Diagnostic Item Flash Count*

+B overcurrent/overvoltage 2 times

Vertical deflection stopped

White balance failure 5 times

* One flash count is not used for self-diagnostic.

3. STOPPING THE STANDBY/TIMER FLASH

Turn off the power switch on the TV main unit or unplug the power cord from the outlet to stop the STANDBY/TIMER lamp

from flashing.

Lamp ON 0.3 sec. Lamp OFF 3 sec.

Lamp OFF 0.3 sec.

2 times

5 times

STANDBY/SLEEP lamp

– 6 –

KV-XF21M83/XF21M93

RM-952

4. SELF-DIAGNOSTIC SCREEN DISPLAY

For errors with symptoms such as “power sometimes shuts off” or “screen sometimes goes out” that cannot be confirmed, it

is possible to bring up past occurances of failure for confirmation on the screen:

[To Bring Up Screen Test]

In standby mode, press buttons on the remote commander sequentially in rapid succession as shown below:

[Screendisplay] /channel [5] /Sound volume [-] /Power ON

Note that this differs from entering the service mode (mode volume [+]).

Self-Diagnosis screen display

002 : 000

003 : 000

004 : 000

005 : 001

Numeral "0" means that no fault has been detected.

Numeral "1" means a fault has been detected.

101 : 000

SELF DIAGNOSTIC

5. HANDLING OF SELF-DIAGNOSTIC SCREEN DISPLAY

Since the diagnostic results displayed on the screen are not automatically cleared, always check the self-diagnostic screen

during repairs. When you have completed the repairs, clear the result display to “0”.

Unless the result display is cleared to “0”, the self-diagnostic function will not be able to detect subsequent faults after

completion of the repairs.

[Clearing the result display]

To clear the result display to “0”, press buttons on the remote commander sequentially as shown below when the diagnostic

screen is being displayed.

Channel [8] /0

[Quitting Self-diagnostic screen]

To quit the entire self-diagnostic screen, turn off the power switch on the remote commander or the main unit.

– 7 –

KV-XF21M83/XF21M93

RM-952

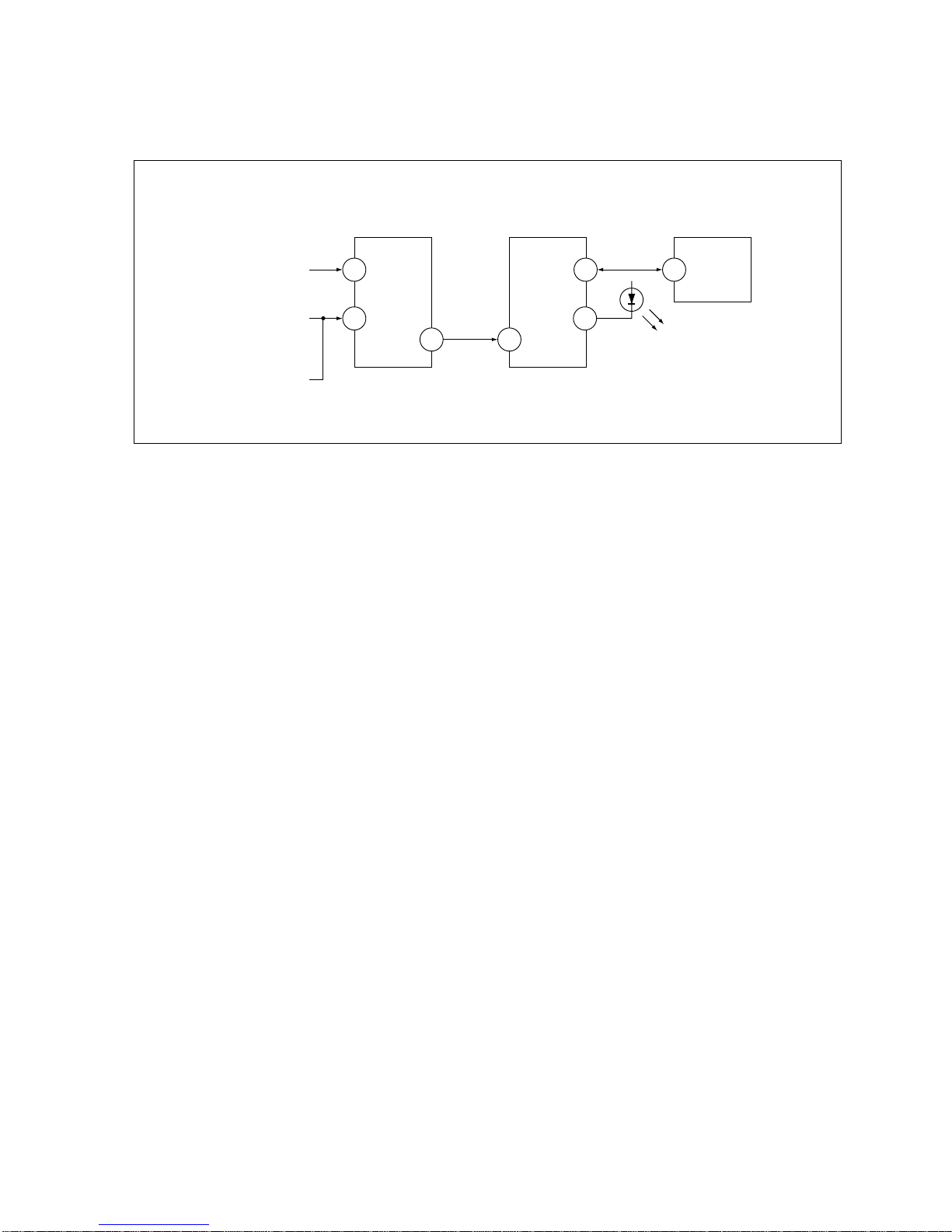

6. SELF-DIAGNOSTIC CIRCUIT

[+BovercurrentªOCPº] Occurs when an overcurrent on the +B(135) line is detected by Q604. If Q604 go to ON

and the voltage to pin 18 of IC301 should go down when V.SYNC is more than seven

verticals in a period, the unit will automatically turn off.

[Verticaldeflectionstopped] Occurs when an absence of the vertical deflection pulse is detected by Q509 and IC001

shut down the power supply.

[Verticaldeflectionovercurrent] Occurs when an overcurrent on V drive line is detected by Q507. Power supply will be

shut down when detect this by IC001.

[ hitebalancefailure] If the RGB levels* do not balance or become low level within 5 seconds, this error will be

detected by IC301. TV will stay on, but there will be no picture.

* (Refers to the RGB levels of the AKB detection Ref pulse that detects IK.)

IC301

Y/CHROMA JUNGLE

FROM

CRT

FROM

[+B] Q604 C5

[V] Q509/507

IC001

SYSTEM IC003

MEMORY

B-DAT

IO-SDAT

IK-IN

MP/

PROTECT

IO-8DAT

O-LED

SDA

54521

18 51

4635

– 8 –

KV-XF21M83/XF21M93

RM-952

SECTION 1

GENERAL

The operating instructions mentioned here are partial abstracts

from the Operating Instruction Manual. The page numbers of

the Operating Instruction Manual remain as in the manual.

WARNING

• Dangerously high voltages are present inside the TV.

• Operate the TV only between 110 – 240 V AC.

To prevent fire or shock hazard, do not expose

the TV to rain or moisture.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not open the cabinet and the rear cover of the

TV. Refer servicing to qualified personnel.

Do not install the TV in hot, humid or excessively

dusty places.

Do not install the TV in a confined space, such

as a bookcase or built-in cabinet.

Do not block the ventilation openings of the TV.

Do not pull the power cord to disconnect the TV.

Pull it out by the plug.

Disconnect the power cord during lightning

storms or if you are not going to use the TV for

several days.

Install the TV in a stable position. Do not allow

children to climb onto it.

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals

to clean the TV. Do not scratch the picture tube.

Using Your New TV

Getting Started

Step 1

Connect the antenna

If you wish to connect a VCR, see the “Connecting a VCR” diagram below.

Using Your New TV

IEC connector

(not supplied)

To video and

audio outputs

VCR

(yellow)

-L (MONO) (white)

-R (red)

Antenna cable (not supplied)

To …1

(video input)

Audio/Video cable

(not supplied)

: Signal flow

To antenna

output

Antenna cable

(not supplied)

Rear of TV

Connecting a VCR

To watch the video, press …(see page 13).

Note

• You are advised to use an outdoor antenna for better reception.

Rod antenna and cable

(not used for these models)

VIDEO

VIDEO IN

VIDEO OUT

AUDIO

L(MONO)

To ˘

(antenna)

: Signal flow

– 9 –

KV-XF21M83/XF21M93

RM-952

Using Your New TV

Preset the channels automatically

Tips

• If you want to stop automatic channel presetting, press SELECT twice.

• If your TV has preset an unwanted channel or cannot preset a particular

channel, then preset your TV manually (see page 10).

Note

• During automatic channel presetting, your TV screen will indicate “B/G” ,

“I”, “D/K” or “M” for the TV system.

Now You Are Ready. . .

To watch your TV, see page 12.

Notes

• If you connect a monaural VCR, connect the yellow plug to (the

yellow jack) and the black plug to -L (MONO) (the white jack).

• If you connect a VCR to the ˘(antenna) terminal, preset the signal

output from the VCR to the program number 0 on the TV.

• When no signal is input to the connected video equipment, the TV screen

becomes blue.

Step 2

Note

• Do not use old batteries nor use different types of batteries together.

Step 3

CAUTION

Do not connect the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

Insert the batteries

into the remote

ONE-PUSHAUTOMATIC PROGRAMING

ONE-PUSH AUTOMATIC PROGRAMMING

VHF LOW AUTO

Front of TV

Using Your New TV

Connecting the 3D WOOFER

You can enjoy high quality sound by connecting the 3D WOOFER.

Rear of TV

WOOFER(8 )

L(MONO)

3D WOOFER

Black wire

Red wire

Attach the 3D WOOFER into the footholds on the top of your TV.

Connect the wires to the 3D WOOFER (8Ω) terminals at the rear of your TV.

The red wire should be connected to the ‘red terminal and the black wire

to the ’black terminal.

Notes

• Connect only the supplied 3D WOOFER; otherwise your TV may

malfunction.

• Unplug your TV from the wall outlet when connecting the 3D WOOFER.

• To prevent a malfunction caused by a short circuit of the terminals, make

sure that none of the 3D WOOFER wire strands stick out, making contact

with the neighbouring speaker terminal.

– 10 –

KV-XF21M83/XF21M93

RM-952

Using Your New TV

Securing the TV

To prevent the TV from falling, secure the TV using one of the following methods:

With the supplied screws, attach the band to the TV stand and to the rear of

the TV using the provided hole.

Put the cord or chain through the clamps to secure the TV against a wall or

pillar.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

3.8mm

Using Your New TV

Connecting optional components

You can connect optional audio/video components, such as a VCR, multi disc player,

camcorder, video game or stereo system.

To watch the picture of the connected equipment, press …(see page 13).

Connecting a camcorder/video game equipment

using the …(video input) jacks

Note

• You can also connect video equipment to the …1 (video input) jacks at

the rear of your TV.

Connecting audio/video equipment using the Ú

(monitor output) jacks

Note

• When connecting a monaural VCR, connect the yellow plug to (the

yellow jack) and the black plug to -L (MONO) (the white jack).

L(MONO)

ONE-PUSHAUTOMATICPROGRAMING

Front of TV

Camcorder

Video game

equipment

To video and

audio outputs

(yellow)

-L (MONO)

(white)

-R (red)

Rear of TV

antenna

output

To video and

audio inputs

Audio system

audio

inputs

VCR

:Signal flow

…

(video input)

To Ú

(monitor

output)

Audio/Video cable (not supplied)

Antenna cable (not supplied)

Audio/Video cable

(not supplied)

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Sony Fernseher Handbücher

Sony

Sony BRAVIA KD-75X7800F Bedienungsanleitung

Sony

Sony FD Trinitron WEGA KV-36HS510 Bedienungsanleitung

Sony

Sony KDL-48W605B Bravia Bedienungsanleitung

Sony

Sony KV-32XBR48 - 32" Xbr Television Bedienungsanleitung

Sony

Sony FD Trinitron WEGA KV-29FQ76 K Bedienungsanleitung

Sony

Sony Trinitron KV-27S42 Bedienungsanleitung

Sony

Sony BRAVIA KD-85XH95 Series Bedienungsanleitung

Sony

Sony BRAVIA KDL-60W855B Bedienungs- und Wartungsanleitung

Sony

Sony KD-75XE94 SERIES Bedienungsanleitung

Sony

Sony TRINITRON KV-29FV300 Bedienungsanleitung

Sony

Sony BRAVIA KD-85ZH8 Bedienungsanleitung

Sony

Sony WEGA KLV-S20G10 Handbuch

Sony

Sony BRAVIA KD-98Z9G Bedienungsanleitung

Sony

Sony KV-29FQ85 Bedienungsanleitung

Sony

Sony KE-42TS2E Bedienungsanleitung

Sony

Sony KV-29K1A Bedienungsanleitung

Sony

Sony Trinitron Bedienungsanleitung

Sony

Sony Trinitron KV-XA34 Bedienungsanleitung

Sony

Sony KD-55XD80 SERIES Bedienungsanleitung

Sony

Sony BRAVIA XBR-75X950G Bedienungsanleitung

Sony

Sony KDL-40V3000, KDL-46V3000 Bedienungsanleitung

Sony

Sony Trinitron KV-27XBR96S Bedienungsanleitung

Sony

Sony Trinitron KV-29FS13 Bedienungsanleitung

Sony

Sony Trinitron KV-25X3A Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
