Sony Trinitron WEGA KV-AW21 Bedienungsanleitung

Sony KV-AW21N50 Group B42 (GB)_2-697-021-12 (1)

Tr initron Color TV

KV-AW21

2-697-021-12 (1)

Operating Instructions

•Before operating the unit, please read this manual thoroughly and retain

it for future reference.

N50

01GB01COV-SOEMPhi.p65 11/21/06, 2:46 PM1

Black

Sony KV-AW21N50 Group B42 (GB)_2-697-021-12 (1)

ASpecifications

Power requirements

Power consumption (W)

Television system

Color system

Channel coverage

8 (Antenna)

Audio output (Speaker)

Number of terminal

(Video)

(Audio)

Picture tube

Tube size

Viewing screen size

Dimensions (w/h/d)

Mass

Design and specifications are subject to change without notice.

Note

KV-AW21N50

110-240 V AC, 50/60 Hz

Indicated on the rear of the TV

NTSC3.58, PAL*, PAL 60*, SECAM*, NTSC4.43* * AV IN only

VHF : 2 to 13 /UHF : 14 to 69 /CATV : 1 to 125

75-ohm external terminal

3 W + 3 W

Input: 2 Phono jacks; 1 Vp-p, 75 ohms

Input: 2 Phono jacks; 500 mVrms

21 in.

545 mm

Measured diagonally

507 mm

Measured diagonally

600 ×465 ×481 mm

25 kg

01GB02WAR-SOEMPhi.p65 11/21/06, 2:46 PM2

Black

Sony KV-AW21N50 Group B42 (GB)_2-697-021-12 (1)

Clean the TV with a dry and soft

cloth. Do not use benzine, thinner,

or any other chemicals to clean the

TV. Do not attach anything (e.g.,

adhesive tape, cellophane tape,

glue) on the painted cabinet of the

TV. Do not scratch the picture

tube.

BWARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 110 – 240 V AC.

•Do not plug in the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

•To avoid battery leakage and damage to the remote, remove the batteries from the

remote if you are not going to use it for several days. If any liquid leaks from the

batteries and touches your skin, immediately wash it away with water.

Install the TV on a stable TV stand

and floor which can support the

TV set weight. Ensure that the TV

stand surface is flat and its area is

larger than the bottom area of the

TV.

Do not plug in too many

appliances to the same power

socket. Do not damage the power

cord.

For children’s safety, do not leave

children alone with the TV. Do not

allow children to climb onto it.

For your own safety, do not touch

any part of the TV, the power cord

and the antenna cable during

lightning storms.

Do not place any objects on the TV.

The apparatus shall not be

exposed to dripping or splashing

and that no objects filled with

liquids, such as vases, shall be

placed on the apparatus.

Do not operate the TV if any liquid

or solid object falls into it. Have it

checked immediately by qualified

personnel only.

Do not block the ventilation

openings of the TV. Do not install

the TV in a confined space, such

as a bookcase or built-in cabinet.

Do not open the cabinet and the

rear cover of the TV as high

voltages and other hazards are

present inside the TV. Refer

servicing and disposal of the TV

to qualified personnel.

Pull the power cord out by the

plug. Do not pull the power cord

itself. Even if your TV is turned

off, it is still connected to the AC

power source (mains) as long as

the power cord is plugged in.

Unplug the TV before moving it

or if you are not going to use it for

several days.

To prevent fire or shock hazard, do

not expose the TV to rain or

moisture.

Your TV is recommended for

home use only. Do not use the TV

in any vehicle or where it may be

subject to excessive dust, heat,

moisture or vibrations.

01GB02WAR-SOEMPhi.p65 11/21/06, 2:46 PM3

Black

Sony KV-AW21N50 Group B42 (GB)_2-697-021-12 (1)

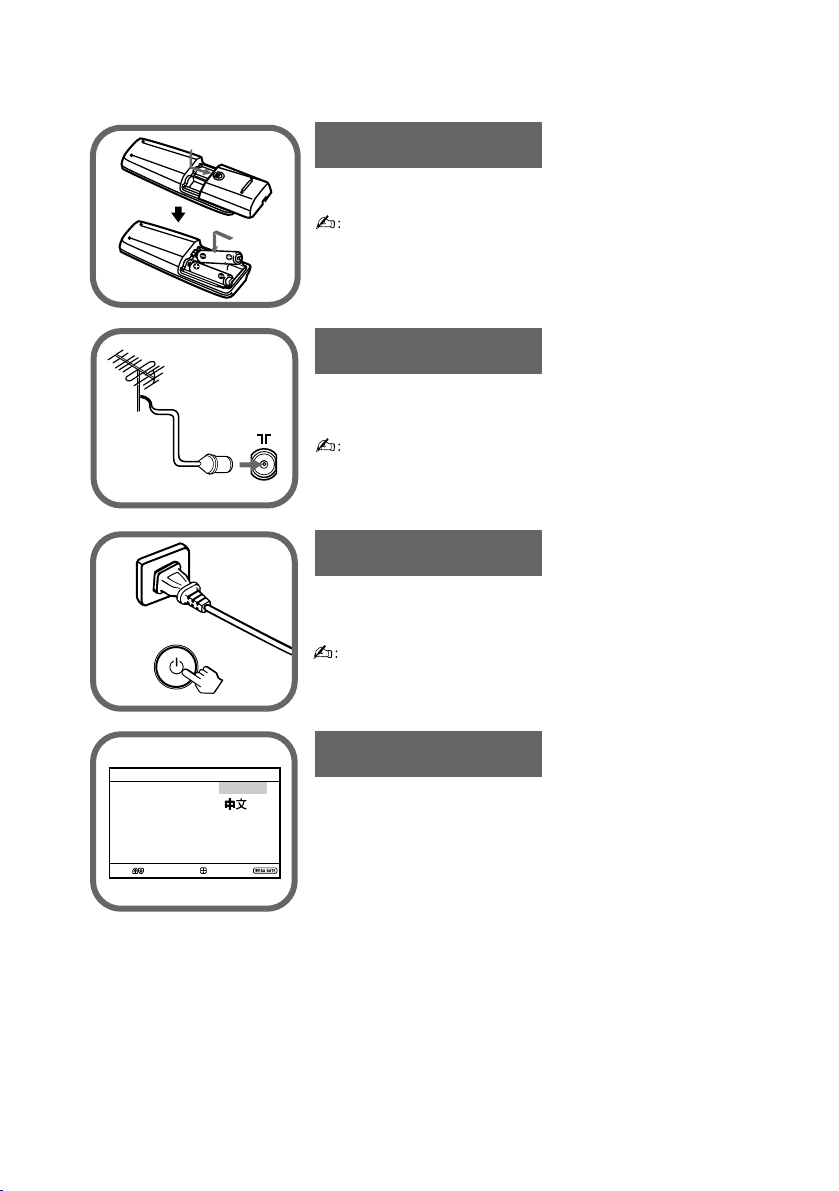

CGetting Started

Step 2

End

Select Confirm

Initial Setup

Language:

English

Step 1

Step 3

Step 4

Insert the batteries (supplied) into the remote.

• Do not use old or different types of batteries together.

Connect the antenna cable (not supplied) to 8

(antenna input) at the rear of the TV.

• You can also connect your TV to other optional

components (see E).

Plug in the power cord, then press 1on the TV to turn

it on.

• The 1(standby) indicator flashes green for a few seconds

when turning on the TV. This does not indicate a

malfunction.

Set up the TV by following the instructions of the

“Initial Setup” menu (see D).

01GB02WAR-SOEMPhi.p65 11/21/06, 2:46 PM4

Black

Sony KV-AW21N50 Group B42 (GB)_2-697-021-12 (1)

Program Edit

Off

Edit:

PROG

SkipLabel

Exit

Select Confirm

1Off

End

Select Confirm

Initial Setup

Language:

English

Start Auto Program now?

Yes

First please connect

cable/ antenna

Initial Setup

End

Select Confirm

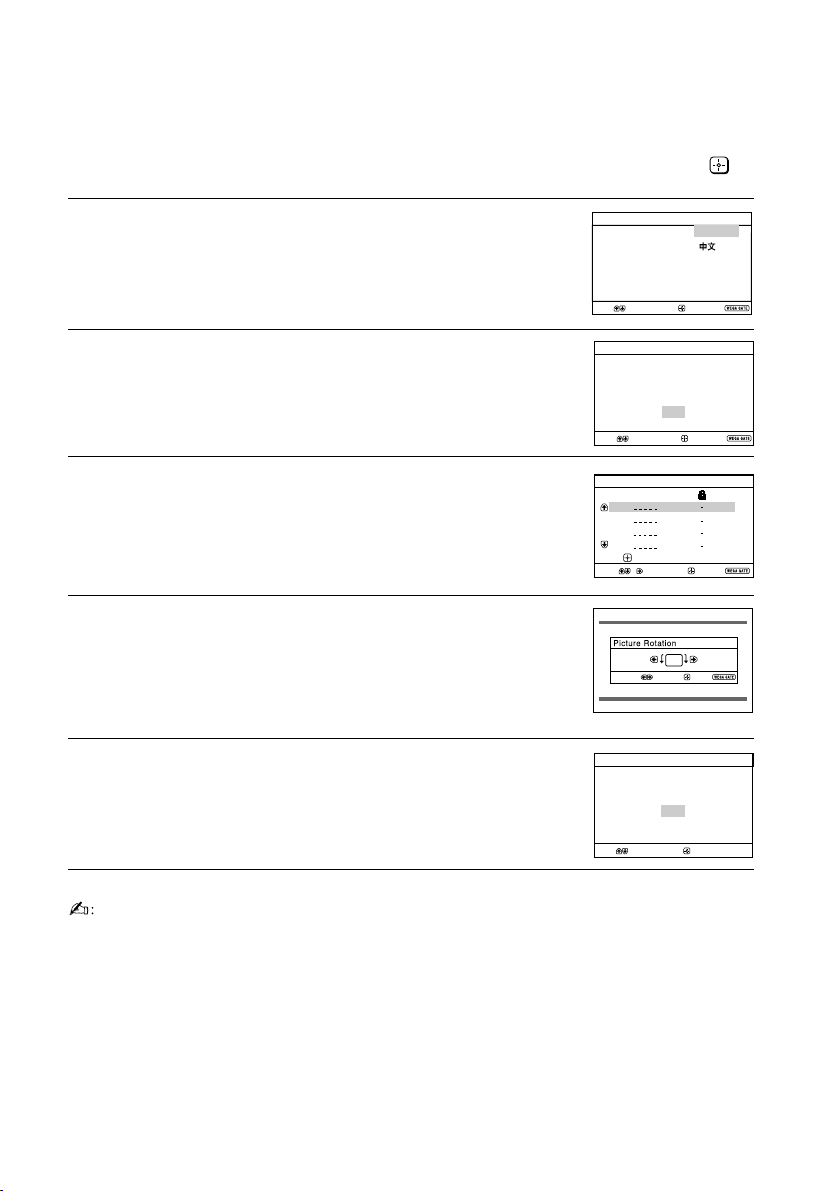

Setting up your TV (“Initial Setup”)

When you turn on your TV for the first time, the “Initial Setup” menu will

appear. You can adjust settings below using the buttons on the remote control

or TV front panel. Press V, v , B or b to select or adjust items, then press .

1Select the desired menu language.

2Select “Yes” to preset the channels automatically.

To skip automatic channel presetting, select “No”.

3The “Program Edit” menu enables you to

edit the channels (see K).

4Adjust the bars on the top and bottom of the

menu if they are slanted.

5To prevent this “Initial Setup” menu from appearing

again when you turn on the TV by pressing 1,

select “No”.

To allow this menu to appear again, select “Yes”.

•You can immediately go to the end of the “Initial Setup” menu by pressing WEGA

GATE.

Select Confirm

Initial Setup

Display this menu next time?

Yes

Select End

Confirm

01GB02WAR-SOEMPhi.p65 11/21/06, 2:46 PM5

Black

Sony KV-AW21N50 Group B42 (GB)_2-697-021-12 (1)

EConnecting optional components

You can connect a wide range of optional components to your TV. Connecting

cables are not supplied.

Connecting to the TV (front)

Connecting to the TV (rear)

Camcorder

VCR

DVD Player

Antenna

cable

Audio/Video

cable

Audio/Video

cable

Step 1 Step 2

(MONO)

WEGA

PROG

GATE

(MONO)

WEGA

PROG

GATE

(MONO)

01GB03INS-SOEMPhi.p65 11/21/06, 2:46 PM6

Black

Sony KV-AW21N50 Group B42 (GB)_2-697-021-12 (1)

FTroubleshooting

If you find any problem while viewing your TV, you can either use the

“Factory Settings” function (see L) or check the Troubleshooting guide below.

If the problem persists, contact your Sony dealer.

Snowy picture, noisy sound

•Check the antenna setup and other connections.

•Preset the channel again (see K).

•Set the “Signal Booster” to “Auto” (see K) or try using an external booster.

Distorted picture, noisy sound

•Set the “Signal Booster” to “Off” (see K), or turn off or disconnect any external booster in

use.

No picture, no sound

•Check the power cord, antenna setup and other connections.

•Press 4/1 (power) to turn on the TV.

•Press 1 (main power) on the TV to turn off the TV for about five seconds, then turn it on

again.

Good picture, no sound

•Press 2 + to increase the volume level or press to cancel the muting.

Dotted lines or stripes

• Do not use a hair dryer or other equipment near the TV.

•Check the antenna setup.

Double images or “ghosts”

•Check the antenna setup or use a highly directional antenna.

•Turn off or disconnect any external booster in use.

No color

•Adjust the “Color” level from “Picture Adjustment” (see I).

• Select the appropriate “Color System” (for video input only) (see L).

•Check the antenna setup.

Picture slant

•Keep external speakers or other electrical equipment away from the TV.

•Adjust the “Picture Rotation” (see L).

Abnormal color patches

•Keep external speakers or other equipment away from the TV. Do not move the TV while

the TV is turned on. Press 1 (main power) on the TV to turn off the TV for about 15

minutes, then turn it on again to demagnetize the TV.

The 1 (standby) indicator on your TV flashes red several times after every three seconds.

•Count the number of times the 1 (standby) indicator flashes. Press 1 (main power) to

turn off your TV. Contact your nearest Sony service center.

The TV screen sometimes goes blank for slightly longer than usual during channel change.

• The “Signal Booster” is functioning to detect a weak signal. This does not indicate a

malfunction.

TV cabinet creaks.

•Changes in room temperature sometimes make the TV cabinet expand or contract, causing

a noise. This does not indicate a malfunction.

A small “boom” sound is heard when the TV is turned on.

•The TV’s demagnetizing function is working. This does not indicate a malfunction.

01GB03INS-SOEMPhi.p65 11/21/06, 2:46 PM7

Black

Sony KV-AW21N50 Group B42 (GB)_2-697-021-12 (1)

GTV buttons and remote control

11Turn off or turn on the TV.

2Remote control sensor.

3Wake Up indicator.

31Standby indicator.

4PROG +/– Select program number.

52+/– Adjust volume.

6tSelect TV or video input.

WEGA GATE menu operations (see H)

4,5V,v,B,bSelect or adjust items.

6Confirm selected items.

7WEGA GATE Display or cancel WEGA GATE menu.

123

789

PROG

A/B

RETURN

WEGA

GATE

1?/1Turn off temporarily or turn on the

TV.

2aDisplay the TV program.

3Jump to last program number that

has been watched for at least five

seconds.

4PROG +/– Select program number. To select

quickly, press and hold until the

desired program number appears.

52+/– Adjust volume.

8Not function for your TV.

9Not function for your TV.

0Display on-screen information.

qa Mute the sound.

qs A/B Not function for your TV.

qd tSelect TV or video input.

qf 0-9 Input numbers. For program

numbers 10 and above, enter the

next digit within two seconds.

(MONO)

WEGA

PROG

GATE

PROG

WEGA

GATE

432

567

01GB03INS-SOEMPhi.p65 11/21/06, 2:47 PM8

Black

Sony KV-AW21N50 Group B42 (GB)_2-697-021-12 (1)

TV buttons and remote control (continued)

ql Not function for your TV.

w; Select picture mode options: “Vivid”, “Standard”, “Custom”* (see I).

* When the “Custom” mode is selected, you can receive the last adjusted

picture settings from the “Picture Adjustment” option in the menu.

WEGA GATE menu operations (see H)

6Confirm selected items.

7WEGA GATE Display or cancel WEGA GATE menu.

qj V, v,B ,b Select or adjust items.

qk RETURN Return to the previous level.

Timer operations

qg Set TV to turn on automatically according to the desired period of time

(Wake Up Timer) (max. of 12 hours). The indicator on TV lights up amber once you set

the wake up timer. If no buttons or controls are pressed for more than

one hour after the TV is turned on using the wake up timer, the TV

automatically goes into standby mode.

qh Set TV to turn off automatically according to the desired period of time

(Sleep Timer) (max. of one hour and 30 min.).

Teletext operations (green icon)

, , , ,

Not function for your TV.

(red, green,

yellow, blue)

PIP operations

, , V, v,B, bNot function for your TV.

, , , ,

01GB03INS-SOEMPhi.p65 11/21/06, 2:47 PM9

Black

Sony KV-AW21N50 Group B42 (GB)_2-697-021-12 (1)

HWEGA GATE navigator

WEGA GATE is a gateway that allows you access to preset TV channels,

connected external inputs and “Settings” menu.

How to use WEGA GATE

watch the preset TV

channels (see D)

select the inputs for the

connected equipment

(see E)

change the settings

of your TV

(see I,J,K,L)

“TV”

“External Inputs”

“Settings”

(1) Press WEGA GATE to display or cancel

the WEGA GATE menu.

(3) Press V or vto select the desired item. (4) Press RETURN to move to the previous

level.

(2) Press (or b) to confirm your selection

or go to the next level.

•When a feature is dimmed in the menu, it is not selectable.

•The WEGA GATE, and V,v,B,bbuttons on the front panel can also be used for

the operations above.

Confirm

Select

WEGA GATE

Settings

External Inputs

Confirm

Select

End

Confirm

Select

End

Confirm

Select

WEGA GATE

Settings

External Inputs

Confirm

Select

WEGA GATE

Settings

External Inputs

Confirm

Select

End

Video 1

2Video 2

Confirm End


Select

Color Temperature: Cool

Picture Adjustment

Picture Mode: Vivid

Intelligent Picture: On

Signal Level Indicator: On

Confirm

Select

End

01GB03INS-SOEMPhi.p65 11/21/06, 2:47 PM10

Black

Andere Handbücher für Trinitron WEGA KV-AW21

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Sony Fernseher Handbücher

Sony

Sony Bravia KDL-55W807B Bedienungsanleitung

Sony

Sony TRINITRON KV-PG14P70 Bedienungsanleitung

Sony

Sony BRAVIA KD-49XG9005BAEP Bedienungsanleitung

Sony

Sony KV-27FS120 - FD Trinitron WEGA Flat Screen... Bedienungsanleitung

Sony

Sony Trinitron KV-AR21M81 Bedienungsanleitung

Sony

Sony Trinitron KV-29RS26C Bedienungsanleitung

Sony

Sony KV-PF21P40 Bauanleitung

Sony

Sony BRAVIA KD-85X8 TJ Series Bedienungsanleitung

Sony

Sony Bravia KD-75X9100C Bedienungsanleitung

Sony

Sony Bravia XBR-65X950B Bedienungsanleitung

Sony

Sony BRAVIA KDL-60W855B Bedienungsanleitung

Sony

Sony wega kv-aw212 Bedienungsanleitung

Sony

Sony Bravia KD-75X750H Bedienungsanleitung

Sony

Sony KV-27S25 - 27" Trinitron Color Tv Bedienungsanleitung

Sony

Sony Trinitron KV-XA29 Bedienungsanleitung

Sony

Sony XR-83A90J Bedienungsanleitung

Sony

Sony BRAVIA KDL-40Z5100 Produkthandbuch

Sony

Sony BRAVIA KDL-48W700C Benutzerhandbuch

Sony

Sony KV-21FT1B Bedienungsanleitung

Sony

Sony Trinitron KV-29F3A Bedienungsanleitung

Sony

Sony KDF-37H1000 - 37" Bravia 3lcd Microdisplay Projection... Bedienungsanleitung

Sony

Sony Trinitron KV-14V1K Bedienungsanleitung

Sony

Sony Bravia KD-75X80K Bedienungsanleitung

Sony

Sony TRINITRON KV-16WT1 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
