Sony Trinitron Bedienungsanleitung

Specifications

Note

Sony Corporation Tokyo, Japan

Power requirements

Power consumption (W)

Television system

Color system

Channel coverage

B/G

Audio output (speaker)

Inputs

Outputs

Picture tube

Tube size (cm)

Screen size (cm)

Dimensions (w/h/d, mm)

Mass (kg)

Design and specifications are subject to change without notice.

Measured

diagonally

Measured

diagonally

KV-2199M5T

110 – 240 V AC, 50/60 Hz

Indicated on the rear of the TV

B/G

PAL, PAL 60, SECAM, NTSC4.43, NTSC3.58 (AV IN)

VHF: E2 to E12/UHF: E21 to E69/CATV: S01 to S03, S1 to S41

3 W + 3 W

(antenna): 75 ohms external terminal

…(video input) jacks: phono jacks

(video): 1 Vp-p, 75 ohms

(audio): 500 mVrms, high impedance

(earphone jack): mini jack

Ú(monitor output) jacks: phono jacks

(video): 1 Vp-p, 75 ohms

(audio): 500 mVrms 21 in.

610 ×470 ×474

3-865-039-11 (1)

Trinitron Color TV



Operating Instructions

Mode d’emploi

1998 by Sony Corporation

KV-2199M5T

Total Actual Number :

SELECT PROGR

VHF LOW B/G

SELECT PROGR

Total Actual Number : KV-2199M5T (GB FR PR AR) 3-865-039-11 (1)

Getting Started

4-GB

Connecting a VHF antenna or a combination VHF/UHF antenna

— 75-ohm coaxial cable (round)

Attach an optional IEC antenna connector to the 75-ohm coaxial cable. Plug the connector into the (antenna) socket

at the rear of the TV.

Connections

Getti g Started

Rear of TV

On a wall

Connecting an indoor antenna

Note

•You are advised to use an outdoor antenna for better reception.

Front of TV

Connecting optional equipment

You can connect optional audio/video equipment to your TV such as a VCR, multi disc player, camcorder, video

game or stereo system.

Connecting video equipment using the …(video input) jacks

Camcorder

: Signal flow

to …

(video input)

(video) and

(audio) inputs

to video and

audio outputs

Total Actual Number : KV-2199M5T (GB FR PR AR) 3-865-039-11 (1)

Getting Started -GB

Rear of TV

When connecting video equipment to the …(video input) jack

Do not connect video equipment to the …(video input) jacks at the front and the rear of your TV simultaneously; otherwise the picture

will not be displayed properly on the screen.

Connecting audio/video equipment using the Ú(monitor output) jack

When recording through the Ú(monitor output) jack

Do not change the channel or video input while recording with a VCR; otherwise the channel or video input you are recording also will be

changed.

Rear of TV

to …

(video input)

(video) and

(audio) inputs

to video

and audio

outputs

VCR

to antenna

output

: Signal flow

to Ú

(monitor output)

(video) and

(audio) outputs

to video

and audio

inputs

to antenna

output

VCR

: Signal flow

Audio system

to antenna socket

Total Actual Number : KV-2199M5T (GB FR PR AR) 3-865-039-11 (1)

Getting Started

6-GB

Presetting channels Presetting channels automatically

1Press SELECT on the remote commander or

the TV until “AUTO PROGRAM” appears on

the screen.

2Press +/– on the remote commander or

.+/– on the TV.

3Press +/– on the remote commander or

.+/– on the TV again.

To start presetting channels automatically

from the specified program position

Press PROGR +/– or number buttons on the remote

commander or PROGR +/– on the TV until the

required program position appears on the screen after

step 2 of “Presetting channels automatically.”

You can preset up to 100 TV channels in numerical

sequence from program position 1 using the buttons on

the remote commander or the TV.

You can preset TV channels quickly, automatically or

manually.

Quick channel presetting

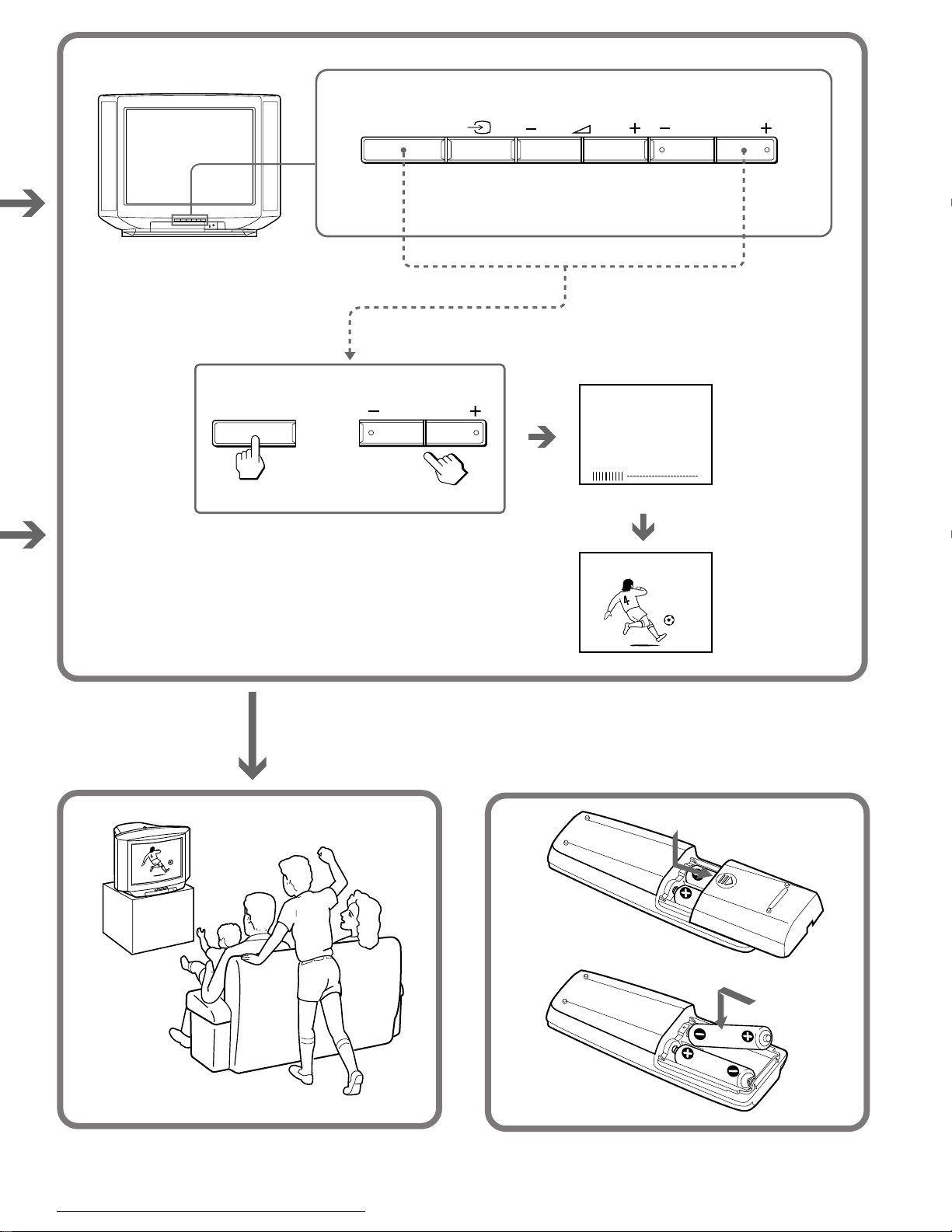

1Press Uto turn on the TV.

When the TV is turned on in standby mode, press

uon the remote commander.

2Press SELECT and PROGR + on the TV

simultaneously for one to two seconds.

Front of TV

Remote commander

Number

PROGR +/–

+/–

SELECT

1 2 3 1

SELECT PROGR

AUTO PROGRAM

SELECT SELECT

VHF LOW B/G

1 2 3 1

123

789

÷0

PROGR

or or

Total Actual Number : KV-2199M5T (GB FR PR AR) 3-865-039-11 (1)

Getting Started -GB

Presetting channels manually

1Press SELECT on the remote commander or

the TV until “MANUAL PROGRAM” appears

on the screen.

2Press +/– on the remote commander or

.+/– on the TV.

3Press PROGR +/– or number buttons on the

remote commander or PROGR +/– on the TV

until the required program position

appears on the screen.

4Press +/– on the remote commander or

.+/– on the TV until the required channel

picture appears on the screen.

5Press SELECT on the remote commander or

the TV.

MANUAL PROGRAM

SELECT SELECT

123

789

÷0

PROGR

VHF LOW B/G

SELECT SELECT

Disabling program positions

1Press PROGR +/– or number buttons on the

remote commander or PROGR +/– on the TV

until the unused or unwanted program

position appears on the screen.

2Press SELECT on the remote commander or

the TV until “MANUAL PROGRAM” appears

on the screen.

3Press +/– on the remote commander or

.+/– on the TV.

4Press PIC MODE on the remote commander.

5Press SELECT on the remote commander or

the TV.

To preset the disabled program position again

Preset the channel quickly, automatically or manually

Operations

8-GB

Watching the TV Turning off the TV

To turn off the TV temporarily

Press uon the remote commander. The uindicator

on the TV lights up.

To turn off the TV completely

Press Uon the TV.

If the power on the TV is turned off in standby mode, the

uindicator on the TV may remain alight for a while.

Watching the video input

Press ….

To watch TV

Press ;.

Muting the sound

Press ¤.

1Press Uto turn on the TV.

When the TV is turned on in standby mode, press

uon the remote commander.

2Select the TV program you want to watch.

To select a program position directly

Press the number button.

To select a two-digit program position, press

“-/--” before the number buttons.

For example: to select program position 25, press

“-/--,” and then “2” and “5.”

To scan through program positions

Press PROGR +/– until the program position you

want appears.

3Press .+/– to adjust the volume.

123

789

÷0

PROGR

O eratio s

MUTING

VIDEO 1

;

2 5

Operations -GB

AUTO B/G

DYNAMIC

After 10 minutes

No wake up timer After 12 hours

WAKE UP TIMER:10M

WAKE UP TIMER:OFF WAKE UP TIMER:12H00M

+/–

SELECT

Displaying on-screen information

Press .

The program position, local system, and TV settings are

displayed on the screen.

Setting the Sleep Timer

You can set the TV automatically turned off as you

program.

Press .

To cancel the Sleep Timer, press repeatedly until

“SLEEP TIMER: OFF” appears, or turn off the TV.

Changing the on-screen display

language

You can use buttons on the remote commander or the

TV to change the on-screen display language.

1Press SELECT until the screen appears as

follows:

2Press +/– to select “ ”.

Note

•You can also use SELECT and .+/– on the TV to select the

on-screen display language.

•If no buttons or controls are pressed for more than two hours

after the TV is turned on using the Wake Up Timer, the TV

automatically turns into standby mode. If you want to

continue watching the TV, press any button or control on the

TV or remote commander.

Setting the Wake Up Timer

You can set the TV automatically turned on as you

program.

1Press ©repeatedly to set the timer.

The on-screen display appears and the indicator

on the TV lights up.

2If you want a particular TV program or video

input to be displayed using the Wake Up Timer,

select the TV program or video input.

3Press uon the remote commander or set

the Sleep Timer to turn off the TV in

standby mode.

To cancel the Wake Up Timer, press ©repeatedly

until “WAKE UP TIMER: OFF” appears, or turn off the

main power of the TV.

Notes

•The Wake Up Timer starts immediately after the on-screen

display disappears.

•The last TV program position or video input just before the TV

turns into standby mode will appear when the TV is turned on

using the Wake Up Timer.

After 30 minutes After 60 minutes

After 90 minutes

No sleep timer

-GB

SLEEP TIMER:30M SLEEP TIMER:60M

SLEEP TIMER:OFF SLEEP TIMER:90M

LANGUAGE / : ENGLISH

SELECT

: LANGUAGE /
