This is a general recommendation based on the information you provided. You can customize

the connections to suit your individual preferences and viewing habits.

Some hookup recommendations have two cable options listed in the cable section. You will only

need the cables listed under the cable option you choose. You can also use a combination of

cables rather than one type throughout.

This hookup guide uses generic

names for connection jacks and input

labels. The table on the right lists

some of the label variations you may

find on your equipment.

If you don’t have a cable box or satellite receiver (AKA set-top box), skip the steps for the set-

top box. Connect the coaxial cable from the wall into the RF in connection on the next device. If

you’re not connecting a broadcast signal source, disregard the steps involving the set-top box

and begin with the steps for the equipment you are connecting.

This guide provides basic instructions for operating your equipment. The steps can vary by

brand and model. Refer to the manual supplied with your equipment for details specific to your

model. Sony product manuals and documentation can found on the Sony eSupport web site. If

you have questions about a non-Sony device, please contact the manufacturer for information.

You can now surf the web with Sony Internet TV products. If you need help connecting to your

wired or wireless network, check out our Network Connection tutorial.

RF IN, RF OUT

UHF/VHF, CABLE, LINE, TV

LINE IN, LINE OUT

VIDEO

AUDIO IN, AUDIO

OUT

FIXED, VARIABLE

MONITOR

TO TV, VIDEO IN, VIDEO OUT

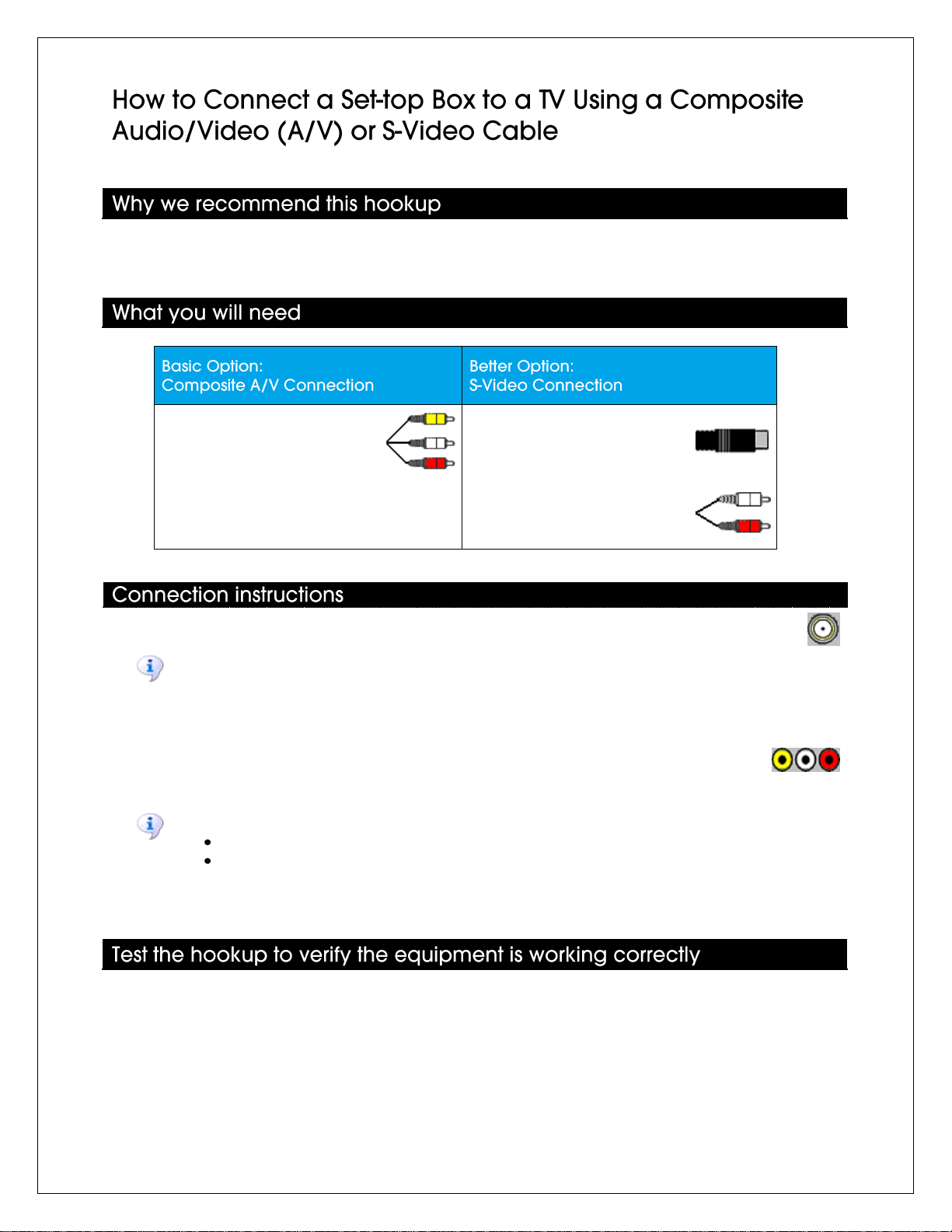

We recommend this hookup to view cable or satellite service on your TV when you have no other

video equipment. This connection should be used if your TV has a composite A/V input jack.

(1) Composite A/V cable

(1) S-Video cable

(1) Composite audio cable

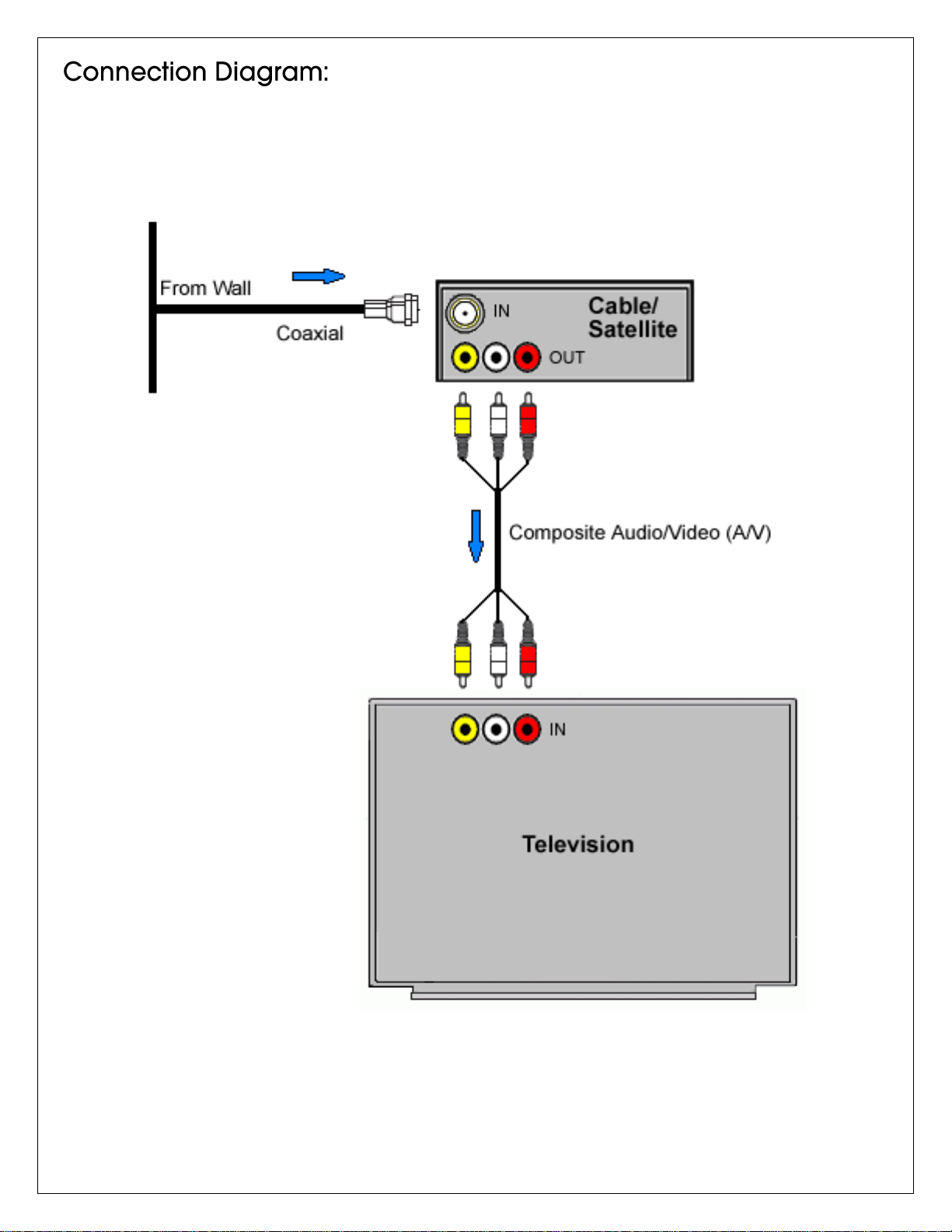

1. Connect the coaxial cable from the wall to the RF IN jack on the set-top box.

Note: If your satellite service does not include local channels, you may want to connect an

antenna to the TV IN jack on your satellite receiver. Refer to the operating instructions for

specific information on switching between satellite and local broadcasts.

2. Connect the composite A/V cable to:

a. LINE OUT jacks on the set-top box

b. VIDEO IN jacks on the TV

Notes:

Be sure to match the colors of the cable connectors with the colors of the jacks.

If your TV and set-top box both have S-Video jacks, use this connection instead of the

yellow composite cable. The S-Video connection provides a higher quality video image.

Connect the red and white audio cables for the sound.

1. Turn on the television and the set-top box.

2. Tune the TV to the video input to which the set-top box is connected, for example,

VIDEO 1 or VIDEO 2.

If there is picture and sound on the TV, you have connected your equipment correctly.

Watch television

1. Turn on the television and the set-top box:

2. Tune the TV to the video input to which the set-top box is connected, for example,

VIDEO 1 or VIDEO 2.

3. Tune the set-top box to the desired channel.

Dub

To make a copy.

HDMI Repeater

A device, such as an A/V receiver, that receives an audio/video signal from one HDMI device and passes it

through to another connected HDMI device.

High Definition (HD)

Video signal up to six times the picture and detail resolution of conventional standard definition. As of January

2007 1080p is the highest line resolution available for HD content.

Interlaced scanning

Half a frame of video is drawn on the screen at one time using the odd scan lines, then the second half of the

frame is drawn on the screen using the even scan lines. Because this process happens so quickly the human

eye sees a full image.

Line In/Out

Transfers an audio and/or video signal in or out of one unit for connection into another. (Example Line 1)

Monitor Out

An output jack usually found on an A/V receiver that passes video information from a connected video device

to a television.

Progressive scanning

An entire frame of video is drawn on the screen at one time line by line. This results in crisper images and up

to twice as many frames per second of video compared to interlaced scanning

Set-top Box

Cable box or satellite receiver.

Standard Definition (SD)

Conventional TV broadcasting with the standard 480 active scanning lines and interlaced scanning (480i).

Stereo Audio

Right and left (2) channel audio.

Tuner

An electronic circuit or device used to select signals at a specific radio frequency for amplification and

conversion to video and sound.

Video Input/Output

Transfers an audio and/or video signal in or out of one unit for connection into another. (Example Video 5)
