Sony KV-DA34M80 Group E2 (GB Dummy)_2-318-485-E1 (2)

Tr initron Color TV

KV-DA34

KV-DA29

2-318-485-E1 (2)

M80

X80

•Before operating the unit, please read this manual thoroughly and retain

it for future reference.

Operating Instructions

Sony KV-DA34M80 Group E2 (GB Dummy)_2-318-485-E1 (2)

Do not place any objects on the TV. The apparatus

shall not be exposed to dripping or splashing and

that no objects filled with liquids, such as vases,

shall be placed on the apparatus.

WARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 220 V AC.

•Do not plug in the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

•To avoid battery leakage and damage to the remote, remove the batteries from the

remote if you are not going to use it for several days. If any liquid leaks from the

batteries and touches your skin, immediately wash it away with water.

Do not open the cabinet and the rear cover of the

TV as high voltages and other hazards are present

inside the TV. Refer servicing and disposal of the

TV to qualified personnel.

Your TV is recommended for home use only.

Do not use the TV in any vehicle or where it may be

subject to excessive dust, heat, moisture or

vibrations.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not block the ventilation openings of the TV.

Do not install the TV in a confined space, such as a

bookcase or built-in cabinet.

For children’s safety, do not leave children alone

with the TV. Do not allow children to climb onto it.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals to

clean the TV. Do not attach anything (e.g., adhesive

tape, cellophane tape, glue) on the painted cabinet of

the TV. Do not scratch the picture tube.

For your own safety, do not touch any part of the

TV, the power cord and the antenna cable during

lightning storms.

Sony KV-DA34M80 Group E2 (GB Dummy)_2-318-485-E1 (2)

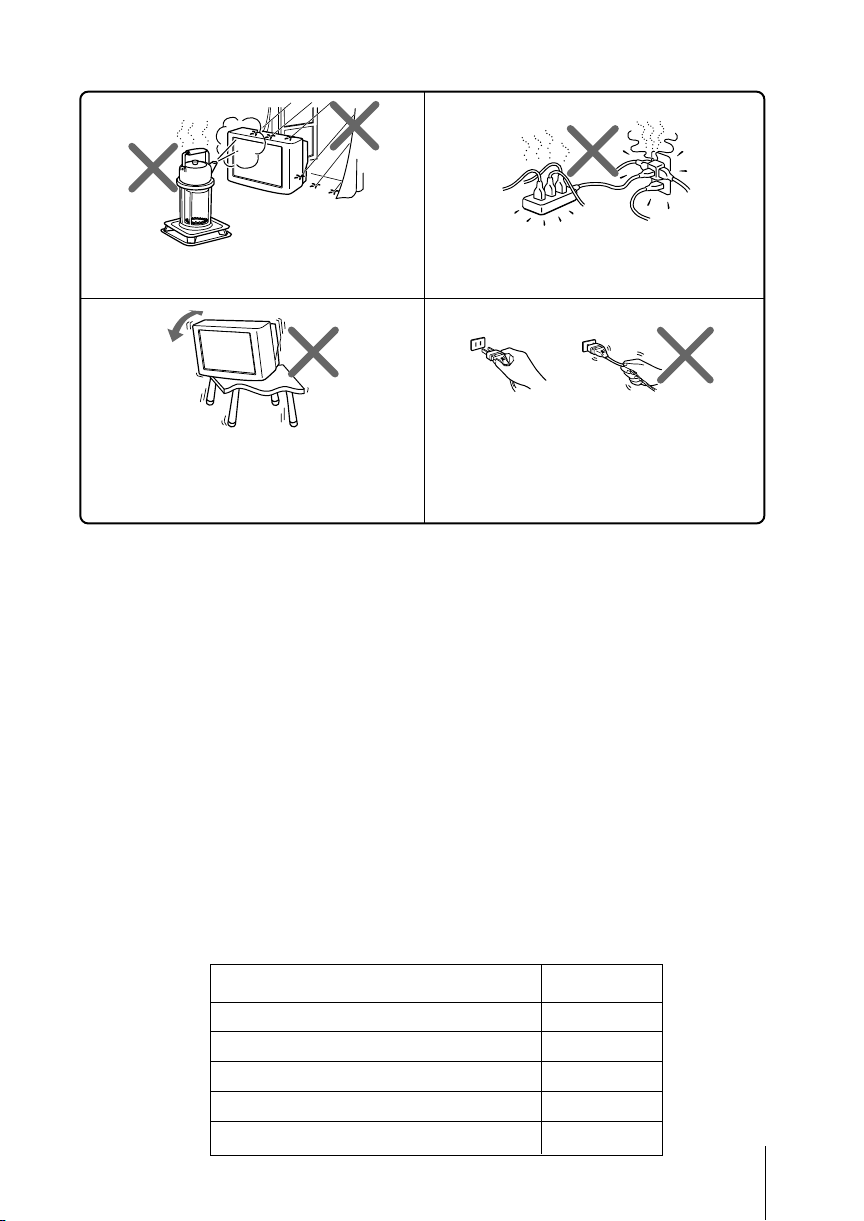

Install the TV on a stable TV stand and floor which

can support the TV set weight. Ensure that the TV

stand surface is flat and its area is larger than the

bottom area of the TV.

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Pull the power cord out by the plug. Do not pull

the power cord itself. Even if your TV is turned

off, it is still connected to the AC power source

(mains) as long as the power cord is plugged in.

Unplug the TV before moving it or if you are not

going to use it for several days.

To prevent fire or shock hazard, do not expose the

TV to rain or moisture.

Accessories

•FD Trinitron CRT

•DRC-MF (Digital Reality Creation-Multi Function)

DRC1250

DRC100

Progressive

•New Intelligent Picture

•Intelligent Signal Booster

•Wide Mode

•WEGA Theatre Mode

•DVD signal terminal (with HD signal)

•5-Band Graphic Equalizer

Accessory Quantity

Remote Commander (RM-W105) 1

Batteries (size 5) 2

Stabilizing band 1

Stabilizing clamp 2

Screw (Dia.3.8 ×20) 3

Product Overview

Sony KV-DA34M80 Group E2 (GB Dummy)_2-318-485-E1 (2)

(1)

(2)

(3)

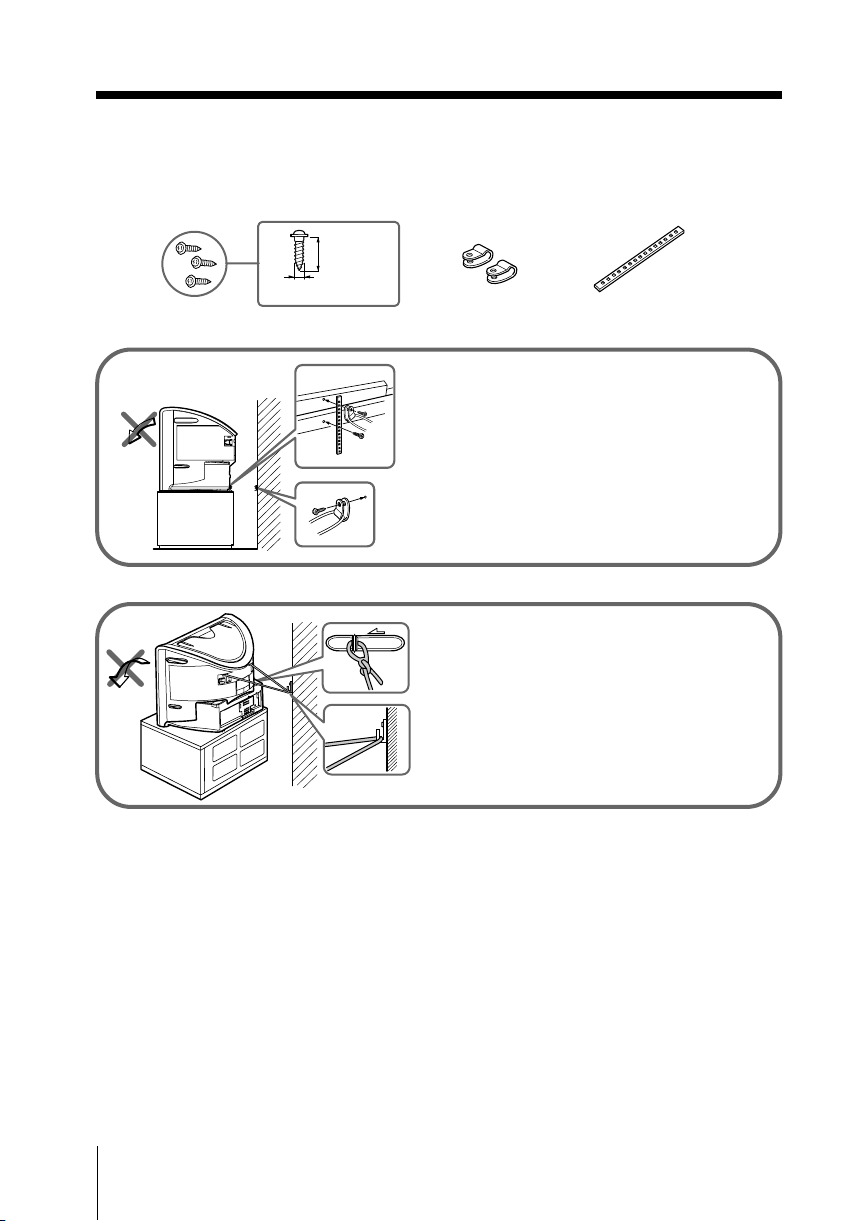

xSecuring the TV

To prevent the TV from falling, use the supplied screws, clamps and band to

secure the TV.

20 mm

3.8 mm

screws clamps band

(1) Screw the band to the TV stand and to

the provided hole at the rear of your

TV.

(2) Screw the band to the TV stand.

(3) Put a cord or chain through bothclamps

and screw the other clamp to a wall or

pillar.

(1) Attach each end of a cord or chain to

the provided holders at the rear of

your TV.

(2) Securely fix the attached cord or chain

to a wall or pillar using an attachment

which can support the TV set weight.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

(1)

(2)

Sony KV-DA34M80 Group E2 (GB Dummy)_2-318-485-E1 (2)

Menu Adjustment

Introducing the menu system .......... 16

Changing the “Picture” setting ........ 18

Changing the “Sound” setting ......... 20

Changing the “Wide Screen” setting

... 22

Changing the “Channel Setup”

setting .................................................. 23

Changing the “Setup” setting .......... 25

Additional Information

Connecting optional components ... 27

Troubleshooting ................................. 30

Specifications ...................... Back cover

Table of Contents

Installation

Getting Started ..................................... 6

Setting up your TV

(“Initial Setup”) .................................... 7

Overview of Controls

TV front and rear panels ..................... 9

Using the remote control and

basic functions .................................... 10

Advanced Operations

Selecting the picture and

sound modes ...................................... 12

Viewing higher quality pictures

with DRC-MF ..................................... 13

Enjoying WEGA Theatre Mode

with center speaker ........................... 14

Operating optional components ...... 15

6Installation

Sony KV-DA34M80 Group E2 (GB Dummy)_2-318-485-E1 (2)

Installation

xGetting Started

“ 'l⁄˘‡]'w ¿

Step 1

Insert the batteries (supplied) into the remote.

Note

•Do not use old or different types of batteries together.

Step 2

Step 3

Step 4

Set up the TV by following the instructions of the

“” (“Initial Setup”) menu (see page 7).

Plug in the power cord, then press !on the TV to

turn it on.

Note

• The 1(standby) indicator flashes green for a few seconds

when turning on the TV. This does not indicate a

malfunction.

Connect the antenna cable (not supplied) to 8

(antenna input) at the rear of the TV.

Tip

•You can also connect your TV to other optional components

(see page 27).

Installation

Sony KV-DA34M80 Group E2 (GB Dummy)_2-318-485-E1 (2)

Setting up your TV

(“Initial Setup”)

When you turn on your TV for the first time, the “Initial Setup” menu will appear.

You may change the menu language, preset the TV channels automatically, change the

order of TV channels that appear on the screen and adjust the picture position using

the buttons on the TV front panel.

Tip

•For menu operations, the MENU, t and 2+/– buttons on the TV front panel have the same

function with the MENU, and V/v buttons on the remote control.

1Press 2+/– to select the desired menu

language, then press t.

The selected menu language appears.

2Press 2+/– to select “Yes”, then press t

to preset the channels automatically.

The screen will indicate automatic

presetting in progress.

After all available channels have been tuned

and stored, the “Program Sorting” menu

appears automatically on the screen.

To skip automatic channel presetting, select

“No”, then press t.

If the message “No channel found. Please

connect cable/antenna” appears, check your

TV connections, then press t.

3The “Program Sorting” menu enables you

to change the order in which the channels

appear on the screen.

a) If you wish to keep the channels in the

tuned order, press MENU.

b) If you wish to store the channels in a

different order:

1) Press 2 +/– to select the program

number with the channel you wish to

rearrange, then press t.

Program:

TV System: D/K

VHF Low

Program Sorting

Program:

Select channel

continue

8Installation

Sony KV-DA34M80 Group E2 (GB Dummy)_2-318-485-E1 (2)

The selected channel will appear on

the screen.

2) Press 2+/– to select the new

program number position for your

selected channel, then press t.

3) Repeat steps b) 1) and 2) if you wish

to change the order of the other

channels.

c) Press MENU to go to the next menu.

4Press 2+/– to adjust the bars on the top

and bottom of the menu if they are

slanted, then press t.

“Picture V-Position” menu appears.

5If the upper and lower bars are not

equally positioned to the top and

bottom of the screen, press 2+/– to

adjust them, then press t.

If no adjustment is necessary, then press t.

6Press 2+/– to select “No”, then press t.

This menu will not appear again the next

time you turn on the TV by pressing !.

To allow this menu to appear again, select

“Yes”, then press t.

Tips

•You can immediately go to the end of the ”Initial Setup” menu by pressing MENU.

•You can also set up your TV by using the menu system (see page 16).

•You can also preset the channels automatically by pressing the MENU (AUTO PROG) button

on the TV front panel for about five seconds.

Notes

•Before adjusting “Picture Rotation” and Picture V-Position”, keep external speakers or other

electrical equipment away from the TV. The magnetic disturbance from these equipments or

the direction of the earth’s magnetic field may affect the TV.

•You cannot adjust “Picture Rotation” and “Picture V-Position” when high-definition (1080i,

720p) signals are input.

Program Sorting

Program:

Select new position

continued

Picture V-Position

Overview of Controls

Sony KV-DA34M80 Group E2 (GB Dummy)_2-318-485-E1 (2)

Overview of Controls

RL P

qd qg

qf qh qj

RG B

SYNC

L(MONO) R

PROG

(AUTO PROG)

SOUND

MODE

58 76

AUTO PROG:Press [MENU] for 5sec

L(MONO) R

PROG

(AUTOPROG)

SOUND

MODE

AUTOPROG:Press[MENU]for5sec

120W MAX 8

TV front panel

TV rear panel

xTV front and rear panels

Button/Terminal Function Page

1!Turn off or turn on the TV. 6

21Standby indicator. 6

2Wake Up indicator. 10

3Remote control sensor. –

4PROG +/– Select program number. –

52+/– Adjust volume. –

6tSelect TV or video input. 27

Menu operations

52+/– Select and adjust items. –

6tConfirm selected items. –

7MENU Display or cancel the menu. –

7(AUTO PROG) Preset channels automatically. 8

8SOUND MODE Select sound mode options. 12

5-Band Graphic Equalizer display will appear.

9t4Video input terminal 4. 27

0iHeadphone jack. –

qa Center speaker input terminal. 29

qs t1, t2, t3Video input terminal 1, 2, 3. 27

qd TMonitor output terminal. 27

qf 2Component video input terminal 2. 28

qg 1 Component video input terminal 1. 28

qh SYNC HD/VD HD/VD input terminal. 28

qj 8Antenna input terminal. 27

10 Overview of Controls

Sony KV-DA34M80 Group E2 (GB Dummy)_2-318-485-E1 (2)

xUsing the remote control and basic

functions

123

789

HD/DVD

VIDEO

DRC-MF

PROG

INDEX

CENTER

WEGA

THEATRE

A/B

OPTION RESET

PROG

Button Description Page

1?/1Turn off temporarily or –

turn on the TV.

2aDisplay the TV program. –

3tSelect video input. 27

WEGA THEATRE Select WEGA Theatre Mode.

5CENTER SP Select TV’s center speaker 14

mode.

Stereo/bilingual operations

6A/B Not function for your TV. –

Menu operations

7MENU Display or cancel the menu. –

8V, v,B,b Select and adjust items. –

9Confirm selected items. –

Change the picture size: –

“4:3”, “16:9”(16:9 wide-mode).

qa Jump to last program number

that has been watched for at –

least five seconds.

qs PROG +/– Select program number. –

Timer operations

Set TV to turn off automatically

(Sleep Timer) according to the desired period –

of time (max. of one hour and

30 min.).

Set TV to turn on automatically

(Wake Up Timer) according to the desired period

of time (max. of 12 hours). –

The indicator on TV lights

up amber once you set

the wake up timer.

If no buttons or controls are

pressed for more than one

hour after the TV is turned on

using the wake up timer, the

TV automatically goes into

standby mode.

qg Mute the sound. –

Display on-screen information. –

qj HD/DVD

Select component video input. 28

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Sony Fernseher Handbücher

Sony

Sony Trinitron KV-27HSR10 Bedienungsanleitung

Sony

Sony Trinitron KV-14FV1U Bedienungsanleitung

Sony

Sony Trinitron KV-32XBR25 Bedienungsanleitung

Sony

Sony KV-32HQ100B Bedienungsanleitung

Sony

Sony TRINITRON KV-XJ29M31 Bedienungsanleitung

Sony

Sony FD Trinitron KV-28LS35U Bedienungsanleitung

Sony

Sony TRINITRON KV-VF21M40 Bedienungsanleitung

Sony

Sony BRAVIA KDL-32L40xx Bedienungsanleitung

Sony

Sony KDS60A2020 - 60" Rear Projection TV Bedienungsanleitung

Sony

Sony Trinitron KV-13M52 Gebrauchsanweisung

Sony

Sony BRAVIA KD-85X85K Bedienungsanleitung

Sony

Sony WEGA KLV-S20G10 Bedienungsanleitung

Sony

Sony BRAVIA KD-85X8500D Bedienungsanleitung

Sony

Sony Trinitron KV-9PT40 Bedienungsanleitung

Sony

Sony KE-32TS2U - 32" Flat Panel Color Tv Bedienungsanleitung

Sony

Sony TRINITRON KV-XA25M60 Bedienungsanleitung

Sony

Sony KD-65X8500E Bedienungsanleitung

Sony

Sony BRAVIA KDL-26S2000 Bedienungsanleitung

Sony

Sony Bravia KDL-55W807B Bedienungsanleitung

Sony

Sony FD Trinitron WEGA KV-36FS12 Bedienungsanleitung

Sony

Sony Bravia A89 Series Bedienungsanleitung

Sony

Sony WEGA KLV 21SG2 Bedienungsanleitung

Sony

Sony KDF-E60A20PKG - 60" Lcd Projection Hd-tv Grand... Bedienungsanleitung

Sony

Sony KV-27FS120 - FD Trinitron WEGA Flat Screen... Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
