Sony WEGA KV-FA29 Bedienungsanleitung

Sony KV-FA29M83 Group A25 (GB)_2-898-277-11 (1)

Tr initron Color TV

KV-FA29

2-898-277-11 (1)

Operating Instructions

•Before operating the unit, please read this manual thoroughly and retain

it for future reference.

M83

M53

01GB01COV-STTInd.p65 11/10/06, 8:44 AM1

Black

Sony KV-FA29M83 Group A25 (GB)_2-898-277-11 (1)

WARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 110 – 240 V AC.

•Do not plug in the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

•To avoid battery leakage and damage to the remote, remove the batteries from the

remote if you are not going to use it for several days. If any liquid leaks from the

batteries and touches your skin, immediately wash it away with water.

Clean the TV with a dry and soft

cloth. Do not use benzine, thinner,

or any other chemicals to clean the

TV. Do not attach anything (e.g.,

adhesive tape, cellophane tape,

glue) on the painted cabinet of the

TV. Do not scratch the picture

tube.

Install the TV on a stable TV stand

and floor which can support the

TV set weight. Ensure that the TV

stand surface is flat and its area is

larger than the bottom area of the

TV.

Do not plug in too many

appliances to the same power

socket. Do not damage the power

cord.

For children’s safety, do not leave

children alone with the TV. Do not

allow children to climb onto it.

For your own safety, do not touch

any part of the TV, the power cord

and the antenna cable during

lightning storms.

Do not place any objects on the TV.

The apparatus shall not be

exposed to dripping or splashing

and that no objects filled with

liquids, such as vases, shall be

placed on the apparatus.

Do not operate the TV if any liquid

or solid object falls into it. Have it

checked immediately by qualified

personnel only.

Do not block the ventilation

openings of the TV. Do not install

the TV in a confined space, such

as a bookcase or built-in cabinet.

Do not open the cabinet and the

rear cover of the TV as high

voltages and other hazards are

present inside the TV. Refer

servicing and disposal of the TV

to qualified personnel.

Pull the power cord out by the

plug. Do not pull the power cord

itself. Even if your TV is turned

off, it is still connected to the AC

power source (mains) as long as

the power cord is plugged in.

Unplug the TV before moving it

or if you are not going to use it for

several days.

To prevent fire or shock hazard, do

not expose the TV to rain or

moisture.

Your TV is recommended for

home use only. Do not use the TV

in any vehicle or where it may be

subject to excessive dust, heat,

moisture or vibrations.

01GB02WAR-STTInd.p65 11/10/06, 8:45 AM2

Black

Sony KV-FA29M83 Group A25 (GB)_2-898-277-11 (1)

Table of Contents

Installation

Securing the TV .................................... 4

Getting Started ..................................... 5

Setting up your TV

(“Initial Setup”) .................................... 6

Overview of Controls

TV front and rear panels ..................... 8

Using the remote control and

basic functions ...................................... 9

Advanced Operations

Selecting the picture and sound

modes .................................................. 11

Menu Adjustment

Introducing the WEGA GATE

navigator ............................................. 12

“Settings” Adjustment ...................... 13

Changing the “Picture” setting ........ 14

Changing the “Sound” setting ......... 16

Changing the “Channel Setup”

setting .................................................. 17

Changing the “Setup” setting .......... 19

Additional Information

Connecting the 3D WOOFER,

TWEETER and CENTER

SPEAKER ............................................ 20

Connecting optional components ... 21

Troubleshooting ................................. 23

Specifications ...................... Back cover

01GB03TOC-STTInd.p65 11/10/06, 8:47 AM3

Black

4Installation

Sony KV-FA29M83 Group A25 (GB)_2-898-277-11 (1)

Installation

xSecuring the TV

To prevent the TV from falling, use the supplied screws, clamps and band to

secure the TV.

20 mm

3.8 mm

screws clamps band

Screw the band to the TV stand and to the

provided hole at the rear of your TV.

(1) Put a cord or chain through the clamps.

(2) Screw one clamp to a wall or pillar and

the other clamp to the provided hole at

the rear of your TV.

(1) Attach each end of a cord or chain to

the provided holders at the rear of your

TV.

(2) Securely fix the attached cord or chain

to a wall or pillar using an attachment

which can support the TV set weight.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

01GB04INS-STTInd.p65 11/10/06, 8:47 AM4

Black

Installation

Sony KV-FA29M83 Group A25 (GB)_2-898-277-11 (1)

Confirm

Select End

Step 1

Insert the batteries (supplied) into the remote.

Note

•Do not use old or different types of batteries together.

Step 2

Step 3

Step 4

Set up the TV by following the instructions of the

“Initial Setup” menu (see page 6).

Plug in the power cord, then press !on the TV to

turn it on.

Note

• The 1(standby) indicator flashes green for a few seconds

when turning on the TV. This does not indicate a

malfunction.

Connect the antenna cable (not supplied) to 8

(antenna input) at the rear of the TV.

Tip

•You can also connect your TV to other optional components

(see page 21).

xGetting Started

01GB04INS-STTInd.p65 11/10/06, 8:48 AM5

Black

6Installation

Sony KV-FA29M83 Group A25 (GB)_2-898-277-11 (1)

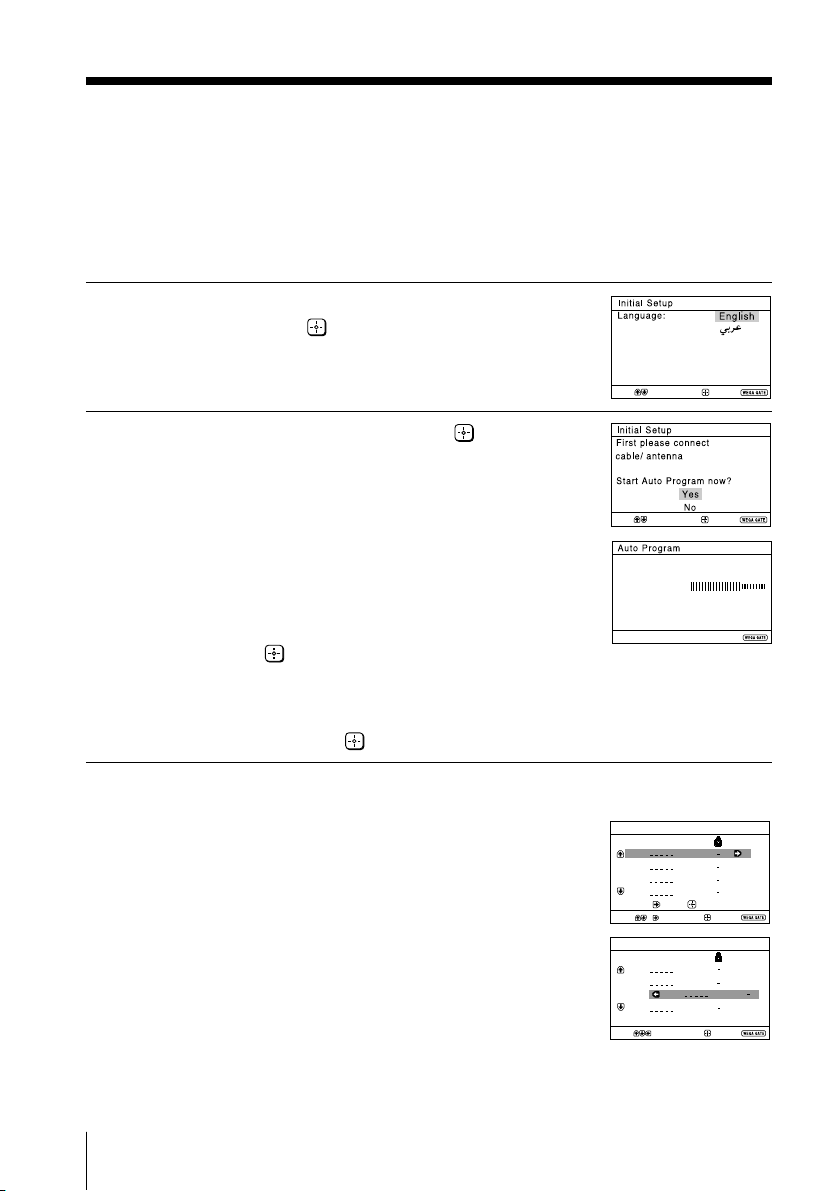

Setting up your TV

(“Initial Setup”)

When you turn on your TV for the first time, the “Initial Setup” menu will

appear. You may change the menu language, preset the TV channels

automatically, sort or edit the channels and adjust the picture position using the

buttons on the remote control or TV front panel.

1Press V or vto select the desired menu

language, then press .

The selected menu language appears.

2Press V or vto select “Yes”, then press

to preset the channels automatically.

The screen will indicate automatic

presetting is in progress.

After all available channels have been tuned

and stored, the “Program Sorting/Edit”

menu appears automatically on the screen.

To skip automatic channel presetting, select

“No”, then press .

If the message “No channel found. Please

connect cable/antenna” appears, check your

TV connections, then press .

3The “Program Sorting/Edit” menu enables

you to sort and edit the channels.

a) If you wish to keep the channels in the current

condition, press WEGA GATE to exit.

b) Press Vor vto select the program

number with the channel you wish to

change. The selected channel will appear

on the screen.

c) If you wish to store the channels in a

different order:

1) Press bto enter sorting mode.

2) Press Vor vto select the new program

number position for your selected channel,

then press B.

End

Select Confirm

End

Select Confirm

Program:

TV System: B/G

VHF Low

End

Program Sorting/Edit

Off

Sorting mode

PROG

SkipLabel

Off01

Exit

Select Confirm

Program Sorting/Edit

Off

Sorting: Edit:

PROG

SkipLabel

Exit

Select Confirm

01GB04INS-STTInd.p65 11/10/06, 8:48 AM6

Black

Installation

Sony KV-FA29M83 Group A25 (GB)_2-898-277-11 (1)

d) If you wish to edit the channels, press

to change to edit mode.

Press buntil the mode that you wish to edit

is highlighted: Label, Skip, (block symbol).

Then press .

1) To label, press Vor vto select the

alphanumeric characters for the label.

Then press .

2) To skip the program number, press Vor vto

select “On”. Then press .

You can skip this program number when

using PROG +/-.

3) To block unwanted program number,

press Vor vto select . Then press .

e) Repeat step b) to d) if you wish to change other

channels.

Press WEGA GATE to exit.

4Press B or bto adjust the bars on the top

and bottom of the menu if they are

slanted, then press .

“Picture V-Position” menu appears.

5If the upper and lower bars are not

equally positioned to the top and

bottom of the screen, press V or vto

adjust them, then press .

If no adjustment is necessary, then press .

6To prevent this “Initial Setup” menu from

appearing again when you turn on the TV

by pressing !, press V or vto select “No”,

then press .

To allow this menu to appear again, select

“Yes”, then press .

Tip

•You can immediately go to the end of the ”Initial Setup” menu by pressing WEGA GATE.

Select End

Confirm

Select Confirm

Select End

Confirm

Exit

Select Confirm

Exit

Select Confirm

Exit

Select Confirm

01GB04INS-STTInd.p65 11/10/06, 8:48 AM7

Black

8Overview of Controls

Sony KV-FA29M83 Group A25 (GB)_2-898-277-11 (1)

Overview of Controls

qj qgqh qf

(MONO) (MONO)

L(MONO)R

PROG

MIC1MIC2

qa qd qs qa

L(MONO) R

PROG

SOUND

MODE

WEGA GATE

678 1

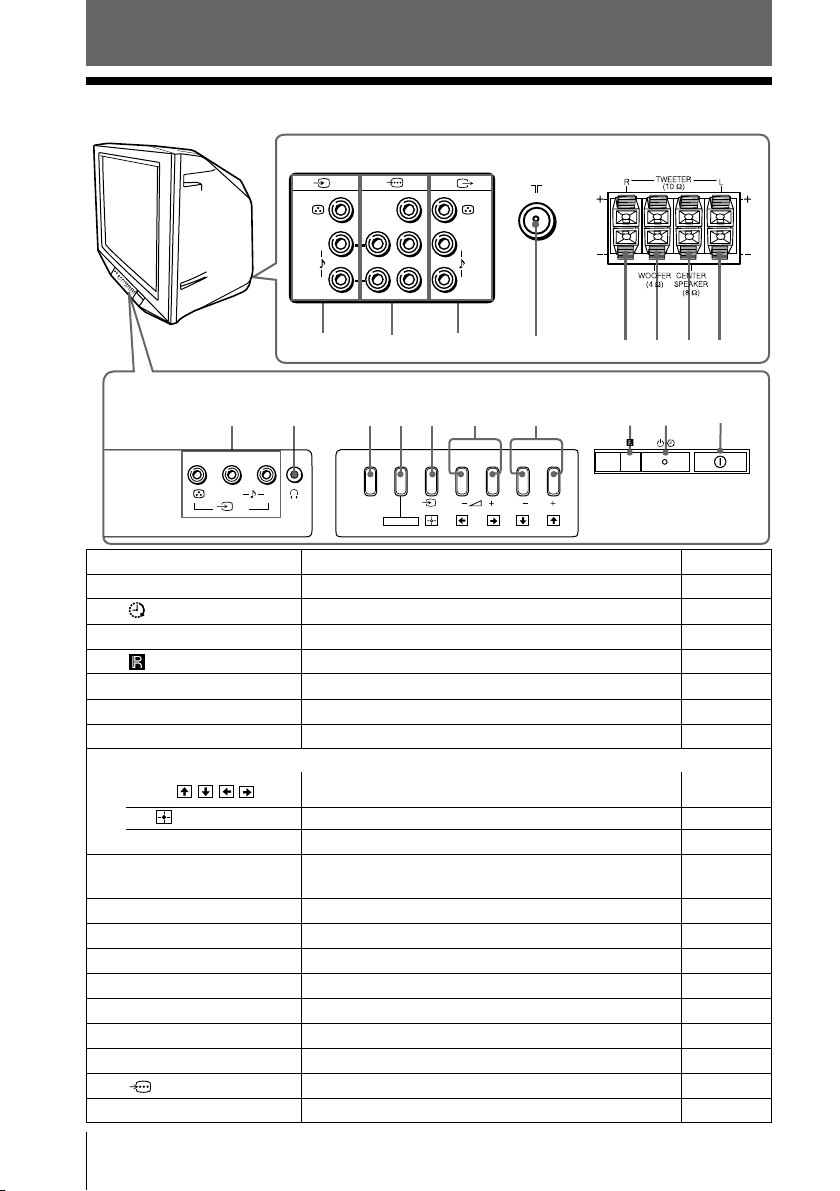

TV front panel

TV rear panel

xTV front and rear panels

Button/Terminal Function Page

1!Turn off or turn on the TV. 5

2Wake Up indicator. 10

21Standby indicator. 5

3Remote control sensor. –

4PROG +/– Select program number. –

52+/– Adjust volume. –

6tSelect TV or video input. 21

WEGA GATE menu operations

4,5

, , ,

Select and adjust items. 12

6Confirm selected items. 12

7WEGA GATE Display or cancel WEGA GATE menu. 12

8SOUND MODE Select sound mode options with a 5-Band Graphic 11

Equalizer display.

9iHeadphone jack. –

0t2Video input terminal 2. 21

qa TWEETER TWEETER terminal. 20

qs CENTER SPEAKER Center speaker input terminal. 20

qd WOOFER 3D WOOFER terminal. 20

qf 8Antenna input terminal. 21

qg TMonitor output terminal. 21

qh Component video input terminal. 22

qj t1Video input terminal 1. 21

01GB04INS-STTInd.p65 11/10/06, 8:48 AM8

Black

Overview of Controls

Sony KV-FA29M83 Group A25 (GB)_2-898-277-11 (1)

xUsing the remote control and basic

functions

RETURN WEGA

GATE

123

789

PROG

A/B

RETURN

qs 1

WEGA

GATE

continue

Button Description Page

1?/1Turn off temporarily or turn on –

the TV.

2aDisplay the TV program. –

3Jump to last program number –

that has been watched for at

least five seconds.

4PROG +/–

Select program number. To select

–

quickly, press and hold until the

desired program number appears.

52+/– Adjust volume. –

Change the picture size:

–

“On” (16:9 wide-mode), “Off”.

9Select surround mode options. 16

0Display on-screen information. –

qa Mute the sound. –

qd tSelect TV or video input. 21

qf 0 – 9 Input numbers. For program –

numbers 10 and above, enter the

second digit within two seconds.

ql Select sound mode options 11

with a 5-Band Graphic

Equalizer display.

w; Select picture mode options. 11

WEGA GATE menu operations

6Confirm selected items. 12

7WEGA Display or cancel the

GATE WEGA GATE menu.

qj V, v,B ,b Select and adjust items.

qk RETURN Return to the previous level.

01GB04INS-STTInd.p65 11/10/06, 9:19 AM9

Black

10 Overview of Controls

Sony KV-FA29M83 Group A25 (GB)_2-898-277-11 (1)

Button Description Page

Timer operations

qg Set TV to turn on automatically according to the desired –

period of time (max. of 12 hours).

The indicator on TV lights up amber once you set the

wake up timer.

If no buttons or controls are pressed for more than one

hour after the TV is turned on using the wake up timer,

the TV automatically goes into standby mode.

qh Set TV to turn off automatically according to the desired –

period of time (max. of one hour and 30 min.).

Teletext operations (green label)

, , , ,

Not function for your TV. –

, , , ,

(red, green,

yellow, blue)

PIP operations

, , V, v, B, bNot function for your TV. –

Stereo/bilingual operations

qs A/B Not function for your TV. –

(Wake up timer)

(Sleep timer)

continued

Manufactured under license from BBE Sound, Inc.

Licensed by BBE Sound, Inc. under one or more of the following US patents: 5510752,

5736897. BBE and BBE symbol are registered trademarks of BBE Sound, Inc.

TruSurround, SRS and symbol are trademarks of SRS Labs, Inc.

TruSurround technology is incorporated under license from SRS Labs, Inc.

01GB04INS-STTInd.p65 11/10/06, 8:48 AM10

Black

Inhaltsverzeichnis

Andere Sony Fernseher Handbücher

Sony

Sony BRAVIA KLV-32S550AE Bedienungsanleitung

Sony

Sony TRINITRON KV-EX29M63 Bedienungsanleitung

Sony

Sony KV-32FS120 - FD Trinitron WEGA Flat-Screen CRT... Bedienungsanleitung

Sony

Sony KD-55X8200E Bedienungsanleitung

Sony

Sony WEGA KV-XV29 Bedienungsanleitung

Sony

Sony Trinitron WEGA KV-AW21 Bedienungsanleitung

Sony

Sony KV-27FV310 - 27" Fd Trinitron Wega Bedienungsanleitung

Sony

Sony Trinitron KV-XA21 Bedienungsanleitung

Sony

Sony KV-EF34 Bedienungsanleitung

Sony

Sony FD Trinitron WEGA KV-32FV16 Bedienungsanleitung

Sony

Sony Trinitron KV-29FQ65 K Bedienungsanleitung

Sony

Sony BRAVIA A9F MASTER Series Bedienungsanleitung

Sony

Sony KDL-32S20L1 - 32" Bravia Lcd Digital Color... Bedienungsanleitung

Sony

Sony KV-19TS20 Bedienungsanleitung

Sony

Sony Trinitron KV-32TS35 Bedienungsanleitung

Sony

Sony Trinitron KV-HW21M30 Bedienungsanleitung

Sony

Sony BRAVIA XBR-75X940D Bedienungsanleitung

Sony

Sony XBR Grand WEGA KF-50XBR800 Bedienungsanleitung

Sony

Sony WEGA KV-SW21 Bedienungsanleitung

Sony

Sony Trinitron WEGA KV-SZ29 Bedienungsanleitung

Sony

Sony Trinitron KD-27FS130 Bedienungsanleitung

Sony

Sony KV-G21M2 Bedienungsanleitung

Sony

Sony Trinitron KV-HR36M90 Bedienungsanleitung

Sony

Sony KV-27S26 - 27" Trinitron Color Television Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
