Operating Instructions

• Before operating the unit, please read this manual thoroughly and retain

it for future reference.

WARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 110–240 V AC (KV-HS29/HS34), 220–240 V AC (KV-HS38).

•Do not plug in the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

•To avoid battery leakage and damage to the remote, remove the batteries from the

remote if you are not going to use it for several days. If any liquid leaks from the

batteries and touches your skin, immediately wash it away with water.

Do not open the cabinet and the rear cover of the

TV as high voltages and other hazards are present

inside the TV. Refer servicing and disposal of the

TV to qualified personnel.

Your TV is recommended for home use only.

Do not use the TV in any vehicle or where it may

be subject to excessive dust, heat, moisture or

vibrations.

To prevent fire or shock hazard, do not expose the

TV to rain or moisture.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not block the ventilation openings of the TV.

Do not install the TV in a confined space, such as a

bookcase or built-in cabinet.

For children’s safety, do not leave children

alone with the TV. Do not allow children to

climb onto it.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals to

clean the TV. Do not attach anything (e.g., adhesive

tape, cellophane tape, glue) on the painted cabinet of

the TV. Do not scratch the picture tube.

For your own safety, do not touch any part of the

TV, the power cord and the antenna cable during

lightning storms.

Install the TV on a stable TV stand and floor which

can support the TV set weight. Ensure that the TV

stand surface is flat and its area is larger than the

bottom area of the TV.

Do not place any objects on the TV. Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Pull the power cord out by the plug. Do not pull

the power cord itself. Even if your TV is turned

off, it is still connected to the AC power source

(mains) as long as the power cord is plugged in.

Unplug the TV before moving it or if you are not

going to use it for several days.

About the glazed finish on the top

and side panels of your TV

The top and side panels of your TV are glaze finished.

To keep them from discoloring, deterioration or scratching:

• Avoid hitting your TV with an object.

• Do not put a hot object such as a cup of coffee, or heavy object such as a flower vase

with water, on the TV top. If any liquid fall into the cabinet, it may cause fire or

shock hazard.

4Using Your New TV

Using Your New TV

Table of Contents

WARNING

Using Your New TV

Getting Started ............................................................................................. 6

Step 1 Secure the TV.............................................................................. 6

Step 2 Connect the antenna .................................................................. 7

Step 3 Insert the batteries into the remote.......................................... 8

Step 4 Set up your TV automatically .................................................. 9

Connecting optional components ........................................................... 11

Watching the TV ........................................................................................ 16

The features you will enjoy include:

•“DRC-MF” for viewing higher quality

pictures (page 20)

• “TWIN” for viewing two programs (page

21)

•“PROGRAM INDEX“ for displaying

multiple programs (page 24)

•“PICTURE MODE”/“SOUND MODE”/

“SURROUND” for customizing your TV

(pages 19 and 26)

•“WIDE MODE” to view 16:9 pictures

(page 48)

•“MEMORY STICK” button on the remote

control for viewing still pictures stored in

a “Memory Stick”(page 34)

Your TV also offers the following features:

•Initial Setup function for on-screen language

selection, picture position adjustment and

automatic channel presetting. (page 9)

•Menu language options

— English/Chinese/Arabic (page 54)

•“CHILD LOCK” for locking out specific

channels (page 60)

•“INTELLIGENT VOL” for automatic volume

adjustment (page 50)

•“FINE” tuning feature (page 58)

•Button Joystick on the remote control for

easier operation (page 46)

•

“ECO MODE” to save energy (page 55)

•

“GAME MODE” for video games (page 48)

Advanced Operations

Selecting the picture and sound

modes ............................................... 19

Viewing higher quality pictures ......20

Watching two programs at the same

time...................................................21

Displaying multiple programs ........24

Listening with surround sound ....... 26

Enjoying stereo or bilingual

programs .........................................27

Viewing Teletext.................................29

Operating optional components ......31

Using a “Memory Stick” ...................34

Adjusting Your Setup (MENU)

Introducing the menu system ..........44

Changing the “PICTURE” setting ...47

Changing the “SOUND” setting ..... 50

Changing the “MEMORY STICK”

setting...............................................52

Changing the “MULTI PICTURE”

setting...............................................53

Changing the “SETUP” setting........ 54

Additional Information

Troubleshooting .................................61

Self-diagnosis function...................... 65

Identifying parts and controls .........66

Specifications ...................... Back cover

6Using Your New TV

Using Your New TV

Secure the TV

To prevent the TV from falling, use the supplied screws, clamps and band to secure

the TV.

Getting Started

Step 1

Using Your New TV

Screw the band to the TV stand and to the

provided hole at the rear of your TV.

(1) Put a cord or chain through the clamps.

(2) Screw one clamp to a wall or pillar and

the other clamp to the provided hole at

the rear of your TV.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

20 mm

3.8 mm

screws clamps band

Using Your New TV

Step 2

Connect the antenna

If you wish to connect a VCR, see the “Connecting a VCR” diagram on page 8.

CAUTION

Do not connect the power cord until all other connections are

complete; otherwise, a minimal current leakage through the antenna

and/or other terminals to the ground could occur.

: Signal flow

IEC connector

(not supplied)

Antenna cable (not supplied)

Rear of TV

continued

8Using Your New TV

(MONO)

11223

SYNC

VIDEO

VIDEO IN

VIDEO OUT

AUDIO

R L

Connect a VCR

To play a video tape, press t(see page 17).

To video and

audio outputs

To S video

output

Audio/Video cable

(not supplied)

S video cable

(not supplied)

: Signal flow

(S video input)

VCR

Antenna cable (not supplied)

To antenna

output

To 8(antenna)

Rear of TV

To t1, 2 or 3 (video input)

(yellow)

-L (MONO) (white)

-R (red)

Getting Started (continued)

Notes

•If you connect a monaural VCR, connect the yellow plug to (the yellow

jack) and the black plug to -L (MONO) (the white jack).

•If you connect a VCR to the 8(antenna) terminal, preset the signal

output from the VCR to the program number 0 on the TV.

•When both the (S video input) and t1 (video input) are connected,

the (S video input) is automatically selected. To view the video input

to t1 (video input), disconnect the S video cable.

Step 3

Insert the batteries into

the remote

Note

•Do not use old batteries or different types of batteries together.

Using Your New TV

continued

PROG

VIDEO

DRC-MF

HD/DVD

123

456

A/B

PROG

INDEX

V CENTER

–

INITIAL SETUP

LANGUAGE: ENGLISH

Step 4

Set up your TV automatically

1Press !to turn on the TV.

The “INITIAL SETUP”

menu appears, and you can

select the on-screen

language.

2Move up or down to

select the desired

language, then press .

The “PIC ROTATION”

menu appears.

3If the upper and lower

bars are slanted, move

left or right so that they

become horizontal, then

press .

The “PIC V-POSITION”

menu appears.

–

PIC V-POSITION

–

PIC ROTATION

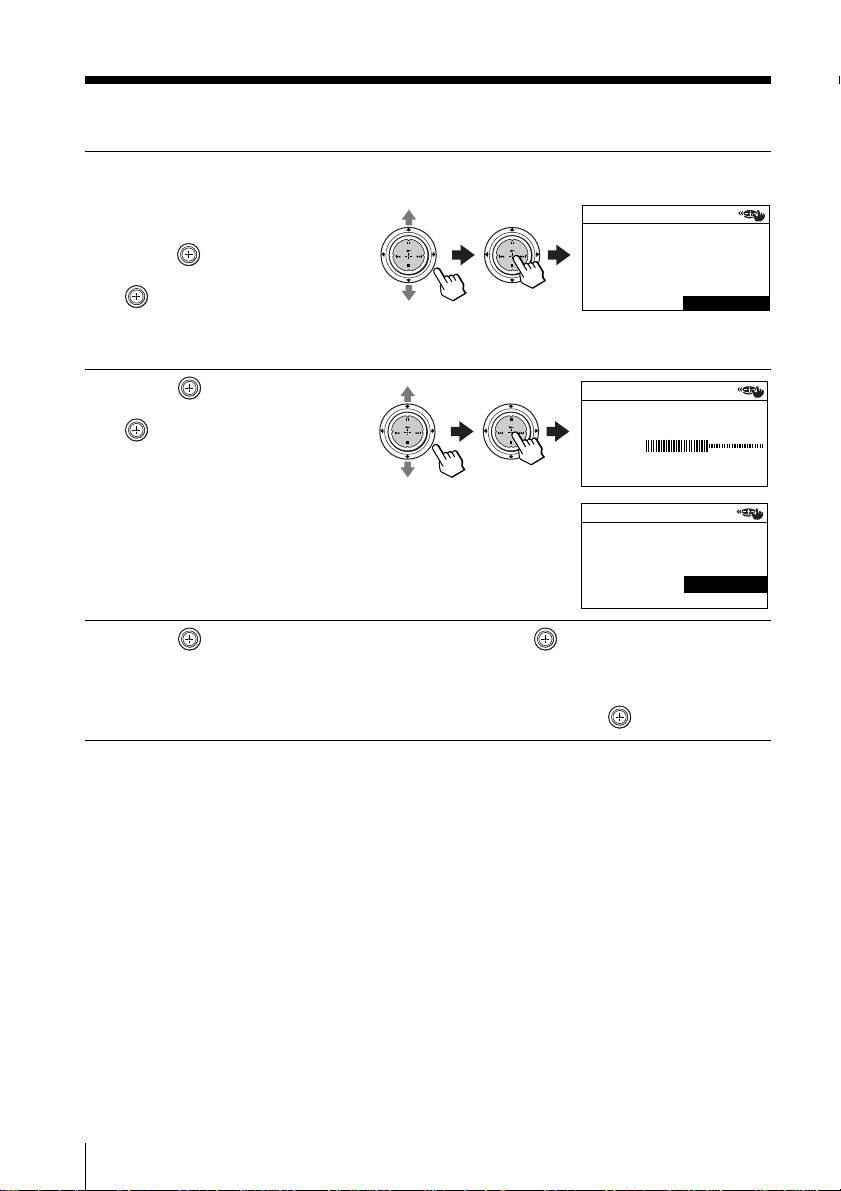

10 Using Your New TV

4If the upper and lower

bars are not equally

positioned to the top and

bottom of the screen,

move up or down to

adjust them, then press

The automatic channel

presetting menu appears.

5Move up or down to

select “YES”, then press

to preset the

channels automatically.

The screen will indicate

automatic presetting is in

progress. After channel

presetting is complete, the

last “INITIAL SETUP”

menu appears.

6Move up or down to select “NO”, then press .

The “INITIAL SETUP” menu will not appear again the next time you turn

on the TV by pressing !.

To allow this menu to appear again, select “YES”, then press .

Tips

• When you install the TV to another location, make sure to adjust PIC

ROTATION and PIC V-POSITION using the menu (see page 56).

•You can immediately go to the end of the “INITIAL SETUP” menu by

pressing MENU.

• If your TV has preset an unwanted channel or cannot preset a particular

channel, then preset your TV manually (see page 57).

Notes

• Before adjusting PIC ROTATION and PIC V-POSITION, keep external

speakers or other electrical equipment away from the TV. The magnetic

disturbance from these equipment or the direction of the earth’s magnetic

field may affect the TV.

• If you do not succeed in adjusting PIC ROTATION and PIC V-POSITION,

turn off the TV and change its location or direction, then try to adjust

using the menu. Do not move the TV while the TV is turned on. If you do,

abnormal color patches may appear on the picture. Press !on the TV to

turn off the TV for about 15 minutes, then turn it on again to demagnetize

the TV.

• When adjusting PIC ROTATION, adjust the value step by step. If you

rotate the bars largely at a time, color distortion may occur.

• You cannot adjust PIC ROTATION and PIC V-POSITION when HD signals

are input or “Memory Stick” mode is selected.

Getting Started (continued)

–

INITIAL SETUP

START AUTO PROGRAM

NOW?

YES

INITIAL SETUP

DISPLAY THIS MENU

NEXT TIME?

YES

–

INITIAL SETUP

PROG : 09

TV SYS : AUTO

VHF LOW

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Sony Fernseher Handbücher

Sony

Sony BRAVIA KD-75X8 L Series Bedienungsanleitung

Sony

Sony KV-21CL5K Bedienungsanleitung

Sony

Sony KV-24FS100 - 24" Fd Trinitron Wega Bedienungsanleitung

Sony

Sony Trinitron KV-27XBR95S Bedienungsanleitung

Sony

Sony BRAVIA KDL-48W700C Bedienungsanleitung

Sony

Sony BRAVIA KDL-32W605D Bedienungsanleitung

Sony

Sony Bravia KDL-50W950C Bedienungsanleitung

Sony

Sony KDL-40V2500 - Bravia V-series Lcd Hdtv Bedienungsanleitung

Sony

Sony Trinitron WEGA KV-AW21 Bedienungsanleitung

Sony

Sony TRINITRON KV-SZ25M61 Bedienungsanleitung

Sony

Sony KV-BZ212 Bedienungsanleitung

Sony

Sony Bravia KD-55X7007G Bedienungsanleitung

Sony

Sony BRAVIA XR XR-85X9 L Series Bedienungsanleitung

Sony

Sony KV-36FV300 - 36" Trinitron Wega Bedienungsanleitung

Sony

Sony KV-21FA210 Bedienungsanleitung

Sony

Sony TRINITRON KV-29FS105 Bedienungsanleitung

Sony

Sony BRAVIA XBR-65X900E Bedienungsanleitung

Sony

Sony TRINITRON KV-PG14L70 Bedienungsanleitung

Sony

Sony KDL-40VL130 - 40" Bravia Vl-series Lcd... Bedienungsanleitung

Sony

Sony FD Trinitron WEGA KV-28CS70K Bedienungsanleitung

Sony

Sony Wega KV-SW34 Bedienungsanleitung

Sony

Sony M91 Bedienungsanleitung

Sony

Sony BRAVIA KLV-48R562C Benutzerhandbuch

Sony

Sony XBR-49X800E Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
