Sound Sation KeyLite 25 Bedienungsanleitung

Dear customer,

first of all thanks for purchasing a SOUNDSATION® product. Our mission is to satisfy all the

possible needs of musical instrument and professional audio users offering a wide range of

products using the latest technologies for a reasonable price.

We hope you will be satisfied with this item and, if you want to collaborate, we are looking

for a feedback from you about the operation of the product and for possible

improvements to introduce in the next future. Go to our website

www.soundsationmusic.com and send an e-mail with your opinion, this will help us to build

instruments ever closer to customer s real requirements.

One last thing: read this manual before using the instrument, an incorrect operation can

cause damages to you and to the unit. Take care!

The SOUNDSATION Team

TABLE OF CONTENTS

TABLE OF CONTENTSTABLE OF CONTENTS

TABLE OF CONTENTS

UNBOXING……………………………………………………………………………………………………………………………………..…4

ACCESSORIES…………………………………………………………………………………………………………………………………....4

GENERAL WARNINGS………………………………………………………………………………………………………………….…..…5

EATURES………………………………………………………………………………………………………………………

…

……………....6

TOP PANEL……………………………………………………………………………………………………………………………………..…7

REAR PANEL…………………………………………………………………………………………………………………………………..….8

ADVANCE UNCTION MODE………………………………………………………………………………….……………..………….10

ASSIGN...10

VELOCITY CURVE10

PEDAL CURVE







..10

TEMPO.

PROGRAM

....11

MIDI CHANNEL

.......... .........11

TRANSPOSE

..................................................................................... ..11

OCTAVE

.......................................................................................................................................11

DUAL

.............................................................................................................................................12

SPLIT

.............................................................................................................................................12

SPLIT POINT

...............................................................................................................................12

MTC

...............................................................................................................................................12

ACTIVE SENSING

......................................................................................................................12

LOCK

.............................................................................................................................................12

MUTE

............................................................................................................................................13

SNAP SHOT

.................................................................................................................................13

UPLOAD/DOWNLOAD

...............................................................................................................13

PEDAL POLARITY

......................................................................................................................13

ALL SOUND OFF ...........................................................................................................................13

ALL NOTE OFF

...........................................................................................................................13

CTRL RESET

...............................................................................................................................14

GM/GS/XG ON

............................................................................................................................14

GM ON

..........................................................................................................................................14

GM2 ON

........................................................................................................................................14

GS ON

..........................................................................................................................................

XG ON

...........................................................................................................................................14

PRESET

14

0 9 / CLEAN14

APPENDIX…………….……………………………………………………………………………………………………………………………….15

APPENDIX 1 ASSIGNABLE CONTROLLER LIST....15

APPENDIX 2 ASSIGNABLE CONTROLLER PARAMETER LIST.....15 16 17

APPENDIX 3 – LED STATUS LIST...17

APPENDIX 4 –TECHNICAL SPECIFICATION....18

WARRANTY & SERVICE……………………………………………………………………………………………………..…………….19

LEGAL IN ORMATION & CONTACTS…………………………..…………..………………………………………..…………….20

UNBOXING

UNBOXINGUNBOXING

UNBOXING

When you ll open the box you will find the following items:

- Keylite Master Keyboard

(25,49 or 61 Keys)

- USB Cable

- User Manual CD

The packaging bag is not a toy! Keep out of reach of children.

Keep in a safe place the original packaging material for future use.

The unit is projected to be powered trough USB, so the external device you will plug to the

keyboard will supply the right voltage to let the keyboard works. If you want to use the

keyboard to pilot an external device via traditional MIDI OUT connector you need to supply

the voltage required (9VDC-Center Positive) with an external PSU. Ask your SOUNDSATION

Center for a PSU-20 to ensure best performance. An incorrect PSU can damage the

instrument and the warranty immediately dies.

ACCESSORIES

ACCESSORIESACCESSORIES

ACCESSORIES

KEYLITE keyboards can be used with several accessories like Pedals, Switches or Sustain

Pedals as well as the aforementioned PSU-20 Power Supply.

It s really suggested to use SOUNDSATION Accessories to prevent possible incompatibility

with other product from other manufacturer.

Ask your SOUNDSATION dealer for any accessories you could need to ensure best

performance of the product.

If any foreign objects enter the instrument, please contact your dealer or an authorized

SOUNDSATION center.

The serial number, electrical features and international standards are printed on a label

located in the bottom of the instrument.

In case of problems remember to give the serial number to the responsible of the technical

assistance.

GENERAL

GENERALGENERAL

GENERAL

WARNINGS

WARNINGSWARNINGS

WARNINGS

To prevent possible damages read the following list of actions:

- Do not place the instrument in wet or dirty environments.

- Do not remove the protective coverings.

-Do not cover any of the instrument s ventilation holes.

- Air must circulate freely around the instrument.

- Do not set the instrument on a surface with excessive vibration.

- Do not expose the instrument to electro-magnetic interference.

- Do not expose the instrument to heat, cold, wet or dust.

- Do not leave the instrument in direct sunlight.

- Do not expose the instrument to electrostatic forces.

- Do not place items with flames, such as candles or lighters, on the

instrument.

- Do not place the instrument on anything containing water or other

fluids.

GETTING STARTED

GETTING STARTEDGETTING STARTED

GETTING STARTED

The Keylite series is designed to be a powerful resource both for studio and live

performances. The friendly user interface is one of the best features of these products and

this allow you to configure your sound device in a fast and easy way.

Keylite Keyboards are designed to work with any PC or MAC hardware and with any DAW.

You don t need to install a specific driver because this is a Plug&Play device.

ALL

DAW

COMPATIBILITY

You have just to plug the USB cable on the keyboard and then plug the other side on your

computer. Open the software menu in which is possible to define the MIDI Device to use

and select “USB Midi Controller” from the available devices.

If you use the Midi Out port be sure that the module you are using is able to receive the

Midi messages in the same Channel in which the Keylite is working (Default Ch is 1).

You can plug 2 switch or continuous pedal on the Keylite. It s really suggested to use

genuine SOUNDSATION pedals. Ask your dealer for a compatible SOUNDSATION pedal.

Before connecting any other pedal please read carefully the specific section of this manual

where you can find all the instruction to adjust the resistance read range of pedals.

FEATURES

FEATURESFEATURES

FEATURES

 25/49/61 Dynamic keys

 1 x Assignable pedal interface (PEDAL B), compatible with switch pedal and continuous pedal. It

can be assigned as 152 controllers. (K25).

 2 x Assignable pedal interfaces (PEDAL A，PEDAL B), compatible with switch pedal and

continuous pedal. It can be assigned as 152 controllers. (K49/61)

 1 x Assignable slider .

 Pitch Bend and Modulation Wheel (WHEEL P and WHEEL M), which can be assigned as 148

controllers.

 2 x Assignable data buttons (DATA +/ ), which can be assigned as 160 controllers.

 1 x Edit button (EDIT), switching from play to edit status.

 1 x Dial function group switching from C1 C4 to C5 C8 pots.

 4 x Assignable Pots, assignable as 160 controllers with independent channel.

 5 x Keyboard Velocity Curve

 PC upload and download to fastly Import/export your DAW settings

 Multi functional keyboard, which can provide functions such as voice adjustment, dual, touch

sensitivity adjustment, split, tempo, mute, snap shot, etc.

 1 x MIDI OUT.

 USB interface, adaptable to USB 1.1. Power supply by USB and DC 9V.

 Compatible with Win XP/Vista and Mac OSX, drive free and hot plug supporting.

 Compatibility with major audio and sequencer software, such as Pro Tools Cubase,Cakewalk Etc.

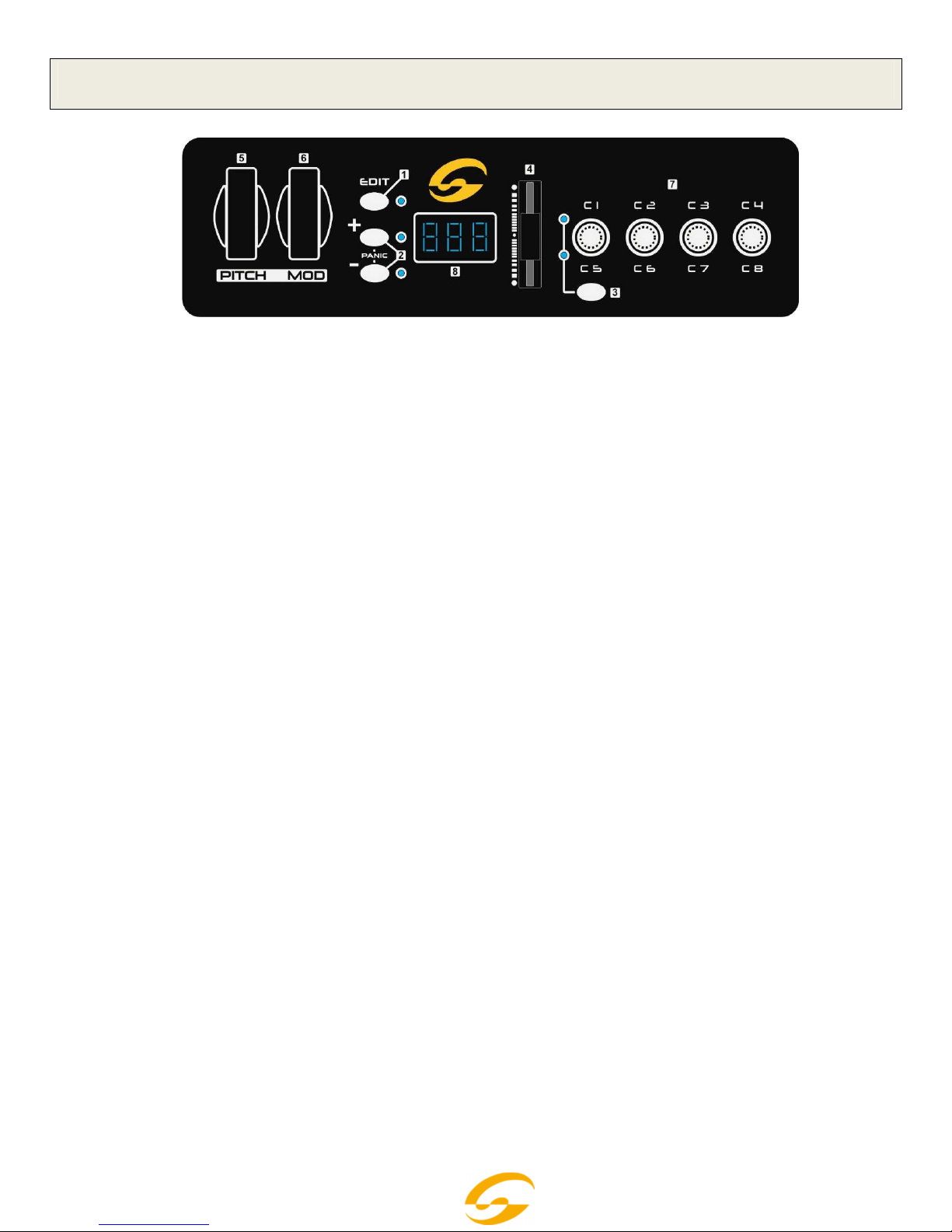

The top panel is common for Keylite 25/49/61.

1 - EDIT Button

It is to open/close keyboard multi function. . When LED indicator is on, keyboard multi function is on,

viceversa.

2 - DATA +/ Buttons

They are assignable buttons assignable as 160 controllers. The initial setting is 154

controller: octave

adjustment. When the LED indicator is on, it indicates that there’s upper/lower octave adjustment; when the

indicator flickers slowly, it indicates that there’s upper/lower transpose adjustment; when the indicator

flickers quickly, it indicates that there’s upper/lower octave and transpose adjustment at the same time;

when the indicator is off, it indicates that there’s no upper/lower octave nor transpose adjustment. If you

press the 2 buttons togheter you send the CC 120&123 (All sound off All notes off) on Ch1 & Ch2.

3 - GROUP Button

It is to switch function groups of pots C1~C4 and C5~C8.

4 - SLIDER

It is an assignable fader that can be assigned as 148 controllers. The initial setting is 147

controller:

master volume.

5 - PITCH BEND Wheel

It is an assignable wheel that can be assigned as 148 controllers. The initial setting is 146

controller: pitch

bend wheel.

6 - MODULATION Wheel

It is an assignable wheel that can be assigned as 148 controllers. The initial setting is 1

controller:

modulation wheel.

7 - C1~C8 Pots

These are assignable dials with an independent channel distributed to each dial, and each dial can be

assigned as 160 controllers. The initial channel of C1~C4 is 0, initial controller numbers are 152, 153, 156,

157, which controls program, channel, tempo and keyboard velocity curve respectively. The initial channels

of C5~C8 are 0~3, initial controller number is 7, which controls the volume of channels 0~3 respectively.

The function group of C1~C4 and C5~C8 is switched by GROUP button.

8 - LCD Display

It indicates the current number/status information.

TOP PANEL

TOP PANELTOP PANEL

TOP PANEL

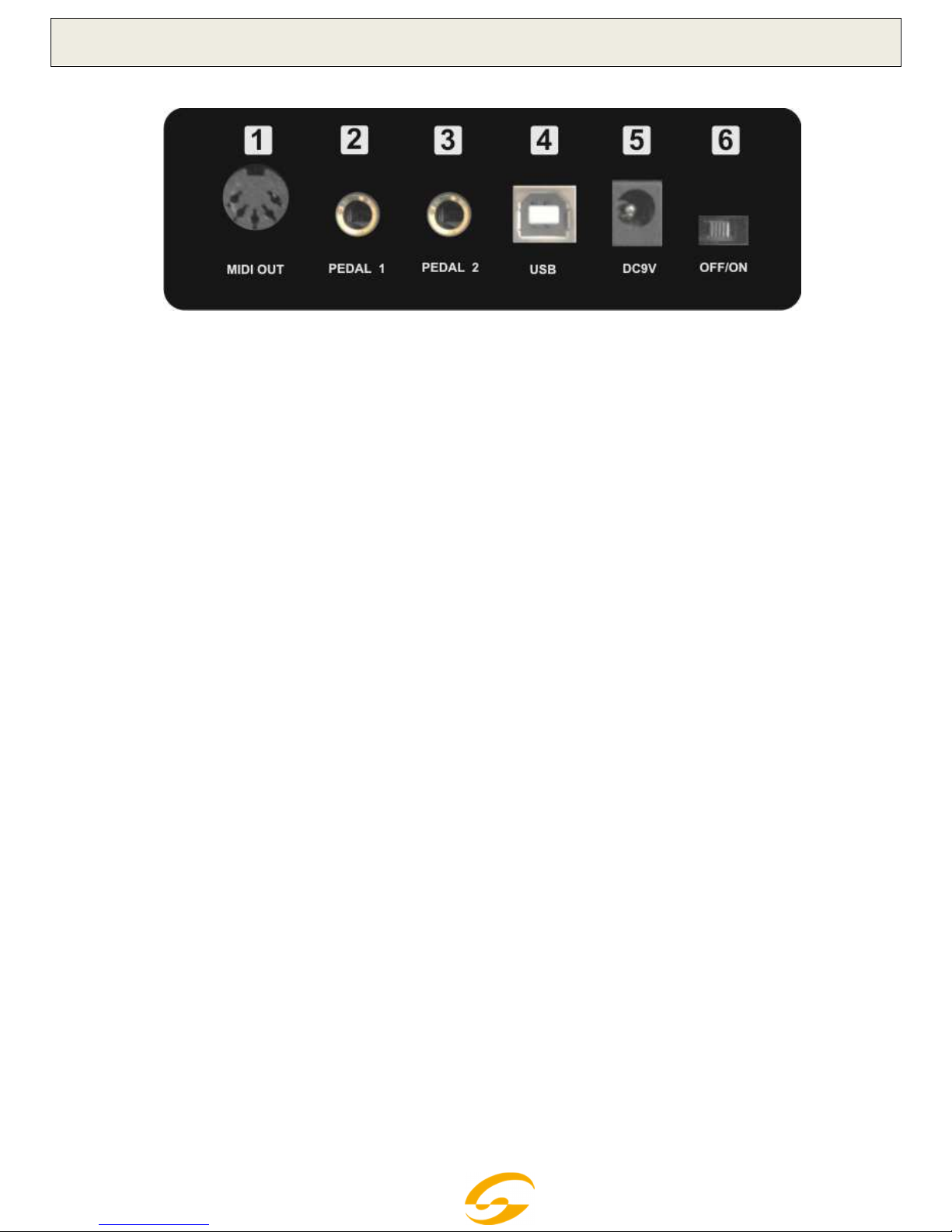

Pedal 2 is not available on Keylite 25

1 - MIDI OUT

MIDI output interface.

2 - PEDAL 1

PEDAL A input interface, which can connect to pedals of both switching type and continuous type. It

can be assigned as 152 controllers; the initial setting is soft pedal.

3 - PEDAL 2

PEDAL B input interface, which can connect to pedals of both switching type and continuous type. It

can be assigned as 152 controllers; the initial setting is sustain pedal.

4 - USB

USB interface

5 - DC 9V

9V power input interface. Center Positive. (PSU 20 is recommended)

6 - OFF/ON

Power Off/On

REAR PANEL

REAR PANELREAR PANEL

REAR PANEL

KEYLITE

KEYLITE KEYLITE

KEYLITE keyboards are suitable to send the complete range of GENERAL MIDI messages.

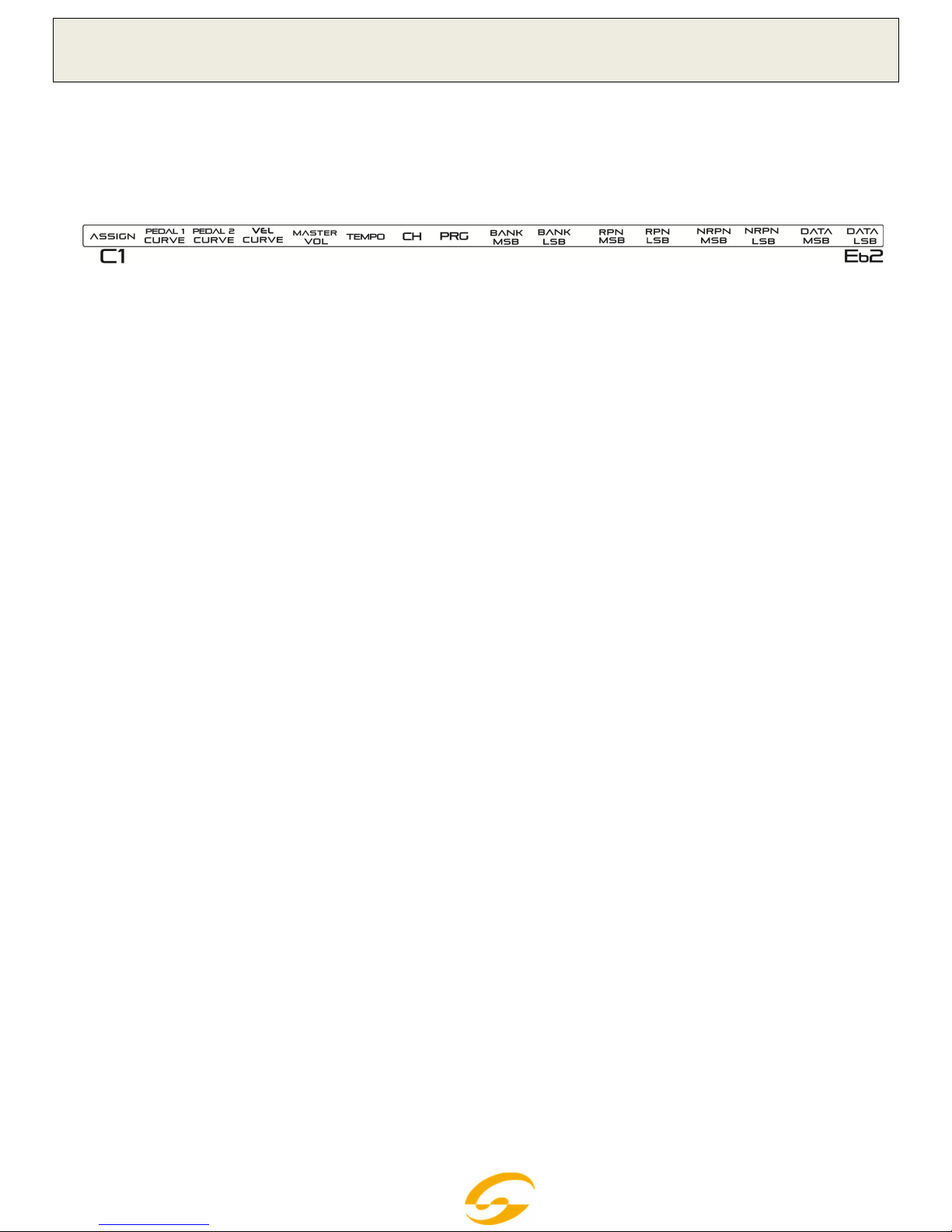

Above the first 49 keys (25 keys on K25) there are printed labels that allow you to enter the Advance

Function in EDIT mode. Here following the specification for each function.

ASSIGN

ASSIGNASSIGN

ASSIGN

Press EDIT button to enter keyboard Advanced Function mode, the LED of EDIT is on. Press ASSIGN

button to enter controller assignment mode, LCD shows CHO, reminding the user to choose the controller

that needs to be assigned. Move the desired control to select it (For example, if you want to assign

SLIDER, move the SLIDER to select), the LCD shows the controller number of the selected controller, input

the desired assignable parameter value with numeric pad and press ENTER to confirm (for example, if

Slider is selected, input 147 and the Slider is assigned as Master Volume Controller).

* Assignable controllers reference: Appendix 1 Assignable Controller List

* Assignable controller parameters reference: Appendix 2 Assignable Controller Parameter List.

PEDAL CURVE

PEDAL CURVEPEDAL CURVE

PEDAL CURVE

You can adjust the pedal resistance curve to better work with pedals of different specifications from

SOUNDSATION pedals.

stimate resistance curve value

Value of Pedal CURV = (128 x pedal resistance value) / (10K + pedal resistance value)

X. if the pedal resistance value is 10K, the value of Pedal CURVE is:

128*10K/ (10K+10K) = 64

For pedal resistance value, please refer to the technical specifications provided by pedal manufacturer.

The resistance curve estimation does not need to be very accurate, or you could simply adjust it without

calculation, as long as the travel and succession of the pedal satisfy your needs.

The initial value of resistance curve is 64, adaptable to most pedals in the market.

When you use switching type pedal, the recommended resistance curve value is 64.

When DATA +/ is assigned as Pedal 1 CURVE or Pedal 2 CURVE, DATA +/ can be used to adjust

resistance curve values. Press two buttons of DATA +/ at the same time to set the resistance curve value

to initial 64.

When the pots （C1~C4 or C5~C8）are assigned as Pedal 1 CURVE or Pedal 2 CURVE, they can be

used to adjust pedal resistance value.

Press EDIT button to enter keyboard multi function mode, press Pedal 1 CURVE or Pedal 2 CURVE multi

functional keys to enter pedal resistance curve adjustment mode, input the pedal resistance value with

numeric pad, then press ENTER to confirm.

VELOCITY CURVE

VELOCITY CURVEVELOCITY CURVE

VELOCITY CURVE

Velocity curve can be adjusted to find the best feeling with the keyboard.

Press EDIT button then Press VEL CURVE and press a number from 0 to 4 (5 different curves).Press

ENTER to confirm.

ADVANCED FUNCTION MODE

ADVANCED FUNCTION MODEADVANCED FUNCTION MODE

ADVANCED FUNCTION MODE

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Sound Sation Elektronische Tastatur Handbücher

Sound Sation

Sound Sation Jukey-61 Bedienungsanleitung

Beliebte Elektronische Tastatur Handbücher anderer Marken

Casio

Casio LK-50 Konfigurationshandbuch

Casio

Casio VZ-1 Fehlerbehebungshandbuch

Casio

Casio Privia PX-100 Bedienungsanleitung

Yamaha

Yamaha PortaTone PSR-225GM Bedienungsanleitung

Behringer

Behringer U-CONTROL UMX49 Bedienungsanleitung

Yamaha

Yamaha Portatone X2500 Bedienungsanleitung

Yamaha

Yamaha Portatone PSR-100 Bedienungsanleitung

Casio

Casio WK-1600 Bedienungsanleitung

Keith McMillen Instruments

Keith McMillen Instruments K-Board Pro 4 Technisches Datenblatt

Yamaha

Yamaha PortaSound PCS-30 Bedienungsanleitung

Roland

Roland Juno-6 Bedienungsanleitung

McGrey

McGrey 6170 Bedienungsanleitung

Yamaha

Yamaha PortaTone PSR-41 Bedienungsanleitung

HDC

HDC Kurzweil KP300X Bedienungsanleitung

Casio

Casio Celviano AP-45 Bedienungsanleitung

Akai

Akai MPK88 Bedienungsanleitung

Waldorf

Waldorf IRIDIUM Bedienungsanleitung

Yamaha

Yamaha NP-30 Montageanleitung
