2 kayaks storage system
Model: TF-204-2S v1.3
Caution – Failure to follow these guidelines can result in
property damage or personal injury.
Parts are not labeled. Before assembly, please identify each part according to the
descriptions and diagrams below.
Do not use if the product or any part is defective.
Do not tilt or lift the storage rack.
Do not drop kayak or any object on the rack. Place objects carefully and slowly.
Do not step, stand, or climb on the storage unit.
Do not use if loads are not balanced and / or cannot be used on level and secure ground.
Always make sure the rack will not tip over. Secure the rack to wall or floor if necessary.
Kayak may be placed sideways (horizontally) on cradles. Faces outward and with the
upper side lean against vertical posts.
Place kayak flat on top cradle. Make sure product is properly positioned.
Always make sure heavier loads are at the bottom and never place your kayak on upper
rack position with the bottom rack empty. Top-heavy loads are dangerous.
Use only if you determine the rack can be used safely.
The manufacture and its agents are not responsible for any damages or injuries
caused by the use or misuse of the product.
This rack is intended for indoor use. This rack may also be used outdoors under certain
weather and climate conditions with proper care and protection only.
Please follow the instructions and observe weight and size limits. Upper level: 50 Lbs and
12 feet length maximum load. Mid-tier 50 lbs and 12 feet max. Base level: 100 Lbs and 18
feet product length maximum load. Load and size limits are per pair of cradles. Total
maximum capacity: 200 Lbs.
When moving the storage rack, remove all objects from the rack.
Warranty: 1 year Limited Manufacture’s Warranty.
For technical support or questions regarding this product, please contact
626-338-8998. PST 9:00 AM to 3:00 PM.
SPAREHAND® Systems, USA Tel: 626-338-8998
www.SparehandSystems.com info@SparehandSystems.com
This product may be used for Kayak, Paddleboard (SUP),
Surfboard, Cargo Boxes, Canoe, and other similar devices.

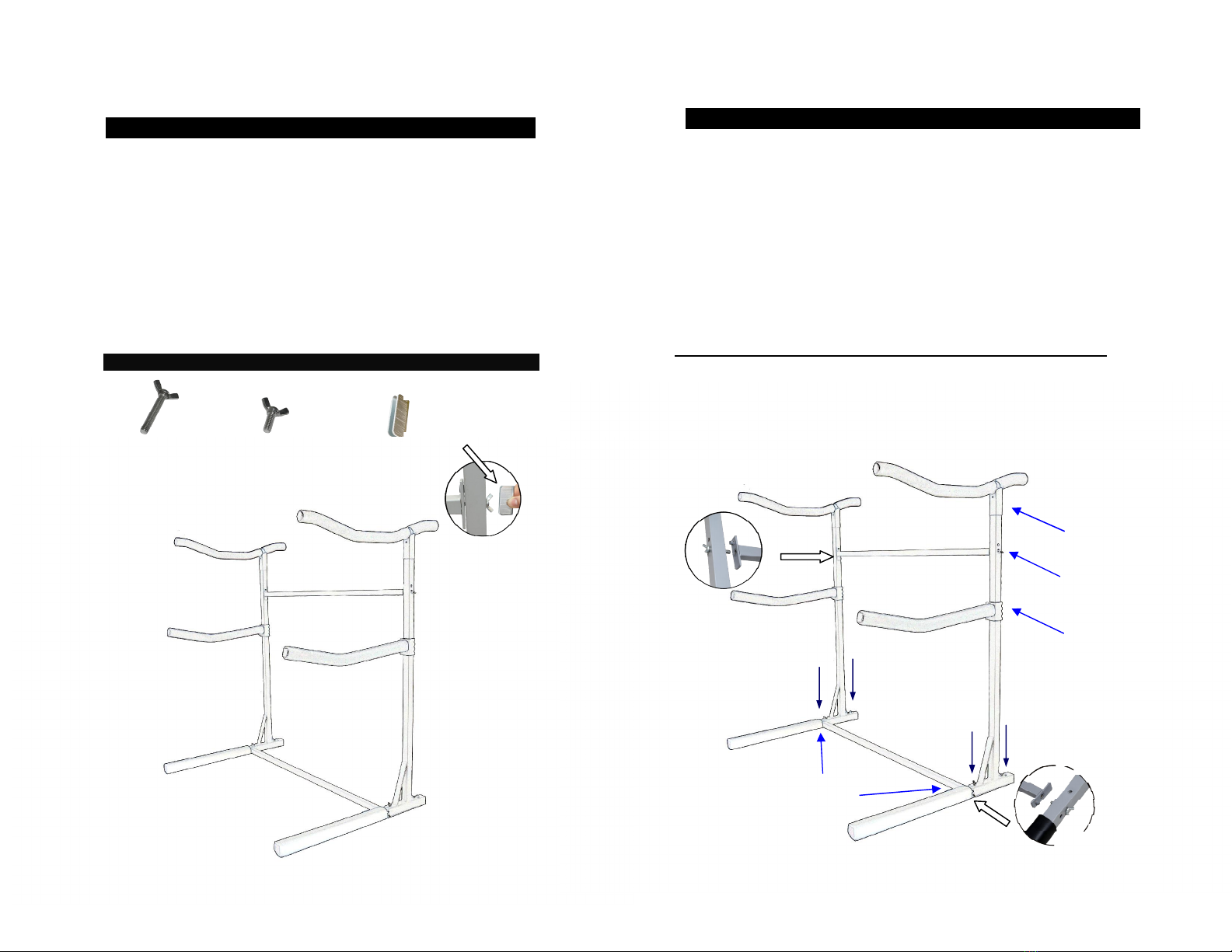

Parts List .
The following parts are required for TF-204-2S Kayak Rack
A. Base (2 PCS)
B. Cross Beam (2 PCS)
C. Vertical Post (2 PCS)
D. Top Cradle (2 PCS)
E. Mid Cradle arm (2 PCS)
Hardware:
X Y
Long Short Tightening Key
(8 PCS) (4 PCS)
Installation Procedure: .
Step 1.
Assemble Part (A) onto Part (B) using bolt (X).
Step 2.
Assemble Part (C) to Part (A) using bolt (Y).
Step 3. Connect part (B) on to part (C) with bolt (X).
Step 4.
Insert Part (D) at the top of Part (C). Click to lock.
Step 5.
Install Part (E) on to Part (C) using bolt (X).
NOTE: Use Tightening Key to tighten and secure all bolts
Make sure all nuts and bolts are tightened
Caster Wheels (part number C-4) sold separately, can be installed on this system.
Step 1
X
Step 2
Y
Step 3
X
Step 4,
Snap in
A
A
B
B
C
C
D
D
E
Step 5
X
Step 2
Y
Step 1
X
E
