Spring Well SWCF0948 Bedienungsanleitung
1
WHOLE HOUSE WATER FILTER
MODELS: SWCF0948, SWCF1054, SWCF1354
Installation Instructions
CUSTOMER SERVICE IS AVAILABLE MON-FRI 9AM-6PM EST
800-589-5592
WWW.SPRINGWELLWATER.COM
SpringWell whole house water filters use the highest
quality of coconut catalytic carbon that target the
contaminants that we find in our water supplies today.
Our systems are manufactured in an up-flow design
giving the influent water optimal contact time so we can
reduce as many contaminants as possible. Our catalytic
carbons have an extremely fast reaction time which
means more contaminant removal, even in a high flow
installation.
"
2

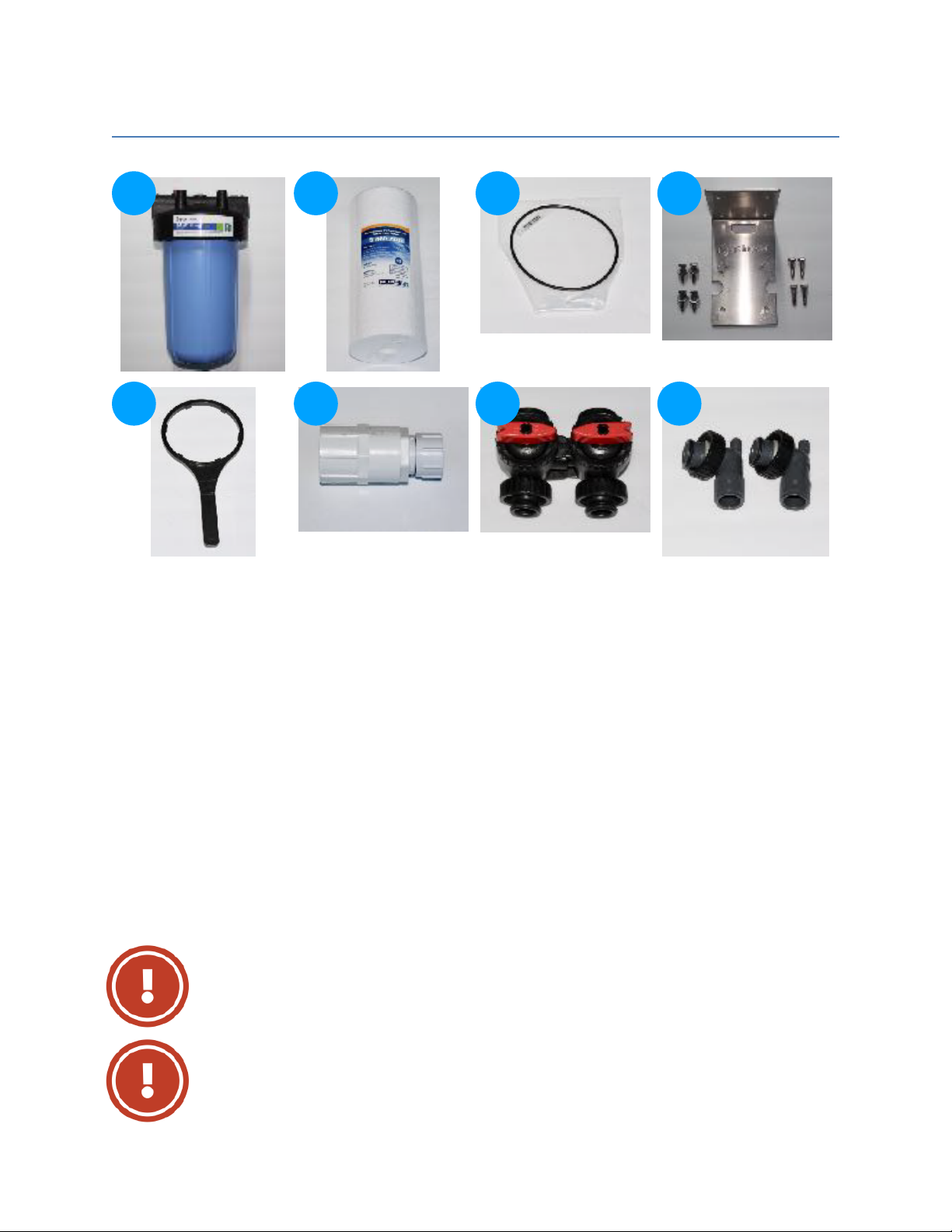

Additional Parts Included
PLEASE READ INSTRUCTIONS FULLY BEFORE INSTALLATION.
Be sure to follow all applicable plumbing codes. The system must be
installed on main water supply line.
CAUTION: Do not install on well water unless you have spoken to a
customer service representative first.
The main tank sits in a “boot” and may need to be adjusted after shipping.
1. Pre-filter housing
2. 5 micron sediment filter
3. O-Ring for pre-filter housing
4. Mounting bracket for pre-filter housing
5. Spanner wrench for pre-filter housing
6. Hose bib assembly
7. Bypass valve
8. 1” MNPT fittings
1
2
3
4
5
6
7
8
3
Product Specs
SWCF0948
Tank Width
9”
Tank Height
48” (52” with head)
Flow Rate
9 GPM Service
Connection Size
1”
Operating Pressure
25-80 PSI
Operating Temperatures
36 - 120 F
Pre-Filter Change / Replacement
Every 6-9 Months
Media Change / Replacement
Every 6 Years or 1 Million Gallons
SWCF1054
Tank Width
10”
Tank Height
54” (58” with head)
Flow Rate
11 GPM Service
Connection Size
1”
Operating Pressure
25-80 PSI
Operating Temp.
36 - 120 F
Pre-Filter Change /
Replacement
Every 6-9 Months
Media Change /
Replacement
Every 6 Years or 1 Million
Gallons
SWCF1354
Tank Width
13”
Tank Height
54” (58” with head)
Flow Rate
17 GPM Service
Connection Size
1”
Operating Pressure
25-80 PSI
Operating Temp.ures
36 - 120 F
Pre-Filter Change /
Replacement
Every 6-9 Months
Media Change /
Replacement
Every 6 Years or 1 Million
Gallons
For replacement filters, please visit: www.springwellwater.com/replacements
If the tank is not perfectly straight, carefully lift the tank straight up a few inches and
tap it on the ground until the tank stands vertical and fits snuggly into the tank boot.
To do so set the tank on a level surface in an area where it can
get wet around the tank.
Locate the bypass valve with the red arrows and the 1” PVC
elbows. Install bypass valve to head of tank hand tight. Be sure
the bypass valve is in the “on” position.
Now install PVC elbow to inlet side.
Locate the hose bib assembly and connect it to the Inlet side.
Connect a water hose to the opposite end of the hose bib
assembly.
Turn the water on slowly to about halfway on and wait until the
water comes out of the outlet side. Disconnect the hose and put
the bypass valve in bypass mode, then set tank aside in a safe
place for 2 days.
4
Soaking Instructions
IMPORTANT!
The carbon media inside the filter system MUST soak in water
for a MINIMUM of 2 days before installation.
"
5
1. After the carbon has soaked for 2 days take the bypass valve out of
bypass into the service mode.!
2. Locate the hose bib assembly and connect it to the Inlet side. Connect
a water hose to the opposite end of the hose bib assembly.!
3. Turn the water on slowly and only halfway on and allow the water to run
for 15-20 minutes.!
4. Turn water off and disconnect the water hose.
5. Connect the water hose to outlet side and turn the water on slowly to
full strength.
6. Allow water to run for 5 minutes.
7. Disconnect the hose and connect to the inlet side.
8. Turn water on slowly halfway, run for 10 minutes.
9. Disconnect the hose bib assembly.
Note: At this point all of the carbon dust should
be completely out of the carbon bed. However,
there can be some residual dust which you will
sometimes see in toilets and toilet tanks. This is
completely normal and should clear within a
day or two.
Carbon Rinse
"
6
1. This is the point where you will need to shut the main
water supply off and adapt your plumbing in and through
the system.
2. We recommend you plumb a shut off valve before the pre-filter
housing.!
3. Locate the area where the system is going to be installed.
Locate aluminum pre-filter mounting bracket with hex bolts and
washers.!
4. Mount the pre-filter bracket to the wall (hex bolts into wall with
washers).
Pre-Filter Setup / Installation
Now connect the pre-filter housing head to the mounting
bracket with the hex bolts provided.
Plumb the water from the main water supply into the Inlet
side of the pre-filter head (follow the arrows for water flow).
Install lubed o-ring in groove on top of the blue pre-filter
housing.
Unwrap pre-filter and install it onto small pipe stand inside
the housing.
Screw the housing to the head as tight as you can without
the pre-filter housing wrench. Now take the wrench and
tighten down hand tight.
7
"
8
Plumb the main water supply coming out of the pre-filter housing into the Inlet
side. Now finish the plumbing by connecting the Outlet side back to the main
plumbing supply. Place the bypass valve in bypass.
Carbon Filter Install
(Example using SharkBite Fittings)
"
9
Once the plumbing is complete its time to start the system up. Double check all
connections. The valve nuts should only be hand tight. Slowly turn the main
water supply back on. Check for leaks. If there are no leaks slowly turn the
bypass valve to the on position. Go to a faucet inside and slowly turn the cold
water on about halfway and let it run for about 5 minutes. Turn off the faucet and
you have now completed the install.
Now you can enjoy your new Whole House Water Filter!
Complete Install
