Spypoint IRB-W Bedienungsanleitung
P INTSPY INTPSPY

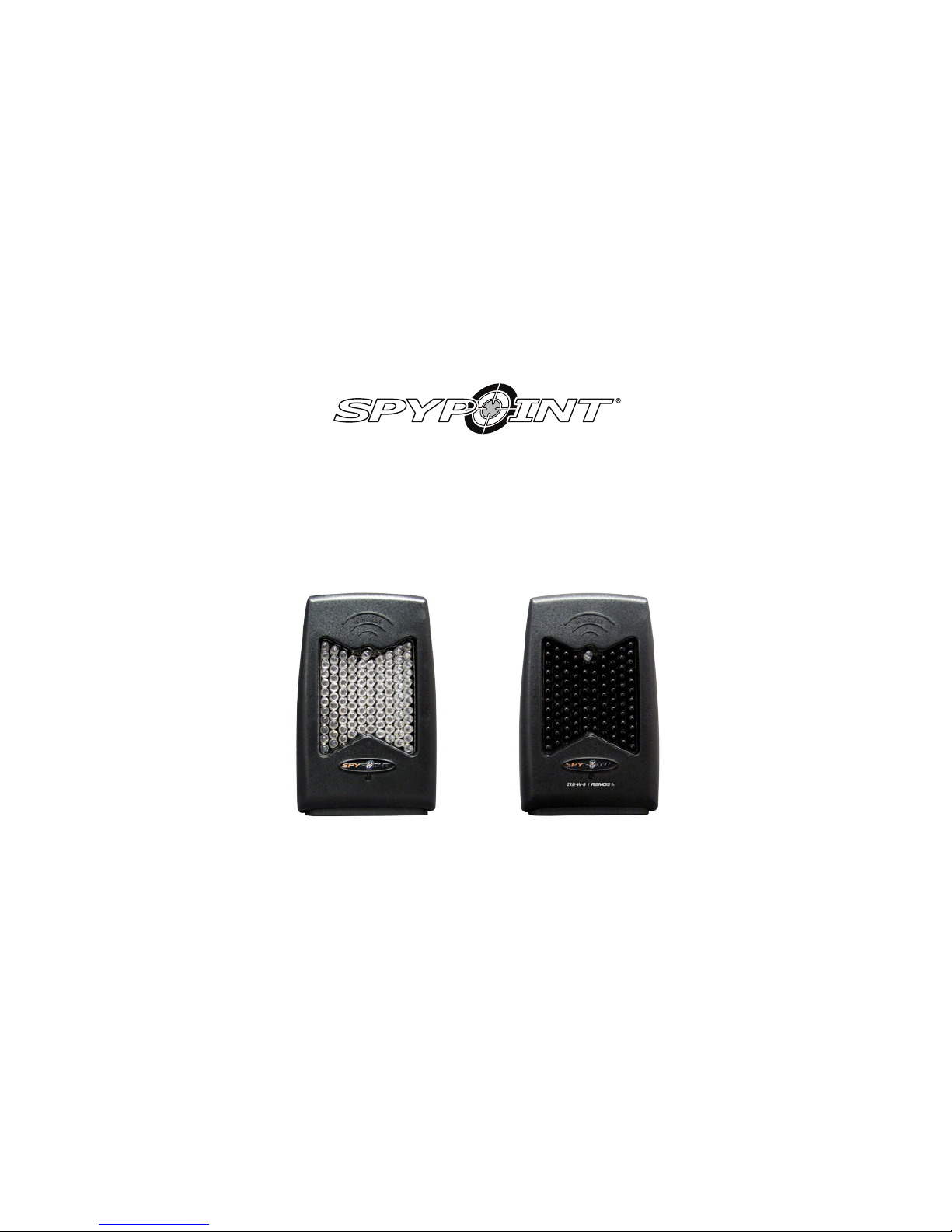

User manual - Infrared Booster
Manuel de l’utilisateur - Modules d'éclairage infrarouge
Bedienungsanleitung - Infrarot Booster
IRB-W IRB-W-B
3
English
v.1.2
Thank you for choosing the SPYPOINT®Infrared Booster. This
manual will help you get the most out of your new device.
The IRB-W/IRB-W-B are wireless devices used to optimize infrared lighting
and increase quality for nighttime photos and videos.
FACEBOOK.COM/SPYPOINT
YOUTUBE.COM/SPYPOINTTRAILCAM
TWITTER.COM/SPYPOINTCAMERA
5
4
English
English
PACKAGE CONTENTS
• SPYPOINT®IR-Booster (IRB-W or IRB-W-B)
• Wireless transmitter
• Elastic
• Installation strap
FEATURES
LEDs • 100 LEDs
Type of LEDs • Infrared LEDs (IRB-W)
• Invisible LEDs (IRB-W-B)
Note : The lighting of the IRB-W-B is completely
invisible to the naked eyes in the dark.
2 levels of intensity • 50 or 100 LEDs
Triggering • Triggering by a wireless transmitter (included).
The transmitter is not necessary when used with
REMOSTM compatible cameras (IRB-W-B only).
Wireless range • 50 ft
REMOSTM
technology
• IRB-W-B works with REMOSTM compatible cameras
IR-Booster
power source
• 4 D alkaline batteries (not included)
• 12V battery (KIT6V-12V, KIT-12V, BATT-12V) or
12V adapter (AD-12V), each sold separately.
Transmitter
power source
• 2 AAA alkaline batteries (not included)
Battery level • Low battery indicator
7
6
English
English

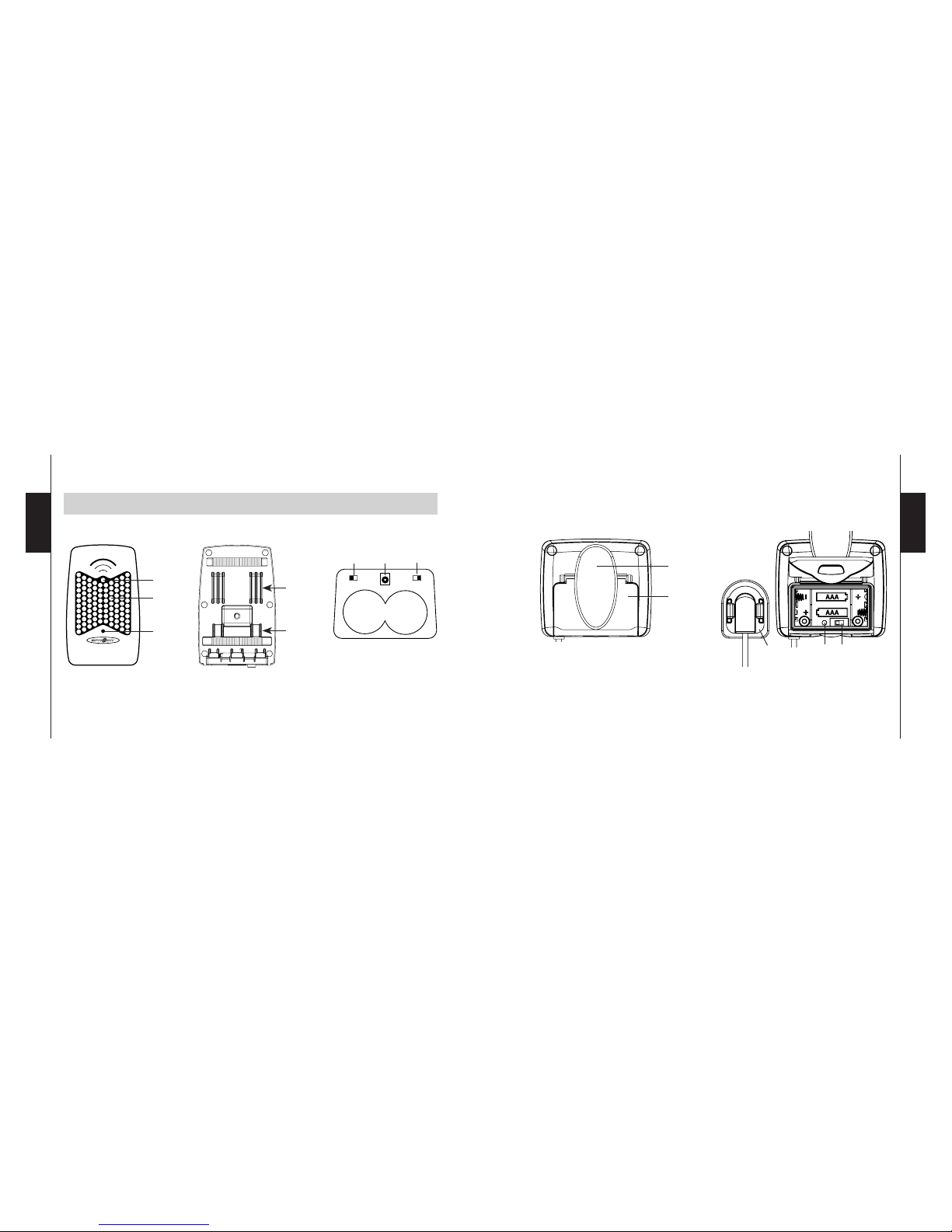

COMPONENTS
IR-Booster
Transmitter
1. Light sensor
2. Infrared or Invisible
LEDs
3. Battery life indicator
4. Slot for installation
strap
5. Cable lock hole
W
I
R
E
L
E
S
S
P INTSPY
TM
INTPSPY
D
+
D
+D
+
D
+
1
2
3
4
5
W
I
R
E
L
E
S
S
P INTSPY
TM
INTPSPY
D
+
D
+D
+
D
+
678
6. 100/50 LEDs
7. 12V power jack
8. OFF/ON
1. Strap clip
2. Battery case
3. Infrared sensor
4. Battery life indicator
5. OFF/ON
1
2
4 53
9
8
English
English

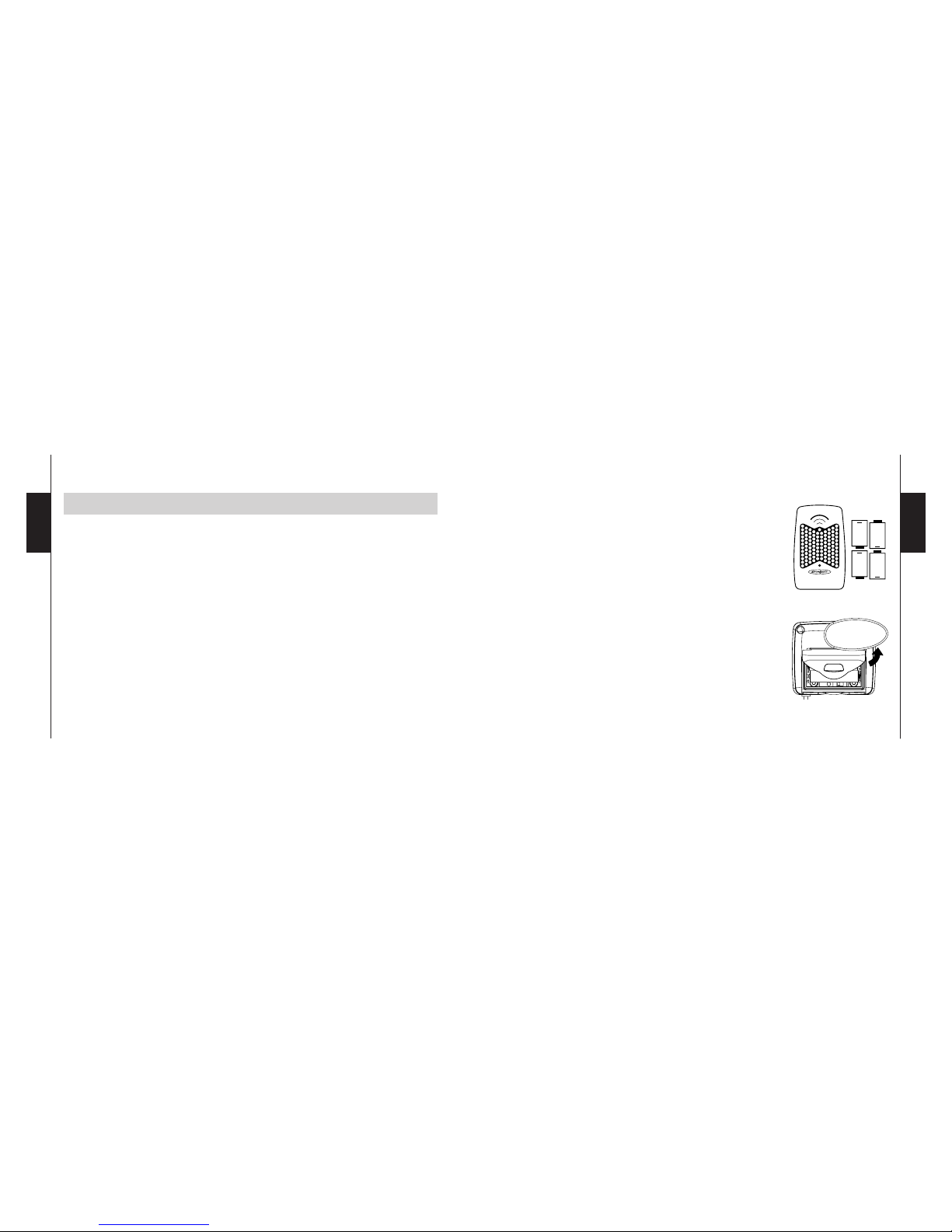

ALKALINE BATTERIES
IR-Booster
The IRB-W/IRB-W-B are powered by 4 D batteries
(1.5V), not included. To install the batteries, open
the cover on bottom side of the IRB-W/IRB-W-B.
Insert batteries as indicated, battery polarity must be
followed (+ and -).
Transmitter
The transmitter is powered by 2 AAA batteries (1.5V),
not included. To install batteries, turn the strap clip
and pull battery cover upwards. Insert batteries as
indicated in the battery compartment, battery polarity
must be followed (+ and -).
W
I
R
E
L
E
S
S
P INTSPY
TM
INTPSPY
D
+
D
+D
+
D
+
POWER
BATTERY LEVEL
It is possible to know the battery level of the IRB-W/IRB-W-B and the
wireless transmitter when turned on. The battery life indicator will be on for
a period of 8 seconds when the batteries are full. When the indicator blinks
for 8 seconds, the batteries are low and need to be replaced. If the indicator
remains off, the batteries are completely empty or are possibly installed in the
wrong polarity (+ and -).
Tip: At each visit to the installation site of IRB-W/IRB-W-B and wireless
transmitter, make sure to verify the level of your batteries by doing the ON/
OFF procedure.
Note: The use of 50 or 100 LED mode has a direct influence on the energy
supplied by the batteries (50 LED is more efficient than 100 LED) and
therefore on the operation autonomy of the IRB-W/IRB-W-B.
11
10
English
English

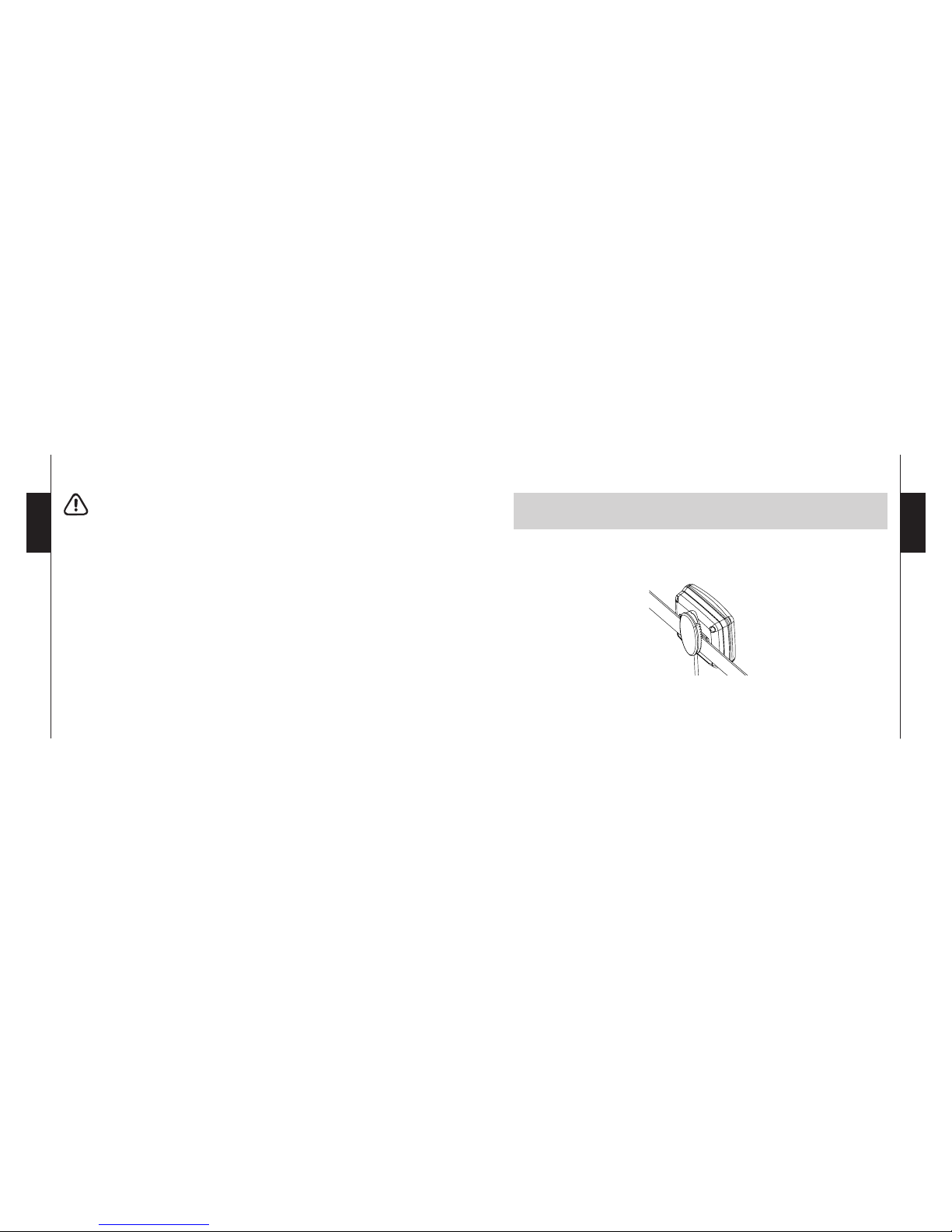

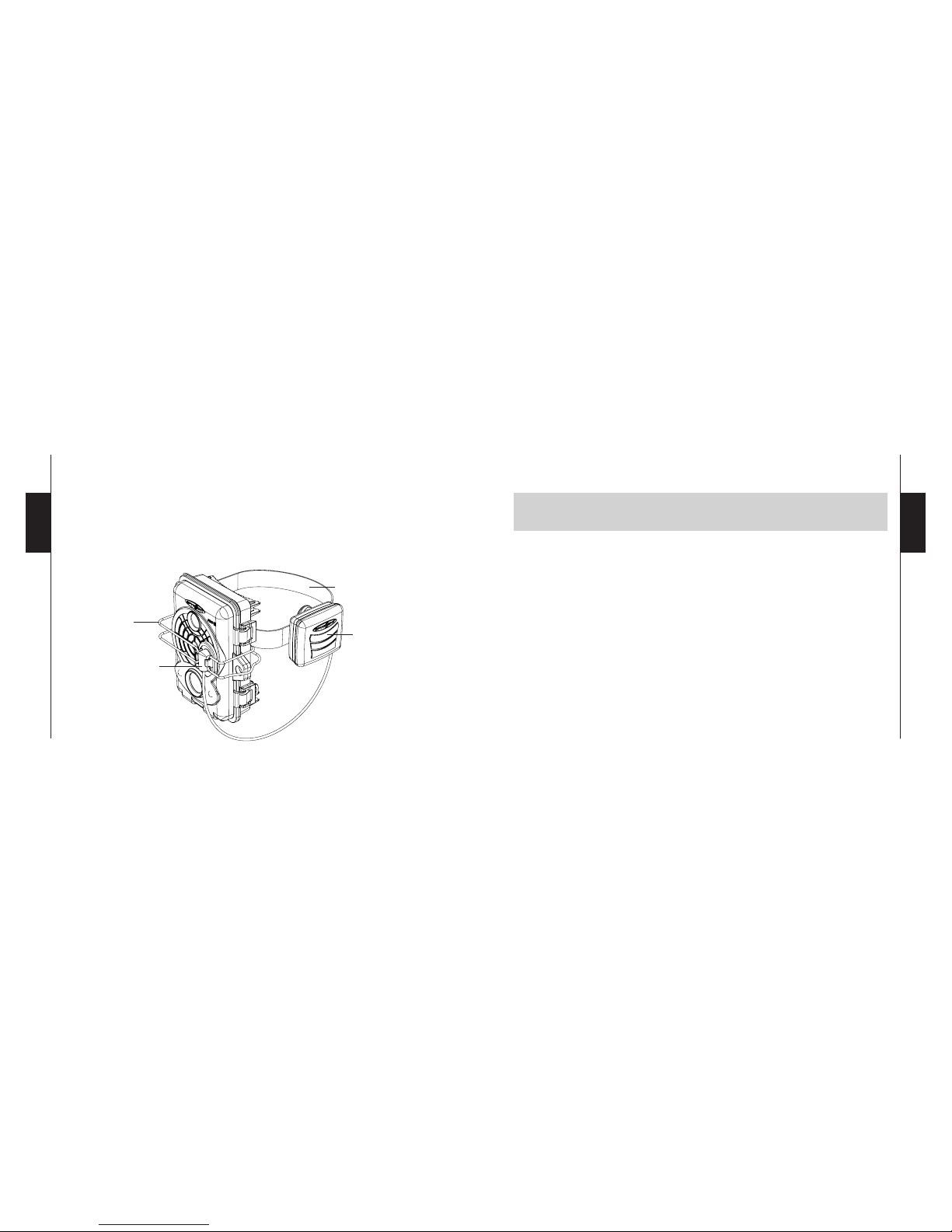

INSTALLATION WITH THE TRANSMITTER
(IRB-W / IRB-W-B)
1. Maximum distance for wireless transfer between transmitter and IRB-W/
IRB-W-B is 50 ft.
2. Install the wireless transmitter on the camera strap with the strap clip.
3. Attach the infrared sensor in front of the cameras LED with the adjustable
elastic (included). See figure on the next page.
4. Turn on the transmitter and the IR-Booster.
Please note that the voltage of rechargeable (AAA and D) batteries
(1.2V) is insufficient to power the SPYPOINT®IR-Booster and
transmitter. We also recommend the use of new batteries to ensure maximum
performance of the devices.
Tip : During storage of IRB-W/IRB-W-B and wireless transmitter for more
than 30 days, remove batteries to avoid leaking problems.
EXTERNAL (12V)
IR-Booster
The IRB-W/IRB-W-B can also be powered by an external 12-volt DC input
such as a 12-volt battery (KIT-12V, BATT-12V or KIT6V/12V, sold separately)
or a 12-volt adapter (AD-12V, sold separately) to enhance its operation time.
For available accessories, refer to the AVAILABLE ACCESSORIES section.
13
12
English
English
INSTALLATION WITHOUT THE TRANSMITTER FOR
REMOSTM CAMERAS (IRB-W-B)
The transmitter is not neccessary when the IRB-W-B is used with
REMOSTM compatible cameras.
1. Activate the IR-BOOSTER option in the settings on a REMOSTM compatible
camera.
2. Turn on the IRB-W-B.
3. Install the IRB-W-B at a maximum of 4 ft above the ground (for hunting)
and on a stable surface (e.g. a tree). The wireless range betwen the camera
and the IRB-W-B is maximum 50 ft.
4. The IRB-W-B synchronizes with the infrared LEDs of the camera. It is
instantly triggered by a wireless signal when the camera takes a photo or
video.
5. Install the IRB-W/IRB-W-B at a maximum of 4 ft above the ground (for
hunting) and on a stable surface (e.g. a tree).
6. The transmitter synchronizes with the infrared LEDs of the camera.
The IR-Booster is instantly triggered by a wireless signal when the camera
takes a photo or video.
Wireless
transmitter
Installation strap
Infrared sensor
Elastic
15
14

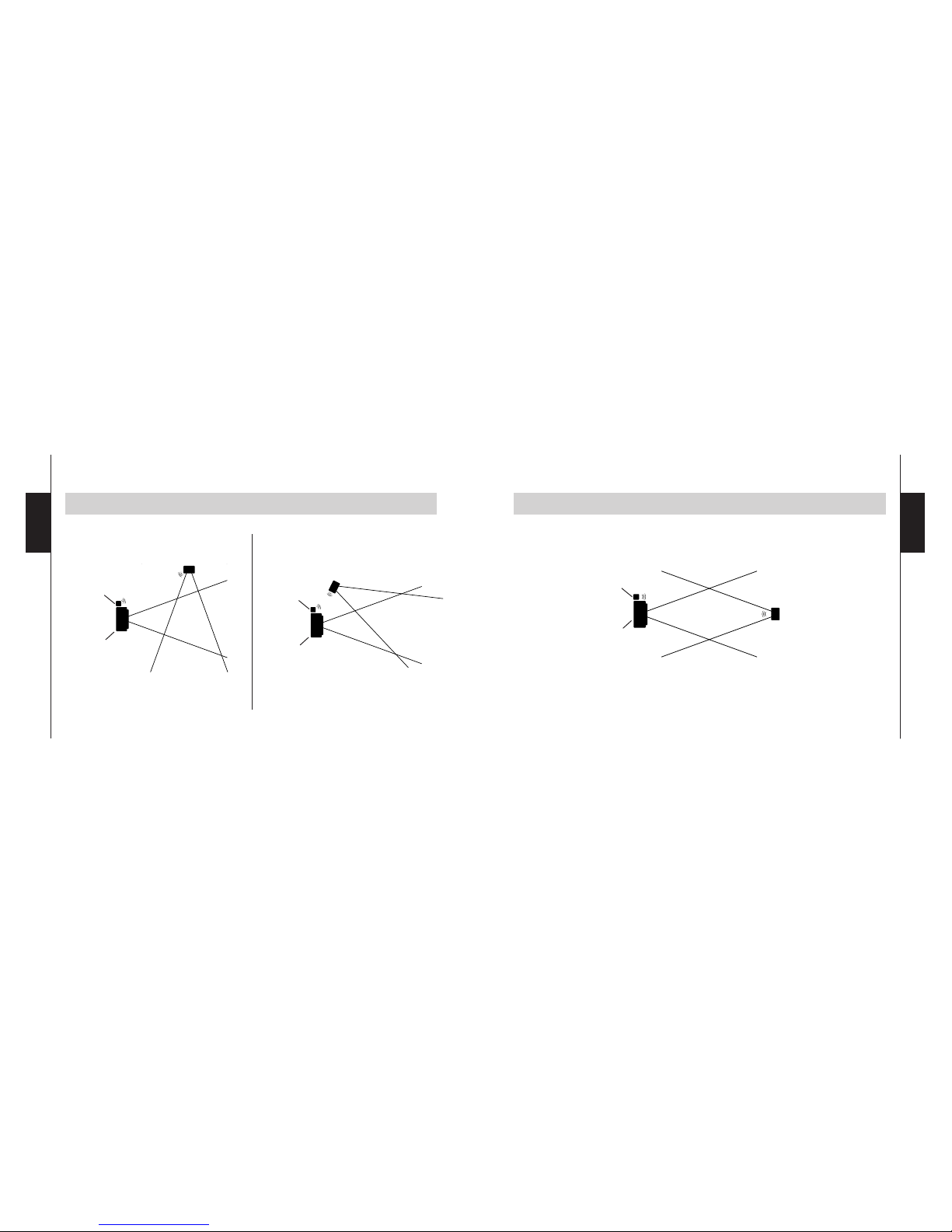

NON-RECOMMENDED INSTALLATION
We do not recommend installing the IRB-W/IRB-W-B facing the camera to
avoid overexposure of the photos and videos.
IR
IR
IR
Infrared
camera
IRB-W /
IRB-W-B
Wireless
transmitter
English
English
RECOMMENDED INSTALLATION
IR
IR
IR
Infrared
camera
IRB-W /
IRB-W-B
Wireless
transmitter
IR
IR
IR
Infrared
camera
IRB-W /
IRB-W-B
Wireless
transmitter
17
16
English
English
Rechargeable 12V battery & charger set
#BATT-12V, 12-volt 7.0Ah rechargeable battery
and AC charger to power the Infrared Booster.
Rechargeable 6V-12V battery, charger & hou-
sing kit
#KIT6V-12V, Universal kit with two 6V rechar-
geable batteries (2.8Ah), with 6V (5.6Ah) and
12V (2.8Ah) output conguration and AC charger.
Water resistant ABS plastic case, 12 ft power cable
and strap included. Camo pattern. Compatible with
all SPYPOINT®products equipped with a 12V
power jack.

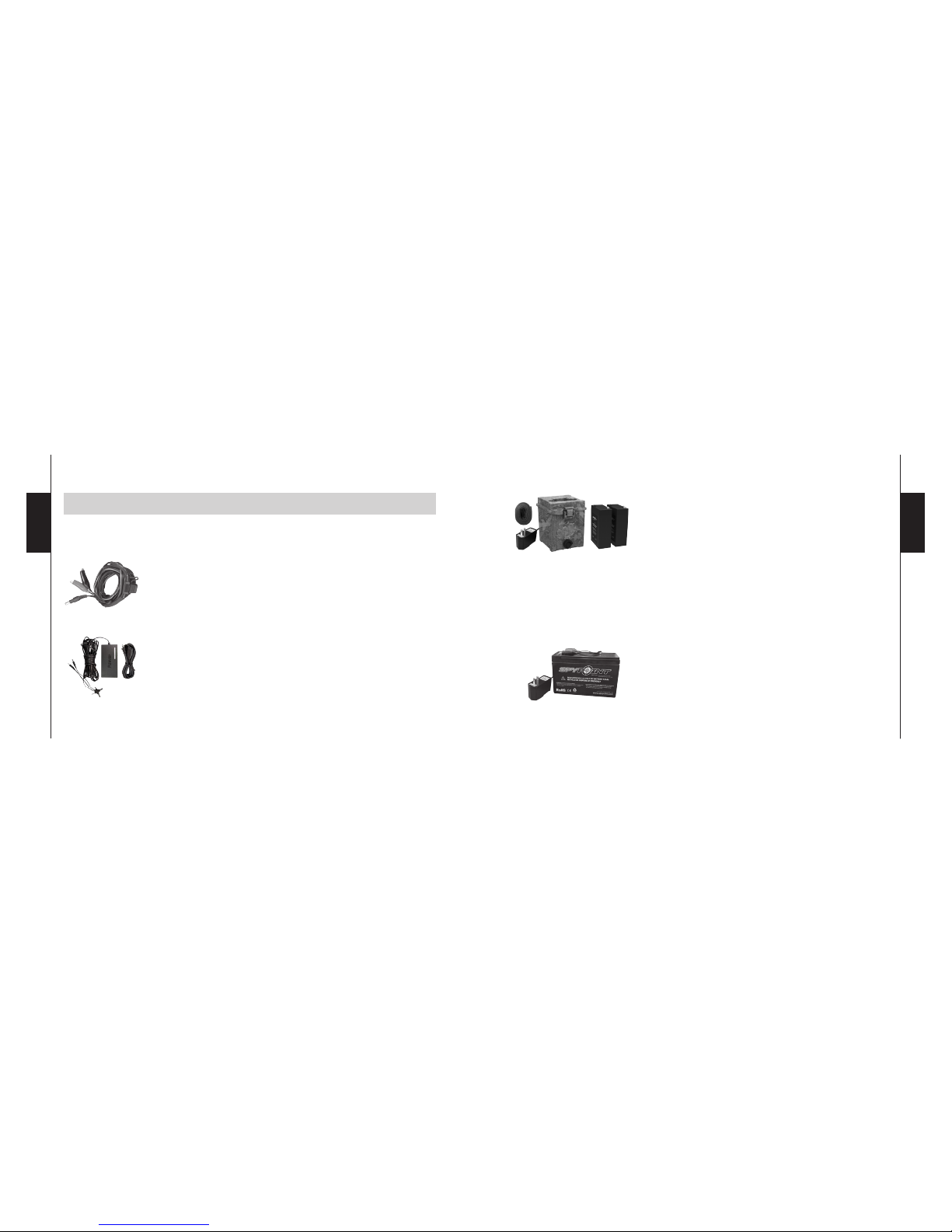

AVAILABLE ACCESSORIES
To obtain more information on the available accessories, go to
www.spypoint.com.
12V DC Power cable
#CB-12FT, 12 ft power cable with alligator clips
at one end to connect a 12V battery to an Infrared
Booster.
12-volt Adaptor
#AD-12V, AC adaptor (6V to 12V). Powers the
Infrared Booster from an electrical outlet.
19
18
English
English
WARRANTY AND REPAIR
This SPYPOINT®product designed by GG Telecom, is covered by a one (1)
year warranty on material and workmanship starting from the original date of
purchase. The sales receipt is your proof of purchase and must be presented
if warranty service is needed. This warranty will be honored in the country of
purchase only.
This warranty does not cover any GG Telecom product which has been
subjected to misuse, neglect and accidents or has been improperly used
or maintained. In addition, this warranty is not applicable for all products
purchased online from an unauthorized dealer. Any modifi cation or tampering
of the product will affect its operation, performance, durability and voids this
warranty.

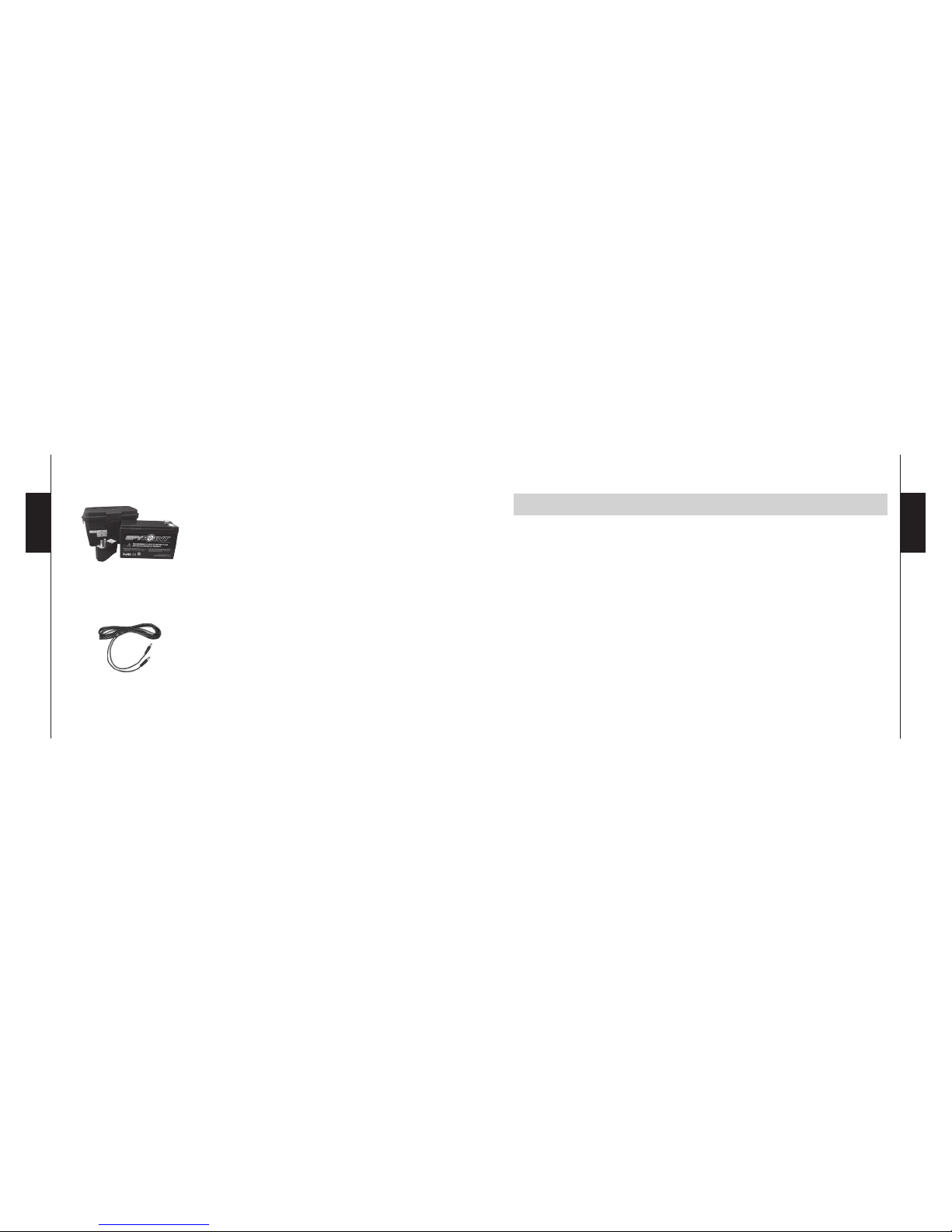

Spare power cable
#PW-12FT, Spare 12 ft power cable, to connect the
Infrared Booster to the KIT-12V.
Rechargeable 12V battery, charger & housing
kit
#KIT-12V, 12-volt 7.0Ah rechargeable battery with
a water resistant ABS plastic case, AC charger,
12 ft power cable (#PW-12FT) and carrying strap
included. Compatible with all SPYPOINT®pro-
ducts equipped with a 12V power jack.
