Squier MB-4 Kurzanleitung
MB-4 Skull & Cross Bones Bass
Rosewood- m/n 0328001565
Loc # Description Part Number
1 GB-7 Tuners (set of 4) 006-2376-000
2 Strap Buttons (ea) 003-6821-000
3 Neck Pickup 005-5379-000
4 Bridge Pickup 005-5380-000
5 500K Volume Pot 006-2730-000
6 500K tone Pot 006-2731-000
7 500KAC Balance Pot 002-8380-000
5-7a Volume/Tone Knobs (ea) 006-2378-000
8 Output Jack 006-2379-000
9 Bridge Assembly 006-2377-000

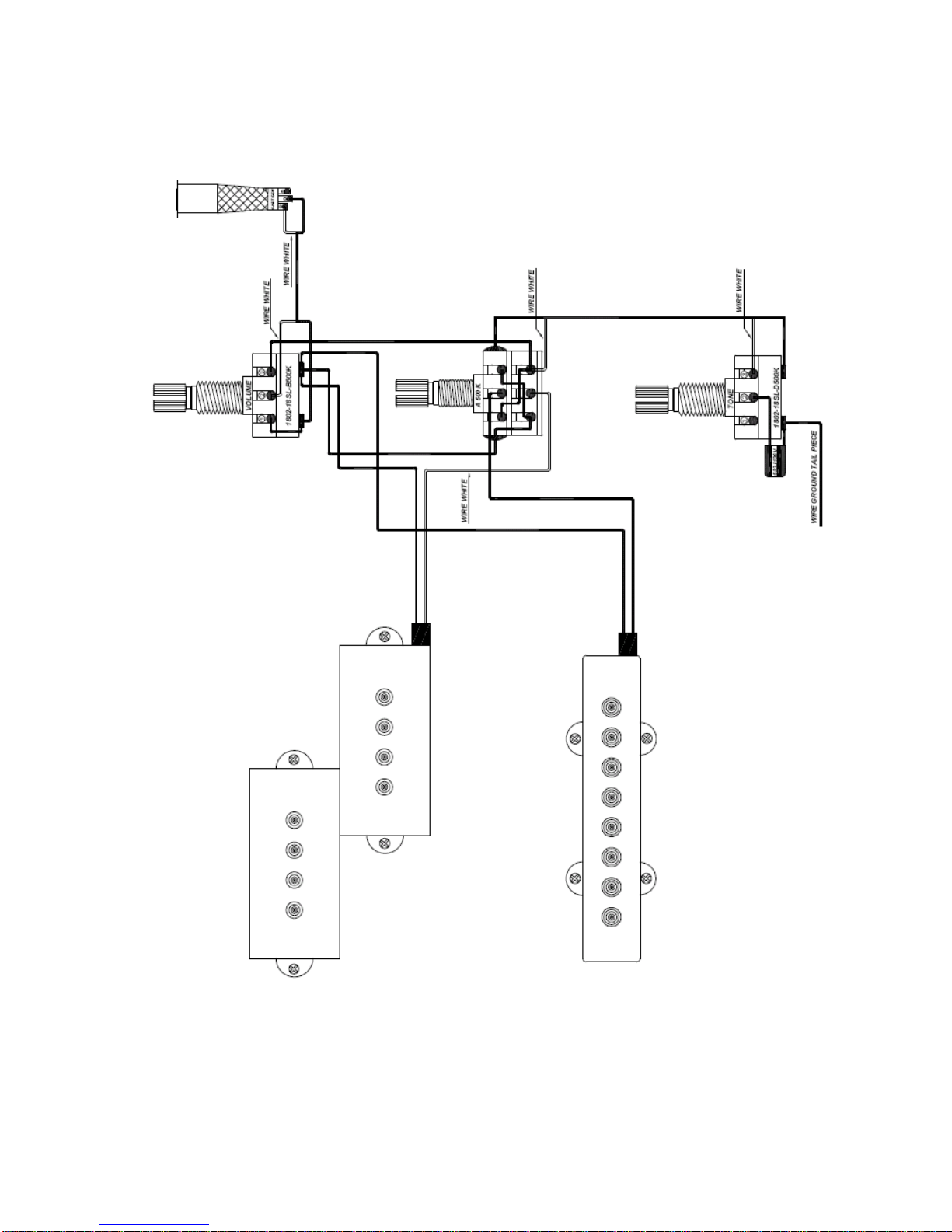

Wiring Diagram
Last Revision Date: 8/28/2008
Page 1 of 2
Last Revision Date: 8/28/2008
Page 2 of 2
