ST. PETE, FL. U.S.A. WWW.STUPIDSIMPLE.TOOLSSTUPID SIMPLE TOOLS
Product Manual003 Summer 2023
3-Stage Shop Air
System
WWW.STUPIDSIMPLE.TOOLSSTUPID SIMPLE TOOLS
Table of Contents SST003
Introduction
→
General Safety →
Operations & Maintenance →
Features
→
How to Use →
Liability
→
Return Policy & Warranty →
01
02
03
04
05
06
07
I
Introduction
→
General Safety →
Operations & Maintenance →
Features
→
How to Use →
Liability
→
Return Policy & Warranty →
01
02
03
04
05
06
07
SST003

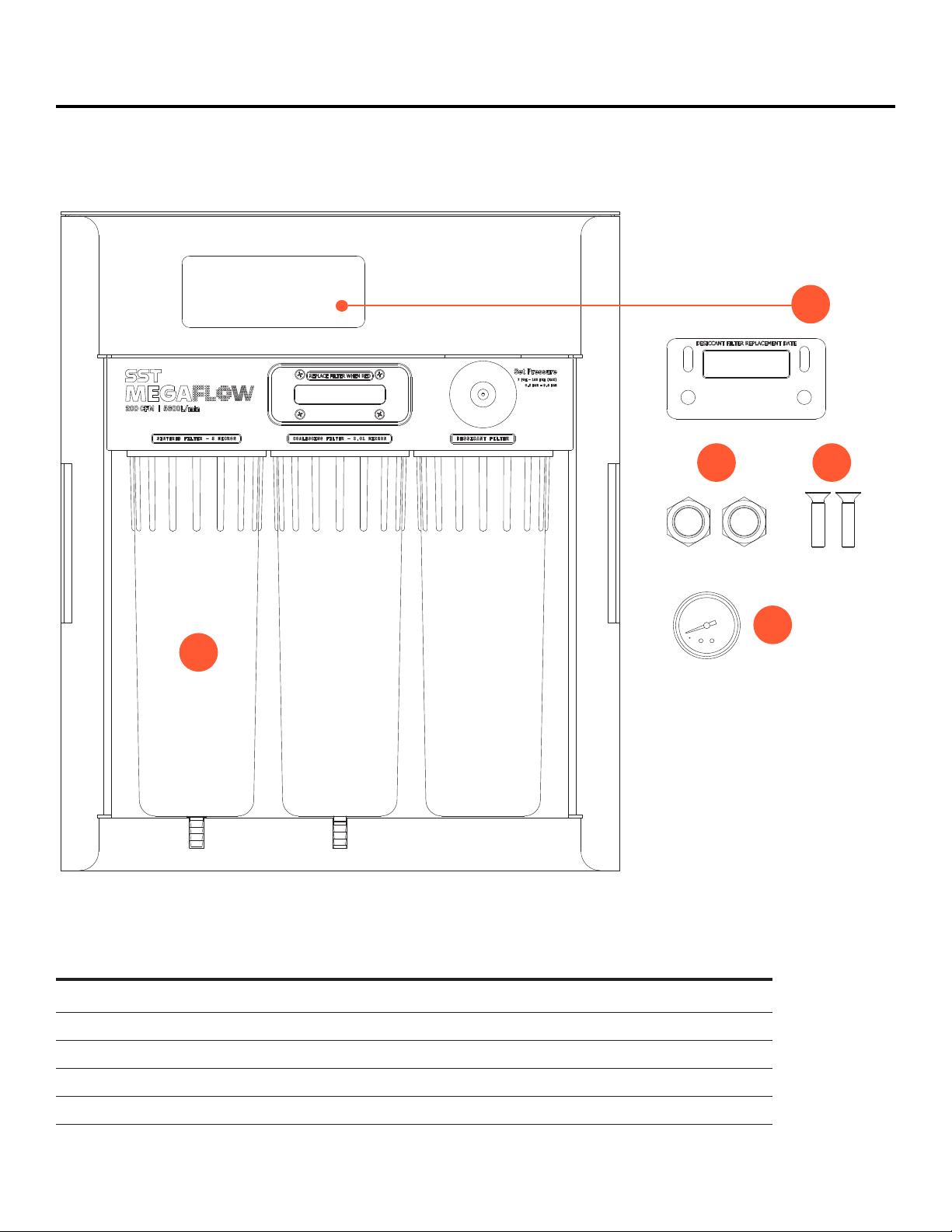

WHAT’S IN THE BOX!
ALL THE COMPONENTS
ARE IN HERE.
A
B
C D
E
AMegaflow
BMounting Bracket
C3/4” NPT to 1/2” NPT
DMounting Plate Screws
EPressure Gauge
№ Part Name
SST003
C
A

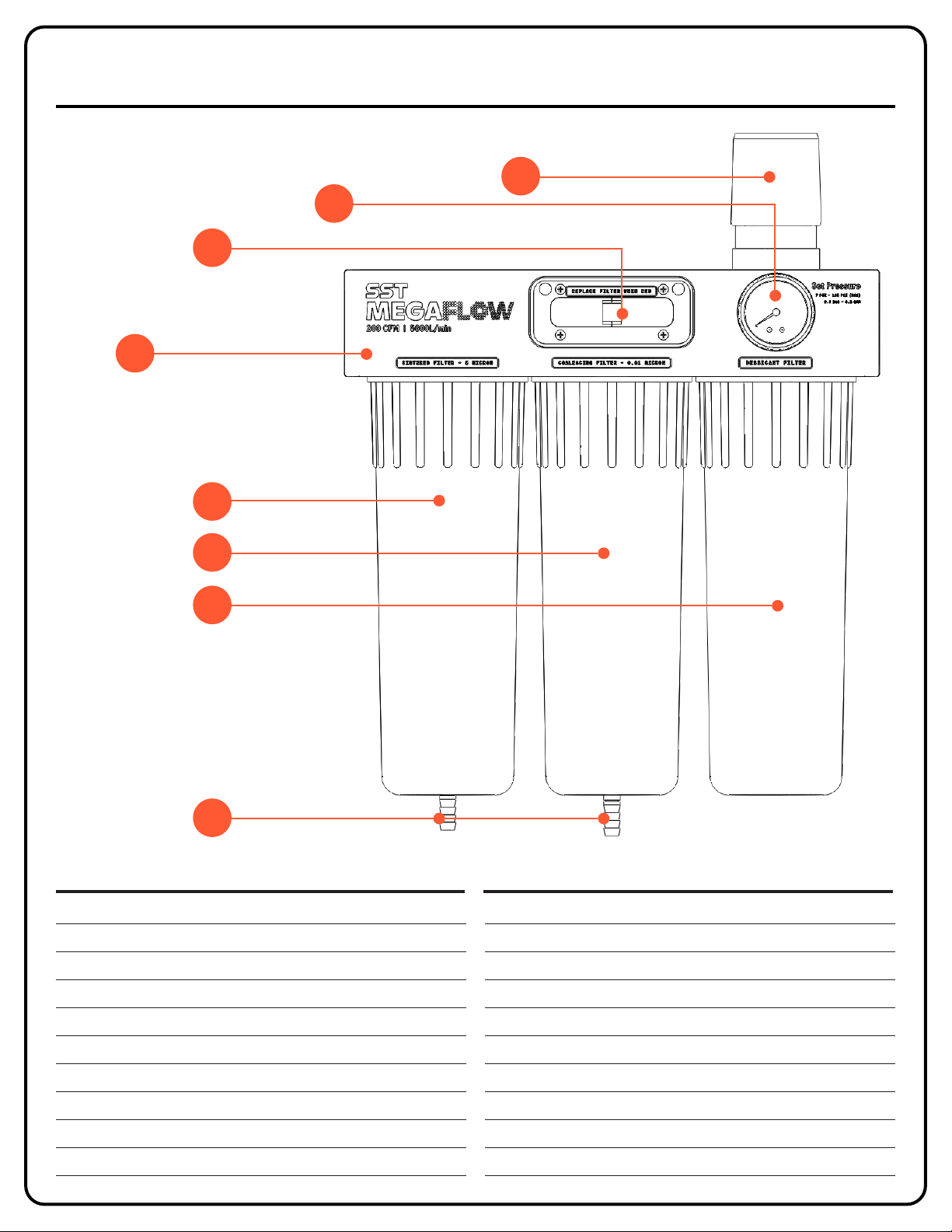

MEGAFLOW Component List
AMEGAFLOW Manifold Body 1
BPressure Gauge 1
COutput Pressure Adjustment Knob 1
DDrain Pin and Spring 2
EFilter Health Indicator 2
FFilter Canister Housing 3
GFilter Canister Housing O-Ring 3
HSintered Filter 1
ISintered Filter Cover Bell 1
JThreaded Post 2
KSintered Filter Flow Nut 1
LCoalescing Filter 1
MDessicant Tube 1
NFlow Blade 2
ODessicant Upper Mesh Filter 1
PDessicant Lower Mesh Filter 1
QSintered Filter O-Ring 1
RCoalescing Filter O-Ring X
SDessicant Stage O-Ring 1 X
TDessicant Stage O-Ring 2 X
№ Part Name Amt. # № Part Name Amt. #
B
E
H
J
L
M
Introduction SST00301
001 WWW.STUPIDSIMPLE.TOOLSSST003

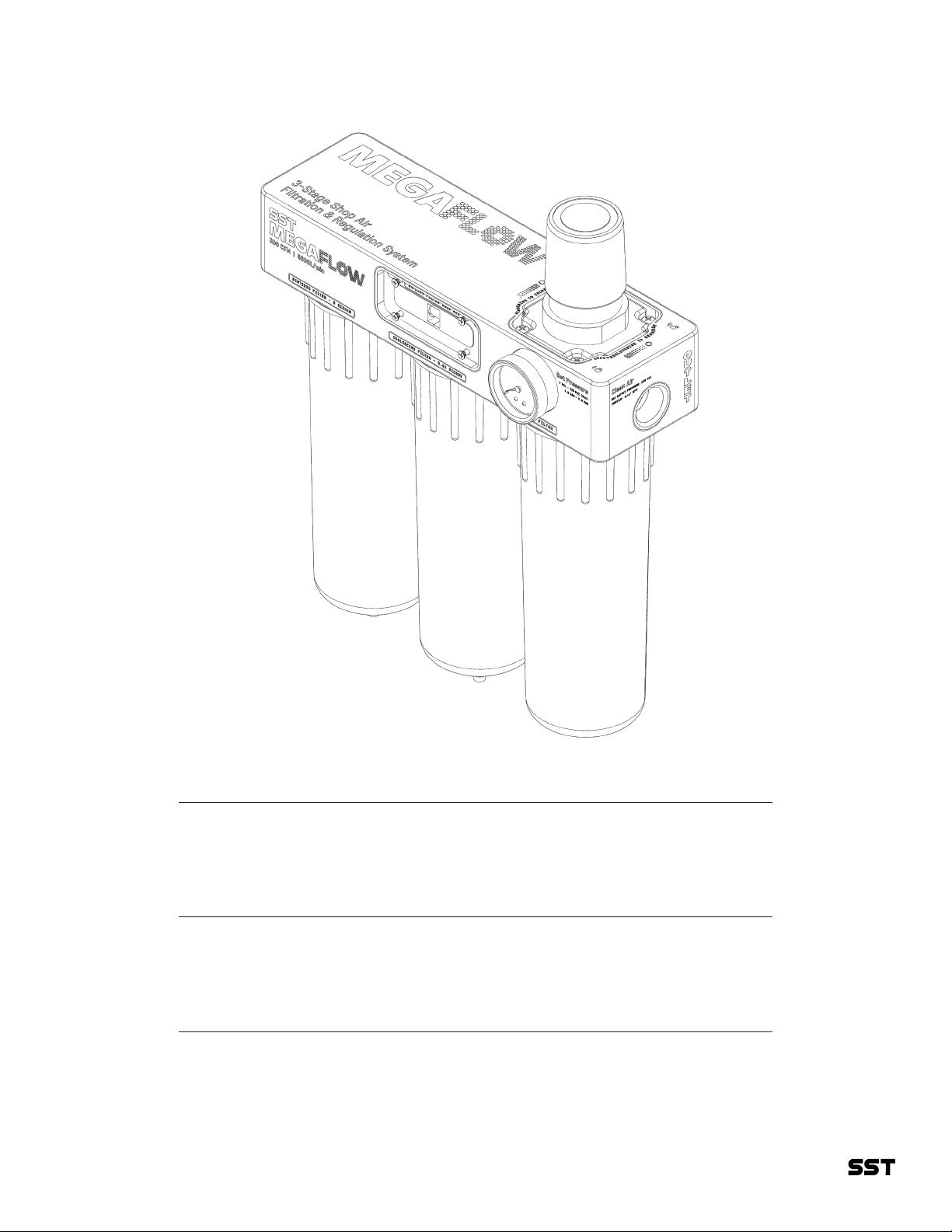

Stage 1 | Sintered Filter 5 Micron
Brass Filter which lasts longer than PE filters. Removes 95% of the moisture,
oil, and debris particles up to 5micron.
Stage 2 | Coalescing Filter 0.1 Micron
High Quality Coalescing material. Removes 99.99% of the moisture, moisture
vapor and oil particles up to 0.01 micron
Stage 3 | Desiccant Filter 0.01 Micron
Diuse air to use desiccant beads eciently dries out the rest of the
humidity and regulates the outlet air.
002
Unpacking and Assembly
Quick Start Guide
Introduction
WWW.STUPIDSIMPLE.TOOLSSST003
1. Remove from Packaging
2. Install pressure gauge
a. Apply teflon tape to male thread to ensure a proper seal
3. Mount your MEGAFLOW
01
DO NOT USE MEGAFLOW IN SYSTEMS WITH THESE CHEMICALS.
Polycarbonate is a tough and transparent polymer, but is
susceptible to chemical damage from compressors lubricated
with synthetic oils, or oils containing phosphate esters or
chlorinated hydrocarbons. Exposure to these chemicals can
cause hazing, cracking, or explosions.
CHEMICAL COMPATIBILITY WARNING

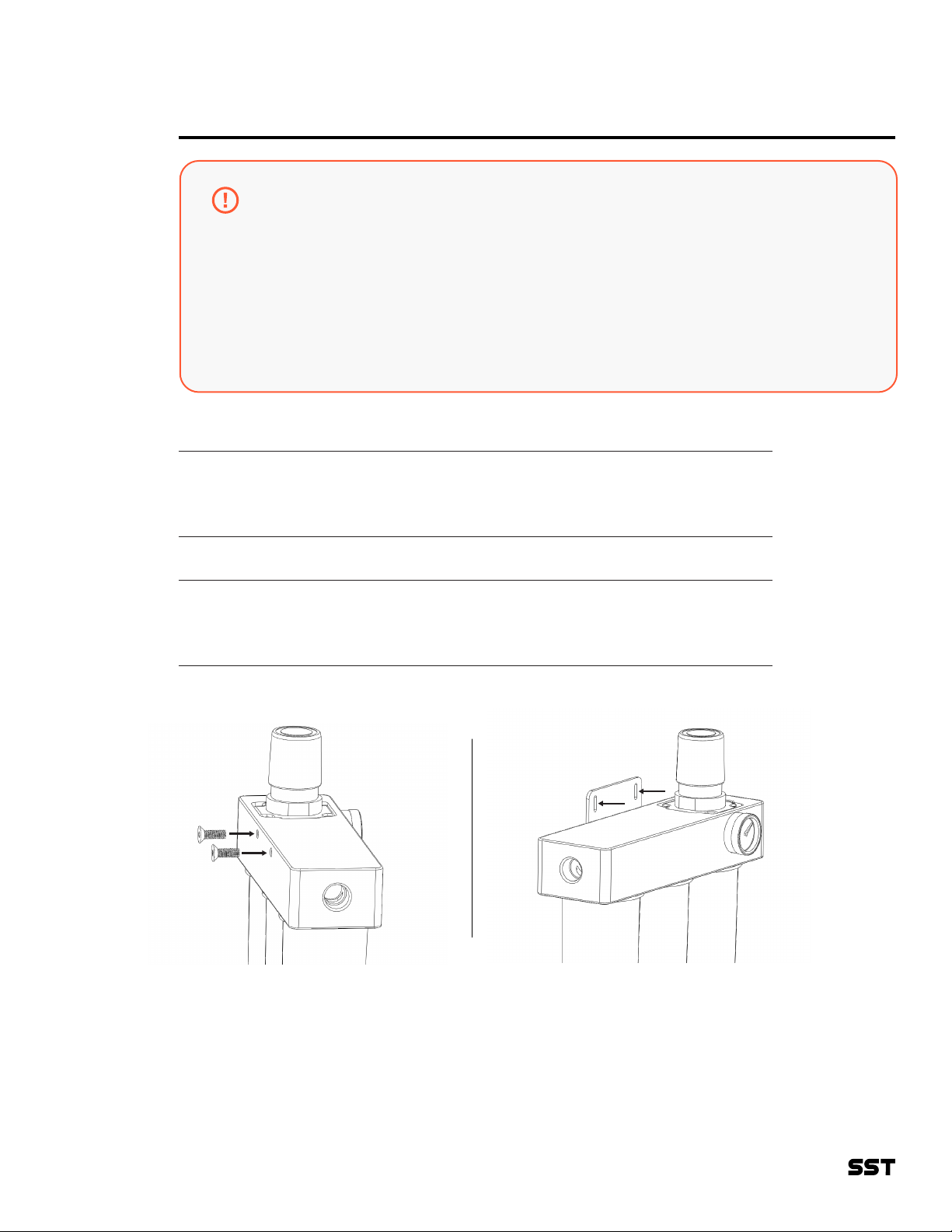

BACK MOUNT USING M8 HOLES ON BACK FRONT MOUNT USING MOUNTING BRACKET
003
Unpacking and Assembly
Quick Start Guide
Introduction
WWW.STUPIDSIMPLE.TOOLSSST003
4. Plumb Air Lines
a. 3/4” NPT Inlet and outlet
b. Use included 3/4” to 1/2” Adapters
5. Apply air pressure
6. Purge your outlet air for 1 min at 60-100PSI
a. This clears out any desiccant dust from assembly and transport
7. Enjoy!
01

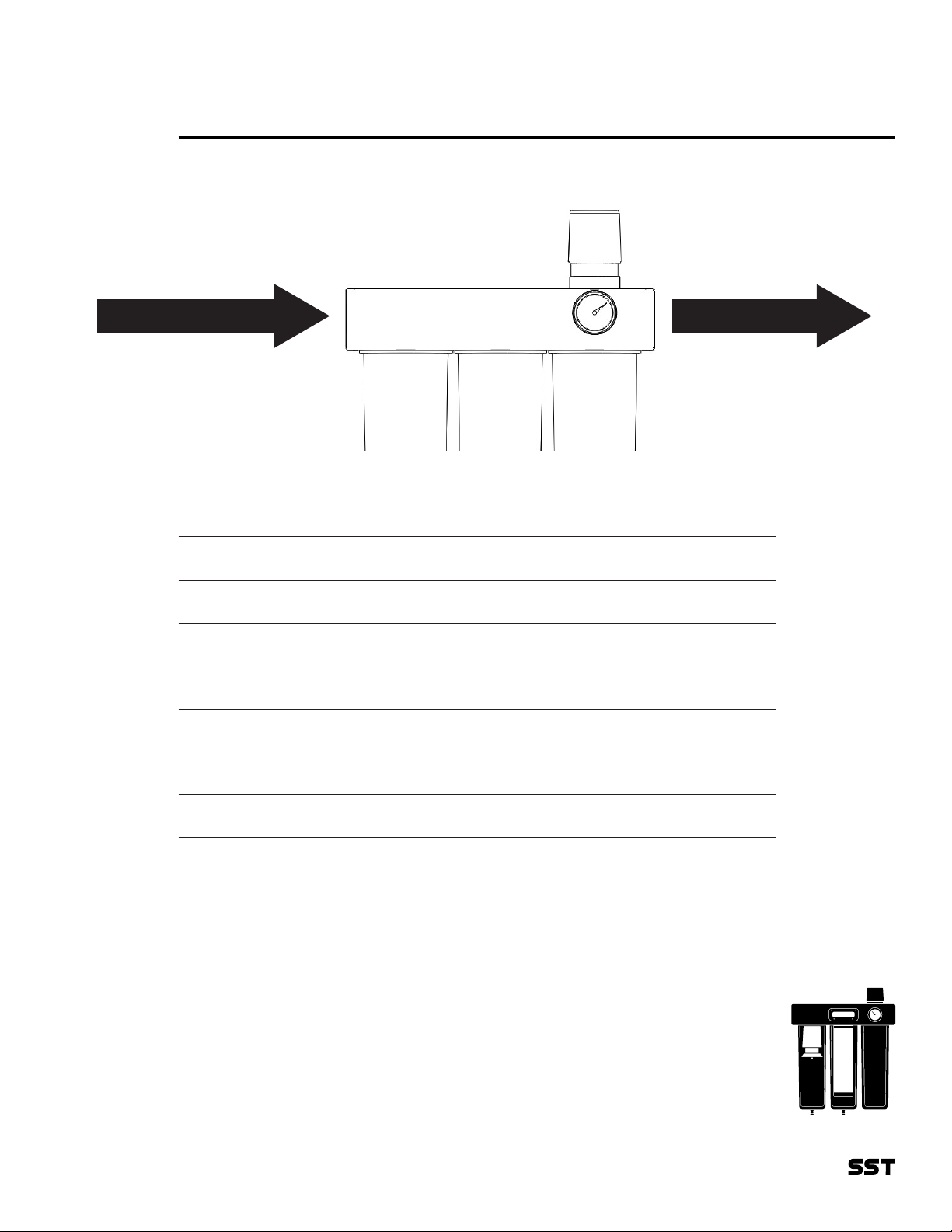

DIRTY AIR FROM
COMPRESSOR / AIR DRYER
CLEAN AIR TO
AIR DISTRIBUTION
Introduction
Unit Weight 5.35Kg
Unit Dimensions 360 x 290 x 90mm
Supply Input 3/4” NPT
Regulated Output 3/4” NPT
Set Pressure 7 - 125 PSI (0.5 - 8.5 Bar)
Max Input Pressure 220PSI (15Ba)
Max Air Flow 200 CFM
Flow rate See Chart (next page)
1st Stage 5.0 Micron Brass Sintered Filter
2nd Stage 0.01 Micron Coalescing Filter
3rd Stage Silica Desiccant Dryer
01 Technical Specifications
SST003 MEGAFLOW
004 WWW.STUPIDSIMPLE.TOOLSSST003
Safety
Health and Safety Warnings
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may
result in mechanical failure, pneumatic explosion,
and/or serious injury.
1. Work Area Safety
a. Keep the work area clean and well-lit. Cluttered or dark areas
invite accidents.
b. Do not operate manufacturing machines, CNC or otherwise, in
explosive atmospheres, such as in the presence of flammable
liquids, gases, or dust. Machinery may create heat or sparks
which may ignite dust or fumes.
c. Keep children and bystanders away while operating machinery.
Distractions can cause you to lose control of the machine.
2. Personal Safety
a. Stay alert, watch what you are doing, and use common sense
when operating machinery. Do not use a machinery while you
are tired or under the influence of drugs, alcohol or medication.
A moment of inattention while operating machinery may result
in serious personal injury.
b. Use personal protective equipment. Always wear eye
protection. Protective equipment such as dust masks, gloves,
or protective clothing appropriate to the conditions will reduce
personal injuries.
c. Do not use damaged or worn pneumatic hoses or connectors.
Damaged components risk catastrophic failure at high
operating pressures
02
WARNING
005 WWW.STUPIDSIMPLE.TOOLSSST003
Safety
Health and Safety Warnings
02
3. Use & Care
a. Do not force MEGAFLOW to perform beyond its rated power
output or temperature capabilities. Use the correct MEGAFLOW
for your application. The correct MEGAFLOW will do the job
better and safer at the parameters for which it was designed.
b. Service should never be performed without first disconnecting
the air input from MEGAFLOW. If the air input cannot be
physically disconnected, the air supply should be locked-out
and tagged-out by the technician.
c. Install the MEGAFLOW out of the reach of children or animals,
and do not allow persons unfamiliar with MEGAFLOW or these
instructions to operate the system. High pressure pneumatics
are dangerous in the hands of untrained users.
d. Maintain your MEGAFLOW. Check for misalignment or binding of
filter components, breakage of parts, and any other condition
that may aect the MEGAFLOW’s operation. If damaged, have
replace the aected components before use. Accidents can
result from poorly maintained air regulator systems.
e. Use MEGAFLOW, pneumatic tools, and accessories, etc. in
accordance with these instructions, taking into account the
working conditions and the work to be performed. Use of a
high pressure air regulator for operations dierent from those
intended could result in a hazardous situation.
4. Service
a. Have your MEGAFLOW serviced by a qualified repair person
using only identical replacement parts. Doing so will ensure that
the safety of the power tool is maintained.
006 WWW.STUPIDSIMPLE.TOOLSSST003
