Single iButton Reader operation
If one iButton Reader is used to manage all connected handsets, please refer to the below instructions
on how to operate the i4 alarm.
When rst powered up the i4 will automatically enable battery backup and attempt to arm the system.
When armed the i4 will be silent and the iButton Reader will ash green intermittently.
Alarm Sounding:
If the i4 is triggered, the alarm will sound, and the iButton Reader will ash red. The status indicator for
the aected port(s) found on the alarm unit itself, will ash to indicate the port has been triggered until
the alarm is muted.
To silence an alarm or to deactivate an armed unit (Remerchandise):
Touch the black iButton Key on the iButton Reader. When the i4 is disarmed, the iButton Reader will
show a solid green light and beep intermittently.
Whilst disarmed the status indicator for each port will show the current state of the port.
O:
On:
Flashing:
No Sensor detected.
Recoiler/Sensor detected, and secured.
Recoiler/Sensor detected, not secured or fault.
Auto Reset:
If a sounding alarm has been silenced, the i4 will auto reset once the product has been re-secured. If
the i4 has been disarmed or if user intervention is required then it will be neccessary to touch the black
iButton Key to the iButton Reader to set the alarm.

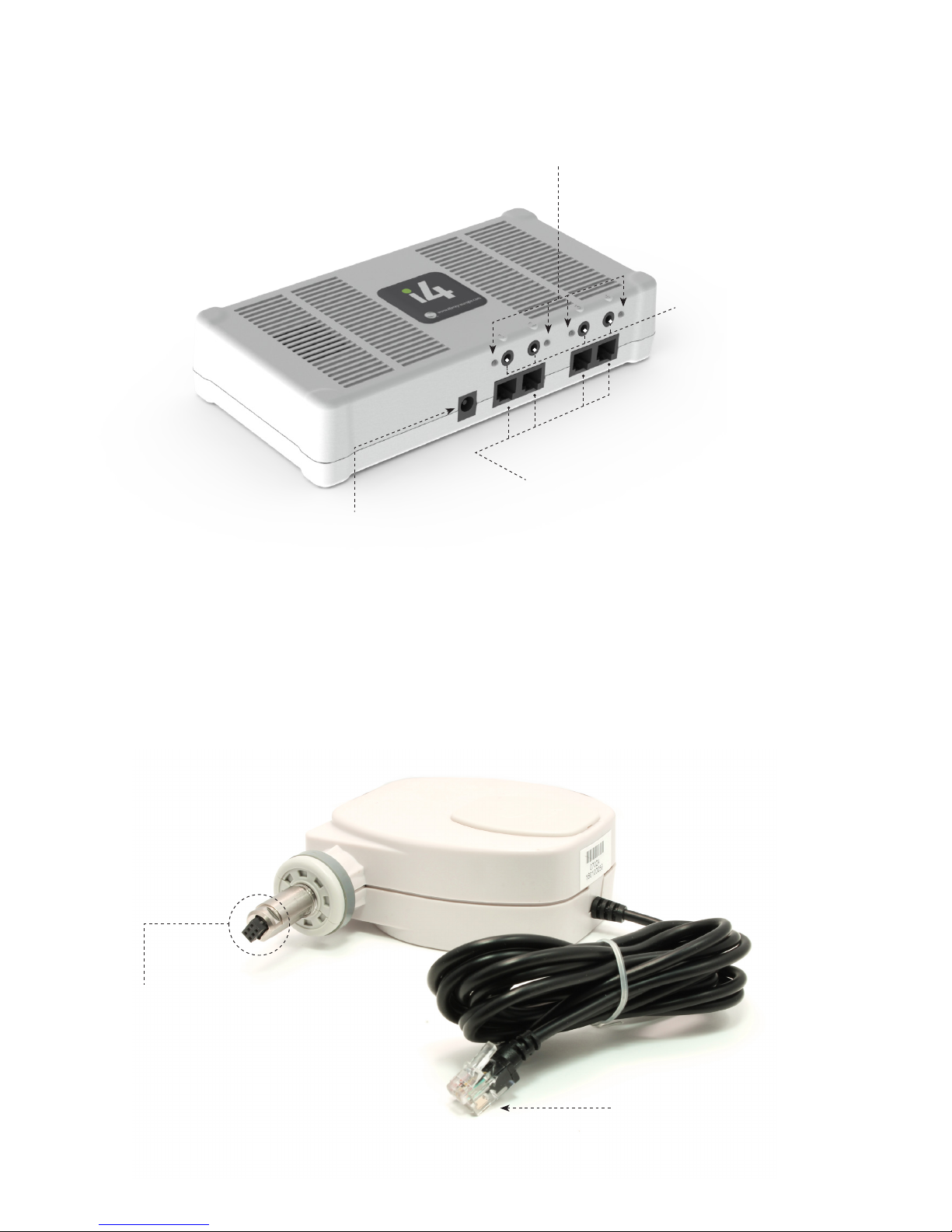

To add or remove Recoilers/Sensors to ports:
In order to add or remove a Recoiler and/or Sensor, please disarm the i4 by placing the black iButton
Key onto the iButton Reader once. Add or remove the Recoiler/Sensor (each Recoiler must have a
Sensor and a product (handset) tted in order to depress the tamper switch found on the Sensor and
set the alarm). When nished, re-arm the i4 using the black iButton Key.
Main Alarm Sounding
iButton Reader ashing red
Tamper switch on a Sensor has released, or a
connection between alarm and Sensor problem
Silence the alarm using the black iButton Key
Check the Sensor operation. Check the
connection between the Sensor and the alarm
(Recoiler)
After resolving the issue, when possible, the i4 will
auto re-arm.
If not the i4 will need to be re-armed using the
black iButton Key.
NOTES
While a tamper switch is triggered, the red
LED on the Sensor will be illuminated.
While the alarm is sounding, the status
indicators on the triggered ports on the i4
will ash blue, even if the problem has been
resolved or is intermittent.
While the i4 is silenced or disarmed the
status indicators for each port on the i4 will
show the following:
Not lit: No Recoiler or Sensor connected.
Constantly lit: A product is present and
secured.
Flashing: Security hardware is detected on
that port but is not securing a product.
Page 7
General operation ow chart:
