How to connect to Printer via Physical Ethernet LAN and its setup?

DolphinPOS User Guide Page 1

How to connect to mC-Print3 Receipt Printer via Physical

Ethernet LAN and its setup?

Star mC-Print3

Model MCP31LB

May-19-2020, Version V1.0

Contact information: support@dolphinpos.com

Index

Page#

Printer setup

2-3

Link with DolphinPOS APP

4

Static IP to Printer

5-8

mC-Print Utility, Hardware debug tool

9-12

References

12

How to connect to Printer via Physical Ethernet LAN and its setup?

DolphinPOS User Guide Page 2

Printer Setup

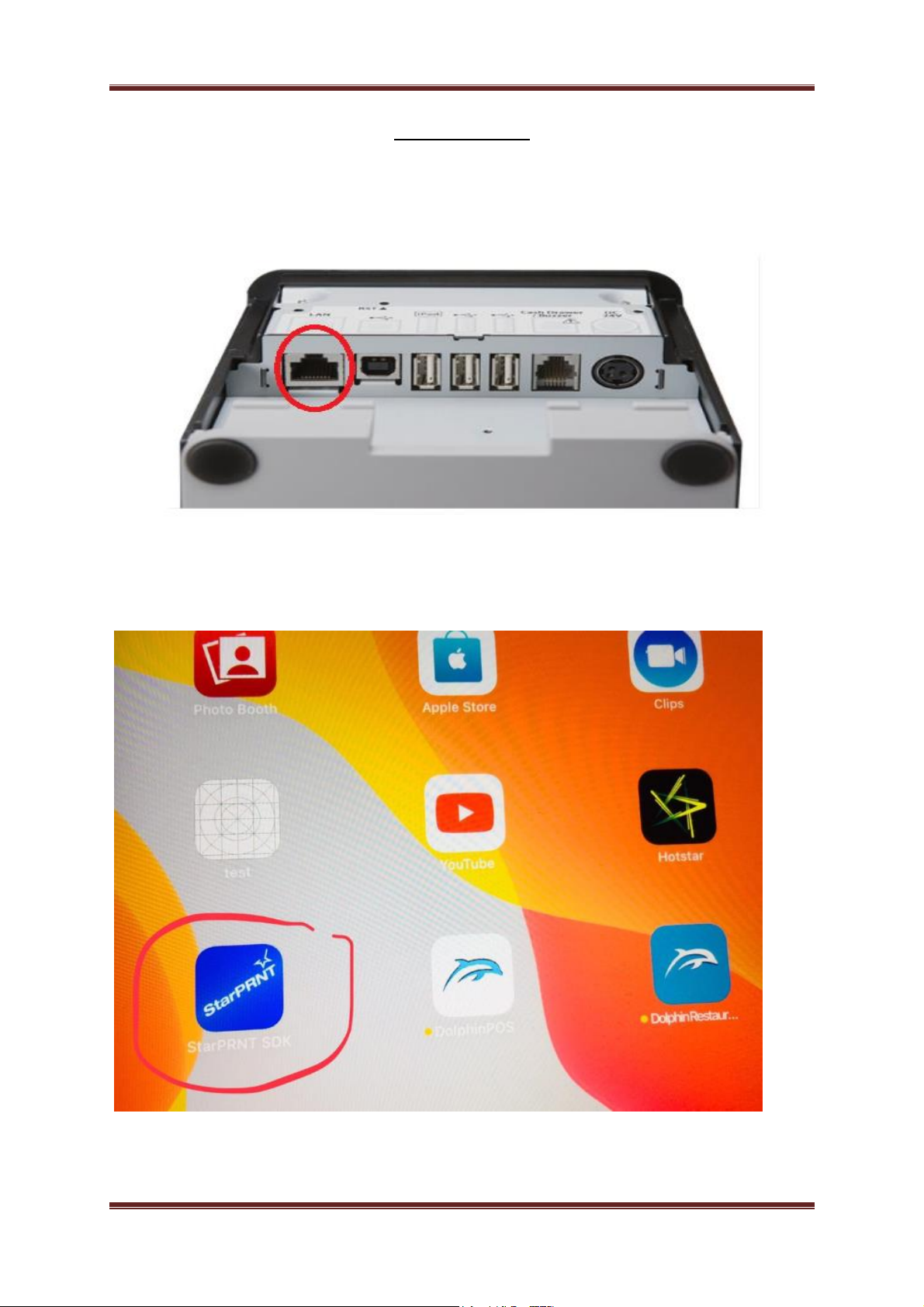

Step1: Connect the Ethernet cable to LAN port of MC print3

Step2: Install the “StarPRNT SDK” from App Store and Open it.

Step3: Find its IP address.

How to connect to Printer via Physical Ethernet LAN and its setup?

DolphinPOS User Guide Page 3

a) Click on “Unselected State”

b) Select “LAN”

How to connect to Printer via Physical Ethernet LAN and its setup?

DolphinPOS User Guide Page 4

c) Note down the IP address from here. Example:192.168.0.48

Step4: Open the “Dolphin POS” App. Go to “Setup”

a) Enable “Star Web Print ON”

b) Put the IP address in “Printer IP”, which we got from Step3 example:

192.168.x.xxx

c) Is star Barcode Reader [Peripheral needs to be connected to 0.5A Port]

d) Is Star display unit ON [Peripheral needs to be connected to 0.5A Port]

How to connect to Printer via Physical Ethernet LAN and its setup?

DolphinPOS User Guide Page 5

Step5: Close the Dolphin POS App and open it. You are ready now!!

How to make the mC-Print3 IP address to Static from DHCP?

Step1: Open the setting screen (Web Configuration) of the printer via the Web

browser.

http://[Printer IP address]

Note: You can perform Self-Printing to get present IP address

a) First Power “OFF” the device,

b) Hold down the FEED button,

c) Then press the Power button, and release it.

Step2: “Login”to Web Configuration

How to connect to Printer via Physical Ethernet LAN and its setup?

DolphinPOS User Guide Page 6

Login name: root

Password: Log in with the changed password or default password is “public”

Step3: Specify static IP address

From the menu button in the upper left, open “IP Parameters” ,

select “Static” , enter IP Address, Subnet Mask and Default Gateway , and tap

[Submit] .

How to connect to Printer via Physical Ethernet LAN and its setup?

DolphinPOS User Guide Page 7

Step4: Save settings to printer

From the menu button in the upper left, tap ”Save” , select Save -

Configuration Printing - Restart device , and tap “Execute” . The settings are

saved to the printer and printed out.

How to connect to Printer via Physical Ethernet LAN and its setup?

DolphinPOS User Guide Page 8

How to connect to Printer via Physical Ethernet LAN and its setup?

DolphinPOS User Guide Page 9

Trouble shooting mC-Print3 Hardware and its setup issues

Step1: Install “mC-Print Utility” tool from the Apple Apps store.

Step2: Open the utility tool and it should list below options

How to connect to Printer via Physical Ethernet LAN and its setup?

DolphinPOS User Guide Page 10

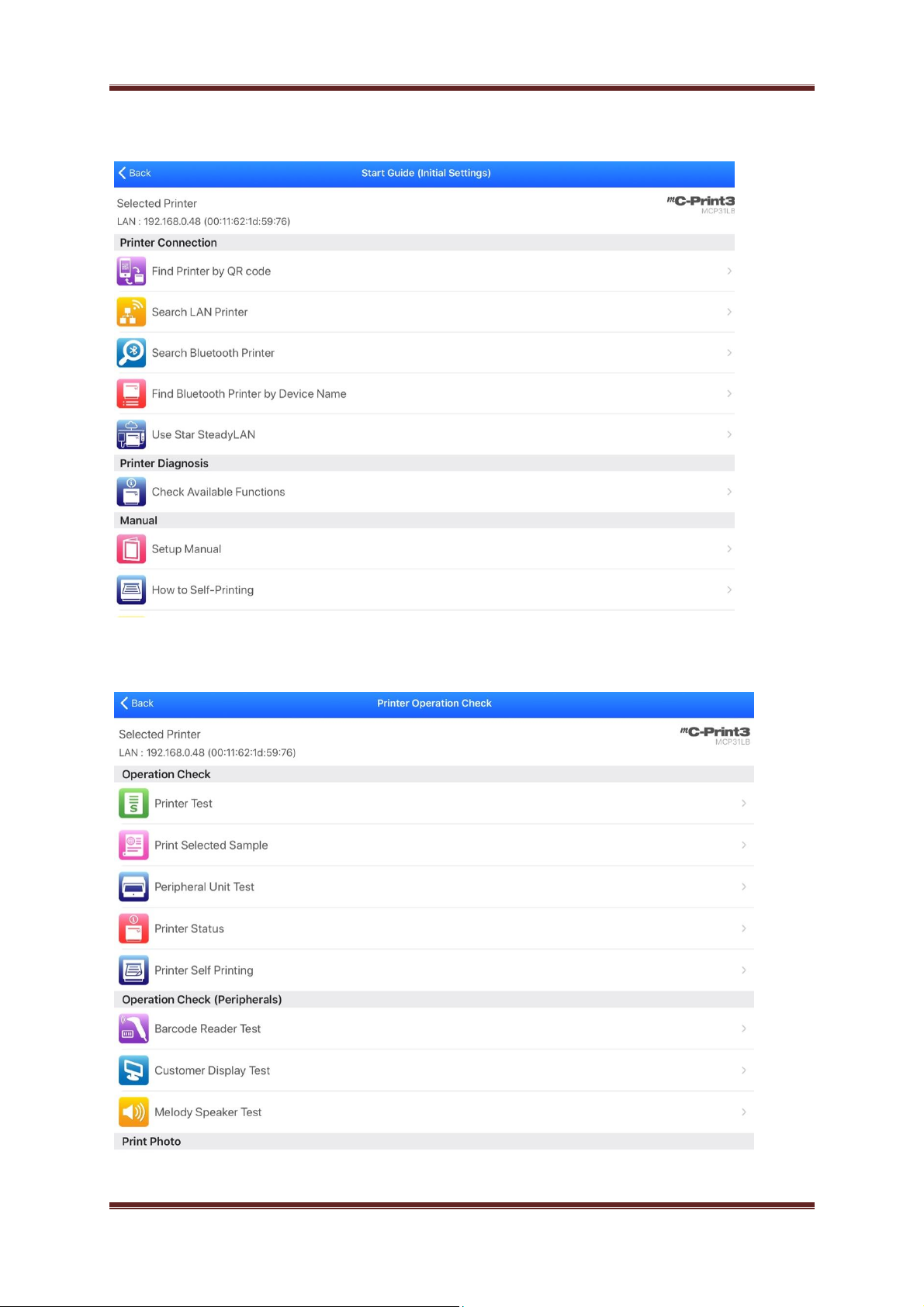

a) Start Guide(Initial Settings):

b) Printer Operation check:
