START International LDX6000 Series Bedienungsanleitung
LDX6000 Series
LDX6025 LDX6050 LDX6100
CONTENTS
Read this user’s manual before use to ensure proper operation. Keep the manual on hand
for reference in case there is a problem.
WARRANTY POLICY FOR LD SERIES LABEL DISPENSERS
START International warrants all parts on LDX6000 series label dispensers against defects
in design, materials and workmanship for a period of 1080 days. Labor to replace defective
parts will be performed at no charge for the rst 360 days after date of purchase. Warranty
does not cover transportation costs.
Our sole obligation under this warranty is limited to repair, replacement or credit of the pur-
chase price, at our option, for the machines listed above, which do not perform properly the
function for which they were designed.
Warranty repair is contingent upon our examination and determination that alleged defects
have not been caused by misuse, abuse, improper installation or application, repair, alter-
ation, accident or neglect in use, storage, transportation or handling.
The above warranty and remedy constitutes START International’s sole liability hereunder
and are in lieu and exclusive of all other warranties and remedies expressed, implied, or
statutory, including, but not limited to, those of merchantability and tness for a particular
purpose.
Warranty Information
Maintenance
Exploded View
Features
Notes
Repair Policy
Specications
Set-up & Operation
Safety
Photosensor Adjustments
Page 2
Page 3
Page 3
Page 4
Page 4
Page 4
Page 4
Page 5
Page 6
Page 7

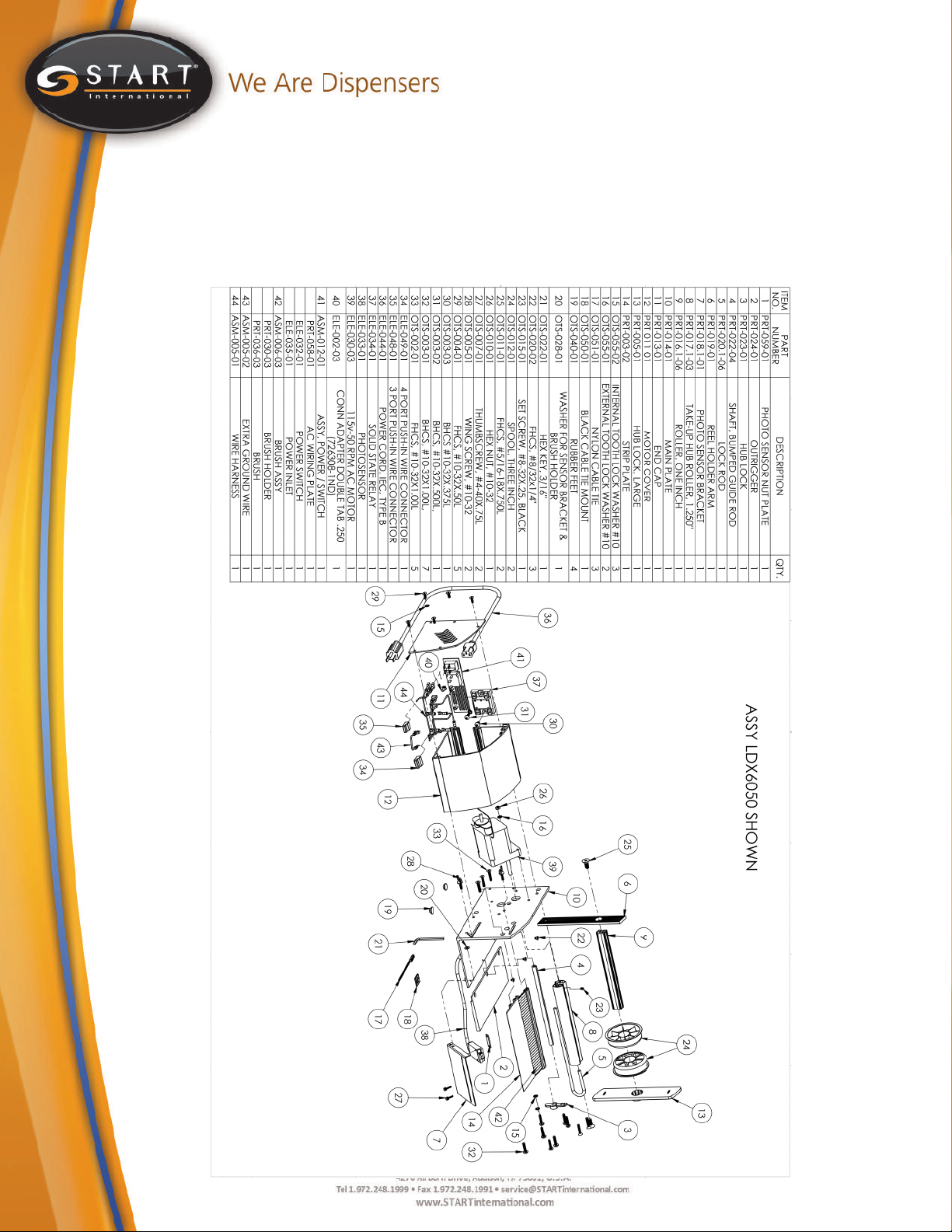

EXPLODED VIEW
MAINTENANCE
Turn machine off when not in use. Remove liner material from take-up hub at approximately 3”
in diameter or if motor appears to be straining. Do not operate machine without covers in place.
Do not operate if inspection reveals a damaged power or sensor cord.
FEATURES
• Will dispense butt-cut and die-cut material.
• Adjustable photosensor for pinpoint accuracy.
• Handled lock rod makes scrap removal easy.
• No tools required for adjustment.
• Hanging capability with optional LDHANGER. (Needs to be secured properly)
NOTES
• Keep strip plate free of adhesive build-up.
• Clean photosensor with compressed air or dry cloth.
• Do not drop the dispenser or subject it to heavy shock.
• Turn off machine when not in use.
REPAIR POLICY
Contact START International to determine the nature of the problem.
Supply START with the following information:
1. Who the unit was purchased from.
2. Model number and serial number.
3. If available, date purchased and copy of invoice or packing slip.
START will issue a RMA (Return MerchandiseAuthorization) for repair.
Return machine to START, insured and prepaid.
START will notify the customer if there is a repair charge.
SPECIFICATIONS:
Model# LDX6025 LDX6050 LDX6100
Liner Capacity
Width
.25” to 7”
(6mm to 114mm) .25” to 7”
(6mm to 178mm) .25” to 7”
(6mm to 178mm)
Label Length .125” to 6”
(3mm to 152mm)
.50” to 6”
(13mm to 152mm)
.50” to 6”
(13mm to 152mm)
Roll Capacity 12” (31cm) 12” (31cm) 12” (31cm)
Feed Speed* 1.6”/sec (3.9cm/sec) 3.3”/sec (8cm/sec) 6.6”/sec
(16.8cm/sec)
Dimensions
Inches 10.6 (L) x 13.6 (W) x 14.5
(H) 10.6 (L) x 13.6 (W) x 14.5
(H) 10.6 (L) x 13.6 (W) x 14.5
(H)
Centimeters 27.4 (L) x 34.5 (W) x 36.8
(H) 27.4 (L) x 34.5 (W) x 36.8
(H) 27.4 (L) x 34.5 (W) x 36.8
(H)
Weight 7.8 lbs (3.5kg) 9.6 lbs (4.4kg) 9.6 lbs (4.4kg)
Electrical
Requirements 100/115V AC 0.75A 60Hz,
220-240V AC 1.8A 50Hz
CE available)
100/115V AC 0.75A 60Hz,
220-240V AC 1.8A 50/60Hz
CE available)
100/115V AC 0.75A 60Hz,
220-240V AC 1.8A 50/60Hz
CE available)
SET-UP INSTRUCTIONS
SET-UP INSTRUCTIONS
SET-UP INSTRUCTIONS
ADJUSTMENTS
Hold Down:
Using the upper thumbscrew on the side of the machine, adjust the hold down for
tensioning. For best results, labels should be pressed rmly against the strip plate.
However, if the labels are held too tightly, they will cause excessive drag on the motor.
Photosensor:
The photosensor can be adjusted in any direction by using the lower thumbscrew on
the side of the machine and the thumbscrew underneath the photosensor bracket.
Loosening the thumbscrew on the side of the machine allows the photosensor to move
in and out. This is used to set the overhang distance of the label over the strip plate.
The thumbscrew underneath the photosensor bracket is used to swivel the sensor
along the front of the strip plate. When the label is being fed the correct distance, lock
the bracket in place. If there are 2 or more labels across, align the photosensor with the
last label to be removed. When these screws are locked in place, the machine is set.
