StarTech.com 35FCREADBK3 Bedienungsanleitung
Instruction Manual
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Manual Revision: 04/19/2013
For the most up-to-date information, please visit: www.startech.com
35FCREADBK3
3.5in Front Bay USB 2.0 22-in-1 Memory Card Reader
Packaging Contents
• 1x Card Reader
• 1x 9-pin IDC USB cable
• 1x Bag of Mounting Screws
• 1x Instruction Manual
*actual product may vary from photos
System Requirements
• Computer chassis with available 3.5in front bay
• Computer system with available internal 9-pin USB header
• Windows 2000/ XP(32/64-bit)/ Server 2003 (32/64-bit)/ Vista (32/64-
bit)/ 7 / 8 (32/64-bit)/ Server 2008 R2, Linux kernel 2.4 or later
Installation
WARNING! Computer parts can be severely damaged by static
electricity. Be sure that you are properly grounded before opening
your computer case. StarTech.com recommends that you wear an
anti-static strap when installing any computer component. If an anti-
static strap is unavailable, discharge yourself of any static electricity
build-up by touching a large grounded metal surface (such as the
computer case) for several seconds.
1. Turn your computer o and any peripherals connected to the
computer (i.e. Printers, external hard drives, etc.). Unplug the
power cable from the rear of the power supply on the back of the
computer and disconnect all peripheral devices.
2. Remove the cover from the computer case. Refer to
documentation for your computer system for details.
3. Remove the cover for a front panel 3.5in bay. Refer to
documentation for your computer system for details.
4. Slide the internal card reader into the 3.5in bay from the outside.
Once the mounting holes along the sides of the card reader line
up with the mounting holes for the 3.5in bay, fasten the card
reader in place. Refer to documentation for your computer system
for details.
5. Connect the USB cable from the rear of the card reader to an
available 9-pin USB header on the motherboard. The connector
is keyed to help prevent incorrect installation. See system or
motherboard documentation for specic details.
6. Place the cover back onto the computer case.
7. Insert the power cable into the socket on the power supply and
reconnect all other connectors removed in Step 1.
8. No driver installation is required, as the operating system should
detect and install it automatically. Once installed, memory cards
may be inserted into the reader and used (only one card at a
time supported).
NOTE: The 35FCREAKBK3 memory card reader supports access to
multiple media card types simultaneously (excluding same type
media), allowing you to copy les from or between dierent media
cards at the same time. If multiple of the same card type is added,
the card reader will recognize the rst card that was connected only.
1Memory Stick Micro (M2™)
2x-Picture
3SD/MMC/RS MMC
4Micro SD/SDHC/SDXC
5CFI/CFII
6MemoryStickTM (MS/MS Pro/MS Pro Duo)
7USB Type A Female
1 2 3 4
765
Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per StarTech.com
35FCREADBK3 o cerca il tuo prodotto tra le migliori offerte di Schede di Memoria e Lettori
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)
to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all
trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access
our comprehensive selection of online tools, documentation, and downloads.
For the latest drivers/software, please visit www.startech.com/downloads
Warranty Information
This product is backed by a two year warranty.
In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned
for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from
misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,
consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow
the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
Specications
Bus Interface USB 3.0
Chipset ID ITE1336
Connectors 1 x 9-pin IDC female
1 x USB type A female
LEDs 1 x Power/Activity
Maximum Data
Transfer Rate USB2.0: 480 Mbps
Operating
Temperature 0°C ~ 70°C (32°F ~ 158°F)
Storage Temperature -40°C ~ 125°C (-40°F ~ 257°F)
Humidity 15% ~ 85%
Compatible
Operating Systems
Windows 2000/ XP(32/64-bit)/ Server
2003 (32/64-bit)/ Vista (32/64-bit)/ 7 / 8
(32/64-bit)/ Server 2008 R2, Linux kernel
2.4 or later
Andere StarTech.com Kartenleser Handbücher
StarTech.com
StarTech.com FCREADHC Bedienungsanleitung
StarTech.com
StarTech.com ECREAD Bedienungsanleitung
StarTech.com
StarTech.com 35FCREADBK2 Bedienungsanleitung
StarTech.com
StarTech.com ECREAD Bedienungsanleitung
StarTech.com
StarTech.com FCREADHC Bedienungsanleitung
StarTech.com
StarTech.com 35FCREADBK2 Systemhandbuch
StarTech.com
StarTech.com 35FCREADREM Handbuch
StarTech.com
StarTech.com 4SD4FCRU31C Bedienungsanleitung
StarTech.com
StarTech.com FCREADU3C Bedienungsanleitung
StarTech.com
StarTech.com 35FCREADBU3 Bedienungsanleitung
StarTech.com
StarTech.com 35FCREADBK Bedienungsanleitung
StarTech.com
StarTech.com SDMSDRWU3AC Bedienungsanleitung
StarTech.com
StarTech.com 2SD4FCRU3C Bedienungsanleitung
StarTech.com
StarTech.com CFASTRWU3 Bedienungsanleitung
StarTech.com
StarTech.com 35FCREAD20BK Systemhandbuch
StarTech.com
StarTech.com FCREADHCU3 Bedienungsanleitung
StarTech.com
StarTech.com FCREADMICRO Bedienungsanleitung
StarTech.com
StarTech.com SDMSDRWU3AC Bedienungsanleitung
StarTech.com

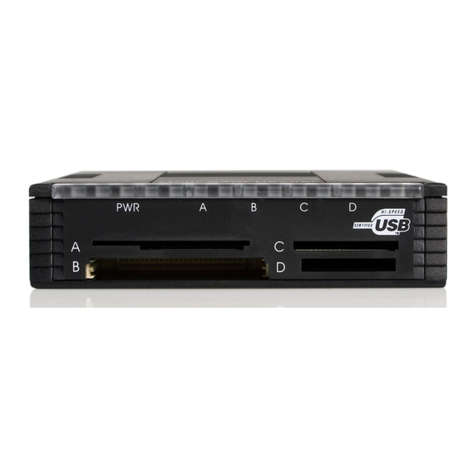

StarTech.com 35FCREAD20 Bedienungsanleitung
