SATDUP13

1 to 3 Standalone Hard Drive Duplicator

and Eraser

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Product Diagram ....................................................................................1

Front View .................................................................................................................................................... 1

Rear View...................................................................................................................................................... 1

Introduction............................................................................................2

Packaging Contents ................................................................................................................................. 2

Hardware Installation............................................................................3

Hardware Operation..............................................................................4

Hard Drive Duplication ........................................................................................................................... 4

Compare Duplicated Drives .................................................................................................................. 5

Compare & Duplicated Drives .............................................................................................................. 5

Hard Drive Eraser....................................................................................................................................... 5

Utility Options ............................................................................................................................................ 7

Advanced Conguration Using Setup ................................................8

Technical Support ..................................................................................10

Warranty Information............................................................................10

Instruction Manual

Product Diagram

Front View

1. Display Screen

2. Navigation buttons

3. OK button

4. Esc button

5. SATA HDD source port

6. SATA HDD destination ports

Rear View

1. Power Switch

2. Power Adapter Port

3. Daisy Chain ports

Instruction Manual

Introduction

Packaging Contents

• 1 x 1 to 3 HDD Duplicator/Eraser

• 4 x SATA Cables

• 1 x Power Adapter

• 3 x Power Cords (NA, UK, EU)

• 1 x Instruction Manual

WARNING! Hard drives and storage enclosures require careful handling, especially

when being transported. If you are not careful with your hard disk, lost data may

result. Always handle your hard drive and storage device with caution. Be sure that

you are properly grounded by wearing an anti-static strap when handling computer

components or discharge yourself of any static electricity build-up by touching a large

grounded metal surface (such as the computer case) for several seconds.

Instruction Manual

3. Using an included SATA Cable, connect up to 3 HDDs you would like to have over

written, or erased to the destination ports. (3 ports from right to left , see below

WARNING! Any Data remaining on the destination drives will be over written.

Note: If using less than 3 HDDs, drives should be connected from left to right

leaving port(s) closest to the right unoccupied.

4. Press the power switch to the “On” position, the SATDUP13 is now ready to use.

Hardware Installation

1. Ensure the power switch is set in the o position. Connect the included power

adapter from an available AC power outlet to the Power Adapter Port on the back

of the SATDUP13.

2. Using an included SATA Cable, attach the HDD you would like to duplicate to the

source port (rst port on the left, see below)

Instruction Manual

Hardware Operation

Hard Drive Duplication

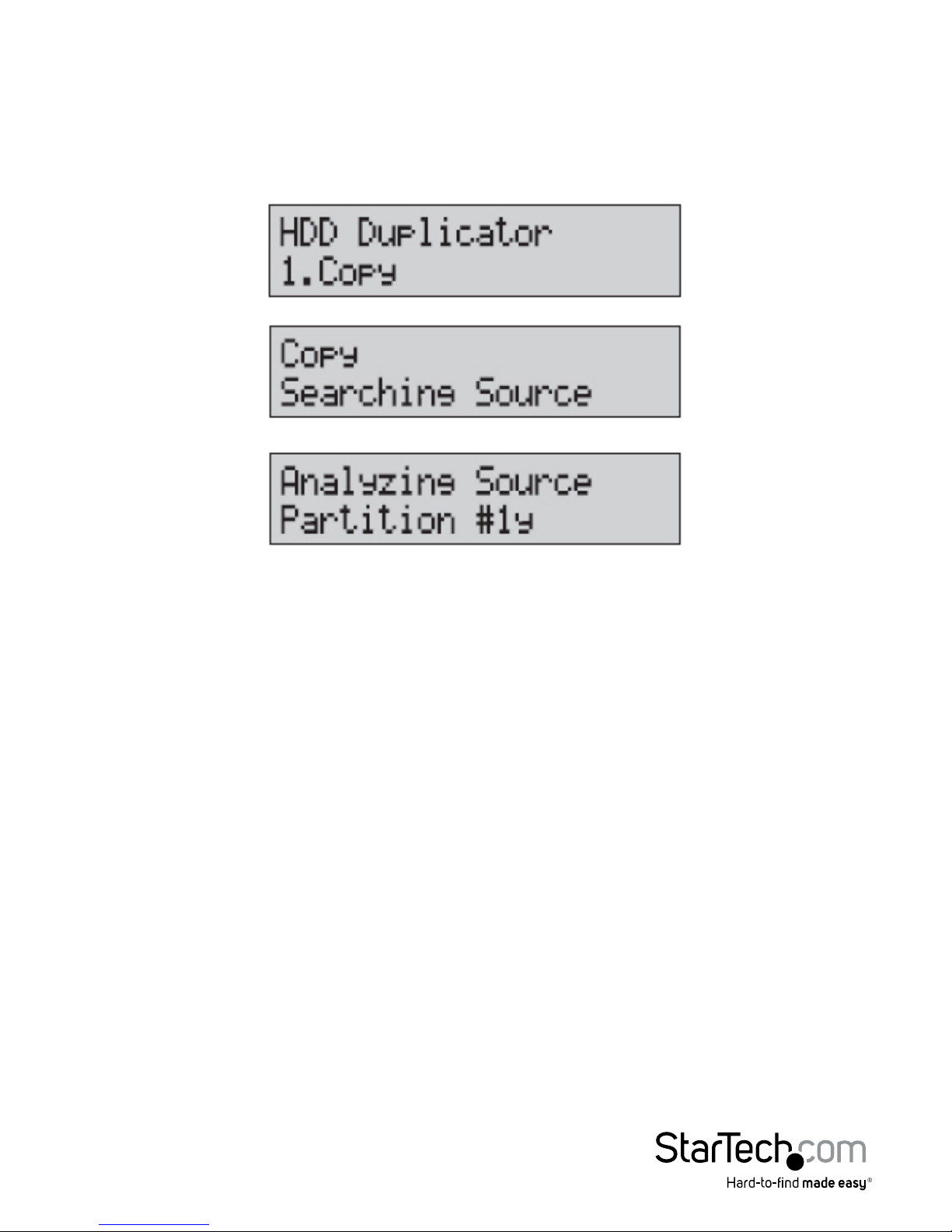

1. Using the Navigation buttons, locate“HDD Duplicator 1. Copy” and press OK. Default

copy mode is“System and Files”. To change Copy mode please see “Setup section”.

2. The duplicator will analyze the source drive and ensure all the targets are ready,

by verifying size. Once the drives have been analyzed you will receive an indicator

stating the duplicator is ready. Press OK, and the system will begin duplication

automatically.

3. Duplication will complete when the % indicator reaches 100%. The destination

drives now contain identical data to the source drive.

Note: If the destination drives are larger than the source drive, a single partition the

size of the source drive will be on the destination drive.

Instruction Manual

Compare Duplicated Drives

The Compare function ensures the Hard Drive duplication was accurate.

1. After your Hard Drive duplication has completed, locate “HDD Duplicator 2.

Compare”Using the Navigation buttons, and press OK.

2. Once compare has completed. A report will be displayed with the results of the

compare test.

Compare & Duplicated Drives

The Copy+Compare function will both copy the Hard Drive and ensure the duplication

was accurate.

1. After your Hard Drive duplication has completed, locate “HDD Duplicator 2.

Compare”Using the Navigation buttons, and press OK.

2. The duplicator will analyze the source drive and ensure all the targets are ready,

by verifying size. Once the drives have been analyzed you will receive an indicator

stating the duplicator is ready. Press OK, and the system will begin duplication

automatically.

3. Duplication will complete when the % indicator reaches 100%. The destination

drives now contain identical data to the source drive, and the Compare operation

will begin.

4. Once compare has completed. A report will be displayed with the results of the

compare test.

Hard Drive Eraser

1. Using the Navigation buttons, locate“HDD Duplicator 4. Erase”and press OK

2. The erase function is used to delete the data in your HDD. Please choose your

desired erase method from the list below using the navigation buttons then press

okay.

Instruction Manual

Note: The number 4 at the beginning of each option below represents the Erase

heading on the main menu, the numbers: .1, .2, .3, etc. indicate the option within

the Erase sub menu.

4.1 Quick Erase

The function will ONLY erase the index of the HDD, which is the quickest way to erase

it. Quick Erase will damage the data on the HDD, so please make sure you have backed

up all important data before using this function.

4.2 Full Erase

The function will erase the whole drive by overwriting each sector on the target HDD

and will take longer than quick erase. Full Erase will damage the data on the HDD, so

please make sure you have backed up all important data before using this function.

4.3 DoD Erase

DoD Erase is an erasing method that complies with the U.S.A. Department of Defense

(DoD) standard. It can guarantee the data was fully deleted by erasing the HDD bit for

bit three times. DoD Erase will damage the data on the HDD, so please make sure you

have backed up all important data before using this function.

4.4 DoD Erase & Compare

DoD Erase & Compare performs a standard DoD Erase as described above, then

performs a sector by sector check to verify that the drive has been erased. As it does

the most thorough Erasing job, it is also takes the most time to complete.

3. Press OK to begin the erasing process.

4. Once the erase has completed the result will be displayed.

Instruction Manual

Utility Options

1. Using the Navigation buttons, locate“HDD Duplicator 5. Utility” and press OK.

2. From the Utility options you can access dierent administrative congurations and

information. See the list below outlining the details of each option.

Note: The number 5 at the beginning of each option below represents the Utility

heading on the main menu, the numbers: .1, .2, .3, etc. indicate the option within

the Utility sub menu.

5.1 Show Disk Info

The function shows basic information from the drive connected to the source.

5.2 Update System

If an update to the device rmware is available on the StarTech.com product page,

this option can be used to update the device. The steps below outline the steps for

executing a system update.

Note: A rmware update should only be done if recommend by StarTech.com.

The below steps should only be performed by advanced users. Please contact

StarTech.com Technical Support for assistance.

a) Format a blank hard drive with a 10GB FAT32 partition.

b) Download the rmware le from the StarTech.com Website, and place the le on the

main directory of the new partition.

c) Connect the hard drive to the source port of the SATDUP13.

d) Using the Navigation Buttons locate “5.2.1 Update BIOS”and press ok.

e) The update will take place, and the on screen display will alert you upon

completion.
