StarTech.com ATX2PW430PRO Bedienungsanleitung

Professional ATX Power

Supply

Professional 430W/530W

ATX12V 2.3 EPS Computer

Power Supply with Active PFC

- 80 Plus®Certiﬁed

ATX2PW430PRO

ATX2PW530PRO

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company

in question. Regardless of any direct acknowledgement elsewhere in the body of

this document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table of Contents

Introduction..................................................................... 1

Packaging Contents.....................................................................1

System Requirements .................................................................1

Installation....................................................................... 2

Hardware Installation...................................................................2

Speciﬁcations.................................................................. 4

ATX2PW430PRO Power Output..................................................4

ATX2PW530PRO Power Output..................................................5

Connectors ..................................................................................5

Technical Support........................................................... 6

Warranty Information...................................................... 6

Introduction

The StarTech.com ATX12V 2.3/ EPS12V 2.91 series power supplies

are 80 Plus®certiﬁed, providing stable power while balancing energy-

efﬁciency. Compliant with ATX12V 2.3 standards and certiﬁed SLI®

ready, this power supply offers the versatility and support for AMD or

Intel CPU based entry level servers, gaming PCs and high end work

stations, or a higher level energy-efﬁcient replacement/upgrade power

supply for Desktop PC’s.

Packaging Contents

1 x ATX Power Supply•

1 x Instruction Manual•

System Requirements

ATX compliant motherboard•

ATX compliant computer case that ﬁts a full sized power supply•

Installation

WARNING! Computer parts can be severely damaged by static

electricity. Be sure that you are properly grounded before opening your

computer case. StarTech.com recommends that you wear an anti-static

strap when installing any computer component. If an anti-static strap

is unavailable, discharge yourself of any static electricity build-up by

touching a large grounded metal surface (such as the computer case)

for several seconds.

Installation of a power supply requires some mechanical skill and

requires that you open your computer case to disconnect and

reconnect wires. If you are unfamiliar with this kind of work, consider

bringing your computer and new StarTech.com power supply to your

local computer store for help.

Hardware Installation

Turn your computer off and any peripherals connected to the1.

computer (i.e. printers, external hard drives, etc.).

If the power supply has a power switch on it, set it to the “0” position.2.

Unplug the power cable from the rear of the power supply on the

back of the computer and disconnect all other peripheral cables.

Remove the cover from the computer case. Refer to documentation3.

for your computer system for details.

Disconnect all of the power connectors from the motherboard and4.

peripheral devices (i.e. hard drives, CD/DVD drives, etc). Make sure

to take note of each connector and where they were plugged in.

Ensure there are no devices connected to the existing power supply.

Remove the existing power supply from the computer case. This is5.

typically done by removing four (4) mounting screws on the outside

face of the power supply. Refer to documentation for your computer

system/case for speciﬁcs.

Install and mount the new power supply by reversing the steps used6.

to remove the old power supply.

Connect the power connectors from the power supply to the7.

motherboard and peripheral devices that were disconnected

previously. Note that this power supply uses a 20+4 pin ATX

connector, so it can be used on motherboards with either a 20-pin or

24-pin connector. Simply detach the extra 4-pin attachment for use

on 20-pin motherboards.

NOTE: the detached 4-pin connector cannot be used in place of the

4-pin ATX12V (P4) connector.

Make sure any loose or unused cables from the power supply are8.

away from fans and other moving parts.

Place the cover back onto the computer case.9.

Make sure the power switch on the power supply is set to “0”, then10.

insert the power cable into the socket on the power supply. If the

old power cable looks worn or damaged in any way, replace with

the supplied power cable, otherwise it is safe to reuse it.

Reconnect all other connectors/cables that were removed in Step11.

2. Set the power switch on the power supply to “1”.

Specications

ATX2PW430PRO ATX2PW530PRO

Standards ATX12V v2.3

EPS12V v2.92

Maximum Power

Output 430W 530W

Efﬁciency Rating

84.08%@20% load

84.81%@50% load

82.47%@100% load

84.72%@20% load

85.61%@50% load

82.01@100% load

Fans 1 x 80mm

Input Power 100 ~ 240VAC, 10 ~ 5A, 47 ~ 63Hz

Operating

Temperature 0°C ~ 40°C (32°F ~ 104°F) @ 90% Load

Storage Temperature -20°C ~ 80°C (-4°F ~ 176°F)

Humidity 5 ~ 90% RH

MTBF 100,000 Hours

Dimensions (LxWxH) 140.0mm x 150.0mm x 86.0mm

Weight 1710g

ATX2PW430PRO Power Output

Output

+3.3V +5V +12V1 +12V2 +12V3 +12V4 -12V +5Vsb

24A 24A 20A 20A 20A 20A 0.5A 2.5A

Max

Power

140W 396W

6W 12.5W

411.5W

ATX2PW530PRO Power Output

Output

+3.3V +5V +12V1 +12V2 +12V3 +12V4 -12V +5Vsb

24A 24A 20A 20A 20A 20A 0.5A 2.5A

Max

Power

140W 492W

6W 12.5W

511.5W

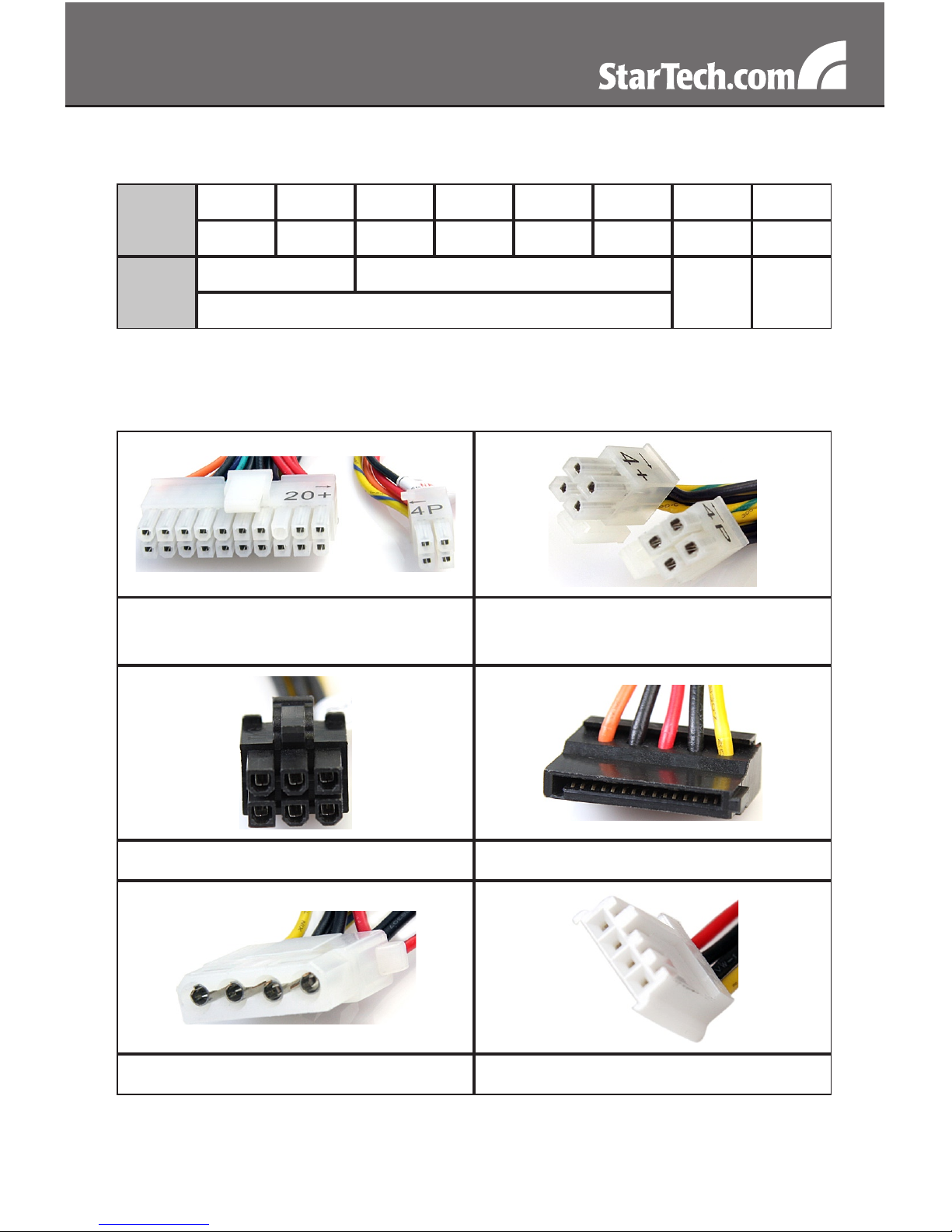

Connectors

1xATX 20+4 pin 1x4+4 pin ATX12V

(8-pin EPS12V)

2 x 6-pin PCI Express 5x15-pin SATA

3x4-pin Molex Power (LP4) 1 x 4-pin Mini-Power (SP4)

Technical Support

StarTech.com’s lifetime technical support is an integral part of our

commitment to provide industry-leading solutions. If you ever need

help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and

downloads.

Warranty Information

This product is backed by a three warranty.

In addition, StarTech.com warrants its products against defects in

materials and workmanship for the periods noted, following the initial

date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion.

The warranty covers parts and labor costs only. StarTech.com does

not warrant its products from defects or damages arising from misuse,

abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA

LLP (or their ofﬁcers, directors, employees or agents) for any damages

(whether direct or indirect, special, punitive, incidental, consequential, or

otherwise), loss of proﬁts, loss of business, or any pecuniary loss, arising

out of or related to the use of the product exceed the actual price paid

for the product. Some states do not allow the exclusion or limitation of

incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

StarTech.com has been making “hard-to-ﬁnd easy” since 1985,

providing high quality solutions to a diverse IT and A/V customer

base that spans many channels, including government, education

and industrial facilities to name just a few. We offer an unmatched

selection of computer parts, cables, A/V products, KVM and Server

Management solutions, serving a worldwide market through our

locations in the United States, Canada, the United Kingdom and

Taiwan.

Visit www.startech.com today for complete information about all

our products and to access exclusive interactive tools such as the

Cable Finder, Parts Finder and the KVM Reference Guide.
