StarTech.com 8STIES81GPOEW Bedienungsanleitung

Manual Revision: 01/17/2017

For the latest information, technical specications, and support for

this product, please visit www.StarTech.com/IES81GPOEW.

FR: Guide de l’utilisateur - fr.startech.com

DE: Bedienungsanleitung - de.startech.com

ES: Guía del usuario - es.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IT: Guida per l’uso - it.startech.com

IES81GPOEW

8-Port Gigabit Ethernet Switch

(4-Port PoE+) - Managed

*actual product may vary from photos

Quick-start guide

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses and can radiate radio frequency energy and,

if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is

likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

Changes or modications not expressly approved by StarTech.com could void the user’s

authority to operate the equipment.

Industry Canada Statement

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [A] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (A)/NMB-3(A)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Quick-start guide

Table of Contents

Introduction............................................................................................1

Product diagram........................................................................................................................................ 1

Package contents...................................................................................................................................... 2

Requirements ............................................................................................................................................. 3

About the LED indicators......................................................................3

Wire the power inputs...........................................................................4

Reboot the network switch ..................................................................4

Reset to the default factory settings ..................................................4

Installation ..............................................................................................5

Install the network switch onto a wall............................................................................................... 5

Install the switch onto a magnetic surface...................................................................................... 6

Mount the switch onto a DIN rail ........................................................................................................ 7

Technical support...................................................................................8

Warranty information............................................................................8

Quick-start guide

Introduction

Use the IES81GPOEW to add up to 10 GbE devices to your network. The IES81GPOEW

features eight RJ45 ports, four of which support Power over Ethernet and up to 36

watts on each of the four ports.

Product diagram

Front view

Mounting hole

Ports 5 to 8 link

and activity LEDs

(2 per port)

3-pin terminal

block

DC power input

RJ45 ports 1 to 4

(Support PoE+)

RJ45 ports 5 to 8

Mounting hole

Power LED

Ports 1 to 4 link

and activity LEDs

(2 per port)

PoE power

usage LED

Quick-start guide

Bottom view

Package contents

• 1 x network switch

• 1 x terminal block connector

• 4 x screw anchors

• 4 x screws

• 4 x attaching pins

• 4 x locking pins

• 4 x washers

• 4 x magnets

• 1 x DIN rail

• 3 x DIN-rail screws

• 8 x RJ45 dust caps

• 1 x quick-start guide

Reset button

Quick-start guide

Requirements

• Ethernet port connection

• RJ45 network cables

• PoE powered devices (optional)

This network switch is OS independent and doesn’t require any additional drivers or

software.

Requirements are subject to change. For the latest requirements, please visit

www.StarTech.com/IES81GPOEW.

About the LED indicators

This network switch features a link and activity LED indicator for each of the eight

RJ45 ports. There is also a power LED located above the 3-pin terminal block, and a

PoE power usage LED that illuminates in 30 watt increments.

For more information about what the LED indicators signify, see the table below.

LED Behavior Signicance

LED indicator on the

right side of RJ45

ports 1 to 4

Illuminated green Link was successfully established

Blinking green Connected device is

transferring data

LED indicator on the left

side of RJ45 ports 1 to 4

Illuminated yellow Port is providing power

Not illuminated Connected device is not a PoE

powered device

LED indicator on the

right side of RJ45

ports 5 to 8

Illuminated green Link was successfully established

Blinking green Connected device is

transferring data

LED indicator on the left

side of RJ45 ports 5 to 8

Illuminated green Connected device is transferring

data at 1000 Mbps

Not illuminated Link is down or connected device

is transferring data at 10/100 Mbps

Power LED indicator Illuminated Switch is receiving power

Quick-start guide

Wire the power inputs

You can use either an external power adapter or the terminal block to power the

network switch. Alternatively, you can connect both an external power adapter and

the terminal block to create a redundant power input.

You should use wire ranging in size of 12 to 24 AWG.

Caution! Make sure that you ground the enclosure before you install the terminal

block connector into the network switch.

1. Insert the grounding wire into the Ground port on the terminal block, and tighten

the wire clamp screws.

2. Insert the positive DC power wire into the V+ port on the terminal block connector,

and tighten the wire clamp screws.

3. Insert the negative DC power wire into the V- port on the terminal block connector,

and tighten the wire clamp screws.

4. Insert the terminal block connector into the 3-pin terminal block on the network

switch.

Reboot the network switch

The Reset button on the network switch is designed to reboot the network switch

without turning o and turning on the power.

• To reboot the network switch, press the Reset button.

Reset to the default factory settings

You can use the Reset button to reset the network switch to the following default

factory settings:

Default user name: admin

Default password: admin

Default IP address: 192.168.0.100

Subnet mask: 255.255.255.0

Default gateway: 192.168.0.254

• To reset to the default factory settings, press and hold the Reset button for more

than 5 seconds.

When you press the Reset button, the port LED indicators illuminate. When the LEDs

are no longer illuminated, the reset sequence is complete.

Quick-start guide

Installation

Install the network switch onto a wall

The mounting holes on the network switch are 8 mm in diameter, and the distance

between the two holes is 133 mm.

1. Hold the network switch against the wall in the area that you want to install it, and

use a pencil to trace the location of the four mounting holes onto the wall.

2. Use the mounting holes that you traced on the wall as a template and drill holes in

the wall.

3. Insert the four screw anchors into the holes.

Note: Make sure that the screw anchors are ush against the wall.

4. Place the network switch against the wall and insert the four screws through the

mounting holes on the switch and into the screw anchors. (gure 1)

5. Tighten the screws.

6. To power the switch, connect an external power adapter, wire the power inputs, or

do both.

7. Connect RJ45 cables to the RJ45 ports on the network switch.

Screw

Screw anchor

Mounting hole

gure 1

*actual product may vary from illustration

Quick-start guide

Install the switch onto a magnetic surface

1. Push each of the attaching pins into a locking pin.

2. Insert the attaching and locking pins into one of the mounting holes on the

network switch, through a washer, and into a magnet.

Note: To prevent the magnets from becoming loose, make sure that you position the

magnet so that the at side is against the network switch.

3. Repeat step 2 for all of the mounting holes on the network switch. (gure 2)

4. Attach the network switch to a magnetic surface.

5. To power the switch, connect an external power adapter, wire the power inputs, or

do both.

6. Connect RJ45 cables to the RJ45 ports on the enclosure.

Attaching pin

Locking pin

Washer

Magnet

gure 2

*actual product may vary from illustration

Quick-start guide

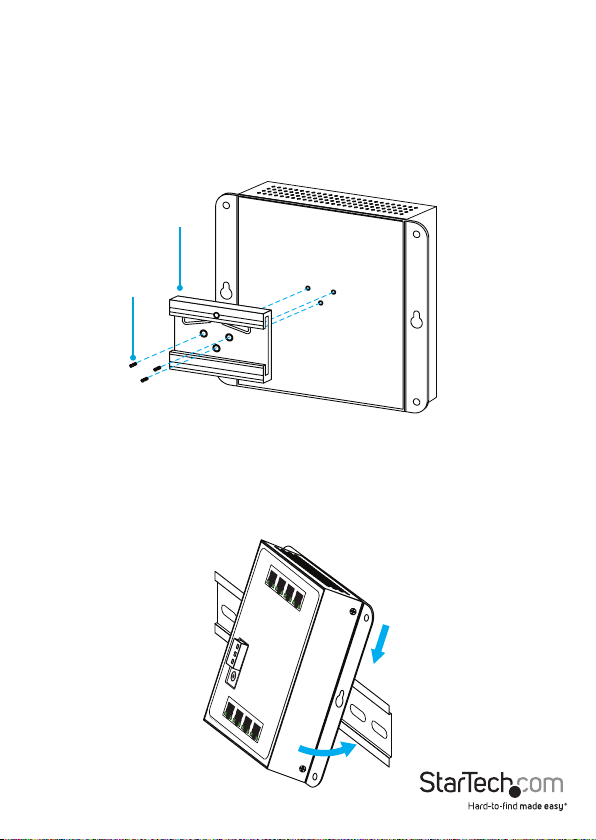

Mount the switch onto a DIN rail

1. With the at side of the DIN rail positioned against the network switch, line up the

holes on the DIN rail with the holes on the switch.

2. Insert the DIN-rail screws through the DIN rail and into the network switch.

(gure 3)

3. Tighten the screws.

gure 3

DIN-rail screw

DIN rail

4. Hook the DIN rail onto the top of the track, and push it against the track. (gure 4)

5. To power the switch, connect an external power adapter, wire the power inputs, or

do both.

6. Connect the RJ45 cables to the RJ45 ports on the enclosure.

gure 4

*actual product may vary from illustration
