Introduction

Packaging Contents

• 1 x KVM Switch

• 1 x Software CD

• 1 x Instruction Manual

System Requirements

• Available VGA video output and USB connection

• Monitor and USB keyboard/mouse peripheral set

Installation

1. Before connecting the KVM Switch, insert the included installation CD into each

computer’s CD/DVD drive.

2. If AutoPlay runs, choose the option to browse/open the folder. Otherwise you can

access the les on the CD by going into My Computer, double-click the CD/DVD

drive and run Autorun.exe.

3. Click the appropriate software installation option for your system, and available

ports (“2-Port KVM”- Mac or Windows), and you will be prompted to click Next

several times to complete the installation.

4. Once the installation is complete, a new system tray icon will display (Windows), or a

new Application (Mac OS) with the following indicators.

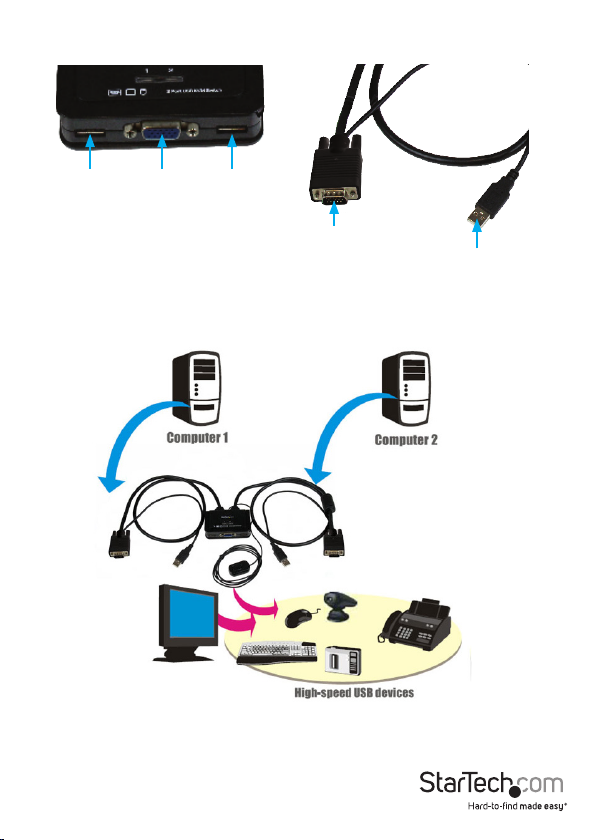

5. Connect your VGA monitor, keyboard and mouse to the available ports on the KVM

Switch.

Instruction Manual

6. Connect the attached KVM cables to Computer 1.

7. Perform the same connections to Computer 2.

USB USB

VGA

USB

Instruction Manual

Operation

There are three methods to control your KVM Switch for computer selection:

1. QuickSwitch Button - A wired remote control for direct switching control. Simply

press the button to toggle between the two computers.

2. KVM Switching Software (Windows & Mac platform) – See “Quick Reference Sheet”

below for details

3. Keyboard hotkeys – For Windows, the computer toggle key combination is “Scroll

Lock, Scroll Lock”. For Mac, please refer to Dene Hotkey Preceding Sequence in the

Quick Reference Sheet.

Note: Each keystroke hotkey sequence should be pressed within two seconds,

otherwise, the hotkey sequence may not be validated.

Hotkey Quick Reference Guide

Command Switcher Software Description

Select PC Port

Right-click the KVM Switching icon

to evoke the operation menu, then

select whichever computer that is

available for switching.

Select the active PC port

Previous PC

port

Right-click the KVM Switching icon

to evoke the operation menu, then

select whichever computer that is

available for switching.

Select the previous

connected PC port

Next PC port

Right-click the KVM Switching icon

to evoke the operation menu, then

select whichever computer that is

available for switching.

Select the next

connected PC port

Dene Hotkey

Preceding

Sequence

Right-click the KVM Switching

icon to evoke the operation menu,

then select Settings (Windows) /

Conguration Dialog Box (Mac OS).

User–denable hotkeys

sequence for computer

selection is “Ctrl +Alt+

[command key]”.

For Mac, instead of Scroll

Lock key, you may use

User-denable hotkey

sequence to switch.

Instruction Manual

Beeper

Right-click the KVM Switching icon

to evoke the operation menu, then

check the box “Turn on Buzzer”.

Beeper will be functional

between operations of

KVM switch

Keep in Dock

(Mac only)

Right-click the KVM Switching icon

to evoke the operation menu, and

then select “Keep in Dock”.

KVM switching icon will

be on the system tray of

your desktop

Open at Login

(Mac only)

Right-click the KVM Switching icon

to evoke the operation menu, then

select “Open at login”.

Operate Switcher

Software and login

Autoscan

Right-click the KVM Switching icon

to evoke the operation menu, then

select Start Auto-Scan to activate

autoscanning.

Autoscan through every

connected port for quick

screen browsing of each

port (default scan delay

time = 10 second)

Autoscan with

Programmable

Delay Time

Right-click the KVM Switching icon

to evoke the operation menu, then

select a range of Auto-Scan Period.

Autoscan with a user-

dened delay time

within a range of 10 ~ 60

seconds

Stop Autoscan

While autoscanning, right-click the

KVM Switching icon to evoke the

operation menu, and then select

Stop Auto-Scan to de-activate

autoscanning.

Terminate Autoscan

activity

Instruction Manual

Specications

Console Connectors

1 x VGA (15 pin; High Density D-Sub)

Female

2 x USB A (4 pin) Female

Computer Connectors

(per port)

1 x VGA (15 pin; High Density D-Sub) Male

1 x USB 2.0 A (4 pin) Male

LEDs 2 x PC Selection Indicator

Switching Modes Pushbutton, Hot-key, Software

Maximum Resolution 2048x1536

Audio Support No

On Screen Display No

Cascadable No

Rack-Mountable No

Enclosure Type Plastic

Operating Temperature 0°C to 40°C (32°F to 104°F)

Storage Temperature -20°C to 60°C (4°F to 140°F)

Humidity 0~90% RH Non-Condensing

Cable Length 0.85 m (Attached KVM Cable)

1.4 m (Remote Switch)

Dimensions (LxWxH) 88 x 66 x 23mm

Weight 380g

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase.

During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.

StarTech.com is your one-stop source for every connectivity part you need. From

the latest technology to legacy products — and all the parts that bridge the old and

new — we can help you nd the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need

to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to

the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and

to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology

parts. StarTech.com was founded in 1985 and has operations in the United States,

Canada, the United Kingdom and Taiwan servicing a worldwide market.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere StarTech.com Schalten Handbücher

StarTech.com

StarTech.com Starview SV231USBANGB Bedienungsanleitung

StarTech.com

StarTech.com ST4200MINI Bedienungsanleitung

StarTech.com

StarTech.com ST124WGB Bedienungsanleitung

StarTech.com

StarTech.com HBS304A24A Bedienungsanleitung

StarTech.com

StarTech.com SV441DUSBI Bedienungsanleitung

StarTech.com

StarTech.com VS123HD Bedienungsanleitung

StarTech.com

StarTech.com 8 Port StarView CAT5 UTP KVM Bedienungsanleitung

StarTech.com

StarTech.com ST7202USBGB Bedienungsanleitung

StarTech.com

StarTech.com SV431DPUA2 Bedienungsanleitung

StarTech.com

StarTech.com SV431HDU3A2 Bedienungsanleitung

StarTech.com

StarTech.com STARVIEW SV231DDUSB Bedienungsanleitung

StarTech.com

StarTech.com SV431USBAE Bedienungsanleitung

StarTech.com

StarTech.com DuraView RACKCONS1708 Bedienungsanleitung

StarTech.com

StarTech.com 5G7AIBS-USB-HUB-NA Bedienungsanleitung

StarTech.com

StarTech.com SV231DD2DUA Bedienungsanleitung

StarTech.com

StarTech.com 35BAYFWUSB Systemhandbuch

StarTech.com

StarTech.com SV231U3A Bedienungsanleitung

StarTech.com

StarTech.com SV221NANOU Bedienungsanleitung

StarTech.com

StarTech.com ST4205READ Bedienungsanleitung

StarTech.com

StarTech.com ICUSB2322X Bedienungsanleitung

StarTech.com

StarTech.com HDVGADP2HD Bedienungsanleitung

StarTech.com

StarTech.com STARVIEW SV431DUSB Bedienungsanleitung

StarTech.com

StarTech.com D86A2-2-PORT-8K-KVM Bedienungsanleitung

StarTech.com

StarTech.com SV221MICRO Bedienungsanleitung

Beliebte Schalten Handbücher anderer Marken

URC

URC Total Control MFS-8 Bedienungsanleitung

Azbil

Azbil HPQ-D11 Bedienungsanleitung

Sony

Sony DFS-900M Bedienungsanleitung

SICK

SICK i17S Bedienungsanleitung

F&F

F&F SZR-277 Bedienungsanleitung

Shure

Shure UAMS/BK Bedienungsanleitung

Dräger

Dräger X-zone Switch Off Bedienungsanleitung

Asco

Asco Joucomatic 349 Series Bedienungsanleitung

BT Mini Hub Bedienungsanleitung

D-Link

D-Link DES-1226G Bedienungsanleitung

Johnson Controls

Johnson Controls FS80-C Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Bedienungsanleitung

MicroNet

MicroNet SP1200A Bedienungsanleitung

Ruijie

Ruijie RG-PF2920 Series Installations- und Betriebsanleitung

Altinex

Altinex DA1914SX Bedienungsanleitung

MiLAN

MiLAN MIL-SM2401M Bedienungsanleitung

RJM

RJM MASTERMIND PBC/6X Bedienungsanleitung

Atlas

Atlas MMK-KVM8 Bedienungsanleitung
