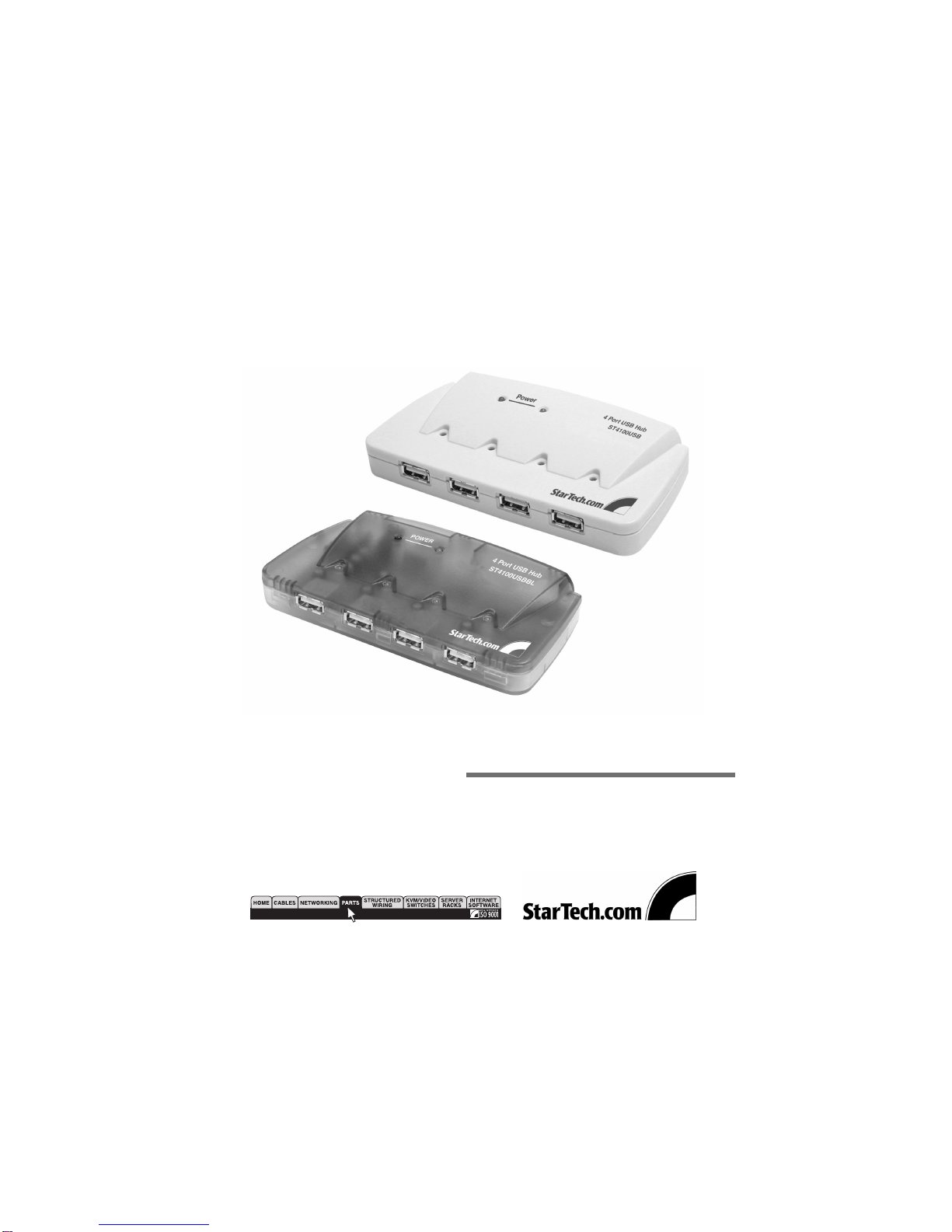

Installation Manual

ST4100USB

ST4100USBBL

USB Hub

4 Port Universal Serial Bus Hub

Overview

The StarTech 4 port USB Hub provides the ability to expand the number of available

USB ports on a computer. It supports both full speed and low speed USB devices such

as scanners, cameras, joysticks, keyboards, mice, speakers, etc. The unit can operate in

self-powered mode (drawing power from the USB bus) or by using the included power

adapter. A 6 ft. USB cable is included to connect the hub to a computer. It is compatible

with both PCs and Macs with USB capablities. No software is required.

Features

lExpands the number of available USB connections from 1 to 4.

lPeripherals can be plugged in and unplugged while the system is active.

lSupports both 12 Mbps and 1.5 Mbps data speeds.

lFully USB compliant.

lWorks with PCs, Apple iMac and G3/G4 computers.

Getting Started

This section is designed to help you prepare the 4 Port USB hub for installation. Please

read through this section carefully before attempting to install the card.

Unpacking the 4 Port USB hub

This package should contain:

1 x 4 Port USB hub

1 x 6 ft. USB cable

1 x 1 Power adapter DC 6V (2.1A)

Spcifications

Power Mode Settings

There are two power modes for the USB hub, one is self-powered mode and the other is

bus-powered mode. For self powered mode the hub provides all the downstream ports

with each port with DC + 5V, 500mA (max.) power supply. For the bus-powered mode,

the USB hub provides all four downstream ports with DC + 5V, 500mA in total. If you

Function Description

Power Consumption

Connector Upstream

Downstream

LED

Weight

Dimensions (LxWxH)

3mA per LED

40mA for Hub control circuit

1 USB Series B Receptacle

4 USB Series A Recepticales

1 USB-power (Green LED)

1 Self-power (Red LED)

4 Port Active Status (Green LED)

100g

67mm x 125mm x 23mm

Power

Port Status

are using self-powered mode make sure that the power adapter is properly connected

to the hub. The power mode is automatically selected when insert the power adapter

into the power jack of the USB hub.

Installation

1. Insert the connector of the DC 6V 2.1A power adapter into the pawer jack of the

USB hub then plug the adapter into the wall.

2. Connect the series-A connector (the rectangular shaped connector) of the USB cable

into the downstream port of your PC or host controller.

3. Connect the series-B connector (the square shqped connector) of the USB cable into

the upstream port of the USB hub.

4. Connect the series-A connector of your USB device, such as USB mouse, USB

keyboard, into any of the downstream ports of the USB hub.

Self-powered LED

(Red LED)

Power Adapter

Port

Upstream Port

Bus-powered LED

(Green LED)

Port 1 Port 2

Port 3 Port 4

Per-port LED

(Green LED)

Installing your USB devices

Series A Connector

Series B Connector
