StarTech.com WIFI2HDVGA Bedienungsanleitung

Manual Revision: 10/26/2015

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

WIFI2HDVGA

WIFI2HDVGAGE

Presentation hub for wireless video

*actual product may vary from photos

IMPORTANT!: Please keep this manual,

it contains your Software Product Code.

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment o and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

Changes or modications not expressly approved by StarTech.com could void the user’s

authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) This device may not cause interference, and

(2) This device must accept any interference, including interference that may cause undesired

operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio

exempts de licence.

L’exploitation est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et

(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le

brouillage est susceptible d’en compromettre le fonctionnement.

Instruction Manual

IC Radiation Exposure Statement

This equipment complies with IC RSS-102 radiation exposure limit set forth for an

uncontrolled environment. This equipment should be installed and operated with minimum

distance 0.5cm between the radiator and your body.

Déclaration d’exposition à la radiation

Cet équipement respecte les limites d’exposition aux rayonnements IC dénies pour un

environnement non contrôlé. Cet équipement doit être installé et mis en marche à une

distance minimale de 0.5 cm qui sépare l’élément rayonnant de votre corps.

L’émetteur ne doit ni être utilisé avec une autre antenne ou un autre émetteur ni se trouver

à leur proximité.

FCC ID: Z7ZMAXMEDIAWIFI2

IC: 11232A-WIFI2HDMC

The Country Code Selection feature is disabled for products marketed in the US/Canada

The device, for operation in the band 5150–5250 MHz is only for indoor use to reduce the

potential for harmful interference to co-channel mobile satellite systems.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................2

Packaging Contents ................................................................................................................................. 2

System Requirements.............................................................................................................................. 2

Installation ..............................................................................................3

Boardroom Collaboration mode ......................................................................................................... 3

Wireless Display mode ............................................................................................................................ 7

Technical Support ..................................................................................9

Warranty Information............................................................................9

For full operational instructions please download the full

product manual at www.StarTech.com/WIFI2HDVGA.

Instruction Manual

Introduction

Packaging Contents

• 1x Presentation hub

• 1x Power adapter

• 1x Quick install guide

System Requirements

• 1 x VGA or HDMI® display with cabling (i.e. television, projector)

• For Boardroom Collaboration mode:

One or more Wi-Fi enabled computers with:

• Microsoft Windows® 8 / 8.1 (32/64), 7(32/64), Vista (32/64)

• Apple® OSX Yosemite (10.10), Mavericks (10.9), Mountain Lion (10.8), Lion (10.7),

Snow Leopard (10.6)

• For Wireless Display Mode:

1 x WiDi or Miracast enabled video source device (i.e. Smartphone, tablet,

computer) with:

• Microsoft Windows® 8 / 8.1 (32/64), 7(32/64), Vista (32/64)

• Android (v.4.3 and above)

Operating system support is subject to change. For the latest requirements, please visit

www.startech.com/WIFI2HDVGA

Instruction Manual

Installation

1. Using the required video cable (not included), connect the presentation hub to your

VGA or HDMI display.

Note: The VGA and HDMI outputs cannot operate at the same time. If ports are

connected to a display only the HDMI port will function.

2. Connect the included power adapter from your presentation hub to a power outlet.

3. Press the power button on the presentation hub, to turn it on.

4. After a few moments the main screen will be displayed.

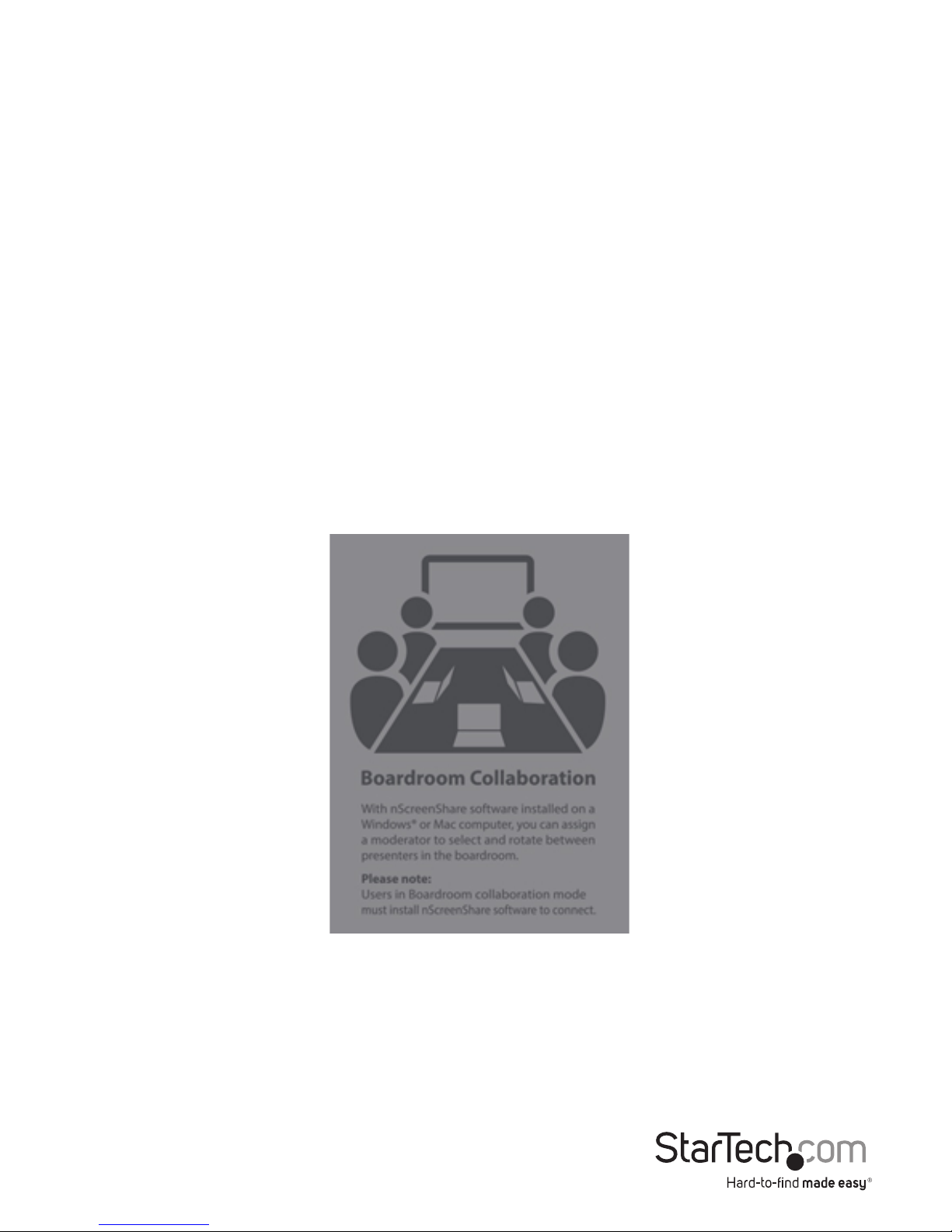

Boardroom Collaboration mode

Boardroom collaboration mode enables you to intuitively share your boardroom

display between multiple computer systems.

Note: To share the display in Boardroom Collaboration mode, you must install the

nScreenShare Software on any computer you intend to share the screen of.

Install nScreenShare on your computer

1. Download the latest version of the nScreenShare software from

www.StarTech.com/WIFI2HDVGA.

Note: Please ensure you have extracted the zip le before continuing with the

installation steps.

Instruction Manual

2. Run the nScreenShare application.

a. If you’re installing the software on a Windows computer, locate and double click

the setup le (Setup.exe) for the nScreenShare application. This le will be located in

the Win directory of the downloaded le.

b. If you’re installing the software on a Mac computer, locate and double click the

software package (nScreenShare.pkg). This le will be located in the MacOS folder of

the downloaded le.

Note: you will be prompted to enter a Mac Software Product Code, the code can be

located on the back cover of this manual.

3. The setup wizard will appear once your system is ready. Please follow the on screen

prompts to continue installation.

4. You will be prompted to click nish once the setup wizard has completed. You may

also be prompted to restart your computer to complete the installation. Please click

Finish followed by Yes on each respective window.

nScreenShare operation

1. Use the wireless NIC on your computer to connect to the presentation hub. The

default SSID (Secure Set Identier) for the presentation hub is WIFI2HDVGA.

Instruction Manual

2. Launch the nScreenShare application on your computer.

a. Double click the icon for the nScreenShare, this will display a login screen with

“Select Server” and“Login Code”dialog boxes.

Note: The Select Server dialog box will already be populated as the software will

automatically detect your presentation hub through your Wireless NIC.

b. Enter the Login Code that’s located on the launch screen of your HDMI display,

and press OK, to launch the nScreenShare application.

3. Dene an administrative computer by setting the nScreenShare application on that

computer into Conference Mode.

Note: Once a user’s computer has been placed into Conference Mode, there are two

types of roles within the software: Administration and client. It’s the administrator’s

responsibility to control which client will be actively presenting their screen through

the presentation hub.

a. Using the computer you’d like to designate as the Administrator, click the menu

icon

followed by Enable Conference Mode.

-> Enable Conference mode

b. The rst person to connect to the nScreenShare software, will automatically be

programed as Administration. A dialog box will appear requesting Administrator

Username: admin

Password: adminpwd

Then click okay.

Instruction Manual

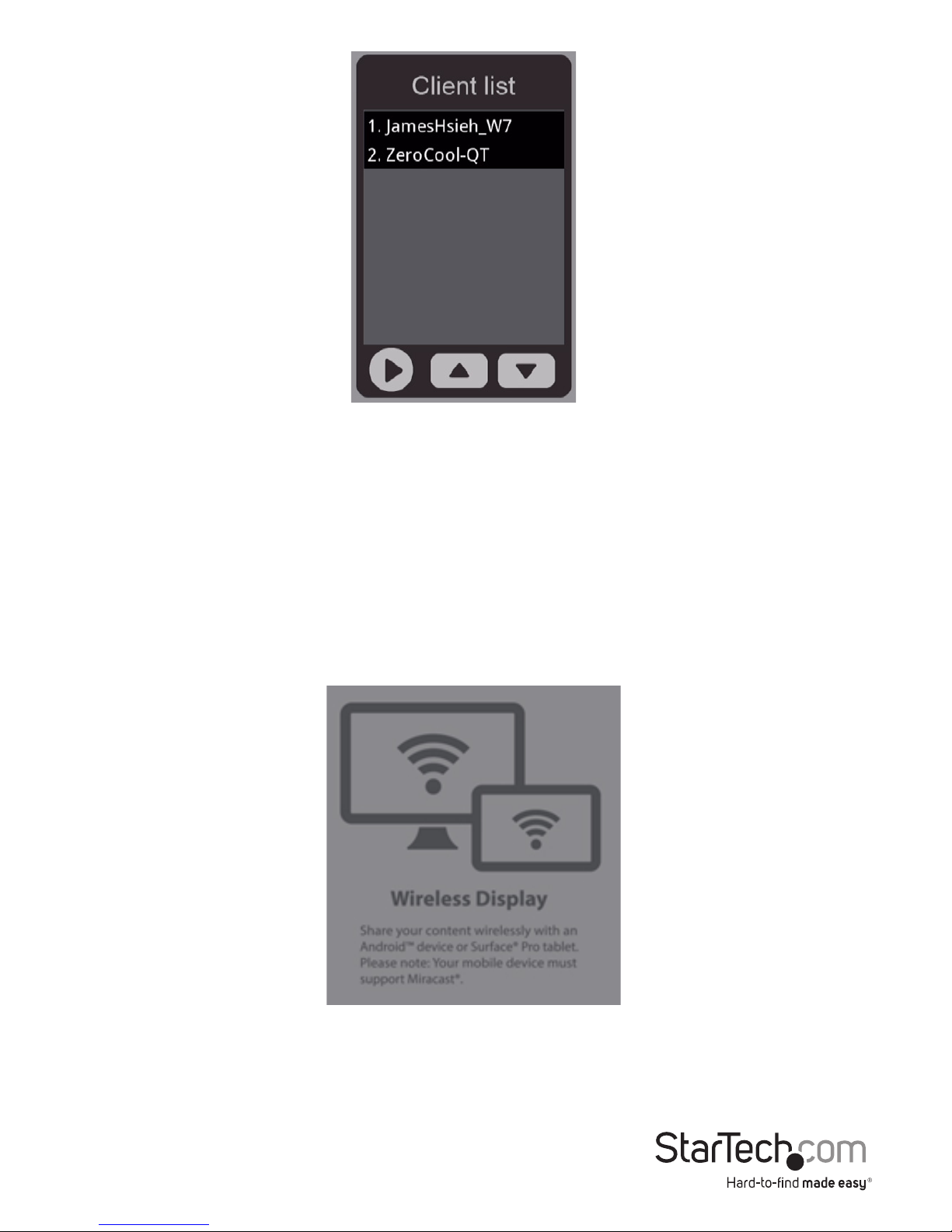

5. Using the administrative computer, choose which client is displayed by selecting

the device name for your preferred computer from the Client List on list.

The administrative screen will now launch on the administrators computer.

Instruction Manual

This client is now sharing his or her screen with the boardroom display.

Wireless Display mode

(Miracast or WiDi enabled computer, smartphone or tablet required)

Wireless Display mode enables you to wirelessly share your HDMI Display with Miracast

or WiDi enabled devices such as Android smartphones & tablets, and Windows® 8.1

laptops, Ultrabooks & Surface tablets – without installing additional software.

Note: Exact steps regarding Miracast setup will vary depending on your device and

software. Please review the documentation included with your smartphone, tablet

or computer for specic instructions. The following sections will indicate common

examples of how to connect.
