Stealkey Customs SK-Crossflow Distroplate Bedienungsanleitung
1
PNr.: SW10032
EAN: 4260754980010
SK-Crossflow Distroplate Montageanleitung
Assembly Instructions
SK-Crossflow Distroplate
2
1.
Montageanleitung
Assembly Instructions

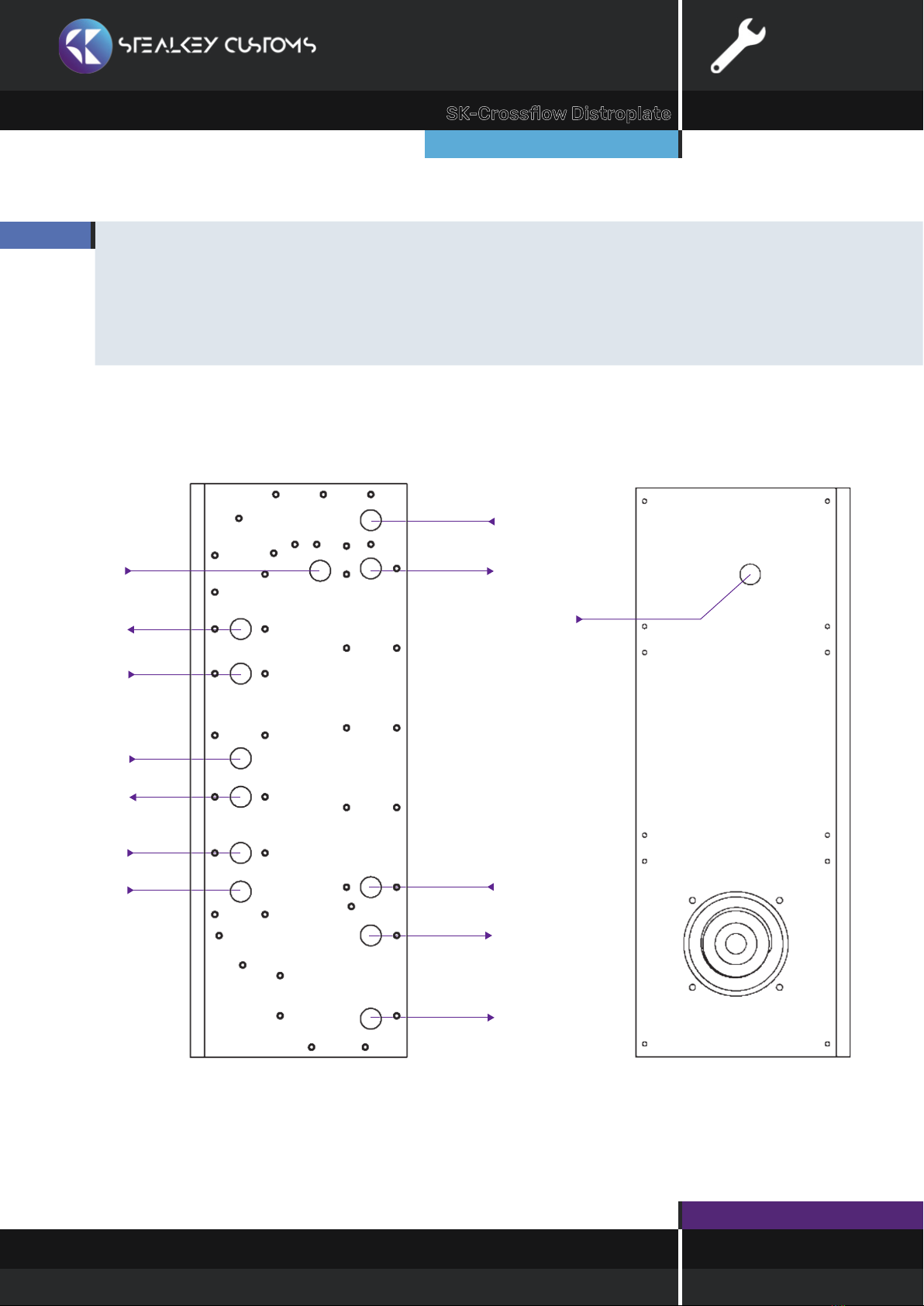

PREPARATION - PLANNING THE WATER CIRCUIT
Take a look at the connection overview and plan your water circuit accordingly. The CPU
and GPU are connected in parallel. Be sure to use the correct inputs and outputs for the
CPU and GPU.
If only the CPU or GPU ports are used, additional stop settings are provided.
FILL RADIATOR OUT
RADIATOR OUT
RADIATOR IN
GPU IN
CPU OUT
GPU OUT
CPU IN
CPU IN
RADIATOR IN
DRAIN
GPU IN
FILL
Front Back
SK-Crossflow Distroplate
3
2.
Montageanleitung
Assembly Instructions

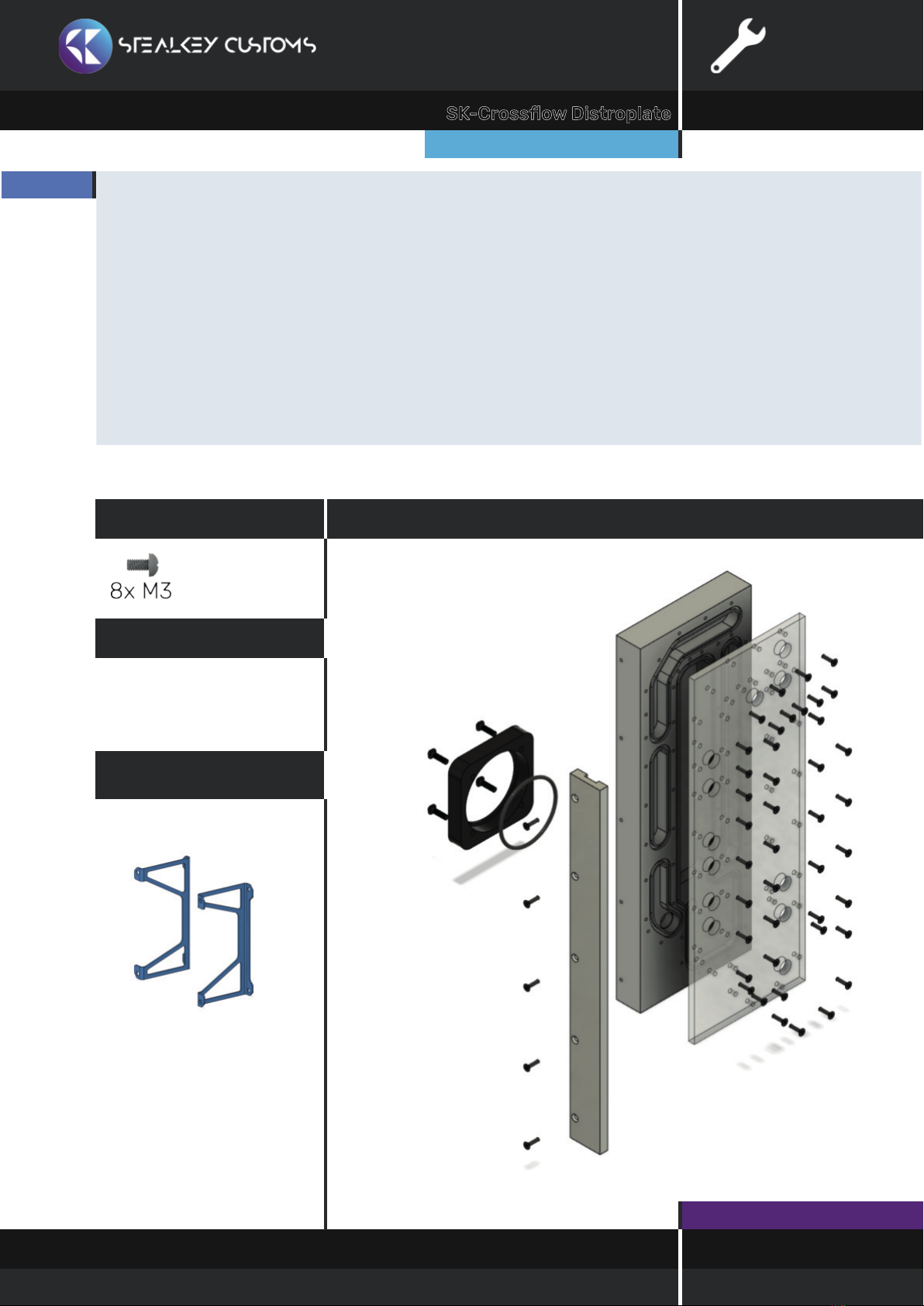

PACKAGING CONTENT WARNING
This product is intended for advanced users. Improper installation may result in
damage to your equipment. While every eort has been made to provide the most
comprehensive information possible, Stealkey Customs assumes no liability, express or
implied, for damage to your components resulting from the use of Stealkey Customs
cooling products, whether due to errors or omissions on our part in the instructions
below, or due to errors or defects in Stealkey Customs cooling products. Do not disas-
semble the water block. Doing so will void the warranty. Turn o your system and
discharge your body's static charge before proceeding with the installation. If you do
not feel comfortable performing the installation procedure, contact a qualified compu-
ter technician.
Mounting screws SK-Crossflow Distroplate included pump seal
RGB cable
1x D-RGB 3pin
(500mm cable)
optional accessories
(not included in delivery)
1x spacer
4

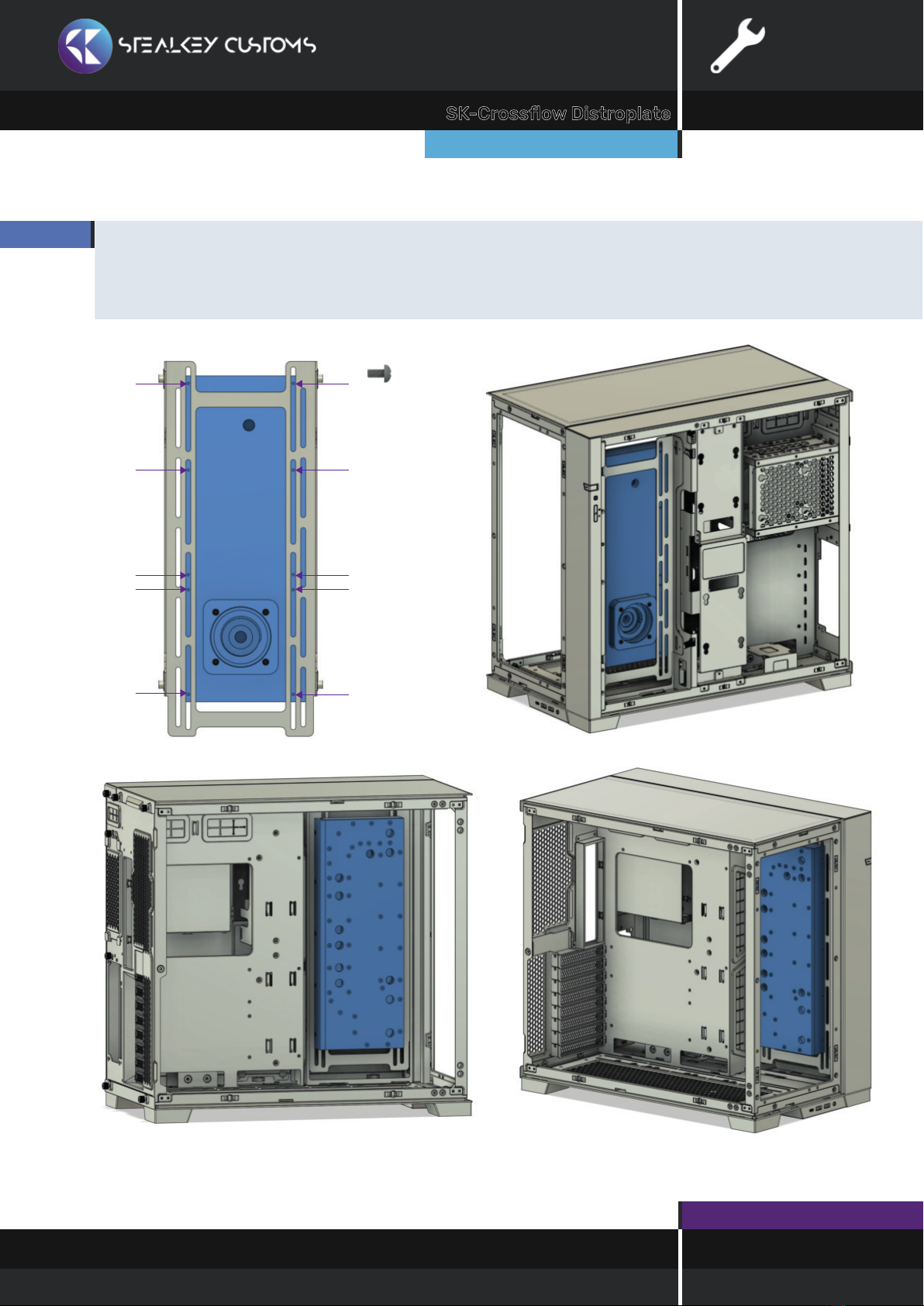

INSTALLING THE DISTROPLATE
Install the distroplate on the radiator grille. Use the 8 M3 screws provided (10 mounting
holes, not all need to be used). Do not overtighten the screws (3-5 N/m maximum).
3.
SK-Crossflow Distroplate Montageanleitung
Assembly Instructions
8x M3
5

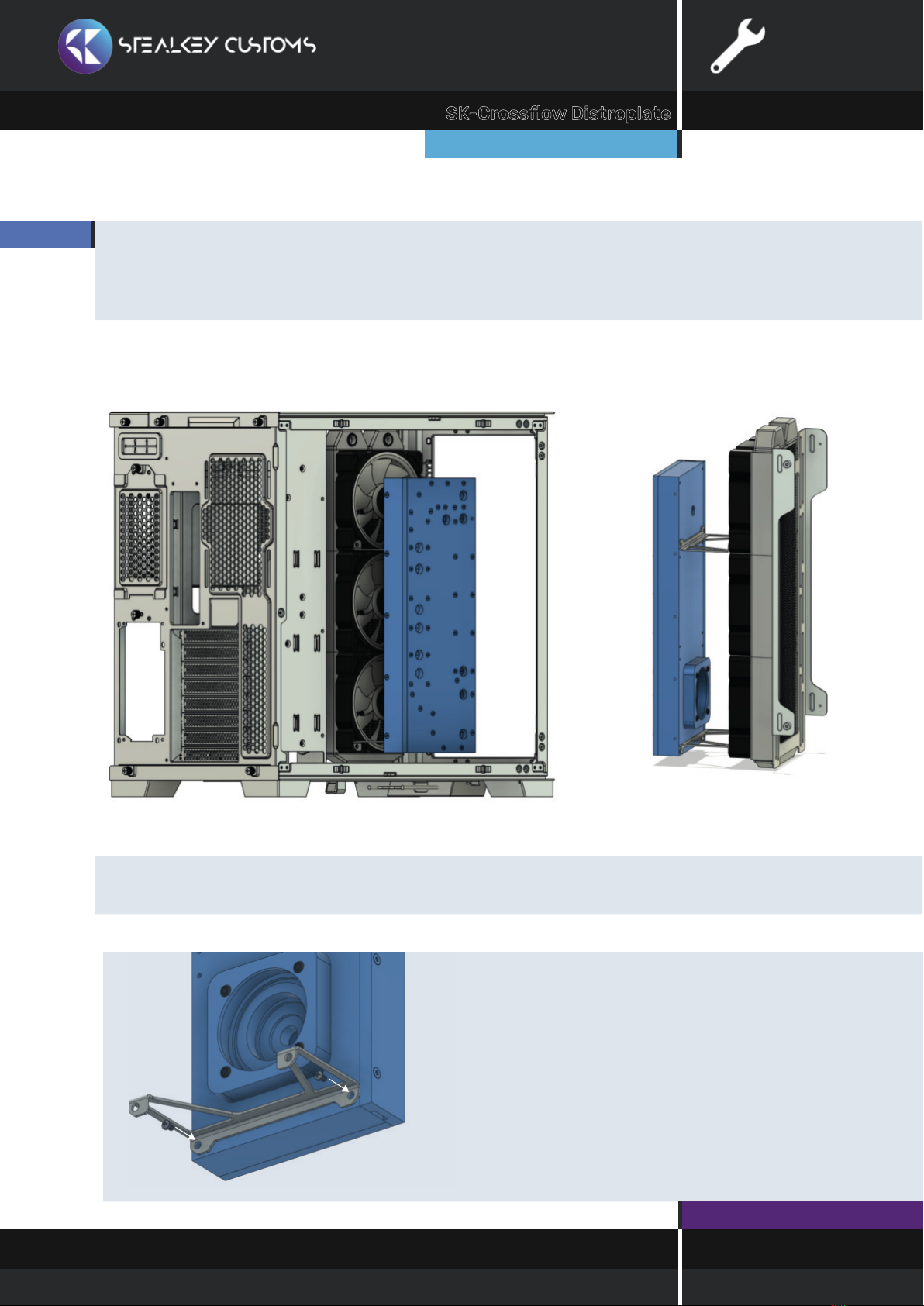

INSTALLING THE DISTROPLATE
When installing the Crossflow in front of a radiator/fan, spacers must be installed to
ensure sucient space for the D5/DDC pump.
3.
SK-Crossflow Distroplate Montageanleitung
Assembly Instructions
Spacer ensures sucient space (approx. 58mm) between distroplate and fan (on picture 2
only D5 pump adapter is shown). Spacer must be purchased additionally!
picture 1 picture 2
Use M3 mounting screws to fasten the spacers.
Use the fan screws of the fans to fix the spacers
together with the distroplate to the fans.
6
CONNECTING THE D-RGB CABLE
Connect the D-RGB cable to a compatible motherboard.
4.
INSTALLING THE CONNECTIONS
Mount the connections with G1/4 thread and close the remaining connections with
sealing plugs. Always perform a leak test before applying power to the system compo-
nents (max. 0.5 bar).
Align the screw positions.
Carefully loosen the shut-o valve of the filling connection to allow trapped air to
escape.
5.
CLEANING & CARE
Clean the manifold plate only with microfiber cloths to avoid scratches in the material.-
Do not use cleaners containing alcohol to avoid stress cracks in the material.Before
installing the manifold plate, it is recommended to rinse the manifold plate to remove
any last residues. Acrylic paints can leave residues.
6.
SK-Crossflow Distroplate Montageanleitung
Assembly Instructions
7

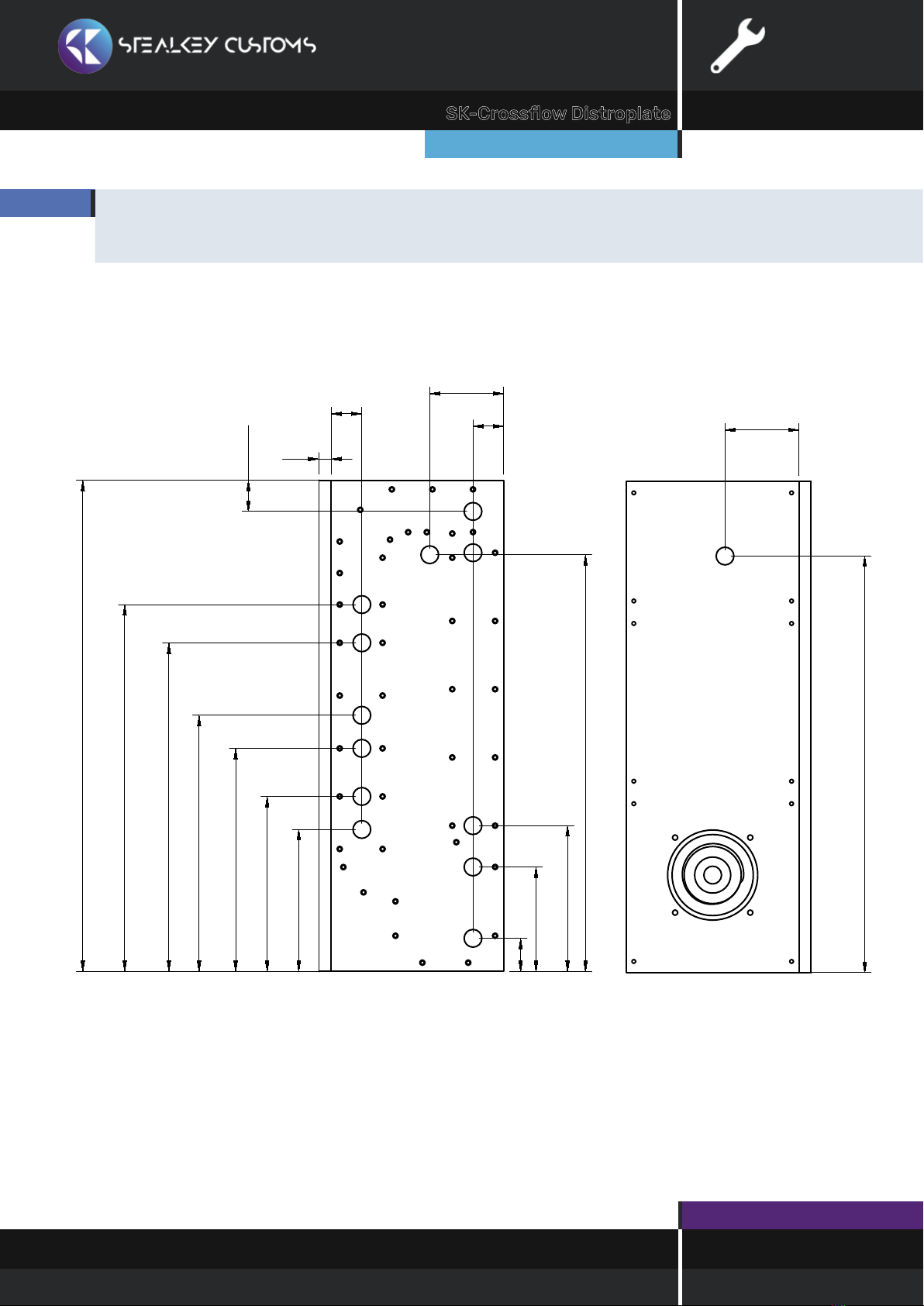

DISTROPLATE DIMENSIONS
The dimensions are in mm.
7.
SK-Crossflow Distroplate Montageanleitung
Assembly Instructions
20.5
20.5
49.3
49.3
8
20.75
94.5
116.5
148.5
170.5
218.75
244.25
277.45
97
69.5
22
327
277.45
